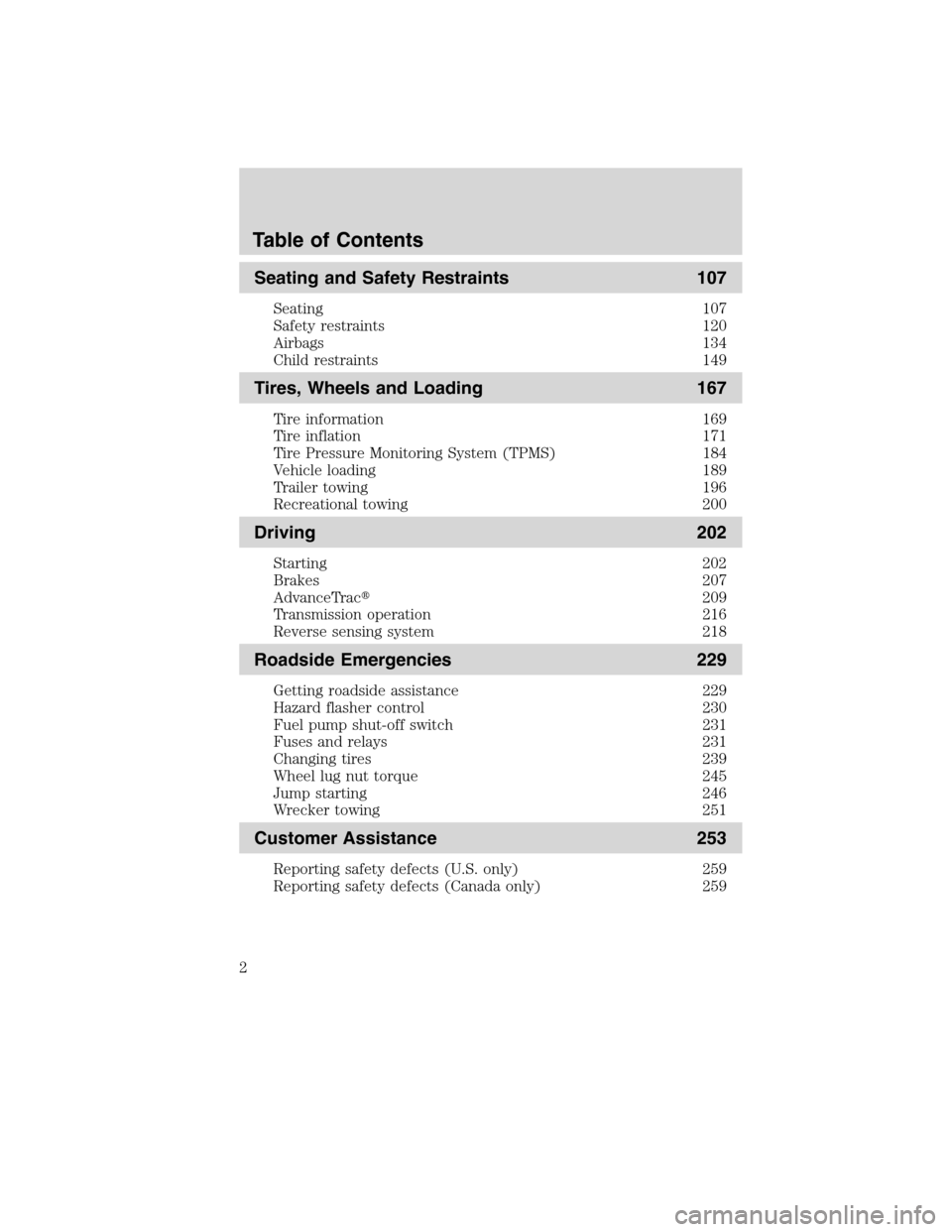

Page 2 of 316
Seating and Safety Restraints 107
Seating 107
Safety restraints 120
Airbags 134
Child restraints 149
Tires, Wheels and Loading 167
Tire information 169
Tire inflation 171
Tire Pressure Monitoring System (TPMS) 184
Vehicle loading 189
Trailer towing 196
Recreational towing 200
Driving 202
Starting 202
Brakes 207
AdvanceTrac209
Transmission operation 216
Reverse sensing system 218
Roadside Emergencies 229
Getting roadside assistance 229
Hazard flasher control 230
Fuel pump shut-off switch 231
Fuses and relays 231
Changing tires 239
Wheel lug nut torque 245
Jump starting 246
Wrecker towing 251
Customer Assistance 253
Reporting safety defects (U.S. only) 259
Reporting safety defects (Canada only) 259
Table of Contents
2
2010 MKX(mkx)
Owners Guide(own2002), 1st Printing
USA(fus)
Page 229 of 316

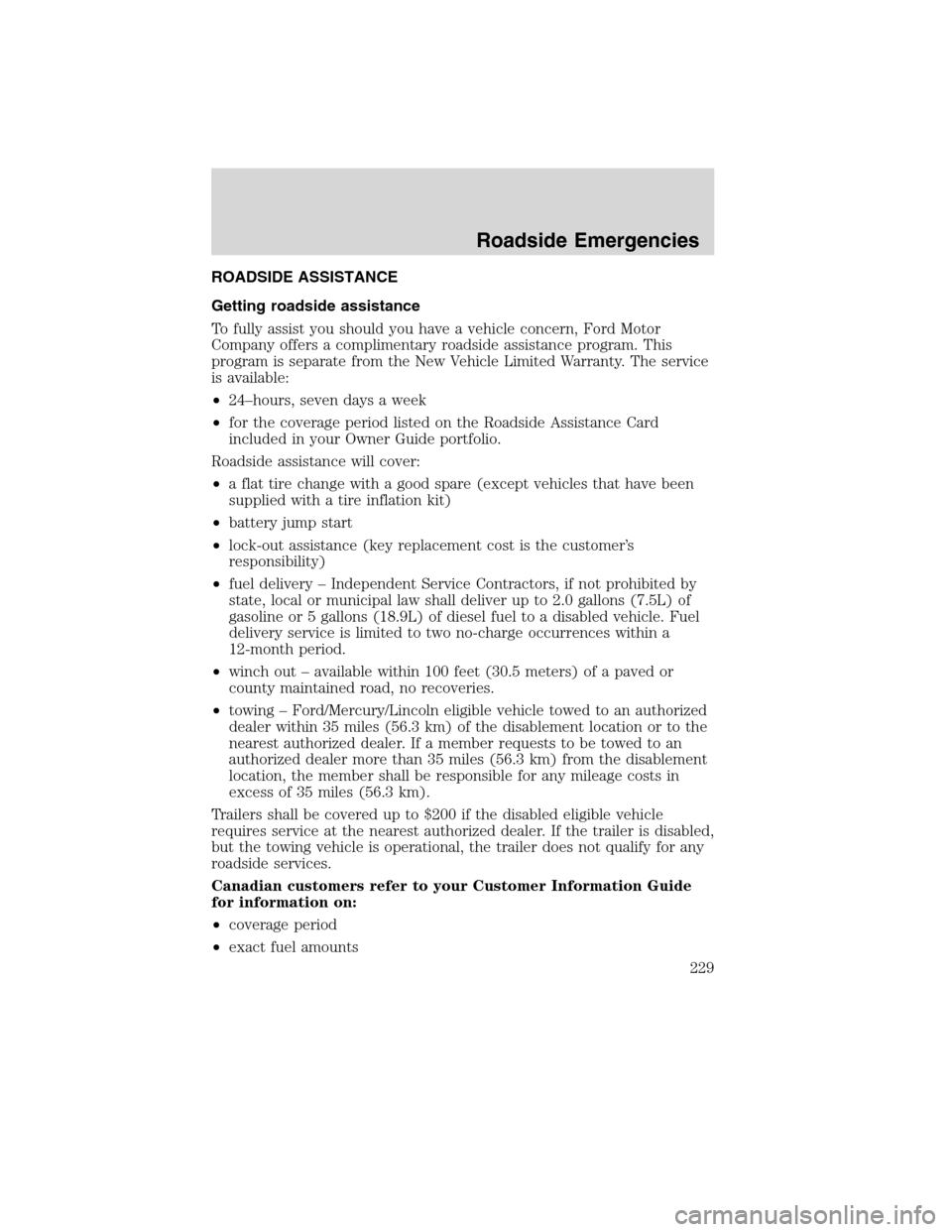

ROADSIDE ASSISTANCE
Getting roadside assistance
To fully assist you should you have a vehicle concern, Ford Motor
Company offers a complimentary roadside assistance program. This
program is separate from the New Vehicle Limited Warranty. The service
is available:
•24–hours, seven days a week
•for the coverage period listed on the Roadside Assistance Card
included in your Owner Guide portfolio.
Roadside assistance will cover:
•a flat tire change with a good spare (except vehicles that have been
supplied with a tire inflation kit)
•battery jump start
•lock-out assistance (key replacement cost is the customer’s
responsibility)
•fuel delivery – Independent Service Contractors, if not prohibited by
state, local or municipal law shall deliver up to 2.0 gallons (7.5L) of
gasoline or 5 gallons (18.9L) of diesel fuel to a disabled vehicle. Fuel
delivery service is limited to two no-charge occurrences within a
12-month period.
•winch out – available within 100 feet (30.5 meters) of a paved or
county maintained road, no recoveries.
•towing – Ford/Mercury/Lincoln eligible vehicle towed to an authorized
dealer within 35 miles (56.3 km) of the disablement location or to the
nearest authorized dealer. If a member requests to be towed to an
authorized dealer more than 35 miles (56.3 km) from the disablement
location, the member shall be responsible for any mileage costs in
excess of 35 miles (56.3 km).
Trailers shall be covered up to $200 if the disabled eligible vehicle
requires service at the nearest authorized dealer. If the trailer is disabled,
but the towing vehicle is operational, the trailer does not qualify for any
roadside services.
Canadian customers refer to your Customer Information Guide
for information on:
•coverage period
•exact fuel amounts
Roadside Emergencies
229
2010 MKX(mkx)
Owners Guide(own2002), 1st Printing
USA(fus)
Page 246 of 316

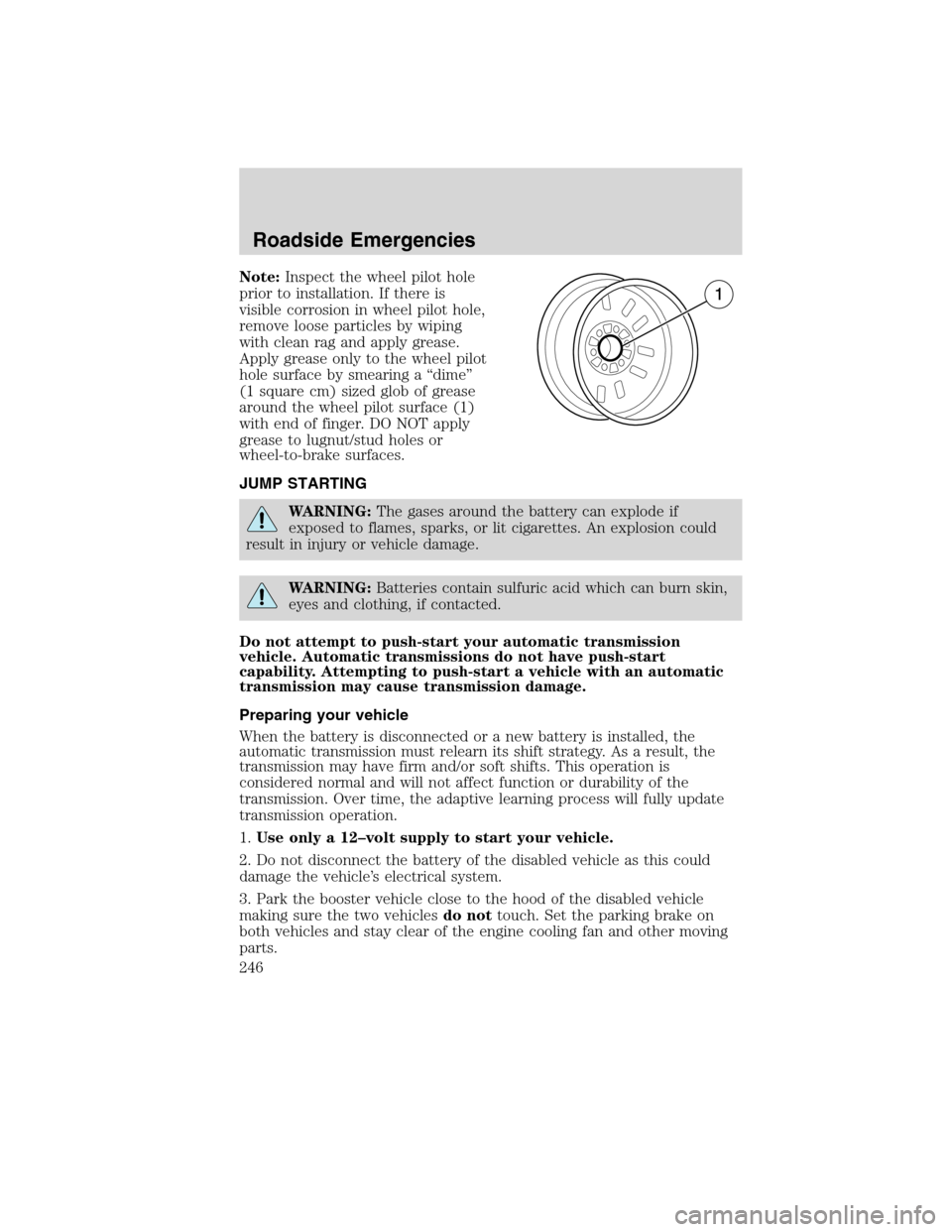

Note:Inspect the wheel pilot hole
prior to installation. If there is
visible corrosion in wheel pilot hole,
remove loose particles by wiping
with clean rag and apply grease.
Apply grease only to the wheel pilot
hole surface by smearing a “dime”
(1 square cm) sized glob of grease
around the wheel pilot surface (1)
with end of finger. DO NOT apply
grease to lugnut/stud holes or
wheel-to-brake surfaces.
JUMP STARTING
WARNING:The gases around the battery can explode if
exposed to flames, sparks, or lit cigarettes. An explosion could
result in injury or vehicle damage.
WARNING:Batteries contain sulfuric acid which can burn skin,
eyes and clothing, if contacted.
Do not attempt to push-start your automatic transmission
vehicle. Automatic transmissions do not have push-start
capability. Attempting to push-start a vehicle with an automatic
transmission may cause transmission damage.
Preparing your vehicle
When the battery is disconnected or a new battery is installed, the
automatic transmission must relearn its shift strategy. As a result, the
transmission may have firm and/or soft shifts. This operation is
considered normal and will not affect function or durability of the
transmission. Over time, the adaptive learning process will fully update
transmission operation.
1.Use only a 12–volt supply to start your vehicle.
2. Do not disconnect the battery of the disabled vehicle as this could
damage the vehicle’s electrical system.
3. Park the booster vehicle close to the hood of the disabled vehicle
making sure the two vehiclesdo nottouch. Set the parking brake on
both vehicles and stay clear of the engine cooling fan and other moving
parts.
Roadside Emergencies
246
2010 MKX(mkx)
Owners Guide(own2002), 1st Printing
USA(fus)
Page 249 of 316

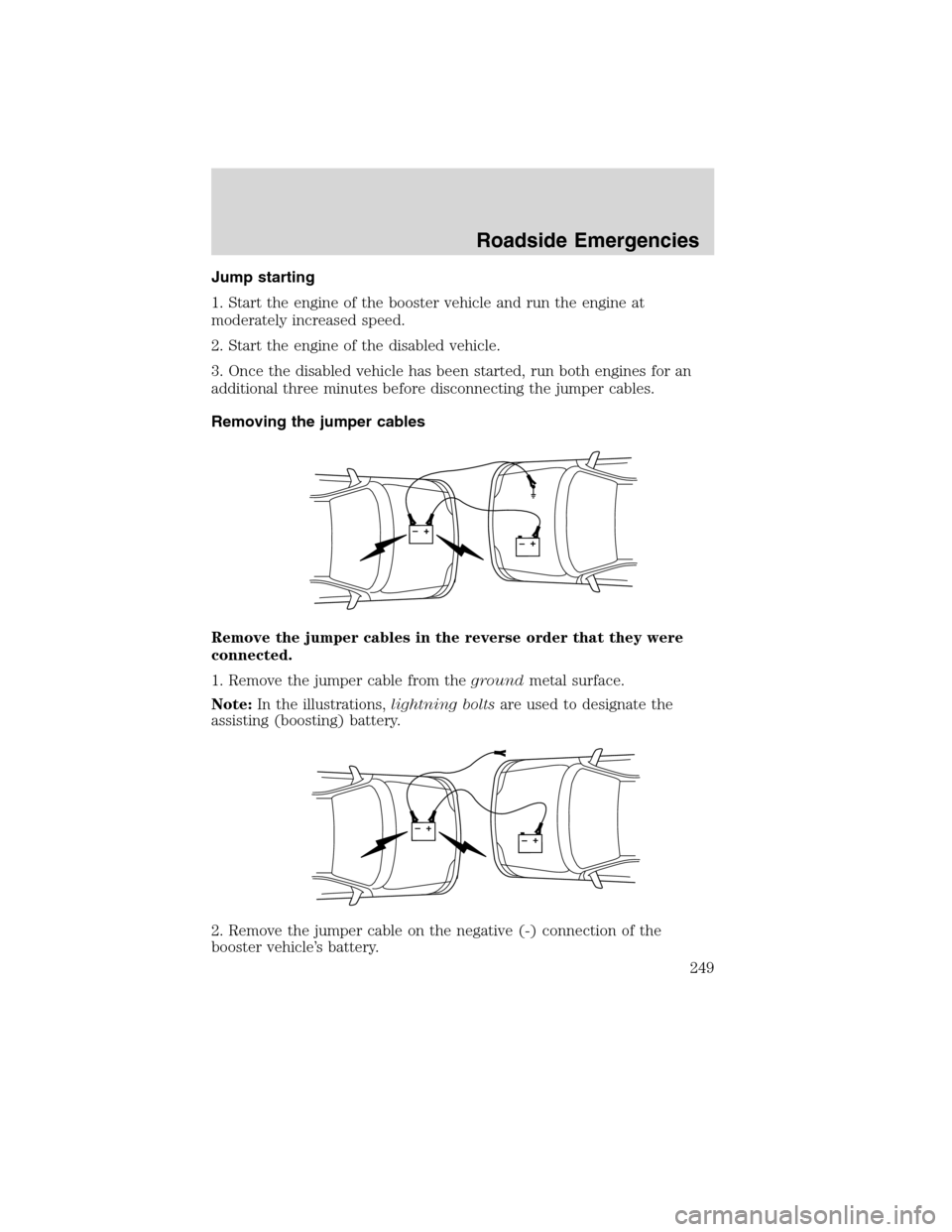

Jump starting
1. Start the engine of the booster vehicle and run the engine at
moderately increased speed.
2. Start the engine of the disabled vehicle.
3. Once the disabled vehicle has been started, run both engines for an
additional three minutes before disconnecting the jumper cables.
Removing the jumper cables
Remove the jumper cables in the reverse order that they were
connected.
1. Remove the jumper cable from thegroundmetal surface.
Note:In the illustrations,lightning boltsare used to designate the
assisting (boosting) battery.
2. Remove the jumper cable on the negative (-) connection of the
booster vehicle’s battery.
+–+–
+–+–
Roadside Emergencies
249
2010 MKX(mkx)
Owners Guide(own2002), 1st Printing
USA(fus)
Page 250 of 316

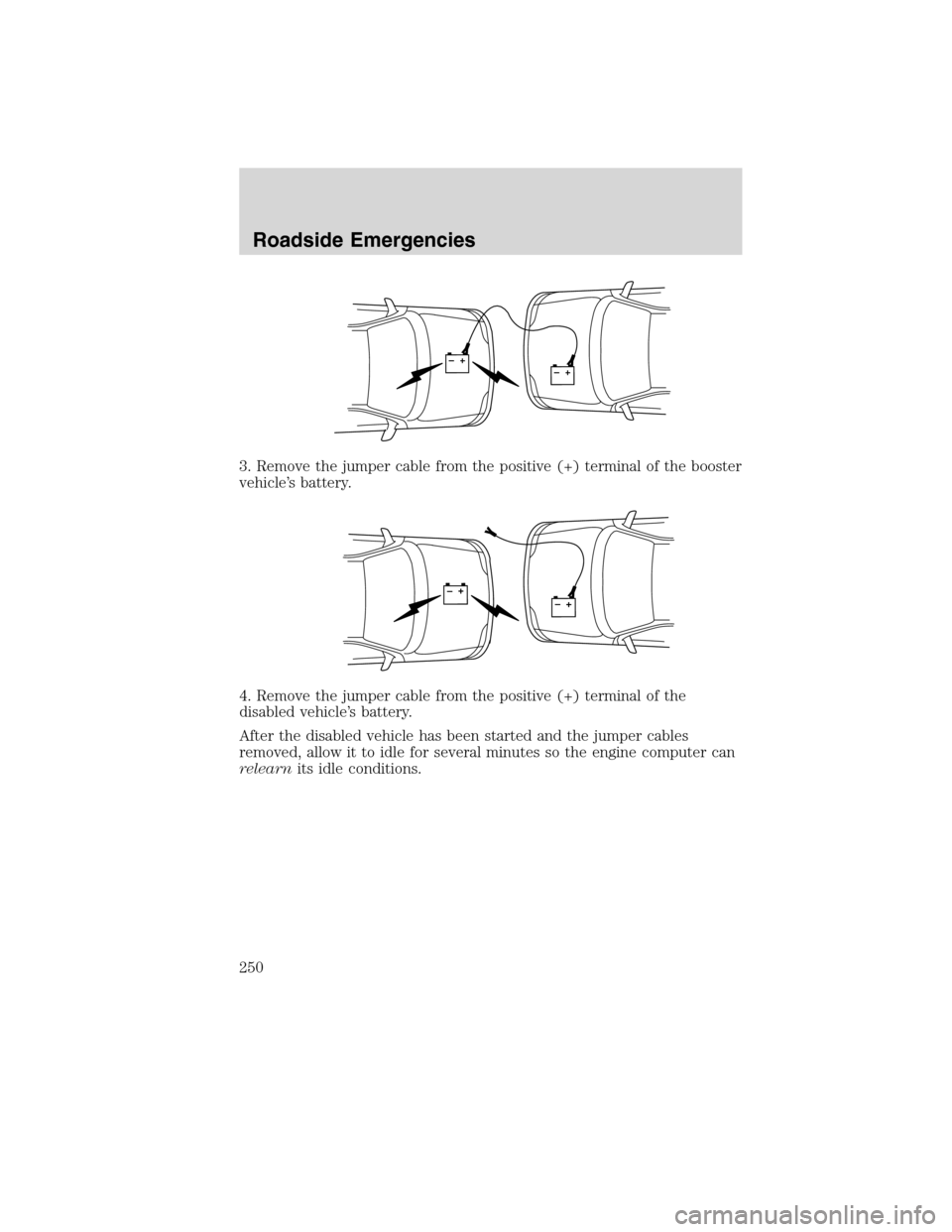

3. Remove the jumper cable from the positive (+) terminal of the booster
vehicle’s battery.
4. Remove the jumper cable from the positive (+) terminal of the
disabled vehicle’s battery.
After the disabled vehicle has been started and the jumper cables
removed, allow it to idle for several minutes so the engine computer can
relearnits idle conditions.
+–+–
+–+–
Roadside Emergencies
250
2010 MKX(mkx)
Owners Guide(own2002), 1st Printing
USA(fus)
Page 308 of 316
FORD ESP EXTENDED SERVICE PLANS
More than 30 million Ford, Lincoln, and Mercury owners have discovered
the powerful protection of Ford ESP. It is the only extended service plan
backed by Ford Motor Company, and provides “peace of mind”
protection beyond the New Vehicle Limited Warranty coverage.
Up to 500+ Covered Vehicle Components
There are four, new-vehicle Extended Service Plans with different levels
of coverage. Ask you dealer for details.
PremiumCare –Our most comprehensive coverage. With over 500
covered components, this plan is so complete that we generally only
discuss what’s not covered!
ExtraCare –Covers 113 components, and includes many high-tech
items.
BaseCare –Covers 84 components.
PowertrainCare –Covers 29 critical components.
Ford ESP is honored by all Ford, Lincoln and Mercury Dealers in
the U.S. and CanadaIt’s the only extended service plan authorized and
backed by Ford Motor Company. That means you get:
•Reliable, quality service anywhere you go.
•Factory-trained technicians.
•Genuine Ford and MotorcraftParts.
Rental car reimbursement
If your vehicle is kept overnight for covered repairs,you are
eligible for rental car coverage, including Bumper-to-Bumper warranty
repairs, or manufacturer’s recalls.
Transferable coverage
If you sell your vehicle before your Ford ESP coverage expires, you can
transfer any remaining coverage to the new owner. Whenever you’re
ready to sell your car, prospective buyers may feel better about taking a
risk on your used vehicle. Ford ESP may add resale value!
Plus,exclusive 24/7 roadside assistance,including:
•Towing, flat-tire change and battery jump starts.
•Out-of-fuel and lock-out assistance.
•Travel expense reimbursement for lodging, meals and rental car.
•Destination assistance for taxi, shuttle, rental car coverage and
emergency transportation.
Ford Extended Service Plan
308
2010 MKX(mkx)
Owners Guide(own2002), 1st Printing
USA(fus)
Page 312 of 316

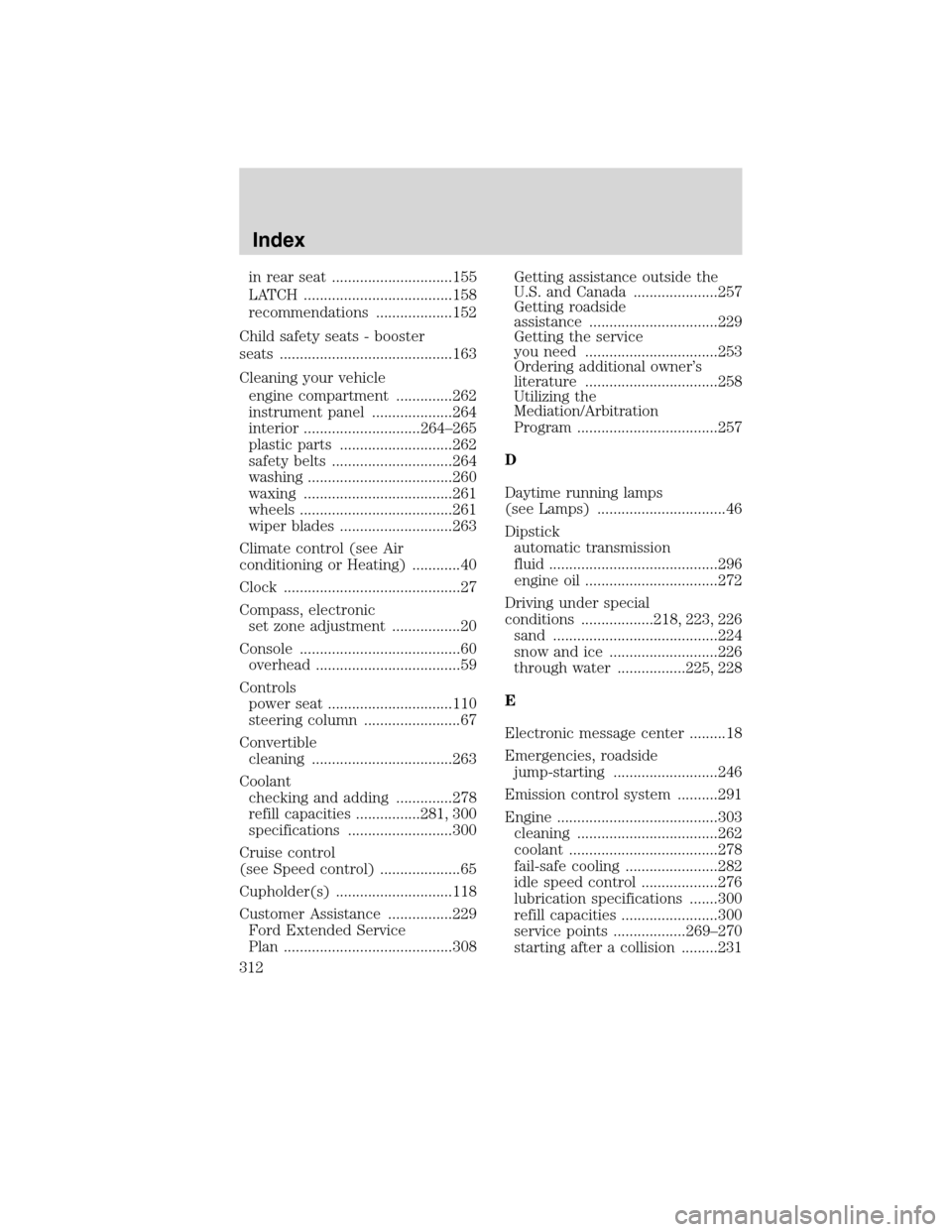

in rear seat ..............................155
LATCH .....................................158
recommendations ...................152
Child safety seats - booster
seats ...........................................163
Cleaning your vehicle
engine compartment ..............262
instrument panel ....................264
interior .............................264–265
plastic parts ............................262
safety belts ..............................264
washing ....................................260
waxing .....................................261
wheels ......................................261
wiper blades ............................263
Climate control (see Air
conditioning or Heating) ............40
Clock ............................................27
Compass, electronic
set zone adjustment .................20
Console ........................................60
overhead ....................................59
Controls
power seat ...............................110
steering column ........................67
Convertible
cleaning ...................................263
Coolant
checking and adding ..............278
refill capacities ................281, 300
specifications ..........................300
Cruise control
(see Speed control) ....................65
Cupholder(s) .............................118
Customer Assistance ................229
Ford Extended Service
Plan ..........................................308Getting assistance outside the
U.S. and Canada .....................257
Getting roadside
assistance ................................229
Getting the service
you need .................................253
Ordering additional owner’s
literature .................................258
Utilizing the
Mediation/Arbitration
Program ...................................257
D
Daytime running lamps
(see Lamps) ................................46
Dipstick
automatic transmission
fluid ..........................................296
engine oil .................................272
Driving under special
conditions ..................218, 223, 226
sand .........................................224
snow and ice ...........................226
through water .................225, 228
E
Electronic message center .........18
Emergencies, roadside
jump-starting ..........................246
Emission control system ..........291
Engine ........................................303
cleaning ...................................262
coolant .....................................278
fail-safe cooling .......................282
idle speed control ...................276
lubrication specifications .......300
refill capacities ........................300
service points ..................269–270
starting after a collision .........231
Index
312
2010 MKX(mkx)
Owners Guide(own2002), 1st Printing
USA(fus)
Page 314 of 316

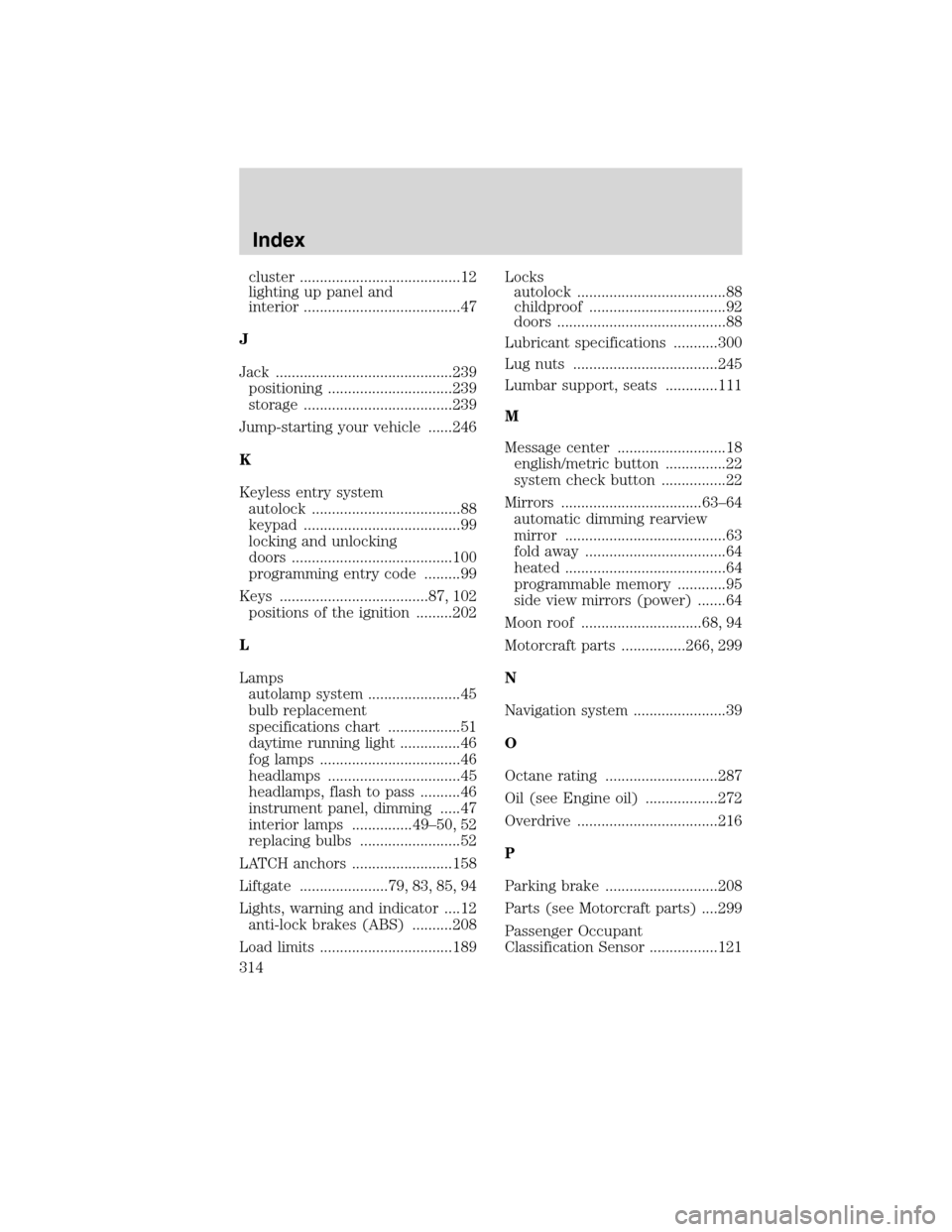

cluster ........................................12
lighting up panel and
interior .......................................47
J
Jack ............................................239
positioning ...............................239
storage .....................................239
Jump-starting your vehicle ......246
K
Keyless entry system
autolock .....................................88
keypad .......................................99
locking and unlocking
doors ........................................100
programming entry code .........99
Keys .....................................87, 102
positions of the ignition .........202
L
Lamps
autolamp system .......................45
bulb replacement
specifications chart ..................51
daytime running light ...............46
fog lamps ...................................46
headlamps .................................45
headlamps, flash to pass ..........46
instrument panel, dimming .....47
interior lamps ...............49–50, 52
replacing bulbs .........................52
LATCH anchors .........................158
Liftgate ......................79, 83, 85, 94
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........208
Load limits .................................189Locks
autolock .....................................88
childproof ..................................92
doors ..........................................88
Lubricant specifications ...........300
Lug nuts ....................................245
Lumbar support, seats .............111
M
Message center ...........................18
english/metric button ...............22
system check button ................22
Mirrors ...................................63–64
automatic dimming rearview
mirror ........................................63
fold away ...................................64
heated ........................................64
programmable memory ............95
side view mirrors (power) .......64
Moon roof ..............................68, 94
Motorcraft parts ................266, 299
N
Navigation system .......................39
O
Octane rating ............................287
Oil (see Engine oil) ..................272
Overdrive ...................................216
P
Parking brake ............................208
Parts (see Motorcraft parts) ....299
Passenger Occupant
Classification Sensor .................121
Index
314
2010 MKX(mkx)
Owners Guide(own2002), 1st Printing
USA(fus)
Page 316 of 316

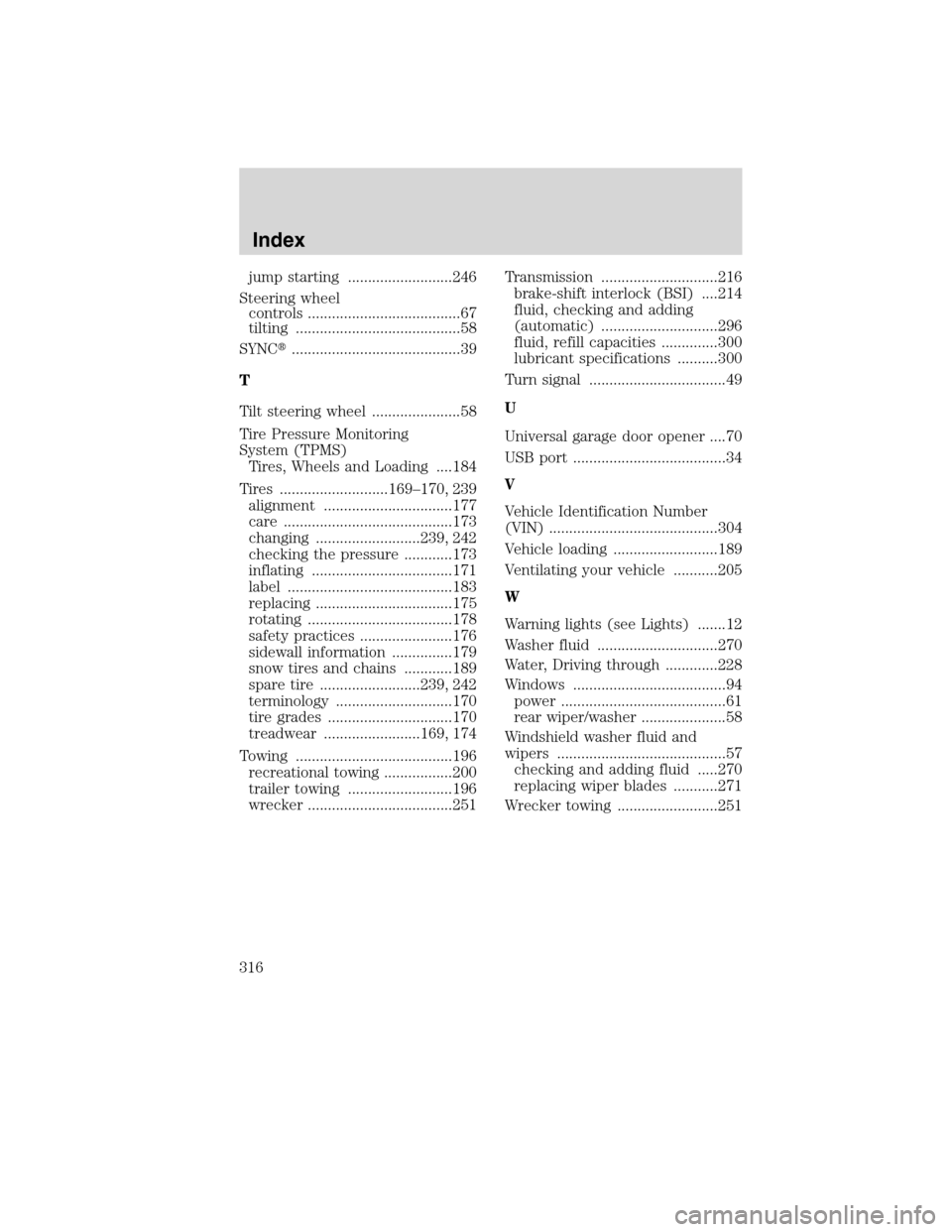

jump starting ..........................246
Steering wheel
controls ......................................67
tilting .........................................58
SYNC..........................................39
T
Tilt steering wheel ......................58
Tire Pressure Monitoring
System (TPMS)
Tires, Wheels and Loading ....184
Tires ...........................169–170, 239
alignment ................................177
care ..........................................173
changing ..........................239, 242
checking the pressure ............173
inflating ...................................171
label .........................................183
replacing ..................................175
rotating ....................................178
safety practices .......................176
sidewall information ...............179
snow tires and chains ............189
spare tire .........................239, 242
terminology .............................170
tire grades ...............................170
treadwear ........................169, 174
Towing .......................................196
recreational towing .................200
trailer towing ..........................196
wrecker ....................................251Transmission .............................216
brake-shift interlock (BSI) ....214
fluid, checking and adding
(automatic) .............................296
fluid, refill capacities ..............300
lubricant specifications ..........300
Turn signal ..................................49
U
Universal garage door opener ....70
USB port ......................................34
V
Vehicle Identification Number
(VIN) ..........................................304
Vehicle loading ..........................189
Ventilating your vehicle ...........205
W
Warning lights (see Lights) .......12
Washer fluid ..............................270
Water, Driving through .............228
Windows ......................................94
power .........................................61
rear wiper/washer .....................58
Windshield washer fluid and
wipers ..........................................57
checking and adding fluid .....270
replacing wiper blades ...........271
Wrecker towing .........................251
Index
316
2010 MKX(mkx)
Owners Guide(own2002), 1st Printing
USA(fus)
