CENTER CONSOLE
Your vehicle may be equipped with a variety of console features. These
include:
1. Cupholders
2. Tissue box holder (if equipped)
(located on underside of console
lid)
3. Rear power point
4. Utility compartment with a
Secondary storage bin with coin
holder slots (on hinges inside utility
compartment), power point, AIJ
(Audio Input Jack), and a multi
position bin divider (two positions vertical/one position horizontal) and,
(if equipped) an ambient light control switch located on the front of the
compartment.
WARNING:Use only soft cups in the cupholder. Hard objects
can injure you in a collision.
AUXILIARY POWER POINT (12VDC)
Power outlets are designed for accessory plugs only. Do not insert
any other object in the power outlet as this will damage the
outlet and blow the fuse. Do not hang any type of accessory or
accessory bracket from the plug. Improper use of the power
outlet can cause damage not covered by your warranty.
Auxiliary power points can be found in the following locations:
•In the instrument panel
•In the center console utility compartment
•On the rear side of the center console, accessible from the rear seats
•On the left rear quarter panel, accessible from the liftgate or behind
the rear seat
Do not use the power point for operating the cigarette lighter element (if
equipped).
To prevent the fuse from being blown, do not use the power point(s)
over the vehicle capacity of 12 VDC/180W. If the power point or cigar
lighter socket is not working, a fuse may have blown. Refer toFuses and
relaysin theRoadside Emergencieschapter for information on
checking and replacing fuses.
Driver Controls
60
2010 MKX(mkx)
Owners Guide(own2002), 1st Printing
USA(fus)

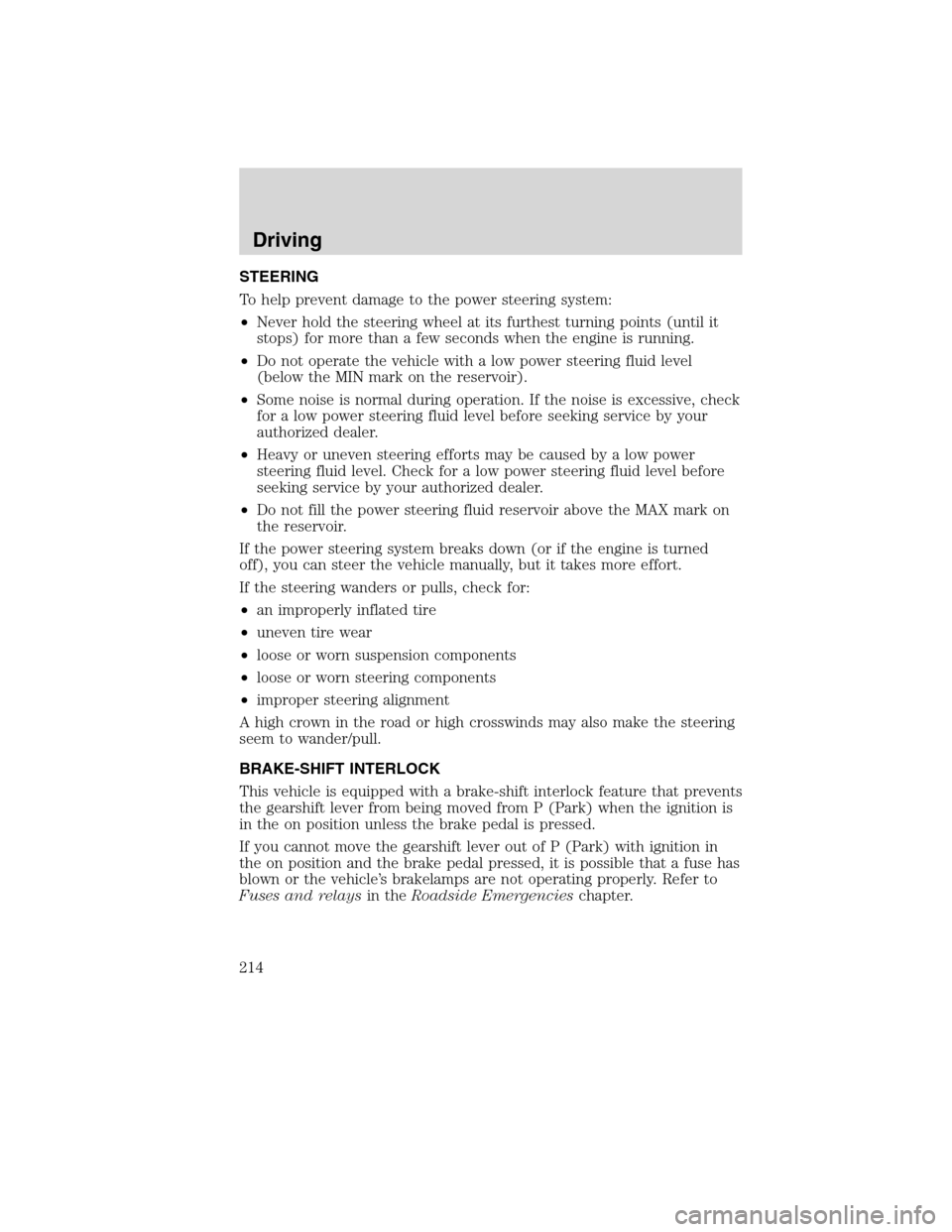

STEERING
To help prevent damage to the power steering system:
•Never hold the steering wheel at its furthest turning points (until it
stops) for more than a few seconds when the engine is running.
•Do not operate the vehicle with a low power steering fluid level
(below the MIN mark on the reservoir).
•Some noise is normal during operation. If the noise is excessive, check
for a low power steering fluid level before seeking service by your
authorized dealer.
•Heavy or uneven steering efforts may be caused by a low power
steering fluid level. Check for a low power steering fluid level before
seeking service by your authorized dealer.
•Do not fill the power steering fluid reservoir above the MAX mark on
the reservoir.
If the power steering system breaks down (or if the engine is turned
off), you can steer the vehicle manually, but it takes more effort.
If the steering wanders or pulls, check for:
•an improperly inflated tire
•uneven tire wear
•loose or worn suspension components
•loose or worn steering components
•improper steering alignment
A high crown in the road or high crosswinds may also make the steering
seem to wander/pull.
BRAKE-SHIFT INTERLOCK
This vehicle is equipped with a brake-shift interlock feature that prevents
the gearshift lever from being moved from P (Park) when the ignition is
in the on position unless the brake pedal is pressed.
If you cannot move the gearshift lever out of P (Park) with ignition in
the on position and the brake pedal pressed, it is possible that a fuse has
blown or the vehicle’s brakelamps are not operating properly. Refer to
Fuses and relaysin theRoadside Emergencieschapter.
Driving
214
2010 MKX(mkx)
Owners Guide(own2002), 1st Printing
USA(fus)

FUEL PUMP SHUT-OFF SWITCH
This device stops the electric fuel pump from sending fuel to the engine
when your vehicle has had a substantial jolt.
After an accident, if the engine cranks but does not start, this switch
may have been activated.
This switch is located behind a
panel on the left side of the cargo
area.
To reset the switch:
1. Turn the ignition to off.
2. Check the fuel system for leaks.
3. If no leaks are apparent, reset the
switch by pressing in on the reset
button.
4. Turn the ignition to on.
5. Wait a few seconds and return
the key to off.
6. Make another check for leaks.
7. If no leaks are apparent, restart
the vehicle.
FUSES AND RELAYS
Fuses
If electrical components in the
vehicle are not working, a fuse may
have blown. Blown fuses are
identified by a broken wire within
the fuse. Check the appropriate
fuses before replacing any electrical
components.
Note:Always replace a fuse with one that has the specified amperage
rating. Using a fuse with a higher amperage rating can cause severe wire
damage and could start a fire.
15
Roadside Emergencies
231
2010 MKX(mkx)
Owners Guide(own2002), 1st Printing
USA(fus)

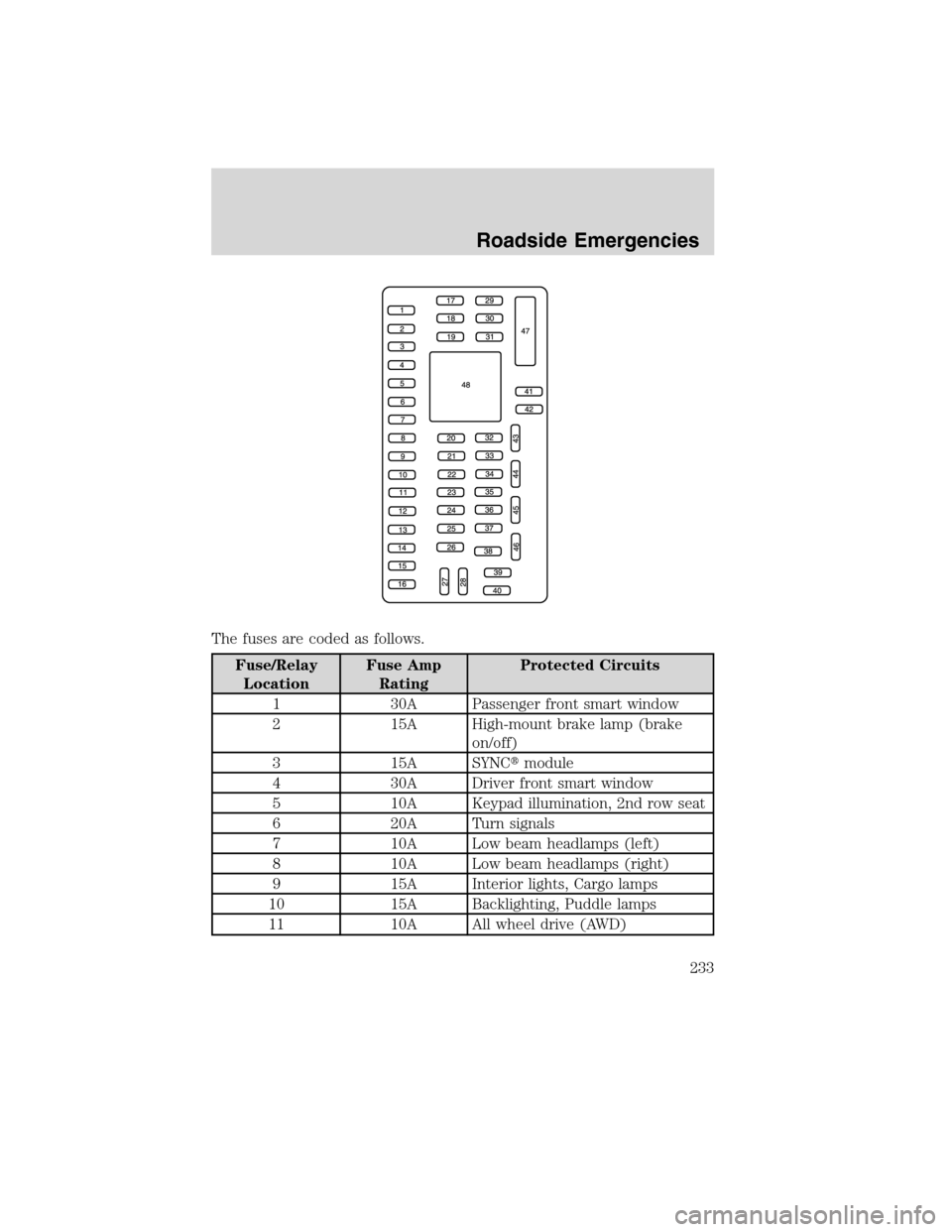

The fuses are coded as follows.
Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
1 30A Passenger front smart window
2 15A High-mount brake lamp (brake
on/off)
3 15A SYNCmodule
4 30A Driver front smart window
5 10A Keypad illumination, 2nd row seat
6 20A Turn signals
7 10A Low beam headlamps (left)
8 10A Low beam headlamps (right)
9 15A Interior lights, Cargo lamps
10 15A Backlighting, Puddle lamps
11 10A All wheel drive (AWD)
Roadside Emergencies
233
2010 MKX(mkx)
Owners Guide(own2002), 1st Printing
USA(fus)

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
12 7.5A Power mirror switch, Driver side
power seat memory, Driver seat
module – keep alive power
13 5A Satellite radio
14 10A Power liftgate – keep alive power
15 10A Climate control, GPS module
16 15A Not used (spare)
17 20A All power lock motor feeds,
Liftgate release, Express down
front windows
18 20A THX system
19 25A Rear wiper
20 15A Datalink
21 15A Fog lamps
22 15A Park lamps
23 15A High beam headlamps
24 20A Horn relay
25 10A Demand lamps
26 10A Instrument panel cluster
27 20A Ignition switch
28 5A Radio
29 5A Instrument panel cluster
30 5A Overdrive cancel
31 10A Not used (spare)
32 10A Restraint control module
33 10A Not used (spare)
34 5A Steering angle sensor
35 10A Rear park assist, Yaw rate sensor,
Heated seats
36 5A Passive anti-theft system
transceiver
37 10A Climate control
Roadside Emergencies
234
2010 MKX(mkx)
Owners Guide(own2002), 1st Printing
USA(fus)

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
38 20A Subwoofer/amplifier
39 20A Radio
40 20A Not used (spare)
41 15A Automatic dimming rear view
mirror
42 10A Not used (spare)
43 10A Rear wiper logic
44 10A Customer accessory feed
45 5A Front wiper logic
46 7.5A Occupant classification sensor
(OCS), Passenger airbag
deactivation indicator (PADI) light
47 30A Circuit
BreakerPower windows
48 — Delayed accessory relay
Power distribution box
The power distribution box is located in the engine compartment. The
power distribution box contains high-current fuses that protect your
vehicle’s main electrical systems from overloads.
WARNING:Always disconnect the battery before servicing high
current fuses.
WARNING:To reduce risk of electrical shock, always replace
the cover to the Power Distribution Box before reconnecting the
battery or refilling fluid reservoirs.
If the battery has been disconnected and reconnected, refer to the
Batterysection of theMaintenance and Specificationschapter.
Roadside Emergencies
235
2010 MKX(mkx)
Owners Guide(own2002), 1st Printing
USA(fus)

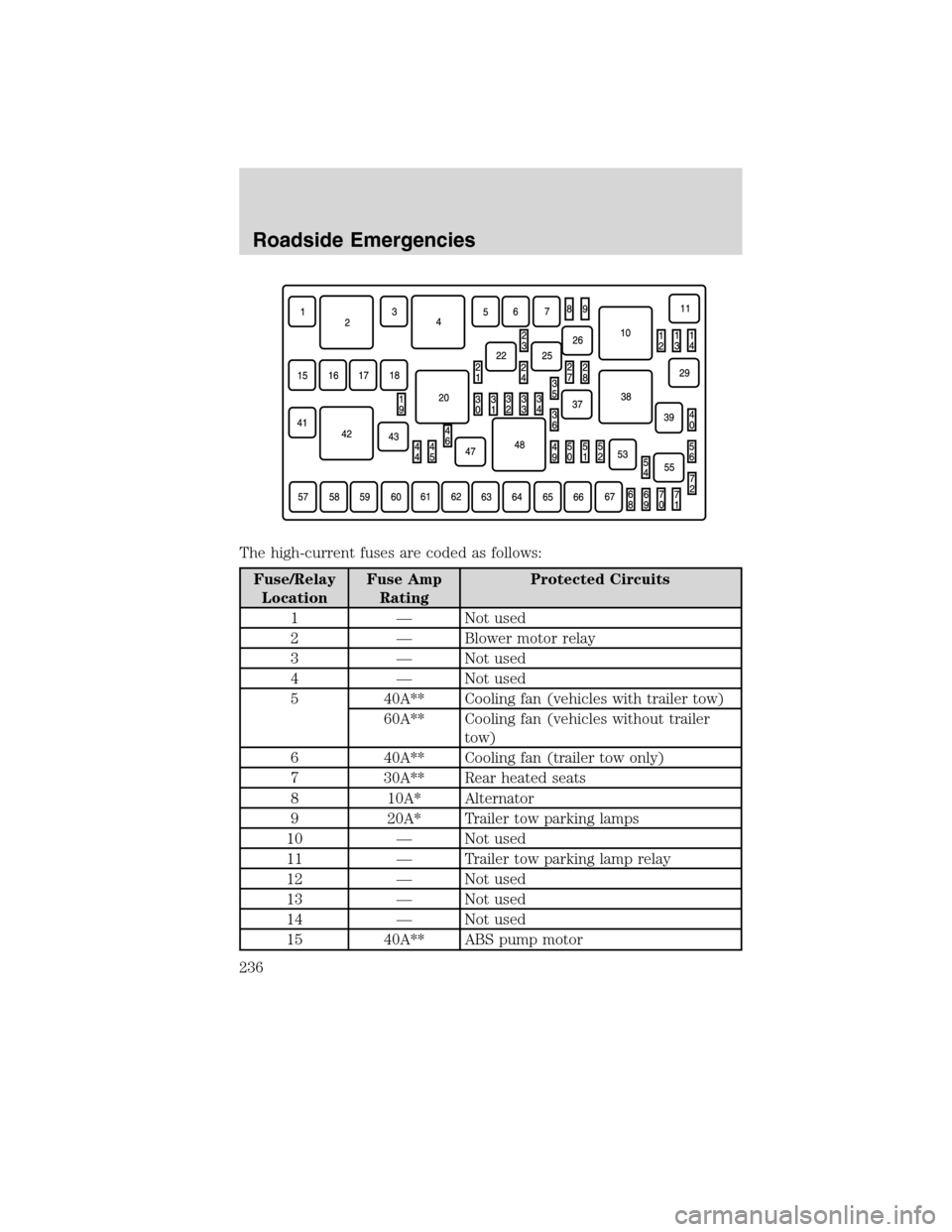

The high-current fuses are coded as follows:
Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
1 — Not used
2 — Blower motor relay
3 — Not used
4 — Not used
5 40A** Cooling fan (vehicles with trailer tow)
60A** Cooling fan (vehicles without trailer
tow)
6 40A** Cooling fan (trailer tow only)
7 30A** Rear heated seats
8 10A* Alternator
9 20A* Trailer tow parking lamps
10 — Not used
11 — Trailer tow parking lamp relay
12 — Not used
13 — Not used
14 — Not used
15 40A** ABS pump motor
Roadside Emergencies
236
2010 MKX(mkx)
Owners Guide(own2002), 1st Printing
USA(fus)

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
16 30A** Front heated seats
17 20A** Cigar lighter/Power point
18 20A** Panoramic moon roof
19 — Fuel pump diode
20 — Powertrain control module (PCM) relay
21 7.5A* PCM – keep alive power
22 — Trailer tow left stop/turn lamp relay
23 — One-touch integrated start diode
24 10A* Trailer tow left stop/turn lamp
25 — Rear seat release relay
26 — Fuel pump relay
27 10A* Rear seat release
28 15A* Heated mirror
29 — Heated mirror relay
30 15A* Vehicle power 1
31 10A* Vehicle power 3
32 10A* Vehicle power 2
33 15A* Vehicle power 4
34 — Not used
35 10A* A/C clutch
36 — Not used
37 — A/C clutch relay
38 — Rear window defroster relay
39 40A** Rear window defroster
40 — Not used
41 30A** Starter
42 — Starter relay
43 — Backup lamp relay
44 10A* Backup lamps
45 — Not used
46 10A* Trailer tow right stop/turn lamp
Roadside Emergencies
237
2010 MKX(mkx)
Owners Guide(own2002), 1st Printing
USA(fus)

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
47 — Trailer tow right stop/turn lamp relay
48 — Run/start relay
49 10A* PCM ISPR
50 10A* ABS Run/start
51 5A* Adaptive lighting
52 5A* Fuel pump diode feed
53 30A** Passenger compartment fuse panel
run/start
54 — Not used
55 — Not used
56 — A/C clutch diode
57 40A** Anti-lock brake system valves
58 30A** Front wipers
59 30A** Power liftgate
60 30A** Driver power seat/memory module
61 30A** Passenger power seat
62 — Not used
63 40A** Blower motor
64 20A** Cigar lighter/Power point
65 20A** Cigar lighter/Power point
66 20A** Cigar lighter/Power point
67 — Not used
68 15A* Fuel pump
69 — Not used
70 — Not used
71 10A* Brake on/off switch (brake lights)
72 — Not used
* Mini Fuses ** Cartridge Fuses
