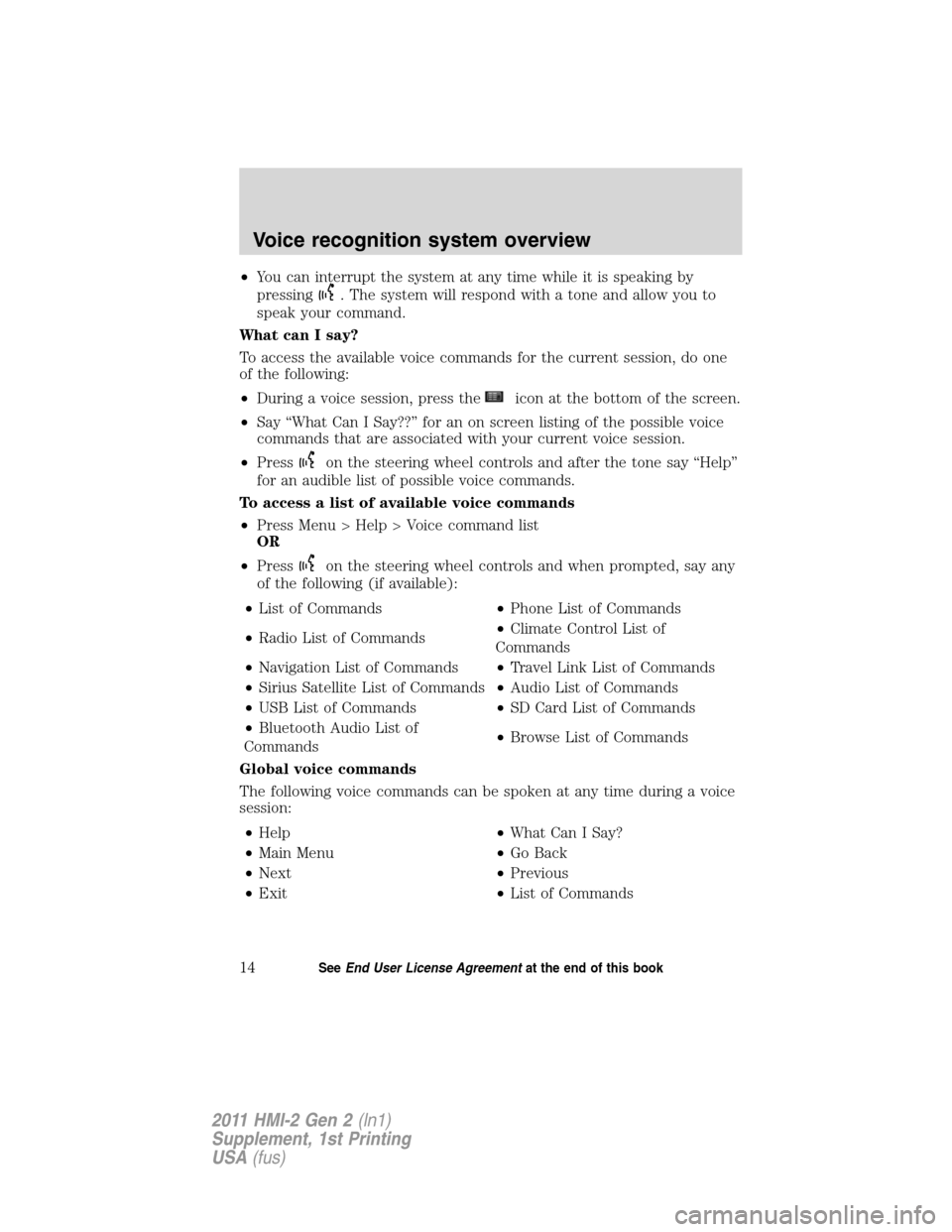

•You can interrupt the system at any time while it is speaking by
pressing
. The system will respond with a tone and allow you to
speak your command.
What can I say?
To access the available voice commands for the current session, do one
of the following:
•During a voice session, press the
icon at the bottom of the screen.
•Say “What Can I Say??” for an on screen listing of the possible voice
commands that are associated with your current voice session.
•Press
on the steering wheel controls and after the tone say “Help”
for an audible list of possible voice commands.
To access a list of available voice commands
•Press Menu > Help > Voice command list
OR
•Press
on the steering wheel controls and when prompted, say any
of the following (if available):
•List of Commands•Phone List of Commands
•Radio List of Commands•Climate Control List of
Commands
•Navigation List of Commands•Travel Link List of Commands
•Sirius Satellite List of Commands•Audio List of Commands
•USB List of Commands•SD Card List of Commands
•Bluetooth Audio List of
Commands•Browse List of Commands
Global voice commands
The following voice commands can be spoken at any time during a voice
session:
•Help•What Can I Say?
•Main Menu•Go Back
•Next•Previous
•Exit•List of Commands
Voice recognition system overview
14SeeEnd User License Agreementat the end of this book
2011 HMI-2 Gen 2(ln1)
Supplement, 1st Printing
USA(fus)

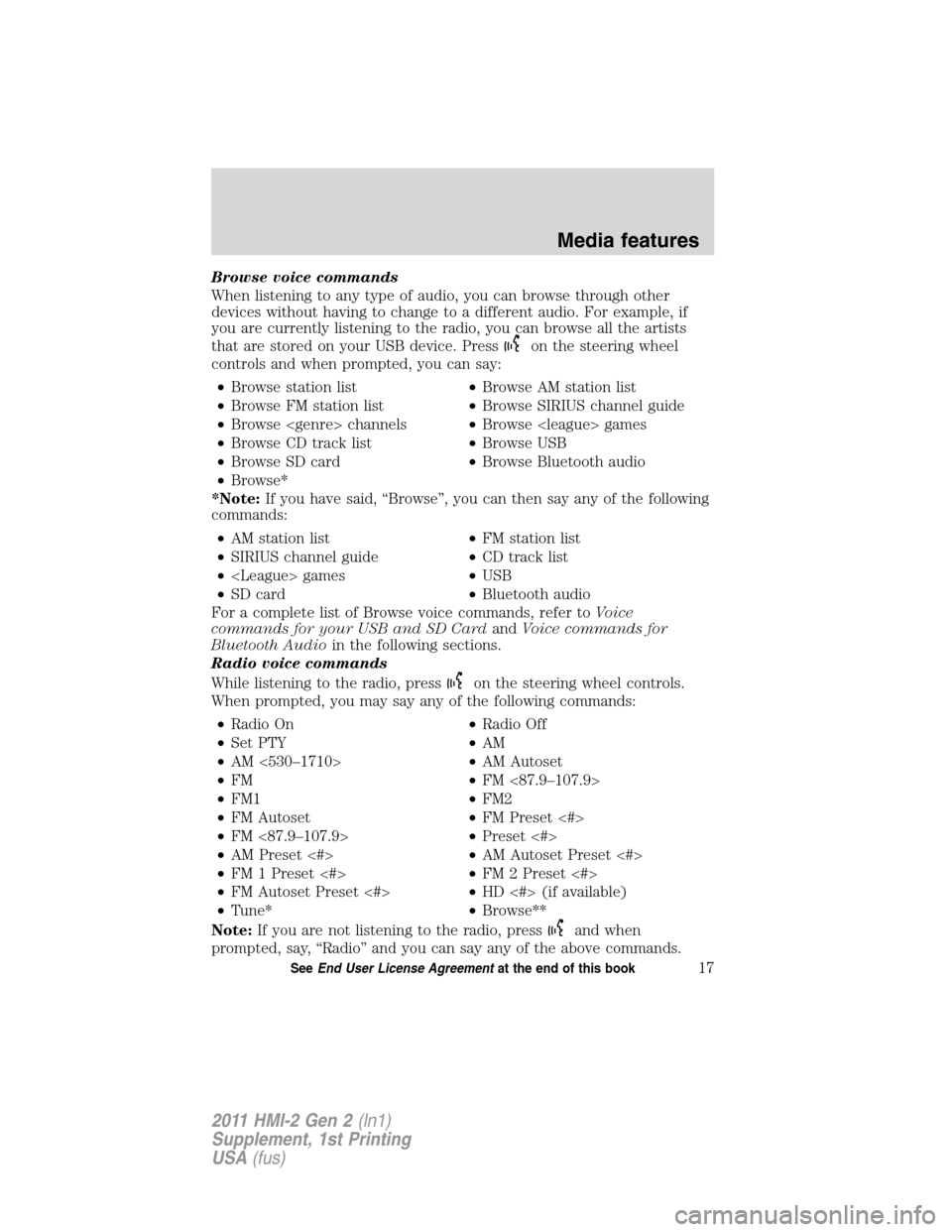

Browse voice commands
When listening to any type of audio, you can browse through other
devices without having to change to a different audio. For example, if
you are currently listening to the radio, you can browse all the artists
that are stored on your USB device. Press
on the steering wheel
controls and when prompted, you can say:
•Browse station list•Browse AM station list
•Browse FM station list•Browse SIRIUS channel guide
•Browse channels•Browse games
•Browse CD track list•Browse USB
•Browse SD card•Browse Bluetooth audio
•Browse*
*Note:If you have said, “Browse”, you can then say any of the following
commands:
•AM station list•FM station list
•SIRIUS channel guide•CD track list
• games•USB
•SD card•Bluetooth audio
For a complete list of Browse voice commands, refer toVoice
commands for your USB and SD CardandVoice commands for
Bluetooth Audioin the following sections.
Radio voice commands
While listening to the radio, press
on the steering wheel controls.
When prompted, you may say any of the following commands:
•Radio On•Radio Off
•Set PTY•AM
•AM <530–1710>•AM Autoset
•FM•FM <87.9–107.9>
•FM1•FM2
•FM Autoset•FM Preset <#>
•FM <87.9–107.9>•Preset <#>
•AM Preset <#>•AM Autoset Preset <#>
•FM 1 Preset <#>•FM 2 Preset <#>
•FM Autoset Preset <#>•HD <#> (if available)
•Tune*•Browse**
Note:If you are not listening to the radio, press
and when
prompted, say, “Radio” and you can say any of the above commands.
Media features
17SeeEnd User License Agreementat the end of this book
2011 HMI-2 Gen 2(ln1)
Supplement, 1st Printing
USA(fus)

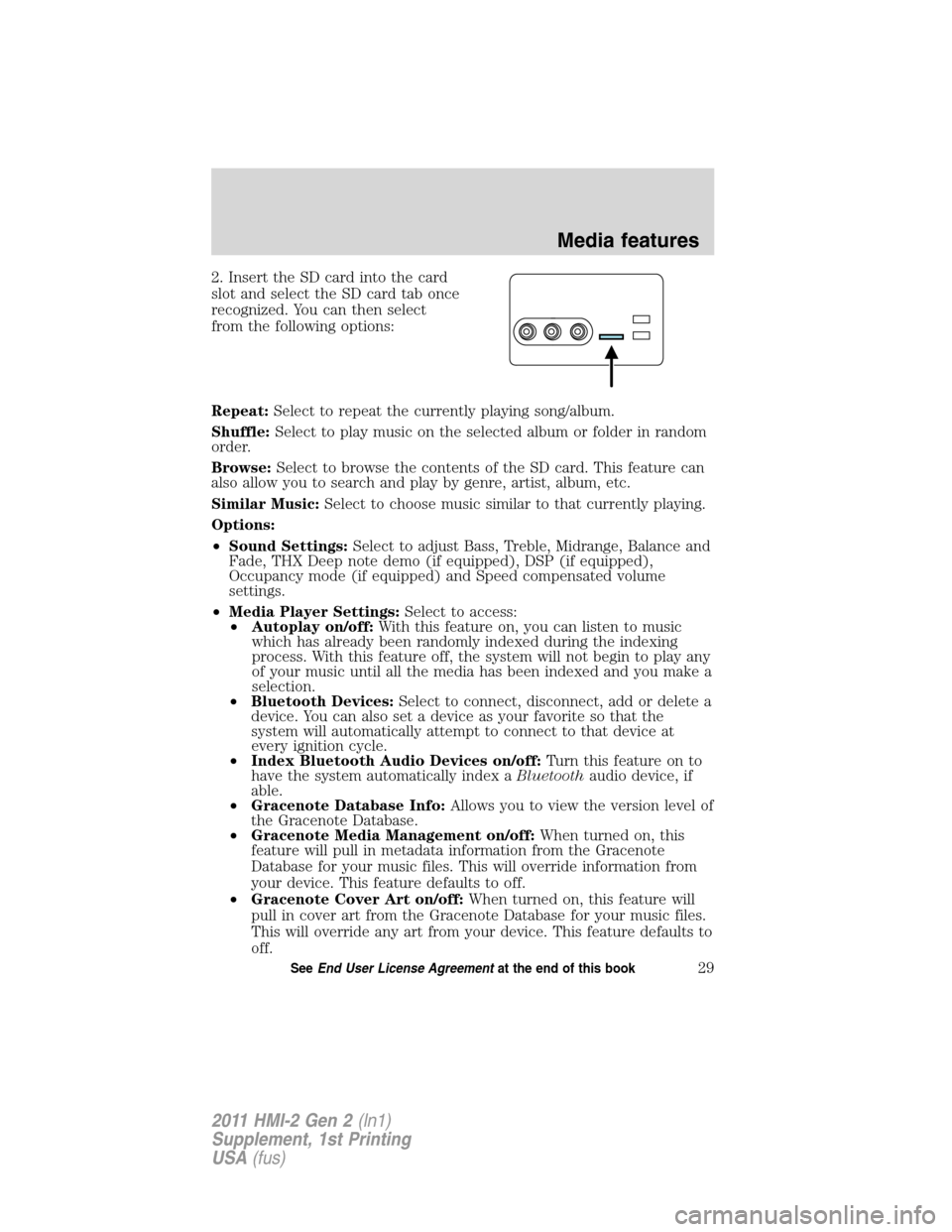

2. Insert the SD card into the card
slot and select the SD card tab once
recognized. You can then select
from the following options:
Repeat:Select to repeat the currently playing song/album.
Shuffle:Select to play music on the selected album or folder in random
order.
Browse:Select to browse the contents of the SD card. This feature can
also allow you to search and play by genre, artist, album, etc.
Similar Music:Select to choose music similar to that currently playing.
Options:
•Sound Settings:Select to adjust Bass, Treble, Midrange, Balance and
Fade, THX Deep note demo (if equipped), DSP (if equipped),
Occupancy mode (if equipped) and Speed compensated volume
settings.
•Media Player Settings:Select to access:
•Autoplay on/off:With this feature on, you can listen to music
which has already been randomly indexed during the indexing
process. With this feature off, the system will not begin to play any
of your music until all the media has been indexed and you make a
selection.
•Bluetooth Devices:Select to connect, disconnect, add or delete a
device. You can also set a device as your favorite so that the
system will automatically attempt to connect to that device at
every ignition cycle.
•Index Bluetooth Audio Devices on/off:Turn this feature on to
have the system automatically index aBluetoothaudio device, if
able.
•Gracenote Database Info:Allows you to view the version level of
the Gracenote Database.
•Gracenote Media Management on/off:When turned on, this
feature will pull in metadata information from the Gracenote
Database for your music files. This will override information from
your device. This feature defaults to off.
•Gracenote Cover Art on/off:When turned on, this feature will
pull in cover art from the Gracenote Database for your music files.
This will override any art from your device. This feature defaults to
off.
Media features
29SeeEnd User License Agreementat the end of this book
2011 HMI-2 Gen 2(ln1)
Supplement, 1st Printing
USA(fus)

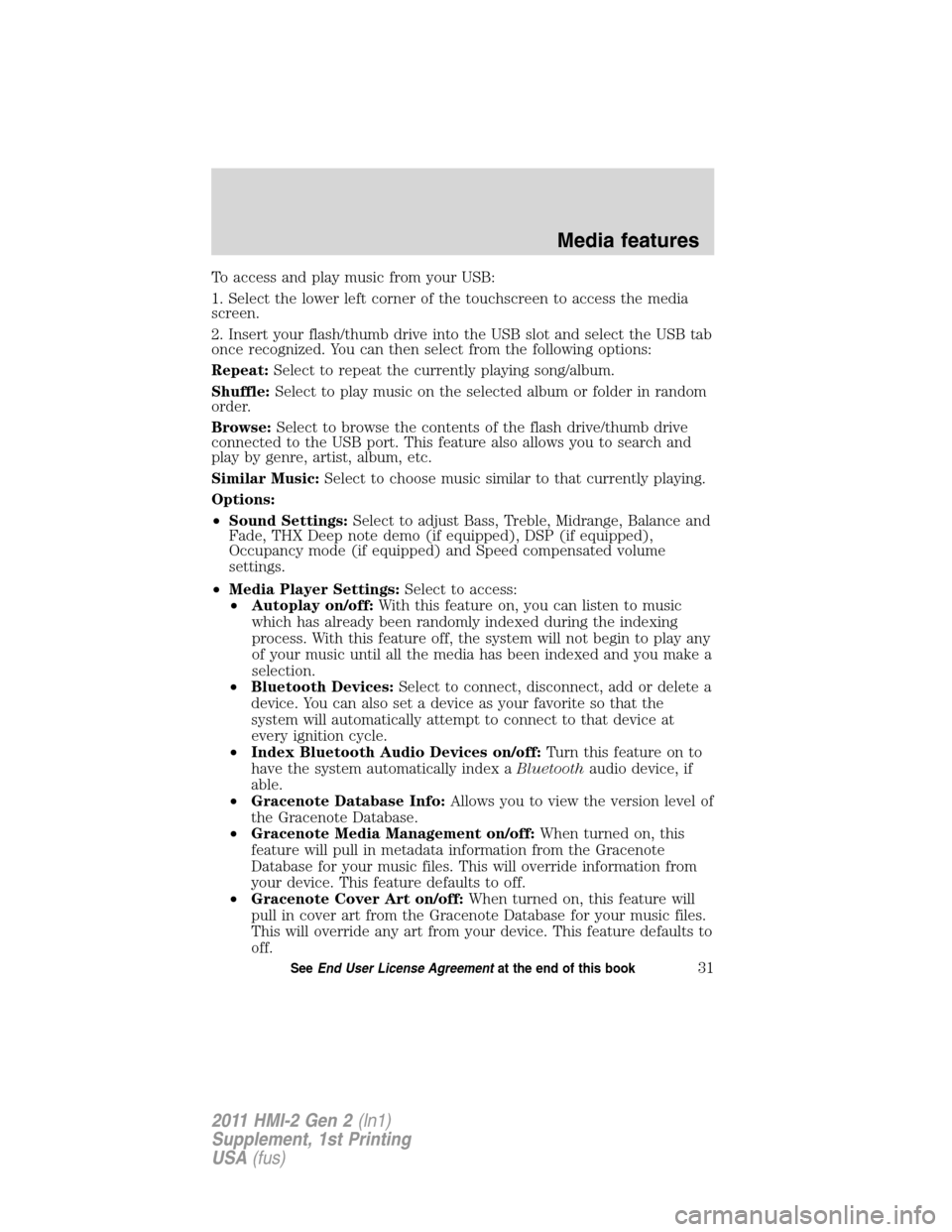

To access and play music from your USB:
1. Select the lower left corner of the touchscreen to access the media
screen.
2. Insert your flash/thumb drive into the USB slot and select the USB tab
once recognized. You can then select from the following options:
Repeat:Select to repeat the currently playing song/album.
Shuffle:Select to play music on the selected album or folder in random
order.
Browse:Select to browse the contents of the flash drive/thumb drive
connected to the USB port. This feature also allows you to search and
play by genre, artist, album, etc.
Similar Music:Select to choose music similar to that currently playing.
Options:
•Sound Settings:Select to adjust Bass, Treble, Midrange, Balance and
Fade, THX Deep note demo (if equipped), DSP (if equipped),
Occupancy mode (if equipped) and Speed compensated volume
settings.
•Media Player Settings:Select to access:
•Autoplay on/off:With this feature on, you can listen to music
which has already been randomly indexed during the indexing
process. With this feature off, the system will not begin to play any
of your music until all the media has been indexed and you make a
selection.
•Bluetooth Devices:Select to connect, disconnect, add or delete a
device. You can also set a device as your favorite so that the
system will automatically attempt to connect to that device at
every ignition cycle.
•Index Bluetooth Audio Devices on/off:Turn this feature on to
have the system automatically index aBluetoothaudio device, if
able.
•Gracenote Database Info:Allows you to view the version level of
the Gracenote Database.
•Gracenote Media Management on/off:When turned on, this
feature will pull in metadata information from the Gracenote
Database for your music files. This will override information from
your device. This feature defaults to off.
•Gracenote Cover Art on/off:When turned on, this feature will
pull in cover art from the Gracenote Database for your music files.
This will override any art from your device. This feature defaults to
off.
Media features
31SeeEnd User License Agreementat the end of this book
2011 HMI-2 Gen 2(ln1)
Supplement, 1st Printing
USA(fus)

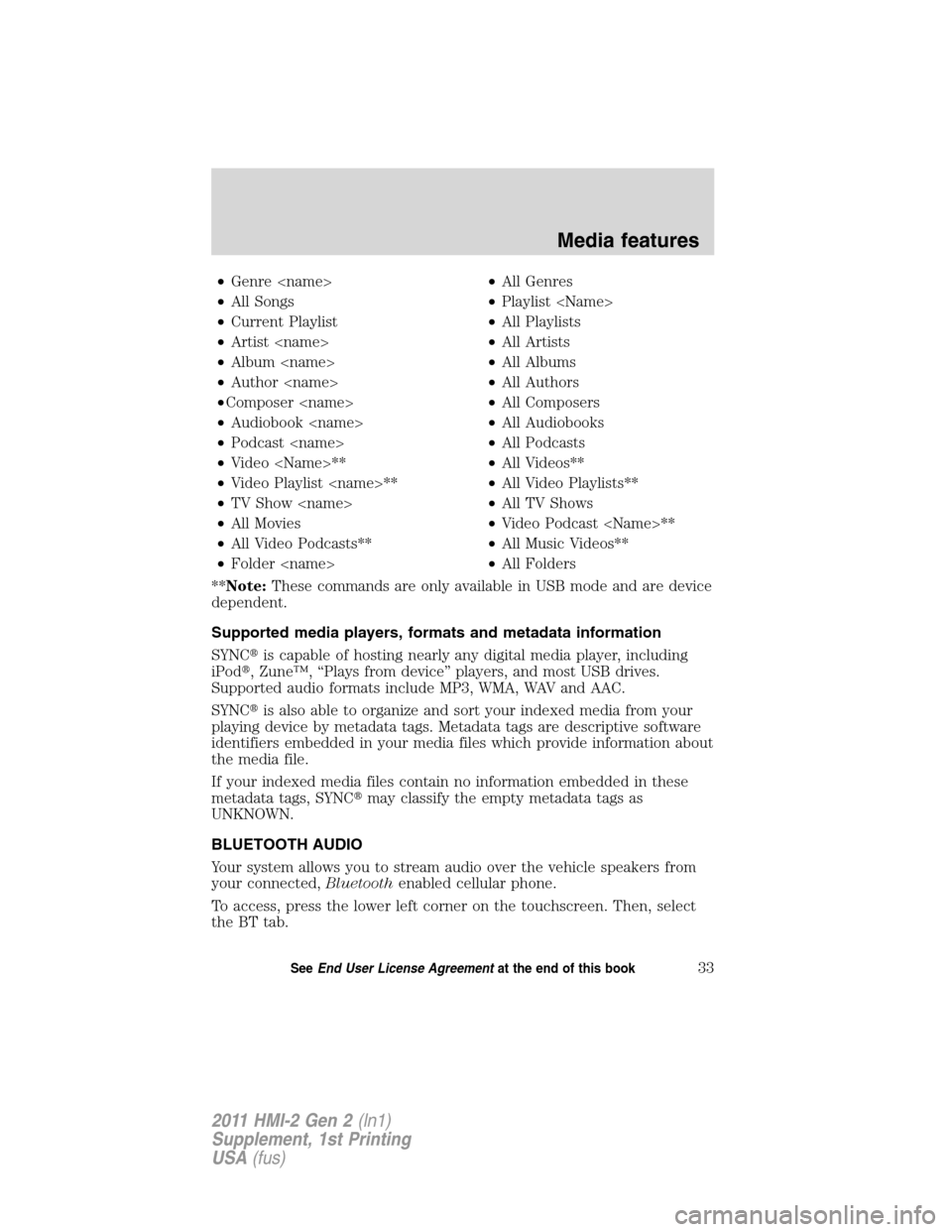

•Genre •All Genres
•All Songs•Playlist
•Current Playlist•All Playlists
•Artist •All Artists
•Album •All Albums
•Author •All Authors
•Composer •All Composers
•Audiobook •All Audiobooks
•Podcast •All Podcasts
•Video **•All Videos**
•Video Playlist **•All Video Playlists**
•TV Show •All TV Shows
•All Movies•Video Podcast **
•All Video Podcasts**•All Music Videos**
•Folder •All Folders
**Note:These commands are only available in USB mode and are device
dependent.
Supported media players, formats and metadata information
SYNCis capable of hosting nearly any digital media player, including
iPod, Zune™, “Plays from device” players, and most USB drives.
Supported audio formats include MP3, WMA, WAV and AAC.
SYNCis also able to organize and sort your indexed media from your
playing device by metadata tags. Metadata tags are descriptive software
identifiers embedded in your media files which provide information about
the media file.
If your indexed media files contain no information embedded in these
metadata tags, SYNCmay classify the empty metadata tags as
UNKNOWN.
BLUETOOTH AUDIO
Your system allows you to stream audio over the vehicle speakers from
your connected,Bluetoothenabled cellular phone.
To access, press the lower left corner on the touchscreen. Then, select
theBTtab.
Media features
33SeeEnd User License Agreementat the end of this book
2011 HMI-2 Gen 2(ln1)
Supplement, 1st Printing
USA(fus)

Voice commands for Bluetooth audio
Note:The following voice commands are only available if you have
turned on the IndexBluetoothAudio Device setting and if your device
supports indexing.
While listening toBluetoothstereo, press
on the steering wheel
controls. When prompted, you may say any of the following commands:
•Play Genre •Play Playlist
•Play Artist •Play Author
•Play Album •Play Composer
•Play Podcast •Play Folder
•Play Composer •Play Podcast Episode
•Play Audiobook •Play
•Pause•Next
•Previous•Repeat One
•Repeat All•Repeat Off
•Shuffle•Shuffle Off
•Play Similar Music•What’s this?
•Browse*
Note:If your phone does not supportBluetoothmedia streaming, then
the following commands are the only commands that are valid:
•Play•Pause
•Previous•Next
* If you have said you would like to Browse your Bluetooth audio, the
system will prompt you to specify what you would like to browse. When
prompted, you may say any of the following commands:
•Genre •All Genres
•All Songs•Playlist
•Current Playlist•All Playlists
•Artist •All Artists
•Album •All Albums
•Author •All Authors
•Composer •All Composers
•Audiobook •All Audiobooks
Media features
34SeeEnd User License Agreementat the end of this book
2011 HMI-2 Gen 2(ln1)
Supplement, 1st Printing
USA(fus)

PHONE DEPENDENT FEATURES
While SYNCsupports a variety of features, many are dependent upon
the functionality of your cell phone withBluetoothwireless technology.
At a minimum, most cellular phones withBluetoothwireless technology
support the following functions:
•Answering an incoming call
•Ending a call
•Using privacy mode
•Dial a number
•Redial
•Call waiting notification
•Caller ID
•Phonebook / Caller ID photos
Other features, such as text messaging viaBluetooth, and automatic
phone book download are phone dependent features. To ensure that you
have a compatible cellular phone, refer to your phone’s user manual and
visit www.SyncMyRide.com or www.syncmaroute.ca.
PAIRING YOUR PHONE FOR THE FIRST TIME
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device or feature that may
take their focus off the road. Your primary responsibility is the safe
operation of the vehicle. We recommend against the use of any
handheld device while driving and that you comply with all applicable
laws.
The first thing you must do to use the phone features of SYNCis to
pair yourBluetoothenabled cellular phone with SYNC. This allows you
to use your phone in a hands-free manner.
1. Touch ‘Add Phone’ in the upper left corner of the touchscreen.
2. When prompted, select ‘Add’.
3. Select ‘Add Device’.
4. Ensure thatBluetoothis set to ON and that your cellular phone is in
the proper mode. (Refer to your cellular phone’s user guide for more
information).
Phone features
37SeeEnd User License Agreementat the end of this book
2011 HMI-2 Gen 2(ln1)
Supplement, 1st Printing
USA(fus)

5. When prompted by your phone, enter the six digit pass key provided
by SYNCon the screen.
Depending on your phone’s capability, you may be prompted with
additional options. For more information on your phone’s capability, refer
to your phone’s user guide and visit www.SyncMyRide.com
6. CONNECTED will appear in the display when the pairing is successful.
7. The system will ask you if you want to download your phone book.
MAKING A CALL
Once your phone is paired, you can make hands-free calls using SYNC.
1. Press
.
2. When prompted, say, “Call or say “Dial” and the desired
number.
To end the call or exit phone mode,press and hold
.
RECEIVING A CALL
An incoming call interacts with SYNCin much the same way it interacts
with yourBluetooth-enabled cellular phone.
•During an incoming call, an audible tone will sound. If available, call
information will appear in the display.
•Accept the callby pressing ’Accept’ on the touchscreen or by
pressing
on your steering wheel controls.
•Reject the callby pressing ’Reject’ on the touchscreen or by pressing
and holding
on your steering wheel controls.
•Ignore the callby doing nothing. SYNC. will log the call as a missed
call.
PHONE FEATURES
Hands-free calling is one of the main features of SYNC. As many
features are phone dependent, check your device’s user guide and refer
to www.SyncMyRide.com or www.syncmaroute.ca to ensure that your
phone is compatible.
Phone features
38SeeEnd User License Agreementat the end of this book
2011 HMI-2 Gen 2(ln1)
Supplement, 1st Printing
USA(fus)

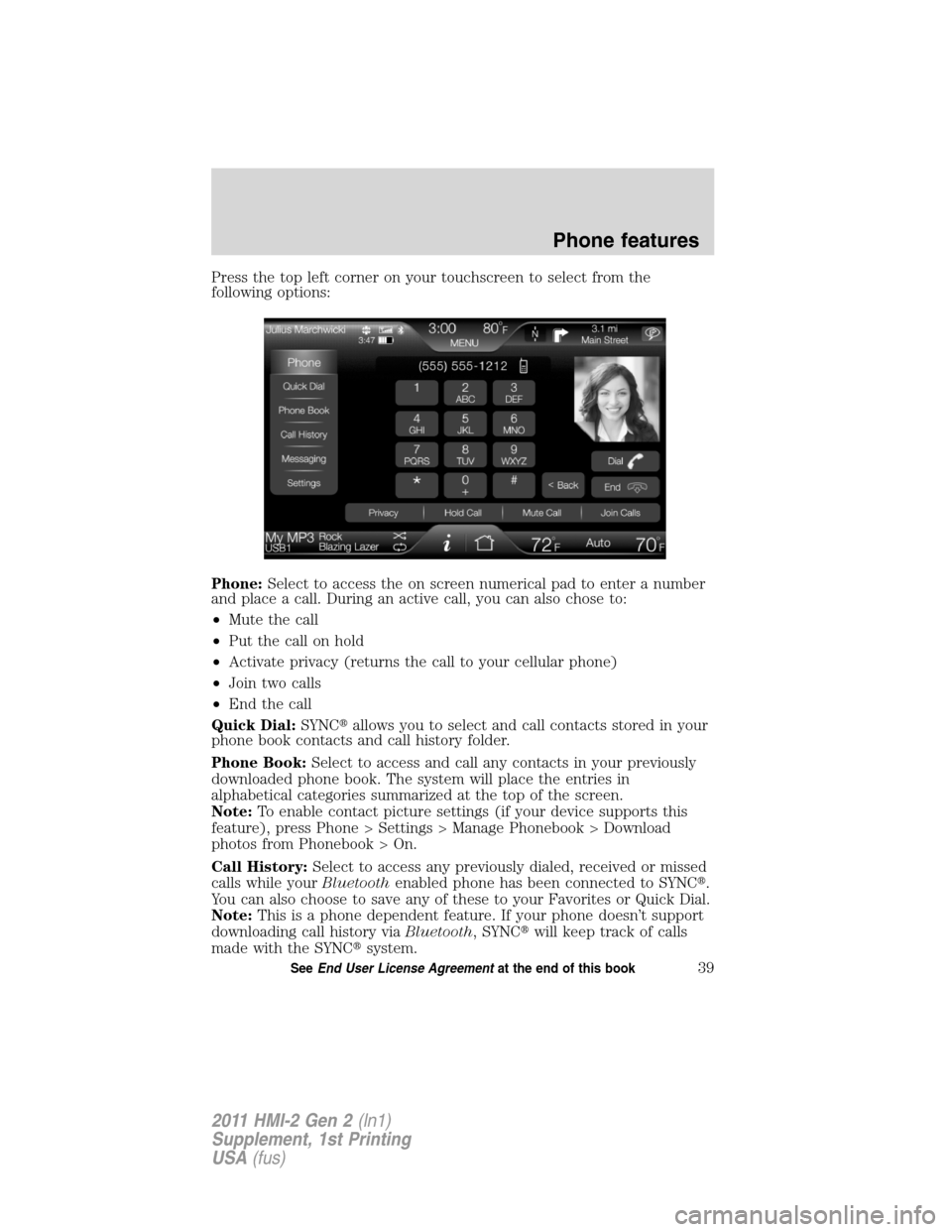

Press the top left corner on your touchscreen to select from the
following options:
Phone:Select to access the on screen numerical pad to enter a number
and place a call. During an active call, you can also chose to:
•Mute the call
•Put the call on hold
•Activate privacy (returns the call to your cellular phone)
•Join two calls
•End the call
Quick Dial:SYNCallows you to select and call contacts stored in your
phone book contacts and call history folder.
Phone Book:Select to access and call any contacts in your previously
downloaded phone book. The system will place the entries in
alphabetical categories summarized at the top of the screen.
Note:To enable contact picture settings (if your device supports this
feature), press Phone > Settings > Manage Phonebook > Download
photos from Phonebook > On.
Call History:Select to access any previously dialed, received or missed
calls while yourBluetoothenabled phone has been connected to SYNC.
You can also choose to save any of these to your Favorites or Quick Dial.
Note:This is a phone dependent feature. If your phone doesn’t support
downloading call history viaBluetooth, SYNCwill keep track of calls
made with the SYNCsystem.
Phone features
39SeeEnd User License Agreementat the end of this book
2011 HMI-2 Gen 2(ln1)
Supplement, 1st Printing
USA(fus)

Messaging:Select to send text messages via your touchscreen system.
Refer toText messaginglater in this section.
Settings:Select to access various phone settings such asBluetooth
on/off, Manage your Phone Book and more. Refer toPhone Settings
later in this section.
PAIRING SUBSEQUENT PHONES
1. Press Menu > Settings > Phone > Bluetooth Devices > Add Device.
2. Ensure that Bluetooth is set to ON and that your cellular phone is in
the proper mode. (Refer to your cellular phone’s user guide for more
information).
3. When prompted by your phone, enter the six digit pass key provided
by SYNC on the screen.
Depending on your phone’s capability, you may be prompted with
additional options. For more information on your phone’s capability, refer
to your phone’s user guide and visit www.SyncMyRide.com
4. CONNECTED will appear in the display when the pairing is successful.
5. The system will ask you if you want to download your phone book.
Depending on your phone’s capability, you may be prompted with
additional options. For more information on your phone’s capability, refer
to your phone’s user guide and visit www.SyncMyRide.com
TEXT MESSAGING
SYNCnot only enables you to send and receive text messages via
Bluetooth, but SYNCwill read them to you aloud and also translate text
messaging acronyms such as “lol”. To access your text messaging menu:
Note:Downloading and sending text messages viaBluetoothare phone
dependent features.
Note:Certain features in text messaging are speed dependent and
cannot be completed when the vehicle is traveling at speeds over 5 mph
(8 km/h).
1. Touch the top left corner of the display to access the phone menu.
2. Select ‘Messaging’.
Phone features
40SeeEnd User License Agreementat the end of this book
2011 HMI-2 Gen 2(ln1)
Supplement, 1st Printing
USA(fus)
