Page 2 of 89
Introduction
3
Customizing your home screen 4
Setting the clock 6
Infotainment display 7
Help 9
Cleaning the touchscreen 10
Voice recognition system overview
12
Media features
16
AM/FM 16
HD Radio™ 18
SIRIUSsatellite radio 22
Accessing and using your USB port 30
Supported media file types 33
Streaming music from your phone 33
Phone features
37
Pairing your phone for the first time 37
Pairing other phones 40
Text messaging 40
SYNCServices and Apps
44
911 Assist™ 44
Vehicle health report 46
Traffic, Directions and Information 48
Settings
52
Wi-Fi 52
System settings 54
Display settings 54
Notifications 54
Table of Contents
1
2011 HMI-2 Gen 2(ln1)
Supplement, 1st Printing
USA(fus)
Page 5 of 89
3.Entertainment:Press this area to access music and media
features such as radio, CD, USB port, etc. These screens will appear with
a red tone. Refer to theMedia featureschapter in this supplement.
4.
Phone:Press this area to access SYNChands-free phone
features. These screens will appear with a yellow tone. Refer to the
Phone featureschapter in this supplement.
The corners will also display any active modes within those menus, such
as your phone being connected or the climate temperature.
Quick access buttons
In addition to accessing the corners, you can also press MENU,
orfor quick access to additional settings and features.
Press MENU to access:
•Clock•Display
•Sound•Vehicle
•Settings•Help
Press
to access:
•SYNC Services•SIRIUS Travel Link
•Notifications•Calendar
•SYNC Apps
Note:If the
icon appears with a yellow tone, refer toNotifications
in theSettingschapter.
Note:Some features are not available while the vehicle is moving.
Screen differences:Depending on your vehicle’s option package and
software, your screens may vary in appearance from the screens shown
in this supplement. Your features may also be limited depending on your
market. Please check with your authorized dealer for availability.
Customizing your home screen
Press
to access the home screen.
Introduction
4SeeEnd User License Agreementat the end of this book
2011 HMI-2 Gen 2(ln1)
Supplement, 1st Printing
USA(fus)
Page 6 of 89
Pressagain and a pop-up will appear with three graphics.
1. Select (1) for your display to be your chosen wallpaper (if saved).
2. Select (2) for the full corners display with preselected shortcuts.
3. Select (3) to customize your home screen by setting up your own
shortcuts.
When on the shortcut screen, select
‘Edit/Add shortcuts’ and the system
will walk you through the process of
setting and saving your shortcuts.
Note:The full corner display (2) with preselected shortcuts is the
default home screen. This screen will momentarily appear at vehicle start
up and will then transition to your chosen selection, if different.
1
2
3
Introduction
5SeeEnd User License Agreementat the end of this book
2011 HMI-2 Gen 2(ln1)
Supplement, 1st Printing
USA(fus)
Page 7 of 89
Setting the clock
1. Press MENU > Clock.
2. Press + and — to adjust the time.
From this screen, you can also
access other adjustments such as 12
or 24 hour mode, to activate GPS
time synchronization, and to have
the system automatically update
new time zones.
Once you update any settings they will be automatically saved.
Note:The date will be set by your vehicle’s GPS. You cannot manually
set the date.
Note:After a battery disconnect, your vehicle will need to acquire a GPS
signal to update the clock. A GPS signal can be received in an open sky
area. Once your vehicle acquires the signal, it may take a few minutes
for the update to display the correct time.
Using the touch sensitive controls on your system
Your vehicle’s centerstack is equipped with touch sensitive switches for
your infotainment and climate control systems. To activate or deactivate
a feature, you need only touch the graphic with your finger.
For optimum performance of these touch sensitive controls,
please note the following:
•The touch sensors are sensitive to light touch. You do not need to
apply forceful pressure on these controls to use them.
•Use your bare finger to touch the center of a touch control graphic.
Touching off-center of the graphic may cause nearby control to
activate/deactivate.
•Ensure that your hands are clean, dry and free of moisture.
•Since the touch control sensor operates based on the touch of a
finger, you may have trouble using them if you are wearing gloves.
•Metal and other conductive material should be kept away from the
surface of the touch controls as this may cause electronic interference
(i.e. control activation).
Introduction
6SeeEnd User License Agreementat the end of this book
2011 HMI-2 Gen 2(ln1)
Supplement, 1st Printing
USA(fus)
Page 8 of 89
Depending on your vehicle and option package, you may also have
some of the following controls on your bezel:
•
(Power):Press to turn the media (or climate features) on/off.
•VOL:Use to increase/decrease the volume.
•VOL and
slider bars:Lightly slide your finger over the rear
slider area to increase/decrease the volume or fan levels.
•
/andTUNE +/-: Use as you normally would in media
modes.
•
(Eject):Press to eject a CD from the system.
•SOURCE:Touch the word repeatedly to cycle through all available
media modes. The screen will not change, but you will see the media
changes in the lower left status bar.
•SOUND:Touch the word to access the Sound menu on screen where
you can make adjustments to settings such as: Bass, Treble, Midrange,
Balance and Fade, THX Deep note demo (if equipped), DSP (if
equipped), Occupancy mode (if equipped), Audio Visualizer (if
equipped) and Speed compensated volume settings.
Accessing and adjusting modes through your infotainment display
Your infotainment display is located on the right side of your instrument
cluster. The display allows you to view and make minor adjustments to
your active modes without taking your hands off the wheel.
km/h
80
60
40
20
0
20
0 40 60 80
100120140160180
200
220
100120140
MPH
Introduction
7SeeEnd User License Agreementat the end of this book
2011 HMI-2 Gen 2(ln1)
Supplement, 1st Printing
USA(fus)
Page 9 of 89
Use the OK and arrow buttons on
the right side or your steering wheel
to scroll through your available
modes:
•
Entertainment
•
Phone
•
Navigation (if equipped)
•
Climate
Note:If your vehicle is not equipped with navigation,Compasswill
appear in the display instead ofNavigation. If you press
to go into
theCompassmenu, you can see the compass graphic.
•Press
/to scroll through
the modes.
•Press
to enter the mode.
•Press
/to make
adjustments within the chosen
mode.
•Press OK to confirm your
selection.
For example, in phone mode, you
can accept or reject an incoming
call.
Introduction
8SeeEnd User License Agreementat the end of this book
2011 HMI-2 Gen 2(ln1)
Supplement, 1st Printing
USA(fus)
Page 11 of 89

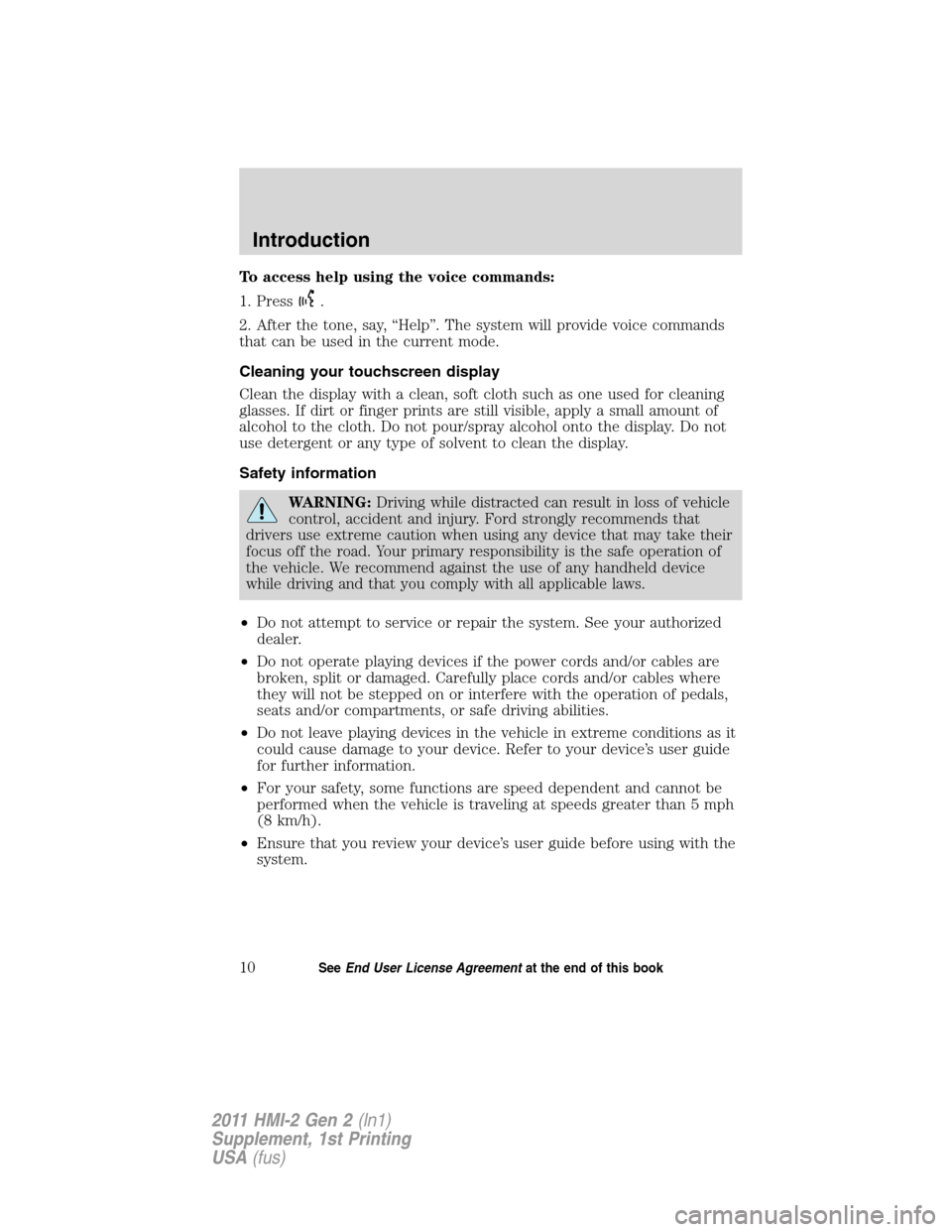

To access help using the voice commands:
1. Press
.
2. After the tone, say, “Help”. The system will provide voice commands
that can be used in the current mode.
Cleaning your touchscreen display
Clean the display with a clean, soft cloth such as one used for cleaning
glasses. If dirt or finger prints are still visible, apply a small amount of
alcohol to the cloth. Do not pour/spray alcohol onto the display. Do not
use detergent or any type of solvent to clean the display.
Safety information
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device that may take their
focus off the road. Your primary responsibility is the safe operation of
the vehicle. We recommend against the use of any handheld device
while driving and that you comply with all applicable laws.
•Do not attempt to service or repair the system. See your authorized
dealer.
•Do not operate playing devices if the power cords and/or cables are
broken, split or damaged. Carefully place cords and/or cables where
they will not be stepped on or interfere with the operation of pedals,
seats and/or compartments, or safe driving abilities.
•Do not leave playing devices in the vehicle in extreme conditions as it
could cause damage to your device. Refer to your device’s user guide
for further information.
•For your safety, some functions are speed dependent and cannot be
performed when the vehicle is traveling at speeds greater than 5 mph
(8 km/h).
•Ensure that you review your device’s user guide before using with the
system.
Introduction
10SeeEnd User License Agreementat the end of this book
2011 HMI-2 Gen 2(ln1)
Supplement, 1st Printing
USA(fus)
Page 14 of 89

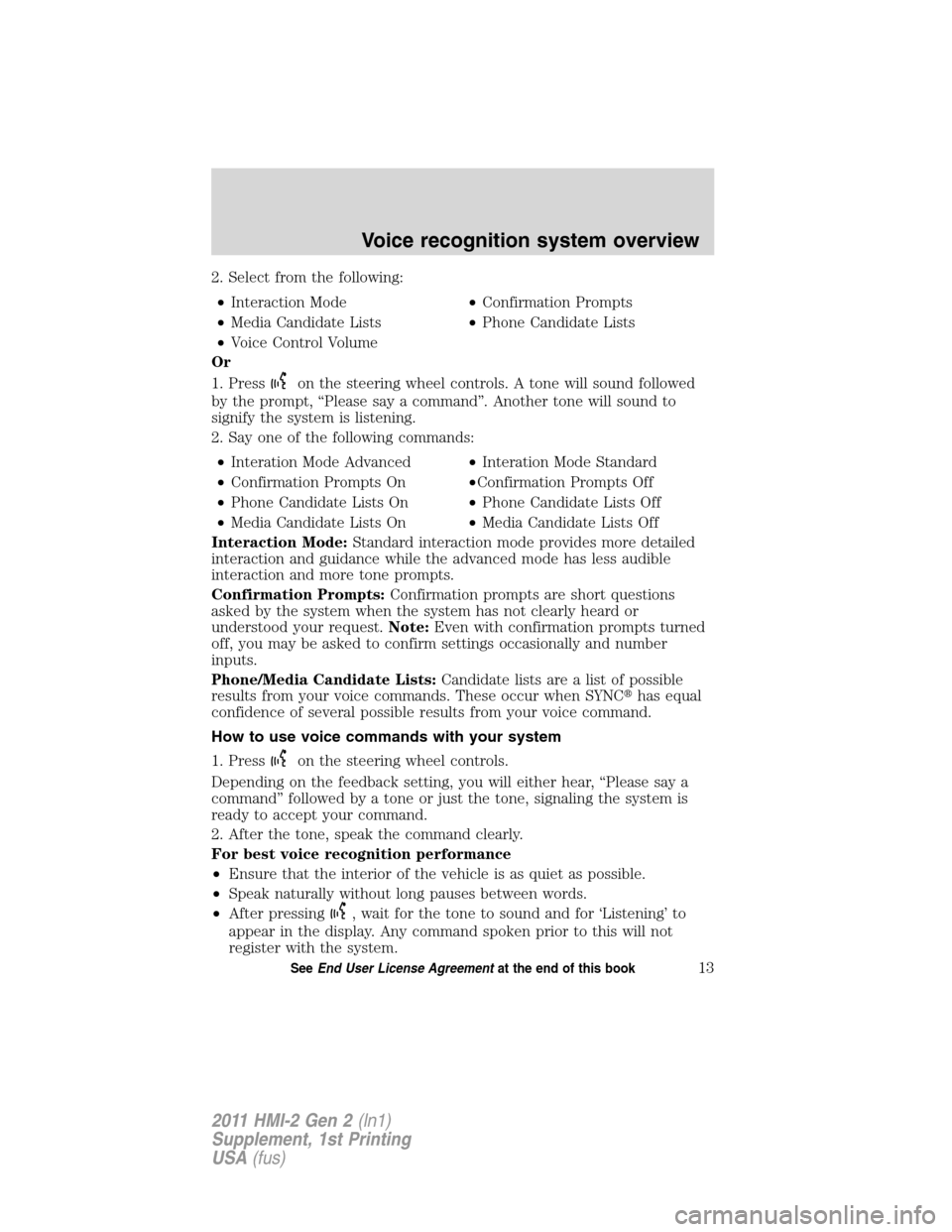

2. Select from the following:
•Interaction Mode•Confirmation Prompts
•Media Candidate Lists•Phone Candidate Lists
•Voice Control Volume
Or
1. Press
on the steering wheel controls. A tone will sound followed
by the prompt, “Please say a command”. Another tone will sound to
signify the system is listening.
2. Say one of the following commands:
•Interation Mode Advanced•Interation Mode Standard
•Confirmation Prompts On•Confirmation Prompts Off
•Phone Candidate Lists On•Phone Candidate Lists Off
•Media Candidate Lists On•Media Candidate Lists Off
Interaction Mode:Standard interaction mode provides more detailed
interaction and guidance while the advanced mode has less audible
interaction and more tone prompts.
Confirmation Prompts:Confirmation prompts are short questions
asked by the system when the system has not clearly heard or
understood your request.Note:Even with confirmation prompts turned
off, you may be asked to confirm settings occasionally and number
inputs.
Phone/Media Candidate Lists:Candidate lists are a list of possible
results from your voice commands. These occur when SYNChas equal
confidence of several possible results from your voice command.
How to use voice commands with your system
1. Press
on the steering wheel controls.
Depending on the feedback setting, you will either hear, “Please say a
command” followed by a tone or just the tone, signaling the system is
ready to accept your command.
2. After the tone, speak the command clearly.
For best voice recognition performance
•Ensure that the interior of the vehicle is as quiet as possible.
•Speak naturally without long pauses between words.
•After pressing
, wait for the tone to sound and for ‘Listening’ to
appear in the display. Any command spoken prior to this will not
register with the system.
Voice recognition system overview
13SeeEnd User License Agreementat the end of this book
2011 HMI-2 Gen 2(ln1)
Supplement, 1st Printing
USA(fus)
Page 17 of 89

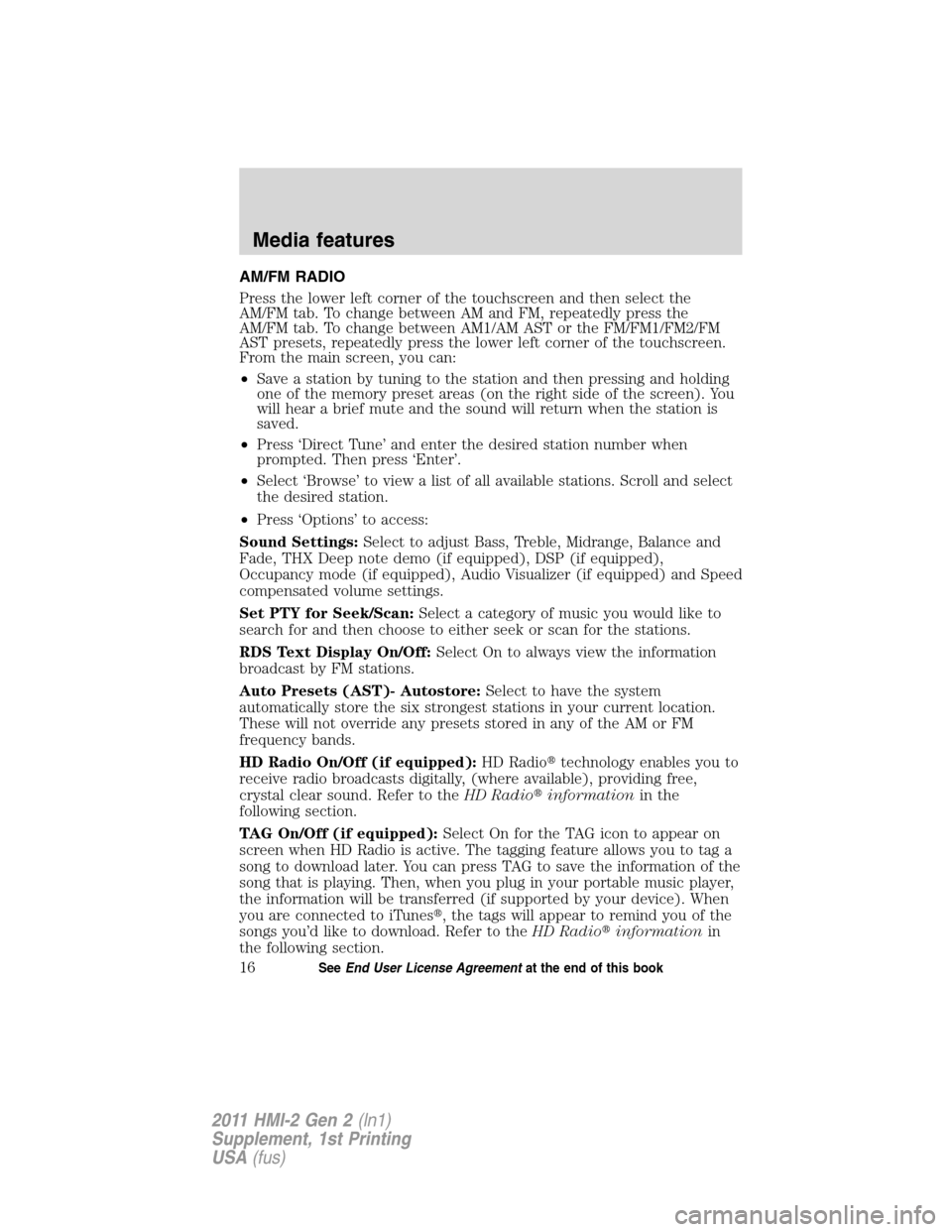

AM/FM RADIO
Press the lower left corner of the touchscreen and then select the
AM/FM tab. To change between AM and FM, repeatedly press the
AM/FM tab. To change between AM1/AM AST or the FM/FM1/FM2/FM
AST presets, repeatedly press the lower left corner of the touchscreen.
From the main screen, you can:
•Save a station by tuning to the station and then pressing and holding
one of the memory preset areas (on the right side of the screen). You
will hear a brief mute and the sound will return when the station is
saved.
•Press ‘Direct Tune’ and enter the desired station number when
prompted. Then press ‘Enter’.
•Select ‘Browse’ to view a list of all available stations. Scroll and select
the desired station.
•Press ‘Options’ to access:
Sound Settings:Select to adjust Bass, Treble, Midrange, Balance and
Fade, THX Deep note demo (if equipped), DSP (if equipped),
Occupancy mode (if equipped), Audio Visualizer (if equipped) and Speed
compensated volume settings.
Set PTY for Seek/Scan:Select a category of music you would like to
search for and then choose to either seek or scan for the stations.
RDS Text Display On/Off:Select On to always view the information
broadcast by FM stations.
Auto Presets (AST)- Autostore:Select to have the system
automatically store the six strongest stations in your current location.
These will not override any presets stored in any of the AM or FM
frequency bands.
HD Radio On/Off (if equipped):HD Radiotechnology enables you to
receive radio broadcasts digitally, (where available), providing free,
crystal clear sound. Refer to theHD Radioinformationin the
following section.
TAG On/Off (if equipped):Select On for the TAG icon to appear on
screen when HD Radio is active. The tagging feature allows you to tag a
song to download later. You can press TAG to save the information of the
song that is playing. Then, when you plug in your portable music player,
the information will be transferred (if supported by your device). When
you are connected to iTunes, the tags will appear to remind you of the
songs you’d like to download. Refer to theHD Radioinformationin
the following section.
Media features
16SeeEnd User License Agreementat the end of this book
2011 HMI-2 Gen 2(ln1)
Supplement, 1st Printing
USA(fus)
Page 20 of 89
B. Multicast indicator:This will
appear in FM mode (only) if the
current station is broadcasting
multiple digital broadcasts. The
numbers that are highlighted signify
available digital channels where
new/different content is available.
HD1 will signify the main
programming status and is available in analog and digital broadcasts. Any
additional multicast stations (HD2–HD7) are only broadcast digitally.
The tagging feature
The tagging feature allows you to tag a song to download later. When
you are on an acquired HD Radio station, the TAG button will become
available (provided the feature has been turned on. To turn on, press
AM/FM > Options > TAG On).
When you are listening to a song
you would like to tag to download
later, simply press the TAG button.
The system will automatically save
the song’s information and transfer
it to your portable music player (if supported) when it is connected to
the system. If your music player is connected at the time, the system will
automatically transfer the tag to your player and a pop up will confirm
the transfer. When you access iTuneswith your portable music player,
the tags will appear to you will be reminded of the song. The system will
allow you to tag up to approximately 100 songs.
Note:For a list of devices that support tagging, refer to
www.SyncMyRide.com or www.syncmaroute.ca.
When HD Radio broadcasts are active, you can access the
following functions:
•Scan:Your scan feature will still work when HD Radio reception is
activated, although it will not scan for HD2 - HD7 channels. You may
see the HD logo appear if the station has a digital broadcast.
•Seek:Press to seek to the next strong radio station.If the current
station has multiple digital broadcasts,the multicast indicator will
display. Press Seek repeatedly to advance through all available
broadcasts. If you are on the last multicast channel, press Seek to
advance to the next strong station.
Media features
19SeeEnd User License Agreementat the end of this book
2011 HMI-2 Gen 2(ln1)
Supplement, 1st Printing
USA(fus)
