Page 2 of 89
![LINCOLN MKX 2011 My Lincoln Touch Manual Introduction
3
Customizing your home screen 4
Setting the clock 6
Infotainment display 7
Help 9
Cleaning the touchscreen 10
Voice recognition system overview
12
Media features
16
AM/FM 16
HD Radio™ LINCOLN MKX 2011 My Lincoln Touch Manual Introduction
3
Customizing your home screen 4
Setting the clock 6
Infotainment display 7
Help 9
Cleaning the touchscreen 10
Voice recognition system overview
12
Media features
16
AM/FM 16
HD Radio™](/img/15/6948/w960_6948-1.png)
Introduction
3
Customizing your home screen 4
Setting the clock 6
Infotainment display 7
Help 9
Cleaning the touchscreen 10
Voice recognition system overview
12
Media features
16
AM/FM 16
HD Radio™ 18
SIRIUSsatellite radio 22
Accessing and using your USB port 30
Supported media file types 33
Streaming music from your phone 33
Phone features
37
Pairing your phone for the first time 37
Pairing other phones 40
Text messaging 40
SYNCServices and Apps
44
911 Assist™ 44
Vehicle health report 46
Traffic, Directions and Information 48
Settings
52
Wi-Fi 52
System settings 54
Display settings 54
Notifications 54
Table of Contents
1
2011 HMI-2 Gen 2(ln1)
Supplement, 1st Printing
USA(fus)
Page 5 of 89
![LINCOLN MKX 2011 My Lincoln Touch Manual 3.Entertainment:Press this area to access music and media
features such as radio, CD, USB port, etc. These screens will appear with
a red tone. Refer to theMedia featureschapter in this supplement.
4. LINCOLN MKX 2011 My Lincoln Touch Manual 3.Entertainment:Press this area to access music and media
features such as radio, CD, USB port, etc. These screens will appear with
a red tone. Refer to theMedia featureschapter in this supplement.
4.](/img/15/6948/w960_6948-4.png)
3.Entertainment:Press this area to access music and media
features such as radio, CD, USB port, etc. These screens will appear with
a red tone. Refer to theMedia featureschapter in this supplement.
4.
Phone:Press this area to access SYNChands-free phone
features. These screens will appear with a yellow tone. Refer to the
Phone featureschapter in this supplement.
The corners will also display any active modes within those menus, such
as your phone being connected or the climate temperature.
Quick access buttons
In addition to accessing the corners, you can also press MENU,
orfor quick access to additional settings and features.
Press MENU to access:
•Clock•Display
•Sound•Vehicle
•Settings•Help
Press
to access:
•SYNC Services•SIRIUS Travel Link
•Notifications•Calendar
•SYNC Apps
Note:If the
icon appears with a yellow tone, refer toNotifications
in theSettingschapter.
Note:Some features are not available while the vehicle is moving.
Screen differences:Depending on your vehicle’s option package and
software, your screens may vary in appearance from the screens shown
in this supplement. Your features may also be limited depending on your
market. Please check with your authorized dealer for availability.
Customizing your home screen
Press
to access the home screen.
Introduction
4SeeEnd User License Agreementat the end of this book
2011 HMI-2 Gen 2(ln1)
Supplement, 1st Printing
USA(fus)
Page 15 of 89
![LINCOLN MKX 2011 My Lincoln Touch Manual •You can interrupt the system at any time while it is speaking by
pressing
. The system will respond with a tone and allow you to
speak your command.
What can I say?
To access the available voice co LINCOLN MKX 2011 My Lincoln Touch Manual •You can interrupt the system at any time while it is speaking by
pressing
. The system will respond with a tone and allow you to
speak your command.
What can I say?
To access the available voice co](/img/15/6948/w960_6948-14.png)
•You can interrupt the system at any time while it is speaking by
pressing
. The system will respond with a tone and allow you to
speak your command.
What can I say?
To access the available voice commands for the current session, do one
of the following:
•During a voice session, press the
icon at the bottom of the screen.
•Say “What Can I Say??” for an on screen listing of the possible voice
commands that are associated with your current voice session.
•Press
on the steering wheel controls and after the tone say “Help”
for an audible list of possible voice commands.
To access a list of available voice commands
•Press Menu > Help > Voice command list
OR
•Press
on the steering wheel controls and when prompted, say any
of the following (if available):
•List of Commands•Phone List of Commands
•Radio List of Commands•Climate Control List of
Commands
•Navigation List of Commands•Travel Link List of Commands
•Sirius Satellite List of Commands•Audio List of Commands
•USB List of Commands•SD Card List of Commands
•Bluetooth Audio List of
Commands•Browse List of Commands
Global voice commands
The following voice commands can be spoken at any time during a voice
session:
•Help•What Can I Say?
•Main Menu•Go Back
•Next•Previous
•Exit•List of Commands
Voice recognition system overview
14SeeEnd User License Agreementat the end of this book
2011 HMI-2 Gen 2(ln1)
Supplement, 1st Printing
USA(fus)
Page 17 of 89
![LINCOLN MKX 2011 My Lincoln Touch Manual AM/FM RADIO
Press the lower left corner of the touchscreen and then select the
AM/FM tab. To change between AM and FM, repeatedly press the
AM/FM tab. To change between AM1/AM AST or the FM/FM1/FM2/FM LINCOLN MKX 2011 My Lincoln Touch Manual AM/FM RADIO
Press the lower left corner of the touchscreen and then select the
AM/FM tab. To change between AM and FM, repeatedly press the
AM/FM tab. To change between AM1/AM AST or the FM/FM1/FM2/FM](/img/15/6948/w960_6948-16.png)
AM/FM RADIO
Press the lower left corner of the touchscreen and then select the
AM/FM tab. To change between AM and FM, repeatedly press the
AM/FM tab. To change between AM1/AM AST or the FM/FM1/FM2/FM
AST presets, repeatedly press the lower left corner of the touchscreen.
From the main screen, you can:
•Save a station by tuning to the station and then pressing and holding
one of the memory preset areas (on the right side of the screen). You
will hear a brief mute and the sound will return when the station is
saved.
•Press ‘Direct Tune’ and enter the desired station number when
prompted. Then press ‘Enter’.
•Select ‘Browse’ to view a list of all available stations. Scroll and select
the desired station.
•Press ‘Options’ to access:
Sound Settings:Select to adjust Bass, Treble, Midrange, Balance and
Fade, THX Deep note demo (if equipped), DSP (if equipped),
Occupancy mode (if equipped), Audio Visualizer (if equipped) and Speed
compensated volume settings.
Set PTY for Seek/Scan:Select a category of music you would like to
search for and then choose to either seek or scan for the stations.
RDS Text Display On/Off:Select On to always view the information
broadcast by FM stations.
Auto Presets (AST)- Autostore:Select to have the system
automatically store the six strongest stations in your current location.
These will not override any presets stored in any of the AM or FM
frequency bands.
HD Radio On/Off (if equipped):HD Radiotechnology enables you to
receive radio broadcasts digitally, (where available), providing free,
crystal clear sound. Refer to theHD Radioinformationin the
following section.
TAG On/Off (if equipped):Select On for the TAG icon to appear on
screen when HD Radio is active. The tagging feature allows you to tag a
song to download later. You can press TAG to save the information of the
song that is playing. Then, when you plug in your portable music player,
the information will be transferred (if supported by your device). When
you are connected to iTunes, the tags will appear to remind you of the
songs you’d like to download. Refer to theHD Radioinformationin
the following section.
Media features
16SeeEnd User License Agreementat the end of this book
2011 HMI-2 Gen 2(ln1)
Supplement, 1st Printing
USA(fus)
Page 18 of 89
![LINCOLN MKX 2011 My Lincoln Touch Manual Browse voice commands
When listening to any type of audio, you can browse through other
devices without having to change to a different audio. For example, if
you are currently listening to the radio, LINCOLN MKX 2011 My Lincoln Touch Manual Browse voice commands
When listening to any type of audio, you can browse through other
devices without having to change to a different audio. For example, if
you are currently listening to the radio,](/img/15/6948/w960_6948-17.png)
Browse voice commands
When listening to any type of audio, you can browse through other
devices without having to change to a different audio. For example, if
you are currently listening to the radio, you can browse all the artists
that are stored on your USB device. Press
on the steering wheel
controls and when prompted, you can say:
•Browse station list•Browse AM station list
•Browse FM station list•Browse SIRIUS channel guide
•Browse
•Browse CD track list•Browse USB
•Browse SD card•Browse Bluetooth audio
•Browse*
*Note:If you have said, “Browse”, you can then say any of the following
commands:
•AM station list•FM station list
•SIRIUS channel guide•CD track list
•
•SD card•Bluetooth audio
For a complete list of Browse voice commands, refer toVoice
commands for your USB and SD CardandVoice commands for
Bluetooth Audioin the following sections.
Radio voice commands
While listening to the radio, press
on the steering wheel controls.
When prompted, you may say any of the following commands:
•Radio On•Radio Off
•Set PTY•AM
•AM <530–1710>•AM Autoset
•FM•FM <87.9–107.9>
•FM1•FM2
•FM Autoset•FM Preset <#>
•FM <87.9–107.9>•Preset <#>
•AM Preset <#>•AM Autoset Preset <#>
•FM 1 Preset <#>•FM 2 Preset <#>
•FM Autoset Preset <#>•HD <#> (if available)
•Tune*•Browse**
Note:If you are not listening to the radio, press
and when
prompted, say, “Radio” and you can say any of the above commands.
Media features
17SeeEnd User License Agreementat the end of this book
2011 HMI-2 Gen 2(ln1)
Supplement, 1st Printing
USA(fus)
Page 19 of 89
![LINCOLN MKX 2011 My Lincoln Touch Manual *Note:If you have said, “Tune”, you can then say any of the following
commands:
•<530–1710>•<87.9–107.9>
•AM <530–1710>•FM <87.9–107.9>
•AM•FM
•FM1•FM2
•AM Autoset•FM A LINCOLN MKX 2011 My Lincoln Touch Manual *Note:If you have said, “Tune”, you can then say any of the following
commands:
•<530–1710>•<87.9–107.9>
•AM <530–1710>•FM <87.9–107.9>
•AM•FM
•FM1•FM2
•AM Autoset•FM A](/img/15/6948/w960_6948-18.png)

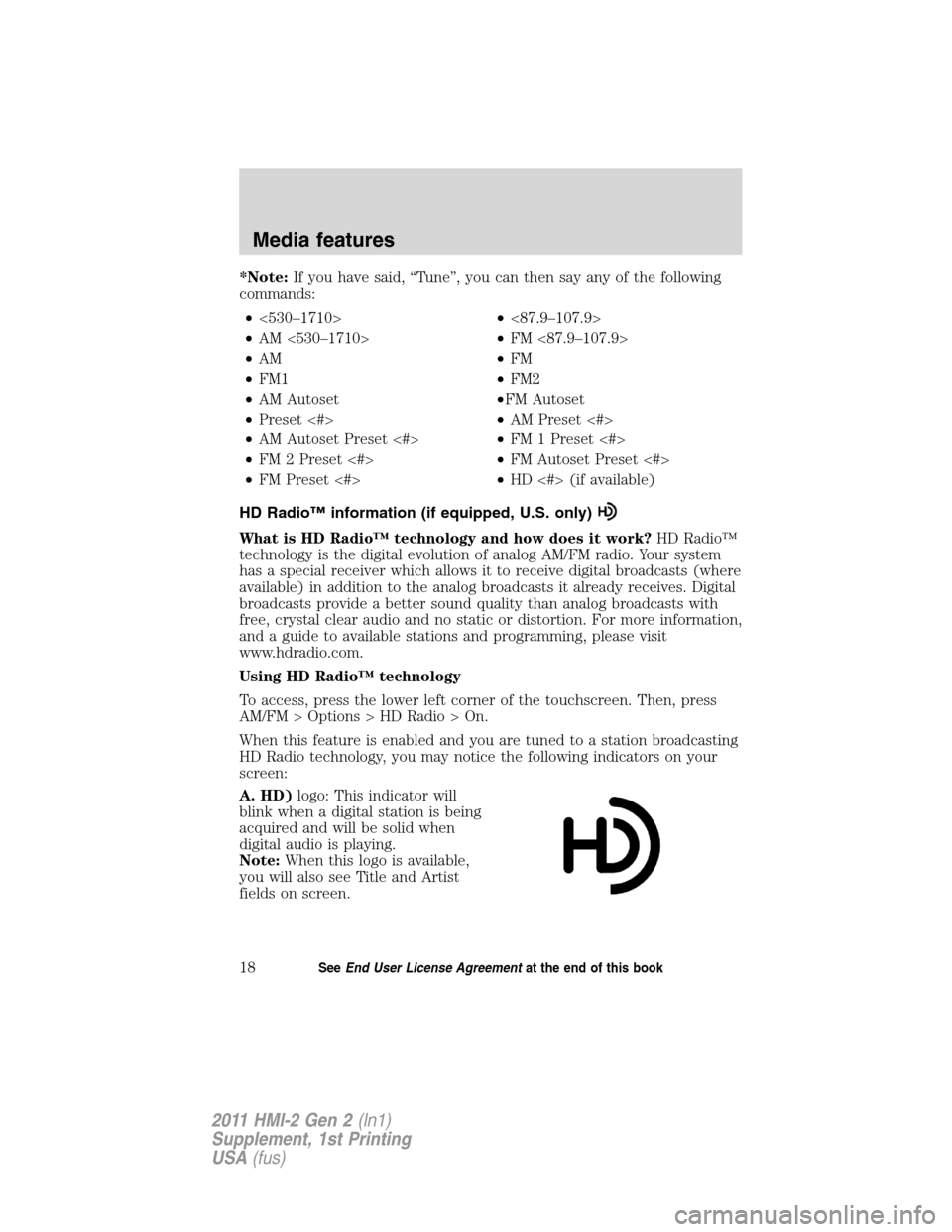

*Note:If you have said, “Tune”, you can then say any of the following
commands:
•<530–1710>•<87.9–107.9>
•AM <530–1710>•FM <87.9–107.9>
•AM•FM
•FM1•FM2
•AM Autoset•FM Autoset
•Preset <#>•AM Preset <#>
•AM Autoset Preset <#>•FM 1 Preset <#>
•FM 2 Preset <#>•FM Autoset Preset <#>
•FM Preset <#>•HD <#> (if available)
HD Radio™ information (if equipped, U.S. only)
What is HD Radio™ technology and how does it work?HD Radio™
technology is the digital evolution of analog AM/FM radio. Your system
has a special receiver which allows it to receive digital broadcasts (where
available) in addition to the analog broadcasts it already receives. Digital
broadcasts provide a better sound quality than analog broadcasts with
free, crystal clear audio and no static or distortion. For more information,
and a guide to available stations and programming, please visit
www.hdradio.com.
Using HD Radio™ technology
To access, press the lower left corner of the touchscreen. Then, press
AM/FM > Options > HD Radio > On.
When this feature is enabled and you are tuned to a station broadcasting
HD Radio technology, you may notice the following indicators on your
screen:
A. HD)logo: This indicator will
blink when a digital station is being
acquired and will be solid when
digital audio is playing.
Note:When this logo is available,
you will also see Title and Artist
fields on screen.
Media features
18SeeEnd User License Agreementat the end of this book
2011 HMI-2 Gen 2(ln1)
Supplement, 1st Printing
USA(fus)
Page 20 of 89
![LINCOLN MKX 2011 My Lincoln Touch Manual B. Multicast indicator:This will
appear in FM mode (only) if the
current station is broadcasting
multiple digital broadcasts. The
numbers that are highlighted signify
available digital channels where
LINCOLN MKX 2011 My Lincoln Touch Manual B. Multicast indicator:This will
appear in FM mode (only) if the
current station is broadcasting
multiple digital broadcasts. The
numbers that are highlighted signify
available digital channels where](/img/15/6948/w960_6948-19.png)
B. Multicast indicator:This will
appear in FM mode (only) if the
current station is broadcasting
multiple digital broadcasts. The
numbers that are highlighted signify
available digital channels where
new/different content is available.
HD1 will signify the main
programming status and is available in analog and digital broadcasts. Any
additional multicast stations (HD2–HD7) are only broadcast digitally.
The tagging feature
The tagging feature allows you to tag a song to download later. When
you are on an acquired HD Radio station, the TAG button will become
available (provided the feature has been turned on. To turn on, press
AM/FM > Options > TAG On).
When you are listening to a song
you would like to tag to download
later, simply press the TAG button.
The system will automatically save
the song’s information and transfer
it to your portable music player (if supported) when it is connected to
the system. If your music player is connected at the time, the system will
automatically transfer the tag to your player and a pop up will confirm
the transfer. When you access iTuneswith your portable music player,
the tags will appear to you will be reminded of the song. The system will
allow you to tag up to approximately 100 songs.
Note:For a list of devices that support tagging, refer to
www.SyncMyRide.com or www.syncmaroute.ca.
When HD Radio broadcasts are active, you can access the
following functions:
•Scan:Your scan feature will still work when HD Radio reception is
activated, although it will not scan for HD2 - HD7 channels. You may
see the HD logo appear if the station has a digital broadcast.
•Seek:Press to seek to the next strong radio station.If the current
station has multiple digital broadcasts,the multicast indicator will
display. Press Seek repeatedly to advance through all available
broadcasts. If you are on the last multicast channel, press Seek to
advance to the next strong station.
Media features
19SeeEnd User License Agreementat the end of this book
2011 HMI-2 Gen 2(ln1)
Supplement, 1st Printing
USA(fus)
Page 21 of 89
![LINCOLN MKX 2011 My Lincoln Touch Manual •Tune:Use to go up/down the frequency in individual increments.
If the current station has multiple digital broadcasts,the
multicast indicator will display. Use Tune to advance through all
available LINCOLN MKX 2011 My Lincoln Touch Manual •Tune:Use to go up/down the frequency in individual increments.
If the current station has multiple digital broadcasts,the
multicast indicator will display. Use Tune to advance through all
available](/img/15/6948/w960_6948-20.png)

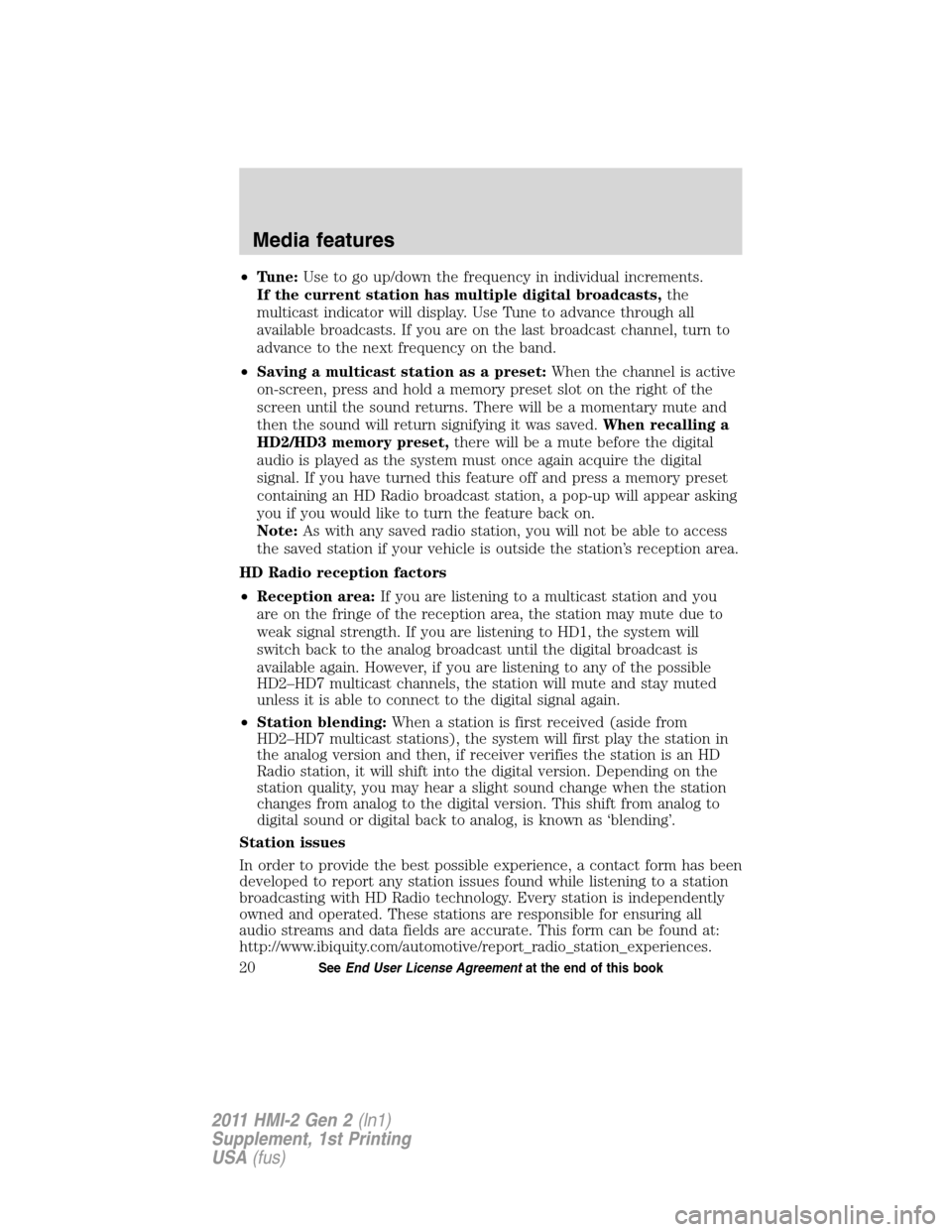

•Tune:Use to go up/down the frequency in individual increments.
If the current station has multiple digital broadcasts,the
multicast indicator will display. Use Tune to advance through all
available broadcasts. If you are on the last broadcast channel, turn to
advance to the next frequency on the band.
•Saving a multicast station as a preset:When the channel is active
on-screen, press and hold a memory preset slot on the right of the
screen until the sound returns. There will be a momentary mute and
then the sound will return signifying it was saved.When recalling a
HD2/HD3 memory preset,there will be a mute before the digital
audio is played as the system must once again acquire the digital
signal. If you have turned this feature off and press a memory preset
containing an HD Radio broadcast station, a pop-up will appear asking
you if you would like to turn the feature back on.
Note:As with any saved radio station, you will not be able to access
the saved station if your vehicle is outside the station’s reception area.
HD Radio reception factors
•Reception area:If you are listening to a multicast station and you
are on the fringe of the reception area, the station may mute due to
weak signal strength. If you are listening to HD1, the system will
switch back to the analog broadcast until the digital broadcast is
available again. However, if you are listening to any of the possible
HD2–HD7 multicast channels, the station will mute and stay muted
unless it is able to connect to the digital signal again.
•Station blending:When a station is first received (aside from
HD2–HD7 multicast stations), the system will first play the station in
the analog version and then, if receiver verifies the station is an HD
Radio station, it will shift into the digital version. Depending on the
station quality, you may hear a slight sound change when the station
changes from analog to the digital version. This shift from analog to
digital sound or digital back to analog, is known as ‘blending’.
Station issues
In order to provide the best possible experience, a contact form has been
developed to report any station issues found while listening to a station
broadcasting with HD Radio technology. Every station is independently
owned and operated. These stations are responsible for ensuring all
audio streams and data fields are accurate. This form can be found at:
http://www.ibiquity.com/automotive/report_radio_station_experiences.
Media features
20SeeEnd User License Agreementat the end of this book
2011 HMI-2 Gen 2(ln1)
Supplement, 1st Printing
USA(fus)
Page 22 of 89
![LINCOLN MKX 2011 My Lincoln Touch Manual Experience Cause Possible action
Echo, stutter, skip or
repeat in audio
Increase or decrease
in audio volumePoor time alignment
by the radio
broadcaster.None — broadcast
issue.
Sound fading,
blendin LINCOLN MKX 2011 My Lincoln Touch Manual Experience Cause Possible action
Echo, stutter, skip or
repeat in audio
Increase or decrease
in audio volumePoor time alignment
by the radio
broadcaster.None — broadcast
issue.
Sound fading,
blendin](/img/15/6948/w960_6948-21.png)
Experience Cause Possible action
Echo, stutter, skip or
repeat in audio
Increase or decrease
in audio volumePoor time alignment
by the radio
broadcaster.None — broadcast
issue.
Sound fading,
blending in and outThe radio is shifting
between analog and
digital audio.Reception issue that
may clear up as you
continue to drive.
Audio mute delay
when selecting
HD2/HD3 multicast
preset or direct tune.The digital multicast
is not available until
the HD Radio
broadcast is decoded.
Once decoded, the
audio will be available.This is normal behavior.
Wait until the audio is
available.
Cannot access
HD2/HD3 multicast
channel when
recalling a preset or
from a direct tuneThe previously stored
multicast preset or
direct tune is not
available in your
current reception
area.None — the station is
not available in your
current location.
Text information does
not match currently
playing audioData service issue by
the radio broadcaster.Fill out the station
issue form at
www.ibiquity.com
/automotive/
report_radio
_station_experiences.
No text information
shown for currently
selected frequency.Data service issue by
the radio broadcaster.Fill out the station
issue form at
www.ibiquity.com
/automotive/
report_radio
_station_experiences.
HD2–HD7 stations not
found when Scan is
pressed.Pressing Scan will
disable HD2–HD7
channel search.None — this is normal
behavior.
Media features
21SeeEnd User License Agreementat the end of this book
2011 HMI-2 Gen 2(ln1)
Supplement, 1st Printing
USA(fus)
Page 23 of 89
![LINCOLN MKX 2011 My Lincoln Touch Manual HD Radio™ Technology manufactured under license from iBiquity Digital
Corp. U.S. and foreign patents. HD Radio™ and the HD and HD Radio
logos are proprietary trademarks of iBiquity Digital Corp. F LINCOLN MKX 2011 My Lincoln Touch Manual HD Radio™ Technology manufactured under license from iBiquity Digital
Corp. U.S. and foreign patents. HD Radio™ and the HD and HD Radio
logos are proprietary trademarks of iBiquity Digital Corp. F](/img/15/6948/w960_6948-22.png)
HD Radio™ Technology manufactured under license from iBiquity Digital
Corp. U.S. and foreign patents. HD Radio™ and the HD and HD Radio
logos are proprietary trademarks of iBiquity Digital Corp. Ford Motor
Company and iBiquity Digital Corp. are not responsible for the content
sent using HD Radio technology. Content may be changed, added or
deleted at any time at the station owner’s discretion.
SIRIUSSATELLITE RADIO (IF ACTIVATED)
Press the lower left corner of the touchscreen and then select the
SIRIUS tab. You can then:
•Press and hold one of the memory preset areas (on the right side of
the screen). You will hear a brief mute and the sound will return when
the station is saved.
•Press ‘Direct’ Tune and enter the desired satellite channel number via
the on screen keypad.
•Press the SIRIUS button repeatedly to change SIRIUS presets (SIRIUS
1,2or3).
•Press ALERT to save the current song, artist, or team as a favorite
and the system will alert you when it plays again on any SIRIUS
channel.
•Select ‘Browse’ to view a list of all available stations. Scroll and select
the desired station. You can also lock or skip unwanted channels or
view the song/artist on other stations.
•Press ‘Scan’ for a brief sampling of channels.
Media features
22SeeEnd User License Agreementat the end of this book
2011 HMI-2 Gen 2(ln1)
Supplement, 1st Printing
USA(fus)
