Vehicle Symbol Glossary
Power Windows
Front/Rear
Power Window Lockout
Child Safety Door
Lock/UnlockInterior Luggage
Compartment Release
Panic AlarmEngine Oil
Engine CoolantEngine Coolant
Temperature
Do Not Open When HotBattery
Avoid Smoking, Flames,
or SparksBattery Acid
Explosive GasFan Warning
Power Steering FluidMaintain Correct Fluid
LevelMAX
MIN
Service Engine SoonEngine Air Filter
Passenger Compartment
Air FilterJack
Check Fuel CapLow Tire Pressure
Warning
Introduction
11
2011 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)
Page 12 of 367

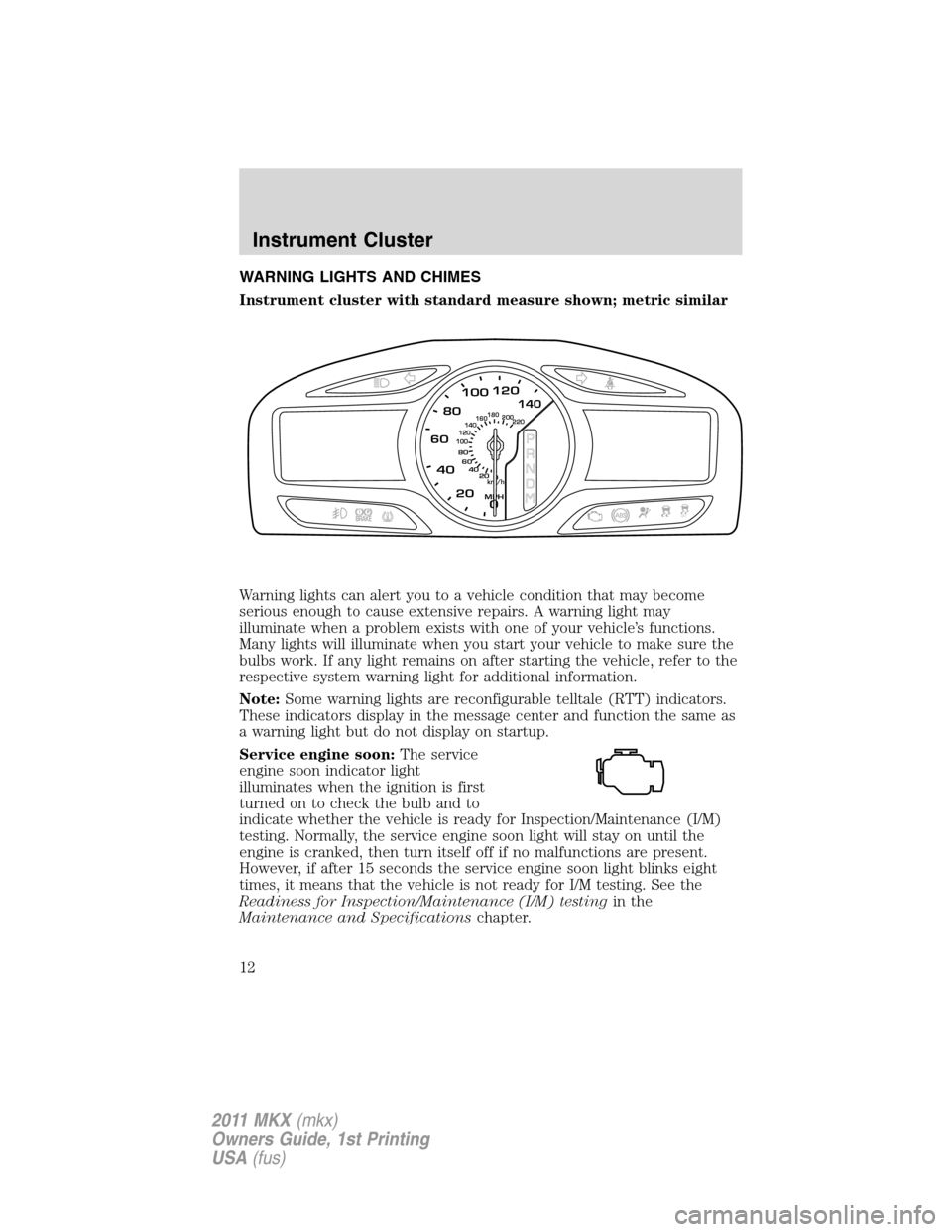

WARNING LIGHTS AND CHIMES
Instrument cluster with standard measure shown; metric similar
Warning lights can alert you to a vehicle condition that may become
serious enough to cause extensive repairs. A warning light may
illuminate when a problem exists with one of your vehicle’s functions.
Many lights will illuminate when you start your vehicle to make sure the
bulbs work. If any light remains on after starting the vehicle, refer to the
respective system warning light for additional information.
Note:Some warning lights are reconfigurable telltale (RTT) indicators.
These indicators display in the message center and function the same as
a warning light but do not display on startup.
Service engine soon:The service
engine soon indicator light
illuminates when the ignition is first
turned on to check the bulb and to
indicate whether the vehicle is ready for Inspection/Maintenance (I/M)
testing. Normally, the service engine soon light will stay on until the
engine is cranked, then turn itself off if no malfunctions are present.
However, if after 15 seconds the service engine soon light blinks eight
times, it means that the vehicle is not ready for I/M testing. See the
Readiness for Inspection/Maintenance (I/M) testingin the
Maintenance and Specificationschapter.
km/h
80
60
40
20
0
20
0 40 60 80
100120140160180
200
220
100120140
MPH
OFF
Instrument Cluster
12
2011 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)
Page 13 of 367
Solid illumination after the engine is started indicates the on-board
diagnostics system (OBD-II) has detected a malfunction. Refer to
On-board diagnostics (OBD-II)in theMaintenance and Specifications
chapter. If the light is blinking, engine misfire is occurring which could
damage your catalytic converter. Drive in a moderate fashion (avoid
heavy acceleration and deceleration) and contact your authorized dealer
as soon as possible.
WARNING:Under engine misfire conditions, excessive exhaust
temperatures could damage the catalytic converter, the fuel
system, interior floor coverings or other vehicle components, possibly
causing a fire.
Powertrain malfunction/reduced
power (RTT):Illuminates when a
powertrain or an AWD fault has
been detected. Contact your
authorized dealer as soon as possible.
Brake system warning light:To
confirm the brake system warning
light is functional, it will
momentarily illuminate when the
ignition is turned to on when the
engine is not running, or in a position between on and start, or by
applying the parking brake when the ignition is turned to on. If the brake
system warning light does not illuminate at this time, contact your
authorized dealer as soon as possible. Illumination after releasing the
parking brake indicates low brake fluid level or a brake system
malfunction. Contact your authorized dealer as soon as possible.
WARNING:Driving a vehicle with the brake system warning
light on is dangerous. A significant decrease in braking
performance may occur. It will take you longer to stop the vehicle.
Contact your authorized dealer as soon as possible. Driving extended
distances with the parking brake engaged can cause brake failure and
the risk of personal injury.
P!
BRAKE
Instrument Cluster
13
2011 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)
Page 14 of 367

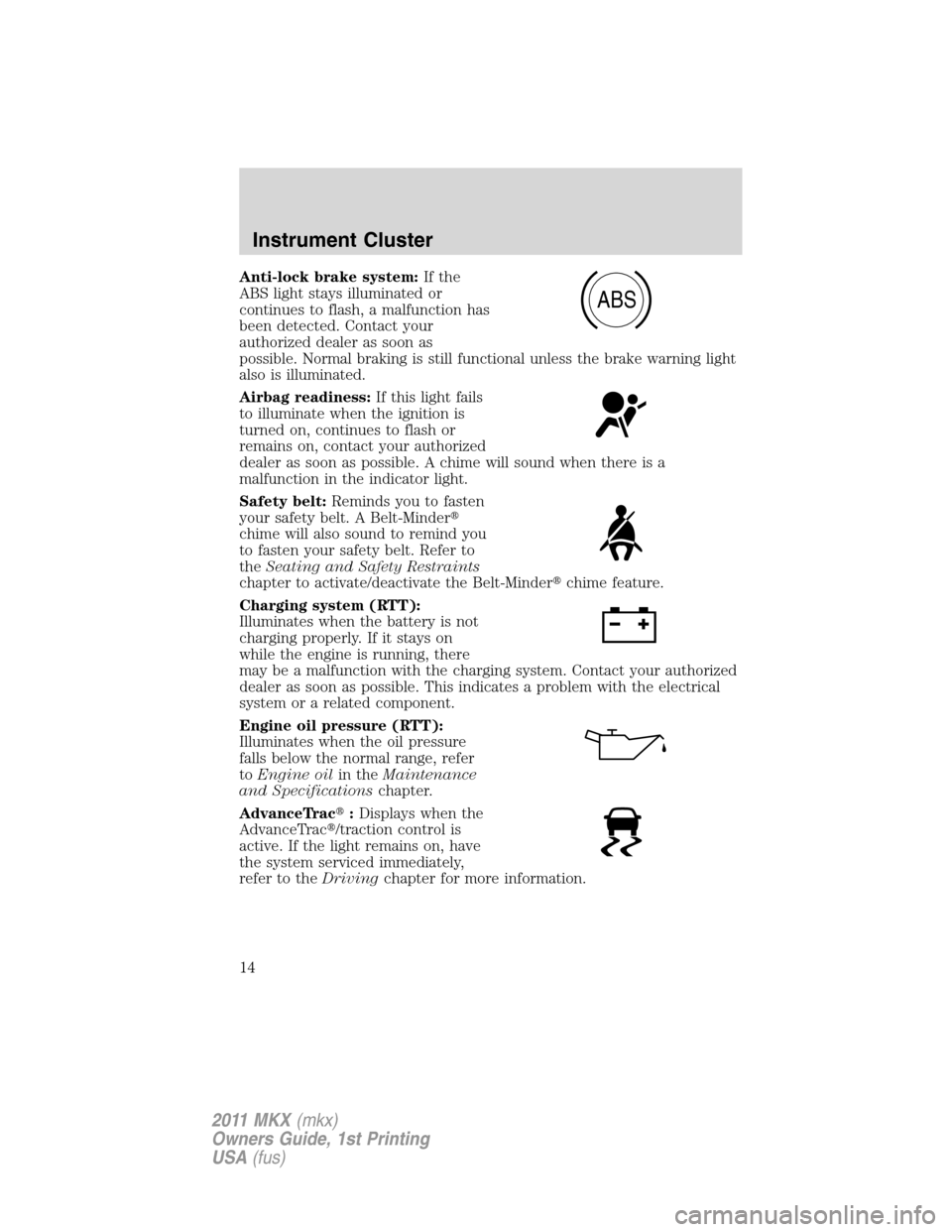

Anti-lock brake system:If the
ABS light stays illuminated or
continues to flash, a malfunction has
been detected. Contact your
authorized dealer as soon as
possible. Normal braking is still functional unless the brake warning light
also is illuminated.
Airbag readiness:If this light fails
to illuminate when the ignition is
turned on, continues to flash or
remains on, contact your authorized
dealer as soon as possible. A chime will sound when there is a
malfunction in the indicator light.
Safety belt:Reminds you to fasten
your safety belt. A Belt-Minder
chime will also sound to remind you
to fasten your safety belt. Refer to
theSeating and Safety Restraints
chapter to activate/deactivate the Belt-Minderchime feature.
Charging system (RTT):
Illuminates when the battery is not
charging properly. If it stays on
while the engine is running, there
may be a malfunction with the charging system. Contact your authorized
dealer as soon as possible. This indicates a problem with the electrical
system or a related component.
Engine oil pressure (RTT):
Illuminates when the oil pressure
falls below the normal range, refer
toEngine oilin theMaintenance
and Specificationschapter.
AdvanceTrac:Displays when the
AdvanceTrac/traction control is
active. If the light remains on, have
the system serviced immediately,
refer to theDrivingchapter for more information.
ABS
Instrument Cluster
14
2011 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)
Page 15 of 367

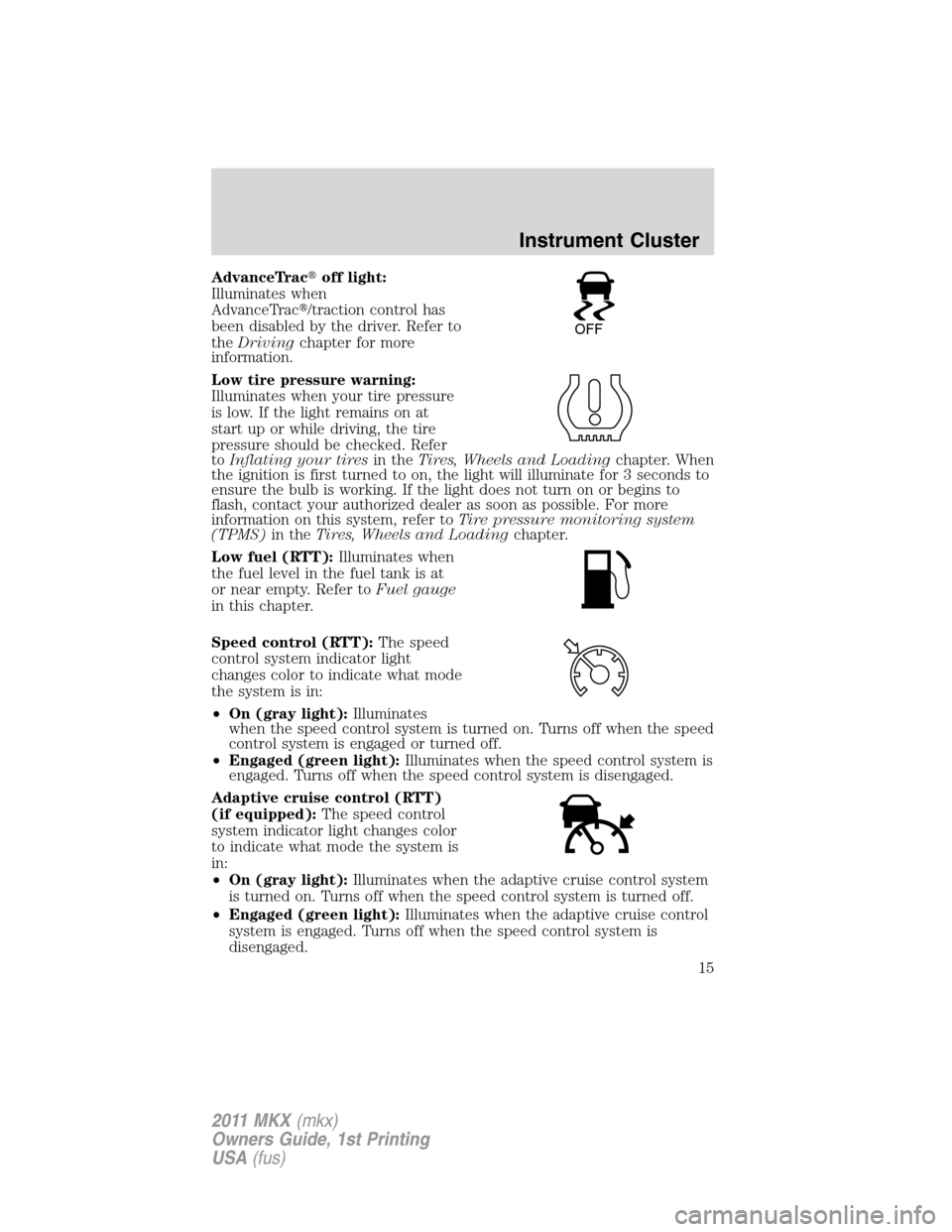

AdvanceTracoff light:
Illuminates when
AdvanceTrac/traction control has
been disabled by the driver. Refer to
theDrivingchapter for more
information.
Low tire pressure warning:
Illuminates when your tire pressure
is low. If the light remains on at
start up or while driving, the tire
pressure should be checked. Refer
toInflating your tiresin theTires, Wheels and Loadingchapter. When
the ignition is first turned to on, the light will illuminate for 3 seconds to
ensure the bulb is working. If the light does not turn on or begins to
flash, contact your authorized dealer as soon as possible. For more
information on this system, refer toTire pressure monitoring system
(TPMS)in theTires, Wheels and Loadingchapter.
Low fuel (RTT):Illuminates when
the fuel level in the fuel tank is at
or near empty. Refer toFuel gauge
in this chapter.
Speed control (RTT):The speed
control system indicator light
changes color to indicate what mode
the system is in:
•On (gray light):Illuminates
when the speed control system is turned on. Turns off when the speed
control system is engaged or turned off.
•Engaged (green light):Illuminates when the speed control system is
engaged. Turns off when the speed control system is disengaged.
Adaptive cruise control (RTT)
(if equipped):The speed control
system indicator light changes color
to indicate what mode the system is
in:
•On (gray light):Illuminates when the adaptive cruise control system
is turned on. Turns off when the speed control system is turned off.
•Engaged (green light):Illuminates when the adaptive cruise control
system is engaged. Turns off when the speed control system is
disengaged.
OFF
Instrument Cluster
15
2011 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)
Page 16 of 367
Door ajar (RTT):Displays when
the ignition is on and any door is
open.
Tailgate ajar (RTT):Displays
when the ignition is on and the
trunk is open.
Low washer fluid (RTT):
Illuminates when the windshield
washer fluid is low.
Turn signal:Illuminates when the
left or right turn signal or the
hazard lights are turned on. If the
indicators flash faster, check for a burned out bulb.
High beams:Illuminates when the
high beam headlamps are turned on.
Fog lamps:Illuminates when the
fog lamps are turned on.
Heads up display (if equipped):
A red bar will illuminate on the
windshield in certain instances when
using adaptive cruise control and/or
the collision warning system. It will
also illuminate momentarily when
you start your vehicle to make sure the display works. SeeUsing
adaptive cruise controlin theDrivingchapter for more information.
Instrument Cluster
16
2011 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)
Page 17 of 367
Grade assist (RTT):Illuminates
when the grade assist is turned on.
Headlamps on warning chime:Sounds when the headlamps or parking
lamps are on, the ignition is off (the key is not in the ignition) and the
driver’s door is opened.
Parking brake on chime:Sounds when the parking brake is left on and
the vehicle is driven. If the warning stays on after the park brake is off,
contact your authorized dealer as soon as possible.
GAUGES
Shown in standard measure. Metric similar.
1.Multifunction display:This displays the fuel gauge, tachometer,
engine coolant temperature and the odometer/trip meter. This is also
used to configure different vehicle personalization options and display
the status of various vehicle functions. SeeMessage centerin this
chapter for more information.
2.Speedometer:Indicates the current vehicle speed.
3.Infotainment display:This display is used for the entertainment,
phone, navigation and climate systems. See theMyLincoln Touch™
supplement for more information.
km/h
80
60
40
20
0
20
0 40 60 80
100120140160180
200
220
100120140
MPH
132
Instrument Cluster
17
2011 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)
Page 18 of 367
MESSAGE CENTER
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device or feature that may
take their focus off the road. Your primary responsibility is the safe
operation of the vehicle. We recommend against the use of any
handheld device while driving and that you comply with all applicable
laws.
Your vehicle’s message center is capable of monitoring many vehicle
systems and will alert you to potential vehicle problems and various
conditions with a informational messages and/or warnings.
The message center is also used to program/configure the different
features of your vehicle. The message center display is located in the
instrument cluster.
Use the left steering wheel controls to navigate through the message
center.
Press the up/down arrow buttons to
move up/down through the message
center choices.
Press the left/right arrow buttons to
move left/right through the message
center choices.
Instrument Cluster
18
2011 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)
Page 19 of 367

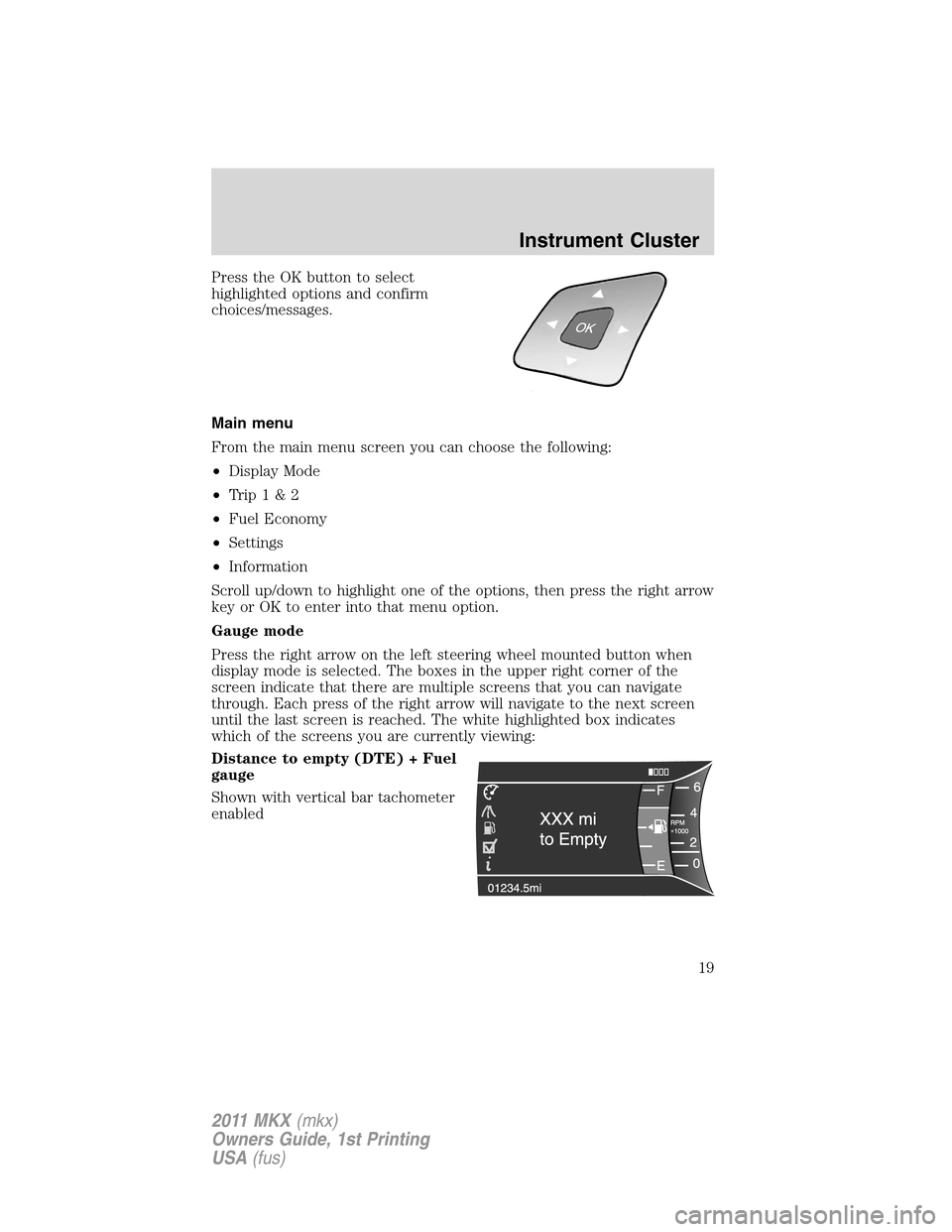

Press the OK button to select
highlighted options and confirm
choices/messages.
Main menu
From the main menu screen you can choose the following:
•Display Mode
•Trip1&2
•Fuel Economy
•Settings
•Information
Scroll up/down to highlight one of the options, then press the right arrow
key or OK to enter into that menu option.
Gauge mode
Press the right arrow on the left steering wheel mounted button when
display mode is selected. The boxes in the upper right corner of the
screen indicate that there are multiple screens that you can navigate
through. Each press of the right arrow will navigate to the next screen
until the last screen is reached. The white highlighted box indicates
which of the screens you are currently viewing:
Distance to empty (DTE) + Fuel
gauge
Shown with vertical bar tachometer
enabled
+
Instrument Cluster
19
2011 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)
Page 20 of 367
Full analog tachometer + Fuel
gauge
Full analog tachometer + Fuel
gauge + Engine coolant
temperature gauge
Intelligent all-wheel drive
(AWD) (if equipped) + fuel
gauge
Shown with vertical bar tachometer
enabled
Select-Shift Automatic™ transmission (SST)
Select-Shift tnsmission allows you to manually shift gears. If your vehicle
is equipped with this feature it will be denoted by an M instead of an L
located in the shift selector indicator. Refer toAutomatic transmission
operationin theDrivingchapter.
When SST is activated the M will light up in the shift select indicator and
also in the message center.
i01234.5mi
F
E
01234.5mi
FH
C E
F6
4
RPM
1000+2
0
01234.5mi
E
Instrument Cluster
20
2011 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)
