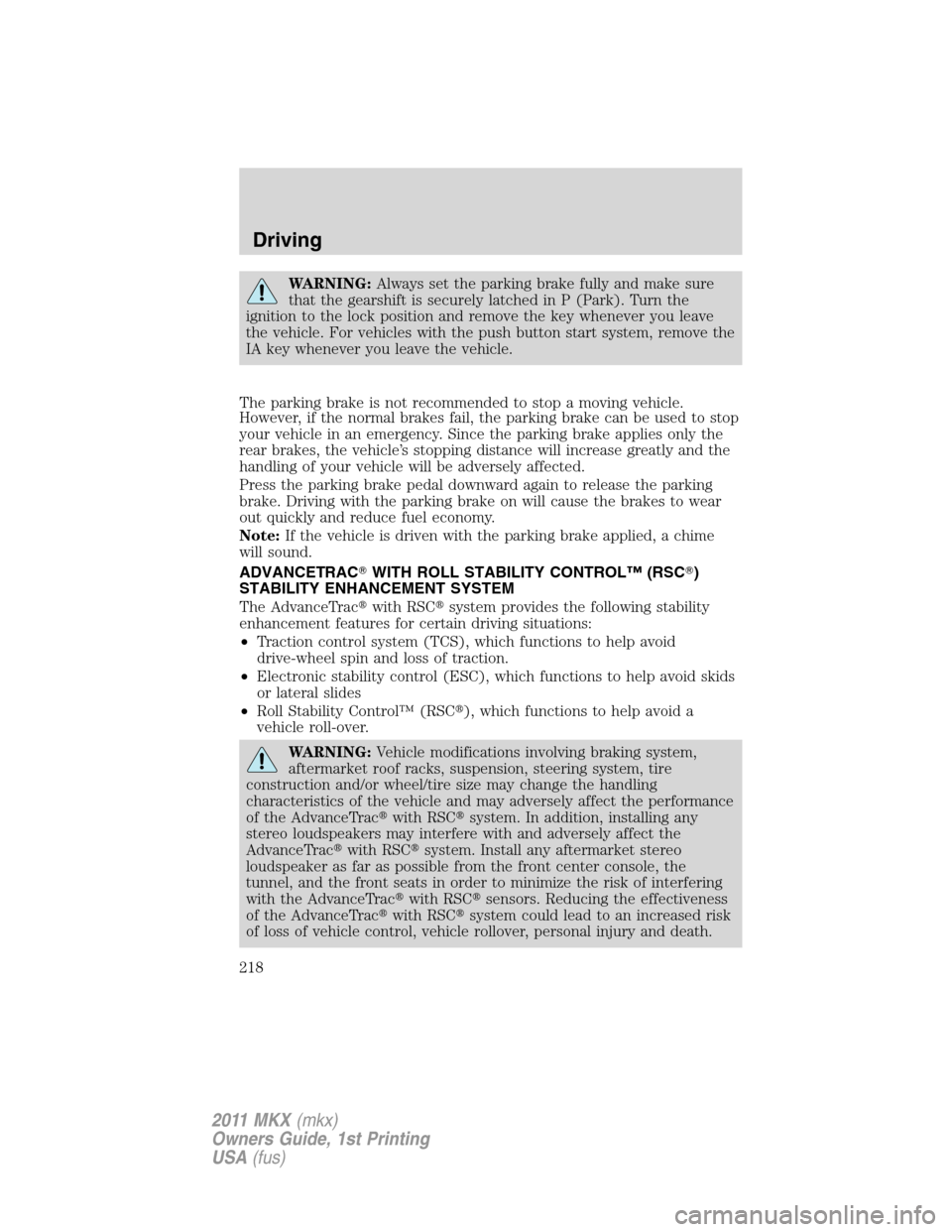

WARNING:Always set the parking brake fully and make sure
that the gearshift is securely latched in P (Park). Turn the
ignition to the lock position and remove the key whenever you leave
the vehicle. For vehicles with the push button start system, remove the
IA key whenever you leave the vehicle.
The parking brake is not recommended to stop a moving vehicle.
However, if the normal brakes fail, the parking brake can be used to stop
your vehicle in an emergency. Since the parking brake applies only the
rear brakes, the vehicle’s stopping distance will increase greatly and the
handling of your vehicle will be adversely affected.
Press the parking brake pedal downward again to release the parking
brake. Driving with the parking brake on will cause the brakes to wear
out quickly and reduce fuel economy.
Note:If the vehicle is driven with the parking brake applied, a chime
will sound.
ADVANCETRACWITH ROLL STABILITY CONTROL™ (RSC)
STABILITY ENHANCEMENT SYSTEM
The AdvanceTracwith RSCsystem provides the following stability
enhancement features for certain driving situations:
•Traction control system (TCS), which functions to help avoid
drive-wheel spin and loss of traction.
•Electronic stability control (ESC), which functions to help avoid skids
or lateral slides
•Roll Stability Control™ (RSC), which functions to help avoid a
vehicle roll-over.
WARNING:Vehicle modifications involving braking system,
aftermarket roof racks, suspension, steering system, tire
construction and/or wheel/tire size may change the handling
characteristics of the vehicle and may adversely affect the performance
of the AdvanceTracwith RSCsystem. In addition, installing any
stereo loudspeakers may interfere with and adversely affect the
AdvanceTracwith RSCsystem. Install any aftermarket stereo
loudspeaker as far as possible from the front center console, the
tunnel, and the front seats in order to minimize the risk of interfering
with the AdvanceTracwith RSCsensors. Reducing the effectiveness
of the AdvanceTracwith RSCsystem could lead to an increased risk
of loss of vehicle control, vehicle rollover, personal injury and death.
Driving
218
2011 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
12 15A Interior lighting, Puddle lamps,
Backlighting
13 15A Right turn/stop lamps and turn signals
14 15A Left turn/stop lamps and turn signals
15 15A Reverse lamps, Stop lamps
(high-mounted)
16 10A Low beam headlamps (right)
17 10A Low beam headlamps (left)
18 10A Keypad illumination, Brake shift
interlock (BSI), Passenger compartment
fuse panel, Start button LED, Passive
anti-theft system (PATS), Powertrain
control module (PCM) wake-up, 2nd row
power enable
19 20A Audio amplifier
20 20A Lock/unlock relays – vehicles without
intelligent access (IA)
21 10A Not used (spare)
22 20A Horn relay
23 15A Steering wheel control, IA, Headlamp
switch
24 15A Power tilt/telescope steering column,
On-board diagnostics (OBDII)
25 15A Liftgate release
26 5A Global positioning system (GPS) module
27 20A IA
28 15A Ignition switch (without IA), Key inhibit
solenoid, Push button start (with IA)
29 20A Radio, Electronic finish panel, SYNC
module
30 15A Front park lamps
31 5A Not used (spare)
Roadside Emergencies
259
