Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
32 15A Moon roof, Power windows,
Compass/auto-dimming rear view mirror
33 10A Not used (spare)
34 10A Reverse sensing system, Rearview
camera, Blind spot monitor, Rear heated
seat module
35 5A Heads-up display
36 10A Heated steering wheel
37 10A Climate control
38 10A Not used (spare)
39 15A High beam headlamps
40 10A Rear park lamps
41 7.5A Occupant classification sensor (OCS),
Restraints control module
42 5A Not used (spare)
43 10A Not used (spare)
44 10A Not used (spare)
45 5A Not used (spare)
46 10A Climate control
47 15A Fog lamps
48 30A Circuit
BreakerPower windows/moon roof
49 — Delayed accessory relay
Power distribution box
The power distribution box is located in the engine compartment. The
power distribution box contains high-current fuses that protect your
vehicle’s main electrical systems from overloads.
WARNING:Always disconnect the battery before servicing high
current fuses.
Roadside Emergencies
260
2011 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)

Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box Description
41 — Not used
42 30A** Passenger seat
43 30A** ABS valves
44 — Rear washer relay
45 5A* Rain sensor
46 — Not used
47 — Not used
48 — Not used
49 — Not used
50 15A* Heated mirror
51 — Not used
52 — Not used (spare)
53 — Left TT stop/turn lamps relay
54 — Not used
55 — Wiper relay
56 — Not used
57 20A* Left high-intensity discharge (HID)
headlamps
58 10A* Alternator sensor
59 10A* Brake on/off switch
60 — Not used
61 10A* Rear seat release
62 10A* A/C clutch
63 15A* TT stop/turn lamps relay
64 20A* Rear wiper motor
65 15A* Fuel pump
66 — Powertrain control module (PCM) relay
67 20A* Vehicle power (VPWR) #2
68 15A* VPWR #4
69 15A* VPWR #1
70 10A* A/C relay, All-wheel drive module
Roadside Emergencies
263
2011 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)

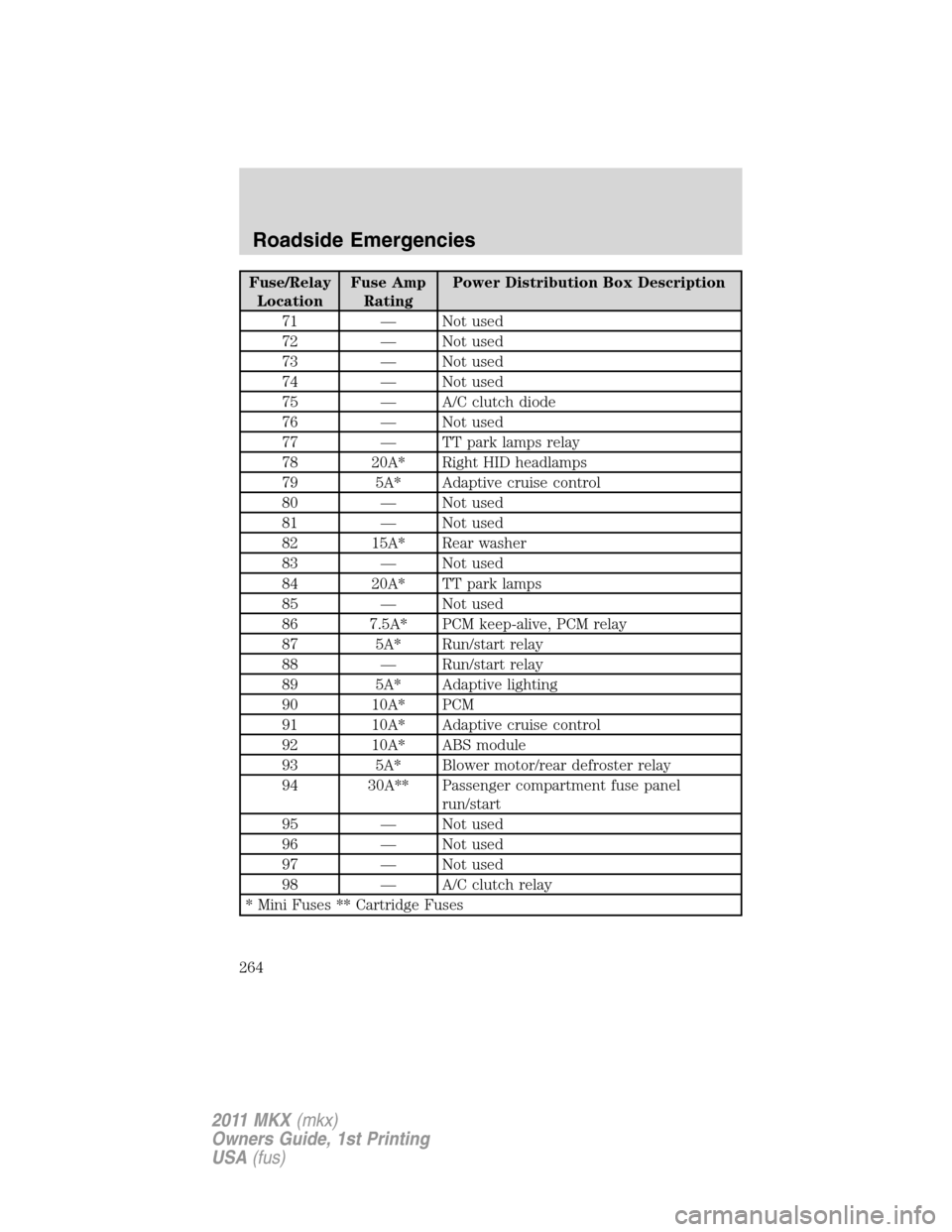

Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box Description
71 — Not used
72 — Not used
73 — Not used
74 — Not used
75 — A/C clutch diode
76 — Not used
77 — TT park lamps relay
78 20A* Right HID headlamps
79 5A* Adaptive cruise control
80 — Not used
81 — Not used
82 15A* Rear washer
83 — Not used
84 20A* TT park lamps
85 — Not used
86 7.5A* PCM keep-alive, PCM relay
87 5A* Run/start relay
88 — Run/start relay
89 5A* Adaptive lighting
90 10A* PCM
91 10A* Adaptive cruise control
92 10A* ABS module
93 5A* Blower motor/rear defroster relay
94 30A** Passenger compartment fuse panel
run/start
95 — Not used
96 — Not used
97 — Not used
98 — A/C clutch relay
* Mini Fuses ** Cartridge Fuses
Roadside Emergencies
264
2011 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)

dipstick ....................................298
filter, specifications ........300, 328
recommendations ...................300
refill capacities ........................329
specifications ..........................329
Event data recording ....................7
Exhaust fumes ..........................214
F
Fail safe cooling ........................308
Fleet MyKey programming ........91
Floor mats .............................83–84
Fluid capacities .........................329
Fog lamps ....................................46
Four-Wheel Drive vehicles
driving off road .......................247
Fuel ............................................309
calculating fuel economy .......315
cap ...........................................311
capacity ...................................329
choosing the right fuel ...........312
detergent in fuel .....................313
filler funnel .............................314
filling your vehicle with
fuel ...........................309, 311, 316
filter, specifications ........309, 328
fuel pump shut-off ..................255
improving fuel economy ........315
octane rating ...................313, 332
quality ......................................313
running out of fuel .........272, 314
safety information relating to
automotive fuels .....................309
Fuses ..................................256–257G
Garage door opener ....................79
Gas cap (see Fuel cap) ............311
Gas mileage
(see Fuel economy) .................315
Gauges .........................................17
H
Hazard flashers .........................255
Head restraints .........................124
Headlamps ...................................44
aiming ..................................47–48
autolamp system .......................45
bulb specifications ....................51
daytime running lights .............46
flash to pass ..............................46
high beam .................................46
replacing bulbs .........................52
turning on and off ....................44
Heated steering wheel ................41
Heating
heating and air conditioning
system .......................................36
Hill start assist ..........................228
Homelink wireless control
system ..........................................80
Hood ..........................................295
I
Ignition ...............................210, 332
Illuminated visor mirror .............61
Infant seats
(see Safety seats) .....................163
Inspection/maintenance (I/M)
testing ........................................320
Index
363
2011 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)

Instrument panel
cleaning ...................................289
cluster ........................................12
lighting up panel and
interior .......................................47
Intelligent Access Key ................91
Intelligent Access with push
button start ...............................102
J
Jack ............................................265
positioning ...............................265
storage .....................................265
Jump-starting your vehicle ......272
K
Keyless entry system
autolock .....................................98
keypad .....................................110
locking and unlocking
doors ........................................111
programming entry code .......110
Keys ...........................................112
positions of the ignition .........210
L
Lamps
autolamp system .......................45
bulb replacement
specifications chart ..................51
daytime running light ...............46
fog lamps ...................................46
headlamps .................................44
headlamps, flash to pass ..........46
instrument panel, dimming .....47
interior lamps .....................50, 52
replacing bulbs .........................52
LATCH anchors .........................167Liftgate ....................84, 89–90, 104
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........217
Load limits .................................198
Locks
autolock .....................................98
childproof ................................101
doors ..........................................97
Lubricant specifications ...........329
Lug nuts ....................................271
Lumbar support, seats .............120
M
Message center ...........................18
warning messages .....................27
Mirrors ...................................65–66
automatic dimming rearview
mirror ........................................65
fold away ...................................67
heated ........................................66
programmable memory ..........105
side view mirrors (power) .......66
Moon roof ....................................78
Motorcraftparts ..............293, 328
MyKey ..........................................91
MyLincoln Touch™ system ........35
O
Octane rating ............................313
Oil (see Engine oil) ..................298
Overdrive ...................................226
P
Parental MyKey programming ...91
Parking brake ............................217
Index
364
2011 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)
