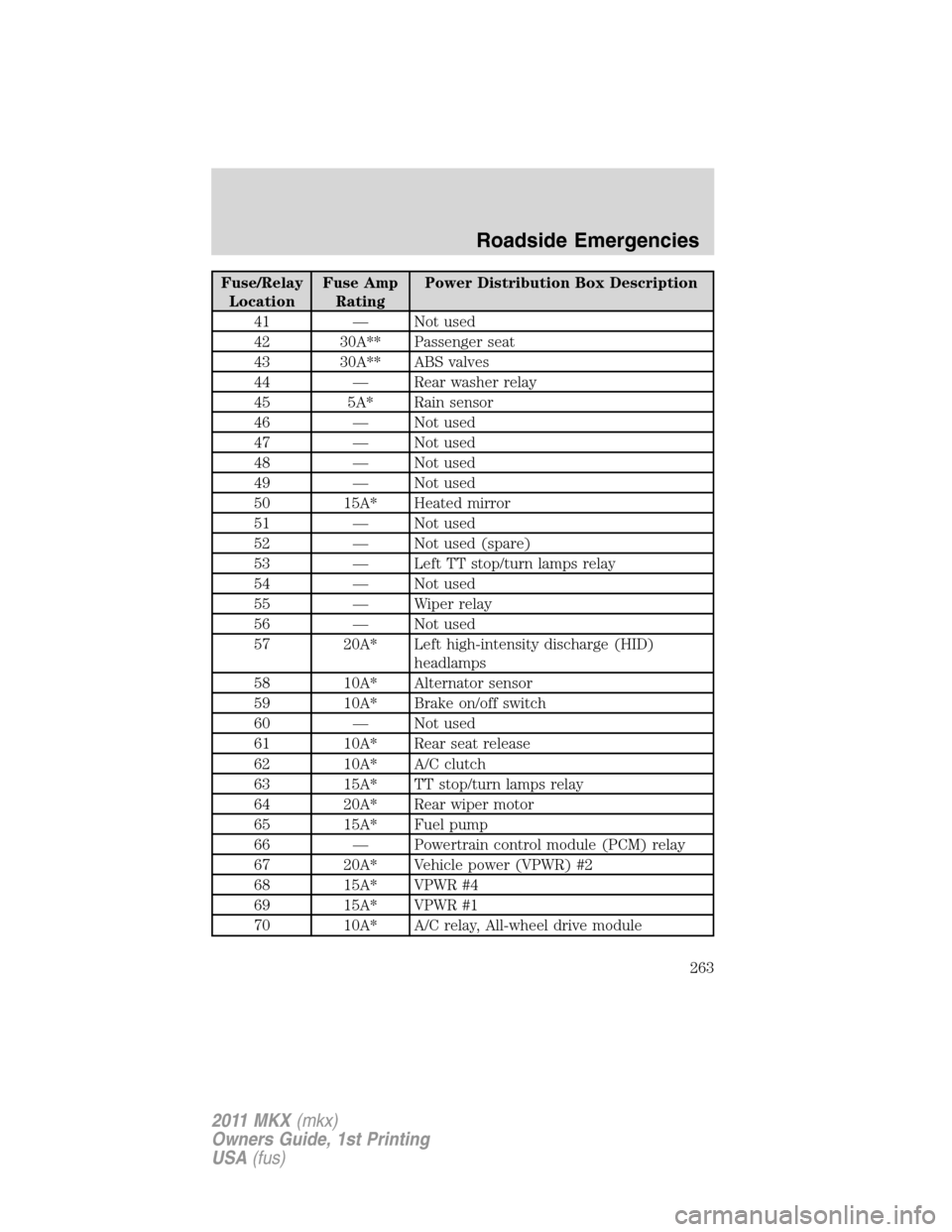

Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box Description
41 — Not used
42 30A** Passenger seat
43 30A** ABS valves
44 — Rear washer relay
45 5A* Rain sensor
46 — Not used
47 — Not used
48 — Not used
49 — Not used
50 15A* Heated mirror
51 — Not used
52 — Not used (spare)
53 — Left TT stop/turn lamps relay
54 — Not used
55 — Wiper relay
56 — Not used
57 20A* Left high-intensity discharge (HID)
headlamps
58 10A* Alternator sensor
59 10A* Brake on/off switch
60 — Not used
61 10A* Rear seat release
62 10A* A/C clutch
63 15A* TT stop/turn lamps relay
64 20A* Rear wiper motor
65 15A* Fuel pump
66 — Powertrain control module (PCM) relay
67 20A* Vehicle power (VPWR) #2
68 15A* VPWR #4
69 15A* VPWR #1
70 10A* A/C relay, All-wheel drive module
Roadside Emergencies
263
2011 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)

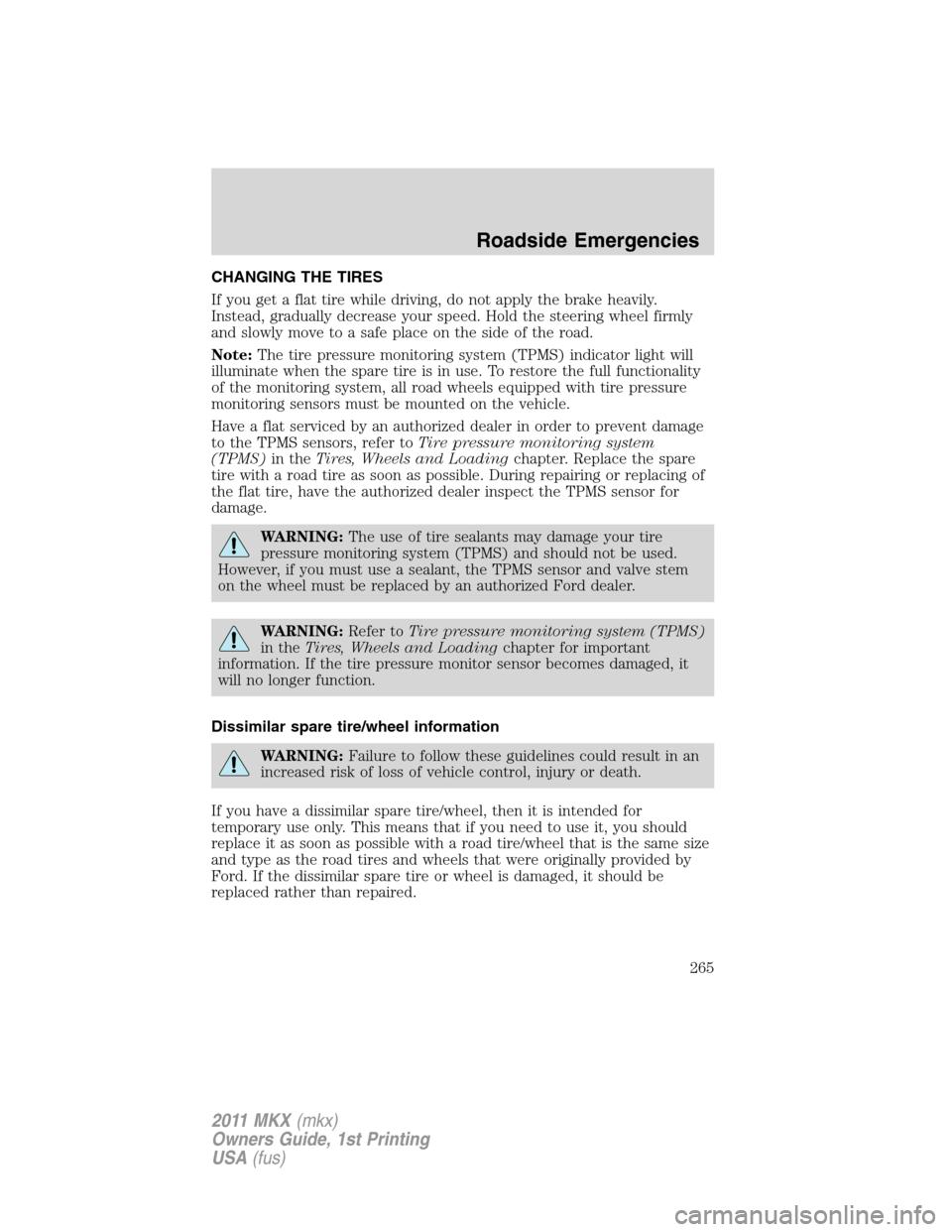

CHANGING THE TIRES
If you get a flat tire while driving, do not apply the brake heavily.
Instead, gradually decrease your speed. Hold the steering wheel firmly
and slowly move to a safe place on the side of the road.
Note:The tire pressure monitoring system (TPMS) indicator light will
illuminate when the spare tire is in use. To restore the full functionality
of the monitoring system, all road wheels equipped with tire pressure
monitoring sensors must be mounted on the vehicle.
Have a flat serviced by an authorized dealer in order to prevent damage
to the TPMS sensors, refer toTire pressure monitoring system
(TPMS)in theTires, Wheels and Loadingchapter. Replace the spare
tire with a road tire as soon as possible. During repairing or replacing of
the flat tire, have the authorized dealer inspect the TPMS sensor for
damage.
WARNING:The use of tire sealants may damage your tire
pressure monitoring system (TPMS) and should not be used.
However, if you must use a sealant, the TPMS sensor and valve stem
on the wheel must be replaced by an authorized Ford dealer.
WARNING:Refer toTire pressure monitoring system (TPMS)
in theTires, Wheels and Loadingchapter for important
information. If the tire pressure monitor sensor becomes damaged, it
will no longer function.
Dissimilar spare tire/wheel information
WARNING:Failure to follow these guidelines could result in an
increased risk of loss of vehicle control, injury or death.
If you have a dissimilar spare tire/wheel, then it is intended for
temporary use only. This means that if you need to use it, you should
replace it as soon as possible with a road tire/wheel that is the same size
and type as the road tires and wheels that were originally provided by
Ford. If the dissimilar spare tire or wheel is damaged, it should be
replaced rather than repaired.
Roadside Emergencies
265
2011 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)

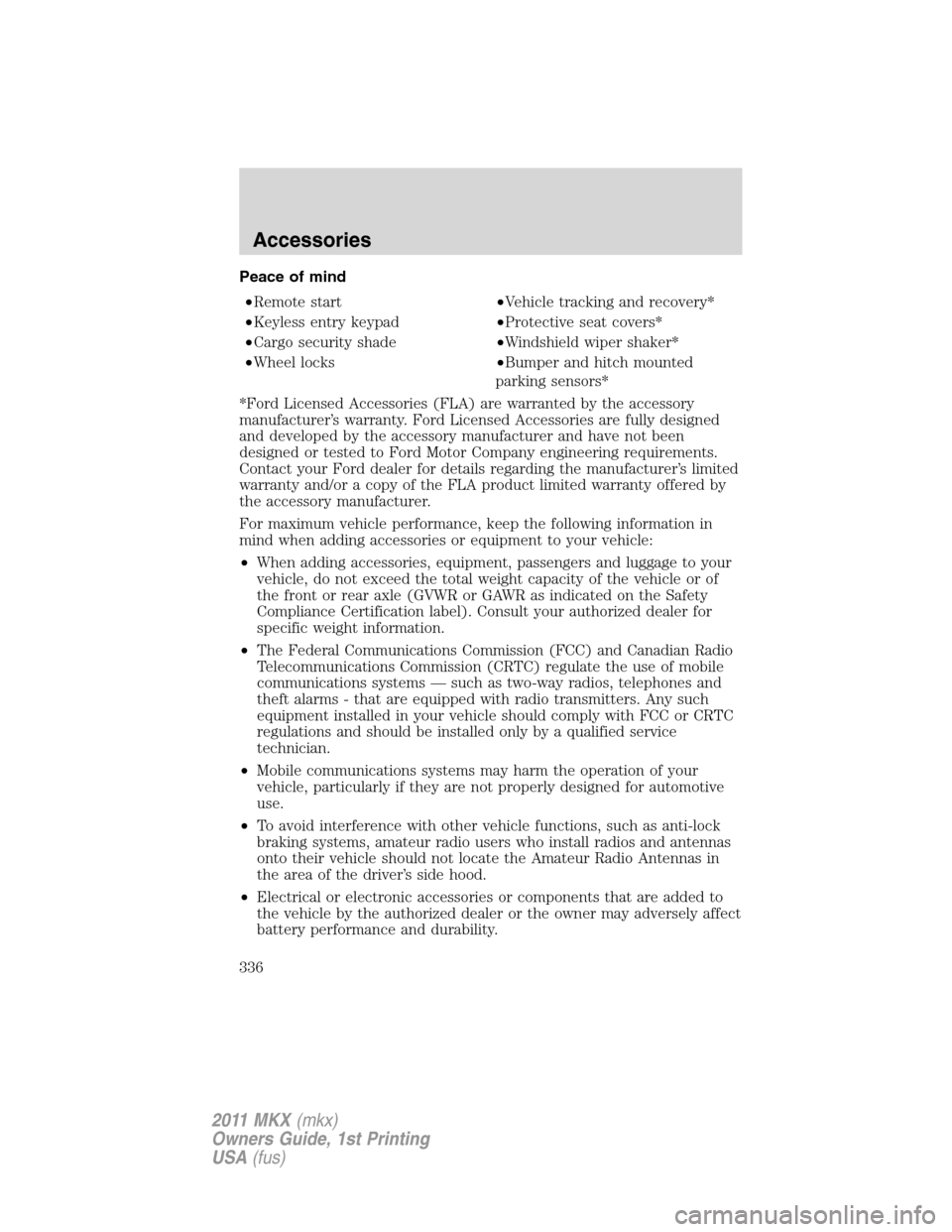

Peace of mind
•Remote start•Vehicle tracking and recovery*
•Keyless entry keypad•Protective seat covers*
•Cargo security shade•Windshield wiper shaker*
•Wheel locks•Bumper and hitch mounted
parking sensors*
*Ford Licensed Accessories (FLA) are warranted by the accessory
manufacturer’s warranty. Ford Licensed Accessories are fully designed
and developed by the accessory manufacturer and have not been
designed or tested to Ford Motor Company engineering requirements.
Contact your Ford dealer for details regarding the manufacturer’s limited
warranty and/or a copy of the FLA product limited warranty offered by
the accessory manufacturer.
For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
•When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
Compliance Certification label). Consult your authorized dealer for
specific weight information.
•The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems — such as two-way radios, telephones and
theft alarms - that are equipped with radio transmitters. Any such
equipment installed in your vehicle should comply with FCC or CRTC
regulations and should be installed only by a qualified service
technician.
•Mobile communications systems may harm the operation of your
vehicle, particularly if they are not properly designed for automotive
use.
•To avoid interference with other vehicle functions, such as anti-lock
braking systems, amateur radio users who install radios and antennas
onto their vehicle should not locate the Amateur Radio Antennas in
the area of the driver’s side hood.
•Electrical or electronic accessories or components that are added to
the vehicle by the authorized dealer or the owner may adversely affect
battery performance and durability.
Accessories
336
2011 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)

Parts
(see Motorcraftparts) ...........328
Passenger Occupant
Classification Sensor .................130
Power distribution box
(see Fuses) ...............................260
Power door locks ........................97
Power liftgate ..............................84
Power mirrors .............................66
Power point .................................62
Power steering ..........................224
fluid, checking and adding ....321
fluid, refill capacity ................329
fluid, specifications .................329
Power Windows ...........................63
Push button start system .........212
R
Rear-view camera system .........232
Recommendations for
attaching safety restraints for
children ......................................161
Relays ........................................256
Remote entry system .......101–102
illuminated entry ....................107
locking/unlocking
doors ................................103–104
opening the trunk ...................104
Remote start ...........................108
replacement/additional
transmitters .............................107
replacing the batteries ...........106
Remote start .............................108
Remote start climate
operation .....................................42
Reverse sensing system ...........230Roadside assistance ..................254
Roof rack .....................................90
S
Safety belts (see Safety
restraints) ................129, 132–134,
136–137
Safety Canopy ...................152, 155
Safety defects, reporting ..........285
Safety restraints .......129, 132–134,
136–137
Belt-Minder...........................139
extension assembly ................137
for adults .................133–134, 136
for children .............................158
Occupant Classification
Sensor ......................................130
warning light and chime ........139
Safety restraints - LATCH
anchors ......................................167
Safety seats for children ..........163
Safety Compliance
Certification Label ....................333
Scheduled Maintenance Guide
Normal Scheduled
Maintenance and Log .............347
What Maintenance Schedule
Should You Follow? ................344
Seats ..........................................116
child safety seats ....................163
cleaning ...................................291
climate control ........................122
easy access/easyout
feature .....................................124
front seats ...............................121
heated ......................................128
memory seat ...................105, 123
Second-row power fold seat ....125
Index
