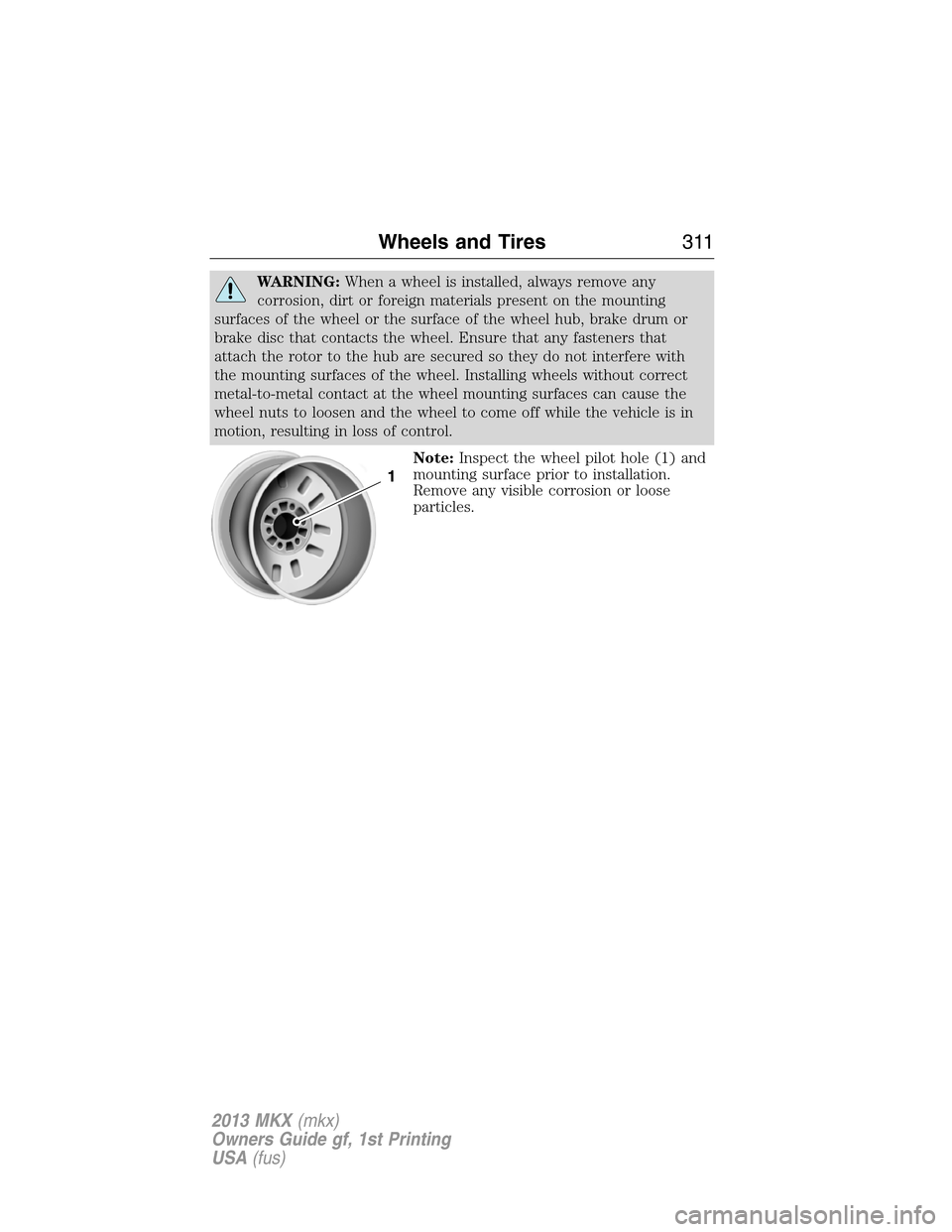

WARNING:When a wheel is installed, always remove any
corrosion, dirt or foreign materials present on the mounting
surfaces of the wheel or the surface of the wheel hub, brake drum or
brake disc that contacts the wheel. Ensure that any fasteners that
attach the rotor to the hub are secured so they do not interfere with
the mounting surfaces of the wheel. Installing wheels without correct
metal-to-metal contact at the wheel mounting surfaces can cause the
wheel nuts to loosen and the wheel to come off while the vehicle is in
motion, resulting in loss of control.
Note:Inspect the wheel pilot hole (1) and
mounting surface prior to installation.
Remove any visible corrosion or loose
particles.
Wheels and Tires311
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)

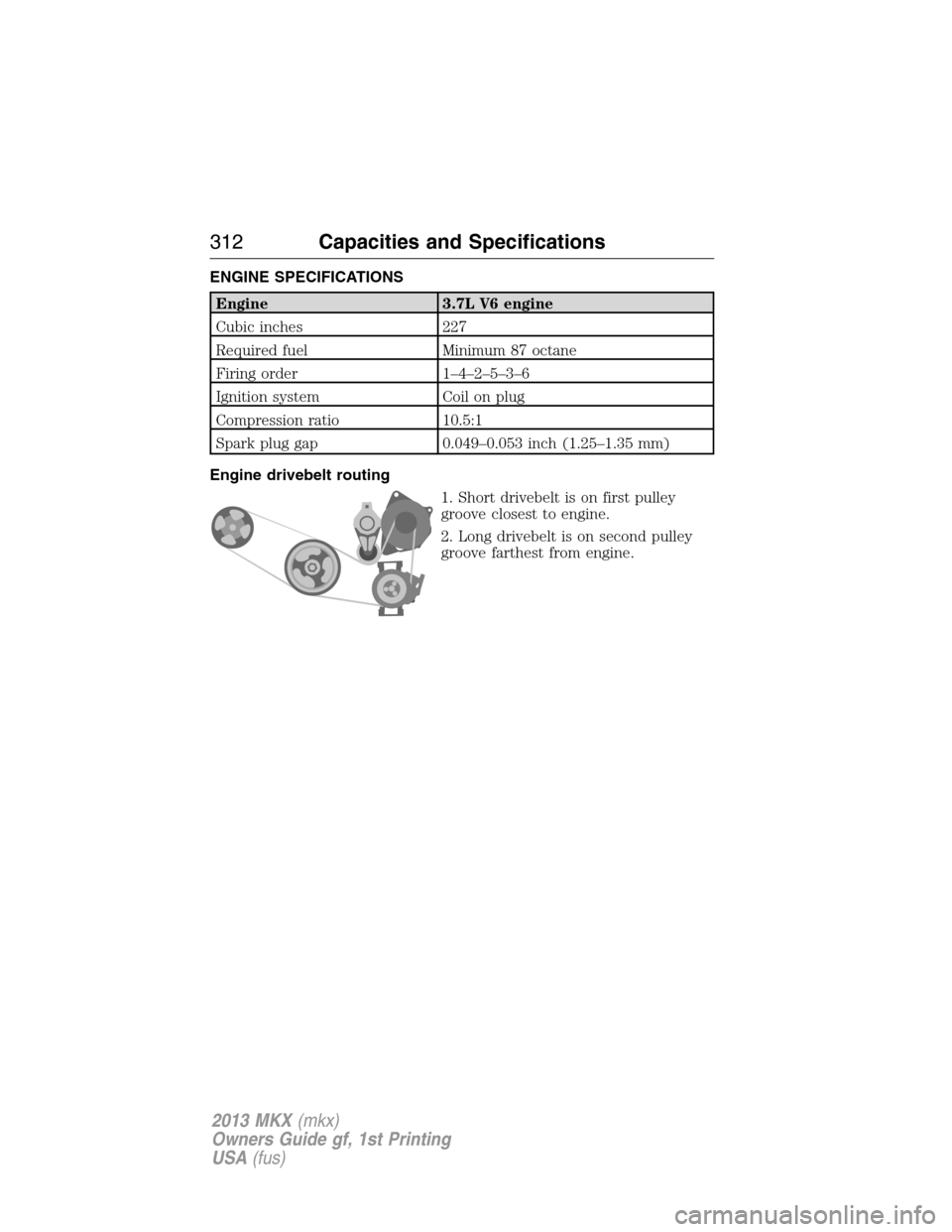

ENGINE SPECIFICATIONS
Engine 3.7L V6 engine
Cubic inches 227
Required fuel Minimum 87 octane
Firing order 1–4–2–5–3–6
Ignition system Coil on plug
Compression ratio 10.5:1
Spark plug gap 0.049–0.053 inch (1.25–1.35 mm)
Engine drivebelt routing
1. Short drivebelt is on first pulley
groove closest to engine.
2. Long drivebelt is on second pulley
groove farthest from engine.
312Capacities and Specifications
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)

TECHNICAL SPECIFICATIONS
Item Capacity Ford Part NameFord Part Number /
Ford Specification
Brake fluidBetween MIN and
MAX on reservoirMotorcraftHigh
Performance DOT 3
Motor Vehicle Brake
FluidPM-1-C /
WSS-M6C62-A or
WSS-M6C65-A1
Door weatherstrips — Silicone Spray LubricantXL-6 /
ESR-M13P4-A
Door latch, hood
latch, auxiliary hood
latch, door hinges,
striker plates, seat
tracks and fuel filler
door hinge—Multi-Purpose Grease
(Lithium grease)XG-4 or XL-5 or
equivalent /
ESB-M1C93-B
Lock cylinders —MotorcraftPenetrating
and Lock LubricantXL-1 /
None
Capacities and Specifications313
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)

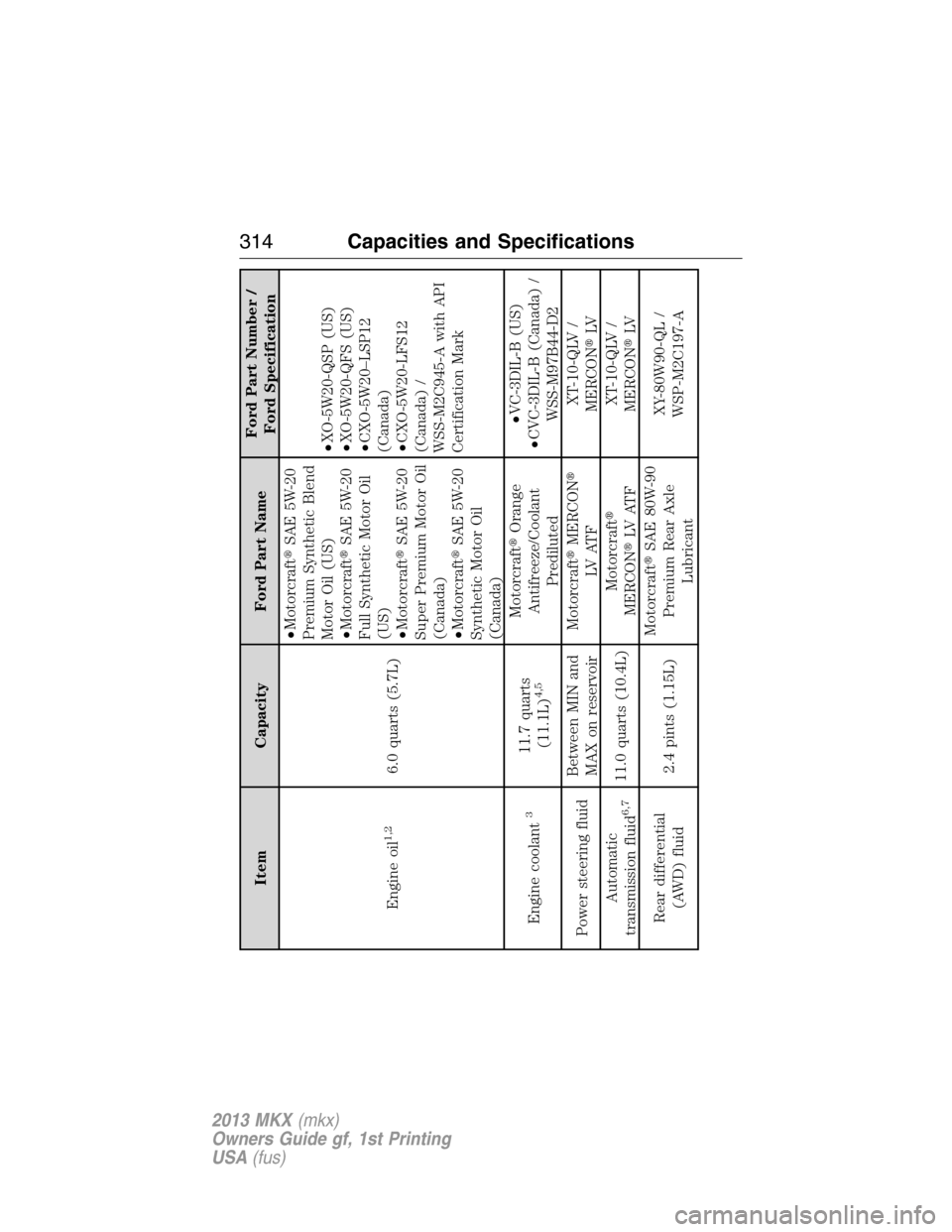

Item Capacity Ford Part NameFord Part Number /
Ford Specification
Engine oil
1,2
6.0 quarts (5.7L)•MotorcraftSAE 5W-20
Premium Synthetic Blend
Motor Oil (US)
•MotorcraftSAE 5W-20
Full Synthetic Motor Oil
(US)
•MotorcraftSAE 5W-20
Super Premium Motor Oil
(Canada)
•MotorcraftSAE 5W-20
Synthetic Motor Oil
(Canada)•XO-5W20-QSP (US)
•XO-5W20-QFS (US)
•CXO-5W20–LSP12
(Canada)
•CXO-5W20-LFS12
(Canada) /
WSS-M2C945-A with API
Certification Mark
Engine coolant
3
11.7 quarts
(11.1L)
4,5
MotorcraftOrange
Antifreeze/Coolant
Prediluted•VC-3DIL-B (US)
•CVC-3DIL-B (Canada) /
WSS-M97B44-D2
Power steering fluidBetween MIN and
MAX on reservoirMotorcraftMERCON
LV AT FXT-10-QLV /
MERCONLV
Automatic
transmission fluid
6,7
11.0 quarts (10.4L)Motorcraft
MERCONLV AT FXT-10-QLV /
MERCONLV
Rear differential
(AWD) fluid2.4 pints (1.15L)MotorcraftSAE 80W-90
Premium Rear Axle
LubricantXY-80W90-QL /
WSP-M2C197-A
314Capacities and Specifications
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)

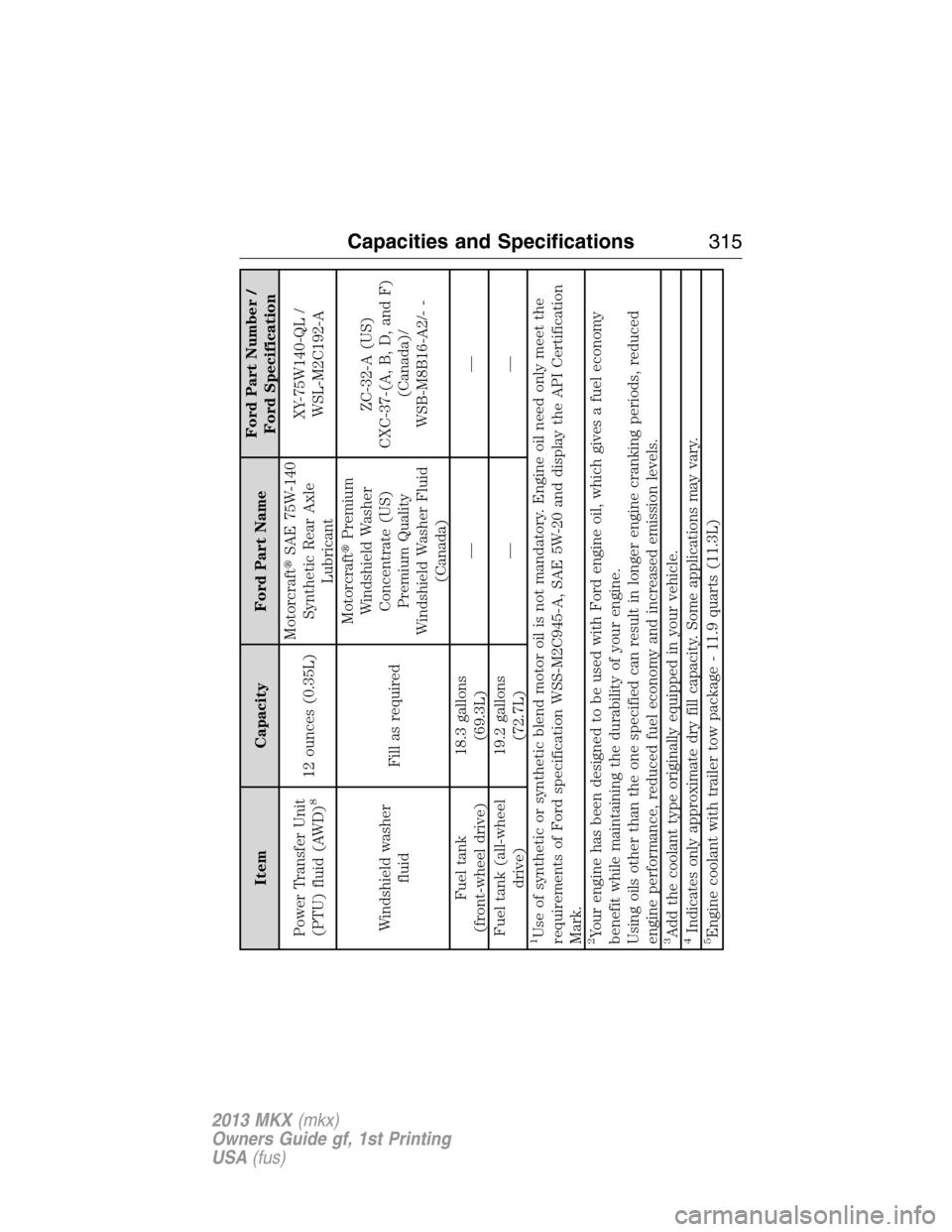

Item Capacity Ford Part NameFord Part Number /
Ford Specification
Power Transfer Unit
(PTU) fluid (AWD)
8
12 ounces (0.35L)MotorcraftSAE 75W-140
Synthetic Rear Axle
LubricantXY-75W140-QL /
WSL-M2C192-A
Windshield washer
fluidFill as requiredMotorcraftPremium
Windshield Washer
Concentrate (US)
Premium Quality
Windshield Washer Fluid
(Canada)ZC-32-A (US)
CXC-37-(A, B, D, and F)
(Canada)/
WSB-M8B16-A2/- -
Fuel tank
(front-wheel drive)18.3 gallons
(69.3L)——
Fuel tank (all-wheel
drive)19.2 gallons
(72.7L)——
1Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C945-A, SAE 5W-20 and display the API Certification
Mark.2Your engine has been designed to be used with Ford engine oil, which gives a fuel economy
benefit while maintaining the durability of your engine.
Using oils other than the one specified can result in longer engine cranking periods, reduced
engine performance, reduced fuel economy and increased emission levels.3Add the coolant type originally equipped in your vehicle.4Indicates only approximate dry fill capacity. Some applications may vary.5Engine coolant with trailer tow package - 11.9 quarts (11.3L)
Capacities and Specifications315
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)

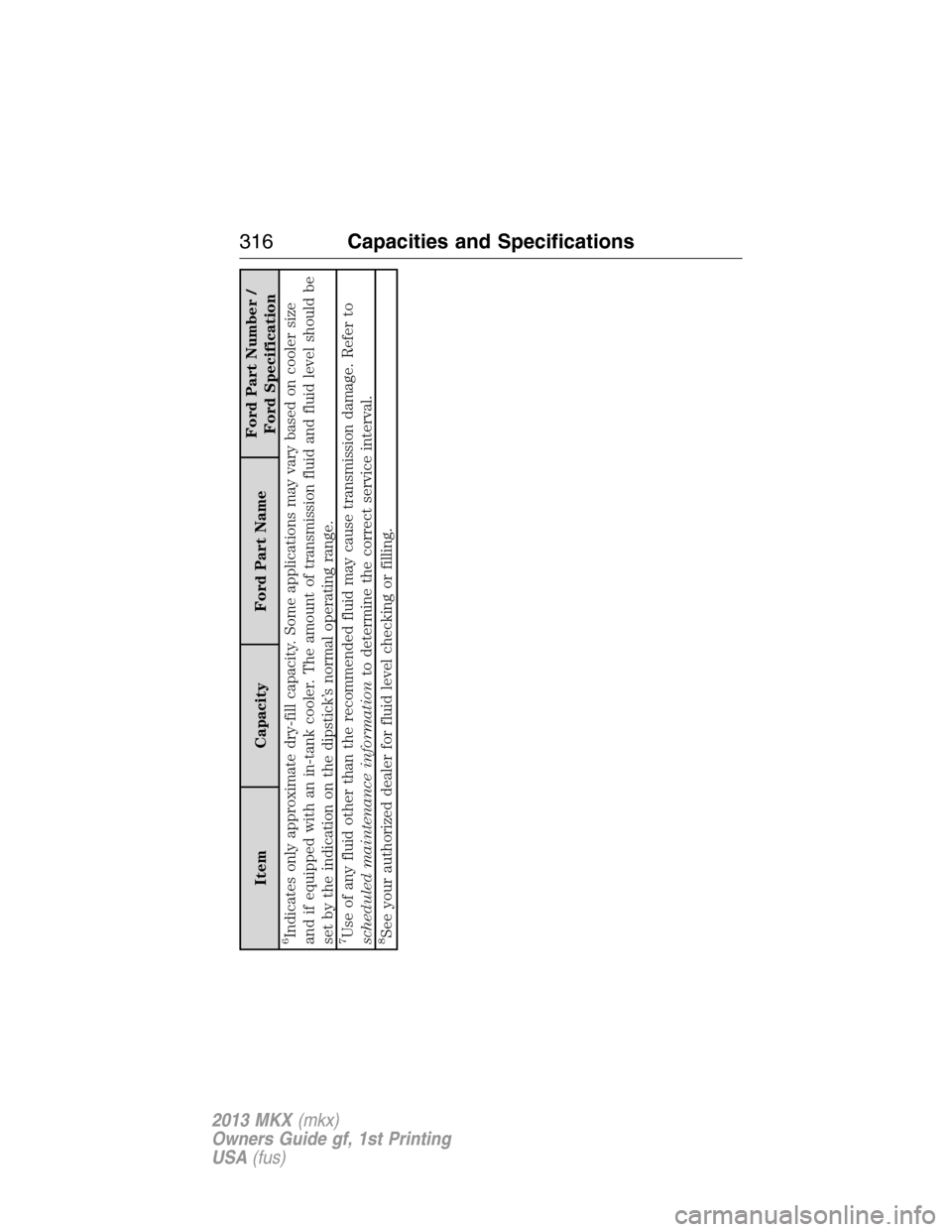

Item Capacity Ford Part NameFord Part Number /
Ford Specification
6Indicates only approximate dry-fill capacity. Some applications may vary based on cooler size
and if equipped with an in-tank cooler. The amount of transmission fluid and fluid level should be
set by the indication on the dipstick’s normal operating range.7Use of any fluid other than the recommended fluid may cause transmission damage. Refer to
scheduled maintenance informationto determine the correct service interval.8See your authorized dealer for fluid level checking or filling.
316Capacities and Specifications
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)

Motorcraft part numbers
Component 3.7L V6 engine
Air filter element FA-1884
Battery BXT-65-650
Oil filter FL-500-S
Spark plugs SP-520
1
Cabin air filter FP65
Windshield wiper bladeWW-2601-PF (driver side)
WW-2001-PF (passenger side)
WW-1401-PF (rear)
1Refer toscheduled maintenance informationfor the appropriate
intervals for changing the spark plugs.
Note:Replace the spark plugs with ones that meet Ford material and
design specifications for your vehicle, such as Motorcraftor equivalent
replacement parts. The customer warranty may be void for any damage
to the engine if such spark plugs are not used.
VEHICLE IDENTIFICATION NUMBER
The vehicle identification number is
located on the driver side
instrument panel.
Please note that in the graphic,
XXXX is representative of your
vehicle identification number.
XXXXXXXXXXXXXXXXX
Capacities and Specifications317
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)

The Vehicle Identification Number (VIN) contains the following
information:
A. World manufacturer identifier
B. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
Devices and their location
C. Make, vehicle line, series, body
type
D. Engine type
E. Check digit
F. Model year
G. Assembly plant
H. Production sequence number
VEHICLE CERTIFICATION LABEL
The National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance Certification
Label be affixed to a vehicle and
prescribe where the Safety
Compliance Certification Label may be
located. The Safety Compliance
Certification Label shall be affixed to
either the door hinge pillar, the door
latch post, or the edge of the door
near the door latch, next to the
driver’s seating position.
318Capacities and Specifications
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)

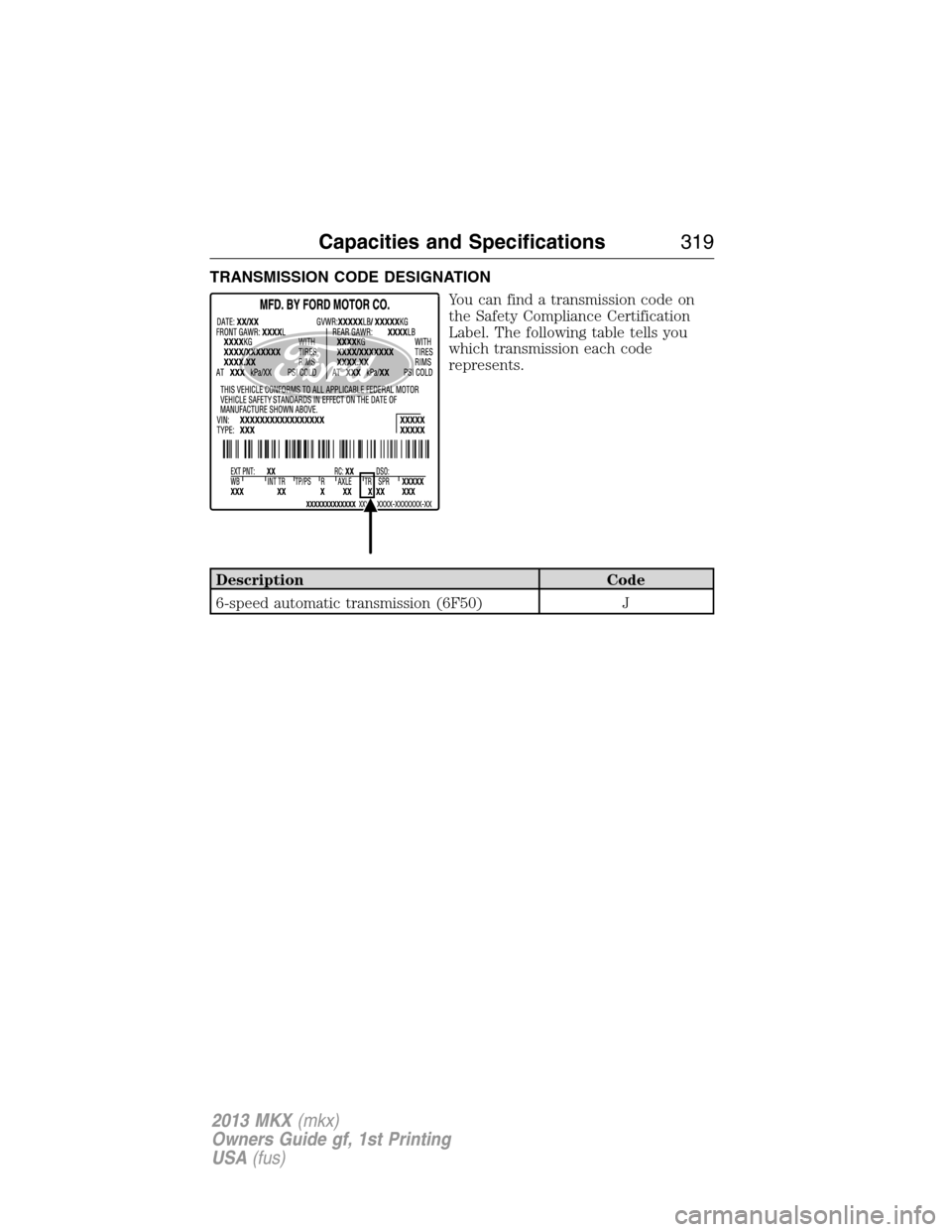

TRANSMISSION CODE DESIGNATION
You can find a transmission code on
the Safety Compliance Certification
Label. The following table tells you
which transmission each code
represents.
Description Code
6-speed automatic transmission (6F50) J
Capacities and Specifications319
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)

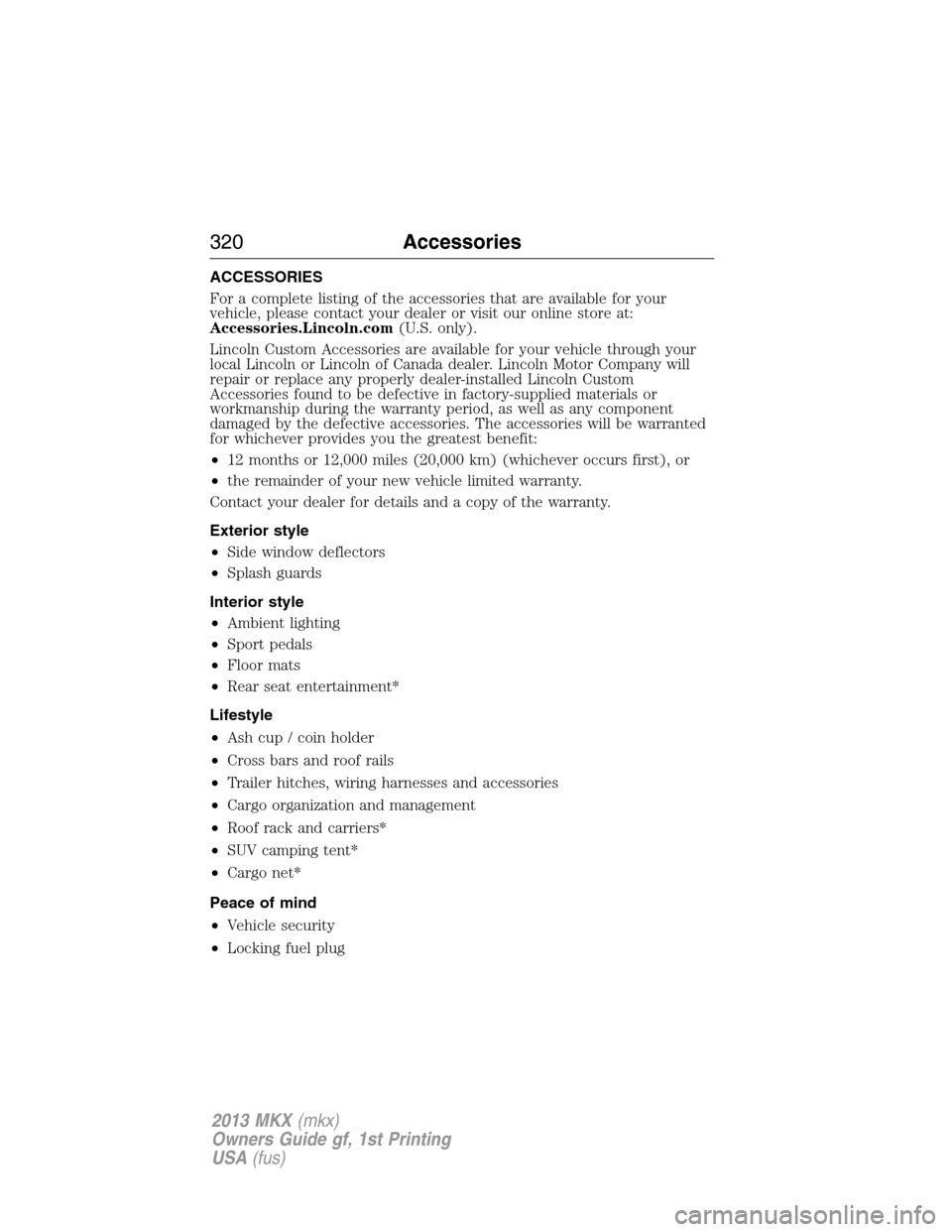

ACCESSORIES
For a complete listing of the accessories that are available for your
vehicle, please contact your dealer or visit our online store at:
Accessories.Lincoln.com(U.S. only).
Lincoln Custom Accessories are available for your vehicle through your
local Lincoln or Lincoln of Canada dealer. Lincoln Motor Company will
repair or replace any properly dealer-installed Lincoln Custom
Accessories found to be defective in factory-supplied materials or
workmanship during the warranty period, as well as any component
damaged by the defective accessories. The accessories will be warranted
for whichever provides you the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
Contact your dealer for details and a copy of the warranty.
Exterior style
•Side window deflectors
•Splash guards
Interior style
•Ambient lighting
•Sport pedals
•Floor mats
•Rear seat entertainment*
Lifestyle
•Ash cup / coin holder
•Cross bars and roof rails
•Trailer hitches, wiring harnesses and accessories
•Cargo organization and management
•Roof rack and carriers*
•SUV camping tent*
•Cargo net*
Peace of mind
•Vehicle security
•Locking fuel plug
