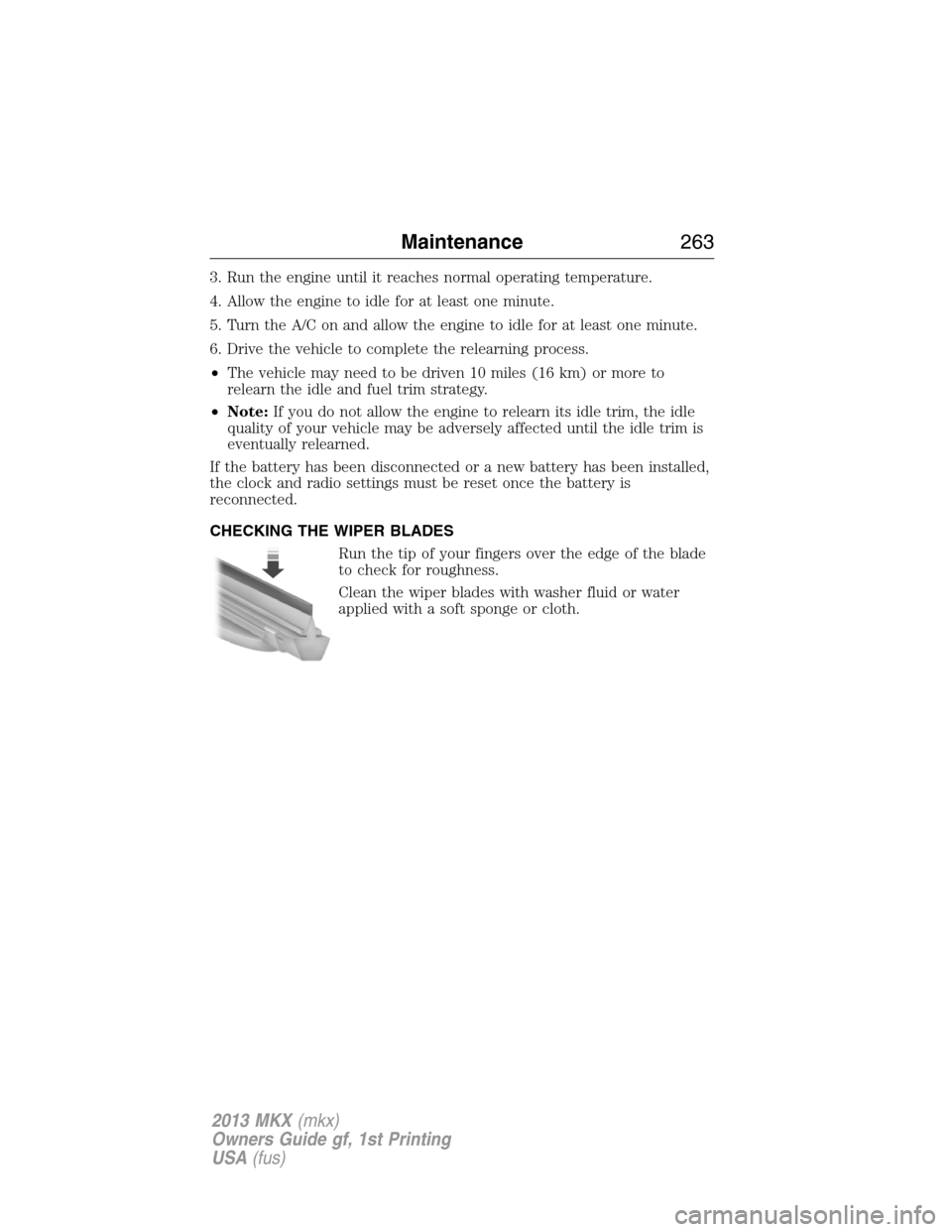

Page 263 of 453
3. Run the engine until it reaches normal operating temperature.
4. Allow the engine to idle for at least one minute.
5. Turn the A/C on and allow the engine to idle for at least one minute.
6. Drive the vehicle to complete the relearning process.
•The vehicle may need to be driven 10 miles (16 km) or more to
relearn the idle and fuel trim strategy.
•Note:If you do not allow the engine to relearn its idle trim, the idle
quality of your vehicle may be adversely affected until the idle trim is
eventually relearned.
If the battery has been disconnected or a new battery has been installed,
the clock and radio settings must be reset once the battery is
reconnected.
CHECKING THE WIPER BLADES
Run the tip of your fingers over the edge of the blade
to check for roughness.
Clean the wiper blades with washer fluid or water
applied with a soft sponge or cloth.
Maintenance263
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)

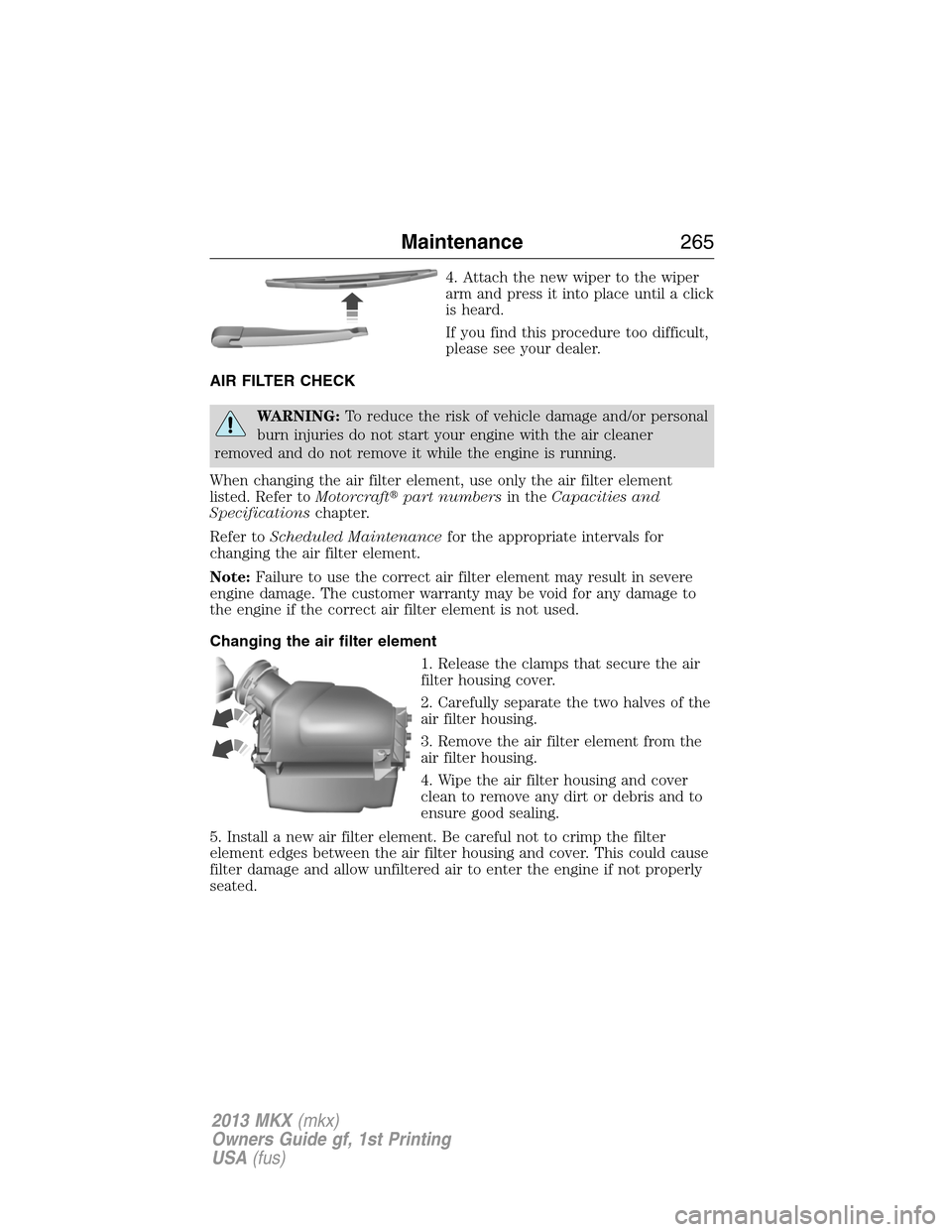

Page 265 of 453
4. Attach the new wiper to the wiper
arm and press it into place until a click
is heard.
If you find this procedure too difficult,
please see your dealer.
AIR FILTER CHECK
WARNING:To reduce the risk of vehicle damage and/or personal
burn injuries do not start your engine with the air cleaner
removed and do not remove it while the engine is running.
When changing the air filter element, use only the air filter element
listed. Refer toMotorcraftpart numbersin theCapacities and
Specificationschapter.
Refer toScheduled Maintenancefor the appropriate intervals for
changing the air filter element.
Note:Failure to use the correct air filter element may result in severe
engine damage. The customer warranty may be void for any damage to
the engine if the correct air filter element is not used.
Changing the air filter element
1. Release the clamps that secure the air
filter housing cover.
2. Carefully separate the two halves of the
air filter housing.
3. Remove the air filter element from the
air filter housing.
4. Wipe the air filter housing and cover
clean to remove any dirt or debris and to
ensure good sealing.
5. Install a new air filter element. Be careful not to crimp the filter
element edges between the air filter housing and cover. This could cause
filter damage and allow unfiltered air to enter the engine if not properly
seated.
Maintenance265
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)
Page 280 of 453
Engine
•The engine oil and filter should be changed prior to storage, as used
engine oil contain contaminates that may cause engine damage.
•Start the engine every 15 days. Run at fast idle until it reaches normal
operating temperature.
•With your foot on the brake, shift through all the gears while the
engine is running.
Fuel system
•Fill the fuel tank with high-quality fuel until the first automatic shutoff
of the fuel pump nozzle.
Note:During extended periods of vehicle storage (30 days or more), fuel
may deteriorate due to oxidation. Add a quality gas stabilizer product to
the vehicle fuel system whenever actual or expected storage periods
exceed 30 days. Follow the instructions on the additive label. The vehicle
should then be operated at idle speed to circulate the additive
throughout the fuel system.
Cooling system
•Protect against freezing temperatures.
•When removing vehicle from storage, check coolant fluid level.
Confirm there are no cooling system leaks, and fluid is at the
recommended level.
Battery
•Check and recharge as necessary. Keep connections clean.
•If storing your vehicle for more than 30 days without recharging the
battery, it may be advisable to disconnect the battery cables to ensure
battery charge is maintained for quick starting.
Note:If battery cables are disconnected, it will be necessary to reset
memory features.
280Vehicle Care
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)

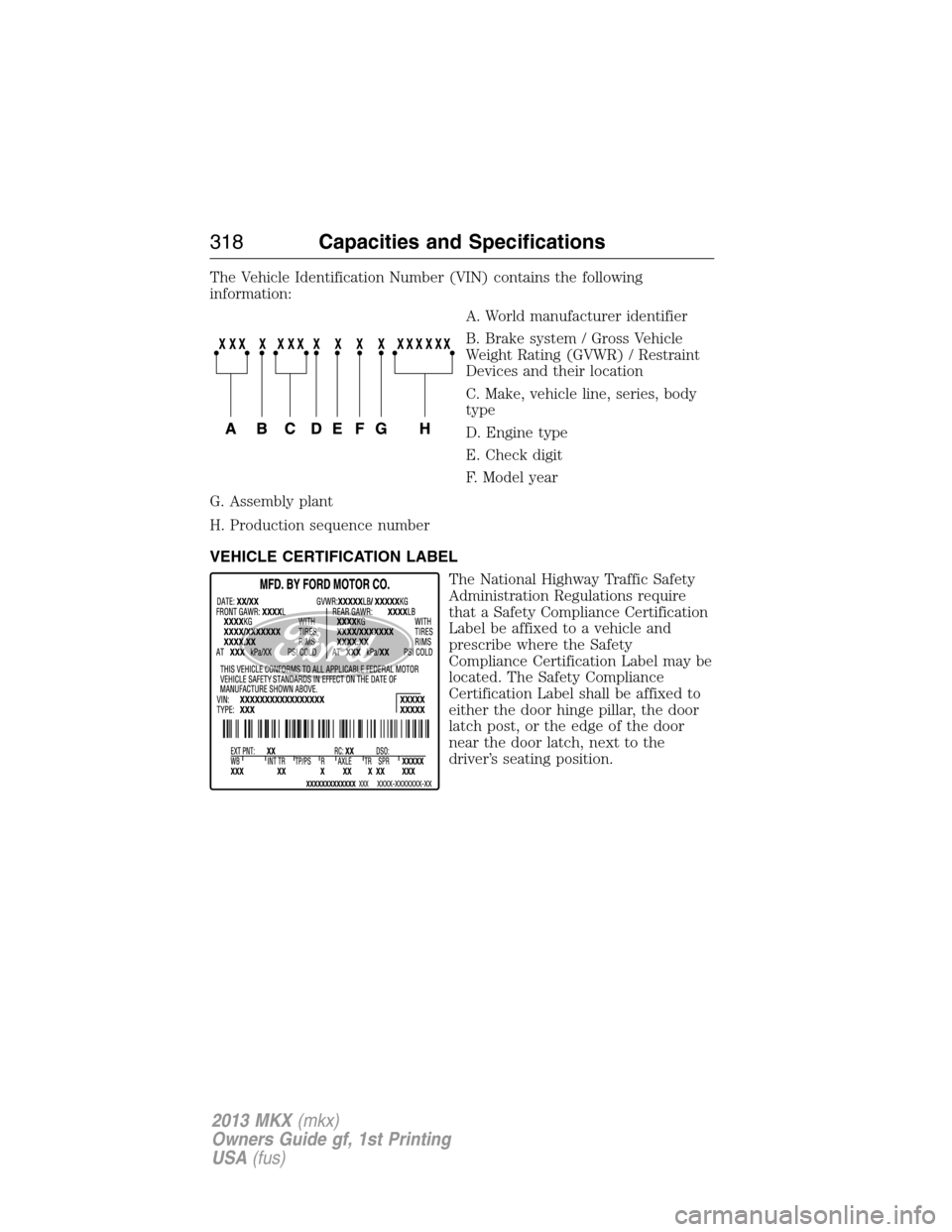

Page 318 of 453
The Vehicle Identification Number (VIN) contains the following
information:
A. World manufacturer identifier
B. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
Devices and their location
C. Make, vehicle line, series, body
type
D. Engine type
E. Check digit
F. Model year
G. Assembly plant
H. Production sequence number
VEHICLE CERTIFICATION LABEL
The National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance Certification
Label be affixed to a vehicle and
prescribe where the Safety
Compliance Certification Label may be
located. The Safety Compliance
Certification Label shall be affixed to
either the door hinge pillar, the door
latch post, or the edge of the door
near the door latch, next to the
driver’s seating position.
318Capacities and Specifications
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)
Page 328 of 453
Additives and Chemicals
Ford Motor Company recommended additives and chemicals are listed in
this book and in theWorkshop Manual.Additional chemicals or
additives not approved by Ford and are not recommended as part of
normal maintenance. Please consult yourWarranty Manualfor
complete warranty information.
Oils, Fluids and Flushing
In many cases, fluid discoloration is a normal operating characteristic and,
by itself, does not necessarily indicate a concern or that the fluid needs to
be changed. However, discolored fluids that also show signs of overheating
and/or foreign material contamination should be inspected immediately by a
qualified expert such as the factory-trained technicians at your dealership.
Your vehicle’s oils and fluids should be changed at the specified intervals or
in conjunction with a repair. Flushing is a viable way to change fluid for
many vehicle sub-systems during scheduled maintenance. It is critical that
systems are flushed only with new fluid that is the same as that required to
fill and operate the system, or using a Ford-approved flushing chemical.
Owner Checks and Services
Certain basic maintenance checks and inspections should be performed
every month or at six months intervals.
Check every month
Engine oil level
Function of all interior and exterior lights
Tires for wear and proper pressure, including spare
Windshield washer fluid level
Check every six months
Battery connections; clean if necessary
Body and door drain holes for obstructions; clean if necessary
Cooling system fluid level and coolant strength
Door weatherstrips for wear; lubricate if necessary
Hinges/latches/outside locks for proper operation; lubricate if necessary
Parking brake for proper operation
Safety belts and seat latches for wear and function
Safety warning lamps (brake, ABS, airbag, safety belt) for operation
Washer spray/wiper operation; clean or replace blades as necessary
328Scheduled Maintenance
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)
Page 329 of 453
Multi-Point Inspection
In order to keep your vehicle running right, it is important to have the
systems on your vehicle checked regularly. This can help identify
potential issues and prevent major problems. Ford Motor Company
recommends the following multi-point inspection be performed at every
scheduled maintenance interval to help make sure your vehicle keeps
running great.
Multi-point inspection – Recommended each visit
Accessory drive belt(s) Half-shaft dust boots (if equipped)
Battery performance Horn operation
Clutch operation (if equipped) Radiator, cooler, heater and A/C hoses
Engine air filter Suspension component for leaks or
damage
Exhaust system Steering and linkage
Exterior lamps and hazard
warning system operationTires for wear and proper pressure,
including spare
Fluid levels*; fill if necessary Windshield for cracks, chips or pits
For oil and fluid leaks Washer spray and wiper operation
*Brake, coolant recovery reservoir, manual and automatic transmission
(with an underhood dipstick), power steering (if equipped) and
window washer
Be sure to ask your dealership service advisor or technician about the
multi-point vehicle inspection. It’s a comprehensive way to perform a
thorough inspection of your vehicle. It’s your checklist that gives you
immediate feedback on the overall condition of your vehicle. You’ll know
what’s been checked, what’s okay, as well as those things that may
require future or immediate attention. The multi-point vehicle inspection
is one more way to keep your vehicle running great!
Scheduled Maintenance329
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)
Page 343 of 453
EXCEPTIONS
There are several exceptions to the Normal Schedule. They are listed
below:
Normal vehicle axle maintenance:Rear axles and power take-off
(PTO) units with synthetic fluid and light-duty trucks equipped with
Ford-design axles are lubricated for life; do not check or change fluid
unless a leak is suspected, service is required or the assembly has been
submerged in water. During long periods of trailer towing with outside
temperatures above 70°F (21°C) and at wide-open throttle for long
periods above 45 mph (72 km/h), non-synthetic rear axle fluids should be
changed every 3,000 miles (4,800 km) or three months, whichever comes
first. This interval can be waived if the axle is filled with 75W140
synthetic gear fluid meeting Ford specification WSL-M2C192-A, part
number F1TZ-19580-B or equivalent. Add friction modifier XL-3
(EST-M2C118-A) or equivalent for complete refill of Traction-Lok rear
axles (refer toTechnical specificationsin theCapacities and
Specificationschapter for details).
Police/Taxi/Livery vehicle axle maintenance:Change rear axle fluid
every 100,000 miles (160,000 km). Rear axle fluid change may be waived
if the axle was filled with 75W140 synthetic gear fluid meeting Ford
specification WSL-M2C192-A, part number FITZ-19580-B or equivalent.
Add four ounces (118 mL) of additive friction modifier XL-3
(EST-M2C118-A) or equivalent for complete refill of Traction-Lok rear
axles. The axle fluid should be changed anytime the axle has been
submerged in water
California fuel filter replacement:If the vehicle is registered in
California, the California Air Resources Board has determined that the
failure to perform this maintenance item will not nullify the emission
warranty or limit recall liability prior to the completion of the vehicle’s
useful life. Ford Motor Company, however, urges you to have all
recommended maintenance services performed at the specified intervals
and to record all vehicle service.
Class A Motorhome:Change brake fluid every two years.
Hot climate oil change intervals:Vehicles operating in the Middle
East, North Africa, Sub-Saharan Africa or locations with similar climates
using an American Petroleum Institute (API) Certified for Gasoline
Engines (Certification mark) oil of SM or SN quality, the normal oil
change interval is 5,000 miles (8,000 km).
If the available API “SM” or “SN” oils are not available, then the oil
change service interval is 3,000 mile (4,800 km).
Scheduled Maintenance343
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)
Page 448 of 453
CD .............................................. 125
CD player .......................... 123, 376
CD voice commands ................. 376
Cell phone use ............................ 14
Changing a tire ......................... 305
Child safety restraints .......... 26, 28
Child safety seats
attaching with tether straps .... 28
automatic locking mode
(retractor) ................................. 35
LATCH ....................................... 26
Child safety seats - booster
seats ............................................. 21
Cleaning the touchscreen ........ 348
Cleaning your vehicle ............... 273
engine compartment .............. 275
instrument panel .................... 277
interior ..................................... 276
plastic parts ............................ 274
washing .................................... 273
waxing ..................................... 275
wheels ...................................... 278
wiper blades ............................ 276
Climate voice commands ......... 416
Clock .................................. 125, 405
Collision Warning System ......... 201
Console ...................................... 148
overhead .................................. 148
Coolant
checking and adding .............. 254
refill capacities ........................ 313
specifications .......................... 313
Cross Traffic Alert .................... 196
Cruise control ........................... 187
Customer Assistance ................ 228Ford Extended Service
Plan .................................. 322, 325
Getting assistance outside the
U.S. and Canada ..................... 237
Getting roadside assistance ... 228
Getting the service you
need ......................................... 233
Ordering additional owner’s
literature ................................. 239
Utilizing the
Mediation/Arbitration
Program ................................... 237
Customizing your home
screen ........................................ 347
D
Defrost ....................................... 127
rear window ............................ 129
Dipstick
automatic transmission
fluid .......................................... 258
engine oil ................................. 253
Display settings ......................... 406
Driving under special
conditions .................. 168, 171, 174
sand ......................................... 172
snow and ice ........................... 174
through water ................. 173, 225
Dual automatic temperature
control (DATC) ......................... 127
E
Electronic message center ....... 107
Electronic stability control ...... 180
Emergencies, roadside
jump-starting .......................... 230
running out of fuel ................. 157
448Index
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)
Page 449 of 453
Emergency brake
(see Parking brake) .................. 177
Emission control system .......... 161
End user license agreement .... 429
Engine ........................................ 312
cleaning ................................... 275
fail-safe cooling ....................... 256
idle speed control ................... 261
lubrication specifications ....... 313
refill capacities ........................ 313
service points .......................... 253
Engine block heater ................. 153
Engine oil
checking and adding .............. 253
dipstick .................................... 253
filter, specifications ................ 317
refill capacities ........................ 313
specifications .......................... 313
Event data recording .................. 12
Exhaust fumes .......................... 153
F
Fail safe cooling ........................ 256
Fleet MyKey programming ........ 62
Flexible Fuel Vehicle (FFV) .... 155
Floor mats ................................. 226
Fluid capacities ......................... 313
Four-Wheel Drive vehicles
driving off road ....................... 170
Fuel
cap ........................................... 159
capacity ................................... 313
choosing the right fuel ........... 156
filler funnel ............................. 157
filling your vehicle with fuel .. 159
filter, specifications ........ 260, 317
fuel pump shut-off .................. 229octane rating ................... 156, 312
running out of fuel ................. 157
safety information relating to
automotive fuels ..................... 155
Fuel - flex fuel vehicle
(FFV) ......................................... 155
Fuses .......................... 241–242, 246
G
Gas cap (see Fuel cap) ............ 159
Gauges ....................................... 101
H
Hazard flashers ......................... 229
HD Radio™ ............................... 364
Headlamps
aiming ...................................... 266
bulb specifications .................. 272
flash to pass .............................. 88
high beam ................................. 88
replacing bulbs ....................... 268
Head restraints ......................... 132
Heating ...................................... 127
Help ............................................ 413
Hill start assist .......................... 168
Homelink wireless control
system ........................................ 142
Home screen ............................. 347
Hood .......................................... 251
How to use voice commands ... 354
I
Ignition ............................... 149, 312
Illuminated visor mirror ............. 98
Index449
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)
