MyKey 62
Settings, MyKey.......................................62
Creating.............................................63
Clearing.............................................63
System status.........................................64
Remote start, MyKey...................................64
Troubleshooting, MyKey.................................66
Locks 68
Locking and unlocking..................................68
SecuriCode™ keyless entry keypad.........................75
Security 78
SecuriLockpassive anti-theft system.......................78
Anti-theft alarm.......................................80
Steering Wheel 81
Adjusting the steering wheel..............................81
Steering wheel controls..................................83
Wipers and Washers 86
Windshield wipers......................................86
Rain-sensing wipers....................................86
Windshield washers.....................................87
Rear-window wiper and washer............................87
Lighting 88
Lighting control.......................................88
Autolamps...........................................89
Instrument lighting dimmer...............................89
Headlamp exit delay....................................90
Daytime running lamps..................................90
Front fog lamps.......................................91
Adaptive headlamps....................................91
Directionindicators ....................................92
Interior lamps.........................................92
2Table of Contents
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)

PRINCIPLE OF OPERATION
The remote control allows you to:
•remotely lock or unlock the vehicle doors
•remotely open the power liftgate
•remotely start or stop the engine
•arm and disarm the anti-theft system
•activate the panic alarm
•activate the global open windows.
Intelligent Access
Your vehicle will allow you to unlock and enter your vehicle without
actively using a key or remote control. You can use this feature at the
front doors or at the liftgate or trunk. You can activate the intelligent
access feature as long as you have one of your intelligent access keys
within range of the front doors or the liftgate or trunk.
GENERAL INFORMATION ON RADIO FREQUENCIES
The remote control complies with part 15 of the FCC rules and with
RSS-210 of Industry Canada. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2)
This device must accept any interference received, including interference
that may cause undesired operation.
Note:Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.
The typical operating range for your transmitter is approximately 33 feet
(10 meters). Vehicles with the remote start feature will have a greater
range. A decrease in operating range could be caused by:
•weather conditions
•nearby radio towers
•structures around the vehicle
•other vehicles parked next to your vehicle.
Keys and Remote Control55
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)

Intelligent Access
The system uses a radio frequency signal to communicate with your
vehicle and authorize your vehicle to unlock when commanded (either by
touching the inside of the driver door or front passenger exterior door
handle, by activating the exterior power trunk or liftgate button, or a
button on the transmitter itself). If excessive radio frequency interface is
present in the area, or if the transmitter battery is low, it may be
necessary to mechanically unlock your door. The mechanical key blade in
your intelligent access key can be used to open the driver’s door in this
situation. Refer toRemote Controlin this chapter for more information
on the location and use of the mechanical key blade.
REMOTE CONTROL
Intelligent Access Key
Your vehicle is equipped with two
intelligent access keys which operate
the power locks and the remote start
system. The key must be in the
vehicle to activate the push button
start system.
The intelligent access key also
contains a removable mechanical key
blade that can be used to unlock the
driver door. Slide the release on the
back of the transmitter to release the
mechanical key blade, then pull the
blade out.
Note:Your vehicle’s back-up keys
were issued with a security tag that
provides important vehicle key cut
information. Keep the tag in a safe
place for future reference.
56Keys and Remote Control
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)

Car Finder
Press the button twice within three seconds. The horn will
chirp and the turn signals will flash. It is recommended that this
method be used to locate your vehicle, rather than using the
panic alarm.
Sounding a Panic Alarm
Note:The panic alarm will only operate when the ignition is off.
Press the button to activate the alarm. Press the button again
or turn the ignition on to deactivate.
Remote Start
WARNING:To avoid exhaust fumes, do not use remote start if
your vehicle is parked indoors or areas that are not well
ventilated.
Note:Do not use remote start if your vehicle is low on fuel.
Your vehicle has remote start if the transmitter has this button.
The remote start feature allows you to start the engine from outside the
vehicle. The transmitter has an extended operating range.
Vehicles with automatic climate control can be configured to operate
when the vehicle is remote started. Refer to theClimate Controlchapter
for more information. A manual climate control system will run at the
setting it was set to when the vehicle was last turned off.
Many states and provinces have restrictions for the use of remote start.
Check your local and state or provincial laws for specific requirements
regarding remote start systems.
Keys and Remote Control59
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)

The remote start system will not work if:
•the ignition is on
•the alarm system is triggered
•the feature has been disabled
•the hood is not closed
•two remote vehicle starts have already been attempted within the last
hour
•the vehicle is not in P (Park)
•the vehicle battery voltage is too low
•the service engine soon light is on.
Remote Starting the Engine
Note:Each button press must be done within three seconds of each
other. The vehicle will not remote start if this sequence is not followed
and the horn will not chirp.
The label on your transmitter details
the starting procedure. To remote
start the engine:
1. Press the lock button to lock all the doors.
2. Press the remote start button twice. The exterior lamps will flash
twice.
The horn will chirp if the system fails to start (unless quiet start is on).
Quiet start will run the blower fan at a slower speed to reduce noise. It
can be switched on or off. Refer to theInformation Displayschapter.
Note:If the vehicle has been remote started you must press the
START/STOP button on the instrument panel once while applying the
brake pedal before driving the vehicle.
The power windows will be inhibited during the remote start and the
radio will not turn on automatically.
The parking lamps will remain on and the engine will run for 5, 10, or
15 minutes, depending on the setting. Refer to theInformation Displays
chapter to select the duration of the remote start system.
60Keys and Remote Control
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)

Extending the Engine Run Time
Repeat Steps 1 and 2 with the engine still running to extend the run
time for another remote start duration. If you programmed the duration
to last 10 minutes, the second 10 minutes will begin after what is left of
the first activation time. For example, if the vehicle had been running
from the first remote start for five minutes, the engine will continue to
run now for a total of 15 minutes. You can only extend the remote start
once.
Wait at least five seconds before remote starting after an engine
shutdown. Only two remote starts are allowed.
The ignition must be turned on and then back off or allow one hour to
pass before using remote start again if additional remote starts are
desired.
Turning the Engine Off After Remote Starting
Press the button once. The parking lamps will turn off.
You may have to be closer to the vehicle than when starting due to
ground reflection and the added noise of the running engine.
You can disable or enable the remote start system through the
information display. Refer to theInformation Displaychapter.
REPLACING A LOST KEY OR REMOTE CONTROL
Replacement or additional keys or remote controls can be purchased
from your authorized dealer. Your dealer can program the transmitters to
your vehicle or you may be able to program them yourself. Refer to the
Securitychapter for information on programming your transmitters.
Keys and Remote Control61
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)

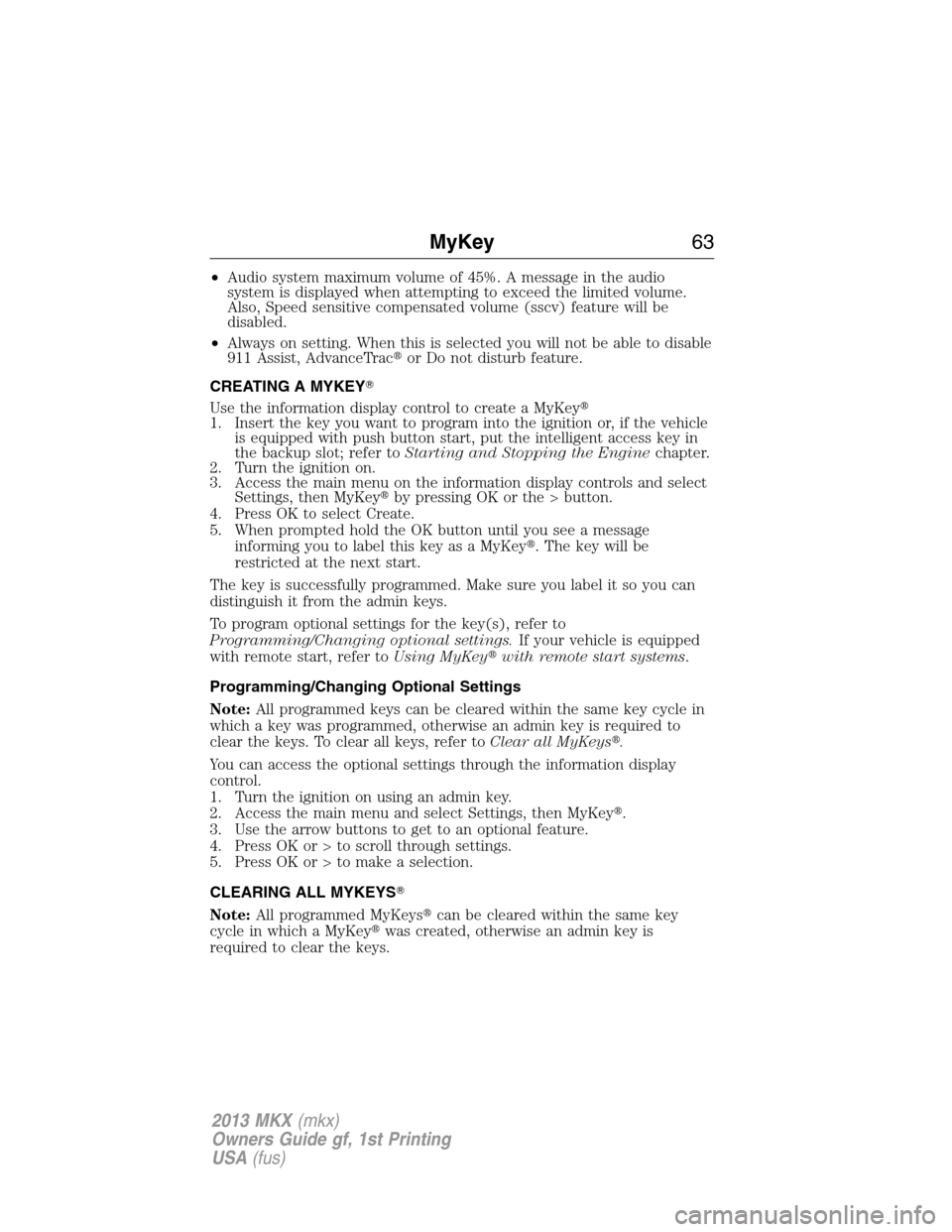

•Audio system maximum volume of 45%. A message in the audio
system is displayed when attempting to exceed the limited volume.
Also, Speed sensitive compensated volume (sscv) feature will be
disabled.
•Always on setting. When this is selected you will not be able to disable
911 Assist, AdvanceTracor Do not disturb feature.
CREATING A MYKEY
Use the information display control to create a MyKey
1. Insert the key you want to program into the ignition or, if the vehicle
is equipped with push button start, put the intelligent access key in
the backup slot; refer toStarting and Stopping the Enginechapter.
2. Turn the ignition on.
3. Access the main menu on the information display controls and select
Settings, then MyKeyby pressing OK or the > button.
4. Press OK to select Create.
5. When prompted hold the OK button until you see a message
informing you to label this key as a MyKey. The key will be
restricted at the next start.
The key is successfully programmed. Make sure you label it so you can
distinguish it from the admin keys.
To program optional settings for the key(s), refer to
Programming/Changing optional settings.If your vehicle is equipped
with remote start, refer toUsing MyKeywith remote start systems.
Programming/Changing Optional Settings
Note:All programmed keys can be cleared within the same key cycle in
which a key was programmed, otherwise an admin key is required to
clear the keys. To clear all keys, refer toClear all MyKeys.
You can access the optional settings through the information display
control.
1. Turn the ignition on using an admin key.
2. Access the main menu and select Settings, then MyKey.
3. Use the arrow buttons to get to an optional feature.
4. Press OK or > to scroll through settings.
5. Press OK or > to make a selection.
CLEARING ALL MYKEYS
Note:All programmed MyKeyscan be cleared within the same key
cycle in which a MyKeywas created, otherwise an admin key is
required to clear the keys.
MyKey63
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)

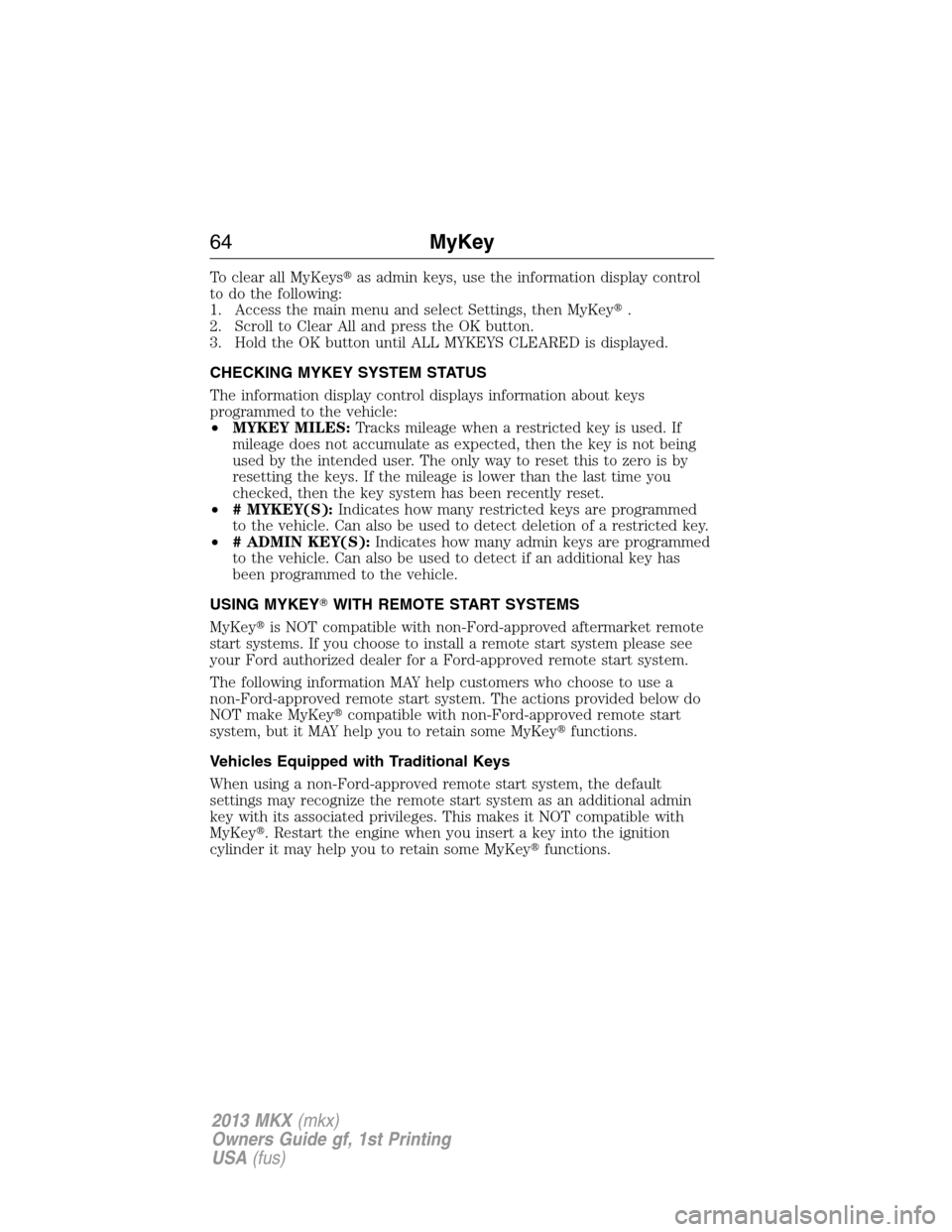

To clear all MyKeysas admin keys, use the information display control
to do the following:
1. Access the main menu and select Settings, then MyKey.
2. Scroll to Clear All and press the OK button.
3. Hold the OK button until ALL MYKEYS CLEARED is displayed.
CHECKING MYKEY SYSTEM STATUS
The information display control displays information about keys
programmed to the vehicle:
•MYKEY MILES:Tracks mileage when a restricted key is used. If
mileage does not accumulate as expected, then the key is not being
used by the intended user. The only way to reset this to zero is by
resetting the keys. If the mileage is lower than the last time you
checked, then the key system has been recently reset.
•# MYKEY(S):Indicates how many restricted keys are programmed
to the vehicle. Can also be used to detect deletion of a restricted key.
•# ADMIN KEY(S):Indicates how many admin keys are programmed
to the vehicle. Can also be used to detect if an additional key has
been programmed to the vehicle.
USING MYKEYWITH REMOTE START SYSTEMS
MyKeyis NOT compatible with non-Ford-approved aftermarket remote
start systems. If you choose to install a remote start system please see
your Ford authorized dealer for a Ford-approved remote start system.
The following information MAY help customers who choose to use a
non-Ford-approved remote start system. The actions provided below do
NOT make MyKeycompatible with non-Ford-approved remote start
system, but it MAY help you to retain some MyKeyfunctions.
Vehicles Equipped with Traditional Keys
When using a non-Ford-approved remote start system, the default
settings may recognize the remote start system as an additional admin
key with its associated privileges. This makes it NOT compatible with
MyKey. Restart the engine when you insert a key into the ignition
cylinder it may help you to retain some MyKeyfunctions.
64MyKey
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)

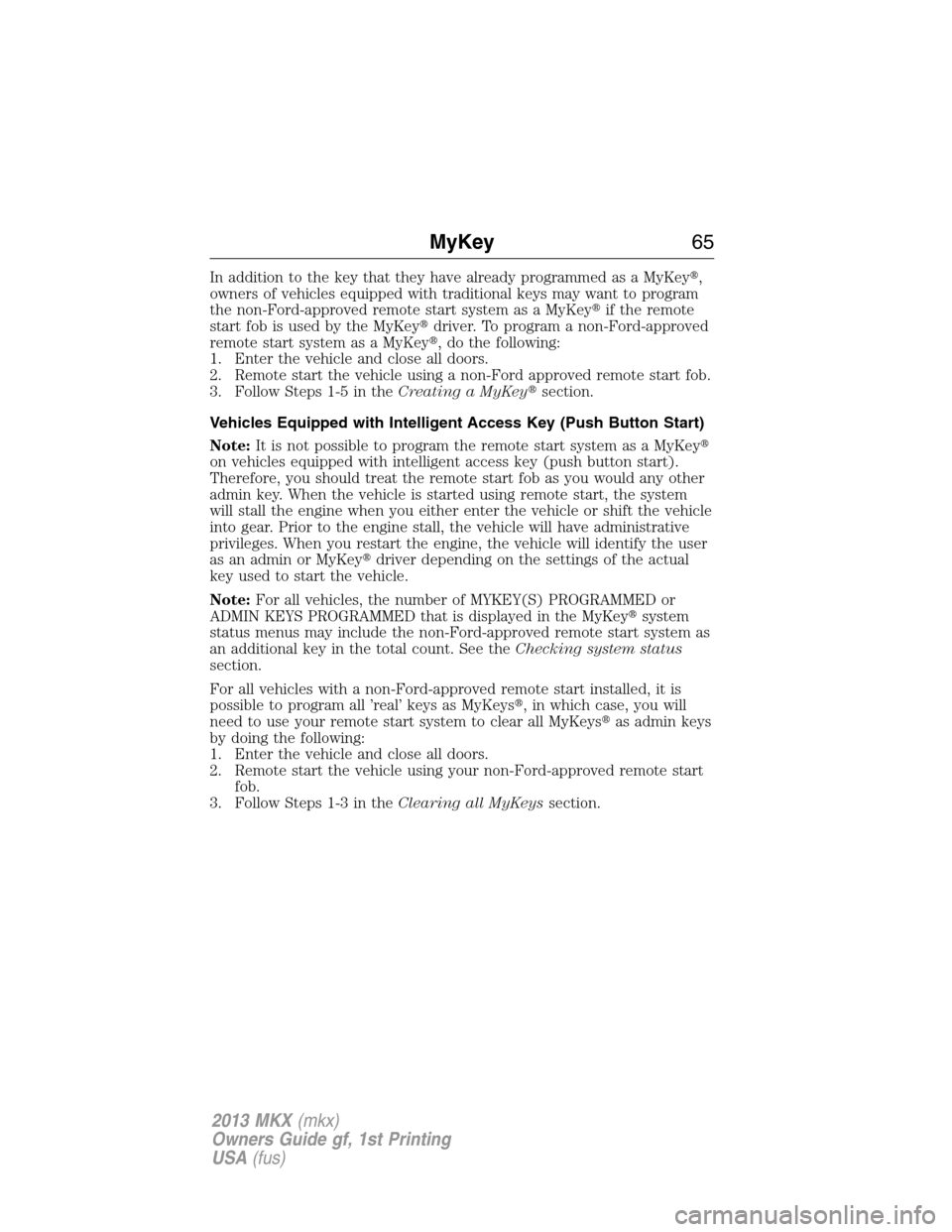

In addition to the key that they have already programmed as a MyKey,
owners of vehicles equipped with traditional keys may want to program
the non-Ford-approved remote start system as a MyKeyif the remote
start fob is used by the MyKeydriver. To program a non-Ford-approved
remote start system as a MyKey, do the following:
1. Enter the vehicle and close all doors.
2. Remote start the vehicle using a non-Ford approved remote start fob.
3. Follow Steps 1-5 in theCreating a MyKeysection.
Vehicles Equipped with Intelligent Access Key (Push Button Start)
Note:It is not possible to program the remote start system as a MyKey
on vehicles equipped with intelligent access key (push button start).
Therefore, you should treat the remote start fob as you would any other
admin key. When the vehicle is started using remote start, the system
will stall the engine when you either enter the vehicle or shift the vehicle
into gear. Prior to the engine stall, the vehicle will have administrative
privileges. When you restart the engine, the vehicle will identify the user
as an admin or MyKeydriver depending on the settings of the actual
key used to start the vehicle.
Note:For all vehicles, the number of MYKEY(S) PROGRAMMED or
ADMIN KEYS PROGRAMMED that is displayed in the MyKeysystem
status menus may include the non-Ford-approved remote start system as
an additional key in the total count. See theChecking system status
section.
For all vehicles with a non-Ford-approved remote start installed, it is
possible to program all ’real’ keys as MyKeys, in which case, you will
need to use your remote start system to clear all MyKeysas admin keys
by doing the following:
1. Enter the vehicle and close all doors.
2. Remote start the vehicle using your non-Ford-approved remote start
fob.
3. Follow Steps 1-3 in theClearing all MyKeyssection.
MyKey65
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)

MYKEYTROUBLESHOOTING
Condition Potential Causes
I cannot program a key•The key in the ignition does not have admin
privileges.
•The key in the ignition is the only admin key
(there always has to be at least one admin
key).
•The intelligent access key is not in the
backup slot (vehicles with push button start).
•SecuriLockpassive anti-theft system is
disabled or in unlimited mode.
•The vehicle has been started using a remote
start system that is not programmed with
admin privileges. Refer toUsing MyKeywith
remote start systems.
I cannot program the
optional settings•The key in the ignition does not have admin
privileges.
•No keys are programmed to the vehicle.
Refer toCreating a MyKey.
•The vehicle has been started using a remote
start system that is not programmed with
admin privileges. Refer toUsing MyKey with
remote start systems.
I cannot clear the
restricted keys•Key in the ignition does not have admin
privileges.
•No restricted keys are programmed to the
vehicle. Refer toCreating a MyKey.
•The vehicle has been started using a remote
start system that is not programmed with
admin privileges. Refer toUsing MyKeywith
remote start systems.
I lost the only admin
key•Purchase a new key from your authorized
dealer.
I lost a key•Program spare keys as outlined under
SecuriLockin theSecuritychapter.
66MyKey
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)
