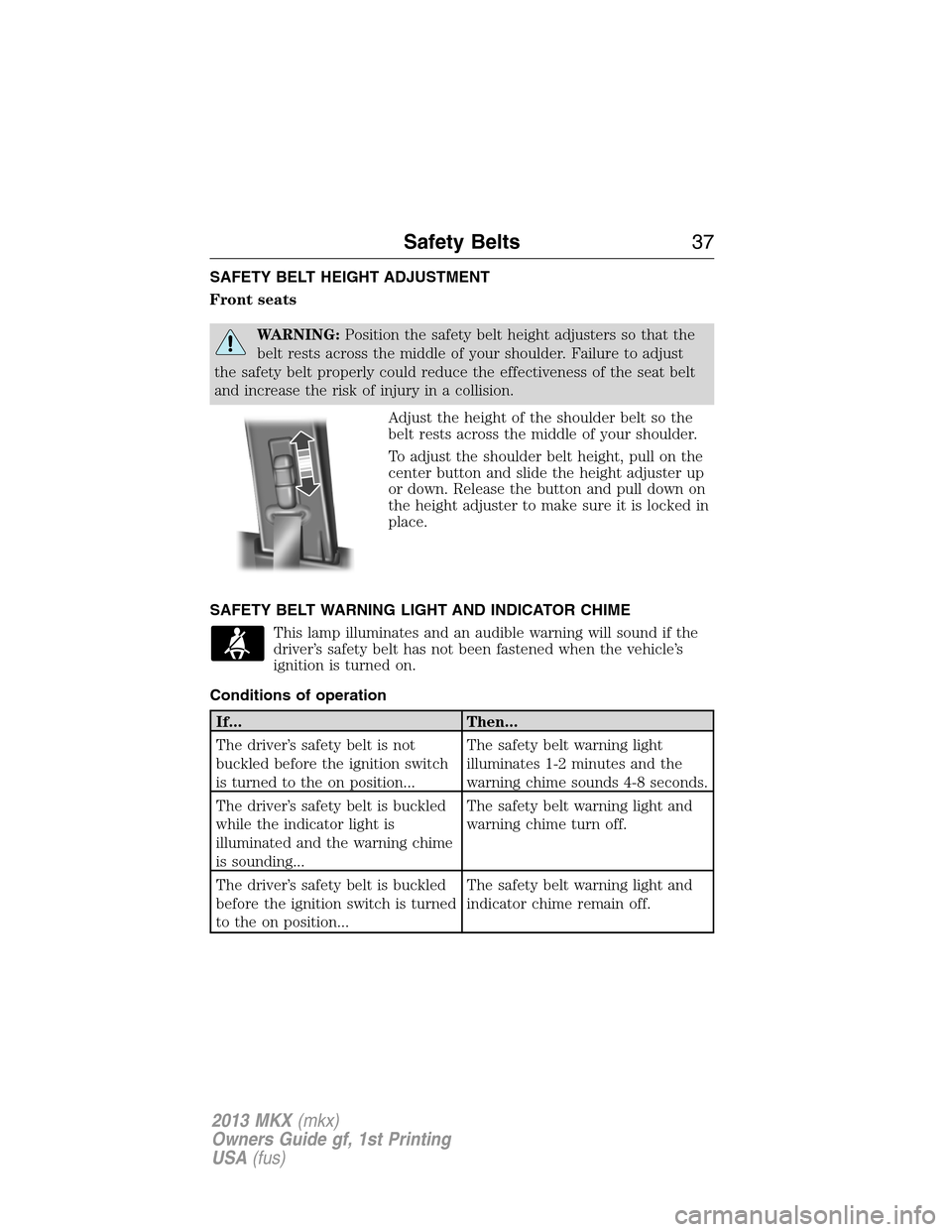

SAFETY BELT HEIGHT ADJUSTMENT
Front seats
WARNING:Position the safety belt height adjusters so that the
belt rests across the middle of your shoulder. Failure to adjust
the safety belt properly could reduce the effectiveness of the seat belt
and increase the risk of injury in a collision.
Adjust the height of the shoulder belt so the
belt rests across the middle of your shoulder.
To adjust the shoulder belt height, pull on the
center button and slide the height adjuster up
or down. Release the button and pull down on
the height adjuster to make sure it is locked in
place.
SAFETY BELT WARNING LIGHT AND INDICATOR CHIME
This lamp illuminates and an audible warning will sound if the
driver’s safety belt has not been fastened when the vehicle’s
ignition is turned on.
Conditions of operation
If... Then...
The driver’s safety belt is not
buckled before the ignition switch
is turned to the on position...The safety belt warning light
illuminates 1-2 minutes and the
warning chime sounds 4-8 seconds.
The driver’s safety belt is buckled
while the indicator light is
illuminated and the warning chime
is sounding...The safety belt warning light and
warning chime turn off.
The driver’s safety belt is buckled
before the ignition switch is turned
to the on position...The safety belt warning light and
indicator chime remain off.
Safety Belts37
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)

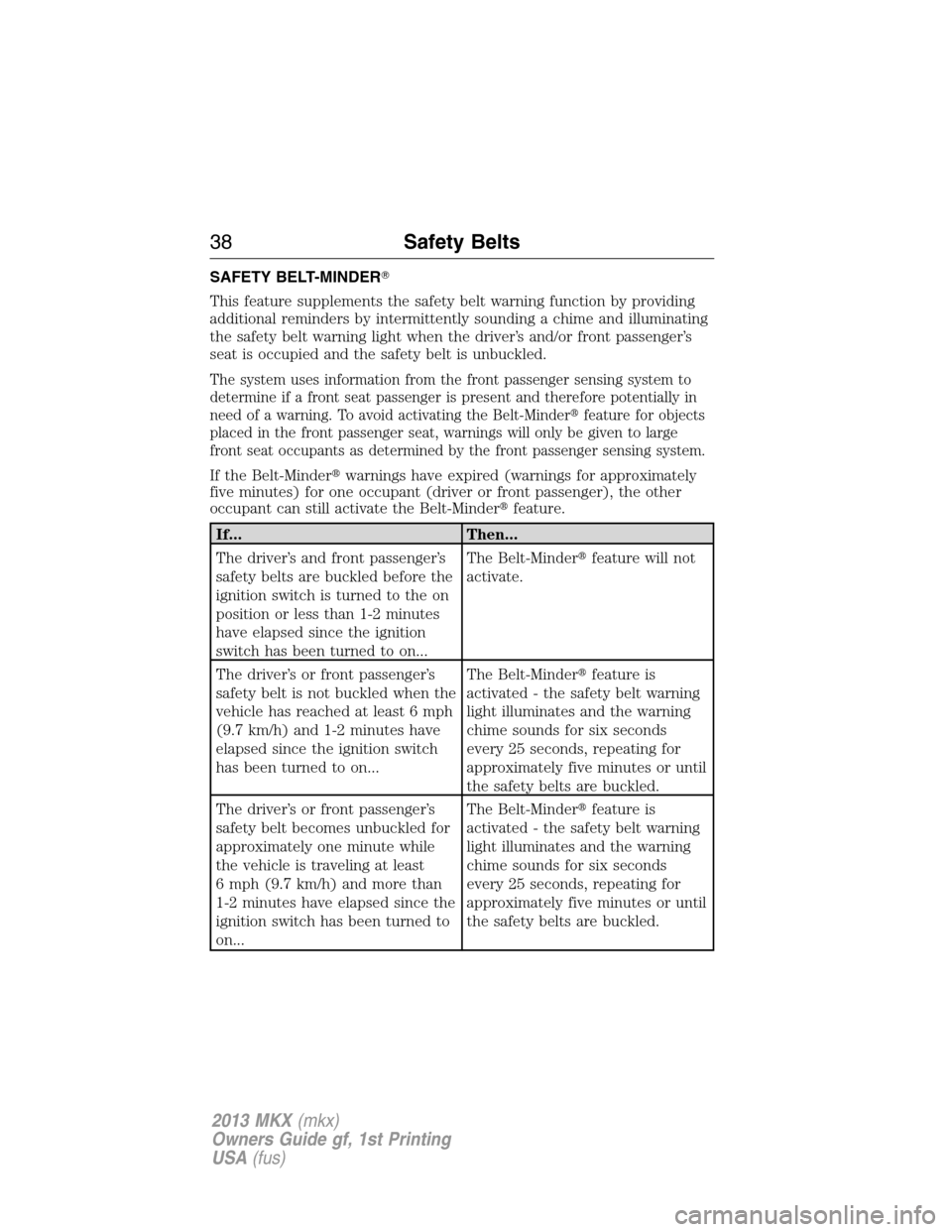

SAFETY BELT-MINDER
This feature supplements the safety belt warning function by providing
additional reminders by intermittently sounding a chime and illuminating
the safety belt warning light when the driver’s and/or front passenger’s
seat is occupied and the safety belt is unbuckled.
The system uses information from the front passenger sensing system to
determine if a front seat passenger is present and therefore potentially in
need of a warning. To avoid activating the Belt-Minderfeature for objects
placed in the front passenger seat, warnings will only be given to large
front seat occupants as determined by the front passenger sensing system.
If the Belt-Minderwarnings have expired (warnings for approximately
five minutes) for one occupant (driver or front passenger), the other
occupant can still activate the Belt-Minderfeature.
If... Then...
The driver’s and front passenger’s
safety belts are buckled before the
ignition switch is turned to the on
position or less than 1-2 minutes
have elapsed since the ignition
switch has been turned to on...The Belt-Minderfeature will not
activate.
The driver’s or front passenger’s
safety belt is not buckled when the
vehicle has reached at least 6 mph
(9.7 km/h) and 1-2 minutes have
elapsed since the ignition switch
has been turned to on...The Belt-Minderfeature is
activated - the safety belt warning
light illuminates and the warning
chime sounds for six seconds
every 25 seconds, repeating for
approximately five minutes or until
the safety belts are buckled.
The driver’s or front passenger’s
safety belt becomes unbuckled for
approximately one minute while
the vehicle is traveling at least
6 mph (9.7 km/h) and more than
1-2 minutes have elapsed since the
ignition switch has been turned to
on...The Belt-Minderfeature is
activated - the safety belt warning
light illuminates and the warning
chime sounds for six seconds
every 25 seconds, repeating for
approximately five minutes or until
the safety belts are buckled.
38Safety Belts
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)

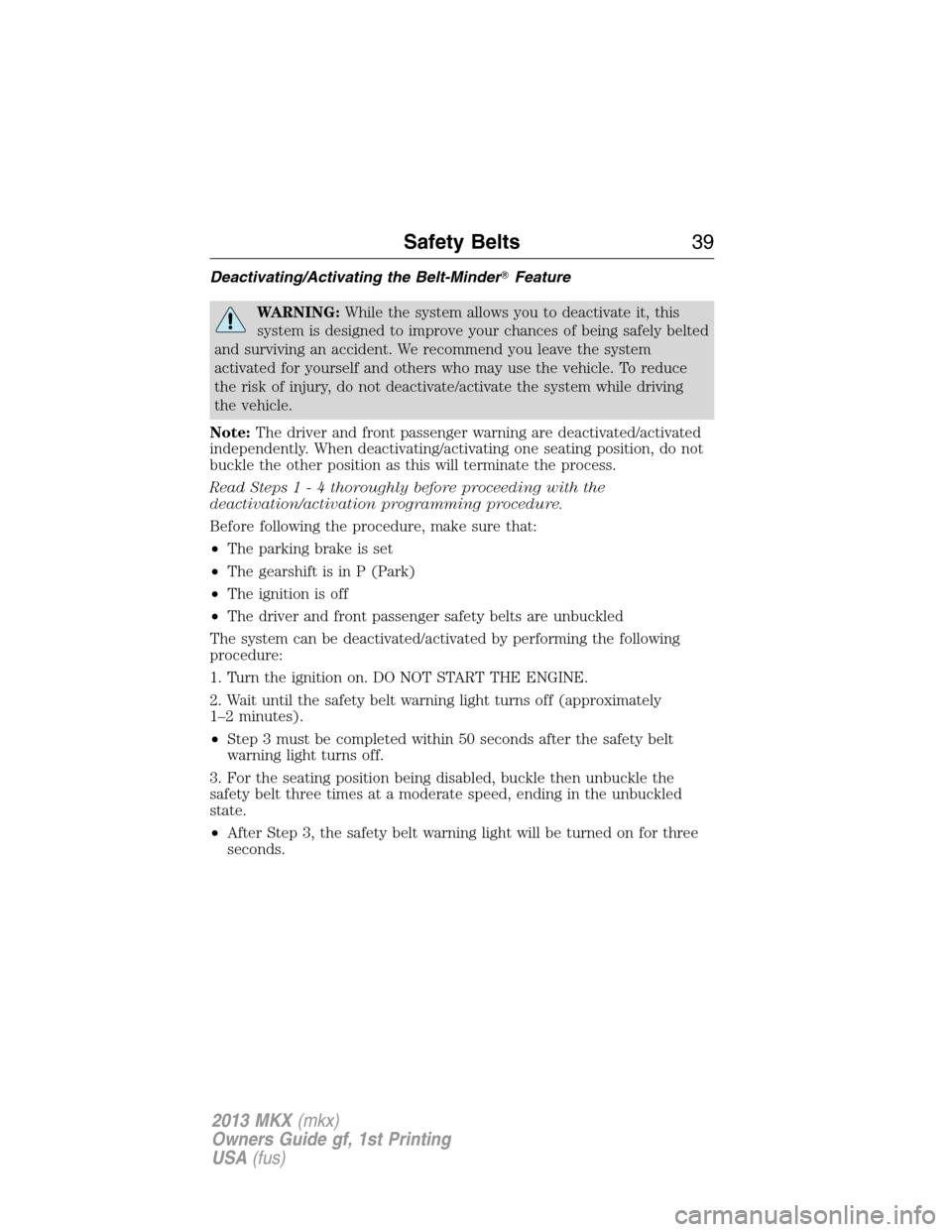

Deactivating/Activating the Belt-MinderFeature
WARNING:While the system allows you to deactivate it, this
system is designed to improve your chances of being safely belted
and surviving an accident. We recommend you leave the system
activated for yourself and others who may use the vehicle. To reduce
the risk of injury, do not deactivate/activate the system while driving
the vehicle.
Note:The driver and front passenger warning are deactivated/activated
independently. When deactivating/activating one seating position, do not
buckle the other position as this will terminate the process.
Read Steps1-4thoroughly before proceeding with the
deactivation/activation programming procedure.
Before following the procedure, make sure that:
•The parking brake is set
•The gearshift is in P (Park)
•The ignition is off
•The driver and front passenger safety belts are unbuckled
The system can be deactivated/activated by performing the following
procedure:
1. Turn the ignition on. DO NOT START THE ENGINE.
2. Wait until the safety belt warning light turns off (approximately
1–2 minutes).
•Step 3 must be completed within 50 seconds after the safety belt
warning light turns off.
3. For the seating position being disabled, buckle then unbuckle the
safety belt three times at a moderate speed, ending in the unbuckled
state.
•After Step 3, the safety belt warning light will be turned on for three
seconds.
Safety Belts39
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)

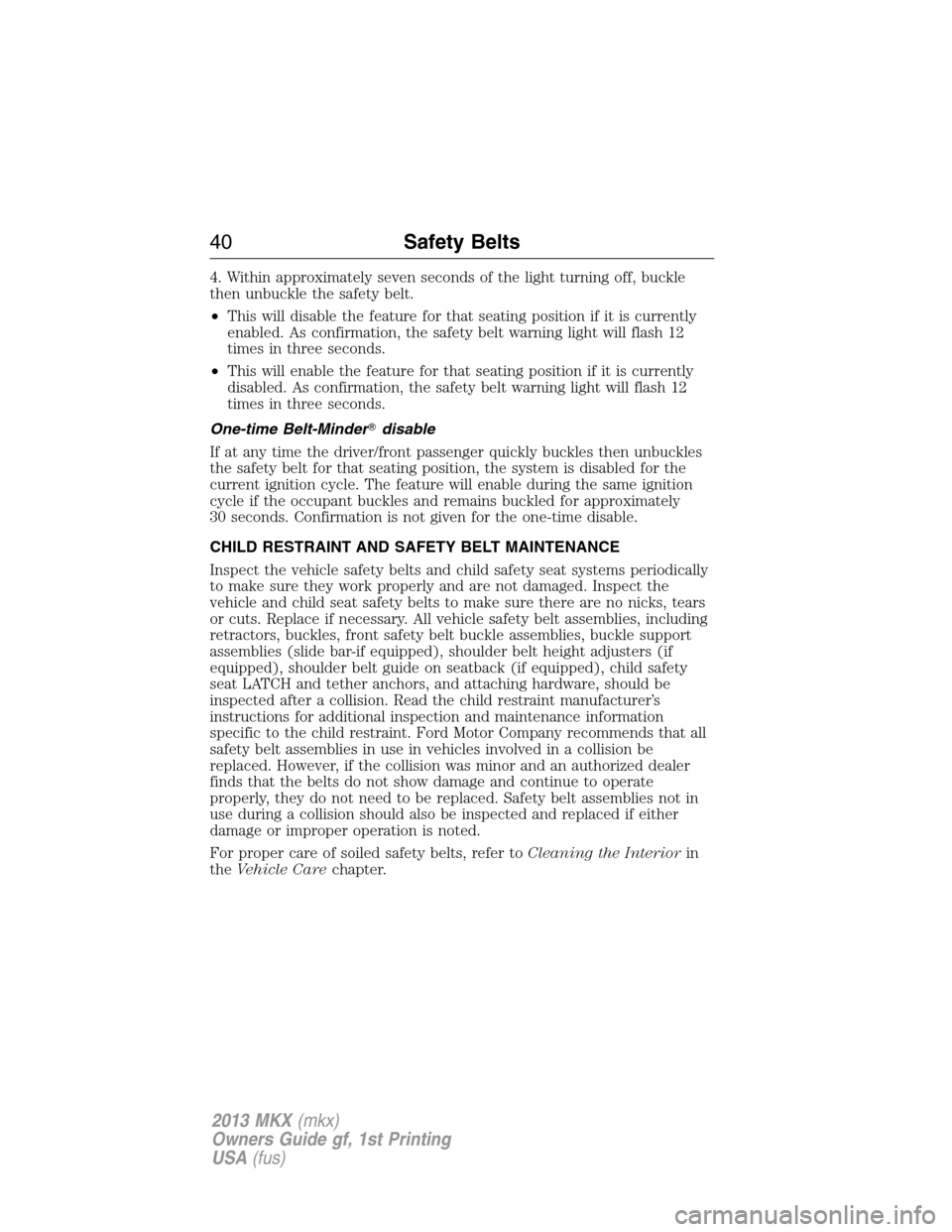

4. Within approximately seven seconds of the light turning off, buckle
then unbuckle the safety belt.
•This will disable the feature for that seating position if it is currently
enabled. As confirmation, the safety belt warning light will flash 12
times in three seconds.
•This will enable the feature for that seating position if it is currently
disabled. As confirmation, the safety belt warning light will flash 12
times in three seconds.
One-time Belt-Minderdisable
If at any time the driver/front passenger quickly buckles then unbuckles
the safety belt for that seating position, the system is disabled for the
current ignition cycle. The feature will enable during the same ignition
cycle if the occupant buckles and remains buckled for approximately
30 seconds. Confirmation is not given for the one-time disable.
CHILD RESTRAINT AND SAFETY BELT MAINTENANCE
Inspect the vehicle safety belts and child safety seat systems periodically
to make sure they work properly and are not damaged. Inspect the
vehicle and child seat safety belts to make sure there are no nicks, tears
or cuts. Replace if necessary. All vehicle safety belt assemblies, including
retractors, buckles, front safety belt buckle assemblies, buckle support
assemblies (slide bar-if equipped), shoulder belt height adjusters (if
equipped), shoulder belt guide on seatback (if equipped), child safety
seat LATCH and tether anchors, and attaching hardware, should be
inspected after a collision. Read the child restraint manufacturer’s
instructions for additional inspection and maintenance information
specific to the child restraint. Ford Motor Company recommends that all
safety belt assemblies in use in vehicles involved in a collision be
replaced. However, if the collision was minor and an authorized dealer
finds that the belts do not show damage and continue to operate
properly, they do not need to be replaced. Safety belt assemblies not in
use during a collision should also be inspected and replaced if either
damage or improper operation is noted.
For proper care of soiled safety belts, refer toCleaning the Interiorin
theVehicle Carechapter.
40Safety Belts
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)

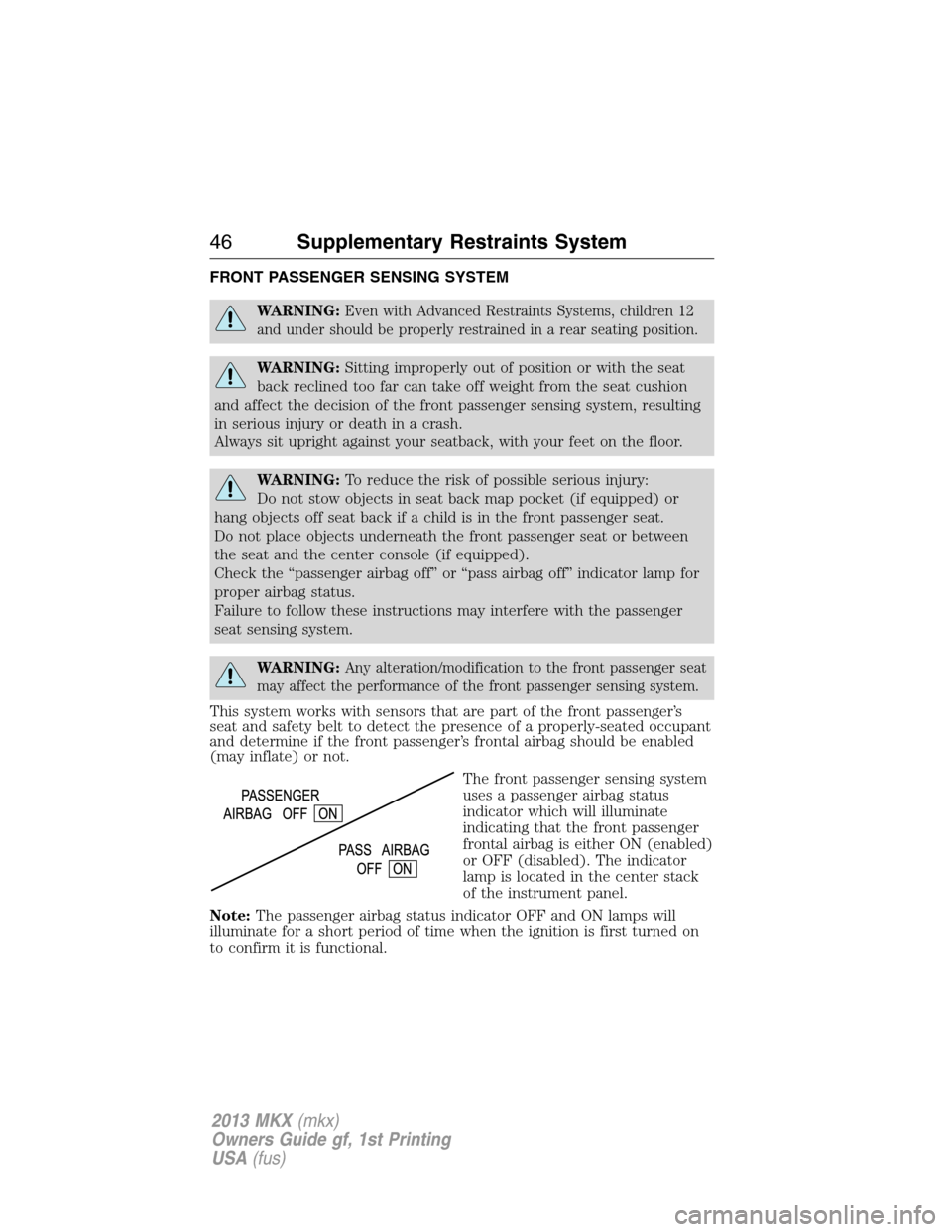

FRONT PASSENGER SENSING SYSTEM
WARNING:Even with Advanced Restraints Systems, children 12
and under should be properly restrained in a rear seating position.
WARNING:Sitting improperly out of position or with the seat
back reclined too far can take off weight from the seat cushion
and affect the decision of the front passenger sensing system, resulting
in serious injury or death in a crash.
Always sit upright against your seatback, with your feet on the floor.
WARNING:To reduce the risk of possible serious injury:
Do not stow objects in seat back map pocket (if equipped) or
hang objects off seat back if a child is in the front passenger seat.
Do not place objects underneath the front passenger seat or between
the seat and the center console (if equipped).
Check the “passenger airbag off” or “pass airbag off” indicator lamp for
proper airbag status.
Failure to follow these instructions may interfere with the passenger
seat sensing system.
WARNING:Any alteration/modification to the front passenger seat
may affect the performance of the front passenger sensing system.
This system works with sensors that are part of the front passenger’s
seat and safety belt to detect the presence of a properly-seated occupant
and determine if the front passenger’s frontal airbag should be enabled
(may inflate) or not.
The front passenger sensing system
uses a passenger airbag status
indicator which will illuminate
indicating that the front passenger
frontal airbag is either ON (enabled)
or OFF (disabled). The indicator
lamp is located in the center stack
of the instrument panel.
Note:The passenger airbag status indicator OFF and ON lamps will
illuminate for a short period of time when the ignition is first turned on
to confirm it is functional.
46Supplementary Restraints System
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)

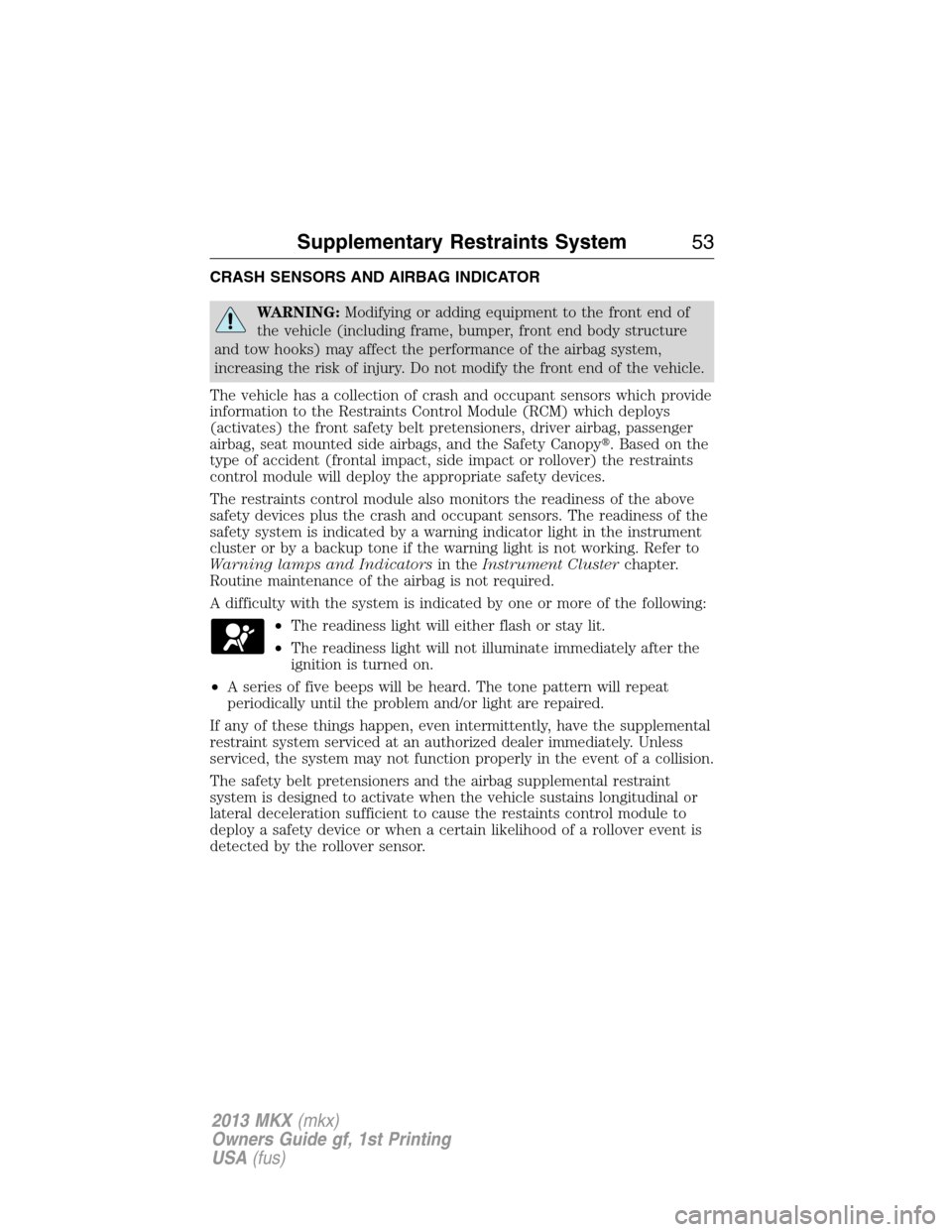

CRASH SENSORS AND AIRBAG INDICATOR
WARNING:Modifying or adding equipment to the front end of
the vehicle (including frame, bumper, front end body structure
and tow hooks) may affect the performance of the airbag system,
increasing the risk of injury. Do not modify the front end of the vehicle.
The vehicle has a collection of crash and occupant sensors which provide
information to the Restraints Control Module (RCM) which deploys
(activates) the front safety belt pretensioners, driver airbag, passenger
airbag, seat mounted side airbags, and the Safety Canopy. Based on the
type of accident (frontal impact, side impact or rollover) the restraints
control module will deploy the appropriate safety devices.
The restraints control module also monitors the readiness of the above
safety devices plus the crash and occupant sensors. The readiness of the
safety system is indicated by a warning indicator light in the instrument
cluster or by a backup tone if the warning light is not working. Refer to
Warning lamps and Indicatorsin theInstrument Clusterchapter.
Routine maintenance of the airbag is not required.
A difficulty with the system is indicated by one or more of the following:
•The readiness light will either flash or stay lit.
•The readiness light will not illuminate immediately after the
ignition is turned on.
•A series of five beeps will be heard. The tone pattern will repeat
periodically until the problem and/or light are repaired.
If any of these things happen, even intermittently, have the supplemental
restraint system serviced at an authorized dealer immediately. Unless
serviced, the system may not function properly in the event of a collision.
The safety belt pretensioners and the airbag supplemental restraint
system is designed to activate when the vehicle sustains longitudinal or
lateral deceleration sufficient to cause the restaints control module to
deploy a safety device or when a certain likelihood of a rollover event is
detected by the rollover sensor.
Supplementary Restraints System53
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)

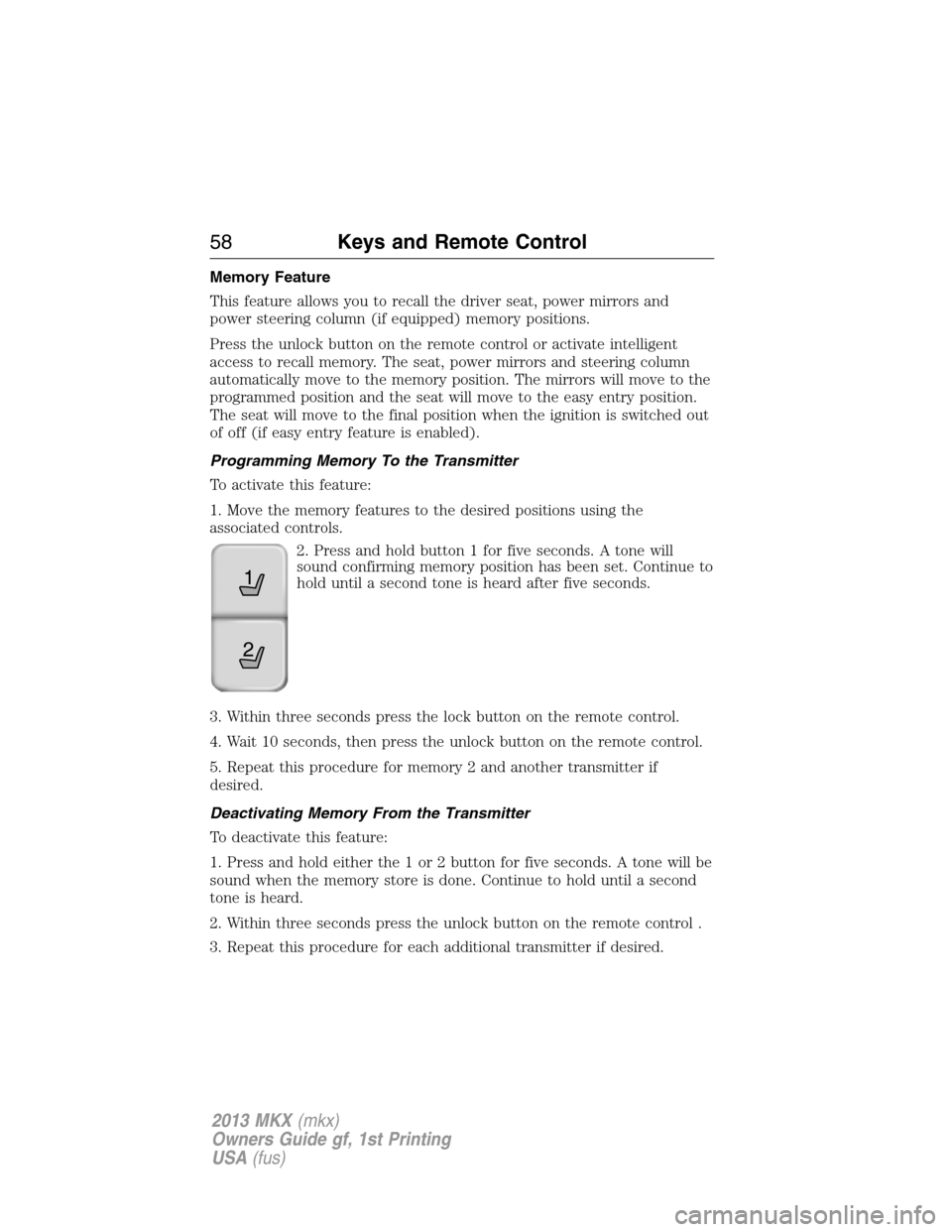

Memory Feature
This feature allows you to recall the driver seat, power mirrors and
power steering column (if equipped) memory positions.
Press the unlock button on the remote control or activate intelligent
access to recall memory. The seat, power mirrors and steering column
automatically move to the memory position. The mirrors will move to the
programmed position and the seat will move to the easy entry position.
The seat will move to the final position when the ignition is switched out
of off (if easy entry feature is enabled).
Programming Memory To the Transmitter
To activate this feature:
1. Move the memory features to the desired positions using the
associated controls.
2. Press and hold button 1 for five seconds. A tone will
sound confirming memory position has been set. Continue to
hold until a second tone is heard after five seconds.
3. Within three seconds press the lock button on the remote control.
4. Wait 10 seconds, then press the unlock button on the remote control.
5. Repeat this procedure for memory 2 and another transmitter if
desired.
Deactivating Memory From the Transmitter
To deactivate this feature:
1. Press and hold either the 1 or 2 button for five seconds. A tone will be
sound when the memory store is done. Continue to hold until a second
tone is heard.
2. Within three seconds press the unlock button on the remote control .
3. Repeat this procedure for each additional transmitter if desired.
21
58Keys and Remote Control
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)

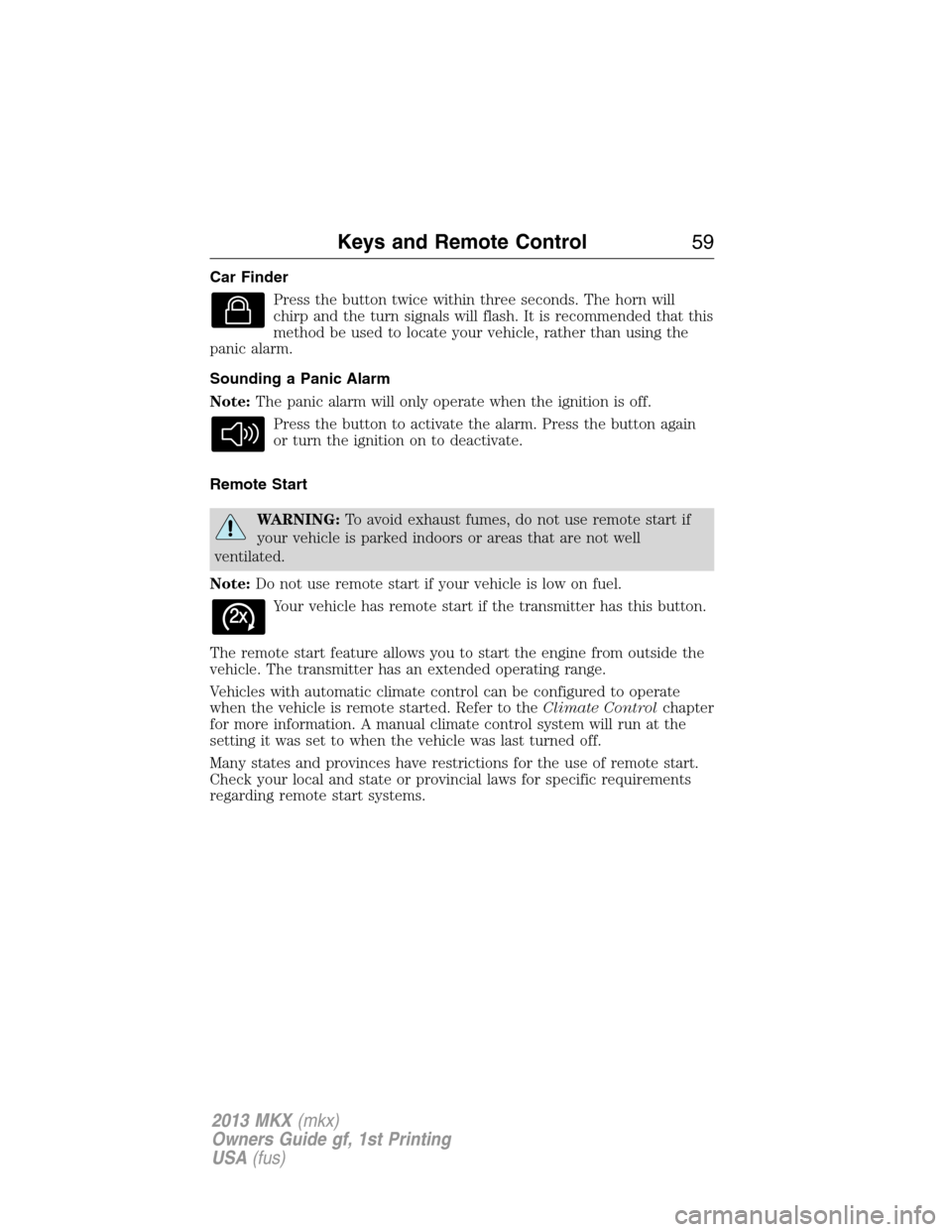

Car Finder
Press the button twice within three seconds. The horn will
chirp and the turn signals will flash. It is recommended that this
method be used to locate your vehicle, rather than using the
panic alarm.
Sounding a Panic Alarm
Note:The panic alarm will only operate when the ignition is off.
Press the button to activate the alarm. Press the button again
or turn the ignition on to deactivate.
Remote Start
WARNING:To avoid exhaust fumes, do not use remote start if
your vehicle is parked indoors or areas that are not well
ventilated.
Note:Do not use remote start if your vehicle is low on fuel.
Your vehicle has remote start if the transmitter has this button.
The remote start feature allows you to start the engine from outside the
vehicle. The transmitter has an extended operating range.
Vehicles with automatic climate control can be configured to operate
when the vehicle is remote started. Refer to theClimate Controlchapter
for more information. A manual climate control system will run at the
setting it was set to when the vehicle was last turned off.
Many states and provinces have restrictions for the use of remote start.
Check your local and state or provincial laws for specific requirements
regarding remote start systems.
Keys and Remote Control59
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)

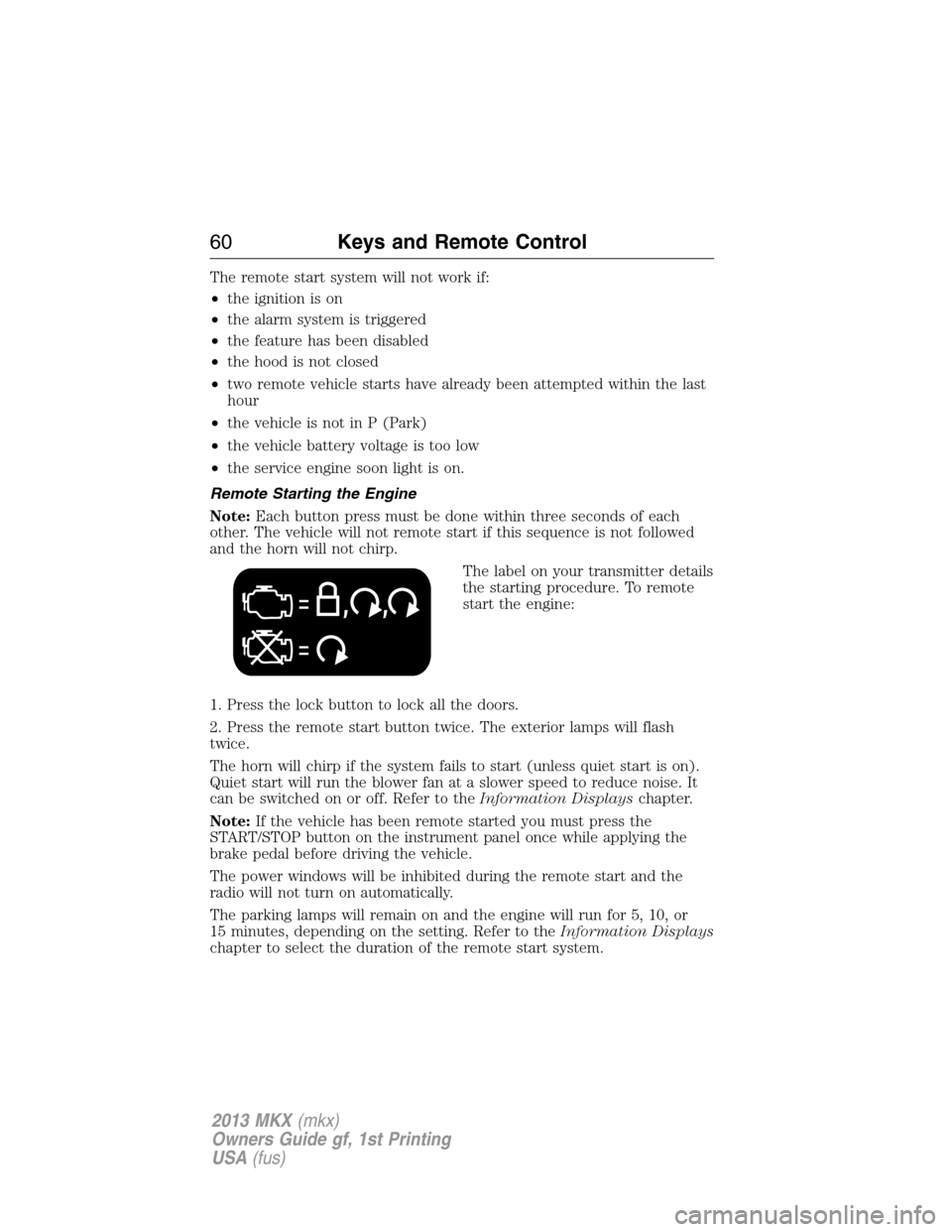

The remote start system will not work if:
•the ignition is on
•the alarm system is triggered
•the feature has been disabled
•the hood is not closed
•two remote vehicle starts have already been attempted within the last
hour
•the vehicle is not in P (Park)
•the vehicle battery voltage is too low
•the service engine soon light is on.
Remote Starting the Engine
Note:Each button press must be done within three seconds of each
other. The vehicle will not remote start if this sequence is not followed
and the horn will not chirp.
The label on your transmitter details
the starting procedure. To remote
start the engine:
1. Press the lock button to lock all the doors.
2. Press the remote start button twice. The exterior lamps will flash
twice.
The horn will chirp if the system fails to start (unless quiet start is on).
Quiet start will run the blower fan at a slower speed to reduce noise. It
can be switched on or off. Refer to theInformation Displayschapter.
Note:If the vehicle has been remote started you must press the
START/STOP button on the instrument panel once while applying the
brake pedal before driving the vehicle.
The power windows will be inhibited during the remote start and the
radio will not turn on automatically.
The parking lamps will remain on and the engine will run for 5, 10, or
15 minutes, depending on the setting. Refer to theInformation Displays
chapter to select the duration of the remote start system.
60Keys and Remote Control
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)

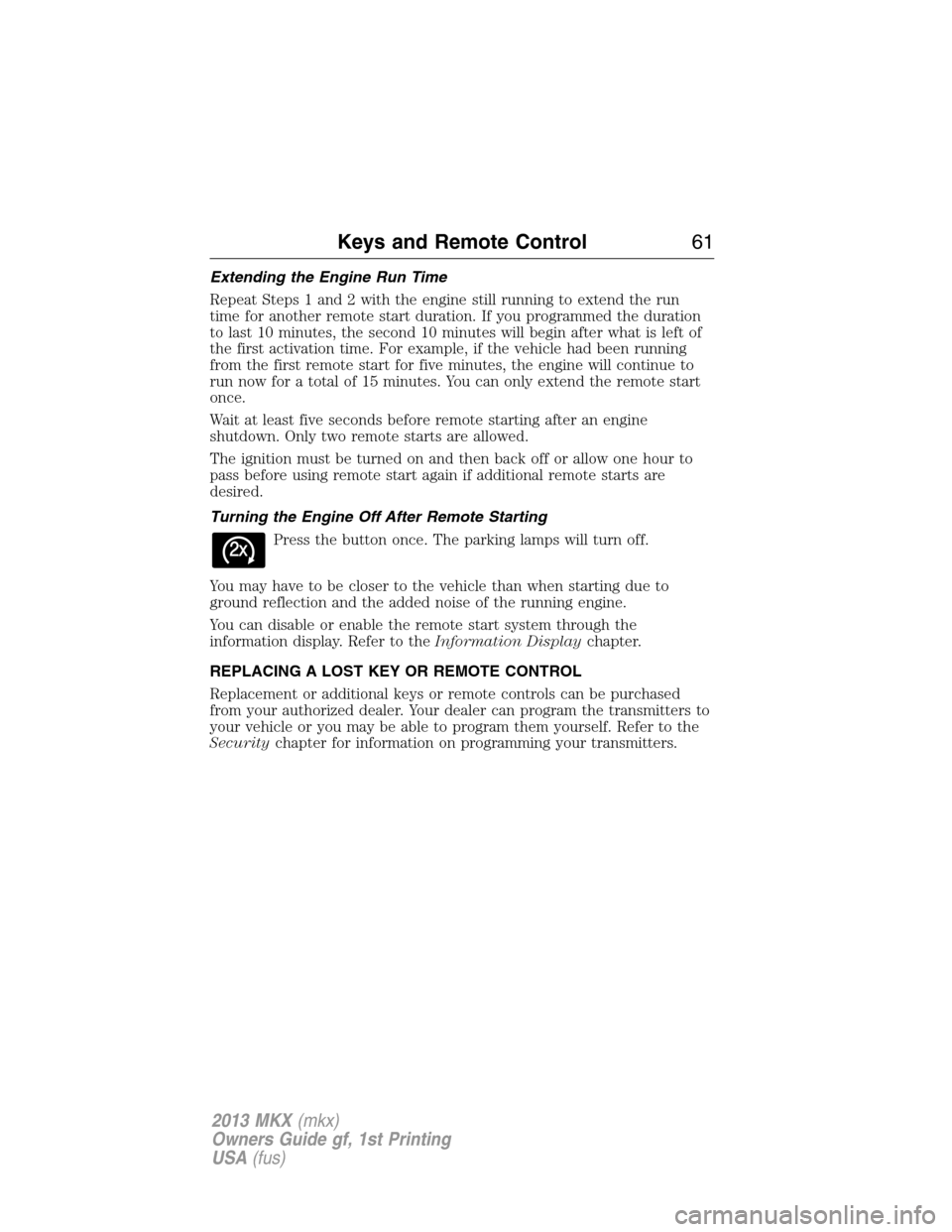

Extending the Engine Run Time
Repeat Steps 1 and 2 with the engine still running to extend the run
time for another remote start duration. If you programmed the duration
to last 10 minutes, the second 10 minutes will begin after what is left of
the first activation time. For example, if the vehicle had been running
from the first remote start for five minutes, the engine will continue to
run now for a total of 15 minutes. You can only extend the remote start
once.
Wait at least five seconds before remote starting after an engine
shutdown. Only two remote starts are allowed.
The ignition must be turned on and then back off or allow one hour to
pass before using remote start again if additional remote starts are
desired.
Turning the Engine Off After Remote Starting
Press the button once. The parking lamps will turn off.
You may have to be closer to the vehicle than when starting due to
ground reflection and the added noise of the running engine.
You can disable or enable the remote start system through the
information display. Refer to theInformation Displaychapter.
REPLACING A LOST KEY OR REMOTE CONTROL
Replacement or additional keys or remote controls can be purchased
from your authorized dealer. Your dealer can program the transmitters to
your vehicle or you may be able to program them yourself. Refer to the
Securitychapter for information on programming your transmitters.
Keys and Remote Control61
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)
