jump start LINCOLN MKX 2013 Owners Manual

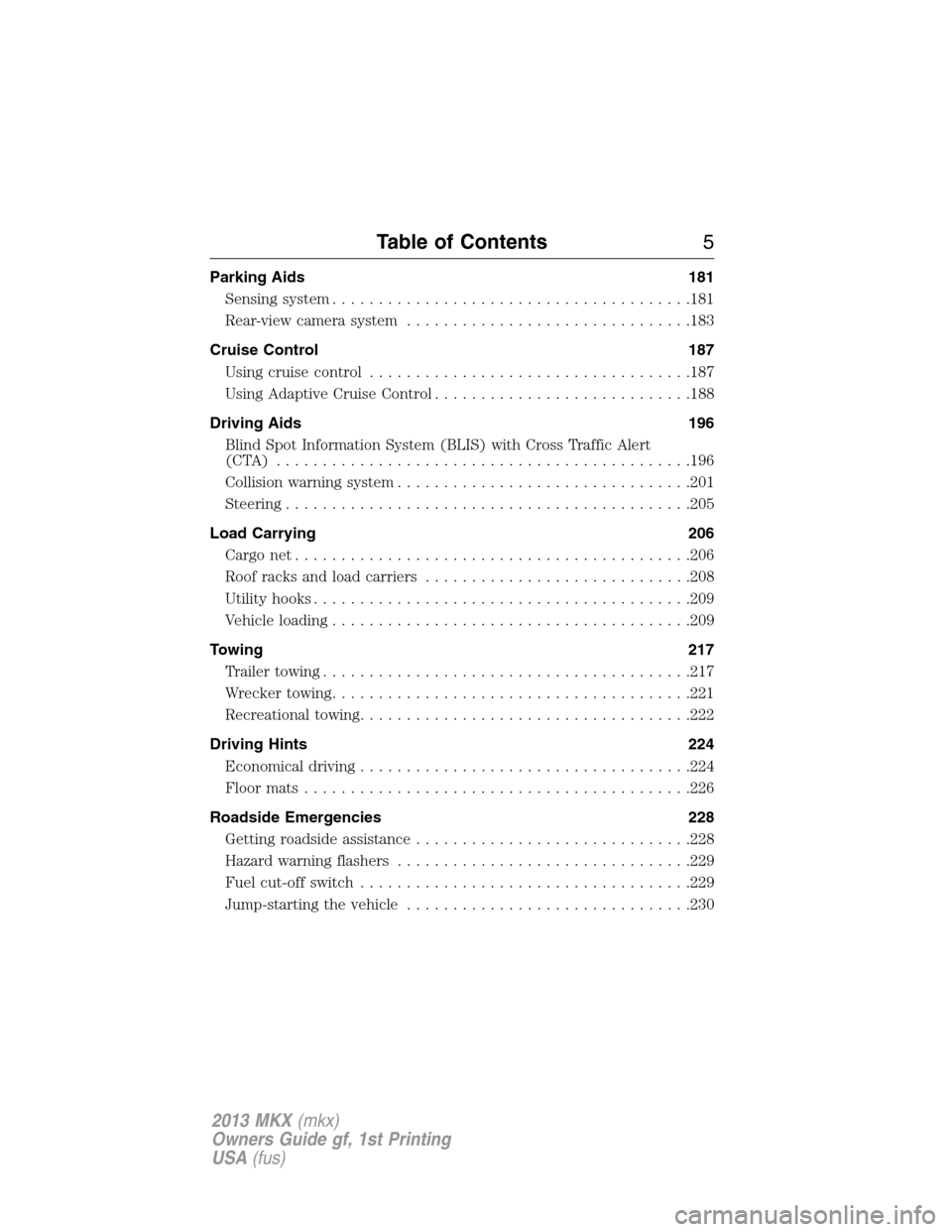

Parking Aids 181
Sensing system.......................................181
Rear-view camera system...............................183
Cruise Control 187
Using cruise control...................................187
Using Adaptive Cruise Control............................188
Driving Aids 196
Blind Spot Information System (BLIS) with Cross Traffic Alert
(CTA) .............................................196
Collision warning system................................201
Steering............................................205
Load Carrying 206
Cargo net...........................................206
Roof racks and load carriers.............................208
Utility hooks.........................................209
Vehicle loading.......................................209
Towing 217
Trailertowing........................................217
Wrecker towing.......................................221
Recreational towing....................................222
Driving Hints 224
Economical driving....................................224
Floormats..........................................226
Roadside Emergencies 228
Getting roadside assistance..............................228
Hazard warning flashers................................229
Fuel cut-off switch....................................229
Jump-starting the vehicle...............................230
Table of Contents5
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)

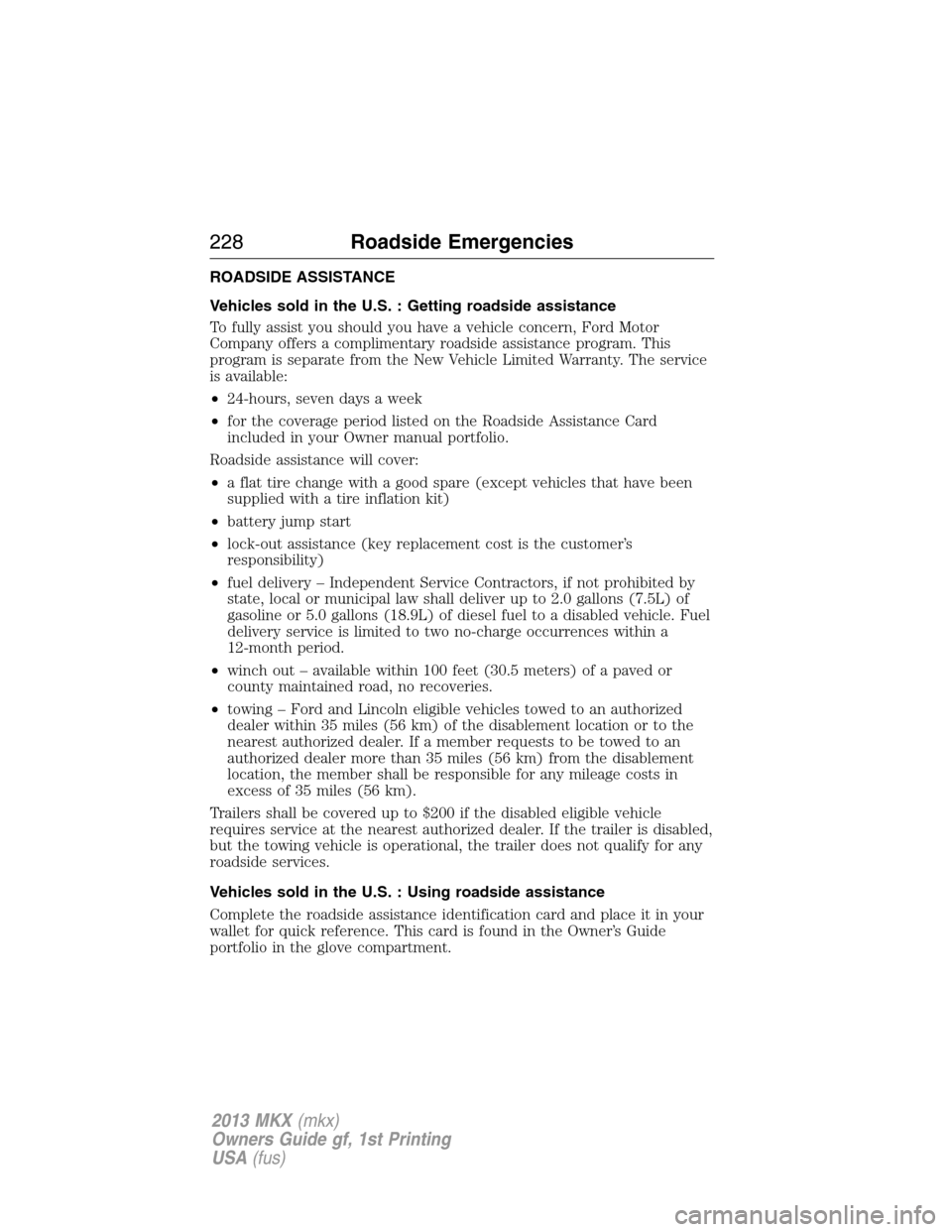

ROADSIDE ASSISTANCE
Vehicles sold in the U.S. : Getting roadside assistance
To fully assist you should you have a vehicle concern, Ford Motor
Company offers a complimentary roadside assistance program. This
program is separate from the New Vehicle Limited Warranty. The service
is available:
•24-hours, seven days a week
•for the coverage period listed on the Roadside Assistance Card
included in your Owner manual portfolio.
Roadside assistance will cover:
•a flat tire change with a good spare (except vehicles that have been
supplied with a tire inflation kit)
•battery jump start
•lock-out assistance (key replacement cost is the customer’s
responsibility)
•fuel delivery – Independent Service Contractors, if not prohibited by
state, local or municipal law shall deliver up to 2.0 gallons (7.5L) of
gasoline or 5.0 gallons (18.9L) of diesel fuel to a disabled vehicle. Fuel
delivery service is limited to two no-charge occurrences within a
12-month period.
•winch out – available within 100 feet (30.5 meters) of a paved or
county maintained road, no recoveries.
•towing – Ford and Lincoln eligible vehicles towed to an authorized
dealer within 35 miles (56 km) of the disablement location or to the
nearest authorized dealer. If a member requests to be towed to an
authorized dealer more than 35 miles (56 km) from the disablement
location, the member shall be responsible for any mileage costs in
excess of 35 miles (56 km).
Trailers shall be covered up to $200 if the disabled eligible vehicle
requires service at the nearest authorized dealer. If the trailer is disabled,
but the towing vehicle is operational, the trailer does not qualify for any
roadside services.
Vehicles sold in the U.S. : Using roadside assistance
Complete the roadside assistance identification card and place it in your
wallet for quick reference. This card is found in the Owner’s Guide
portfolio in the glove compartment.
228Roadside Emergencies
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)

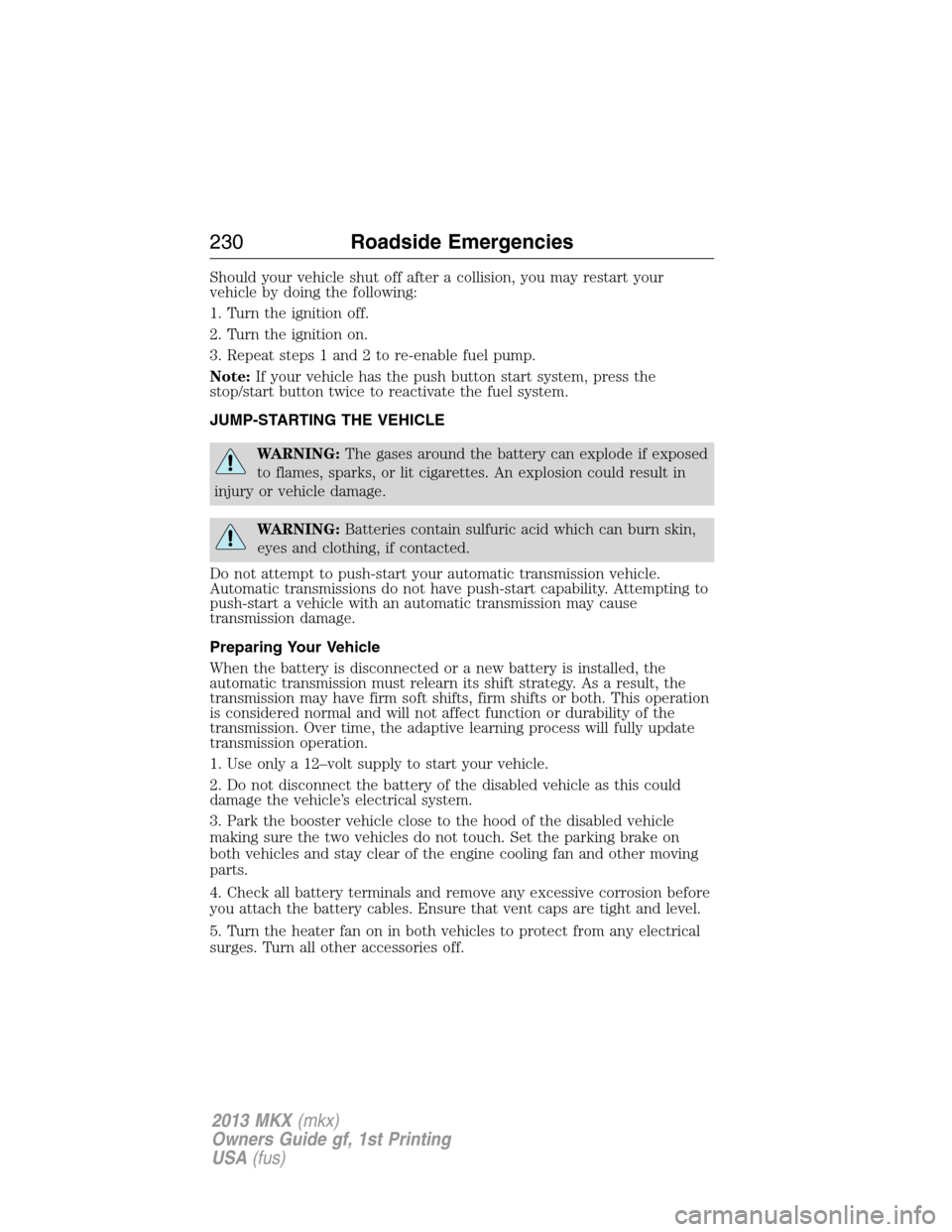

Should your vehicle shut off after a collision, you may restart your
vehicle by doing the following:
1. Turn the ignition off.
2. Turn the ignition on.
3. Repeat steps 1 and 2 to re-enable fuel pump.
Note:If your vehicle has the push button start system, press the
stop/start button twice to reactivate the fuel system.
JUMP-STARTING THE VEHICLE
WARNING:The gases around the battery can explode if exposed
to flames, sparks, or lit cigarettes. An explosion could result in
injury or vehicle damage.
WARNING:Batteries contain sulfuric acid which can burn skin,
eyes and clothing, if contacted.
Do not attempt to push-start your automatic transmission vehicle.
Automatic transmissions do not have push-start capability. Attempting to
push-start a vehicle with an automatic transmission may cause
transmission damage.
Preparing Your Vehicle
When the battery is disconnected or a new battery is installed, the
automatic transmission must relearn its shift strategy. As a result, the
transmission may have firm soft shifts, firm shifts or both. This operation
is considered normal and will not affect function or durability of the
transmission. Over time, the adaptive learning process will fully update
transmission operation.
1. Use only a 12–volt supply to start your vehicle.
2. Do not disconnect the battery of the disabled vehicle as this could
damage the vehicle’s electrical system.
3. Park the booster vehicle close to the hood of the disabled vehicle
making sure the two vehicles do not touch. Set the parking brake on
both vehicles and stay clear of the engine cooling fan and other moving
parts.
4. Check all battery terminals and remove any excessive corrosion before
you attach the battery cables. Ensure that vent caps are tight and level.
5. Turn the heater fan on in both vehicles to protect from any electrical
surges. Turn all other accessories off.
230Roadside Emergencies
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)

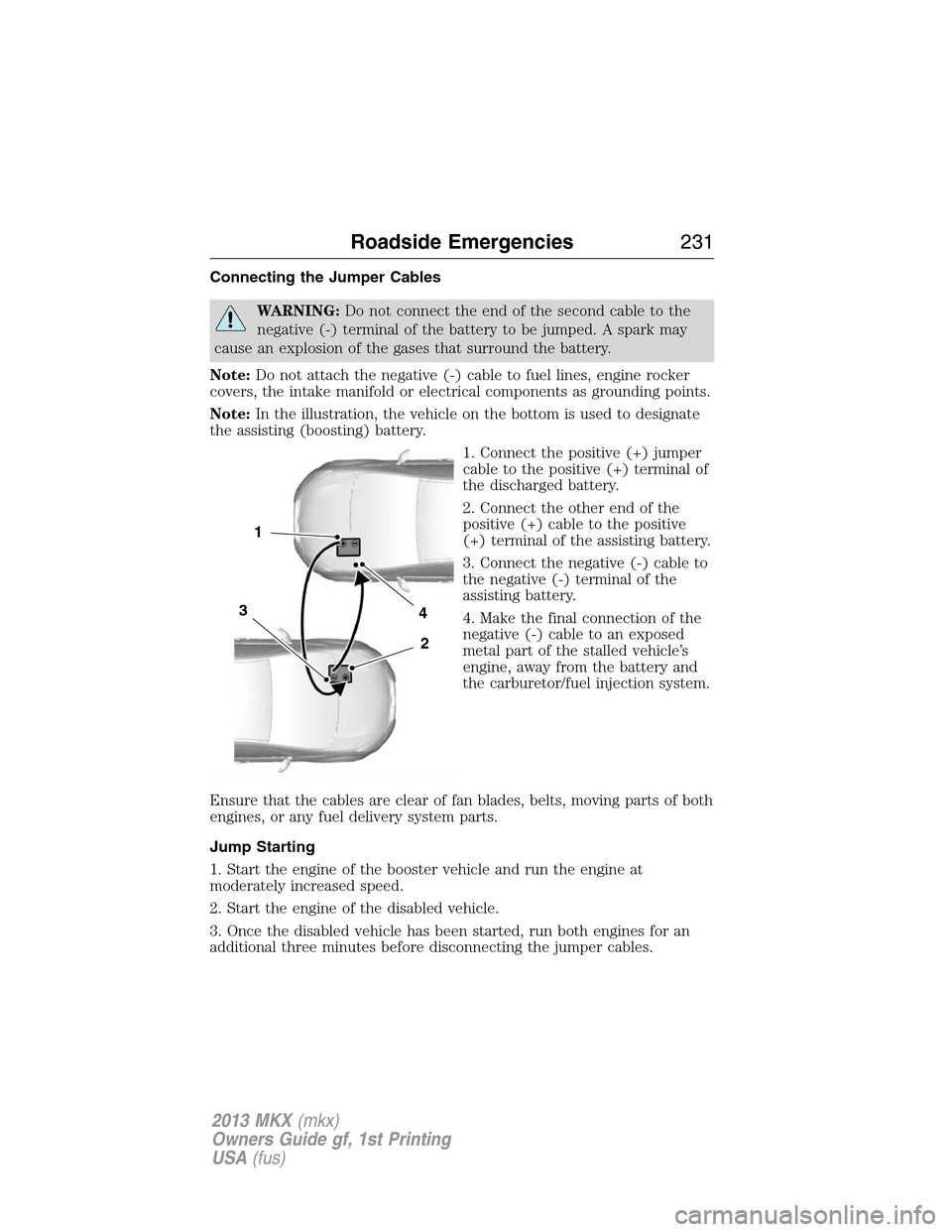

Connecting the Jumper Cables
WARNING:Do not connect the end of the second cable to the
negative (-) terminal of the battery to be jumped. A spark may
cause an explosion of the gases that surround the battery.
Note:Do not attach the negative (-) cable to fuel lines, engine rocker
covers, the intake manifold or electrical components as grounding points.
Note:In the illustration, the vehicle on the bottom is used to designate
the assisting (boosting) battery.
1. Connect the positive (+) jumper
cable to the positive (+) terminal of
the discharged battery.
2. Connect the other end of the
positive (+) cable to the positive
(+) terminal of the assisting battery.
3. Connect the negative (-) cable to
the negative (-) terminal of the
assisting battery.
4. Make the final connection of the
negative (-) cable to an exposed
metal part of the stalled vehicle’s
engine, away from the battery and
the carburetor/fuel injection system.
Ensure that the cables are clear of fan blades, belts, moving parts of both
engines, or any fuel delivery system parts.
Jump Starting
1. Start the engine of the booster vehicle and run the engine at
moderately increased speed.
2. Start the engine of the disabled vehicle.
3. Once the disabled vehicle has been started, run both engines for an
additional three minutes before disconnecting the jumper cables.
4
2
1
3
Roadside Emergencies231
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)

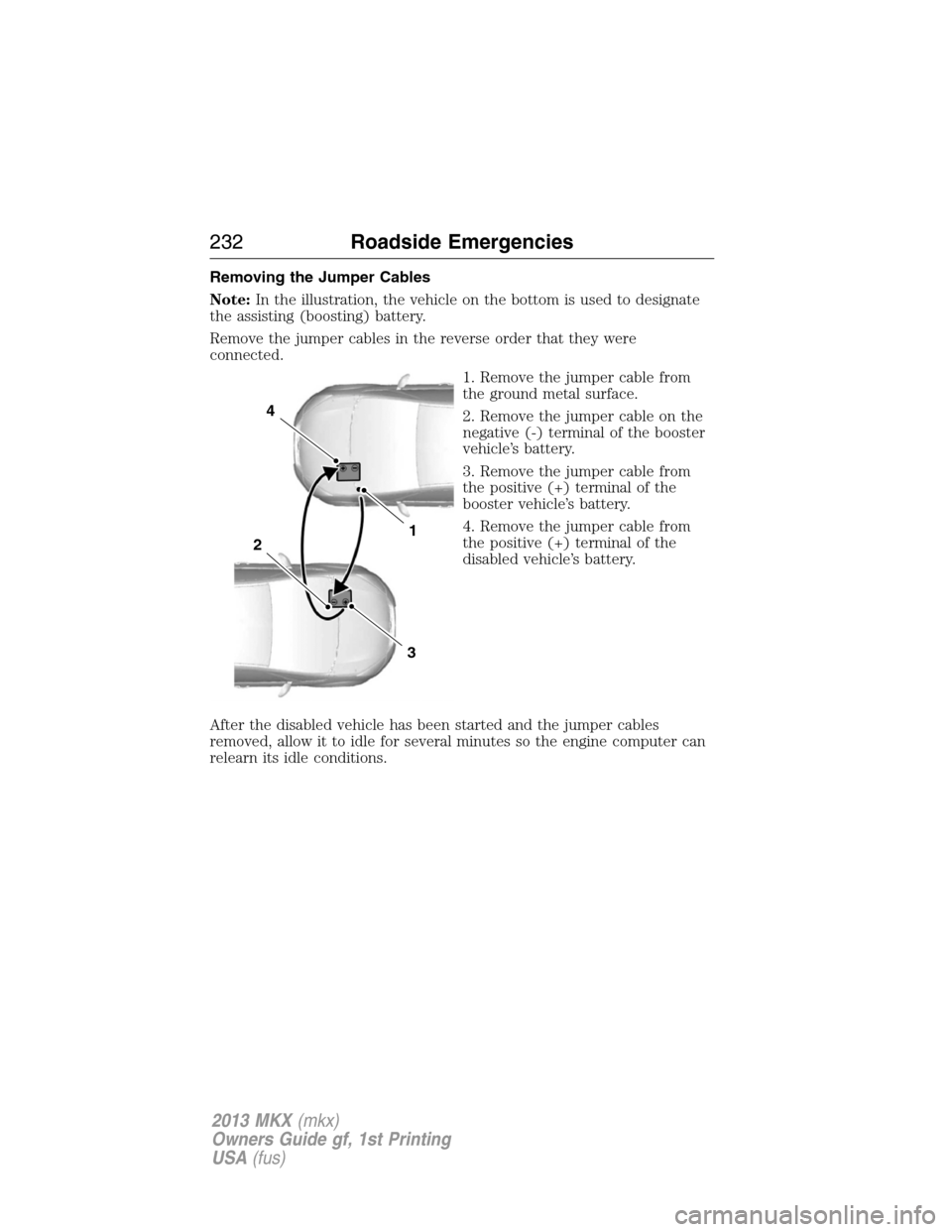

Removing the Jumper Cables
Note:In the illustration, the vehicle on the bottom is used to designate
the assisting (boosting) battery.
Remove the jumper cables in the reverse order that they were
connected.
1. Remove the jumper cable from
the ground metal surface.
2. Remove the jumper cable on the
negative (-) terminal of the booster
vehicle’s battery.
3. Remove the jumper cable from
the positive (+) terminal of the
booster vehicle’s battery.
4. Remove the jumper cable from
the positive (+) terminal of the
disabled vehicle’s battery.
After the disabled vehicle has been started and the jumper cables
removed, allow it to idle for several minutes so the engine computer can
relearn its idle conditions.
4
1
3
2
232Roadside Emergencies
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)

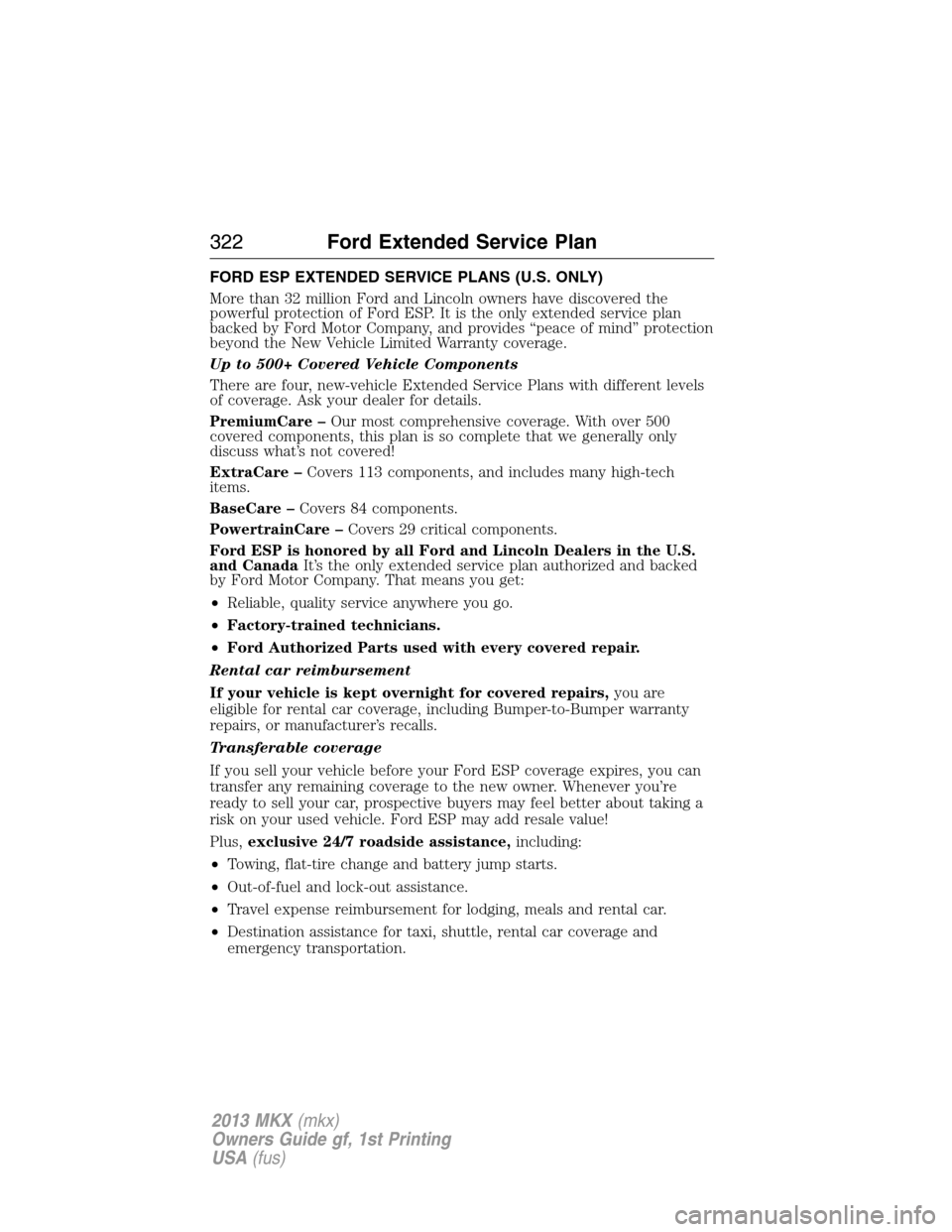

FORD ESP EXTENDED SERVICE PLANS (U.S. ONLY)
More than 32 million Ford and Lincoln owners have discovered the
powerful protection of Ford ESP. It is the only extended service plan
backed by Ford Motor Company, and provides “peace of mind” protection
beyond the New Vehicle Limited Warranty coverage.
Up to 500+ Covered Vehicle Components
There are four, new-vehicle Extended Service Plans with different levels
of coverage. Ask your dealer for details.
PremiumCare –Our most comprehensive coverage. With over 500
covered components, this plan is so complete that we generally only
discuss what’s not covered!
ExtraCare –Covers 113 components, and includes many high-tech
items.
BaseCare –Covers 84 components.
PowertrainCare –Covers 29 critical components.
Ford ESP is honored by all Ford and Lincoln Dealers in the U.S.
and CanadaIt’s the only extended service plan authorized and backed
by Ford Motor Company. That means you get:
•Reliable, quality service anywhere you go.
•Factory-trained technicians.
•Ford Authorized Parts used with every covered repair.
Rental car reimbursement
If your vehicle is kept overnight for covered repairs,you are
eligible for rental car coverage, including Bumper-to-Bumper warranty
repairs, or manufacturer’s recalls.
Transferable coverage
If you sell your vehicle before your Ford ESP coverage expires, you can
transfer any remaining coverage to the new owner. Whenever you’re
ready to sell your car, prospective buyers may feel better about taking a
risk on your used vehicle. Ford ESP may add resale value!
Plus,exclusive 24/7 roadside assistance,including:
•Towing, flat-tire change and battery jump starts.
•Out-of-fuel and lock-out assistance.
•Travel expense reimbursement for lodging, meals and rental car.
•Destination assistance for taxi, shuttle, rental car coverage and
emergency transportation.
322Ford Extended Service Plan
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)

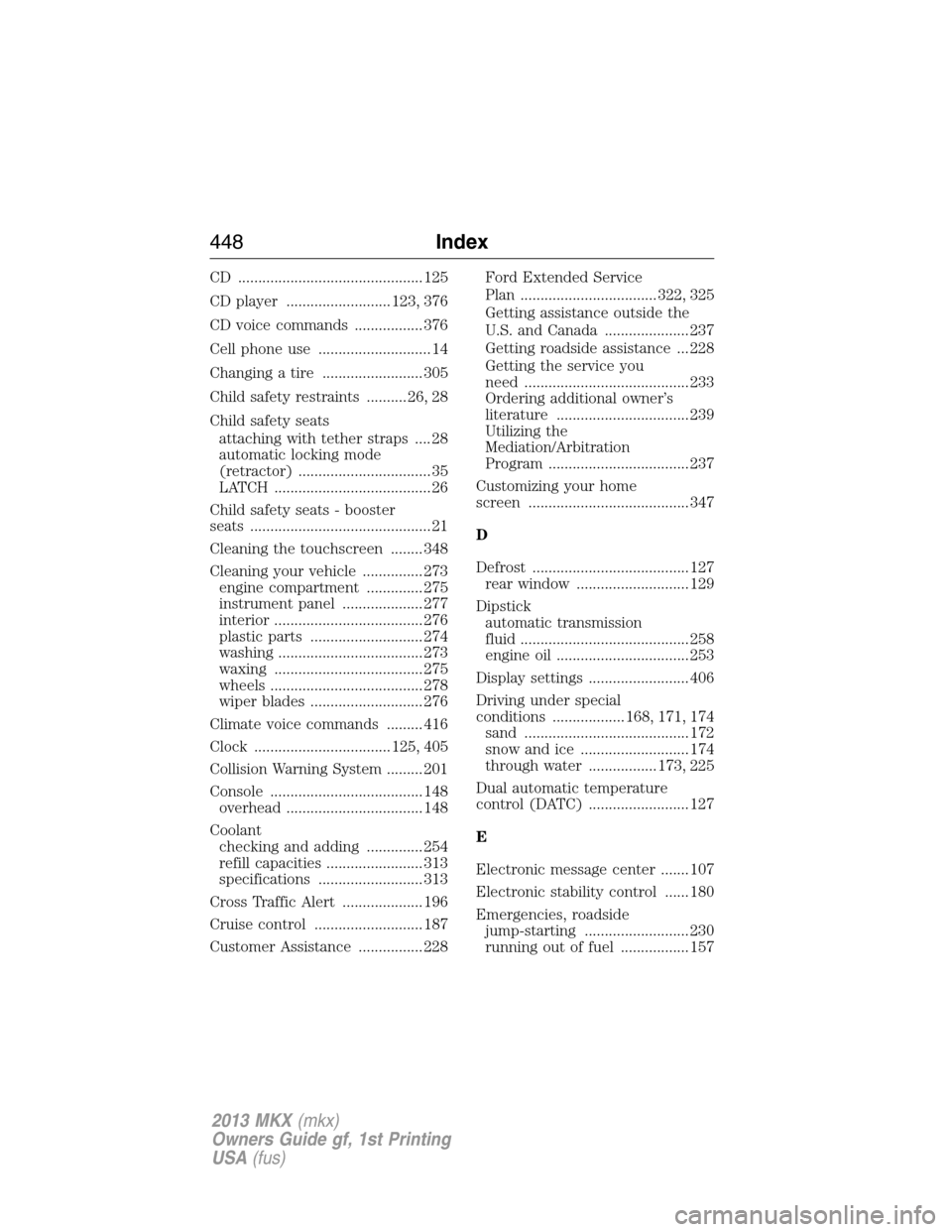

CD .............................................. 125
CD player .......................... 123, 376
CD voice commands ................. 376
Cell phone use ............................ 14
Changing a tire ......................... 305
Child safety restraints .......... 26, 28
Child safety seats
attaching with tether straps .... 28
automatic locking mode
(retractor) ................................. 35
LATCH ....................................... 26
Child safety seats - booster
seats ............................................. 21
Cleaning the touchscreen ........ 348
Cleaning your vehicle ............... 273
engine compartment .............. 275
instrument panel .................... 277
interior ..................................... 276
plastic parts ............................ 274
washing .................................... 273
waxing ..................................... 275
wheels ...................................... 278
wiper blades ............................ 276
Climate voice commands ......... 416
Clock .................................. 125, 405
Collision Warning System ......... 201
Console ...................................... 148
overhead .................................. 148
Coolant
checking and adding .............. 254
refill capacities ........................ 313
specifications .......................... 313
Cross Traffic Alert .................... 196
Cruise control ........................... 187
Customer Assistance ................ 228Ford Extended Service
Plan .................................. 322, 325
Getting assistance outside the
U.S. and Canada ..................... 237
Getting roadside assistance ... 228
Getting the service you
need ......................................... 233
Ordering additional owner’s
literature ................................. 239
Utilizing the
Mediation/Arbitration
Program ................................... 237
Customizing your home
screen ........................................ 347
D
Defrost ....................................... 127
rear window ............................ 129
Dipstick
automatic transmission
fluid .......................................... 258
engine oil ................................. 253
Display settings ......................... 406
Driving under special
conditions .................. 168, 171, 174
sand ......................................... 172
snow and ice ........................... 174
through water ................. 173, 225
Dual automatic temperature
control (DATC) ......................... 127
E
Electronic message center ....... 107
Electronic stability control ...... 180
Emergencies, roadside
jump-starting .......................... 230
running out of fuel ................. 157
448Index
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)

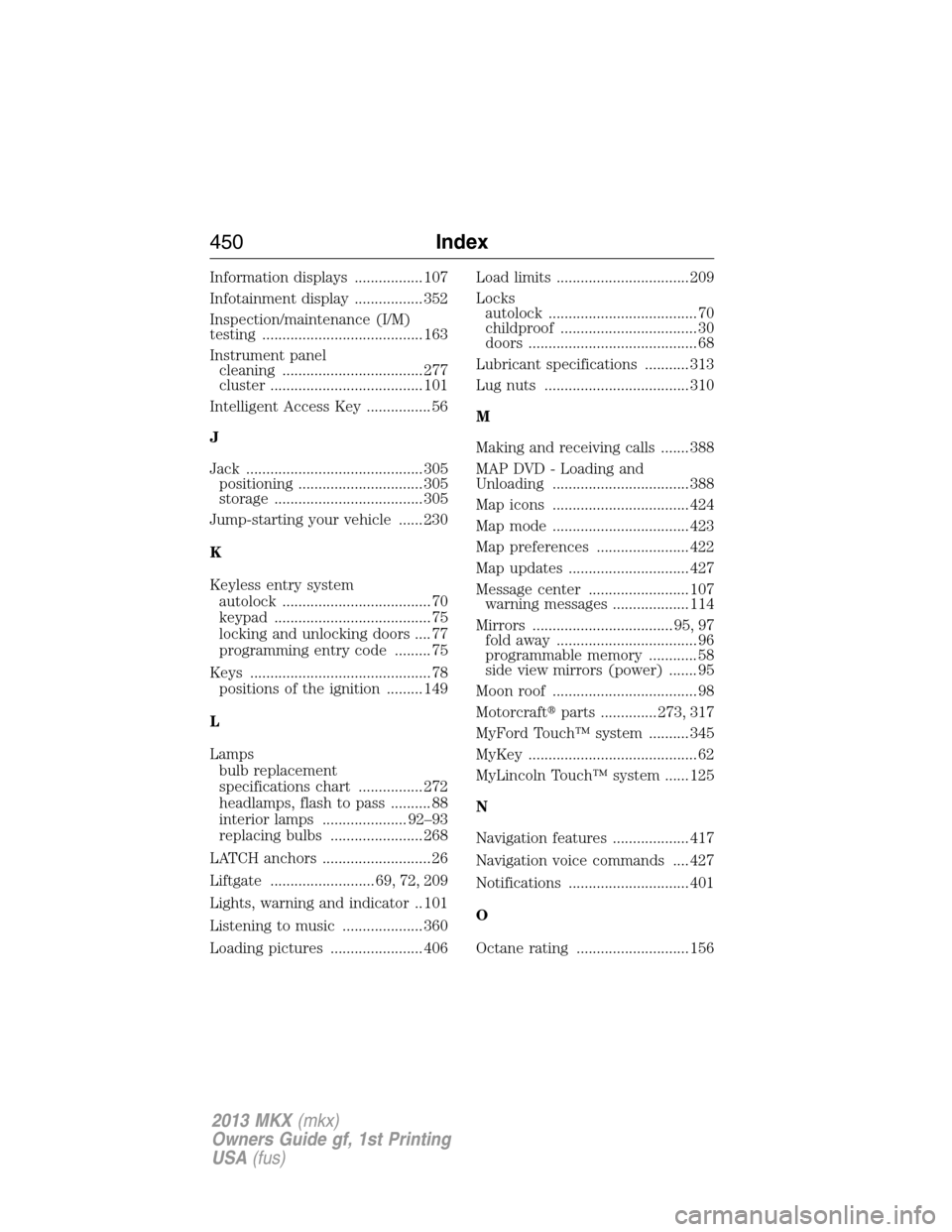

Information displays ................. 107
Infotainment display ................. 352
Inspection/maintenance (I/M)
testing ........................................ 163
Instrument panel
cleaning ................................... 277
cluster ...................................... 101
Intelligent Access Key ................ 56
J
Jack ............................................ 305
positioning ............................... 305
storage ..................................... 305
Jump-starting your vehicle ...... 230
K
Keyless entry system
autolock ..................................... 70
keypad ....................................... 75
locking and unlocking doors .... 77
programming entry code ......... 75
Keys ............................................. 78
positions of the ignition ......... 149
L
Lamps
bulb replacement
specifications chart ................ 272
headlamps, flash to pass .......... 88
interior lamps ..................... 92–93
replacing bulbs ....................... 268
LATCH anchors ........................... 26
Liftgate .......................... 69, 72, 209
Lights, warning and indicator .. 101
Listening to music .................... 360
Loading pictures ....................... 406Load limits ................................. 209
Locks
autolock ..................................... 70
childproof .................................. 30
doors .......................................... 68
Lubricant specifications ........... 313
Lug nuts .................................... 310
M
Making and receiving calls ....... 388
MAP DVD - Loading and
Unloading .................................. 388
Map icons .................................. 424
Map mode .................................. 423
Map preferences ....................... 422
Map updates .............................. 427
Message center ......................... 107
warning messages ................... 114
Mirrors ................................... 95, 97
fold away ................................... 96
programmable memory ............ 58
side view mirrors (power) ....... 95
Moon roof .................................... 98
Motorcraftparts .............. 273, 317
MyFord Touch™ system .......... 345
MyKey .......................................... 62
MyLincoln Touch™ system ...... 125
N
Navigation features ................... 417
Navigation voice commands .... 427
Notifications .............................. 401
O
Octane rating ............................ 156
450Index
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)

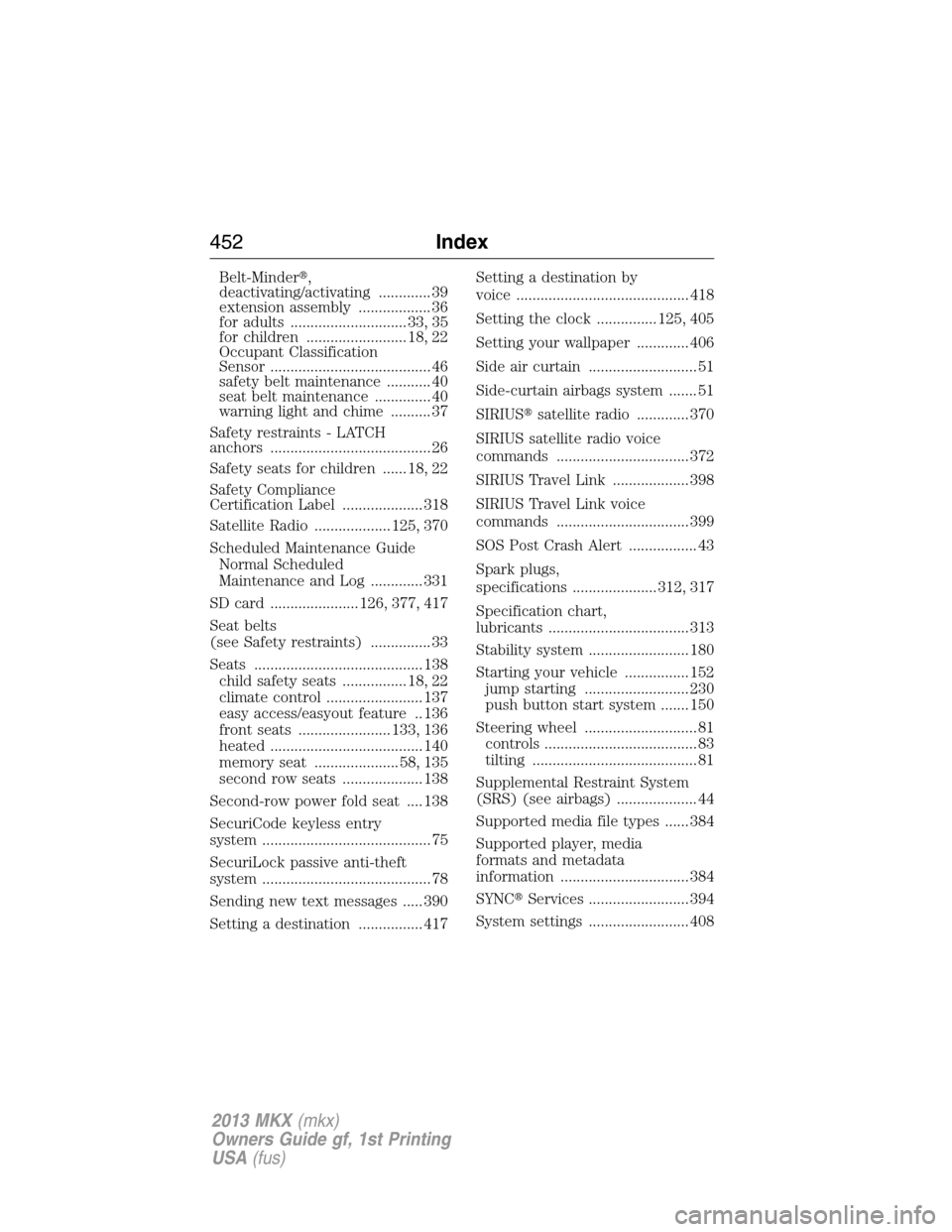

Belt-Minder,
deactivating/activating ............. 39
extension assembly .................. 36
for adults ............................. 33, 35
for children ......................... 18, 22
Occupant Classification
Sensor ........................................ 46
safety belt maintenance ........... 40
seat belt maintenance .............. 40
warning light and chime .......... 37
Safety restraints - LATCH
anchors ........................................ 26
Safety seats for children ...... 18, 22
Safety Compliance
Certification Label .................... 318
Satellite Radio ................... 125, 370
Scheduled Maintenance Guide
Normal Scheduled
Maintenance and Log ............. 331
SD card ...................... 126, 377, 417
Seat belts
(see Safety restraints) ............... 33
Seats .......................................... 138
child safety seats ................ 18, 22
climate control ........................ 137
easy access/easyout feature .. 136
front seats ....................... 133, 136
heated ...................................... 140
memory seat ..................... 58, 135
second row seats .................... 138
Second-row power fold seat .... 138
SecuriCode keyless entry
system .......................................... 75
SecuriLock passive anti-theft
system .......................................... 78
Sending new text messages ..... 390
Setting a destination ................ 417Setting a destination by
voice ........................................... 418
Setting the clock ............... 125, 405
Setting your wallpaper ............. 406
Side air curtain ........................... 51
Side-curtain airbags system ....... 51
SIRIUSsatellite radio ............. 370
SIRIUS satellite radio voice
commands ................................. 372
SIRIUS Travel Link ................... 398
SIRIUS Travel Link voice
commands ................................. 399
SOS Post Crash Alert ................. 43
Spark plugs,
specifications ..................... 312, 317
Specification chart,
lubricants ................................... 313
Stability system ......................... 180
Starting your vehicle ................ 152
jump starting .......................... 230
push button start system ....... 150
Steering wheel ............................ 81
controls ...................................... 83
tilting ......................................... 81
Supplemental Restraint System
(SRS) (see airbags) .................... 44
Supported media file types ...... 384
Supported player, media
formats and metadata
information ................................ 384
SYNCServices ......................... 394
System settings ......................... 408
452Index
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)
