relay LINCOLN MKX 2013 Rear Seat Entertainment System Supplement Manual

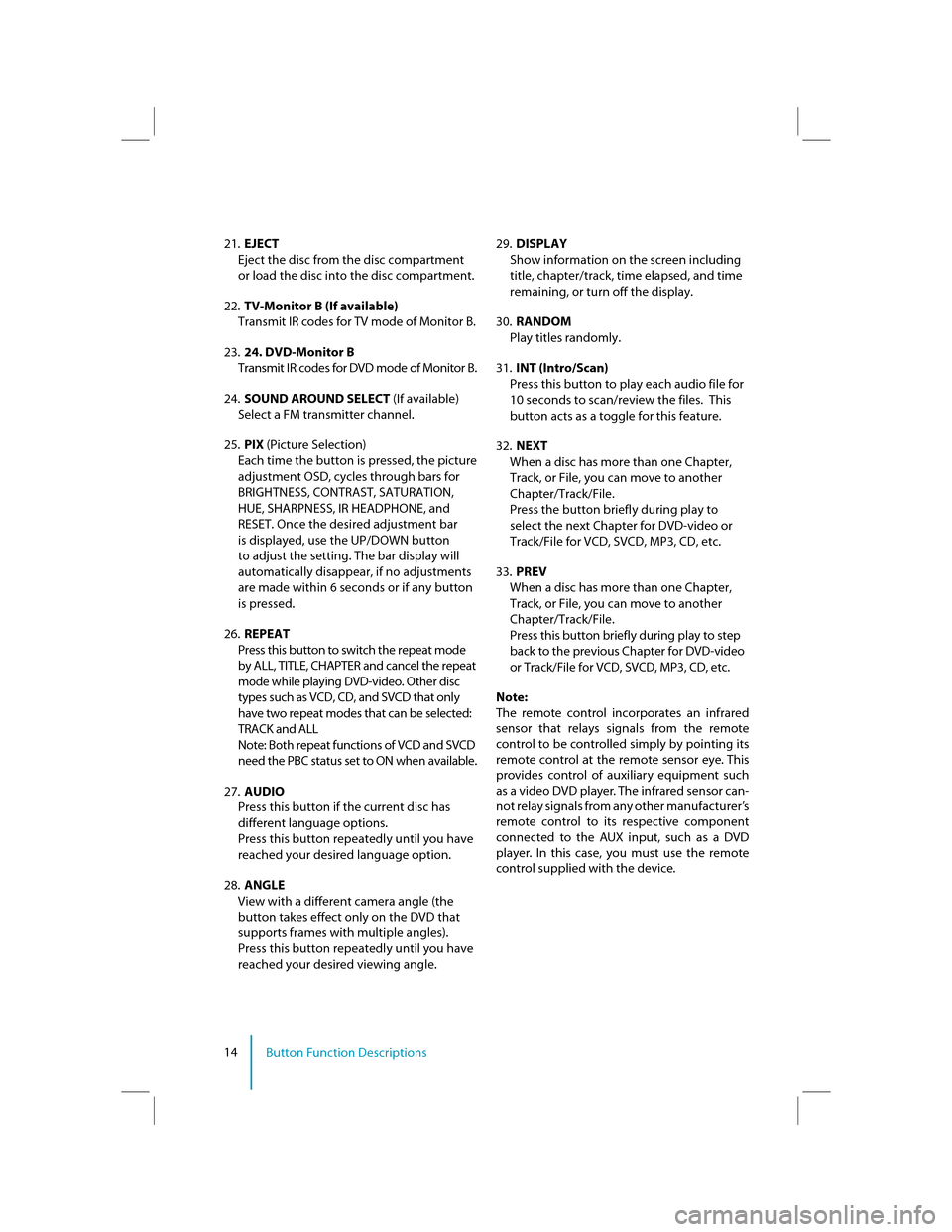

14Button Function Descriptions
21. EJECT
Eject the disc from the disc compartment
or load the disc into the disc compartment.
22. TV-Monitor B (If available)
Transmit IR codes for TV mode of Monitor B.
23. 24. DVD-Monitor B
Transmit IR codes for DVD mode of Monitor B.
24. SOUND AROUND SELECT (If available)
Select a FM transmitter channel.
25. PIX (Picture Selection)
Each time the button is pressed, the picture
adjustment OSD, cycles through bars for
BRIGHTNESS, CONTRAST, SATURATION,
HUE, SHARPNESS, IR HEADPHONE, and
RESET. Once the desired adjustment bar
is displayed, use the UP/DOWN button
to adjust the setting. The bar display will
automatically disappear, if no adjustments
are made within 6 seconds or if any button
is pressed.
26. REPEAT
Press this button to switch the repeat mode
by ALL, TITLE, CHAPTER and cancel the repeat
mode while playing DVD-video. Other disc
types such as VCD, CD, and SVCD that only
have two repeat modes that can be selected:
TRACK and ALL
Note: Both repeat functions of VCD and SVCD
need the PBC status set to ON when available.
27. AUDIO
Press this button if the current disc has
different language options.
Press this button repeatedly until you have
reached your desired language option.
28. ANGLE
View with a different camera angle (the
button takes effect only on the DVD that
supports frames with multiple angles).
Press this button repeatedly until you have
reached your desired viewing angle. 29.
DISPLAY
Show information on the screen including
title, chapter/track, time elapsed, and time
remaining, or turn off the display.
30. RANDOM
Play titles randomly.
31. INT (Intro/Scan)
Press this button to play each audio file for
10 seconds to scan/review the files. This
button acts as a toggle for this feature.
32. NEXT
When a disc has more than one Chapter,
Track, or File, you can move to another
Chapter/Track/File.
Press the button briefly during play to
select the next Chapter for DVD-video or
Track/File for VCD, SVCD, MP3, CD, etc.
33. PREV
When a disc has more than one Chapter,
Track, or File, you can move to another
Chapter/Track/File.
Press this button briefly during play to step
back to the previous Chapter for DVD-video
or Track/File for VCD, SVCD, MP3, CD, etc.
Note:
The remote control incorporates an infrared
sensor that relays signals from the remote
control to be controlled simply by pointing its
remote control at the remote sensor eye. This
provides control of auxiliary equipment such
as a video DVD player. The infrared sensor can-
not relay signals from any other manufacturer’s
remote control to its respective component
connected to the AUX input, such as a DVD
player. In this case, you must use the remote
control supplied with the device.
