6Welcome
Welcome
Thank you for purchasing this REVOLUTION
headrest video monitor with built-in DVD player.
Before operating this system, read this manual
thoroughly and retain it for future reference.
Important Notice
It is unlawful in most jurisdictions for a person
to drive a motor vehicle which is equipped with
a television viewer or screen that is located in
the motor vehicle at any point forward of the
back of the driver’s seat, or that is visible, dire
ct-
ly or indirectly, to the driver while operating the
vehicle. In the interest of safety, the unit should
never be installed where it will be visible, direct -
ly or indirectly, by the operator of the motor
vehicle. If your vehicle is equipped with a wire-
less rear seat audio system or any other wireless
IR device, power system of in order to operate
the DVD headrest system. If system is powered
on, the two systems may interfere with each
other canceling out or creating undesirable
audio through the wireless headphones.
Safety Precaution
For safety reasons, when changing video disc
it is recommended that the vehicle not be in
motion, and that you do not allow children
to unfasten safety belts to change disc or
make any adjustments to the system. System
adjustments can be accomplished using the
remote control unit, while safety belts remain
fastened. Enjoy your entertainment system
but remember that safety of all passengers
remains the number one priority.
Product Features
t
7-inch Color TFT-LCD Panel
(480x234) with 16:9 aspect
t
Built-in Top-Loading Slot load DVD Player
t
Infrared Transmitters for IR Wireless Head-
phones
t
Audio/Video Source Input- 3 RCA Jacks
t
USB 2.0 (optional)
t
1/8-inch Stereo Headphone Jack
t
Forward Remote Sensor on the Front Panel t

Full Function Remote Control
t
5 Control Buttons on the Front Panel-
POWER, SOURCE, STOP, PLAY, EJECT
t
OSD (On Screen Display) Control
t
12V DC Power Input
t
FM Transmitter (may be optional)
Caution:
t
Do not touch the inner pins of the jacks on
the front panel. Electrostatic discharge may
cause permanent damage to the device.
t
Be sure to run the vehicle engine while us-
ing the device. Using this device without
running the engine can result in battery
drainage. To avoid the risk of battery
drainage, please remember to turn of the
device when the vehicle is not in use for
long periods of time.

9Control Description of the Front Panel
1. DVD Compartment Slot
(models with DVD Player)
2. Infrared Transmitters
These are used to transmit audio to the
wireless headphones.
3. IR Sensor - Forward Sensor Eye
Allow the remote control to navigate the
OSD (On Screen Display) on the device.
4. Level Lock & Release Latch
Allows the user to adjust the viewing angle
of the LCD panel or lock the panel into the
secure position.
5. TFT LCD Panel
7-inch TFT LCD Panel
6. POWER Button
Press this button to turn the system on or off.
7. SOURCE Button
Press this button to select between Moni-
tor A, Monitor B, AUX/TV (if available), and
AUX 2 (if available).
8. USB Port (Optional)
You can play music and images stored on a
USB Device such as a USB memory stick or
memory card reader.
9. Video Input Jack (Yellow)
Connect using a cable (RCA connector).
10. Audio Input Jack (White)
Connect using a cable (RCA connector).
11. Audio Input Jack (Red)
Connect using a cable (RCA connector).
12. 1/8-inch Headphone Jack
Allow plug-in of wired headphones with
1/8-inch stereo connector plug for moni-
toring the audio from the program.
13. PLAY Button
(models with DVD Player)
Press this button to play the DVD/CD. 14.
STOP Button
(models with DVD Player)
Press this button to stop playing the DVD/
CD.
15. EJECT Button
(models with DVD Player)
Press this button to eject the disc from the
DVD compartment.

Warnings t
Do not use any solvents or cleaning mate-
rials when cleaning the video device.
t
Do not use any abrasive cleaners, that
may scratch the screen. Use only a lightly
dampened lint free cloth to wipe the
screen if it is dirty.
t
Lock the LCD screen in the fully closed
position when not in use.
t
Do not put pressure on the screen.
t
Caution children to avoid touching or
scratching the screen, as it may become
dirty or damaged.EN

14Button Function Descriptions
21. EJECT
Eject the disc from the disc compartment
or load the disc into the disc compartment.
22. TV-Monitor B (If available)
Transmit IR codes for TV mode of Monitor B.
23. 24. DVD-Monitor B
Transmit IR codes for DVD mode of Monitor B.
24. SOUND AROUND SELECT (If available)
Select a FM transmitter channel.
25. PIX (Picture Selection)
Each time the button is pressed, the picture
adjustment OSD, cycles through bars for
BRIGHTNESS, CONTRAST, SATURATION,
HUE, SHARPNESS, IR HEADPHONE, and
RESET. Once the desired adjustment bar
is displayed, use the UP/DOWN button
to adjust the setting. The bar display will
automatically disappear, if no adjustments
are made within 6 seconds or if any button
is pressed.
26. REPEAT
Press this button to switch the repeat mode
by ALL, TITLE, CHAPTER and cancel the repeat
mode while playing DVD-video. Other disc
types such as VCD, CD, and SVCD that only
have two repeat modes that can be selected:
TRACK and ALL
Note: Both repeat functions of VCD and SVCD
need the PBC status set to ON when available.
27. AUDIO
Press this button if the current disc has
different language options.
Press this button repeatedly until you have
reached your desired language option.
28. ANGLE
View with a different camera angle (the
button takes effect only on the DVD that
supports frames with multiple angles).
Press this button repeatedly until you have
reached your desired viewing angle. 29.
DISPLAY
Show information on the screen including
title, chapter/track, time elapsed, and time
remaining, or turn off the display.
30. RANDOM
Play titles randomly.
31. INT (Intro/Scan)
Press this button to play each audio file for
10 seconds to scan/review the files. This
button acts as a toggle for this feature.
32. NEXT
When a disc has more than one Chapter,
Track, or File, you can move to another
Chapter/Track/File.
Press the button briefly during play to
select the next Chapter for DVD-video or
Track/File for VCD, SVCD, MP3, CD, etc.
33. PREV
When a disc has more than one Chapter,
Track, or File, you can move to another
Chapter/Track/File.
Press this button briefly during play to step
back to the previous Chapter for DVD-video
or Track/File for VCD, SVCD, MP3, CD, etc.
Note:
The remote control incorporates an infrared
sensor that relays signals from the remote
control to be controlled simply by pointing its
remote control at the remote sensor eye. This
provides control of auxiliary equipment such
as a video DVD player. The infrared sensor can-
not relay signals from any other manufacturer’s
remote control to its respective component
connected to the AUX input, such as a DVD
player. In this case, you must use the remote
control supplied with the device.

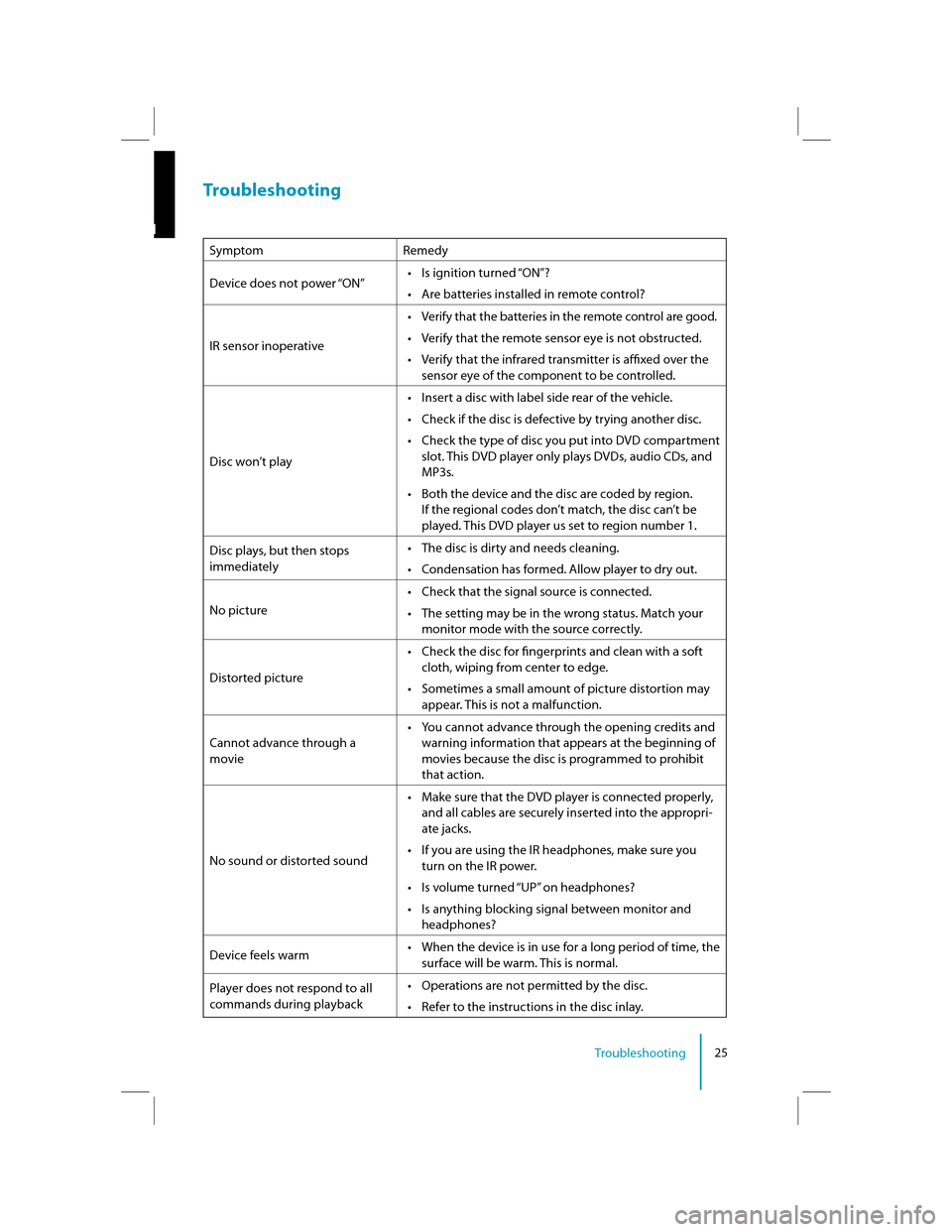

25Troubleshooting
EN
Troubleshooting
Symptom Remedy
Device does not power “ON”t

Is ignition turned “ON”?
t
Are batteries installed in remote control?
IR sensor inoperative t

Verify that the batteries in the remote control are good.
t
Verify that the remote sensor eye is not obstructed.
t
Verify that the infrared transmitter is afxed over the
sensor eye of the component to be controlled.
Disc won’t play t

Insert a disc with label side rear of the vehicle.
t
Check if the disc is defective by trying another disc.
t
Check the type of disc you put into DVD compartment
slot. This DVD player only plays DVDs, audio CDs, and
MP3s.
t
Both the device and the disc are coded by region.
If the regional codes don’t match, the disc can’t be
played. This DVD player us set to region number 1.
Disc plays, but then stops
immediately t

The disc is dirty and needs cleaning.
t
Condensation has formed. Allow player to dry out.
No picture t

Check that the signal source is connected.
t
The setting may be in the wrong status. Match your
monitor mode with the source correctly.
Distorted picture t

Check the disc for fngerprints and clean with a soft
cloth, wiping from center to edge.
t
Sometimes a small amount of picture distortion may
appear. This is not a malfunction.
Cannot advance through a
movie t

You cannot advance through the opening credits and
warning information that appears at the beginning of
movies because the disc is programmed to prohibit
that action.
No sound or distorted sound t

Make sure that the DVD player is connected properly,
and all cables are securely inserted into the appropri-
ate jacks.
t
If you are using the IR headphones, make sure you
turn on the IR power.
t
Is volume turned “UP” on headphones?
t
Is anything blocking signal between monitor and
headphones?
Device feels warm t

When the device is in use for a long period of time, the
surface will be warm. This is normal.
Player does not respond to all
commands during playback t

Operations are not permitted by the disc.
t
Refer to the instructions in the disc inlay.
