LINCOLN MKX 2015 Owners Manual

Replacing HID headlamp bulbs (if equipped)
The low beam headlamps on your vehicle use a “high intensity discharge”
source. These lamps operate at a high voltage. When the bulb is burned
out, the bulb and starter capsule assembly must be replaced by your
authorized dealer.
Replacing front parking lamp/turn signal bulbs
1. Make sure that the headlamp control is in the off position.
2. Open the hood.
3. At the wheel well, remove the fasteners from
the splash shield, then pull the splash shield back
to gain access to the bulbs.
4. Rotate the bulb socket
counterclockwise and remove from
the lamp assembly.
5. Carefully pull the bulb out of the
socket and push in the new bulb.
6. Install the bulb socket into the
lamp assembly and rotate clockwise.
Replacing side marker bulbs
Your vehicle is equipped with LED side marker bulbs. It is designed to
last the life of the vehicle. If replacement is required, see your
authorized dealer.
270Maintenance
2014 MKX(mkx)
Owners Guide gf, 1st Printing, June 2014
USA(fus)

Replacing fog lamp bulbs
1. Make sure that the fog lamp switch is in the off position.
2. From underneath the vehicle,
remove the splash shield and rotate
the harness/bulb assembly
counterclockwise, to remove from the
fog lamp.
3. Carefully disconnect the bulb from the harness assembly via the two
snap clips.
4. Reverse the procedure to install the new bulb.
Replacing backup lamp bulbs
1. Make sure the headlamp switch is in the off position, then open the
liftgate to expose the lamp assembly bolts.
2. Remove the two bolts from the
lamp assembly.
3. Carefully remove the lamp
assembly away from the vehicle by
pulling the assembly straight out to
expose the bulb socket.
4. Rotate the bulb socket
counterclockwise and remove from
lamp assembly.
5. Pull bulb straight out of socket and snap in the new bulb.
6. Install the bulb socket into the lamp assembly and rotate clockwise.
7. Carefully install the tail lamp assembly on the vehicle by securing the
lamp assembly with two bolts.
Maintenance271
2014 MKX(mkx)
Owners Guide gf, 1st Printing, June 2014
USA(fus)

Replacing tail/stop/turn/side marker lamp bulbs
Your vehicle is equipped with a tail/stop/turn/sidemarker lamp assembly
containing integral multiple light emitting diodes (LED). See your
authorized dealer for the replacement LED module.
Replacing supplemental liftgate lamp assembly
Your vehicle is equipped with a liftgate lamp assembly containing integral
multiple light emitting diodes (LED). If one or more LEDs burn out, the
complete lamp module has to be replaced. See your authorized dealer for
the replacement LED module.
Replacing high-mount brake lamp bulbs
Your vehicle is equipped with an LED center high-mount stop lamp. It is
designed to last the life of the vehicle. If replacement is required, see
your authorized dealer.
Replacing license plate lamp bulbs
1. Make sure the headlamp switch is in the off position.
2. Remove the two screws and the
license plate lamp assembly from the
bumper.
3. Carefully pull the bulb straight out
from the lamp assembly.
4. Install new bulb(s) in reverse
order.
272Maintenance
2014 MKX(mkx)
Owners Guide gf, 1st Printing, June 2014
USA(fus)

BULB SPECIFICATION CHART
Replacement bulbs are specified in the chart below. Headlamp bulbs
must be marked with an authorized “D.O.T.” for North America and an
“E” for Europe to ensure lamp performance, light brightness and pattern
and safe visibility. The correct bulbs will not damage the lamp assembly
or void the lamp assembly warranty and will provide quality bulb burn
time.
Function Number of BulbsTrade
Number
Headlamp low/high beam
(halogen)2 HIR2
* Headlamp low/high beam
(HID)2 D3S
* Front sidemarker lamp N/A LED
Front park/turn signal
lamp23457NAK
(amber)
* Rear sidemarker lamp N/A LED
* Stop/tail/turn lamp N/A LED
Backup lamp 2 921
License plate lamp 2 C5W
* High-mount brake lamp N/A LED
Fog lamp (if equipped) 2 H11
Front row map lamp 2 1600XB
Second row dome/reading
lamp3 211-2XB
Rear courtesy lamp 1 211-2XB
Visor vanity lamp 2 37
All replacement bulbs are clear in color except where noted.
To replace all instrument panel lights - see your authorized dealer.
* To replace these lamps - see your authorized dealer.
Maintenance273
2014 MKX(mkx)
Owners Guide gf, 1st Printing, June 2014
USA(fus)

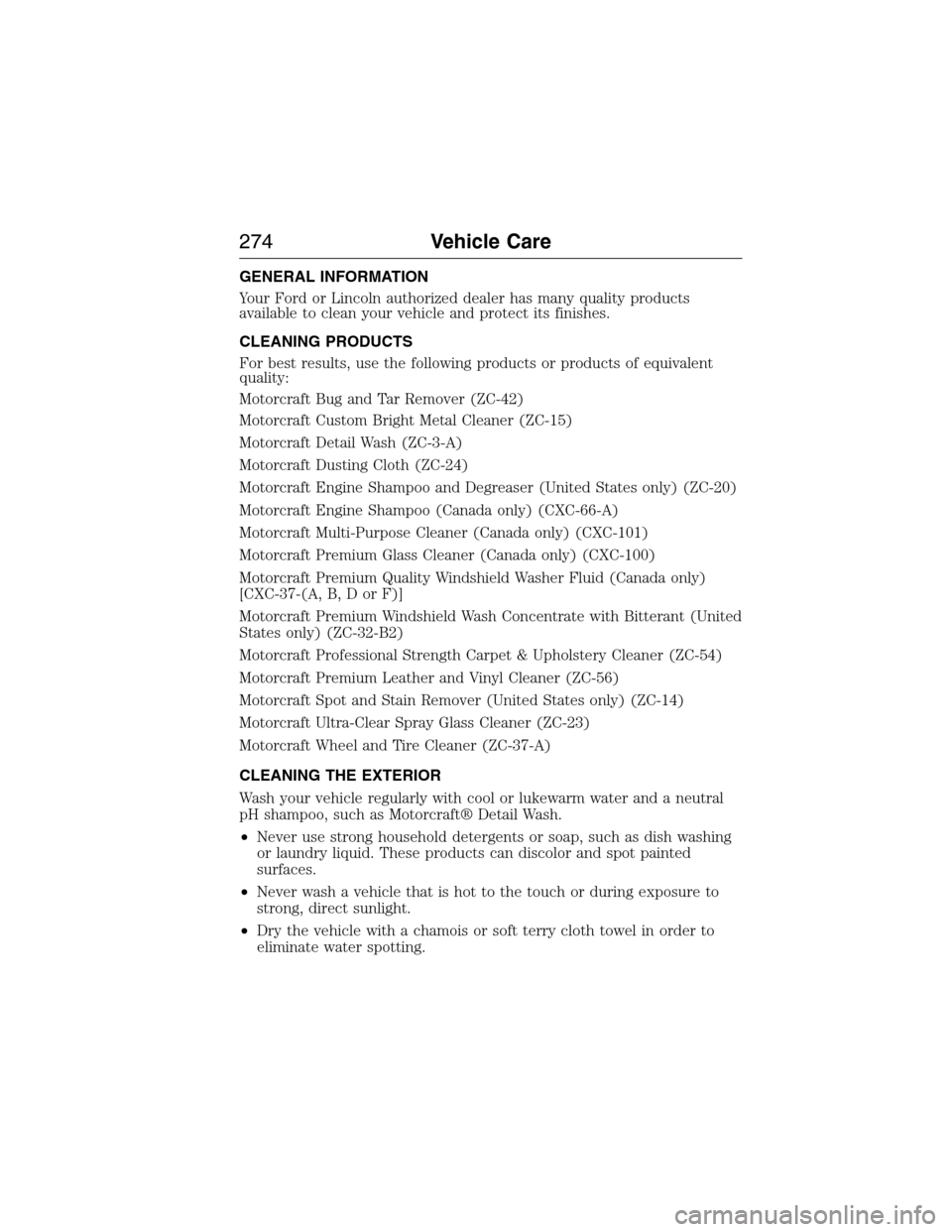

GENERAL INFORMATION
Your Ford or Lincoln authorized dealer has many quality products
available to clean your vehicle and protect its finishes.
CLEANING PRODUCTS
For best results, use the following products or products of equivalent
quality:
Motorcraft Bug and Tar Remover (ZC-42)
Motorcraft Custom Bright Metal Cleaner (ZC-15)
Motorcraft Detail Wash (ZC-3-A)
Motorcraft Dusting Cloth (ZC-24)
Motorcraft Engine Shampoo and Degreaser (United States only) (ZC-20)
Motorcraft Engine Shampoo (Canada only) (CXC-66-A)
Motorcraft Multi-Purpose Cleaner (Canada only) (CXC-101)
Motorcraft Premium Glass Cleaner (Canada only) (CXC-100)
Motorcraft Premium Quality Windshield Washer Fluid (Canada only)
[CXC-37-(A, B, D or F)]
Motorcraft Premium Windshield Wash Concentrate with Bitterant (United
States only) (ZC-32-B2)
Motorcraft Professional Strength Carpet & Upholstery Cleaner (ZC-54)
Motorcraft Premium Leather and Vinyl Cleaner (ZC-56)
Motorcraft Spot and Stain Remover (United States only) (ZC-14)
Motorcraft Ultra-Clear Spray Glass Cleaner (ZC-23)
Motorcraft Wheel and Tire Cleaner (ZC-37-A)
CLEANING THE EXTERIOR
Wash your vehicle regularly with cool or lukewarm water and a neutral
pH shampoo, such as Motorcraft® Detail Wash.
•Never use strong household detergents or soap, such as dish washing
or laundry liquid. These products can discolor and spot painted
surfaces.
•Never wash a vehicle that is hot to the touch or during exposure to
strong, direct sunlight.
•Dry the vehicle with a chamois or soft terry cloth towel in order to
eliminate water spotting.
274Vehicle Care
2014 MKX(mkx)
Owners Guide gf, 1st Printing, June 2014
USA(fus)

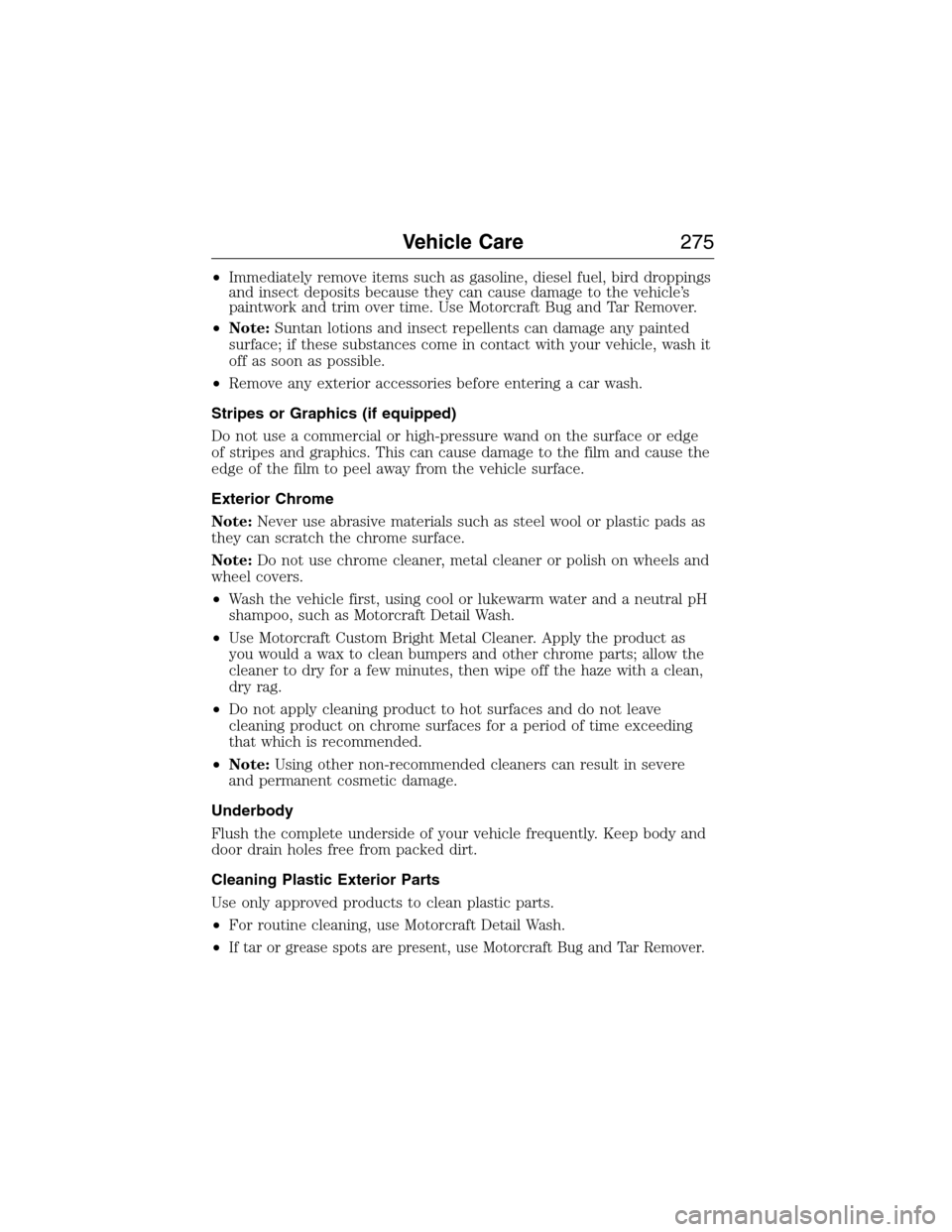

•Immediately remove items such as gasoline, diesel fuel, bird droppings
and insect deposits because they can cause damage to the vehicle’s
paintwork and trim over time. Use Motorcraft Bug and Tar Remover.
•Note:Suntan lotions and insect repellents can damage any painted
surface; if these substances come in contact with your vehicle, wash it
off as soon as possible.
•Remove any exterior accessories before entering a car wash.
Stripes or Graphics (if equipped)
Do not use a commercial or high-pressure wand on the surface or edge
of stripes and graphics. This can cause damage to the film and cause the
edge of the film to peel away from the vehicle surface.
Exterior Chrome
Note:Never use abrasive materials such as steel wool or plastic pads as
they can scratch the chrome surface.
Note:Do not use chrome cleaner, metal cleaner or polish on wheels and
wheel covers.
•Wash the vehicle first, using cool or lukewarm water and a neutral pH
shampoo, such as Motorcraft Detail Wash.
•Use Motorcraft Custom Bright Metal Cleaner. Apply the product as
you would a wax to clean bumpers and other chrome parts; allow the
cleaner to dry for a few minutes, then wipe off the haze with a clean,
dry rag.
•Do not apply cleaning product to hot surfaces and do not leave
cleaning product on chrome surfaces for a period of time exceeding
that which is recommended.
•Note:Using other non-recommended cleaners can result in severe
and permanent cosmetic damage.
Underbody
Flush the complete underside of your vehicle frequently. Keep body and
door drain holes free from packed dirt.
Cleaning Plastic Exterior Parts
Use only approved products to clean plastic parts.
•For routine cleaning, use Motorcraft Detail Wash.
•
If tar or grease spots are present, use Motorcraft Bug and Tar Remover.
Vehicle Care275
2014 MKX(mkx)
Owners Guide gf, 1st Printing, June 2014
USA(fus)

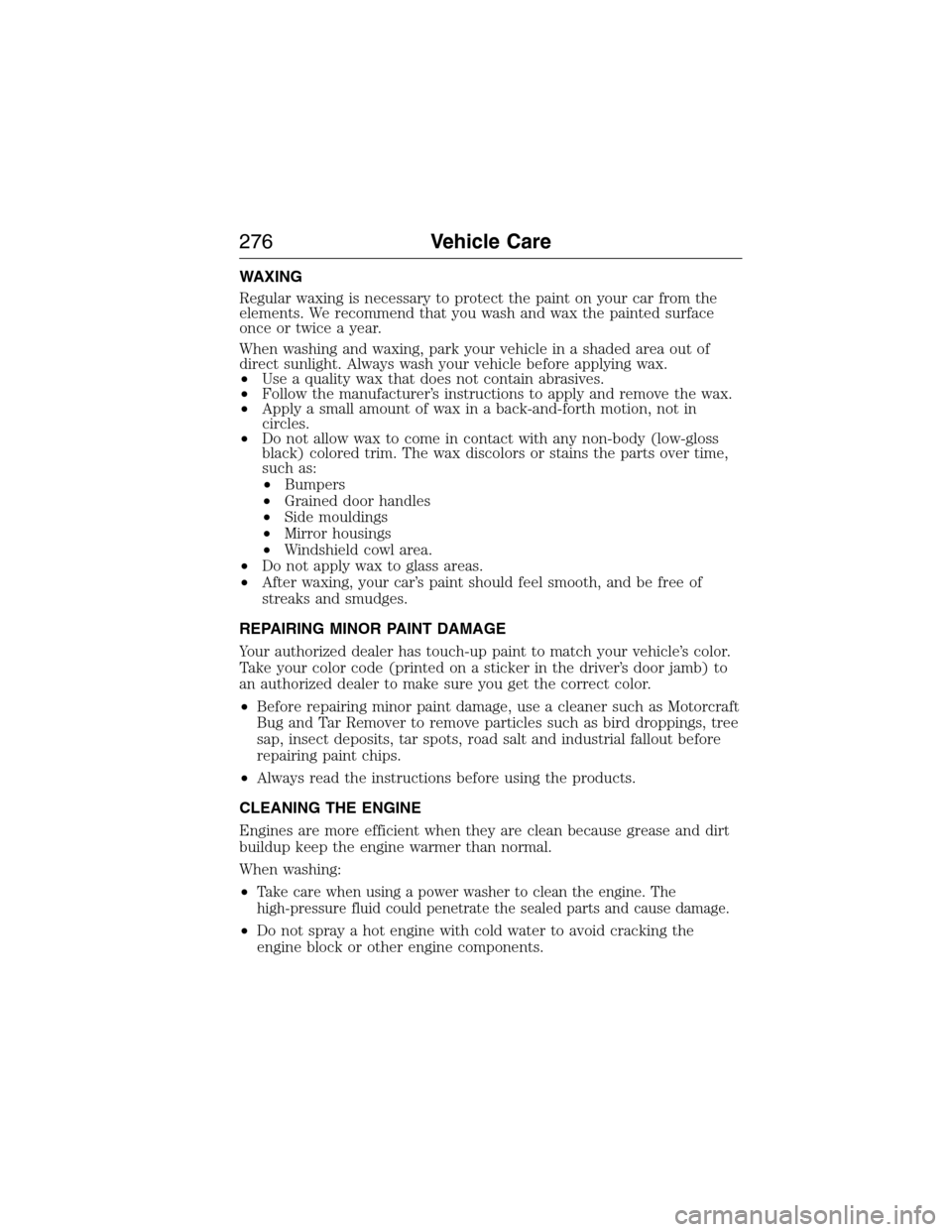

WAXING
Regular waxing is necessary to protect the paint on your car from the
elements. We recommend that you wash and wax the painted surface
once or twice a year.
When washing and waxing, park your vehicle in a shaded area out of
direct sunlight. Always wash your vehicle before applying wax.
•Use a quality wax that does not contain abrasives.
•Follow the manufacturer’s instructions to apply and remove the wax.
•Apply a small amount of wax in a back-and-forth motion, not in
circles.
•Do not allow wax to come in contact with any non-body (low-gloss
black) colored trim. The wax discolors or stains the parts over time,
such as:
•Bumpers
•Grained door handles
•Side mouldings
•Mirror housings
•Windshield cowl area.
•Do not apply wax to glass areas.
•After waxing, your car’s paint should feel smooth, and be free of
streaks and smudges.
REPAIRING MINOR PAINT DAMAGE
Your authorized dealer has touch-up paint to match your vehicle’s color.
Take your color code (printed on a sticker in the driver’s door jamb) to
an authorized dealer to make sure you get the correct color.
•Before repairing minor paint damage, use a cleaner such as Motorcraft
Bug and Tar Remover to remove particles such as bird droppings, tree
sap, insect deposits, tar spots, road salt and industrial fallout before
repairing paint chips.
•Always read the instructions before using the products.
CLEANING THE ENGINE
Engines are more efficient when they are clean because grease and dirt
buildup keep the engine warmer than normal.
When washing:
•
Take care when using a power washer to clean the engine. The
high-pressure fluid could penetrate the sealed parts and cause damage.
•Do not spray a hot engine with cold water to avoid cracking the
engine block or other engine components.
276Vehicle Care
2014 MKX(mkx)
Owners Guide gf, 1st Printing, June 2014
USA(fus)

•Spray Motorcraft Engine Shampoo and Degreaser on all parts that
require cleaning and pressure rinse clean. In Canada, use Motorcraft
Engine Shampoo.
•Never wash or rinse the engine while it is hot or running; water in the
running engine may cause internal damage.
•Never wash or rinse any ignition coil, spark plug wire or spark plug
well, or the area in and around these locations.
•Cover the battery, power distribution box, and air filter assembly to
prevent water damage when cleaning the engine.
CLEANING THE WINDOWS AND WIPER BLADES
The windows and wiper blades should be cleaned regularly. If the wipers
do not wipe properly, substances on the vehicle’s glass or the wiper
blades may cause squeaking or chatter noise from the blades, and
streaking and smearing of the windshield. To clean these items, follow
these tips:
•The windows may be cleaned with a non-abrasive cleaner such as
Motorcraft® Ultra-Clear Spray Glass Cleaner (U.S.) or Motorcraft
Premium Glass Cleaner (Canada).
•The wiper blades can be cleaned with isopropyl (rubbing) alcohol or
Motorcraft Premium Windshield Washer Concentrates in the U.S., or
Motorcraft Premium Quality Windshield Washer Fluid in Canada.
Replace your wiper blades when they appear worn or do not function
properly.
•Do not use abrasive materials, as they may cause scratches.
•Do not use fuel, kerosene, or paint thinner to clean any parts.
If you cannot remove those streaks after cleaning with the glass cleaner
or if the wipers chatter and move in a jerky motion, clean the outer
surface of the windshield and the wiper blades using a sponge or soft
cloth with a neutral detergent or mild-abrasive cleaning solution. After
cleaning, rinse the windshield and wiper blades with clean water. The
windshield is clean if beads do not form when you rinse the windshield
with water.
Note:Do not use sharp objects, such as a razor blade, to clean the
inside of the rear window or to remove decals, as it may cause damage
to the rear window defroster’s heated grid lines.
Vehicle Care277
2014 MKX(mkx)
Owners Guide gf, 1st Printing, June 2014
USA(fus)

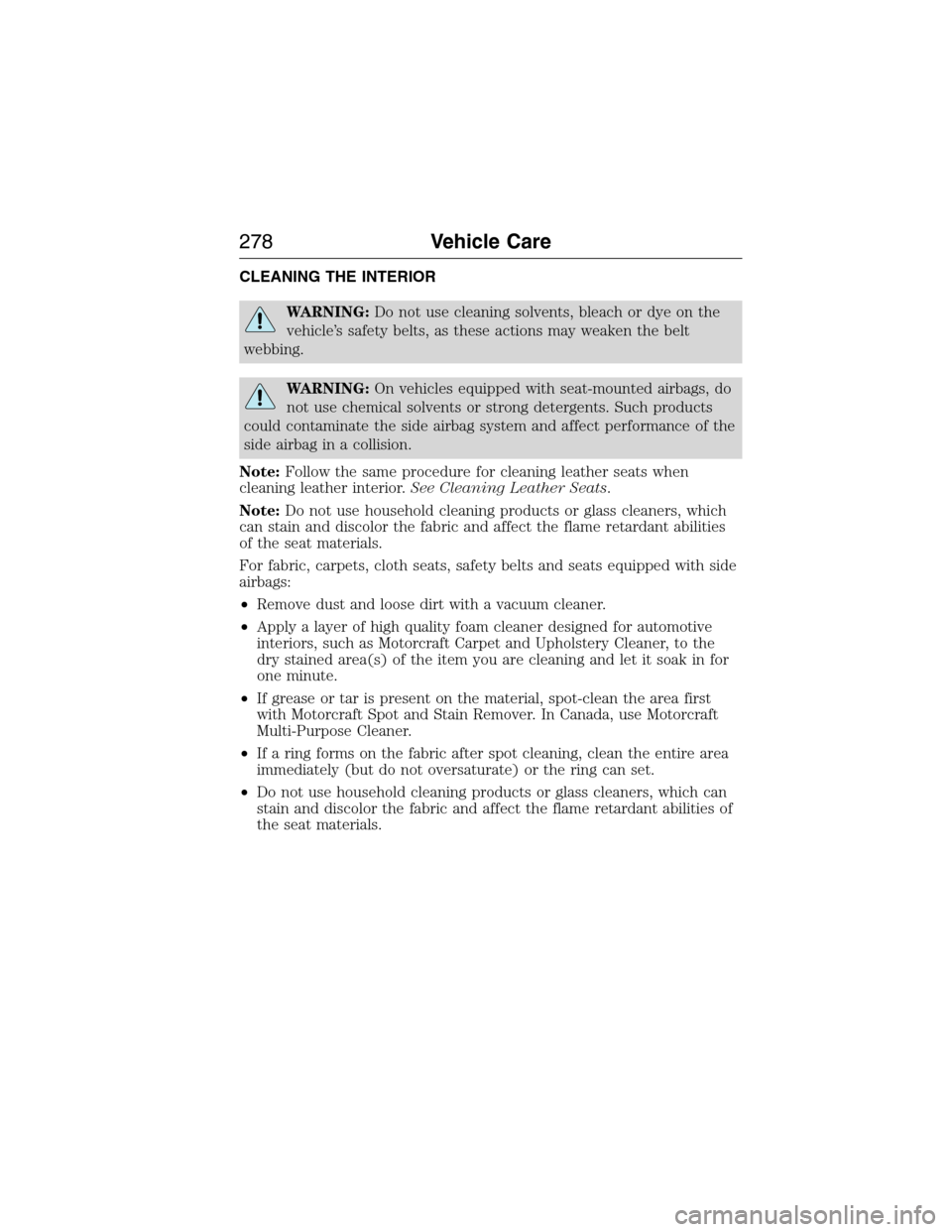

CLEANING THE INTERIOR
WARNING:Do not use cleaning solvents, bleach or dye on the
vehicle’s safety belts, as these actions may weaken the belt
webbing.
WARNING:On vehicles equipped with seat-mounted airbags, do
not use chemical solvents or strong detergents. Such products
could contaminate the side airbag system and affect performance of the
side airbag in a collision.
Note:Follow the same procedure for cleaning leather seats when
cleaning leather interior.See Cleaning Leather Seats.
Note:Do not use household cleaning products or glass cleaners, which
can stain and discolor the fabric and affect the flame retardant abilities
of the seat materials.
For fabric, carpets, cloth seats, safety belts and seats equipped with side
airbags:
•Remove dust and loose dirt with a vacuum cleaner.
•Apply a layer of high quality foam cleaner designed for automotive
interiors, such as Motorcraft Carpet and Upholstery Cleaner, to the
dry stained area(s) of the item you are cleaning and let it soak in for
one minute.
•If grease or tar is present on the material, spot-clean the area first
with Motorcraft Spot and Stain Remover. In Canada, use Motorcraft
Multi-Purpose Cleaner.
•If a ring forms on the fabric after spot cleaning, clean the entire area
immediately (but do not oversaturate) or the ring can set.
•Do not use household cleaning products or glass cleaners, which can
stain and discolor the fabric and affect the flame retardant abilities of
the seat materials.
278Vehicle Care
2014 MKX(mkx)
Owners Guide gf, 1st Printing, June 2014
USA(fus)

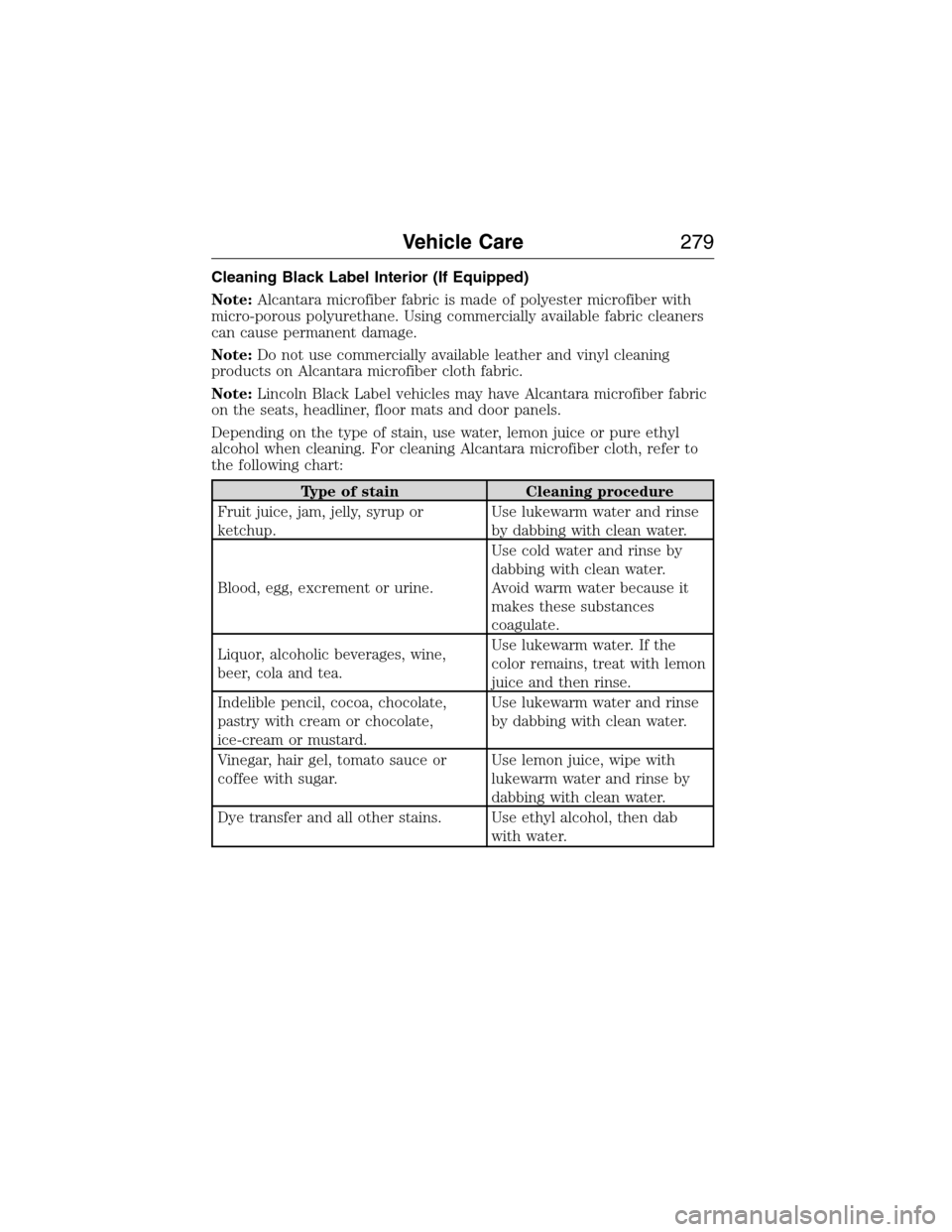

Cleaning Black Label Interior (If Equipped)
Note:Alcantara microfiber fabric is made of polyester microfiber with
micro-porous polyurethane. Using commercially available fabric cleaners
can cause permanent damage.
Note:Do not use commercially available leather and vinyl cleaning
products on Alcantara microfiber cloth fabric.
Note:Lincoln Black Label vehicles may have Alcantara microfiber fabric
on the seats, headliner, floor mats and door panels.
Depending on the type of stain, use water, lemon juice or pure ethyl
alcohol when cleaning. For cleaning Alcantara microfiber cloth, refer to
the following chart:
Type of stain Cleaning procedure
Fruit juice, jam, jelly, syrup or
ketchup.Use lukewarm water and rinse
by dabbing with clean water.
Blood, egg, excrement or urine.Use cold water and rinse by
dabbing with clean water.
Avoid warm water because it
makes these substances
coagulate.
Liquor, alcoholic beverages, wine,
beer, cola and tea.Use lukewarm water. If the
color remains, treat with lemon
juice and then rinse.
Indelible pencil, cocoa, chocolate,
pastry with cream or chocolate,
ice-cream or mustard.Use lukewarm water and rinse
by dabbing with clean water.
Vinegar, hair gel, tomato sauce or
coffee with sugar.Use lemon juice, wipe with
lukewarm water and rinse by
dabbing with clean water.
Dye transfer and all other stains. Use ethyl alcohol, then dab
with water.
Vehicle Care279
2014 MKX(mkx)
Owners Guide gf, 1st Printing, June 2014
USA(fus)
