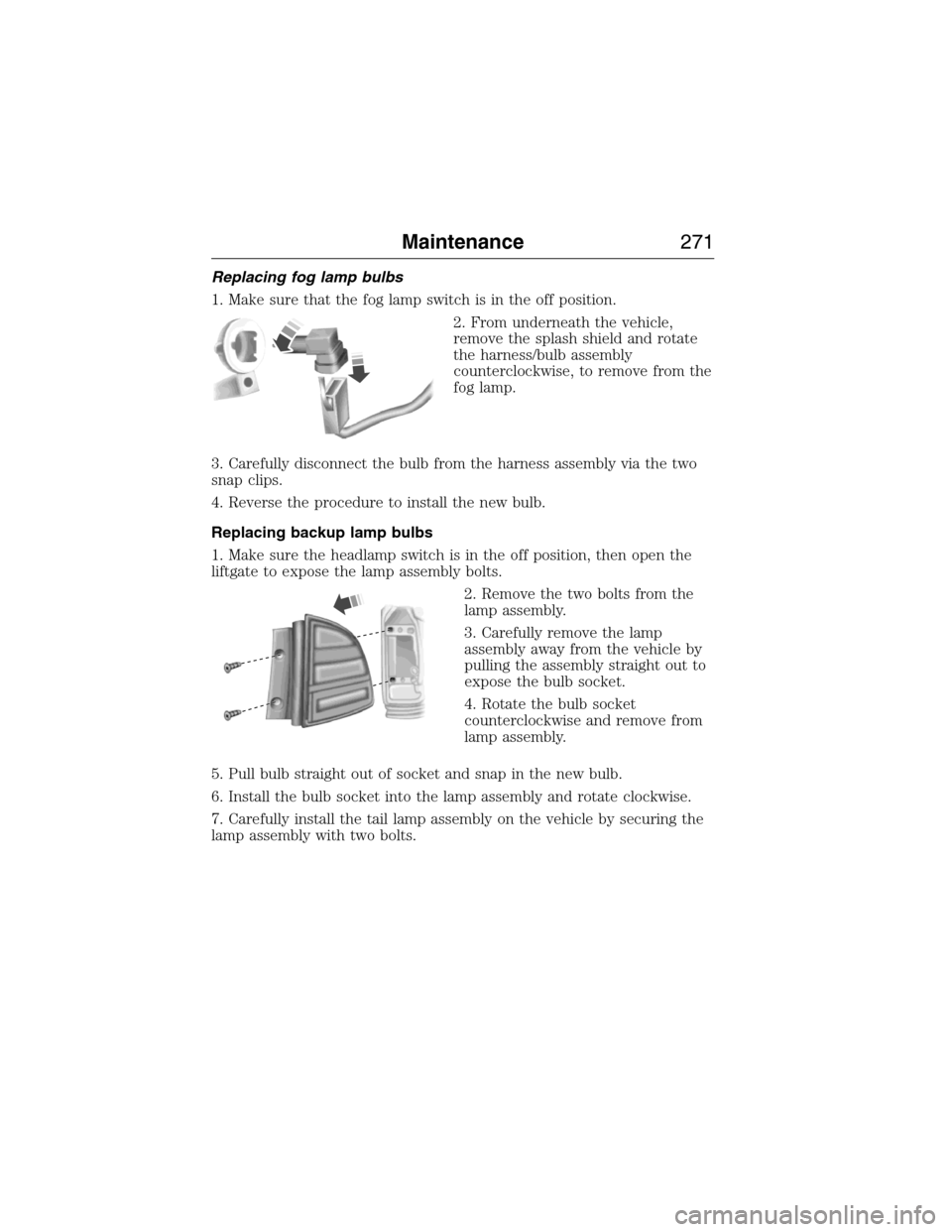

Replacing fog lamp bulbs
1. Make sure that the fog lamp switch is in the off position.
2. From underneath the vehicle,
remove the splash shield and rotate
the harness/bulb assembly
counterclockwise, to remove from the
fog lamp.
3. Carefully disconnect the bulb from the harness assembly via the two
snap clips.
4. Reverse the procedure to install the new bulb.
Replacing backup lamp bulbs
1. Make sure the headlamp switch is in the off position, then open the
liftgate to expose the lamp assembly bolts.
2. Remove the two bolts from the
lamp assembly.
3. Carefully remove the lamp
assembly away from the vehicle by
pulling the assembly straight out to
expose the bulb socket.
4. Rotate the bulb socket
counterclockwise and remove from
lamp assembly.
5. Pull bulb straight out of socket and snap in the new bulb.
6. Install the bulb socket into the lamp assembly and rotate clockwise.
7. Carefully install the tail lamp assembly on the vehicle by securing the
lamp assembly with two bolts.
Maintenance271
2014 MKX(mkx)
Owners Guide gf, 1st Printing, June 2014
USA(fus)

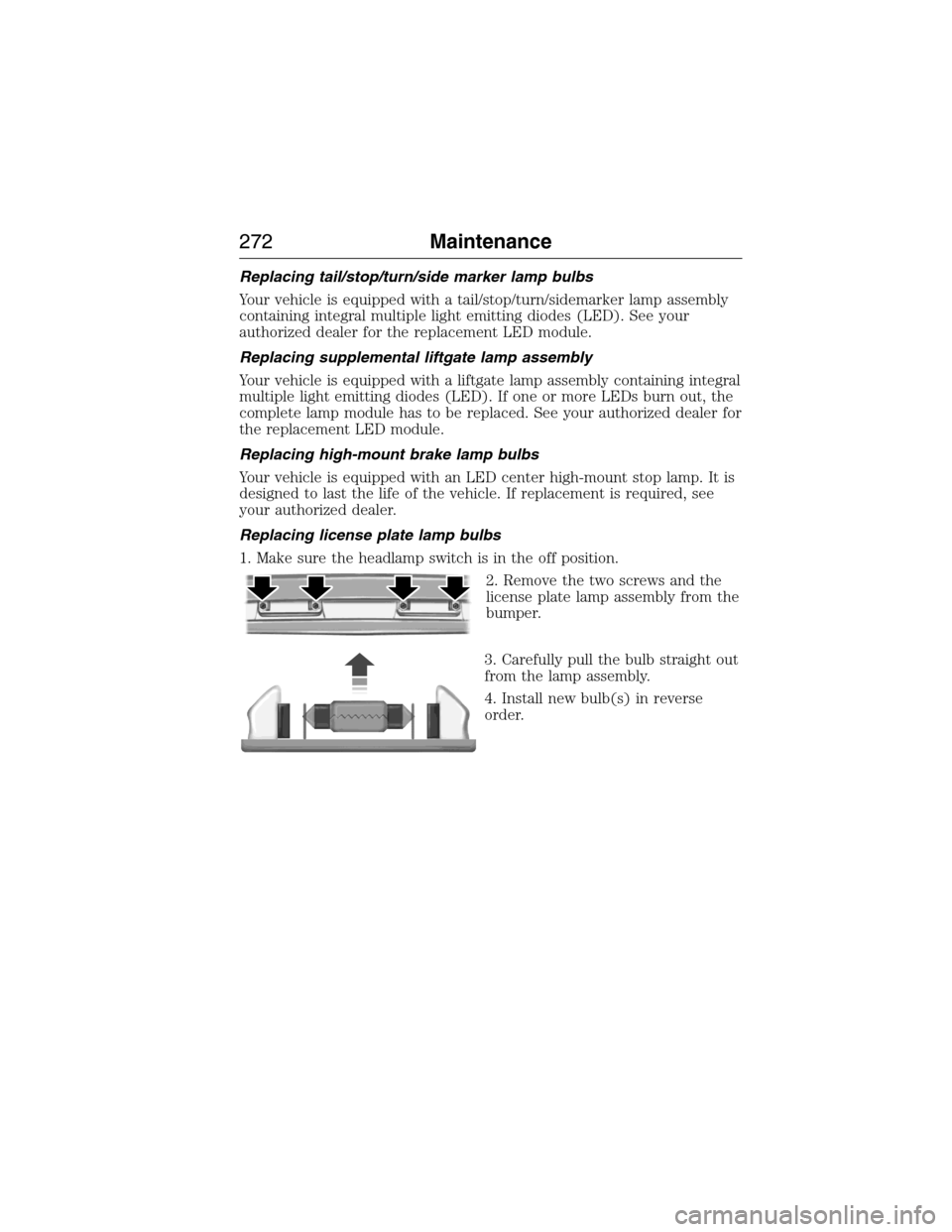

Replacing tail/stop/turn/side marker lamp bulbs
Your vehicle is equipped with a tail/stop/turn/sidemarker lamp assembly
containing integral multiple light emitting diodes (LED). See your
authorized dealer for the replacement LED module.
Replacing supplemental liftgate lamp assembly
Your vehicle is equipped with a liftgate lamp assembly containing integral
multiple light emitting diodes (LED). If one or more LEDs burn out, the
complete lamp module has to be replaced. See your authorized dealer for
the replacement LED module.
Replacing high-mount brake lamp bulbs
Your vehicle is equipped with an LED center high-mount stop lamp. It is
designed to last the life of the vehicle. If replacement is required, see
your authorized dealer.
Replacing license plate lamp bulbs
1. Make sure the headlamp switch is in the off position.
2. Remove the two screws and the
license plate lamp assembly from the
bumper.
3. Carefully pull the bulb straight out
from the lamp assembly.
4. Install new bulb(s) in reverse
order.
272Maintenance
2014 MKX(mkx)
Owners Guide gf, 1st Printing, June 2014
USA(fus)

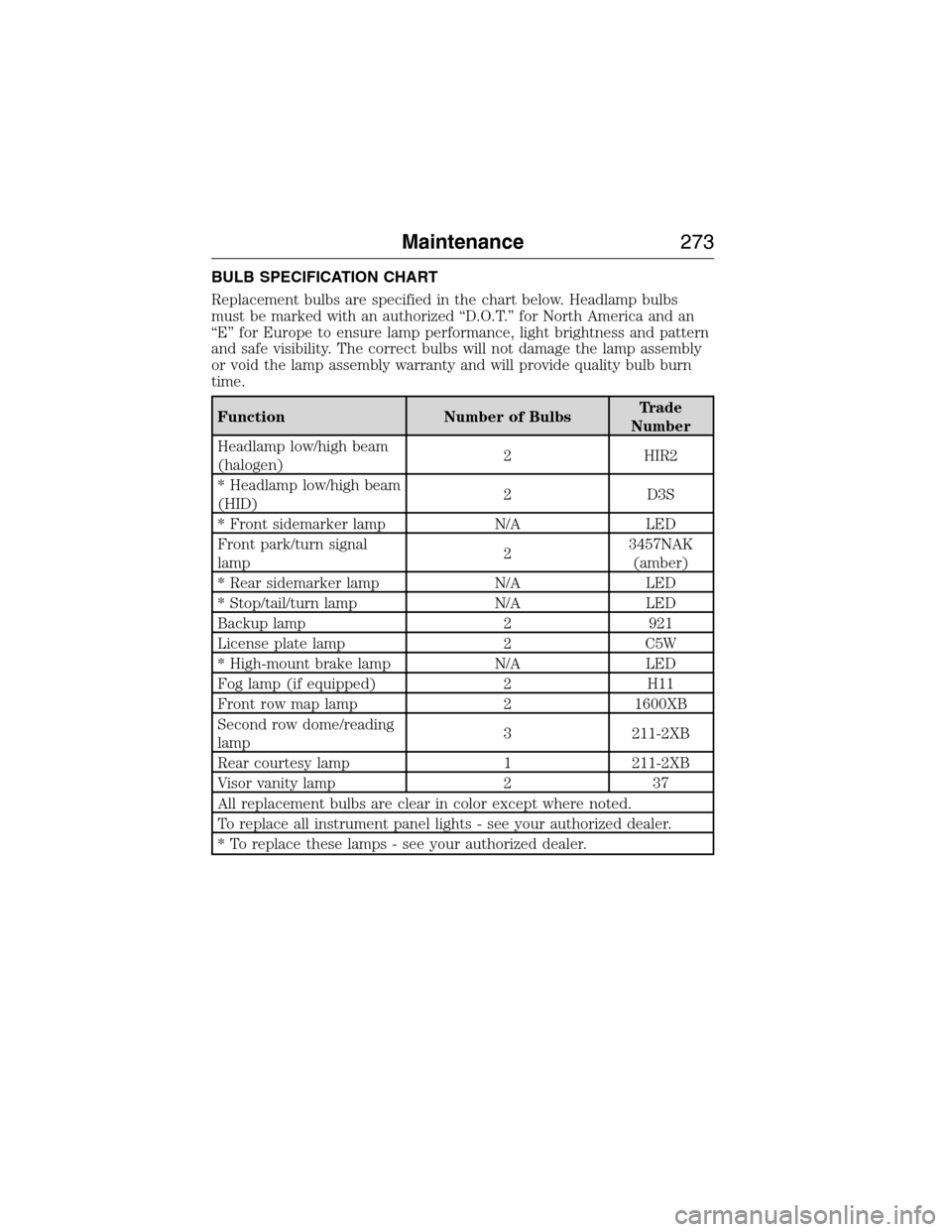

BULB SPECIFICATION CHART
Replacement bulbs are specified in the chart below. Headlamp bulbs
must be marked with an authorized “D.O.T.” for North America and an
“E” for Europe to ensure lamp performance, light brightness and pattern
and safe visibility. The correct bulbs will not damage the lamp assembly
or void the lamp assembly warranty and will provide quality bulb burn
time.
Function Number of BulbsTrade
Number
Headlamp low/high beam
(halogen)2 HIR2
* Headlamp low/high beam
(HID)2 D3S
* Front sidemarker lamp N/A LED
Front park/turn signal
lamp23457NAK
(amber)
* Rear sidemarker lamp N/A LED
* Stop/tail/turn lamp N/A LED
Backup lamp 2 921
License plate lamp 2 C5W
* High-mount brake lamp N/A LED
Fog lamp (if equipped) 2 H11
Front row map lamp 2 1600XB
Second row dome/reading
lamp3 211-2XB
Rear courtesy lamp 1 211-2XB
Visor vanity lamp 2 37
All replacement bulbs are clear in color except where noted.
To replace all instrument panel lights - see your authorized dealer.
* To replace these lamps - see your authorized dealer.
Maintenance273
2014 MKX(mkx)
Owners Guide gf, 1st Printing, June 2014
USA(fus)

Emergency brake
(see Parking brake) ..................173
Emission control system ..........156
End user license agreement ....411
Engine ........................................315
cleaning ...................................276
coolant .....................................255
fail-safe cooling .......................257
idle speed control ...................262
lubrication specifications .......316
refill capacities ........................316
service points ..........................254
Engine block heater .................148
Engine oil
checking and adding ..............254
dipstick ....................................254
filter, specifications ................320
refill capacities ........................316
specifications ..........................316
Event data recording ..................12
Exhaust fumes ..........................147
F
Fail safe cooling ........................257
Fleet MyKey programming ........62
Floor mats .................................225
Fluid capacities .........................316
Four-Wheel Drive vehicles
driving off road .......................166
Fuel
cap ...........................................154
capacity ...................................316
choosing the right fuel ...........151
filler funnel .............................152
filling your vehicle with fuel ..154
filter, specifications ................261
fuel pump shut-off ..................229octane rating ...................152, 315
quality ......................................151
running out of fuel .................152
safety information relating to
automotive fuels .....................150
Fuses ..........................242–243, 247
G
Garage door opener ..................137
Gas cap (see Fuel cap) ............154
Gauges .......................................100
H
Hazard flashers .........................229
HD Radio™ ...............................347
Headlamps
aiming ......................................267
bulb specifications ..................273
flash to pass ..............................86
high beam .................................86
replacing bulbs .......................269
Head restraints .........................127
Heated steering wheel ..............396
Heating ......................................121
Help ............................................395
Hill start assist ..........................174
Homelink wireless control
system ........................................137
Hood ..........................................252
How to use voice commands ...341
I
Ignition .......................................315
Illuminated visor mirror .......97–98
448Index
2014 MKX(mkx)
Owners Guide gf, 1st Printing, June 2014
USA(fus)

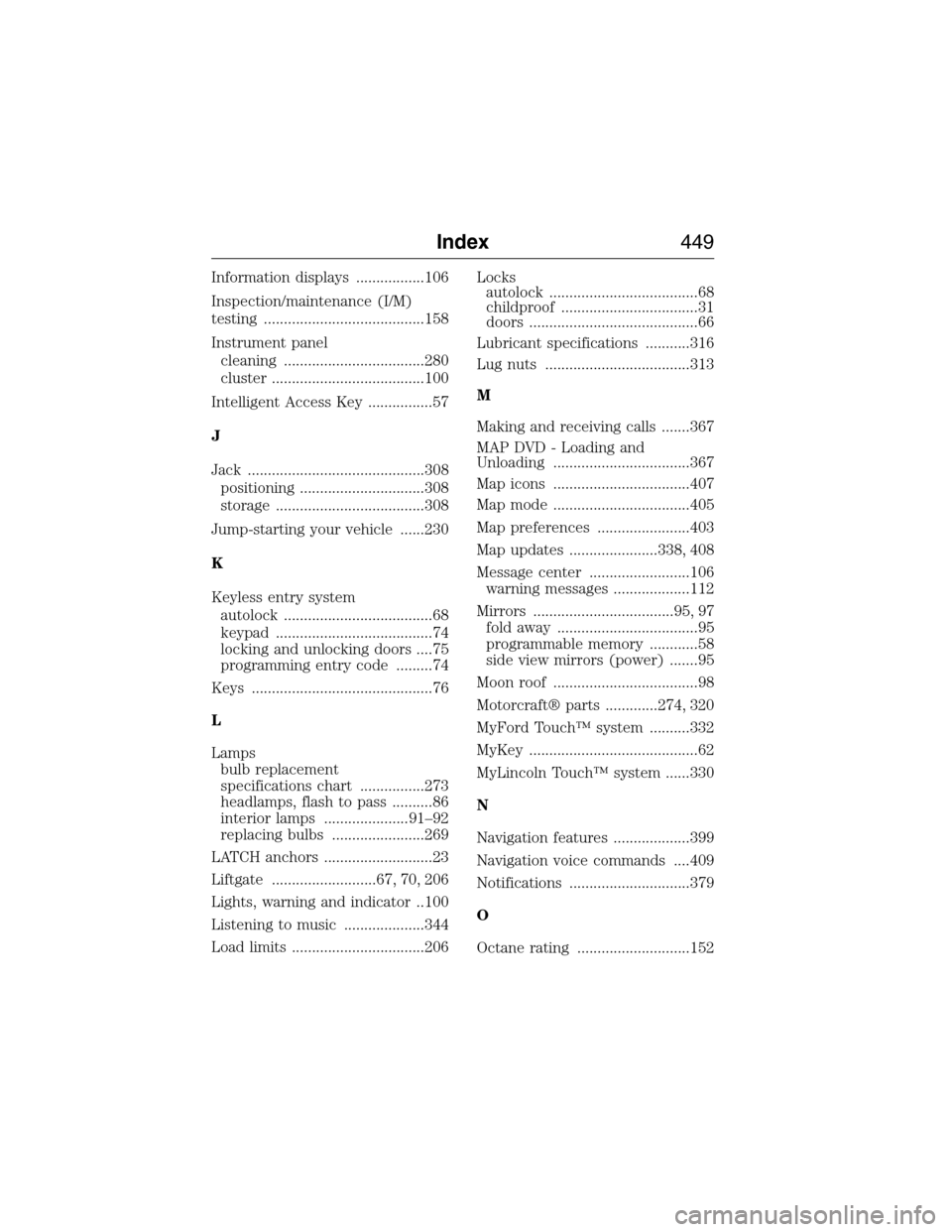

Information displays .................106
Inspection/maintenance (I/M)
testing ........................................158
Instrument panel
cleaning ...................................280
cluster ......................................100
Intelligent Access Key ................57
J
Jack ............................................308
positioning ...............................308
storage .....................................308
Jump-starting your vehicle ......230
K
Keyless entry system
autolock .....................................68
keypad .......................................74
locking and unlocking doors ....75
programming entry code .........74
Keys .............................................76
L
Lamps
bulb replacement
specifications chart ................273
headlamps, flash to pass ..........86
interior lamps .....................91–92
replacing bulbs .......................269
LATCH anchors ...........................23
Liftgate ..........................67, 70, 206
Lights, warning and indicator ..100
Listening to music ....................344
Load limits .................................206Locks
autolock .....................................68
childproof ..................................31
doors ..........................................66
Lubricant specifications ...........316
Lug nuts ....................................313
M
Making and receiving calls .......367
MAP DVD - Loading and
Unloading ..................................367
Map icons ..................................407
Map mode ..................................405
Map preferences .......................403
Map updates ......................338, 408
Message center .........................106
warning messages ...................112
Mirrors ...................................95, 97
fold away ...................................95
programmable memory ............58
side view mirrors (power) .......95
Moon roof ....................................98
Motorcraft® parts .............274, 320
MyFord Touch™ system ..........332
MyKey ..........................................62
MyLincoln Touch™ system ......330
N
Navigation features ...................399
Navigation voice commands ....409
Notifications ..............................379
O
Octane rating ............................152
Index449
2014 MKX(mkx)
Owners Guide gf, 1st Printing, June 2014
USA(fus)
