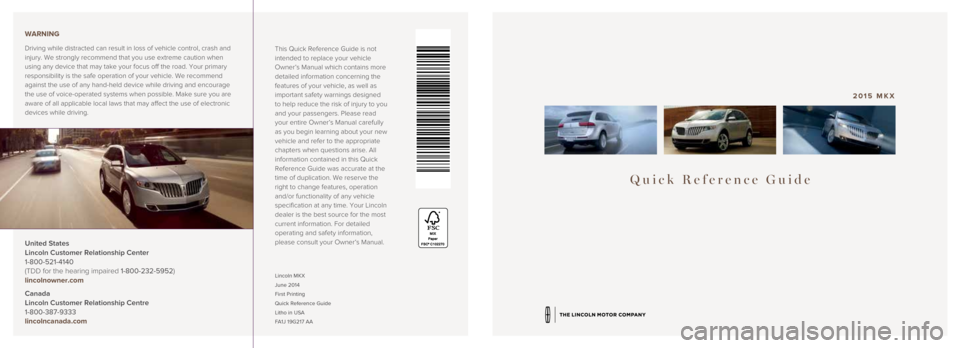

start stop button LINCOLN MKX 2015 Quick Reference Guide

45

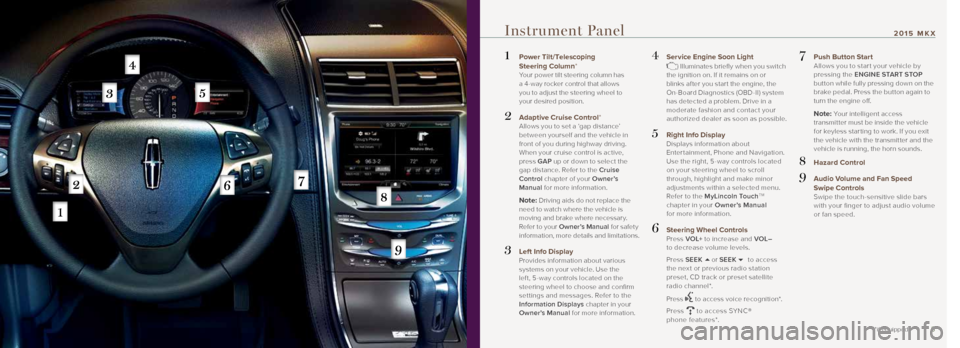

Instrument Panel
1 Power Tilt/Telescoping
Steering Column*
Your power tilt steering column has
a 4 -way rocker control that allows
you to adjust the steering wheel to
your desired position.
2 Adaptive Cruise Control * Allows you to set a ‘gap distance’
between yourself and the vehicle in
front of you during highway driving.
When your cruise control is active,
press GAP up or down to select the
gap distance. Refer to the Cruise
Control chapter of your Owner’s
Manual for more information.
Note: Driving aids do not replace the
need to watch where the vehicle is
moving and brake where necessar y.
Refer to your Owner’s Manual for safet y
information, more details and limitations.
3 Left Info Display Provides information about various
systems on your vehicle. Use the
lef t, 5 -way controls located on the
steering wheel to choose and confirm
settings and messages. Refer to the
Information Displays chapter in your
Owner’s Manual for more information.
4 Service Engine Soon Light Illuminates briefly when you switch
the ignition on. If it remains on or
blinks af ter you star t the engine, the
On- Board Diagnostics (OBD - II) system
has detected a problem. Drive in a
moderate fashion and contact your
authorized dealer as soon as possible.
5 Right Info Display Displays information about
Entertainment, Phone and Navigation.
Use the right, 5 -way controls located
on your steering wheel to scroll
through, highlight and make minor
adjustments within a selected menu.
Refer to the MyLincoln Touch
TM
chapter in your Owner’s Manual
for more information.
6 Steering Wheel Controls Press VO L+ to increase and VOL–
to decrease volume levels.
Press SEEK
or SEEK to access
the nex t or previous radio station
preset, CD track or preset satellite
radio channel*.
Press to access voice recognition*.
Press
to access SYNC®
phone features*.
7 Push Button Start Allows you to star t your vehicle by
pressing the ENGINE START STOP
button while fully pressing down on the
brake pedal. Press the button again to
turn the engine off.
Note: Your intelligent access
transmitter must be inside the vehicle
for keyless star ting to work. If you exit
the vehicle with the transmitter and the
vehicle is running, the horn sounds.
8 Hazard Control
9 Audio Volume and Fan Speed
Swipe Controls
Swipe the touch-sensitive slide bars
with your finger to adjust audio volume
or fan speed.
*if equipped
2015 MKX

1011

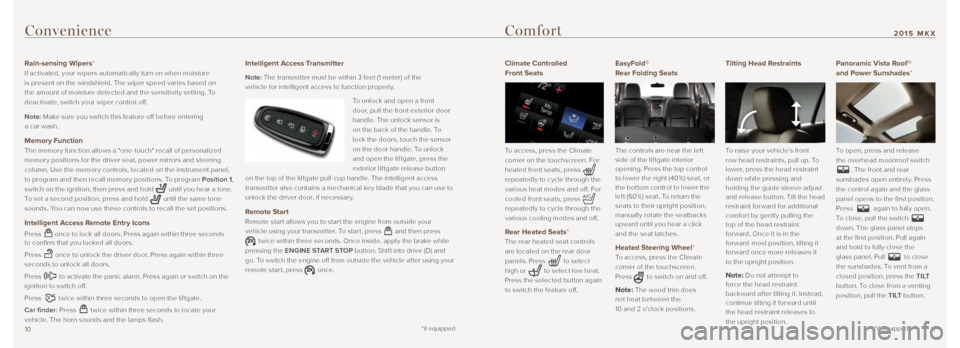

Rain-sensing Wipers*
If activated, your wipers automatically turn on when moisture
is present on the windshield. The wiper speed varies based on
the amount of moisture detected and the sensitivit y setting. To
deactivate, switch your wiper control off.
Note: Make sure you switch this feature off before entering
a car wash.
Memory Function
The memor y function allows a "one-touch" recall of personalized
memor y positions for the driver seat, power mirrors and steering
column. Use the memor y controls, located on the instrument panel,
to program and then recall memor y positions. To program Position 1,
switch on the ignition, then press and hold
until you hear a tone.
To set a second position, press and hold
until the same tone
sounds. You can now use these controls to recall the set positions.
Intelligent Access Remote Entry Icons
Press once to lock all doors. Press again within three seconds
to confirm that you locked all doors.
Press
once to unlock the driver door. Press again within three
seconds to unlock all doors.
Press
to activate the panic alarm. Press again or switch on the
ignition to switch off.
Press
twice within three seconds to open the lif tgate.
Car finder: Press
twice within three seconds to locate your
vehicle. The horn sounds and the lamps flash.
Intelligent Access Transmitter
Note: The transmitter must be within 3 feet (1 meter) of the
vehicle for intelligent access to function properly.
To unlock and open a front
door, pull the front ex terior door
handle. The unlock sensor is
on the back of the handle. To
lock the doors, touch the sensor
on the door handle. To unlock
and open the lif tgate, press the
exterior liftgate release button
on the top of the lif tgate pull-cup handle. The intelligent access
transmitter also contains a mechanical key blade that you can use to
unlock the driver door, if necessar y.
Remote Start
Remote star t allows you to star t the engine from outside your
vehicle using your transmitter. To star t, press
and then press
twice within three seconds. Once inside, apply the brake while
pressing the ENGINE START STOP button. Shif t into drive (D) and
go. To switch the engine off from outside the vehicle af ter using your
remote star t, press
once.
Climate Controlled
Front Seats

To access, press the Climate
corner on the touchscreen. For
heated front seats, press

repeatedly to cycle through the
various heat modes and off. For
cooled front seats, press

repeatedly to cycle through the
various cooling modes and off.
Rear Heated Seats*
The rear heated seat controls
are located on the rear door
panels. Press
to select
high or
to select low heat.
Press the selected button again
to switch the feature off.
EasyFold®
Rear Folding Seats

The controls are near the lef t
side of the lif tgate interior
opening. Press the top control
to lower the right (40%) seat, or
the bottom control to lower the
lef t (60%) seat. To return the
seats to their upright position,
manually rotate the seatbacks
upward until you hear a click
and the seat latches.
Heated Steering Wheel*
To access, press the Climate
corner of the touchscreen.
Press
to switch on and off.
Note: The wood trim does
not heat between the
10 and 2 o’clock positions.
Tilting Head Restraints

To raise your vehicle’s front
row head restraints, pull up. To
lower, press the head restraint
down while pressing and
holding the guide sleeve adjust
and release button. Tilt the head
restraint forward for additional
comfor t by gently pulling the
top of the head restraint
for ward. Once it is in the
forward-most position, tilting it
forward once more releases it
to the upright position.
Note: Do not attempt to
force the head restraint
back ward af ter tilting it. Instead,
continue tilting it forward until
the head restraint releases to
the upright position.
Panoramic Vista Roof ®
and Power Sunshades*

To open, press and release
the overhead moonroof switch
. The front and rear
sunshades open entirely. Press
the control again and the glass
panel opens to the first position.
Press
again to fully open.
To close, pull the switch
down. The glass panel stops
at the first position. Pull again
and hold to fully close the
glass panel. Pull
to close
the sunshades. To vent from a
closed position, press the T I LT
button. To close from a venting
position, pull the T I LT button.
Convenience Comfort
*if equipped *if equipped
2015 MKX
