wheel LINCOLN MKX 2015 Quick Reference Guide

23

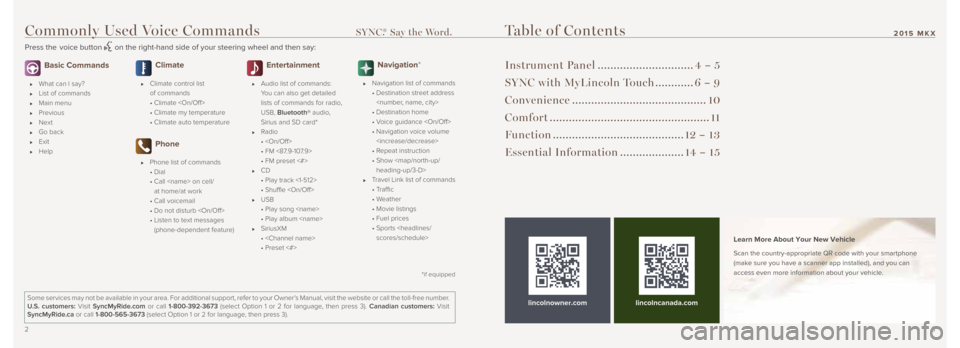

Commonly Used Voice Commands SYNC.® Say the Word.
Press the voice button on the right-hand side of your steering wheel and then say:
Table of Contents
Instrument Panel .............................. 4 – 5
SYNC with MyLincoln Touch ............6 – 9
Convenience .......................................... 10
Comfort .................................................. 11
Function ......................................... 12 – 13
Essential Information .................... 14 – 15
lincolnowner.com Learn More About Your New Vehicle
Scan the country-appropriate QR code with your smartphone
(make sure you have a scanner app installed), and you can
access even more information about your vehicle.
Some services may not be available in your area. For additional support,\
refer to your Owner’s Manual, visit the website or call the toll-free number.
U.S. customers: Visit SyncMyRide.com or call 1-800-392-3673 (select Option 1 or 2 for language, then press 3). Canadian customers: Visit
SyncMyRide.ca or call 1-800-565-3673 (select Option 1 or 2 for language, then press 3).
lincolncanada.com
Basic Commands
What can I say?

List of commands

Main menu

Previous

Next

Go back

Exit

Help
Climate
Climate control list
of commands
• Climate
• Climate my temperature
• Climate auto temperature
Phone
Phone list of commands
• Dial
• Call on cell/
at home/at work
• Call voicemail
• Do not disturb
• Listen to text messages
(phone-dependent feature)
Entertainment
Audio list of commands:
You can also get detailed
lists of commands for radio,
USB, Bluetooth® audio,
Sirius and SD card*

Radio
•
• FM <87.9-107.9>
• FM preset <#>

CD
• Play track <1-512>
• Shuffle

USB
• Play song
• Play album

SiriusXM
•
• Preset <#>
Navigation*
Navigation list of commands
• Destination street address

• Destination home
• Voice guidance
• Navigation voice volume

• Repeat instruction
• Show

45
Instrument Panel
1 Power Tilt/Telescoping
Steering Column*
Your power tilt steering column has
a 4 -way rocker control that allows
you to adjust the steering wheel to
your desired position.
2 Adaptive Cruise Control * Allows you to set a ‘gap distance’
between yourself and the vehicle in
front of you during highway driving.
When your cruise control is active,
press GAP up or down to select the
gap distance. Refer to the Cruise
Control chapter of your Owner’s
Manual for more information.
Note: Driving aids do not replace the
need to watch where the vehicle is
moving and brake where necessar y.
Refer to your Owner’s Manual for safet y
information, more details and limitations.
3 Left Info Display Provides information about various
systems on your vehicle. Use the
lef t, 5 -way controls located on the
steering wheel to choose and confirm
settings and messages. Refer to the
Information Displays chapter in your
Owner’s Manual for more information.
4 Service Engine Soon Light Illuminates briefly when you switch
the ignition on. If it remains on or
blinks af ter you star t the engine, the
On- Board Diagnostics (OBD - II) system
has detected a problem. Drive in a
moderate fashion and contact your
authorized dealer as soon as possible.
5 Right Info Display Displays information about
Entertainment, Phone and Navigation.
Use the right, 5 -way controls located
on your steering wheel to scroll
through, highlight and make minor
adjustments within a selected menu.
Refer to the MyLincoln Touch
TM
chapter in your Owner’s Manual
for more information.
6 Steering Wheel Controls Press VO L+ to increase and VOL–
to decrease volume levels.
Press SEEK
or SEEK to access
the nex t or previous radio station
preset, CD track or preset satellite
radio channel*.
Press to access voice recognition*.
Press
to access SYNC®
phone features*.
7 Push Button Start Allows you to star t your vehicle by
pressing the ENGINE START STOP
button while fully pressing down on the
brake pedal. Press the button again to
turn the engine off.
Note: Your intelligent access
transmitter must be inside the vehicle
for keyless star ting to work. If you exit
the vehicle with the transmitter and the
vehicle is running, the horn sounds.
8 Hazard Control
9 Audio Volume and Fan Speed
Swipe Controls
Swipe the touch-sensitive slide bars
with your finger to adjust audio volume
or fan speed.
*if equipped
2015 MKX

89

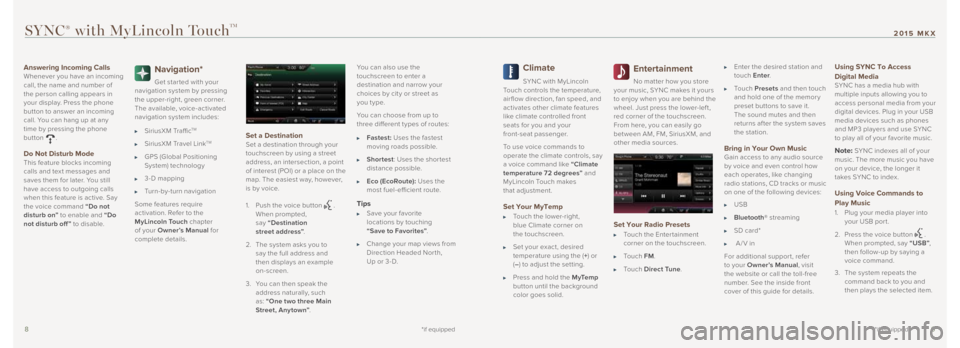

Answering Incoming Calls
Whenever you have an incoming
call, the name and number of
the person calling appears in
your display. Press the phone
button to answer an incoming
call. You can hang up at any
time by pressing the phone
button
.
Do Not Disturb Mode
This feature blocks incoming
calls and tex t messages and
saves them for later. You still
have access to outgoing calls
when this feature is active. Say
the voice command “Do not
disturb on” to enable and “Do
not disturb off ” to disable.
Navigation*
Get star ted with your
navigation system by pressing
the upper-right, green corner.
The available, voice-activated
navigation system includes:
SiriusXM TrafficTM
SiriusXM Travel LinkTM
GPS (Global Positioning
System) technology
3- D mapping
Turn-by-turn navigation
Some features require
activation. Refer to the
MyLincoln Touch chapter
of your Owner’s Manual for
complete details.
Set a Destination
Set a destination through your
touchscreen by using a street
address, an intersection, a point
of interest (POI) or a place on the
map. The easiest way, however,
is by voice.
1. Push the voice button
.
When prompted,
say “Destination
street address” .
2. The system asks you to
say the full address and
then displays an example
on-screen.
3. You can then speak the
address naturally, such
as: “One two three Main
Street, Anytown” .You can also use the
touchscreen to enter a
destination and narrow your
choices by cit y or street as
you t ype.
You can choose from up to
three different t ypes of routes:

Fastest: Uses the fastest
moving roads possible.
Shortest : Uses the shor test
distance possible.
Eco (EcoRoute): Uses the
most fuel-efficient route.
Tips
Save your favorite
locations by touching
“Save to Favorites” .
Change your map views from
Direction Headed Nor th,
Up or 3- D.
Climate
SYNC with MyLincoln
Touch controls the temperature,
air flow direction, fan speed, and
activates other climate features
like climate controlled front
seats for you and your
front-seat passenger.
To use voice commands to
operate the climate controls, say
a voice command like “Climate
temperature 72 degrees” and
MyLincoln Touch makes
that adjustment.
Set Your MyTemp
Touch the lower-right,
blue Climate corner on
the touchscreen.
Set your exact, desired
temperature using the ( +) or
( – ) to adjust the setting.
Press and hold the M yTe m p
button until the background
color goes solid.


Entertainment
No matter how you store
your music, SYNC makes it yours
to enjoy when you are behind the
wheel. Just press the lower-lef t,
red corner of the touchscreen.
From here, you can easily go
between AM, FM, SiriusXM, and
other media sources.
Set Your Radio Presets
Touch the Enter tainment
corner on the touchscreen.
To u c h FM .
To u c h Direct Tune .
Enter the desired station and
touch Enter .
To u c h Presets and then touch
and hold one of the memor y
preset buttons to save it.
The sound mutes and then
returns af ter the system saves
the station.
Bring in Your Own Music
Gain access to any audio source
by voice and even control how
each operates, like changing
radio stations, CD tracks or music
on one of the following devices:
USB
Bluetooth® streaming
SD card*
A/V in
For additional suppor t, refer
to your Owner’s Manual , visit
the website or call the toll-free
number. See the inside front
cover of this guide for details.
Using SYNC To Access
Digital Media

SYNC has a media hub with
multiple inputs allowing you to
access personal media from your
digital devices. Plug in your USB
media devices such as phones
and MP3 players and use SYNC
to play all of your favorite music.
Note: SYNC indexes all of your
music. The more music you have
on your device, the longer it
takes SYNC to index.
Using Voice Commands to
Play Music

1. Plug your media player into
your USB por t.
2. Press the voice button
.
When prompted, say “USB” ,
then follow-up by saying a
voice command.
3. The system repeats the
command back to you and
then plays the selected item.
SYNC® with MyLincoln TouchTM
*if equipped*if equipped
2015 MKX

1011
Rain-sensing Wipers*
If activated, your wipers automatically turn on when moisture
is present on the windshield. The wiper speed varies based on
the amount of moisture detected and the sensitivit y setting. To
deactivate, switch your wiper control off.
Note: Make sure you switch this feature off before entering
a car wash.
Memory Function
The memor y function allows a "one-touch" recall of personalized
memor y positions for the driver seat, power mirrors and steering
column. Use the memor y controls, located on the instrument panel,
to program and then recall memor y positions. To program Position 1,
switch on the ignition, then press and hold
until you hear a tone.
To set a second position, press and hold
until the same tone
sounds. You can now use these controls to recall the set positions.
Intelligent Access Remote Entry Icons
Press once to lock all doors. Press again within three seconds
to confirm that you locked all doors.
Press
once to unlock the driver door. Press again within three
seconds to unlock all doors.
Press
to activate the panic alarm. Press again or switch on the
ignition to switch off.
Press
twice within three seconds to open the lif tgate.
Car finder: Press
twice within three seconds to locate your
vehicle. The horn sounds and the lamps flash.
Intelligent Access Transmitter
Note: The transmitter must be within 3 feet (1 meter) of the
vehicle for intelligent access to function properly.
To unlock and open a front
door, pull the front ex terior door
handle. The unlock sensor is
on the back of the handle. To
lock the doors, touch the sensor
on the door handle. To unlock
and open the lif tgate, press the
exterior liftgate release button
on the top of the lif tgate pull-cup handle. The intelligent access
transmitter also contains a mechanical key blade that you can use to
unlock the driver door, if necessar y.
Remote Start
Remote star t allows you to star t the engine from outside your
vehicle using your transmitter. To star t, press
and then press
twice within three seconds. Once inside, apply the brake while
pressing the ENGINE START STOP button. Shif t into drive (D) and
go. To switch the engine off from outside the vehicle af ter using your
remote star t, press
once.
Climate Controlled
Front Seats

To access, press the Climate
corner on the touchscreen. For
heated front seats, press

repeatedly to cycle through the
various heat modes and off. For
cooled front seats, press

repeatedly to cycle through the
various cooling modes and off.
Rear Heated Seats*
The rear heated seat controls
are located on the rear door
panels. Press
to select
high or
to select low heat.
Press the selected button again
to switch the feature off.
EasyFold®
Rear Folding Seats

The controls are near the lef t
side of the lif tgate interior
opening. Press the top control
to lower the right (40%) seat, or
the bottom control to lower the
lef t (60%) seat. To return the
seats to their upright position,
manually rotate the seatbacks
upward until you hear a click
and the seat latches.
Heated Steering Wheel*
To access, press the Climate
corner of the touchscreen.
Press
to switch on and off.
Note: The wood trim does
not heat between the
10 and 2 o’clock positions.
Tilting Head Restraints

To raise your vehicle’s front
row head restraints, pull up. To
lower, press the head restraint
down while pressing and
holding the guide sleeve adjust
and release button. Tilt the head
restraint forward for additional
comfor t by gently pulling the
top of the head restraint
for ward. Once it is in the
forward-most position, tilting it
forward once more releases it
to the upright position.
Note: Do not attempt to
force the head restraint
back ward af ter tilting it. Instead,
continue tilting it forward until
the head restraint releases to
the upright position.
Panoramic Vista Roof ®
and Power Sunshades*

To open, press and release
the overhead moonroof switch
. The front and rear
sunshades open entirely. Press
the control again and the glass
panel opens to the first position.
Press
again to fully open.
To close, pull the switch
down. The glass panel stops
at the first position. Pull again
and hold to fully close the
glass panel. Pull
to close
the sunshades. To vent from a
closed position, press the T I LT
button. To close from a venting
position, pull the T I LT button.
Convenience Comfort
*if equipped *if equipped
2015 MKX

1415
Cargo Storage
The cargo storage compartment
is in the floor of the rear hatch.
Lif t the release handle to open
the floor panel upward. You
may also have a cargo net that
secures lightweight objects in the cargo area. Attach the net to the
anchors provided on both sides of the vehicle's interior.
Towing Your MKX
Towing your vehicle behind an RV or any other vehicle may be
limited. Refer to Towing the Vehicle on Four Wheels section in the
To w i n g chapter of your Owner’s Manual .
Rear-window Buffeting
You may hear a pulsing noise when one or both of the rear windows
are open. Lower a front window slightly to help reduce the noise.
THX II® Certified Audio System*
Fourteen strategically positioned,
high-performance speakers deliver
a home theater sound right in your
vehicle. The system automatically
makes adjustments to volume
and sound distribution, based
on vehicle speed and ex ternal
road noise.
Fuel Tank Capacity/Fuel Info
All-wheel drive vehicles have a 19.2 gallon ( 72.7L) fuel tank capacit y
and front-wheel drive vehicles have an 18.3 gallon (69.3L) fuel tank
capacity. Use only “Regular” unleaded gasoline with an octane
rating of 87 or higher. Do not use E85 fuels because your vehicle
was not designed to run on fuels with more than 15% ethanol.
Running Out of Fuel
When using a por table fuel container, slowly inser t the fuel funnel
(located in the spare tire compar tment), and pour the fuel into the
funnel. When done, clean the funnel or properly dispose of it. Ex tra
funnels can be purchased from your authorized dealer. Do not use
af termarket funnels as they do not work with the Easy Fuel ® system
and may cause damage.
Note: Avoid running out of fuel because this situation may have an
adverse effect on power train components.
Fuel-efficient Transmission
Your vehicle has been designed to improve fuel economy by
reducing fuel usage while coasting or decelerating. This may be
perceived as a light to medium braking sensation when removing
your foot from the accelerator pedal.
Essential Information
*if equipped *if equipped
Collision Warning System*
This system is designed to
aler t you of cer tain collision
risks. Radar sensors detect if
vehicles ahead of you, moving
in the same direction, may be a
collision risk. The system aler ts
you with an audible tone and
red warning light that appears above the dash. If the risk of collision
increases, the system increases brake suppor t to help reduce
collision speed.
Note: Driving aids do not replace the need to watch where the
vehicle is moving and brake when necessar y. Refer to your
Owner's Manual for safety information, more details
and limitations.
Tire Pressure Monitoring System
Your vehicle has a tire pressure monitoring system that
illuminates a low tire pressure warning light
in your
instrument cluster when one or more of your tires are significantly
under-inflated. If this happens stop and check your tires as soon as
possible. Inflate them to the proper pressure. Refer to the Inflating
Your Tires section in the Wheels and Tires chapter of your
Owner’s Manual for more information.
Location of Spare Tire and Tools
Your spare tire and tools are located beneath the carpeted floor
panel in the rear of your vehicle. The spare tire is designed for
emergency use only and should be replaced as soon as possible.
For complete details on changing your tire, refer to the
Changing a Road Wheel in the Wheels and Tires chapter
of your Owner’s Manual .
Roadside Assistance
Your new Lincoln vehicle comes with the assurance and suppor t
of 24-hour emergency roadside assistance. To receive roadside
assistance in the United States, call 1-800-521-4140 .
In Canada, call 1-800-387-9333 .
2015 MKX
