LINCOLN MKX 2017 Owners Manual

Protected Components
Fuse Amp Rating
Fuse or Relay Number
Power fold 2nd row seats.
30A 1
1
Starter relay.
—
2
Rear wiper.
15A 1
3
Rain sensor
Blower motor relay.
—
4
Power point 3 - back of console.
20A 2
5
Not used.
—
6
Powertrain control module - vehicle power 1.
20A 1
7
Powertrain control module - vehicle power 2.
20A 1
8
Powertrain control module relay.
—
9
Power point 1 - driver front.
20A 2
10
Powertrain control module - vehicle power 4.
15A 3
11
Powertrain control module - vehicle power 3.
15A 3
12
Not used.
—
13
288
MKX (CD9) Canada/United States of America, enUSA, First Printing Fuses

Protected Components
Fuse Amp Rating
Fuse or Relay Number
Not used.
—
14
Run-start relay.
—
15
Power point 2 - console bin.
20A 2
16
Power point 4 - luggage compartment.
20A 2
17
RH HID headlamp.
20A 1
18
Run-start electronic power assist steering.
10A 1
19
Run/start lighting.
10A 1
20
Transmission oil pump logic power (start/stop).
15A 1
21
Air conditioner clutch solenoid.
10A 1
22
Front split view camera.
15A 1
23
Rear view camera.
Front split view camera module.
Gear shift actuator.
Not used (spare).
10A 1
24
289
MKX (CD9) Canada/United States of America, enUSA, First Printing Fuses

Protected Components
Fuse Amp Rating
Fuse or Relay Number
Run-start anti-lock brake system.
10A 3
25
Run-start powertrain control module.
10A 3
26
Not used.
—
27
Rear washer pump.
10A 1
28
Not used.
—
29
Not used.
—
30
Not used.
—
31
Electronic fan 1 relay.
—
32
A/C clutch relay.
—
33
Glove box release.
15A 1
34
Not used.
—
35
Not used.
—
36
Power transfer unit fan.
10A 1
37
Electronic fan 2 relay.
—
38
290
MKX (CD9) Canada/United States of America, enUSA, First Printing Fuses

Protected Components
Fuse Amp Rating
Fuse or Relay Number
Electric fan 3 relay.
—
39
Horn relay.
—
40
Not used.
—
41
Fuel pump relay.
—
42
2nd row easy fold seat release.
10A 1
43
LH HID headlamp.
20A 1
44
Not used.
—
45
Not used.
—
46
Not used.
—
47
Not used.
—
48
Not used.
—
49
Horn.
20A 1
50
Not used.
—
51
Not used.
—
52
Multi-contour seats.
10A 1
53
291
MKX (CD9) Canada/United States of America, enUSA, First Printing Fuses

Protected Components
Fuse Amp Rating
Fuse or Relay Number
Brake on off switch.
10A 3
54
ALT sensor.
10A 3
55
1 Micro 2 fuse.
2 M case fuse.
3 Micro 3 fuse.

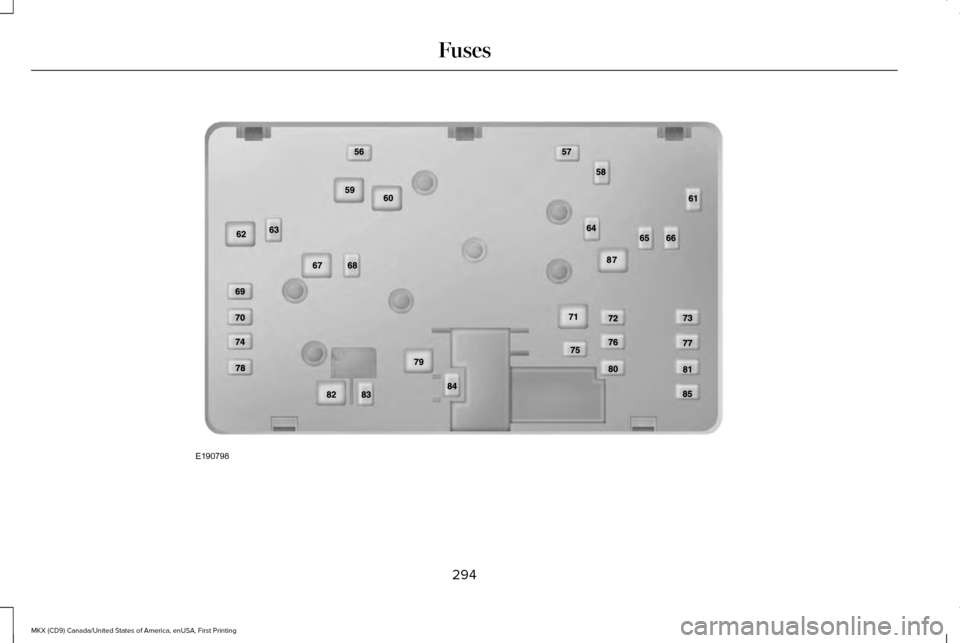

Power Distribution Box - Bottom
There are fuses located on the bottom of the
fuse box. To access the bottom of the fuse
box, do the following:
292
MKX (CD9) Canada/United States of America, enUSA, First Printing Fuses

1.
Release the two latches, located on both
sides of the fuse box.
2. Raise the inboard side of the fuse box from the cradle.
3. Move the fuse box toward the center of the engine compartment.
4. Pivot the outboard side of the fuse box to access the bottom side.
293
MKX (CD9) Canada/United States of America, enUSA, First Printing FusesE145983

294
MKX (CD9) Canada/United States of America, enUSA, First Printing FusesE190798

Protected components
Fuse amp rating
Fuse or relay number
Not used.
—
56
Not used.
—
57
Fuel pump feed.
30A 1
58
Electronic fan 3.
40A 2
59
Electronic fan 1.
40A 2
60
Not used.
—
61
Body control module 1.
50A 2
62
Electronic fan 2.
25A 1
63
Headlamp washer.
20A 1
64
Front heated seat.
20A 1
65
Heated wiper park.
15A 1
66
Body control module 2.
50A 2
67
295
MKX (CD9) Canada/United States of America, enUSA, First Printing Fuses

Protected components
Fuse amp rating
Fuse or relay number
Heated rear window.
40A 1
68
Anti-lock brake system valves.
30A 1
69
Passenger seat.
30A 1
70
Active front steering.
50A 1
71
Transmission oil pump (start/stop).
20A 1
72
Rear heated seats.
20A 1
73
Driver seat module.
30A 1
74
Wiper motor 1.
25A 1
75
Power liftgate module.
30A 1
76
Climate control seat module.
30A 1
77
Trailer lighting module.
40A 1
78
Blower motor.
40A 2
79
296
MKX (CD9) Canada/United States of America, enUSA, First Printing Fuses

Protected components
Fuse amp rating
Fuse or relay number
Wiper motor 2.
25A 1
80
110 volt inverter.
40A 1
81
Not used.
–
82
TRCM (iShifter).
20A 1
83
Starter solenoid.
30A 1
84
Not used (spare).
30A 1
85
Not used.
–
86
Anti-lock brake system pump.
60A 2
87
1 M case fuse.
2 J case fuse.
Passenger Compartment Fuse Panel
The fuse panel is located under the
instrument panel to the left of the steering
column. Note:
It may be easier to access the fuse
panel if you remove the finish trim piece.
297
MKX (CD9) Canada/United States of America, enUSA, First Printing Fuses
