height adjustment LINCOLN MKX 2017 Owners Manual

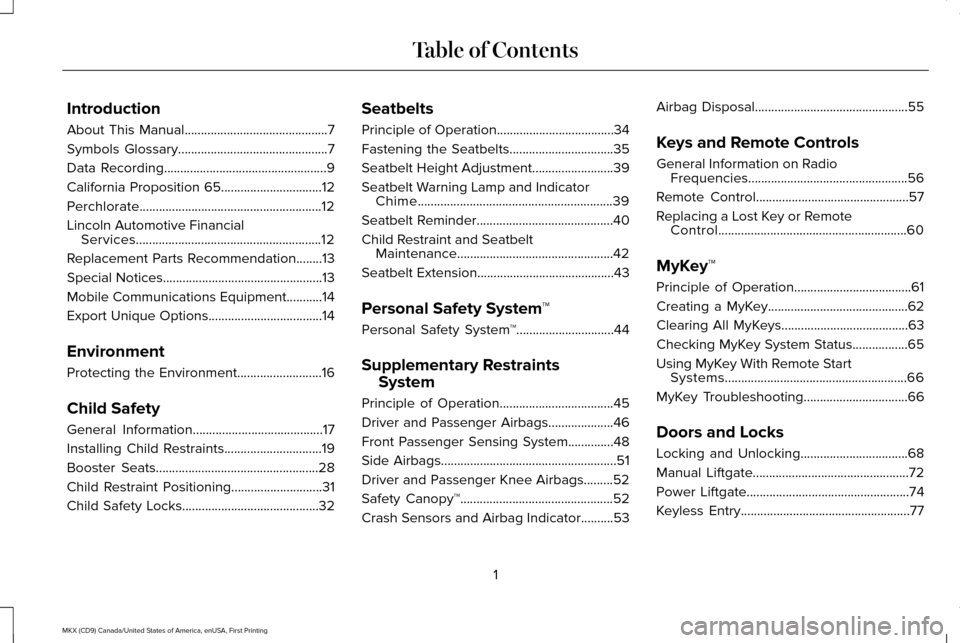

Introduction
About This Manual............................................7
Symbols Glossary
..............................................7
Data Recording
..................................................9
California Proposition 65
...............................12
Perchlorate........................................................12
Lincoln Automotive Financial Services
.........................................................12
Replacement Parts Recommendation........13
Special Notices
.................................................13
Mobile Communications Equipment
...........14
Export Unique Options...................................14
Environment
Protecting the Environment..........................16
Child Safety
General Information
........................................17
Installing Child Restraints
..............................19
Booster Seats
..................................................28
Child Restraint Positioning
............................31
Child Safety Locks..........................................32 Seatbelts
Principle of Operation....................................34
Fastening the Seatbelts................................35
Seatbelt Height Adjustment.........................39
Seatbelt Warning Lamp and Indicator
Chime
............................................................39
Seatbelt Reminder..........................................40
Child Restraint and Seatbelt Maintenance................................................42
Seatbelt Extension
..........................................43
Personal Safety System ™
Personal Safety System ™
..............................44
Supplementary Restraints System
Principle of Operation...................................45
Driver and Passenger Airbags....................46
Front Passenger Sensing System..............48
Side Airbags
......................................................51
Driver and Passenger Knee Airbags.........52
Safety Canopy™
...............................................52
Crash Sensors and Airbag Indicator
..........53 Airbag Disposal
...............................................55
Keys and Remote Controls
General Information on Radio Frequencies.................................................56
Remote Control
...............................................57
Replacing a Lost Key or Remote Control..........................................................60
MyKey™
Principle of Operation....................................61
Creating a MyKey...........................................62
Clearing All MyKeys.......................................63
Checking MyKey System Status
.................65
Using MyKey With Remote Start Systems........................................................66
MyKey Troubleshooting
................................66
Doors and Locks
Locking and Unlocking
.................................68
Manual Liftgate
................................................72
Power Liftgate..................................................74
Keyless Entry
....................................................77
1
MKX (CD9) Canada/United States of America, enUSA, First Printing Table of Contents

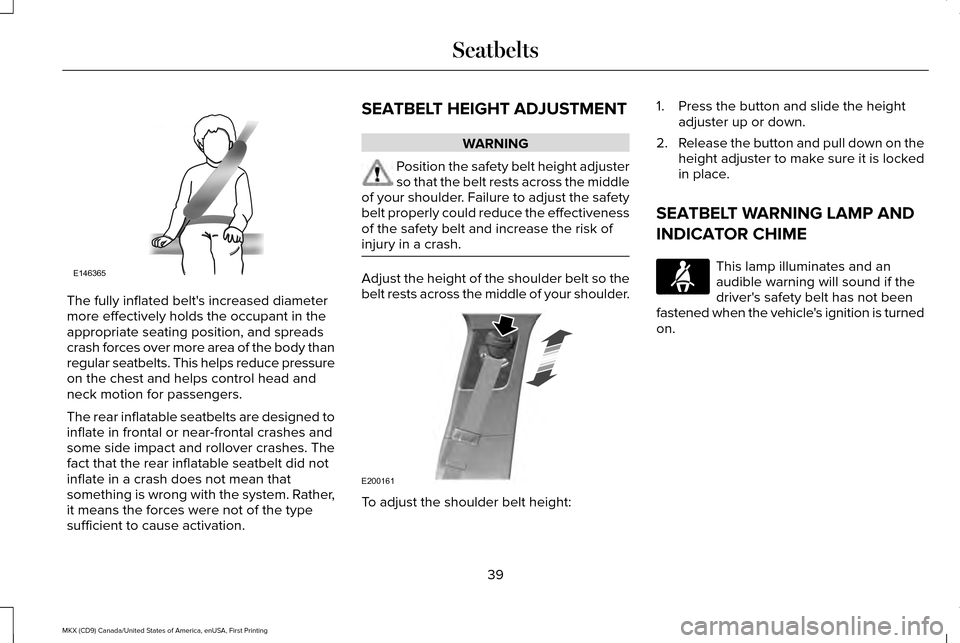

The fully inflated belt's increased diameter
more effectively holds the occupant in the
appropriate seating position, and spreads
crash forces over more area of the body than
regular seatbelts. This helps reduce pressure
on the chest and helps control head and
neck motion for passengers.
The rear inflatable seatbelts are designed to
inflate in frontal or near-frontal crashes and
some side impact and rollover crashes. The
fact that the rear inflatable seatbelt did not
inflate in a crash does not mean that
something is wrong with the system. Rather,
it means the forces were not of the type
sufficient to cause activation. SEATBELT HEIGHT ADJUSTMENT WARNING
Position the safety belt height adjuster
so that the belt rests across the middle
of your shoulder. Failure to adjust the safety
belt properly could reduce the effectiveness
of the safety belt and increase the risk of
injury in a crash. Adjust the height of the shoulder belt so the
belt rests across the middle of your shoulder.
To adjust the shoulder belt height:1. Press the button and slide the height
adjuster up or down.
2. Release the button and pull down on the
height adjuster to make sure it is locked
in place.
SEATBELT WARNING LAMP AND
INDICATOR CHIME This lamp illuminates and an
audible warning will sound if the
driver's safety belt has not been
fastened when the vehicle's ignition is turned
on.
39
MKX (CD9) Canada/United States of America, enUSA, First Printing SeatbeltsE146365 E200161 E71880

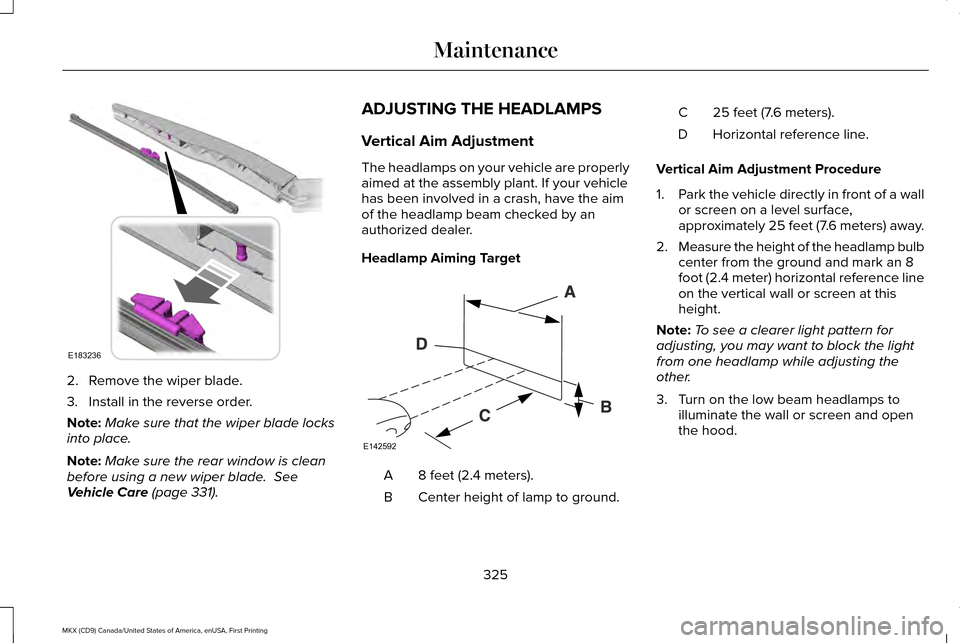

2. Remove the wiper blade.
3. Install in the reverse order.
Note:
Make sure that the wiper blade locks
into place.
Note: Make sure the rear window is clean
before using a new wiper blade. See
Vehicle Care (page 331). ADJUSTING THE HEADLAMPS
Vertical Aim Adjustment
The headlamps on your vehicle are properly
aimed at the assembly plant. If your vehicle
has been involved in a crash, have the aim
of the headlamp beam checked by an
authorized dealer.
Headlamp Aiming Target
8 feet (2.4 meters).
A
Center height of lamp to ground.
B 25 feet (7.6 meters).
C
Horizontal reference line.
D
Vertical Aim Adjustment Procedure
1. Park the vehicle directly in front of a wall
or screen on a level surface,
approximately 25 feet (7.6 meters) away.
2. Measure the height of the headlamp bulb
center from the ground and mark an 8
foot (2.4 meter) horizontal reference line
on the vertical wall or screen at this
height.
Note: To see a clearer light pattern for
adjusting, you may want to block the light
from one headlamp while adjusting the
other.
3. Turn on the low beam headlamps to illuminate the wall or screen and open
the hood.
325
MKX (CD9) Canada/United States of America, enUSA, First Printing MaintenanceE183236 E142592

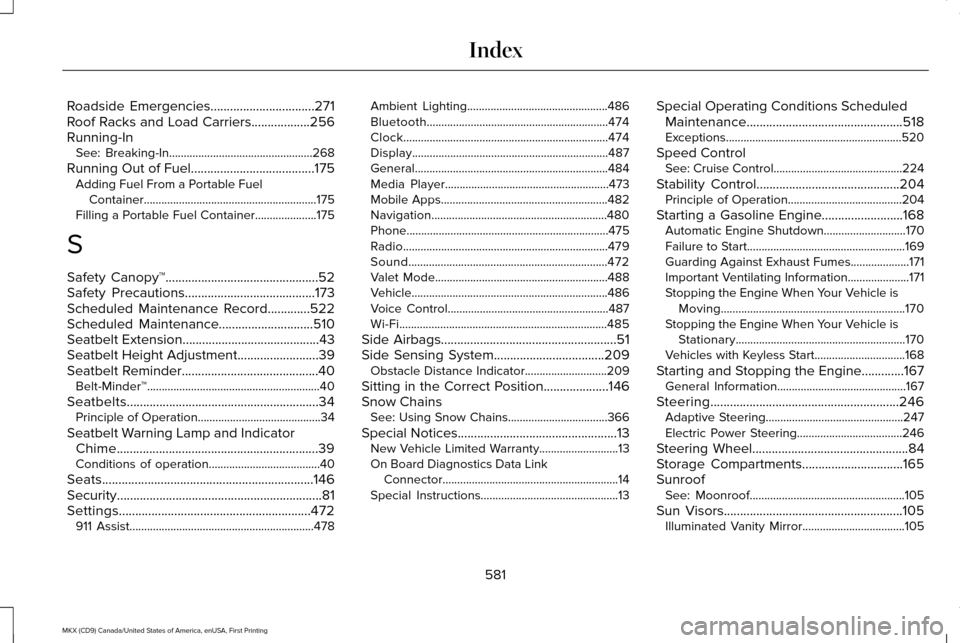

Roadside Emergencies................................271
Roof Racks and Load Carriers..................256
Running-In
See: Breaking-In.................................................268
Running Out of Fuel......................................175
Adding Fuel From a Portable Fuel
Container...........................................................175
Filling a Portable Fuel Container.....................175
S
Safety Canopy™
...............................................52
Safety Precautions........................................173
Scheduled Maintenance Record
.............522
Scheduled Maintenance.............................510
Seatbelt Extension..........................................43
Seatbelt Height Adjustment.........................39
Seatbelt Reminder..........................................40 Belt-Minder™...........................................................40
Seatbelts...........................................................34 Principle of Operation..........................................34
Seatbelt Warning Lamp and Indicator Chime..............................................................39
Conditions of operation......................................40
Seats.................................................................146
Security ...............................................................
81
Settings...........................................................472 911 Assist...............................................................478 Ambient Lighting................................................486
Bluetooth..............................................................474
Clock......................................................................474
Display...................................................................487
General
..................................................................484
Media Player........................................................473
Mobile Apps.........................................................482
Navigation............................................................480
Phone.....................................................................475
Radio......................................................................479
Sound....................................................................472
Valet Mode...........................................................488
Vehicle..................................................................\
.486
Voice Control.......................................................487
Wi-Fi.......................................................................485
Side Airbags
......................................................51
Side Sensing System..................................209
Obstacle Distance Indicator............................209
Sitting in the Correct Position....................146
Snow Chains See: Using Snow Chains..................................
366
Special Notices
.................................................13
New Vehicle Limited Warranty...........................13
On Board Diagnostics Data Link Connector............................................................14
Special Instructions...............................................13 Special Operating Conditions Scheduled
Maintenance................................................518
Exceptions ............................................................520
Speed Control See: Cruise Control............................................224
Stability Control
............................................204
Principle of Operation.......................................204
Starting a Gasoline Engine.........................168 Automatic Engine Shutdown............................
170
Failure to Start......................................................169
Guarding Against Exhaust Fumes....................171
Important Ventilating Information.....................171
Stopping the Engine When Your Vehicle is Moving...............................................................170
Stopping the Engine When Your Vehicle is Stationary..........................................................170
Vehicles with Keyless Start...............................168
Starting and Stopping the Engine.............167 General Information............................................167
Steering..........................................................246 Adaptive Steering...............................................247
Electric Power Steering....................................246
Steering Wheel................................................84
Storage Compartments
...............................165
Sunroof See: Moonroof.....................................................105
Sun Visors.......................................................105 Illuminated Vanity Mirror...................................105
581
MKX (CD9) Canada/United States of America, enUSA, First Printing Index
