seat memory LINCOLN MKX 2017 Owners Manual

Security
Passive Anti-Theft System.............................81
Anti-Theft Alarm..............................................83
Steering Wheel
Adjusting the Steering Wheel - Vehicles With: Manual Adjustable Steering
Column..........................................................84
Adjusting the Steering Wheel - Vehicles With: Power Adjustable Steering
Column..........................................................84
Audio Control
..................................................85
Voice Control
...................................................86
Cruise Control
.................................................86
Information Display Control.........................87
Heated Steering Wheel
.................................87
Wipers and Washers
Windshield Wipers.........................................88
Autowipers.......................................................89
Windshield Washers
......................................90
Rear Window Wiper and Washers
.............90 Lighting
General Information........................................91
Lighting Control
................................................91
Autolamps........................................................92
Instrument Lighting Dimmer........................93
Headlamp Exit Delay.....................................94
Daytime Running Lamps
...............................94
Automatic High Beam Control....................95
Adaptive Headlamps
.....................................96
Direction Indicators
........................................97
Welcome Lighting
...........................................97
Interior Lamps
..................................................98
Ambient Lighting............................................99
Windows and Mirrors
Power Windows.............................................100
Global Opening and Closing
.......................101
Exterior Mirrors
...............................................101
Interior Mirror
.................................................104
Sun Visors.......................................................105
Moonroof.........................................................105 Instrument Cluster
Gauges.............................................................107
Warning Lamps and Indicators..................109
Audible Warnings and Indicators...............113
Information Displays
General Information
.......................................114
Information Messages..................................121
Climate Control
Automatic Climate Control...........................141
Hints on Controlling the Interior Climate.........................................................143
Heated Windows and Mirrors....................144
Cabin Air Filter...............................................144
Remote Start
...................................................145
Seats
Sitting in the Correct Position....................146
Head Restraints
.............................................146
Power Seats....................................................149
Memory Function..........................................152
Rear Seats
.......................................................154
2
MKX (CD9) Canada/United States of America, enUSA, First Printing Table of Contents

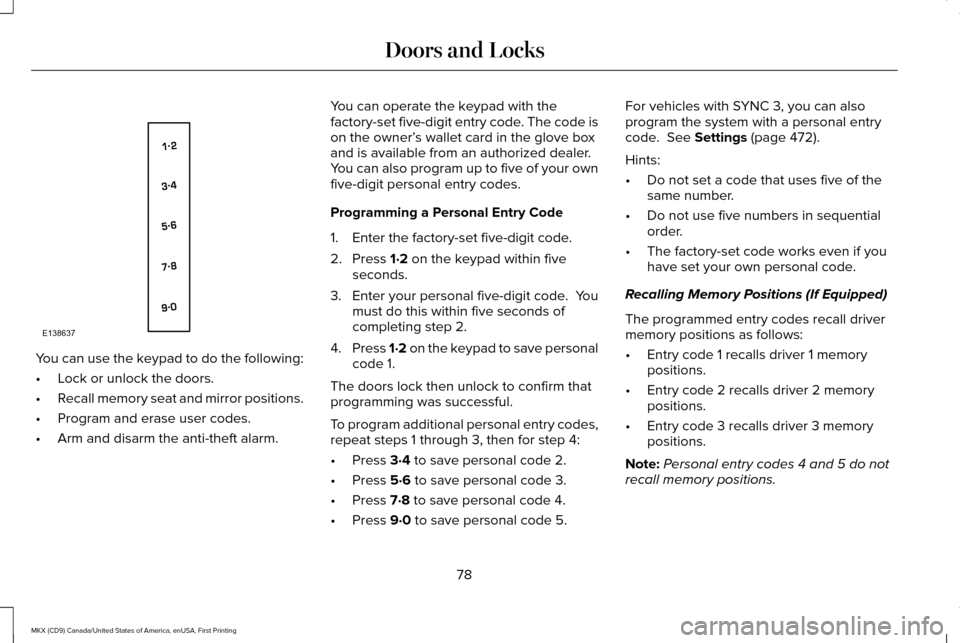

You can use the keypad to do the following:
•
Lock or unlock the doors.
• Recall memory seat and mirror positions.
• Program and erase user codes.
• Arm and disarm the anti-theft alarm. You can operate the keypad with the
factory-set five-digit entry code. The code is
on the owner’
s wallet card in the glove box
and is available from an authorized dealer.
You can also program up to five of your own
five-digit personal entry codes.
Programming a Personal Entry Code
1. Enter the factory-set five-digit code.
2. Press 1·2 on the keypad within five
seconds.
3. Enter your personal five-digit code. You
must do this within five seconds of
completing step 2.
4. Press 1·2 on the keypad to save personal
code 1.
The doors lock then unlock to confirm that
programming was successful.
To program additional personal entry codes,
repeat steps 1 through 3, then for step 4:
• Press
3·4 to save personal code 2.
• Press
5·6 to save personal code 3.
• Press
7·8 to save personal code 4.
• Press
9·0 to save personal code 5. For vehicles with SYNC 3, you can also
program the system with a personal entry
code.
See Settings (page 472).
Hints:
• Do not set a code that uses five of the
same number.
• Do not use five numbers in sequential
order.
• The factory-set code works even if you
have set your own personal code.
Recalling Memory Positions (If Equipped)
The programmed entry codes recall driver
memory positions as follows:
• Entry code 1 recalls driver 1 memory
positions.
• Entry code 2 recalls driver 2 memory
positions.
• Entry code 3 recalls driver 3 memory
positions.
Note: Personal entry codes 4 and 5 do not
recall memory positions.
78
MKX (CD9) Canada/United States of America, enUSA, First Printing Doors and LocksE138637

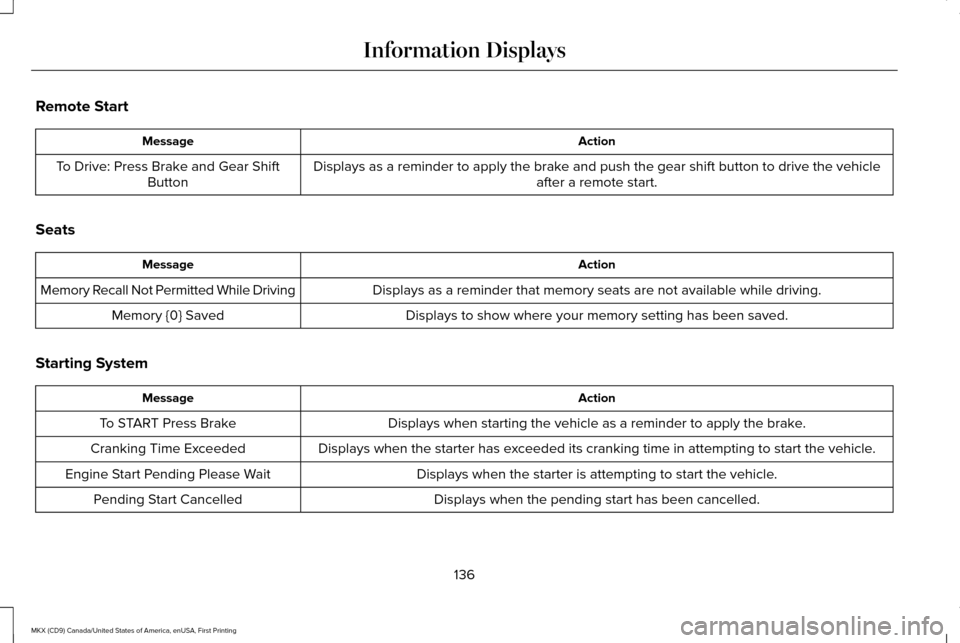

Remote Start
Action
Message
Displays as a reminder to apply the brake and push the gear shift button to drive the vehicle after a remote start.
To Drive: Press Brake and Gear Shift
Button
Seats Action
Message
Displays as a reminder that memory seats are not available while driving\
.
Memory Recall Not Permitted While Driving
Displays to show where your memory setting has been saved.
Memory {0} Saved
Starting System Action
Message
Displays when starting the vehicle as a reminder to apply the brake.
To START Press Brake
Displays when the starter has exceeded its cranking time in attempting to start the vehicle.
Cranking Time Exceeded
Displays when the starter is attempting to start the vehicle.
Engine Start Pending Please Wait
Displays when the pending start has been cancelled.
Pending Start Cancelled
136
MKX (CD9) Canada/United States of America, enUSA, First Printing Information Displays

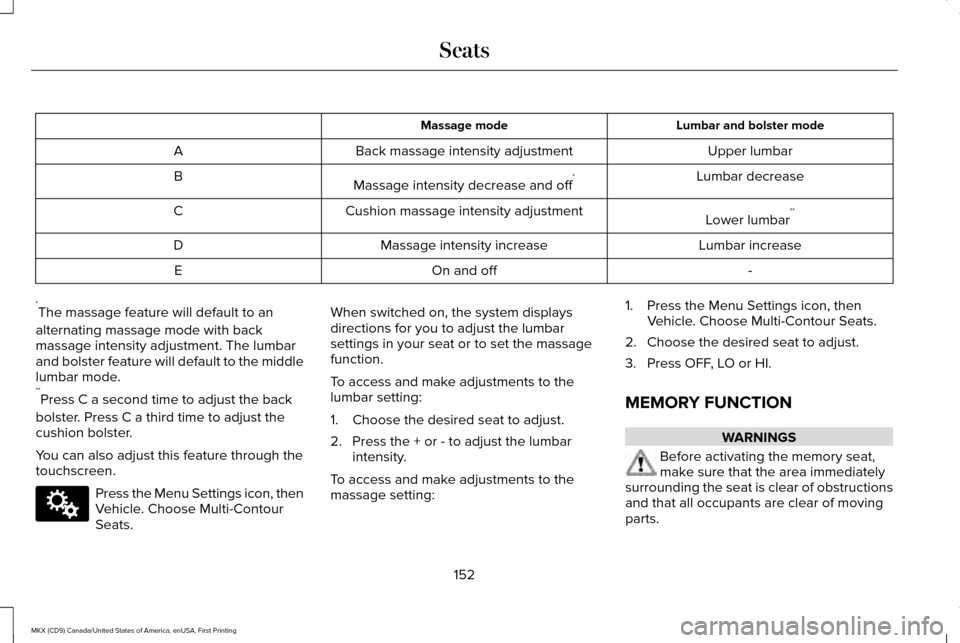

Lumbar and bolster mode
Massage mode
Upper lumbar
Back massage intensity adjustment
A
Lumbar decrease
Massage intensity decrease and off *
B
Lower lumbar**
Cushion massage intensity adjustment
C
Lumbar increase
Massage intensity increase
D
-
On and off
E
* The massage feature will default to an
alternating massage mode with back
massage intensity adjustment. The lumbar
and bolster feature will default to the middle
lumbar mode.
** Press C a second time to adjust the back
bolster. Press C a third time to adjust the
cushion bolster.
You can also adjust this feature through the
touchscreen. Press the Menu Settings icon, then
Vehicle. Choose Multi-Contour
Seats. When switched on, the system displays
directions for you to adjust the lumbar
settings in your seat or to set the massage
function.
To access and make adjustments to the
lumbar setting:
1. Choose the desired seat to adjust.
2. Press the + or - to adjust the lumbar
intensity.
To access and make adjustments to the
massage setting: 1. Press the Menu Settings icon, then
Vehicle. Choose Multi-Contour Seats.
2. Choose the desired seat to adjust.
3. Press OFF, LO or HI.
MEMORY FUNCTION WARNINGS
Before activating the memory seat,
make sure that the area immediately
surrounding the seat is clear of obstructions
and that all occupants are clear of moving
parts.
152
MKX (CD9) Canada/United States of America, enUSA, First Printing SeatsE142607

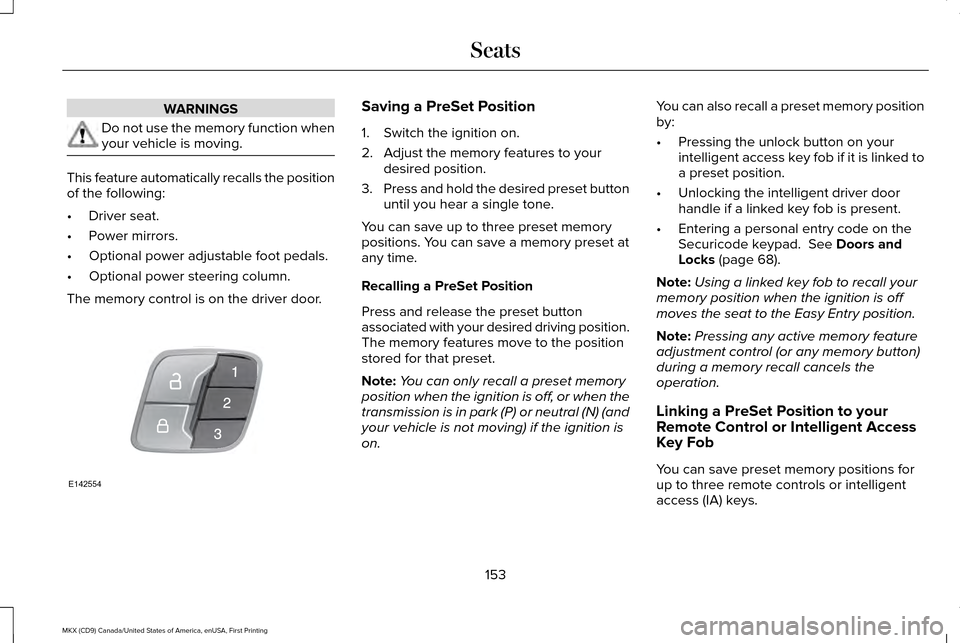

WARNINGS
Do not use the memory function when
your vehicle is moving.
This feature automatically recalls the position
of the following:
•
Driver seat.
• Power mirrors.
• Optional power adjustable foot pedals.
• Optional power steering column.
The memory control is on the driver door. Saving a PreSet Position
1. Switch the ignition on.
2. Adjust the memory features to your
desired position.
3. Press and hold the desired preset button
until you hear a single tone.
You can save up to three preset memory
positions. You can save a memory preset at
any time.
Recalling a PreSet Position
Press and release the preset button
associated with your desired driving position.
The memory features move to the position
stored for that preset.
Note: You can only recall a preset memory
position when the ignition is off, or when the
transmission is in park (P) or neutral (N) (and
your vehicle is not moving) if the ignition is
on. You can also recall a preset memory position
by:
•
Pressing the unlock button on your
intelligent access key fob if it is linked to
a preset position.
• Unlocking the intelligent driver door
handle if a linked key fob is present.
• Entering a personal entry code on the
Securicode keypad. See Doors and
Locks (page 68).
Note: Using a linked key fob to recall your
memory position when the ignition is off
moves the seat to the Easy Entry position.
Note: Pressing any active memory feature
adjustment control (or any memory button)
during a memory recall cancels the
operation.
Linking a PreSet Position to your
Remote Control or Intelligent Access
Key Fob
You can save preset memory positions for
up to three remote controls or intelligent
access (IA) keys.
153
MKX (CD9) Canada/United States of America, enUSA, First Printing SeatsE142554

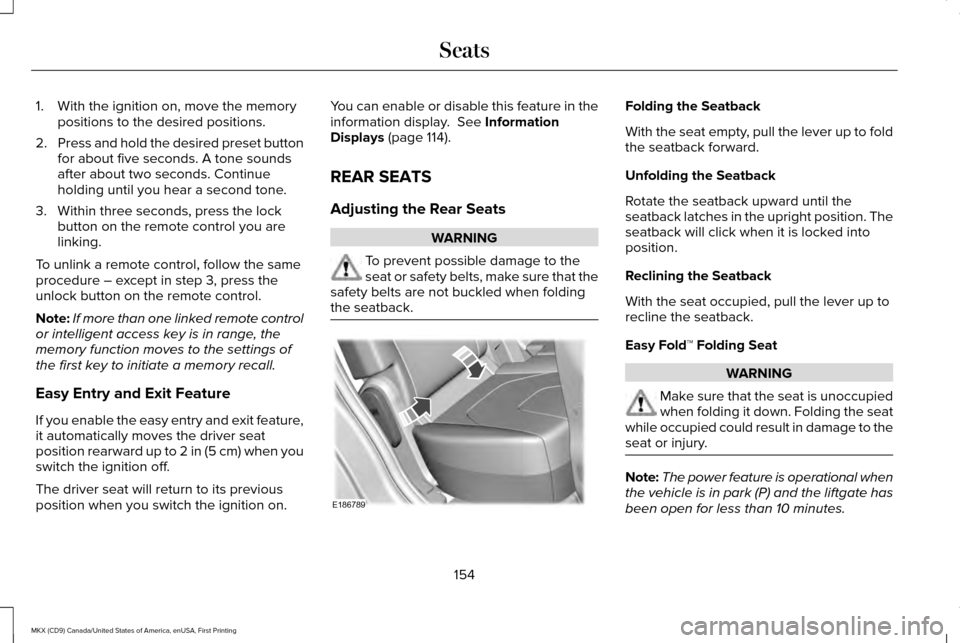

1. With the ignition on, move the memory
positions to the desired positions.
2. Press and hold the desired preset button
for about five seconds. A tone sounds
after about two seconds. Continue
holding until you hear a second tone.
3. Within three seconds, press the lock button on the remote control you are
linking.
To unlink a remote control, follow the same
procedure – except in step 3, press the
unlock button on the remote control.
Note: If more than one linked remote control
or intelligent access key is in range, the
memory function moves to the settings of
the first key to initiate a memory recall.
Easy Entry and Exit Feature
If you enable the easy entry and exit feature,
it automatically moves the driver seat
position rearward up to 2 in (5 cm) when you
switch the ignition off.
The driver seat will return to its previous
position when you switch the ignition on. You can enable or disable this feature in the
information display.
See Information
Displays (page 114).
REAR SEATS
Adjusting the Rear Seats WARNING
To prevent possible damage to the
seat or safety belts, make sure that the
safety belts are not buckled when folding
the seatback. Folding the Seatback
With the seat empty, pull the lever up to fold
the seatback forward.
Unfolding the Seatback
Rotate the seatback upward until the
seatback latches in the upright position. The
seatback will click when it is locked into
position.
Reclining the Seatback
With the seat occupied, pull the lever up to
recline the seatback.
Easy Fold™ Folding Seat
WARNING
Make sure that the seat is unoccupied
when folding it down. Folding the seat
while occupied could result in damage to the
seat or injury. Note:
The power feature is operational when
the vehicle is in park (P) and the liftgate has
been open for less than 10 minutes.
154
MKX (CD9) Canada/United States of America, enUSA, First Printing SeatsE186789

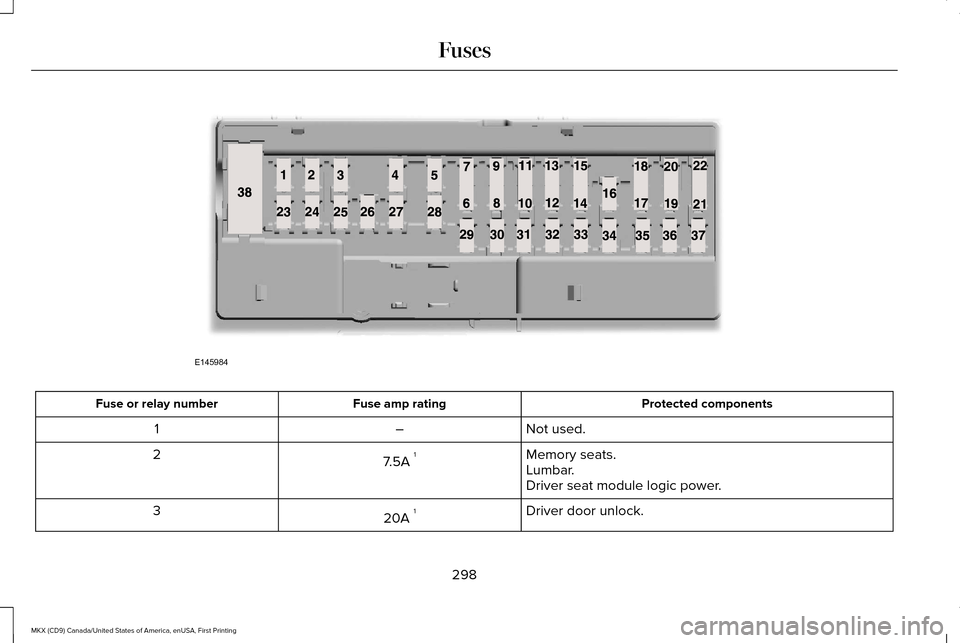

Protected components
Fuse amp rating
Fuse or relay number
Not used.
–
1
Memory seats.
7.5A 1
2
Lumbar.
Driver seat module logic power.
Driver door unlock.
20A 1
3
298
MKX (CD9) Canada/United States of America, enUSA, First Printing FusesE145984

End User License Agreement...................542
VEHICLE SOFTWARE END USER LICENSE
AGREEMENT (EULA) ....................................542
Engine Block Heater......................................171
Using the Engine Block Heater.......................172
Engine Coolant Check.................................314 Adding Coolant....................................................315
Coolant Change...................................................317
Engine Coolant Temperature
Management....................................................318
Fail-Safe Cooling..................................................317
Recycled Coolant................................................316
Severe Climates...................................................316
Engine Immobilizer See: Passive Anti-Theft System.........................
81
Engine Oil Check...........................................312 Adding Engine Oil...............................................313
Engine Oil Dipstick - 2.7L EcoBoost™.......312
Engine Oil Dipstick - 3.7L............................312
Engine Specifications - 2.7L EcoBoost™....................................................379
Drivebelt Routing................................................379
Engine Specifications - 3.7L......................380 Drivebelt Routing................................................380
Entertainment
................................................433
AM/FM Radio.......................................................435
Apps.......................................................................446
Bluetooth Stereo or USB..................................444 CD (If equipped)..................................................443
HD Radio
™ Information (If Available)..............439
SIRIUS® Satellite Radio (If Activated).............435
Sources.................................................................434
Supported Media Players, Formats and Metadata Information...................................446
USB Ports.............................................................446
Environment......................................................16
EPB See: Electric Parking Brake..............................196
Essential Towing Checks ............................
264
Before Towing a Trailer.....................................265
Hitches..................................................................264
Launching or Retrieving a Boat or Personal
Watercraft (PWC)............................................265
Safety Chains......................................................264
Trailer Brakes.......................................................264
Trailer Lamps.......................................................264
When Towing a Trailer......................................265
Event Data Recording See: Data Recording..............................................9
Export Unique Options...................................14
Exterior Mirrors
...............................................101
Auto-dimming Feature.......................................103
Auto-Folding Mirrors..........................................102
Blind Spot Information System........................104
Fold-Away Exterior Mirrors...............................102
Heated Exterior Mirrors ....................................103 Integrated Blind Spot Mirror.............................103
Lincoln Welcome Mat.........................................103
Memory Mirrors ..................................................103
Power Exterior Mirrors........................................101
Signal Indicator Mirrors .....................................103
F
Fastening the Seatbelts................................35 Rear Inflatable Seatbelt.......................................38
Seatbelt Locking Modes.....................................36
Using a Sliding Clip..............................................35
Using Seatbelts During Pregnancy..................36
Flat Tire Inflation See: Tire Sealant and Inflator Kit....................343
Floor Mats
......................................................270
Front Parking Aid..........................................207 Obstacle Distance Indicator............................208
Front Passenger Sensing System..............48
Fuel and Refueling
........................................173
Fuel Consumption.........................................179
Calculating Fuel Economy................................179
Filling the Fuel Tank............................................179
Fuel Filler Funnel Location..........................175
Fuel Filter
........................................................322
Fuel Quality.....................................................174
Choosing the Right Fuel....................................174
Fuel Shutoff
....................................................272
576
MKX (CD9) Canada/United States of America, enUSA, First Printing Index

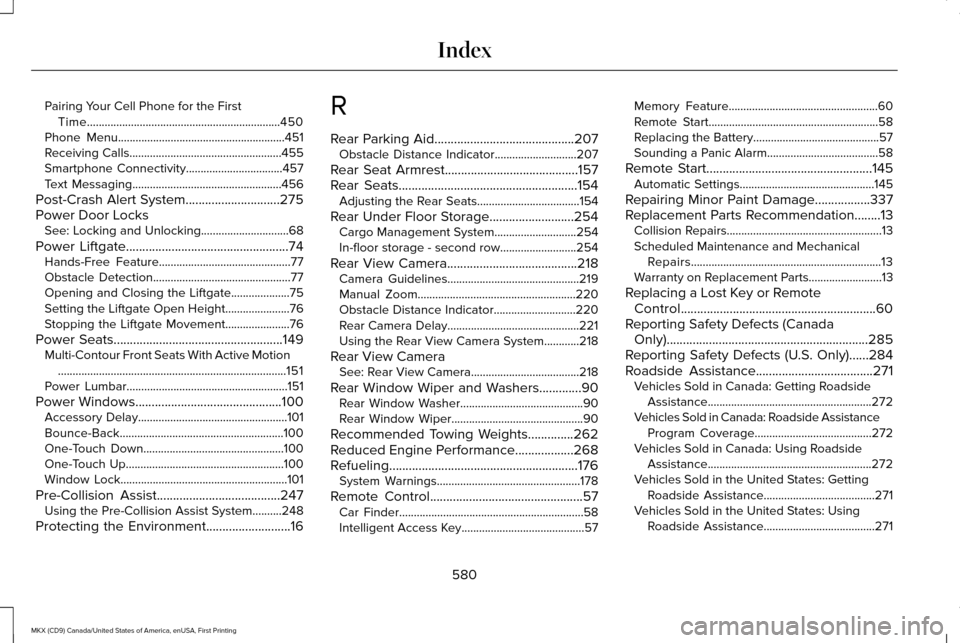

Pairing Your Cell Phone for the First
Time..................................................................450
Phone Menu.........................................................451
Receiving Calls....................................................455
Smartphone Connectivity.................................457
Text Messaging...................................................456
Post-Crash Alert System.............................275
Power Door Locks See: Locking and Unlocking..............................68
Power Liftgate..................................................74 Hands-Free Feature.............................................77
Obstacle Detection...............................................77
Opening and Closing the Liftgate....................75
Setting the Liftgate Open Height......................76
Stopping the Liftgate Movement......................76
Power Seats....................................................149 Multi-Contour Front Seats With Active Motion
........................................................................\
......151
Power Lumbar.......................................................151
Power Windows.............................................100 Accessory Delay...................................................101
Bounce-Back........................................................100
One-Touch Down................................................100
One-Touch Up......................................................100
Window Lock.........................................................101
Pre-Collision Assist
......................................247
Using the Pre-Collision Assist System..........248
Protecting the Environment..........................16 R
Rear Parking Aid...........................................207
Obstacle Distance Indicator............................207
Rear Seat Armrest.........................................157
Rear Seats
.......................................................154
Adjusting the Rear Seats...................................154
Rear Under Floor Storage
..........................254
Cargo Management System............................254
In-floor storage - second row..........................254
Rear View Camera........................................218 Camera Guidelines.............................................219
Manual Zoom......................................................220
Obstacle Distance Indicator............................220
Rear Camera Delay.............................................221
Using the Rear View Camera System............218
Rear View Camera See: Rear View Camera.....................................218
Rear Window Wiper and Washers
.............90
Rear Window Washer..........................................90
Rear Window Wiper.............................................90
Recommended Towing Weights..............262
Reduced Engine Performance..................268
Refueling..........................................................176 System Warnings.................................................178
Remote Control
...............................................57
Car Finder...............................................................58
Intelligent Access Key..........................................57 Memory Feature...................................................60
Remote Start..........................................................58
Replacing the Battery...........................................57
Sounding a Panic Alarm......................................58
Remote Start
...................................................145
Automatic Settings..............................................145
Repairing Minor Paint Damage
.................337
Replacement Parts Recommendation........13 Collision Repairs.....................................................13
Scheduled Maintenance and Mechanical
Repairs.................................................................13
Warranty on Replacement Parts.........................
13
Replacing a Lost Key or Remote Control............................................................60
Reporting Safety Defects (Canada Only)..............................................................285
Reporting Safety Defects (U.S. Only)......284
Roadside Assistance
....................................271
Vehicles Sold in Canada: Getting Roadside
Assistance........................................................272
Vehicles Sold in Canada: Roadside Assistance Program Coverage........................................
272
Vehicles Sold in Canada: Using Roadside Assistance........................................................272
Vehicles Sold in the United States: Getting Roadside Assistance......................................
271
Vehicles Sold in the United States: Using Roadside Assistance......................................
271
580
MKX (CD9) Canada/United States of America, enUSA, First Printing Index
