snow chains LINCOLN MKX 2017 Owners Manual

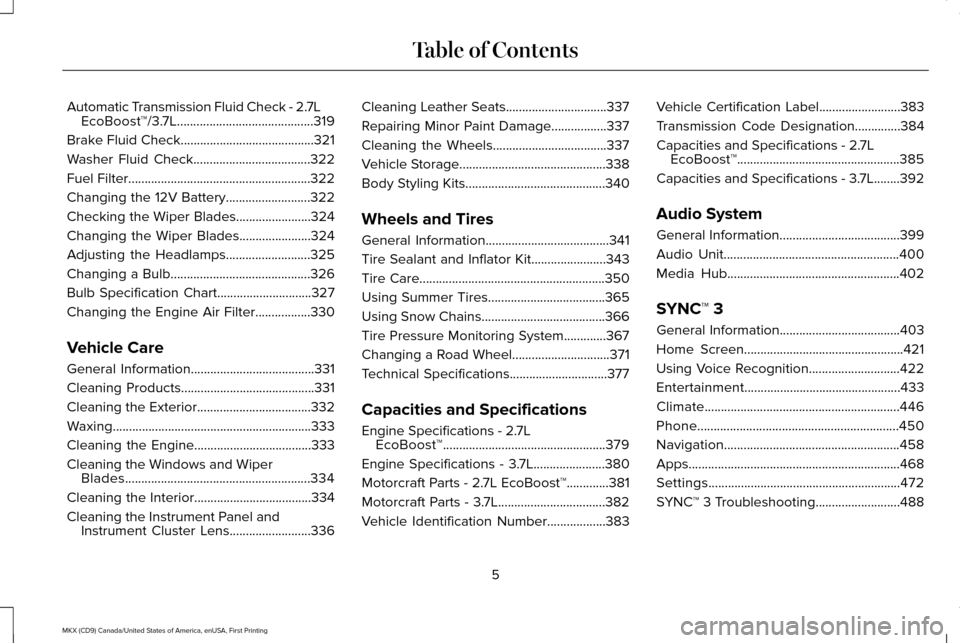

Automatic Transmission Fluid Check - 2.7L
EcoBoost™/3.7L..........................................319
Brake Fluid Check.........................................321
Washer Fluid Check....................................322
Fuel Filter
........................................................322
Changing the 12V Battery..........................322
Checking the Wiper Blades.......................324
Changing the Wiper Blades......................324
Adjusting the Headlamps..........................325
Changing a Bulb
...........................................326
Bulb Specification Chart.............................327
Changing the Engine Air Filter.................330
Vehicle Care
General Information......................................331
Cleaning Products
.........................................331
Cleaning the Exterior...................................332
Waxing.............................................................333
Cleaning the Engine
....................................333
Cleaning the Windows and Wiper Blades.........................................................334
Cleaning the Interior....................................334
Cleaning the Instrument Panel and Instrument Cluster Lens
.........................336 Cleaning Leather Seats...............................337
Repairing Minor Paint Damage
.................337
Cleaning the Wheels...................................337
Vehicle Storage
.............................................338
Body Styling Kits...........................................340
Wheels and Tires
General Information
......................................341
Tire Sealant and Inflator Kit.......................343
Tire Care
.........................................................350
Using Summer Tires
....................................365
Using Snow Chains
......................................366
Tire Pressure Monitoring System
.............367
Changing a Road Wheel..............................371
Technical Specifications
..............................377
Capacities and Specifications
Engine Specifications - 2.7L EcoBoost™..................................................379
Engine Specifications - 3.7L......................380
Motorcraft Parts - 2.7L EcoBoost™
.............381
Motorcraft Parts - 3.7L.................................382
Vehicle Identification Number
..................383 Vehicle Certification Label
.........................383
Transmission Code Designation
..............384
Capacities and Specifications - 2.7L EcoBoost™..................................................385
Capacities and Specifications - 3.7L........392
Audio System
General Information.....................................399
Audio Unit
......................................................400
Media Hub
.....................................................402
SYNC™ 3
General Information
.....................................403
Home Screen.................................................421
Using Voice Recognition............................422
Entertainment
................................................433
Climate............................................................446
Phone..............................................................450
Navigation......................................................458
Apps .................................................................
468
Settings...........................................................472
SYNC™ 3 Troubleshooting..........................488
5
MKX (CD9) Canada/United States of America, enUSA, First Printing Table of Contents

Your vehicle has anti-lock brakes, therefore
apply the brakes steadily. Do not “pump
” the
brakes.
Driving on Snow and Ice WARNING
If you are driving in slippery conditions
that require tire chains or cables, then
it is critical that you drive cautiously. Keep
speeds down, allow for longer stopping
distances and avoid aggressive steering to
reduce the chances of a loss of vehicle
control which can lead to serious injury or
death. If the rear end of the vehicle slides
while cornering, steer in the direction of the
slide until you regain control of the vehicle. Note:
Excessive tire slippage can cause
driveline damage.
AWD vehicles have advantages over 2WD
vehicles in snow and ice but can skid like
any other vehicle.
Should you start to slide while driving on
snowy or icy roads, turn the steering wheel
in the direction of the slide until you regain
control. Avoid sudden applications of power and
quick changes of direction on snow and ice.
Apply the accelerator slowly and steadily
when starting from a full stop.
Avoid sudden braking as well. Although an
AWD vehicle may accelerate better than a
two-wheel drive vehicle in snow and ice, it
won
’t stop any faster, because as in other
vehicles, braking occurs at all four wheels.
Do not become overconfident as to road
conditions.
Make sure you allow sufficient distance
between you and other vehicles for stopping.
Drive slower than usual and consider using
one of the lower gears. In emergency
stopping situations, apply the brake steadily.
Since your vehicle is equipped with a four
wheel (ABS), do not “pump ” the brakes. See
Hints on Driving With Anti-Lock Brakes
(page 195). Maintenance and Modifications
The suspension and steering systems on
your vehicle have been designed and tested
to provide predictable performance whether
loaded or empty and durable load carrying
capability. For this reason, Ford Motor
Company strongly recommends that you do
not make modifications such as adding or
removing parts (such as lowering kits or
stabilizer bars) or by using replacement parts
not equivalent to the original factory
equipment.
Any modifications to a vehicle that raise the
center of gravity can make it more likely the
vehicle will rollover as a result of a loss of
control. Ford Motor Company recommends
that caution be used with any vehicle
equipped with a high load or device (such
as ladder or luggage racks).
193
MKX (CD9) Canada/United States of America, enUSA, First Printing All-Wheel Drive
(If Equipped)

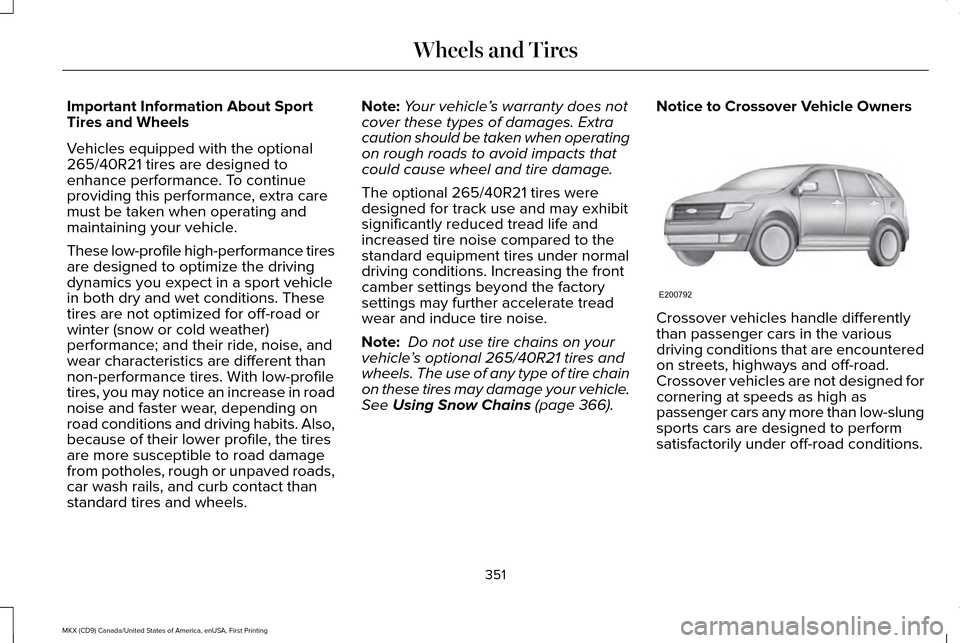

Important Information About Sport
Tires and Wheels
Vehicles equipped with the optional
265/40R21 tires are designed to
enhance performance. To continue
providing this performance, extra care
must be taken when operating and
maintaining your vehicle.
These low-profile high-performance tires
are designed to optimize the driving
dynamics you expect in a sport vehicle
in both dry and wet conditions. These
tires are not optimized for off-road or
winter (snow or cold weather)
performance; and their ride, noise, and
wear characteristics are different than
non-performance tires. With low-profile
tires, you may notice an increase in road
noise and faster wear, depending on
road conditions and driving habits. Also,
because of their lower profile, the tires
are more susceptible to road damage
from potholes, rough or unpaved roads,
car wash rails, and curb contact than
standard tires and wheels.
Note:
Your vehicle ’s warranty does not
cover these types of damages. Extra
caution should be taken when operating
on rough roads to avoid impacts that
could cause wheel and tire damage.
The optional 265/40R21 tires were
designed for track use and may exhibit
significantly reduced tread life and
increased tire noise compared to the
standard equipment tires under normal
driving conditions. Increasing the front
camber settings beyond the factory
settings may further accelerate tread
wear and induce tire noise.
Note: Do not use tire chains on your
vehicle ’s optional 265/40R21 tires and
wheels. The use of any type of tire chain
on these tires may damage your vehicle.
See Using Snow Chains (page 366). Notice to Crossover Vehicle Owners
Crossover vehicles handle differently
than passenger cars in the various
driving conditions that are encountered
on streets, highways and off-road.
Crossover vehicles are not designed for
cornering at speeds as high as
passenger cars any more than low-slung
sports cars are designed to perform
satisfactorily under off-road conditions.
351
MKX (CD9) Canada/United States of America, enUSA, First Printing Wheels and TiresE200792

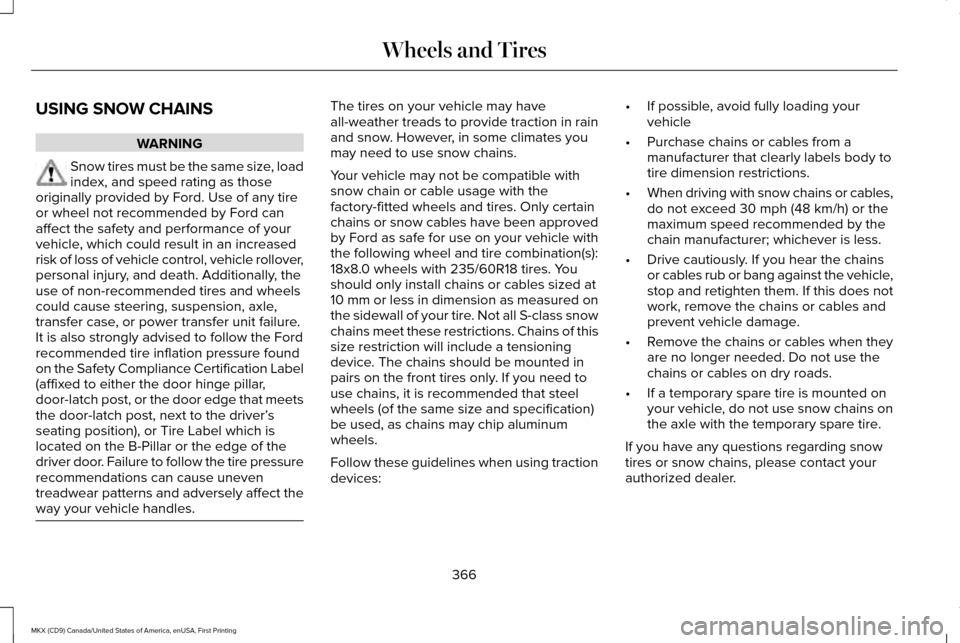

USING SNOW CHAINS
WARNING
Snow tires must be the same size, load
index, and speed rating as those
originally provided by Ford. Use of any tire
or wheel not recommended by Ford can
affect the safety and performance of your
vehicle, which could result in an increased
risk of loss of vehicle control, vehicle rollover,
personal injury, and death. Additionally, the
use of non-recommended tires and wheels
could cause steering, suspension, axle,
transfer case, or power transfer unit failure.
It is also strongly advised to follow the Ford
recommended tire inflation pressure found
on the Safety Compliance Certification Label
(affixed to either the door hinge pillar,
door-latch post, or the door edge that meets
the door-latch post, next to the driver’ s
seating position), or Tire Label which is
located on the B-Pillar or the edge of the
driver door. Failure to follow the tire pressure
recommendations can cause uneven
treadwear patterns and adversely affect the
way your vehicle handles. The tires on your vehicle may have
all-weather treads to provide traction in rain
and snow. However, in some climates you
may need to use snow chains.
Your vehicle may not be compatible with
snow chain or cable usage with the
factory-fitted wheels and tires. Only certain
chains or snow cables have been approved
by Ford as safe for use on your vehicle with
the following wheel and tire combination(s):
18x8.0 wheels with 235/60R18 tires. You
should only install chains or cables sized at
10 mm or less in dimension as measured on
the sidewall of your tire. Not all S-class snow
chains meet these restrictions. Chains of this
size restriction will include a tensioning
device. The chains should be mounted in
pairs on the front tires only. If you need to
use chains, it is recommended that steel
wheels (of the same size and specification)
be used, as chains may chip aluminum
wheels.
Follow these guidelines when using traction
devices:
•
If possible, avoid fully loading your
vehicle
• Purchase chains or cables from a
manufacturer that clearly labels body to
tire dimension restrictions.
• When driving with snow chains or cables,
do not exceed 30 mph (48 km/h) or the
maximum speed recommended by the
chain manufacturer; whichever is less.
• Drive cautiously. If you hear the chains
or cables rub or bang against the vehicle,
stop and retighten them. If this does not
work, remove the chains or cables and
prevent vehicle damage.
• Remove the chains or cables when they
are no longer needed. Do not use the
chains or cables on dry roads.
• If a temporary spare tire is mounted on
your vehicle, do not use snow chains on
the axle with the temporary spare tire.
If you have any questions regarding snow
tires or snow chains, please contact your
authorized dealer.
366
MKX (CD9) Canada/United States of America, enUSA, First Printing Wheels and Tires

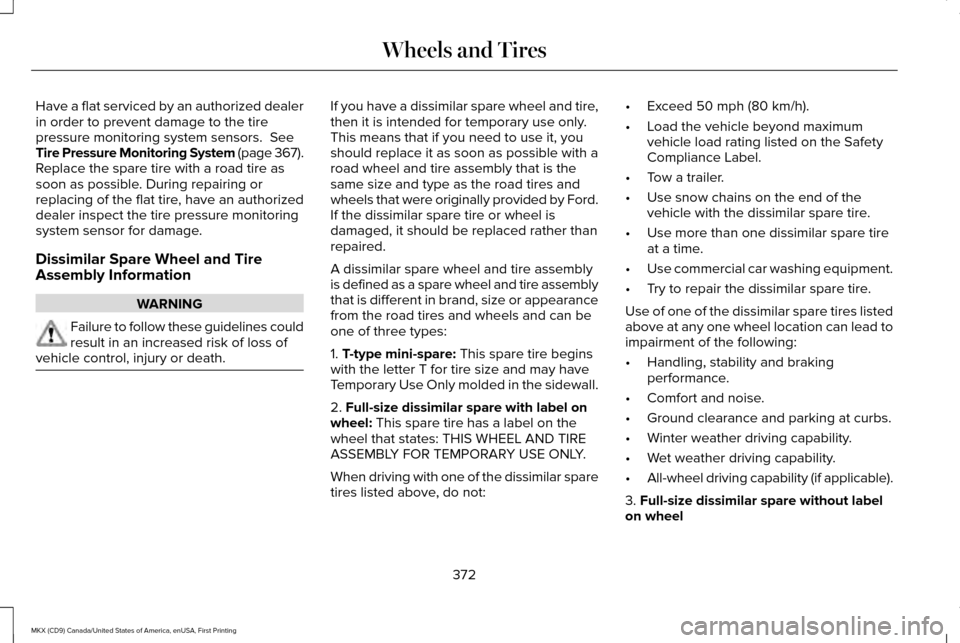

Have a flat serviced by an authorized dealer
in order to prevent damage to the tire
pressure monitoring system sensors. See
Tire Pressure Monitoring System (page 367).
Replace the spare tire with a road tire as
soon as possible. During repairing or
replacing of the flat tire, have an authorized
dealer inspect the tire pressure monitoring
system sensor for damage.
Dissimilar Spare Wheel and Tire
Assembly Information WARNING
Failure to follow these guidelines could
result in an increased risk of loss of
vehicle control, injury or death. If you have a dissimilar spare wheel and tire,
then it is intended for temporary use only.
This means that if you need to use it, you
should replace it as soon as possible with a
road wheel and tire assembly that is the
same size and type as the road tires and
wheels that were originally provided by Ford.
If the dissimilar spare tire or wheel is
damaged, it should be replaced rather than
repaired.
A dissimilar spare wheel and tire assembly
is defined as a spare wheel and tire assembly
that is different in brand, size or appearance
from the road tires and wheels and can be
one of three types:
1.
T-type mini-spare: This spare tire begins
with the letter T for tire size and may have
Temporary Use Only molded in the sidewall.
2.
Full-size dissimilar spare with label on
wheel: This spare tire has a label on the
wheel that states: THIS WHEEL AND TIRE
ASSEMBLY FOR TEMPORARY USE ONLY.
When driving with one of the dissimilar spare
tires listed above, do not: •
Exceed
50 mph (80 km/h).
• Load the vehicle beyond maximum
vehicle load rating listed on the Safety
Compliance Label.
• Tow a trailer.
• Use snow chains on the end of the
vehicle with the dissimilar spare tire.
• Use more than one dissimilar spare tire
at a time.
• Use commercial car washing equipment.
• Try to repair the dissimilar spare tire.
Use of one of the dissimilar spare tires listed
above at any one wheel location can lead to
impairment of the following:
• Handling, stability and braking
performance.
• Comfort and noise.
• Ground clearance and parking at curbs.
• Winter weather driving capability.
• Wet weather driving capability.
• All-wheel driving capability (if applicable).
3.
Full-size dissimilar spare without label
on wheel
372
MKX (CD9) Canada/United States of America, enUSA, First Printing Wheels and Tires

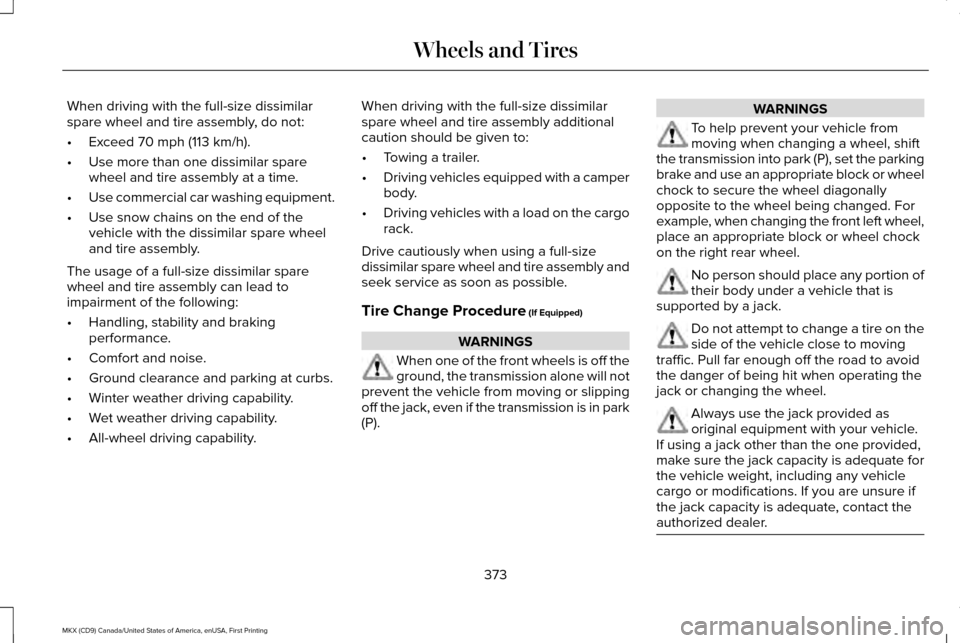

When driving with the full-size dissimilar
spare wheel and tire assembly, do not:
•
Exceed 70 mph (113 km/h).
• Use more than one dissimilar spare
wheel and tire assembly at a time.
• Use commercial car washing equipment.
• Use snow chains on the end of the
vehicle with the dissimilar spare wheel
and tire assembly.
The usage of a full-size dissimilar spare
wheel and tire assembly can lead to
impairment of the following:
• Handling, stability and braking
performance.
• Comfort and noise.
• Ground clearance and parking at curbs.
• Winter weather driving capability.
• Wet weather driving capability.
• All-wheel driving capability. When driving with the full-size dissimilar
spare wheel and tire assembly additional
caution should be given to:
•
Towing a trailer.
• Driving vehicles equipped with a camper
body.
• Driving vehicles with a load on the cargo
rack.
Drive cautiously when using a full-size
dissimilar spare wheel and tire assembly and
seek service as soon as possible.
Tire Change Procedure
(If Equipped) WARNINGS
When one of the front wheels is off the
ground, the transmission alone will not
prevent the vehicle from moving or slipping
off the jack, even if the transmission is in park
(P). WARNINGS
To help prevent your vehicle from
moving when changing a wheel, shift
the transmission into park (P), set the parking
brake and use an appropriate block or wheel
chock to secure the wheel diagonally
opposite to the wheel being changed. For
example, when changing the front left wheel,
place an appropriate block or wheel chock
on the right rear wheel. No person should place any portion of
their body under a vehicle that is
supported by a jack. Do not attempt to change a tire on the
side of the vehicle close to moving
traffic. Pull far enough off the road to avoid
the danger of being hit when operating the
jack or changing the wheel. Always use the jack provided as
original equipment with your vehicle.
If using a jack other than the one provided,
make sure the jack capacity is adequate for
the vehicle weight, including any vehicle
cargo or modifications. If you are unsure if
the jack capacity is adequate, contact the
authorized dealer. 373
MKX (CD9) Canada/United States of America, enUSA, First Printing Wheels and Tires

Roadside Emergencies................................271
Roof Racks and Load Carriers..................256
Running-In
See: Breaking-In.................................................268
Running Out of Fuel......................................175
Adding Fuel From a Portable Fuel
Container...........................................................175
Filling a Portable Fuel Container.....................175
S
Safety Canopy™
...............................................52
Safety Precautions........................................173
Scheduled Maintenance Record
.............522
Scheduled Maintenance.............................510
Seatbelt Extension..........................................43
Seatbelt Height Adjustment.........................39
Seatbelt Reminder..........................................40 Belt-Minder™...........................................................40
Seatbelts...........................................................34 Principle of Operation..........................................34
Seatbelt Warning Lamp and Indicator Chime..............................................................39
Conditions of operation......................................40
Seats.................................................................146
Security ...............................................................
81
Settings...........................................................472 911 Assist...............................................................478 Ambient Lighting................................................486
Bluetooth..............................................................474
Clock......................................................................474
Display...................................................................487
General
..................................................................484
Media Player........................................................473
Mobile Apps.........................................................482
Navigation............................................................480
Phone.....................................................................475
Radio......................................................................479
Sound....................................................................472
Valet Mode...........................................................488
Vehicle..................................................................\
.486
Voice Control.......................................................487
Wi-Fi.......................................................................485
Side Airbags
......................................................51
Side Sensing System..................................209
Obstacle Distance Indicator............................209
Sitting in the Correct Position....................146
Snow Chains See: Using Snow Chains..................................
366
Special Notices
.................................................13
New Vehicle Limited Warranty...........................13
On Board Diagnostics Data Link Connector............................................................14
Special Instructions...............................................13 Special Operating Conditions Scheduled
Maintenance................................................518
Exceptions ............................................................520
Speed Control See: Cruise Control............................................224
Stability Control
............................................204
Principle of Operation.......................................204
Starting a Gasoline Engine.........................168 Automatic Engine Shutdown............................
170
Failure to Start......................................................169
Guarding Against Exhaust Fumes....................171
Important Ventilating Information.....................171
Stopping the Engine When Your Vehicle is Moving...............................................................170
Stopping the Engine When Your Vehicle is Stationary..........................................................170
Vehicles with Keyless Start...............................168
Starting and Stopping the Engine.............167 General Information............................................167
Steering..........................................................246 Adaptive Steering...............................................247
Electric Power Steering....................................246
Steering Wheel................................................84
Storage Compartments
...............................165
Sunroof See: Moonroof.....................................................105
Sun Visors.......................................................105 Illuminated Vanity Mirror...................................105
581
MKX (CD9) Canada/United States of America, enUSA, First Printing Index

Setting the Gap Distance.................................227
Switching Adaptive Cruise Control Off........229
Switching Adaptive Cruise Control On.........
226
Switching to Normal Cruise Control..............232
System Not Available.........................................231
Using All-Wheel Drive..................................189 Driving In Special Conditions With All-Wheel
Drive (AWD)......................................................189
Using Cruise Control
...................................224
Switching Cruise Control Off...........................225
Switching Cruise Control On...........................224
Using MyKey With Remote Start Systems
..........................................................66
Using Snow Chains......................................366
Using Stability Control................................205
Using Summer Tires....................................365
Using Traction Control................................202 Switching the System Off.................................202
System Indicator Lights and Messages.......202
Using a Switch....................................................202
Using the Information Display Controls.......202
Using Voice Recognition............................422 Audio Voice Commands...................................424
Climate Voice Commands...............................425
Mobile App Voice Commands........................429
Navigation Voice Commands..........................428
Phone Voice Commands..................................426 SiriusXM Traffic and Travel Link Voice
Commands......................................................430
Voice Settings Commands................................431
Utilizing the Mediation/Arbitration Program (Canada Only)
..............................................281
V
Vehicle Care
...................................................331
General Information............................................331
Vehicle Certification Label
.........................383
Vehicle Identification Number..................383
Vehicle Storage.............................................338
Battery...................................................................339
Body.......................................................................338
Brakes...................................................................339
Cooling system...................................................339
Engine...................................................................339
Fuel system..........................................................339
General..................................................................338
Miscellaneous......................................................339
Removing Vehicle From Storage....................339
Tires.......................................................................339
Ventilation See: Climate Control............................................141
VIN See: Vehicle Identification Number...............383
Voice Control
...................................................86 W
Warning Lamps and Indicators..................109
Adaptive Cruise Control....................................109
Adaptive Steering...............................................109
Anti-Lock Braking System..................................110
Autohold Active....................................................110
Autohold Unavailable..........................................110
Automatic High Beam Control..........................110
Battery.....................................................................110
Blind Spot Monitor...............................................110
Brake System........................................................110
Cruise Control.......................................................110
Direction Indicator.................................................111
Door Ajar.................................................................111
Electric Park Brake................................................111
Engine Coolant Temperature.............................111
Engine Oil................................................................111
Fasten Seatbelt......................................................111
Front Airbag............................................................111
Heads Up Display..................................................111
High Beam...............................................................111
Hood Ajar...............................................................112
Liftgate Ajar............................................................112
Low Beam Malfunction Warning.......................
112
Low Fuel Level......................................................112
Low Tire Pressure Warning................................112
Low Washer Fluid.................................................112
583
MKX (CD9) Canada/United States of America, enUSA, First Printing Index
