technical specifications LINCOLN MKX 2017 Owners Manual

Automatic Transmission Fluid Check - 2.7L
EcoBoost™/3.7L..........................................319
Brake Fluid Check.........................................321
Washer Fluid Check....................................322
Fuel Filter
........................................................322
Changing the 12V Battery..........................322
Checking the Wiper Blades.......................324
Changing the Wiper Blades......................324
Adjusting the Headlamps..........................325
Changing a Bulb
...........................................326
Bulb Specification Chart.............................327
Changing the Engine Air Filter.................330
Vehicle Care
General Information......................................331
Cleaning Products
.........................................331
Cleaning the Exterior...................................332
Waxing.............................................................333
Cleaning the Engine
....................................333
Cleaning the Windows and Wiper Blades.........................................................334
Cleaning the Interior....................................334
Cleaning the Instrument Panel and Instrument Cluster Lens
.........................336 Cleaning Leather Seats...............................337
Repairing Minor Paint Damage
.................337
Cleaning the Wheels...................................337
Vehicle Storage
.............................................338
Body Styling Kits...........................................340
Wheels and Tires
General Information
......................................341
Tire Sealant and Inflator Kit.......................343
Tire Care
.........................................................350
Using Summer Tires
....................................365
Using Snow Chains
......................................366
Tire Pressure Monitoring System
.............367
Changing a Road Wheel..............................371
Technical Specifications
..............................377
Capacities and Specifications
Engine Specifications - 2.7L EcoBoost™..................................................379
Engine Specifications - 3.7L......................380
Motorcraft Parts - 2.7L EcoBoost™
.............381
Motorcraft Parts - 3.7L.................................382
Vehicle Identification Number
..................383 Vehicle Certification Label
.........................383
Transmission Code Designation
..............384
Capacities and Specifications - 2.7L EcoBoost™..................................................385
Capacities and Specifications - 3.7L........392
Audio System
General Information.....................................399
Audio Unit
......................................................400
Media Hub
.....................................................402
SYNC™ 3
General Information
.....................................403
Home Screen.................................................421
Using Voice Recognition............................422
Entertainment
................................................433
Climate............................................................446
Phone..............................................................450
Navigation......................................................458
Apps .................................................................
468
Settings...........................................................472
SYNC™ 3 Troubleshooting..........................488
5
MKX (CD9) Canada/United States of America, enUSA, First Printing Table of Contents

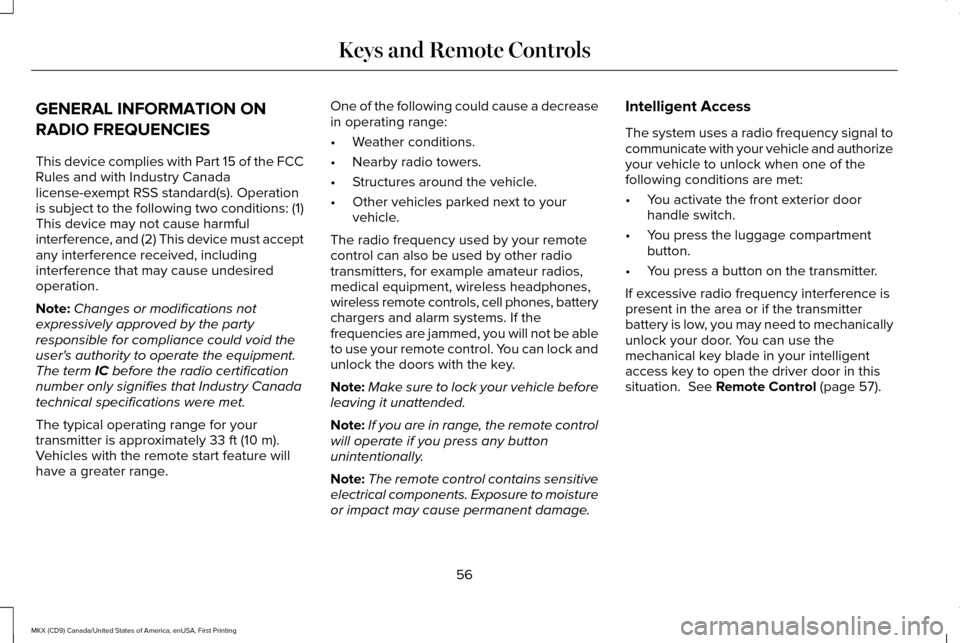

GENERAL INFORMATION ON
RADIO FREQUENCIES
This device complies with Part 15 of the FCC
Rules and with Industry Canada
license-exempt RSS standard(s). Operation
is subject to the following two conditions: (1)
This device may not cause harmful
interference, and (2) This device must accept
any interference received, including
interference that may cause undesired
operation.
Note:
Changes or modifications not
expressively approved by the party
responsible for compliance could void the
user's authority to operate the equipment.
The term IC before the radio certification
number only signifies that Industry Canada
technical specifications were met.
The typical operating range for your
transmitter is approximately
33 ft (10 m).
Vehicles with the remote start feature will
have a greater range. One of the following could cause a decrease
in operating range:
•
Weather conditions.
• Nearby radio towers.
• Structures around the vehicle.
• Other vehicles parked next to your
vehicle.
The radio frequency used by your remote
control can also be used by other radio
transmitters, for example amateur radios,
medical equipment, wireless headphones,
wireless remote controls, cell phones, battery
chargers and alarm systems. If the
frequencies are jammed, you will not be able
to use your remote control. You can lock and
unlock the doors with the key.
Note: Make sure to lock your vehicle before
leaving it unattended.
Note: If you are in range, the remote control
will operate if you press any button
unintentionally.
Note: The remote control contains sensitive
electrical components. Exposure to moisture
or impact may cause permanent damage. Intelligent Access
The system uses a radio frequency signal to
communicate with your vehicle and authorize
your vehicle to unlock when one of the
following conditions are met:
•
You activate the front exterior door
handle switch.
• You press the luggage compartment
button.
• You press a button on the transmitter.
If excessive radio frequency interference is
present in the area or if the transmitter
battery is low, you may need to mechanically
unlock your door. You can use the
mechanical key blade in your intelligent
access key to open the driver door in this
situation.
See Remote Control (page 57).
56
MKX (CD9) Canada/United States of America, enUSA, First Printing Keys and Remote Controls

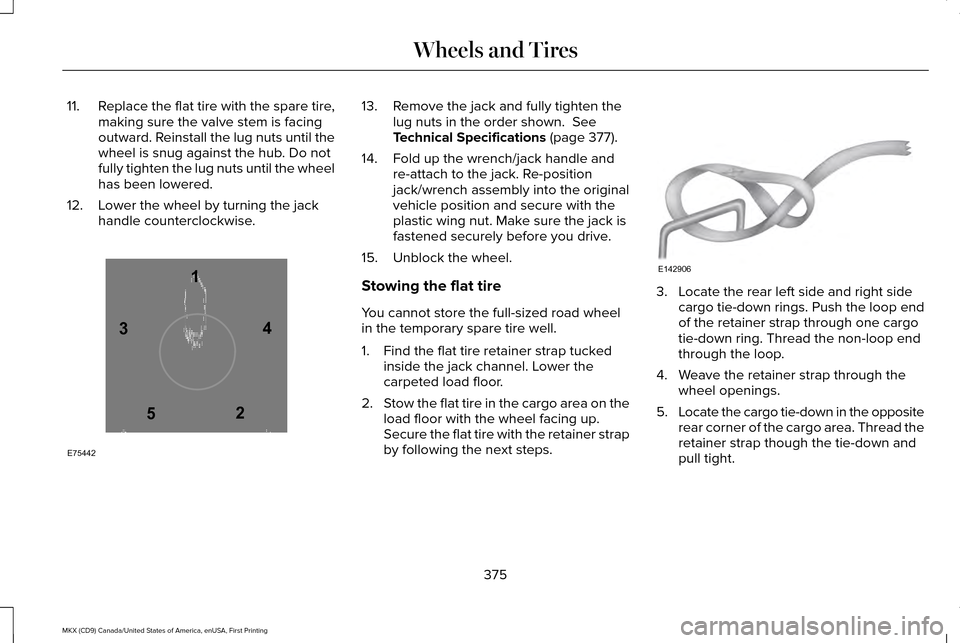

11.
Replace the flat tire with the spare tire,
making sure the valve stem is facing
outward. Reinstall the lug nuts until the
wheel is snug against the hub. Do not
fully tighten the lug nuts until the wheel
has been lowered.
12. Lower the wheel by turning the jack handle counterclockwise. 13. Remove the jack and fully tighten the
lug nuts in the order shown. See
Technical Specifications (page 377).
14. Fold up the wrench/jack handle and re-attach to the jack. Re-position
jack/wrench assembly into the original
vehicle position and secure with the
plastic wing nut. Make sure the jack is
fastened securely before you drive.
15. Unblock the wheel.
Stowing the flat tire
You cannot store the full-sized road wheel
in the temporary spare tire well.
1. Find the flat tire retainer strap tucked inside the jack channel. Lower the
carpeted load floor.
2. Stow the flat tire in the cargo area on the
load floor with the wheel facing up.
Secure the flat tire with the retainer strap
by following the next steps. 3. Locate the rear left side and right side
cargo tie-down rings. Push the loop end
of the retainer strap through one cargo
tie-down ring. Thread the non-loop end
through the loop.
4. Weave the retainer strap through the wheel openings.
5. Locate the cargo tie-down in the opposite
rear corner of the cargo area. Thread the
retainer strap though the tie-down and
pull tight.
375
MKX (CD9) Canada/United States of America, enUSA, First Printing Wheels and Tires12
3
4
5
E75442 E142906

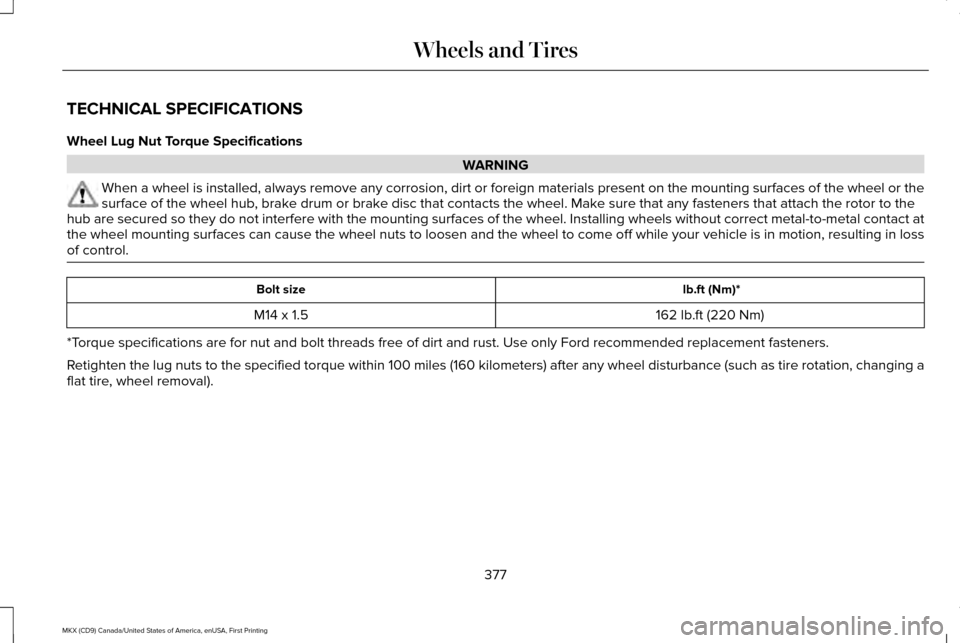

TECHNICAL SPECIFICATIONS
Wheel Lug Nut Torque Specifications
WARNING
When a wheel is installed, always remove any corrosion, dirt or foreign \
materials present on the mounting surfaces of the wheel or the
surface of the wheel hub, brake drum or brake disc that contacts the wheel. Make sure that any fasteners that attach the rotor to the
hub are secured so they do not interfere with the mounting surfaces of t\
he wheel. Installing wheels without correct metal-to-metal contact at
the wheel mounting surfaces can cause the wheel nuts to loosen and the w\
heel to come off while your vehicle is in motion, resulting in loss
of control. lb.ft (Nm)*
Bolt size
162 lb.ft (220 Nm)
M14 x 1.5
*Torque specifications are for nut and bolt threads free of dirt and rust.\
Use only Ford recommended replacement fasteners.
Retighten the lug nuts to the specified torque within 100 miles (160 kil\
ometers) after any wheel disturbance (such as tire rotation, changing \
a
flat tire, wheel removal).
377
MKX (CD9) Canada/United States of America, enUSA, First Printing Wheels and Tires

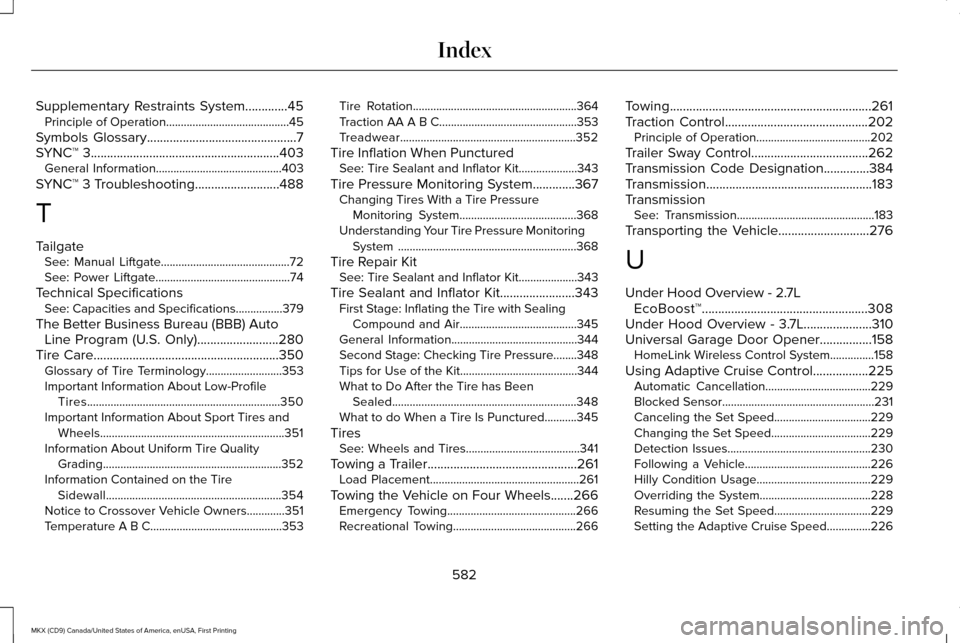

Supplementary Restraints System.............45
Principle of Operation..........................................45
Symbols Glossary..............................................7
SYNC™ 3..........................................................403
General Information...........................................403
SYNC™ 3 Troubleshooting..........................488
T
Tailgate See: Manual Liftgate............................................72
See: Power Liftgate..............................................74
Technical Specifications See: Capacities and Specifications................379
The Better Business Bureau (BBB) Auto Line Program (U.S. Only).........................280
Tire Care
.........................................................350
Glossary of Tire Terminology..........................353
Important Information About Low-Profile Tires..................................................................350
Important Information About Sport Tires and Wheels...............................................................351
Information About Uniform Tire Quality Grading.............................................................352
Information Contained on the Tire Sidewall............................................................354
Notice to Crossover Vehicle Owners.............
351
Temperature A B C.............................................353 Tire Rotation........................................................364
Traction AA A B C...............................................353
Treadwear............................................................352
Tire Inflation When Punctured See: Tire Sealant and Inflator Kit....................343
Tire Pressure Monitoring System
.............367
Changing Tires With a Tire Pressure
Monitoring System........................................368
Understanding Your Tire Pressure Monitoring System .............................................................368
Tire Repair Kit See: Tire Sealant and Inflator Kit....................343
Tire Sealant and Inflator Kit.......................343 First Stage: Inflating the Tire with Sealing
Compound and Air........................................345
General Information...........................................344
Second Stage: Checking Tire Pressure........348
Tips for Use of the Kit........................................344
What to Do After the Tire has Been Sealed...............................................................348
What to do When a Tire Is Punctured...........345
Tires See: Wheels and Tires.......................................341
Towing a Trailer
..............................................261
Load Placement...................................................261
Towing the Vehicle on Four Wheels.......266 Emergency Towing............................................266
Recreational Towing..........................................266 Towing..............................................................261
Traction Control
............................................202
Principle of Operation.......................................202
Trailer Sway Control
....................................262
Transmission Code Designation..............384
Transmission...................................................183
Transmission See: Transmission...............................................183
Transporting the Vehicle............................276
U
Under Hood Overview - 2.7L EcoBoost™...................................................308
Under Hood Overview - 3.7L.....................310
Universal Garage Door Opener................158 HomeLink Wireless Control System...............
158
Using Adaptive Cruise Control.................225 Automatic Cancellation....................................229
Blocked Sensor....................................................231
Canceling the Set Speed.................................229
Changing the Set Speed..................................229
Detection Issues.................................................230
Following a Vehicle...........................................226
Hilly Condition Usage.......................................229
Overriding the System......................................228
Resuming the Set Speed.................................229
Setting the Adaptive Cruise Speed...............
226
582
MKX (CD9) Canada/United States of America, enUSA, First Printing Index

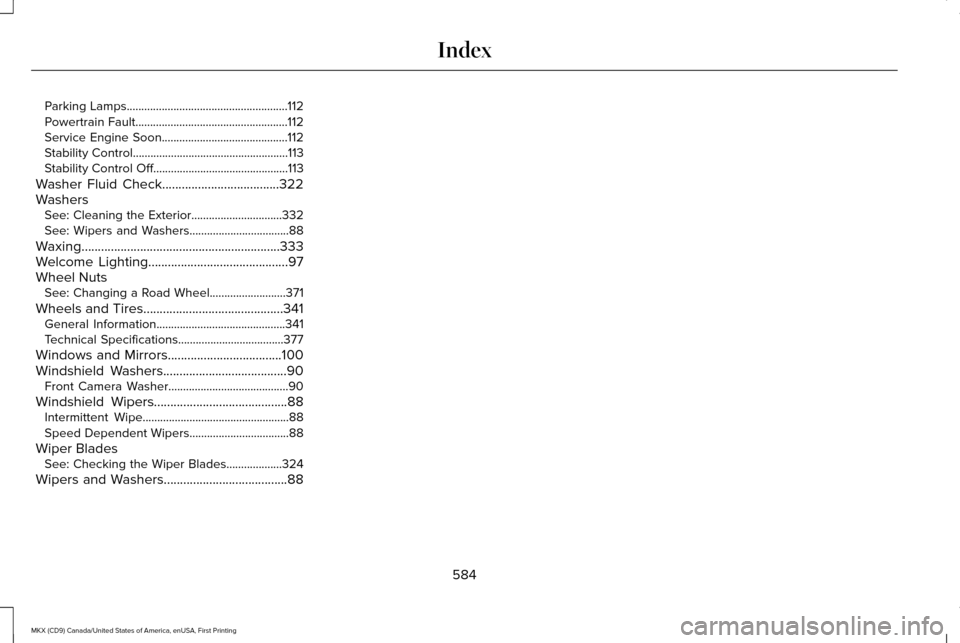

Parking Lamps.......................................................112
Powertrain Fault....................................................112
Service Engine Soon...........................................112
Stability Control.....................................................113
Stability Control Off..............................................113
Washer Fluid Check....................................322
Washers See: Cleaning the Exterior...............................332
See: Wipers and Washers..................................88
Waxing.............................................................333
Welcome Lighting...........................................97
Wheel Nuts See: Changing a Road Wheel..........................371
Wheels and Tires...........................................341 General Information............................................341
Technical Specifications....................................377
Windows and Mirrors
...................................100
Windshield Washers......................................90
Front Camera Washer.........................................90
Windshield Wipers.........................................88 Intermittent Wipe..................................................88
Speed Dependent Wipers..................................88
Wiper Blades See: Checking the Wiper Blades...................324
Wipers and Washers......................................88
584
MKX (CD9) Canada/United States of America, enUSA, First Printing Index
