Page 254 of 280

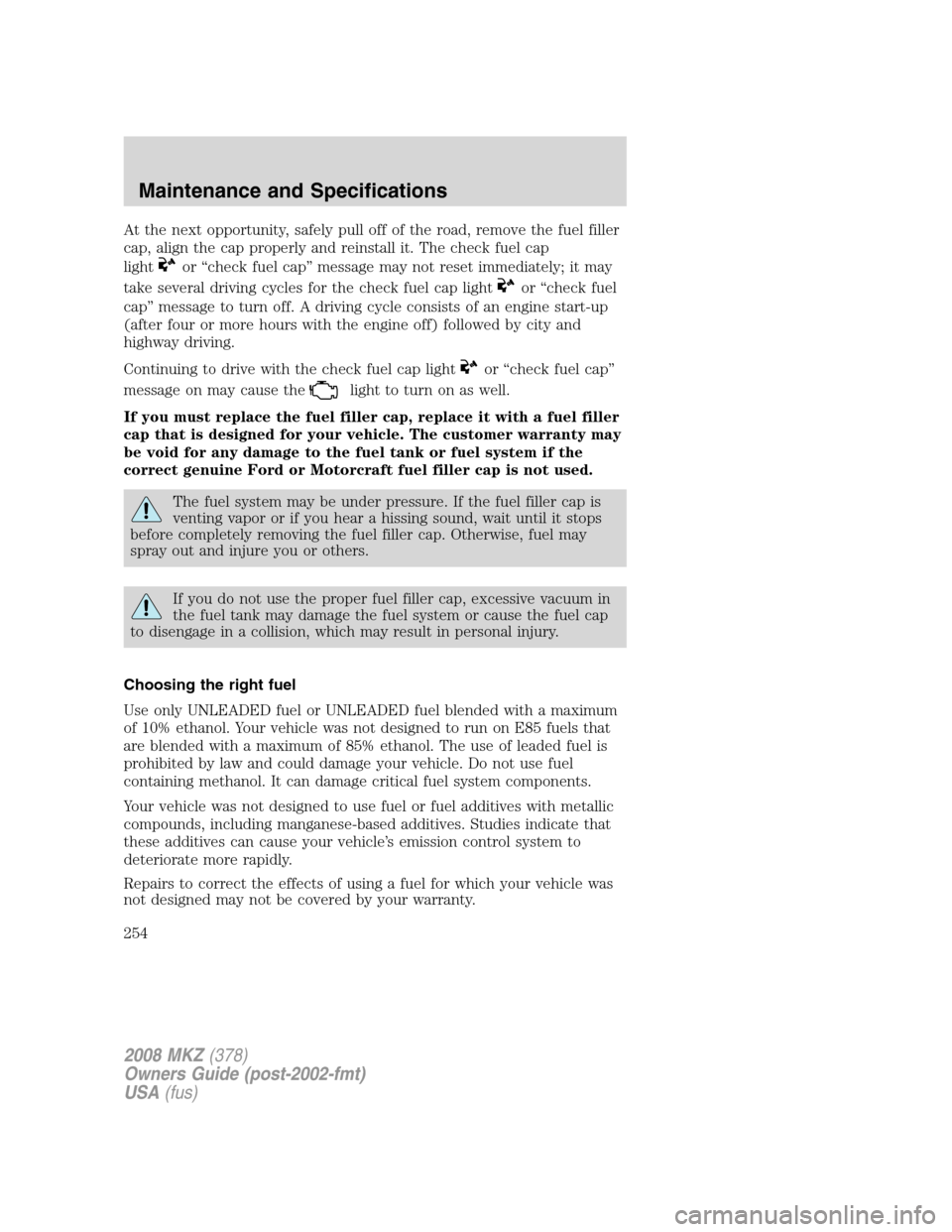

At the next opportunity, safely pull off of the road, remove the fuel filler
cap, align the cap properly and reinstall it. The check fuel cap
light
or “check fuel cap” message may not reset immediately; it may
take several driving cycles for the check fuel cap light
or “check fuel
cap” message to turn off. A driving cycle consists of an engine start-up
(after four or more hours with the engine off) followed by city and
highway driving.
Continuing to drive with the check fuel cap light
or “check fuel cap”
message on may cause the
light to turn on as well.
If you must replace the fuel filler cap, replace it with a fuel filler
cap that is designed for your vehicle. The customer warranty may
be void for any damage to the fuel tank or fuel system if the
correct genuine Ford or Motorcraft fuel filler cap is not used.
The fuel system may be under pressure. If the fuel filler cap is
venting vapor or if you hear a hissing sound, wait until it stops
before completely removing the fuel filler cap. Otherwise, fuel may
spray out and injure you or others.
If you do not use the proper fuel filler cap, excessive vacuum in
the fuel tank may damage the fuel system or cause the fuel cap
to disengage in a collision, which may result in personal injury.
Choosing the right fuel
Use only UNLEADED fuel or UNLEADED fuel blended with a maximum
of 10% ethanol. Your vehicle was not designed to run on E85 fuels that
are blended with a maximum of 85% ethanol. The use of leaded fuel is
prohibited by law and could damage your vehicle. Do not use fuel
containing methanol. It can damage critical fuel system components.
Your vehicle was not designed to use fuel or fuel additives with metallic
compounds, including manganese-based additives. Studies indicate that
these additives can cause your vehicle’s emission control system to
deteriorate more rapidly.
Repairs to correct the effects of using a fuel for which your vehicle was
not designed may not be covered by your warranty.
2008 MKZ(378)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
254
Page 258 of 280
•Idling for long periods of time (greater than one minute) may waste
fuel.
•Anticipate stopping; slowing down may eliminate the need to stop.
•Sudden or hard accelerations may reduce fuel economy.
•Slow down gradually.
•Driving at reasonable speeds (traveling at 55 mph [88 km/h] uses 15%
less fuel than traveling at 65 mph [105 km/h]).
•Revving the engine before turning it off may reduce fuel economy.
•Using the air conditioner or defroster may reduce fuel economy.
•You may want to turn off the speed control in hilly terrain if
unnecessary shifting between the top gears occurs. Unnecessary
shifting of this type could result in reduced fuel economy.
•Warming up a vehicle on cold mornings is not required and may
reduce fuel economy.
•Resting your foot on the brake pedal while driving may reduce fuel
economy.
•Combine errands and minimize stop-and-go driving.
Maintenance
•Keep tires properly inflated and use only recommended size.
•Operating a vehicle with the wheels out of alignment will reduce fuel
economy.
•Use recommended engine oil. Refer toMaintenance product
specifications and capacitiesin this chapter.
•Perform all regularly scheduled maintenance items. Follow the
recommended maintenance schedule and owner maintenance checks
found inscheduled maintenance information.
Conditions
•Heavily loading a vehicle may reduce fuel economy at any speed.
•Carrying unnecessary weight may reduce fuel economy (approximately
1 mpg [0.4 km/L] is lost for every 400 lb [180 kg] of weight carried).
•Adding certain accessories to your vehicle (for example; bug
deflectors, rollbars/light bars, running boards, ski/luggage racks) may
reduce fuel economy.
•Using fuel blended with alcohol may lower fuel economy.
2008 MKZ(378)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
258
Page 261 of 280
3. The fuel cap may not have been securely tightened. SeeFuel filler
capin this chapter.
4. Driving through deep water—the electrical system may be wet.
These temporary malfunctions can be corrected by filling the fuel tank
with good quality fuel, properly tightening the fuel cap or letting the
electrical system dry out. After three driving cycles without these or any
other temporary malfunctions present, theService engine soon
indicator should stay off the next time the engine is started. A driving
cycle consists of a cold engine startup followed by mixed city/highway
driving. No additional vehicle service is required.
If theService engine soon
indicator remains on, have your vehicle
serviced at the first available opportunity. Although some malfunctions
detected by the OBD-II may not have symptoms that are apparent,
continued driving with theService engine soon
indicator on can
result in increased emissions, lower fuel economy, reduced engine and
transmission smoothness, and lead to more costly repairs.
Readiness for Inspection/Maintenance (I/M) testing
Some state/provincial and local governments may have
Inspection/Maintenance (I/M) programs to inspect the emission control
equipment on your vehicle. Failure to pass this inspection could prevent
you from getting a vehicle registration. Your vehicle may not pass the I/M
test if theService engine soon
indicator is on or not working
properly (bulb is burned out), or if the OBD-II system has determined
that some of the emission control systems have not been properly
checked. In this case, the vehicle is considered not ready for I/M testing.
If theService engine soon
indicator is on or the bulb does not
work, the vehicle may need to be serviced. Refer to the On board
diagnostics (OBD-II) description in this chapter.
If the vehicle’s engine or transmission has just been serviced, or the
battery has recently run down or been replaced, the OBD-II system may
indicate that the vehicle is not ready for I/M testing. To determine if the
vehicle is ready for I/M testing, turn the ignition key to the ON position
for 15 seconds without cranking the engine. If theService engine
soon
indicator blinks eight times, it means that the vehicle is not
ready for I/M testing; if theService engine soon
indicator stays on
solid, it means that the vehicle is ready for I/M testing.
2008 MKZ(378)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
261
Page 262 of 280
The OBD-II system is designed to check the emission control system
during normal driving. A complete check may take several days. If the
vehicle is not ready for I/M testing, the following driving cycle consisting
of mixed city and highway driving may be performed:
15 minutes of steady driving on an expressway/highway followed by 20
minutes of stop-and-go driving with at least four 30-second idle periods.
Allow the vehicle to sit for at least eight hours without starting the
engine. Then, start the engine and complete the above driving cycle. The
engine must warm up to its normal operating temperature. Once started,
do not turn off the engine until the above driving cycle is complete. If
the vehicle is still not ready for I/M testing, the above driving cycle will
have to be repeated.
POWER STEERING FLUID
Refer to thescheduled maintenance informationfor the service
interval schedules.
1. Start the engine and let it run
until it reaches normal operating
temperature (the engine coolant
temperature gauge indicator will be
near the center of the normal area
between H and C).
2. While the engine idles, turn the
steering wheel left and right several
times.
3. Turn the engine off.
4. Check the fluid level in the reservoir. It should be between the MIN
and MAX lines. Do not add fluid if the level is in this range.
5. If the fluid is low, add fluid in small amounts, continuously checking
the level until it reaches the range between the MIN and MAX lines. Be
sure to put the cap back on the reservoir. Refer toMaintenance
product specifications and capacitiesin this chapter for the proper
fluid type.
2008 MKZ(378)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
262
Page 263 of 280
BRAKE FLUID
The fluid level will drop slowly as
the brakes wear, and will rise when
the brake components are replaced.
Fluid levels between the “MIN” and
“MAX” lines are within the normal
operating range; there is no need to
add fluid. If the fluid levels are
outside of the normal operating
range the performance of the
system could be compromised; seek
service from your authorized dealer
immediately.
TRANSAXLE FLUID
Checking 6–speed automatic transmission fluid
Refer to yourscheduled maintenance informationfor scheduled
intervals for fluid checks and changes. Your transaxle does not consume
fluid. However, the fluid level should be checked if the transaxle is not
working properly, i.e., if the transaxle slips or shifts slowly or if you
notice some sign of fluid leakage.
Checking automatic transmission fluid at normal operating
temperature (140°F-158°F [60°C-70°C])
Automatic transmission fluid expands when warmed. To obtain an
accurate fluid check, drive the vehicle until it is warmed up
(approximately 20 miles [30 km]) until the engine coolant gauge
indicates normal operating temperature. If your vehicle has been
operated for an extended period at high speeds, in city traffic
during hot weather or pulling a trailer, the vehicle should be
turned off for about 30 minutes to allow fluid to cool before
checking.
1. Drive the vehicle 20 miles (30 km) or until the coolant gauge indicates
normal operating temperature.
2. Park the vehicle on a level surface and engage the parking brake.
3. With the parking brake engaged and your foot on the brake pedal,
start the engine and move the gearshift lever through all of the gear
ranges. Allow sufficient time for each gear to engage (approximately
10–15 seconds in each position).
4. Move the gearshift lever to P (Park) and leave the engine running.
2008 MKZ(378)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
263
Page 264 of 280
5. Remove the dipstick, wiping it clean with a clean, dry, lint-free rag. If
necessary, refer toIdentifying components in the engine compartment
in this chapter for the location of the dipstick.
6. Install the dipstick making sure it is fully seated in the filler tube.
7. Remove the dipstick and inspect
the fluid level. The fluid should read
within the hot range on the dipstick
if at normal operating temperature
(140°F-158°F [60°C-70°C]).
Checking automatic transmission fluid at cool temperature
(59°F-77°F [15°C-25°C])
If a fluid check is necessary at a low
fluid temperature (59°F-77°F
[15°C-25°C]), perform the check
using the cold range on the dipstick.
However, the fluid must be
re-checked at the proper fluid temperature.
Low fluid level
Do not drive the vehicle if the fluid
level does not show at all on the
dipstick.
Driving the vehicle with less than
the recommended fluid level may result in transaxle failure. An under fill
condition of transmission fluid may cause shift and/or engagement
concerns and /or possible damage to the transaxle.
High fluid level
Fluid levels above the normal
operating range may result in
transaxle failure. An overfill
condition of transmission fluid may
cause shift and/or engagement
concerns and/or possible damage to
the transaxle.
High fluid levels can be caused by an overheating condition.
2008 MKZ(378)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
264
Page 269 of 280

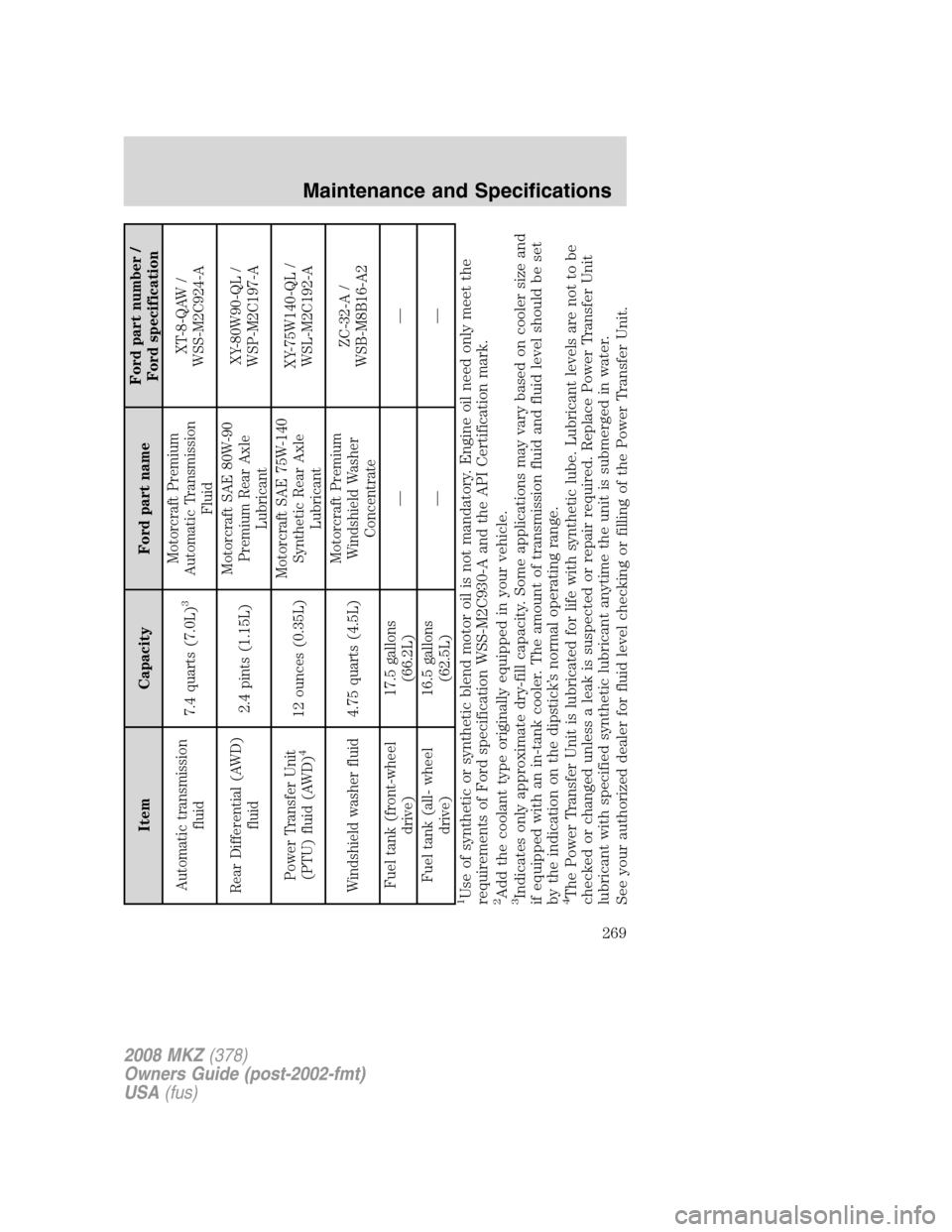

Item Capacity Ford part nameFord part number /
Ford specification
Automatic transmission
fluid7.4 quarts (7.0L)
3
Motorcraft Premium
Automatic Transmission
FluidXT-8-QAW /
WSS-M2C924-A
Rear Differential (AWD)
fluid2.4 pints (1.15L)Motorcraft SAE 80W-90
Premium Rear Axle
LubricantXY-80W90-QL /
WSP-M2C197-A
Power Transfer Unit
(PTU) fluid (AWD)
4
12 ounces (0.35L)Motorcraft SAE 75W-140
Synthetic Rear Axle
LubricantXY-75W140-QL /
WSL-M2C192-A
Windshield washer fluid 4.75 quarts (4.5L)Motorcraft Premium
Windshield Washer
ConcentrateZC-32-A /
WSB-M8B16-A2
Fuel tank (front-wheel
drive)17.5 gallons
(66.2L)——
Fuel tank (all- wheel
drive)16.5 gallons
(62.5L)——
1Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C930-A and the API Certification mark.2Add the coolant type originally equipped in your vehicle.3Indicates only approximate dry-fill capacity. Some applications may vary based on cooler size and
if equipped with an in-tank cooler. The amount of transmission fluid and fluid level should be set
by the indication on the dipstick’s normal operating range.4The Power Transfer Unit is lubricated for life with synthetic lube. Lubricant levels are not to be
checked or changed unless a leak is suspected or repair required. Replace Power Transfer Unit
lubricant with specified synthetic lubricant anytime the unit is submerged in water.
See your authorized dealer for fluid level checking or filling of the Power Transfer Unit.
2008 MKZ(378)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
269
Page 272 of 280

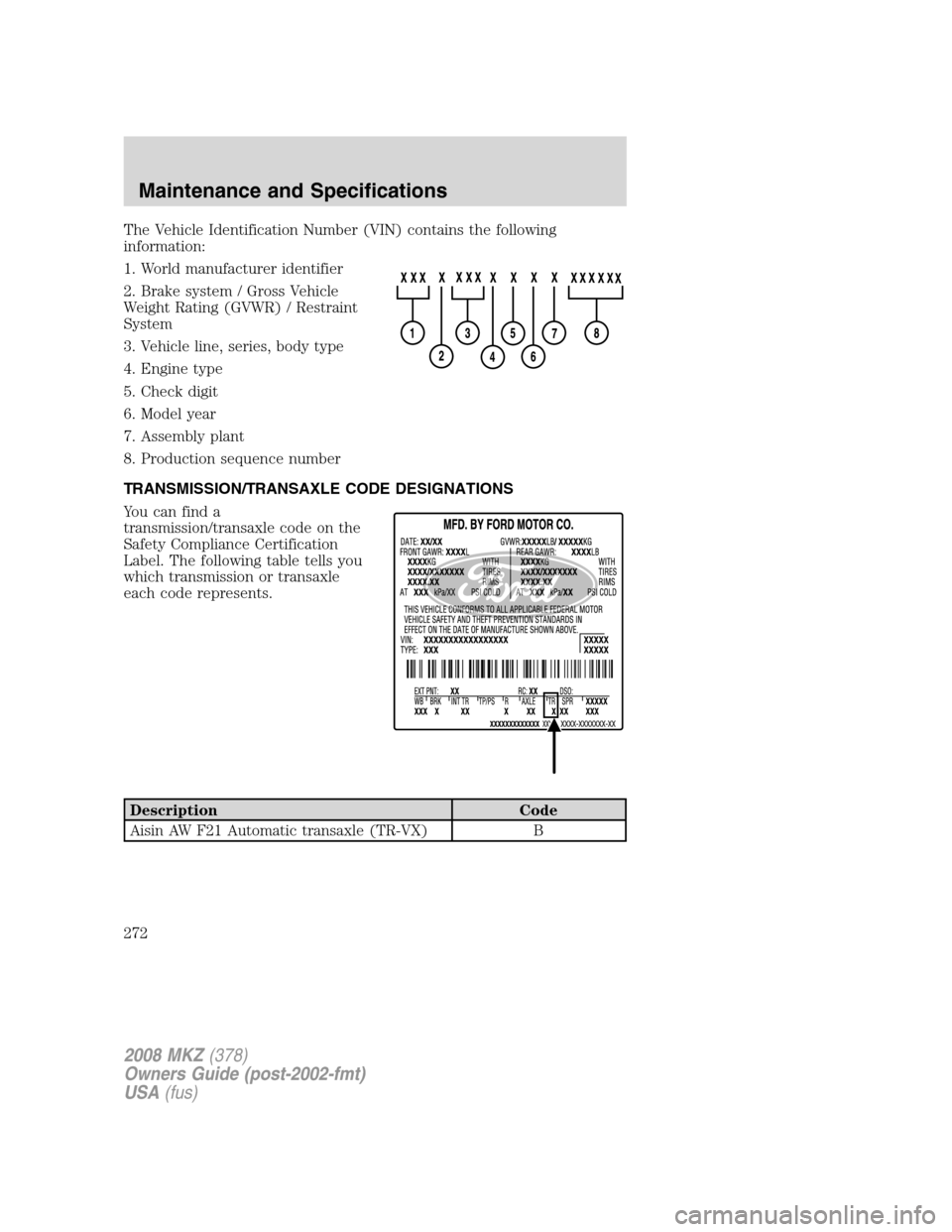

The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
System
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
TRANSMISSION/TRANSAXLE CODE DESIGNATIONS
You can find a
transmission/transaxle code on the
Safety Compliance Certification
Label. The following table tells you
which transmission or transaxle
each code represents.
Description Code
Aisin AW F21 Automatic transaxle (TR-VX) B
2008 MKZ(378)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
272
Page 275 of 280

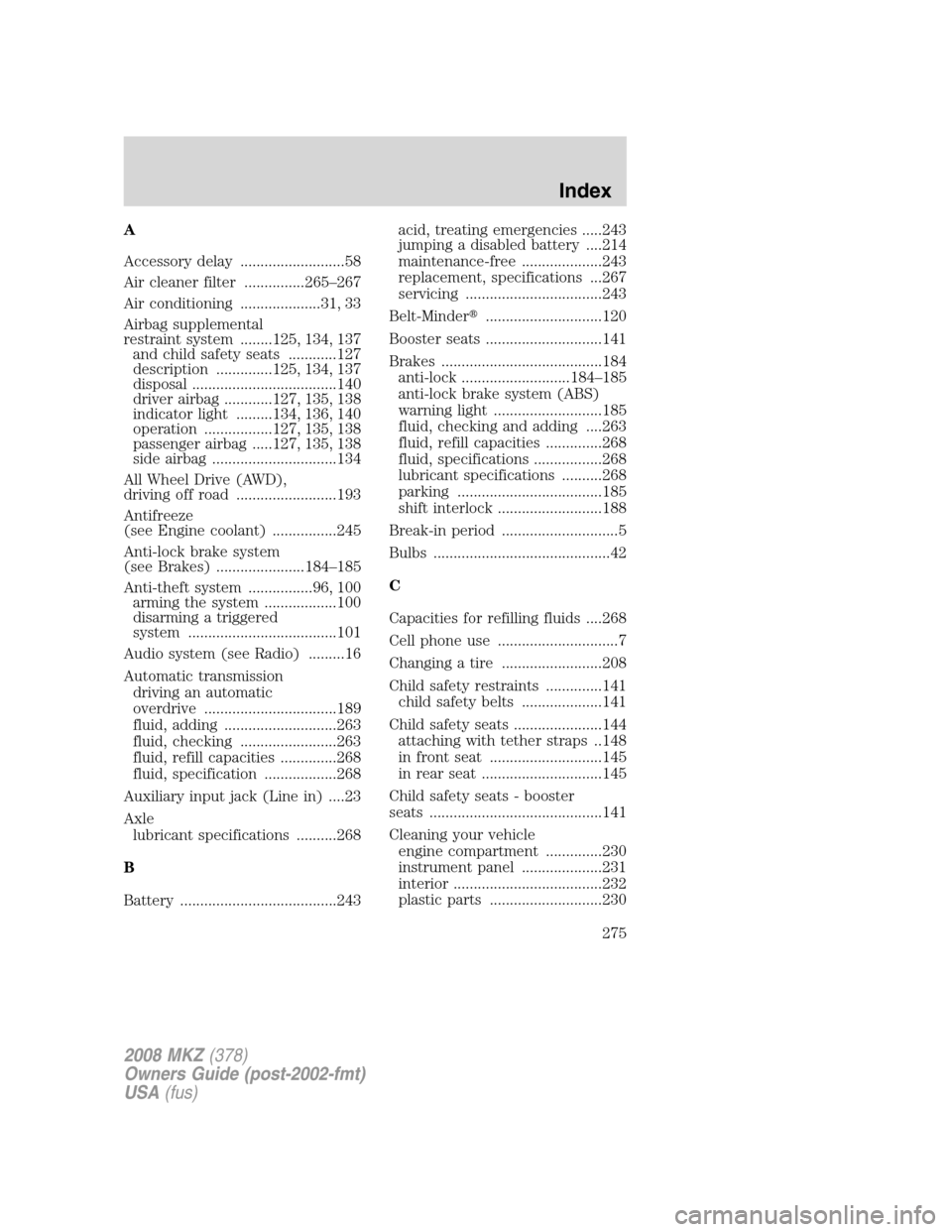

A
Accessory delay ..........................58
Air cleaner filter ...............265–267
Air conditioning ....................31, 33
Airbag supplemental
restraint system ........125, 134, 137
and child safety seats ............127
description ..............125, 134, 137
disposal ....................................140
driver airbag ............127, 135, 138
indicator light .........134, 136, 140
operation .................127, 135, 138
passenger airbag .....127, 135, 138
side airbag ...............................134
All Wheel Drive (AWD),
driving off road .........................193
Antifreeze
(see Engine coolant) ................245
Anti-lock brake system
(see Brakes) ......................184–185
Anti-theft system ................96, 100
arming the system ..................100
disarming a triggered
system .....................................101
Audio system (see Radio) .........16
Automatic transmission
driving an automatic
overdrive .................................189
fluid, adding ............................263
fluid, checking ........................263
fluid, refill capacities ..............268
fluid, specification ..................268
Auxiliary input jack (Line in) ....23
Axle
lubricant specifications ..........268
B
Battery .......................................243acid, treating emergencies .....243
jumping a disabled battery ....214
maintenance-free ....................243
replacement, specifications ...267
servicing ..................................243
Belt-Minder.............................120
Booster seats .............................141
Brakes ........................................184
anti-lock ...........................184–185
anti-lock brake system (ABS)
warning light ...........................185
fluid, checking and adding ....263
fluid, refill capacities ..............268
fluid, specifications .................268
lubricant specifications ..........268
parking ....................................185
shift interlock ..........................188
Break-in period .............................5
Bulbs ............................................42
C
Capacities for refilling fluids ....268
Cell phone use ..............................7
Changing a tire .........................208
Child safety restraints ..............141
child safety belts ....................141
Child safety seats ......................144
attaching with tether straps ..148
in front seat ............................145
in rear seat ..............................145
Child safety seats - booster
seats ...........................................141
Cleaning your vehicle
engine compartment ..............230
instrument panel ....................231
interior .....................................232
plastic parts ............................230
2008 MKZ(378)
Owners Guide (post-2002-fmt)
USA(fus)
Index
275
Page 276 of 280
washing ....................................228
waxing .....................................229
wheels ......................................229
wiper blades ............................231
Climate control (see Air
conditioning or Heating) ......31, 33
Clock ............................................55
Compass, electronic
set zone adjustment .................72
Console
overhead ....................................54
Controls
power seat ...............................103
steering column ........................62
Coolant
checking and adding ..............245
refill capacities ................249, 268
specifications ..........................268
Cruise control
(see Speed control) ....................60
Cupholder(s) .............................111
Customer Assistance ................199
Ford Extended Service
Plan ..........................................224
Getting assistance outside
the U.S. and Canada ..............225
Getting roadside assistance ...199
Getting the service you
need .........................................220
Ordering additional owner’s
literature .................................226
Utilizing the
Mediation/Arbitration
Program ...................................224
D
Daytime running lamps
(see Lamps) ................................38Dipstick
automatic transmission fluid .263
engine oil .................................239
Driving under special
conditions ..................191, 194, 196
sand .........................................195
snow and ice ...........................197
through water .................196, 198
E
Electronic message center .........69
Emergencies, roadside
jump-starting ..........................214
Emission control system ..........259
Engine ........................................270
cleaning ...................................230
coolant .....................................245
fail-safe cooling .......................250
idle speed control ...................243
lubrication specifications .......268
refill capacities ........................268
service points ..........................237
starting after a collision .........201
Engine block heater .................182
Engine oil ..................................239
change oil soon warning,
message center .......................239
checking and adding ..............239
dipstick ....................................239
filter, specifications ........242, 267
recommendations ...................242
refill capacities ........................268
specifications ..........................268
Event data recording ....................6
Exhaust fumes ..........................182
F
Fail safe cooling ........................250
2008 MKZ(378)
Owners Guide (post-2002-fmt)
USA(fus)
Index
276
