Page 1 of 280

LINCOLN MKZ 2008  Owners Manual Introduction 4
Instrument Cluster 10
Warning lights and chimes 10
Gauges 14
Entertainment Systems 16
AM/FM stereo with CDX6/MP3 16
Auxiliary input jack (Line in) 23
USB port 25
Satellite radio informa

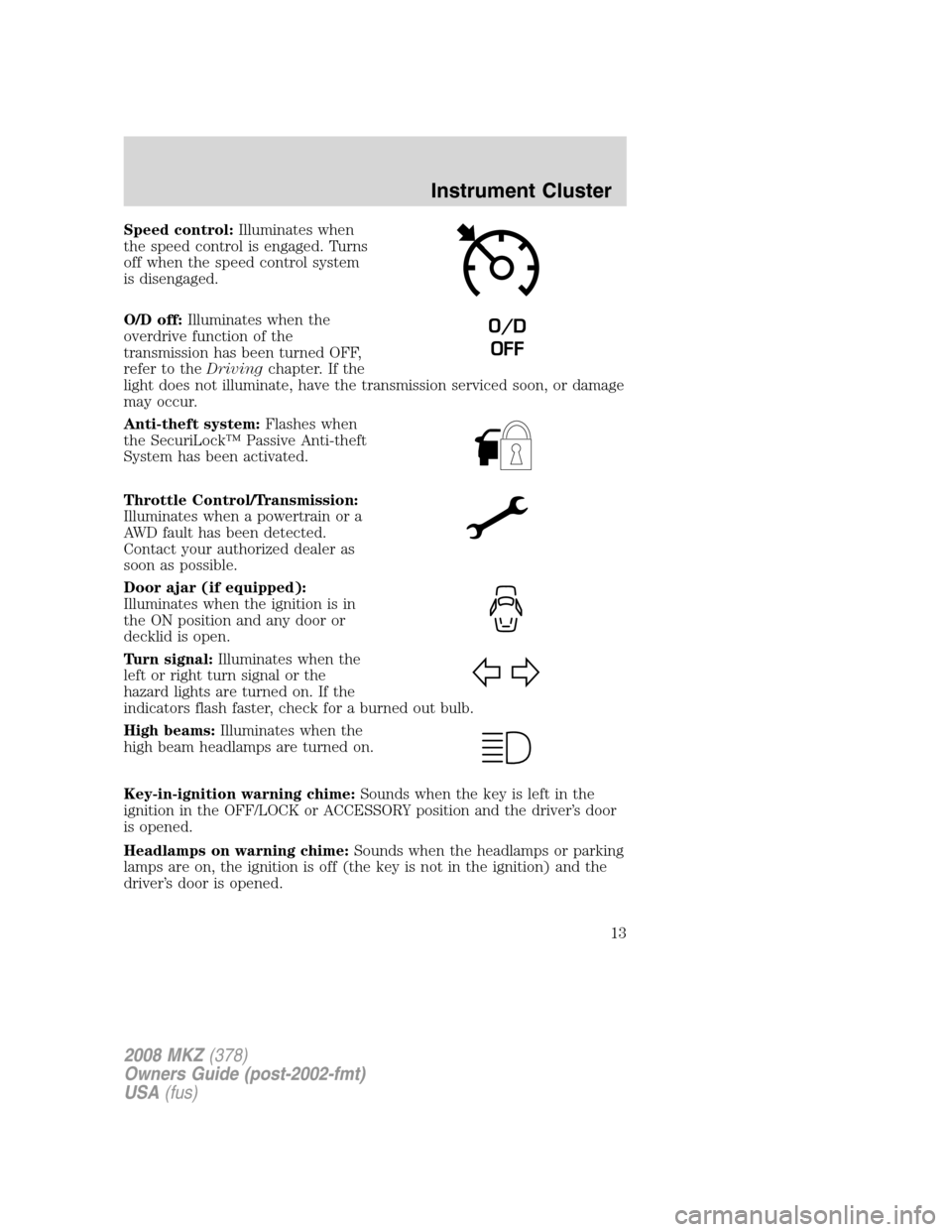

Page 13 of 280

LINCOLN MKZ 2008  Owners Manual Speed control:Illuminates when
the speed control is engaged. Turns
off when the speed control system
is disengaged.
O/D off:Illuminates when the
overdrive function of the
transmission has been turned

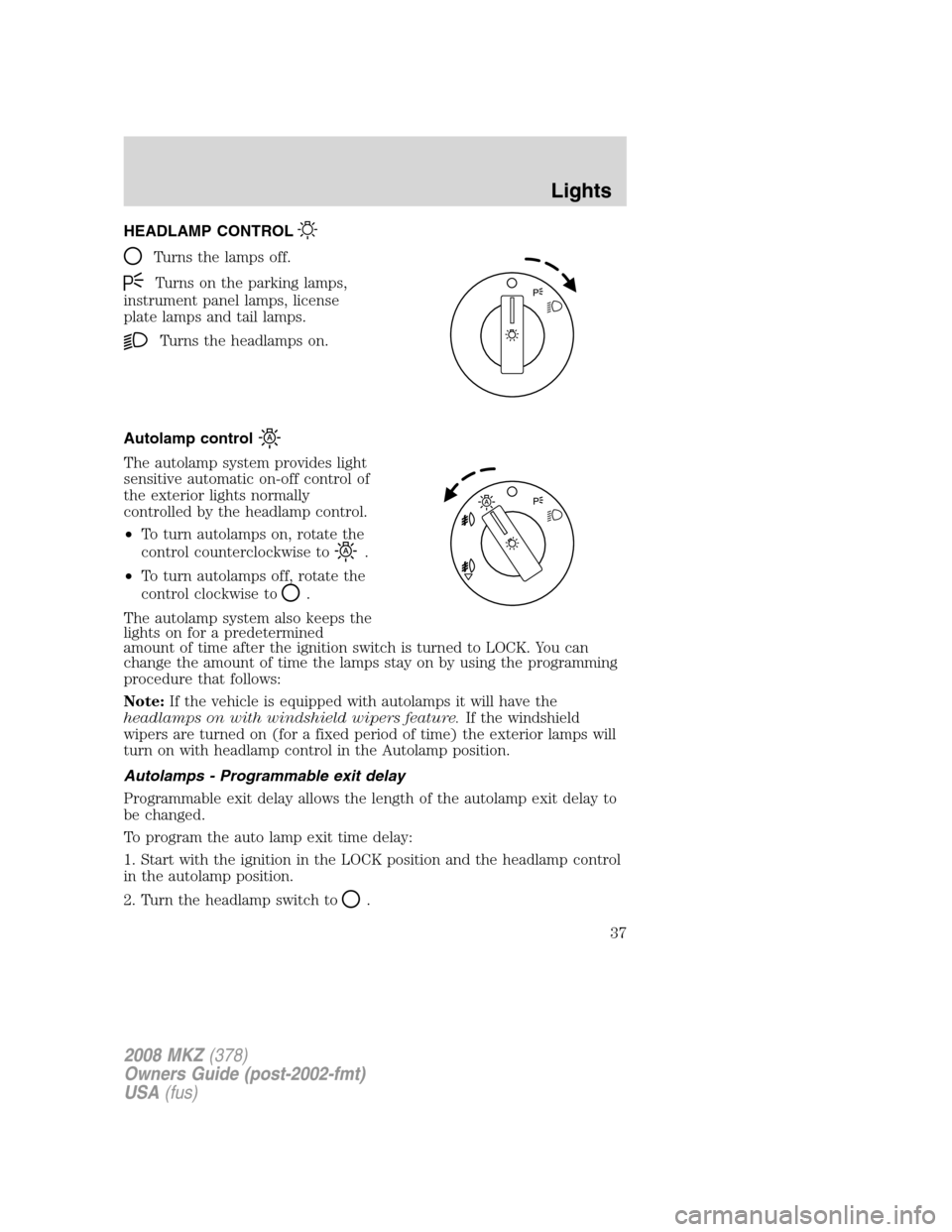

Page 37 of 280

LINCOLN MKZ 2008  Owners Manual HEADLAMP CONTROL
Turns the lamps off.
Turns on the parking lamps,
instrument panel lamps, license
plate lamps and tail lamps.
Turns the headlamps on.
Autolamp control
The autolamp system provides ligh

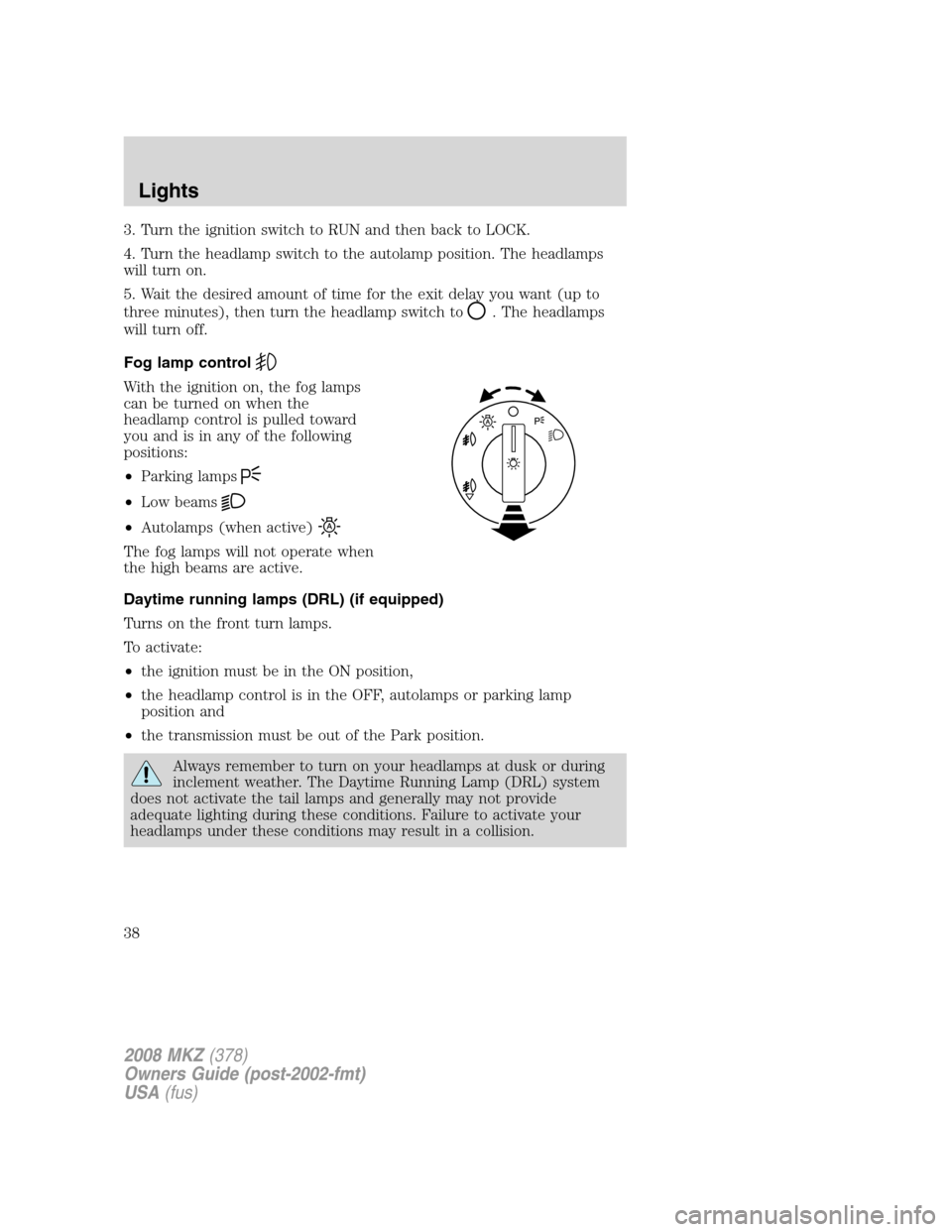

Page 38 of 280

LINCOLN MKZ 2008  Owners Manual 3. Turn the ignition switch to RUN and then back to LOCK.
4. Turn the headlamp switch to the autolamp position. The headlamps
will turn on.
5. Wait the desired amount of time for the exit delay you wa

Page 39 of 280

LINCOLN MKZ 2008  Owners Manual High beams
Push the lever toward the
instrument panel to activate. Pull
the lever towards you to deactivate.
Flash to pass
Pull toward you slightly to activate
and release to deactivate.
PANEL DIMMER

Page 40 of 280

LINCOLN MKZ 2008  Owners Manual Note:If the battery is disconnected, discharged, or a new battery is
installed, the dimmer switch requires re-calibration. Rotate the dimmer
switch from the full dim position to the full Dome/ON posit

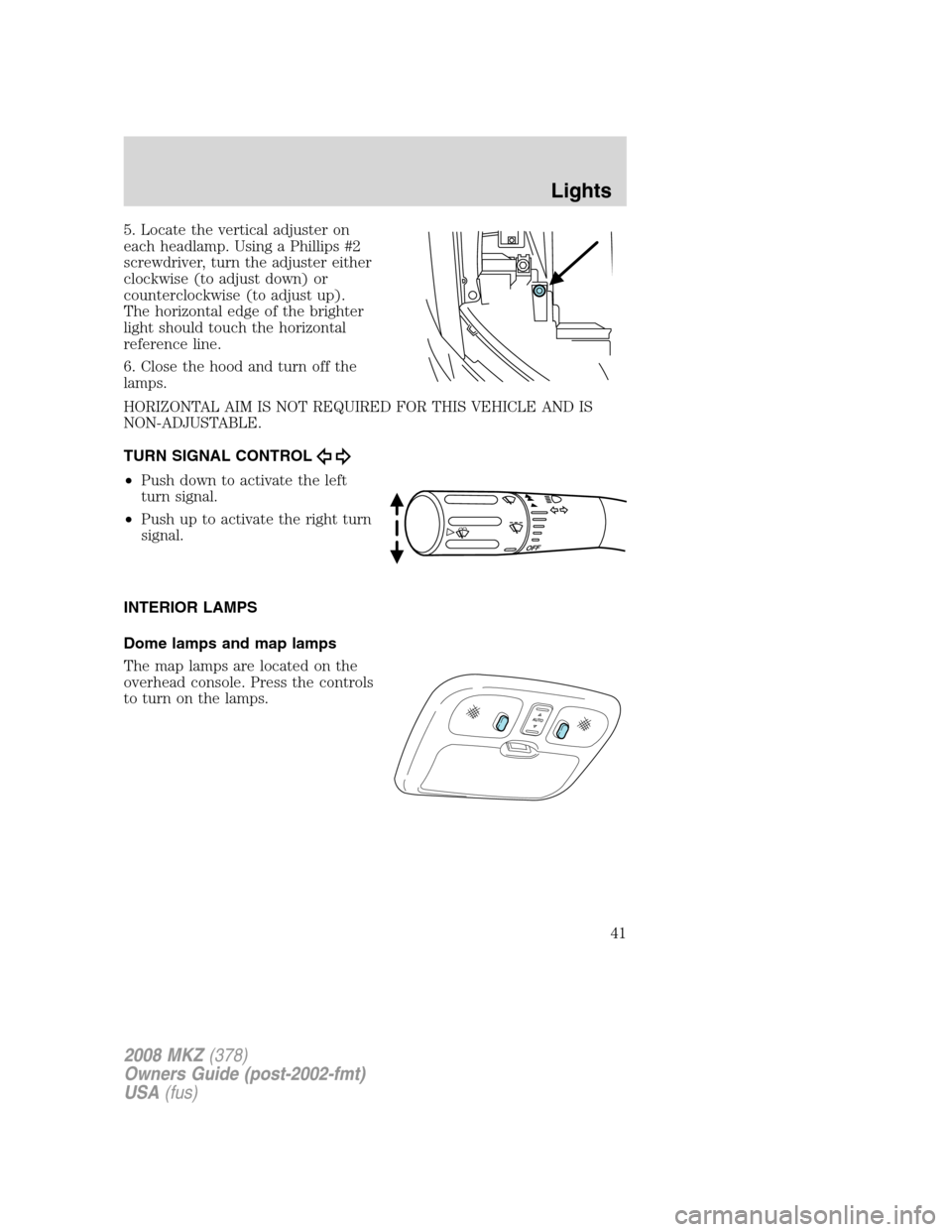

Page 41 of 280

LINCOLN MKZ 2008  Owners Manual 5. Locate the vertical adjuster on
each headlamp. Using a Phillips #2
screwdriver, turn the adjuster either
clockwise (to adjust down) or
counterclockwise (to adjust up).
The horizontal edge of the br

Page 42 of 280

LINCOLN MKZ 2008  Owners Manual Your vehicle may also have reading
lamps within the rear dome lamp(s).
Press the switches on either side of
the dome lamp to turn on the
lamps.
BULB REPLACEMENT
Headlamp Condensation
The headlamps are

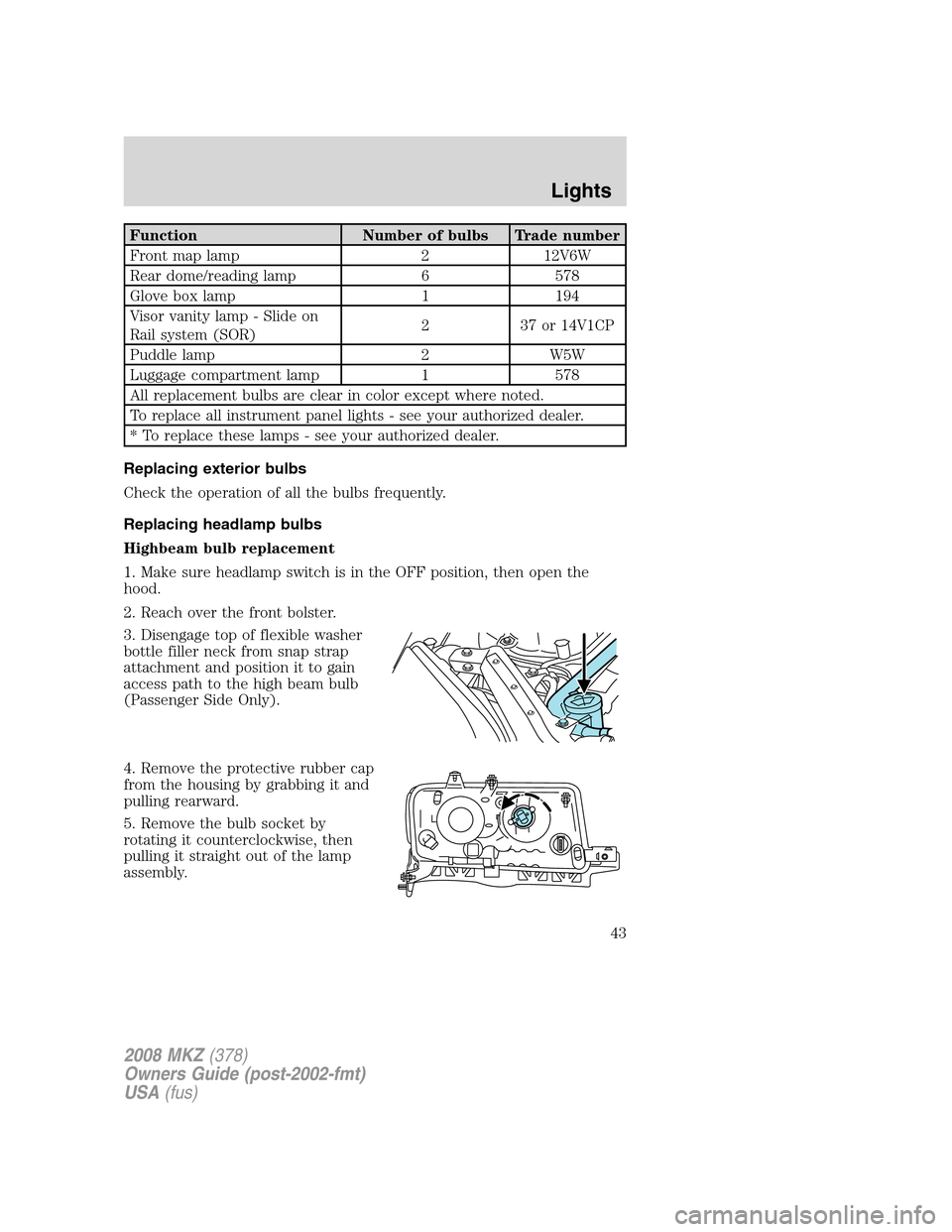

Page 43 of 280

LINCOLN MKZ 2008  Owners Manual Function Number of bulbs Trade number
Front map lamp 2 12V6W
Rear dome/reading lamp 6 578
Glove box lamp 1 194
Visor vanity lamp - Slide on
Rail system (SOR)2 37 or 14V1CP
Puddle lamp 2 W5W
Luggage co

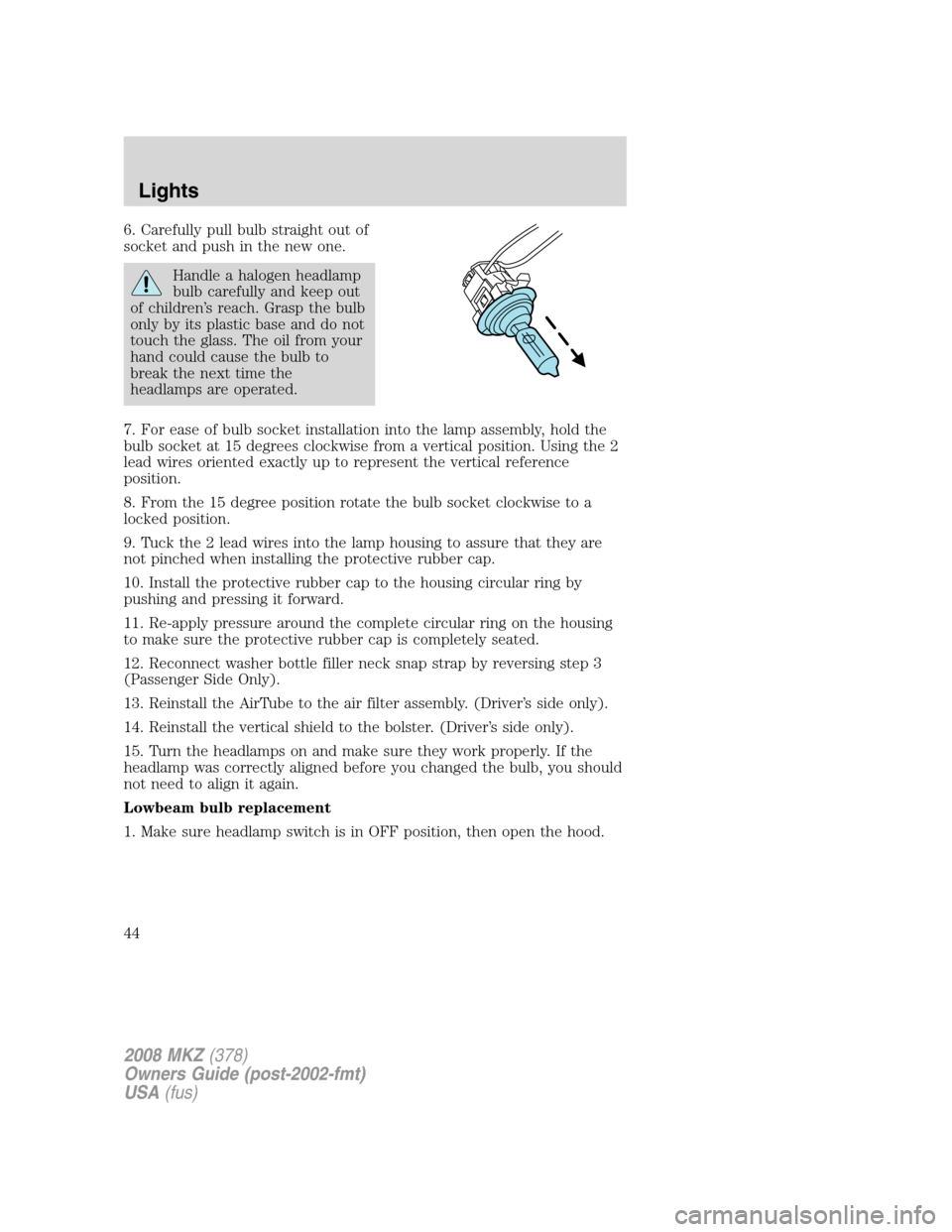

Page 44 of 280

LINCOLN MKZ 2008  Owners Manual 6. Carefully pull bulb straight out of
socket and push in the new one.
Handle a halogen headlamp
bulb carefully and keep out
of children’s reach. Grasp the bulb
only by its plastic base and do not
t
