LINCOLN MKZ 2009 Owners Manual

Item Capacity Ford part nameFord part number /
Ford specification
Automatic transmission
fluid7.4 quarts (7.0L)
3
Motorcraft Premium
Automatic Transmission
FluidXT-8-QAW /
WSS-M2C924-A
Rear Differential (AWD)
fluid2.4 pints (1.15L)Motorcraft SAE 80W-90
Premium Rear Axle
LubricantXY-80W90-QL /
WSP-M2C197-A
Power Transfer Unit
(PTU) fluid (AWD)
4
12 ounces (0.35L)Motorcraft SAE 75W-140
Synthetic Rear Axle
LubricantXY-75W140-QL /
WSL-M2C192-A
Windshield washer fluid 4.75 quarts (4.5L)Motorcraft Premium
Windshield Washer
ConcentrateZC-32-A /
WSB-M8B16-A2
Fuel tank (FWD )17.5 gallons
(66.2L)——
Fuel tank (AWD)16.5 gallons
(62.5L)——
1Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C930-A and the API Certification mark.2Add the coolant type originally equipped in your vehicle.3Indicates only approximate dry-fill capacity. Some applications may vary based on cooler size and
if equipped with an in-tank cooler. The amount of transmission fluid and fluid level should be set
by the indication on the dipstick’s normal operating range.4The Power Transfer Unit is lubricated for life with synthetic lube. Lubricant levels are not to be
checked or changed unless a leak is suspected or repair required. Replace Power Transfer Unit
lubricant with specified synthetic lubricant anytime the unit is submerged in water.
See your authorized dealer for fluid level checking or filling of the Power Transfer Unit.
2009 MKZ(378)
Owners Guide
USA(fus)
Maintenance and Specifications
281

ENGINE DATA
Engine3.5L-DOHC V6 engine
Displacement 3.5L
Required fuel 87 octane
Firing order 1–4–2–5–3–6
Spark plug gap 0.052–0.056 inch (1.32–1.42 mm)
Ignition system Coil on plug
Compression ratio 10.3:1
Engine drivebelt routing
1. Short drivebelt is on first pulley groove closest to engine.
2. Long drivebelt is on second pulley groove farthest from engine.
2009 MKZ (378)
Owners Guide
USA (fus)
Maintenance and Specifications
282

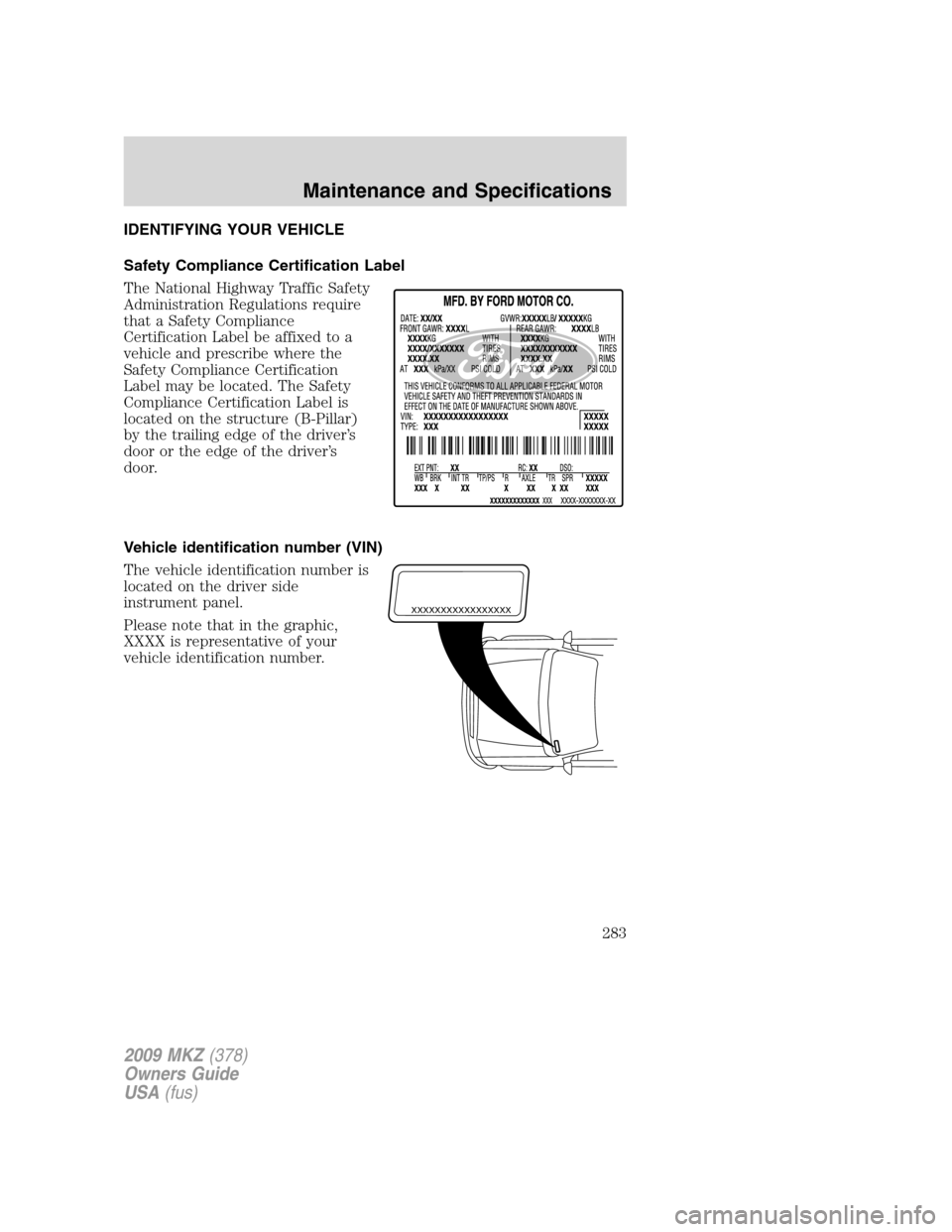

IDENTIFYING YOUR VEHICLE
Safety Compliance Certification Label
The National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance
Certification Label be affixed to a
vehicle and prescribe where the
Safety Compliance Certification
Label may be located. The Safety
Compliance Certification Label is
located on the structure (B-Pillar)
by the trailing edge of the driver’s
door or the edge of the driver’s
door.
Vehicle identification number (VIN)
The vehicle identification number is
located on the driver side
instrument panel.
Please note that in the graphic,
XXXX is representative of your
vehicle identification number.
XXXXXXXXXXXXXXXXX
2009 MKZ(378)
Owners Guide
USA(fus)
Maintenance and Specifications
283

The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
System
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
TRANSMISSION CODE DESIGNATIONS
You can find a transmission code on
the Safety Compliance Certification
Label. The following table tells you
which transmission each code
represents.
Description Code
Aisin AW F21 Automatic transmission
(TR-VX)B
2009 MKZ(378)
Owners Guide
USA(fus)
Maintenance and Specifications
284

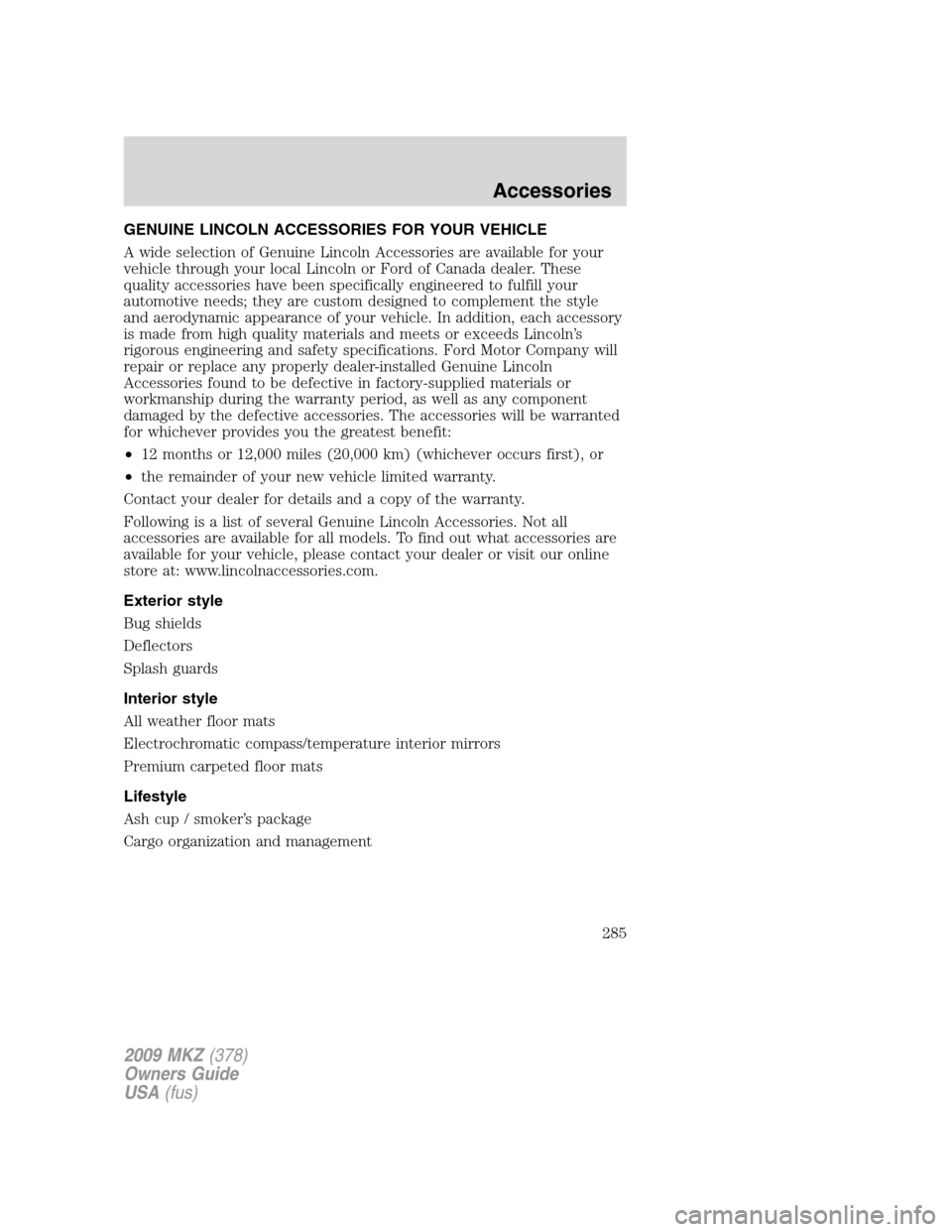

GENUINE LINCOLN ACCESSORIES FOR YOUR VEHICLE
A wide selection of Genuine Lincoln Accessories are available for your
vehicle through your local Lincoln or Ford of Canada dealer. These
quality accessories have been specifically engineered to fulfill your
automotive needs; they are custom designed to complement the style
and aerodynamic appearance of your vehicle. In addition, each accessory
is made from high quality materials and meets or exceeds Lincoln’s
rigorous engineering and safety specifications. Ford Motor Company will
repair or replace any properly dealer-installed Genuine Lincoln
Accessories found to be defective in factory-supplied materials or
workmanship during the warranty period, as well as any component
damaged by the defective accessories. The accessories will be warranted
for whichever provides you the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
Contact your dealer for details and a copy of the warranty.
Following is a list of several Genuine Lincoln Accessories. Not all
accessories are available for all models. To find out what accessories are
available for your vehicle, please contact your dealer or visit our online
store at: www.lincolnaccessories.com.
Exterior style
Bug shields
Deflectors
Splash guards
Interior style
All weather floor mats
Electrochromatic compass/temperature interior mirrors
Premium carpeted floor mats
Lifestyle
Ash cup / smoker’s package
Cargo organization and management
2009 MKZ(378)
Owners Guide
USA(fus)
Accessories
285

Peace of mind
Remote start
Vehicle security systems
Wheel locks
For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
•When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
Compliance Certification label). Consult your authorized dealer for
specific weight information.
•The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems — such as two-way radios, telephones and
theft alarms - that are equipped with radio transmitters. Any such
equipment installed in your vehicle should comply with FCC or CRTC
regulations and should be installed only by a qualified service
technician.
•Mobile communications systems may harm the operation of your
vehicle, particularly if they are not properly designed for automotive
use.
•To avoid interference with other vehicle functions, such as anti-lock
braking systems, amateur radio users who install radios and antennas
onto their vehicle should not locate the Amateur Radio Antennas in
the area of the driver’s side hood.
•Electrical or electronic accessories or components that are added to
the vehicle by the authorized dealer or the owner may adversely affect
battery performance and durability.
2009 MKZ(378)
Owners Guide
USA(fus)
Accessories
286

A
Accessory delay ..........................58
AdvanceTrac ..............................192
Air cleaner filter ...............278–279
Air conditioning ....................31, 33
Airbag supplemental restraint
system ........................126, 135, 138
and child safety seats ............128
description ..............126, 135, 138
disposal ....................................141
driver airbag ............128, 136, 139
indicator light .........134, 137, 140
operation .................128, 136, 139
passenger airbag .....128, 136, 139
side airbag ...............................135
All Wheel Drive (AWD),
driving off road .........................203
Antifreeze
(see Engine coolant) ................258
Anti-lock brake system
(see Brakes) ......................190–191
Anti-theft system ................96, 100
arming the system ..................100
disarming a triggered
system .....................................101
Audio system (see Radio) .........16
Automatic transmission
driving an automatic
overdrive .................................199
fluid, adding ............................276
fluid, checking ........................276
fluid, refill capacities ..............280
fluid, specification ..................280
Auxiliary input jack (Line in) ....23
Axle
lubricant specifications ..........280
B
Battery .......................................256acid, treating emergencies .....256
jumping a disabled battery ....225
maintenance-free ....................256
replacement, specifications ...279
servicing ..................................256
Belt-Minder.............................121
Booster seats .............................154
Brakes ........................................190
anti-lock ...........................190–191
anti-lock brake system (ABS)
warning light ...........................191
fluid, checking and adding ....275
fluid, refill capacities ..............280
fluid, specifications .................280
lubricant specifications ..........280
parking ....................................191
shift interlock ..........................198
Break-in period .............................5
Bulbs ............................................42
C
Capacities for refilling fluids ....280
Cell phone use ..............................7
Changing a tire .........................218
Child safety seats ......................145
attaching with tether straps ..151
in front seat ............................146
in rear seat ..............................146
LATCH .....................................149
recommendations ...................143
Child safety seats - booster
seats ...........................................154
Cleaning your vehicle
engine compartment ..............243
instrument panel ....................245
interior .....................................245
plastic parts ............................244
washing ....................................241
2009 MKZ(378)
Owners Guide
USA(fus)
Index
287

waxing .....................................242
wheels ......................................242
wiper blades ............................244
Climate control (see Air
conditioning or Heating) ......31, 33
Clock ............................................55
Compass, electronic
set zone adjustment .................73
Console
overhead ....................................54
Controls
power seat ...............................105
steering column ........................63
Coolant
checking and adding ..............258
refill capacities ................261, 280
specifications ..........................280
Cruise control
(see Speed control) ....................60
Cupholder(s) .............................112
Customer Assistance ................210
Ford Extended Service
Plan ..........................................237
Getting assistance outside the
U.S. and Canada .....................238
Getting roadside assistance ...210
Getting the service you
need .........................................233
Ordering additional owner’s
literature .................................239
Utilizing the
Mediation/Arbitration
Program ...................................237
D
Daytime running lamps
(see Lamps) ................................38Dipstick
automatic transmission
fluid ..........................................276
engine oil .................................252
Driving under special
conditions ..................201, 204, 207
sand .........................................205
snow and ice ...........................208
through water .................206, 209
E
Electronic message center .........70
Emergencies, roadside
jump-starting ..........................225
Emission control system ..........272
Engine ........................................282
cleaning ...................................243
coolant .....................................258
fail-safe cooling .......................262
idle speed control ...................256
lubrication specifications .......280
refill capacities ........................280
service points ..................250–251
starting after a collision .........212
Engine block heater .................188
Engine oil ..................................252
change oil soon warning,
message center .......................252
checking and adding ..............252
dipstick ....................................252
filter, specifications ........255, 279
recommendations ...................255
refill capacities ........................280
specifications ..........................280
Event data recording ....................6
Exhaust fumes ..........................188
F
Fail safe cooling ........................262
2009 MKZ(378)
Owners Guide
USA(fus)
Index
288

Fluid capacities .........................280
Foglamps .....................................38
Four-Wheel Drive vehicles
driving off road .......................203
Fuel ............................................264
calculating fuel
economy ............................72, 269
cap ...........................................266
capacity ...................................280
choosing the right fuel ...........267
comparisons with EPA fuel
economy estimates .................272
detergent in fuel .....................268
filling your vehicle with
fuel ...........................264, 266, 269
filter, specifications ........263, 279
fuel pump shut-off switch .....212
improving fuel economy ........269
octane rating ...................267, 282
quality ......................................267
running out of fuel .................268
safety information relating to
automotive fuels .....................264
Fuel pump shut-off switch .......212
Fuses ..................................212–213
G
Gas cap (see Fuel cap) ............266
Gas mileage
(see Fuel economy) .................269
Gauges .........................................14
H
Hazard flashers .........................211
Headlamps ...................................37
aiming ........................................40
autolamp system .......................37
bulb specifications ....................42daytime running lights .............38
flash to pass ..............................39
high beam .................................39
replacing bulbs .........................44
turning on and off ....................37
Heating
heating and air conditioning
system .................................31, 33
Homelink wireless control
system ..........................................67
Hood ..........................................249
I
Ignition ...............................185, 282
Illuminated visor mirror .............53
Infant seats
(see Safety seats) .....................145
Inspection/maintenance (I/M)
testing ........................................274
Instrument panel
cleaning ...................................245
cluster ........................................10
lighting up panel and
interior .......................................39
J
Jack ............................................218
positioning ...............................218
storage .....................................218
Jump-starting your vehicle ......225
K
Keyless entry system .................95
autolock .....................................83
keypad .......................................95
locking and unlocking doors ....96
programming entry code .........95
2009 MKZ(378)
Owners Guide
USA(fus)
Index
289

Keys .......................................80, 98
positions of the ignition .........185
L
Lamps
autolamp system .......................37
bulb replacement
specifications chart ..................42
daytime running light ...............38
fog lamps ...................................38
headlamps .................................37
headlamps, flash to pass ..........39
instrument panel, dimming .....39
interior lamps ...........................41
replacing bulbs .........................44
LATCH anchors .........................149
Lights, warning and indicator ....10
anti-lock brakes (ABS) ..........191
Load limits .................................178
Locks
autolock .....................................83
childproof ..................................86
doors ..........................................82
Lubricant specifications ...........280
Lug nuts ....................................224
Lumbar support, seats .............107
M
Message center .....................70–71
english/metric button ...............76
system check button ................75
warning messages .....................77
Mirrors ...................................58–59
automatic dimming rearview
mirror ........................................58
heated ........................................60
programmable memory ............91
side view mirrors (power) .......59Moon roof ..............................65, 90
Motorcraft parts ........247, 263, 279
N
Navigation system .......................30
O
Octane rating ............................267
Oil (see Engine oil) ..................252
P
Parking brake ............................191
Parts (see Motorcraft parts) ....279
Passenger Occupant
Classification Sensor .................113
Power distribution box
(see Fuses) ...............................215
Power door locks ........................82
Power mirrors .............................59
Power point .................................55
Power steering ..........................197
fluid, checking and adding ....275
fluid, refill capacity ................280
fluid, specifications .................280
Power Windows ...........................56
Power windows
opening using remote entry
system .......................................90
R
Radio ............................................16
Recommendations for
attaching safety restraints for
children ......................................143
2009 MKZ(378)
Owners Guide
USA(fus)
Index
290
