headlamp LINCOLN MKZ 2009 Owner's Manual

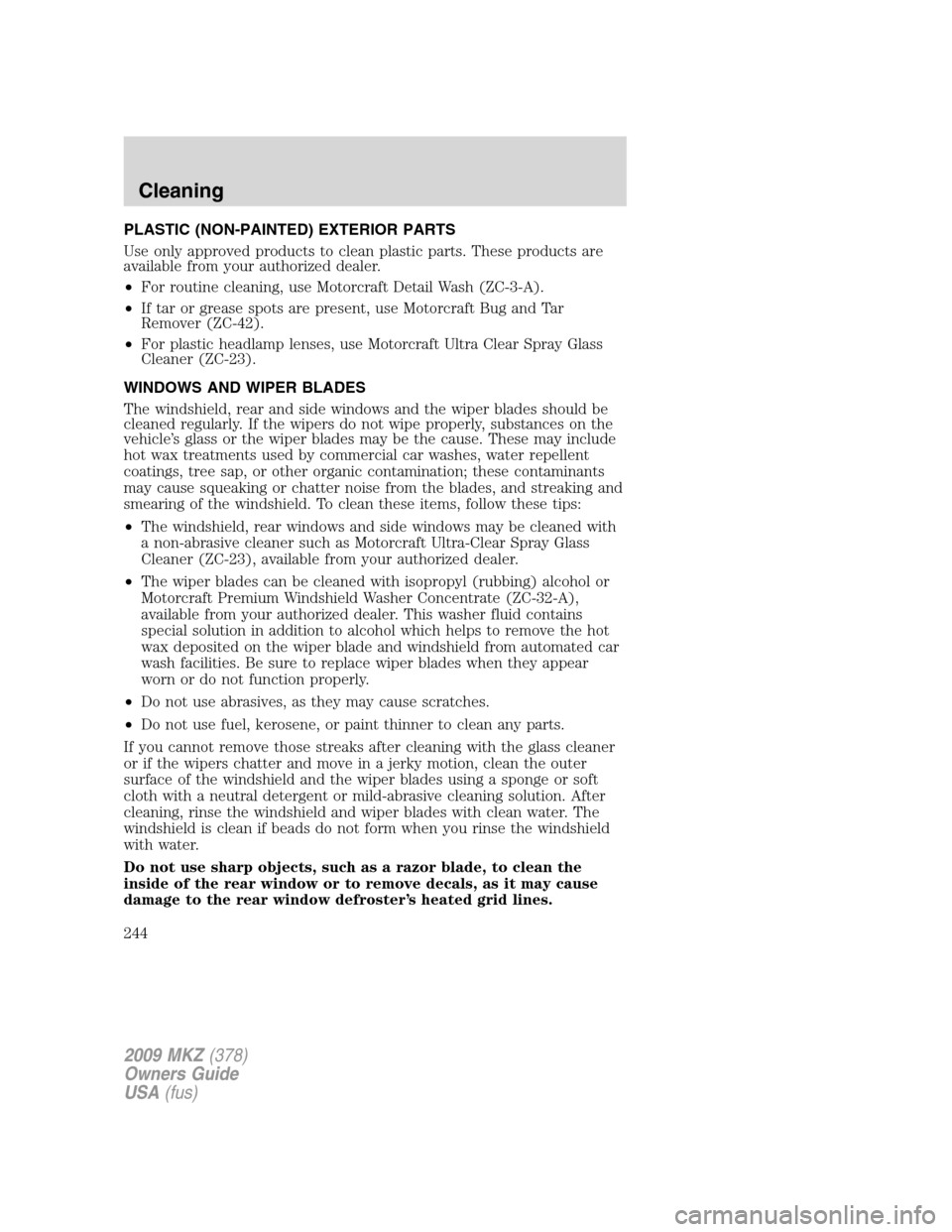

PLASTIC (NON-PAINTED) EXTERIOR PARTS
Use only approved products to clean plastic parts. These products are
available from your authorized dealer.
•For routine cleaning, use Motorcraft Detail Wash (ZC-3-A).
•If tar or grease spots are present, use Motorcraft Bug and Tar
Remover (ZC-42).
•For plastic headlamp lenses, use Motorcraft Ultra Clear Spray Glass
Cleaner (ZC-23).
WINDOWS AND WIPER BLADES
The windshield, rear and side windows and the wiper blades should be
cleaned regularly. If the wipers do not wipe properly, substances on the
vehicle’s glass or the wiper blades may be the cause. These may include
hot wax treatments used by commercial car washes, water repellent
coatings, tree sap, or other organic contamination; these contaminants
may cause squeaking or chatter noise from the blades, and streaking and
smearing of the windshield. To clean these items, follow these tips:
•The windshield, rear windows and side windows may be cleaned with
a non-abrasive cleaner such as Motorcraft Ultra-Clear Spray Glass
Cleaner (ZC-23), available from your authorized dealer.
•The wiper blades can be cleaned with isopropyl (rubbing) alcohol or
Motorcraft Premium Windshield Washer Concentrate (ZC-32-A),
available from your authorized dealer. This washer fluid contains
special solution in addition to alcohol which helps to remove the hot
wax deposited on the wiper blade and windshield from automated car
wash facilities. Be sure to replace wiper blades when they appear
worn or do not function properly.
•Do not use abrasives, as they may cause scratches.
•Do not use fuel, kerosene, or paint thinner to clean any parts.
If you cannot remove those streaks after cleaning with the glass cleaner
or if the wipers chatter and move in a jerky motion, clean the outer
surface of the windshield and the wiper blades using a sponge or soft
cloth with a neutral detergent or mild-abrasive cleaning solution. After
cleaning, rinse the windshield and wiper blades with clean water. The
windshield is clean if beads do not form when you rinse the windshield
with water.
Do not use sharp objects, such as a razor blade, to clean the
inside of the rear window or to remove decals, as it may cause
damage to the rear window defroster’s heated grid lines.
2009 MKZ(378)
Owners Guide
USA(fus)
Cleaning
244

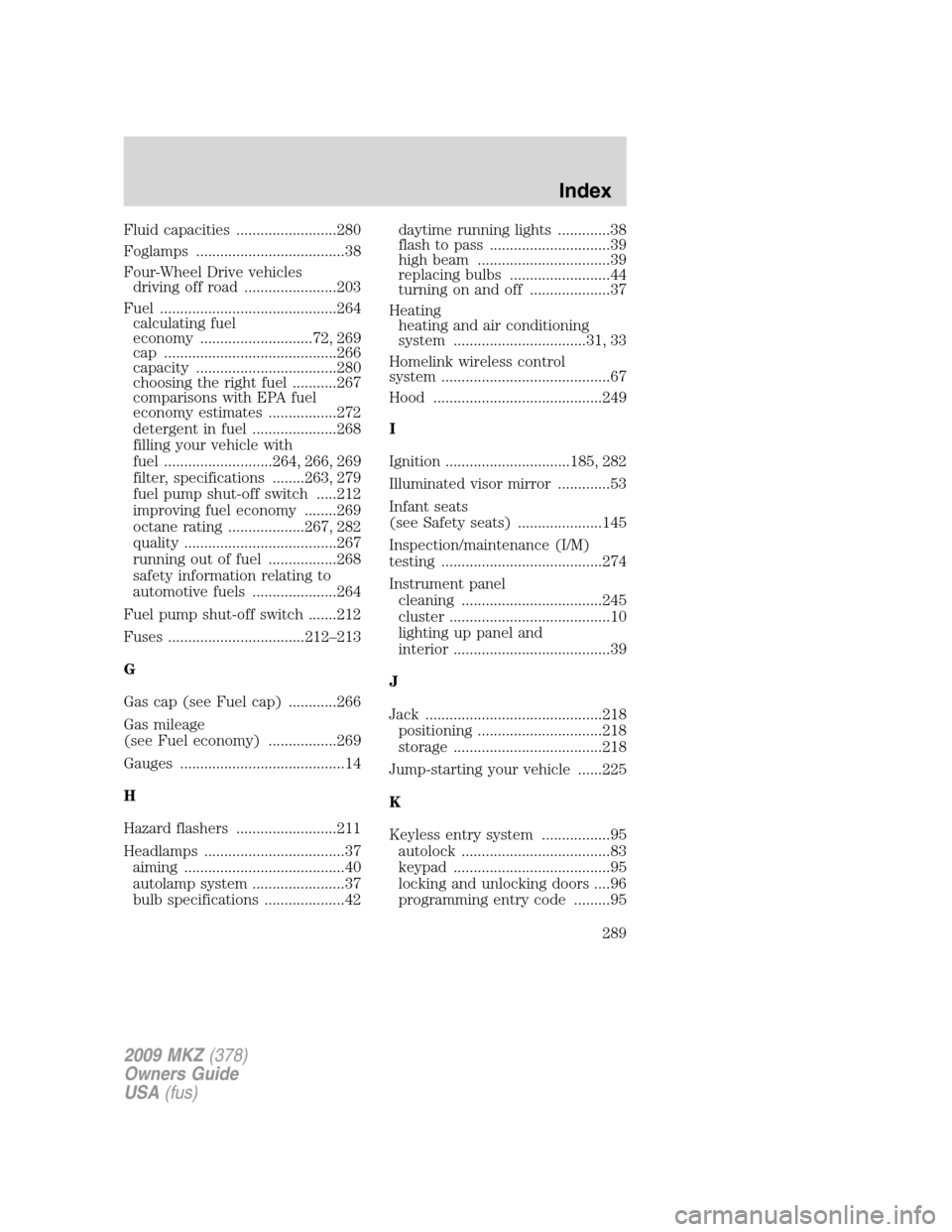

Fluid capacities .........................280
Foglamps .....................................38
Four-Wheel Drive vehicles
driving off road .......................203
Fuel ............................................264
calculating fuel
economy ............................72, 269
cap ...........................................266
capacity ...................................280
choosing the right fuel ...........267
comparisons with EPA fuel
economy estimates .................272
detergent in fuel .....................268
filling your vehicle with
fuel ...........................264, 266, 269
filter, specifications ........263, 279
fuel pump shut-off switch .....212
improving fuel economy ........269
octane rating ...................267, 282
quality ......................................267
running out of fuel .................268
safety information relating to
automotive fuels .....................264
Fuel pump shut-off switch .......212
Fuses ..................................212–213
G
Gas cap (see Fuel cap) ............266
Gas mileage
(see Fuel economy) .................269
Gauges .........................................14
H
Hazard flashers .........................211
Headlamps ...................................37
aiming ........................................40
autolamp system .......................37
bulb specifications ....................42daytime running lights .............38
flash to pass ..............................39
high beam .................................39
replacing bulbs .........................44
turning on and off ....................37
Heating
heating and air conditioning
system .................................31, 33
Homelink wireless control
system ..........................................67
Hood ..........................................249
I
Ignition ...............................185, 282
Illuminated visor mirror .............53
Infant seats
(see Safety seats) .....................145
Inspection/maintenance (I/M)
testing ........................................274
Instrument panel
cleaning ...................................245
cluster ........................................10
lighting up panel and
interior .......................................39
J
Jack ............................................218
positioning ...............................218
storage .....................................218
Jump-starting your vehicle ......225
K
Keyless entry system .................95
autolock .....................................83
keypad .......................................95
locking and unlocking doors ....96
programming entry code .........95
2009 MKZ(378)
Owners Guide
USA(fus)
Index
289

Keys .......................................80, 98
positions of the ignition .........185
L
Lamps
autolamp system .......................37
bulb replacement
specifications chart ..................42
daytime running light ...............38
fog lamps ...................................38
headlamps .................................37
headlamps, flash to pass ..........39
instrument panel, dimming .....39
interior lamps ...........................41
replacing bulbs .........................44
LATCH anchors .........................149
Lights, warning and indicator ....10
anti-lock brakes (ABS) ..........191
Load limits .................................178
Locks
autolock .....................................83
childproof ..................................86
doors ..........................................82
Lubricant specifications ...........280
Lug nuts ....................................224
Lumbar support, seats .............107
M
Message center .....................70–71
english/metric button ...............76
system check button ................75
warning messages .....................77
Mirrors ...................................58–59
automatic dimming rearview
mirror ........................................58
heated ........................................60
programmable memory ............91
side view mirrors (power) .......59Moon roof ..............................65, 90
Motorcraft parts ........247, 263, 279
N
Navigation system .......................30
O
Octane rating ............................267
Oil (see Engine oil) ..................252
P
Parking brake ............................191
Parts (see Motorcraft parts) ....279
Passenger Occupant
Classification Sensor .................113
Power distribution box
(see Fuses) ...............................215
Power door locks ........................82
Power mirrors .............................59
Power point .................................55
Power steering ..........................197
fluid, checking and adding ....275
fluid, refill capacity ................280
fluid, specifications .................280
Power Windows ...........................56
Power windows
opening using remote entry
system .......................................90
R
Radio ............................................16
Recommendations for
attaching safety restraints for
children ......................................143
2009 MKZ(378)
Owners Guide
USA(fus)
Index
290
