navigation system LINCOLN MKZ 2009 Owners Manual

Introduction 4
Instrument Cluster 10
Warning lights and chimes 10
Gauges 14
Entertainment Systems 16
AM/FM stereo with CDX6/MP3 16
Auxiliary input jack (Line in) 23
USB port 25
Satellite radio information 27
Navigation system 30
SYNC 30
Climate Controls 31
Automatic temperature control 31
Rear window defroster 36
Lights 37
Headlamps 37
Turn signal control 41
Bulb replacement 42
Driver Controls 52
Windshield wiper/washer control 52
Steering wheel adjustment 53
Power windows 56
Mirrors 58
Speed control 60
Moon roof 65
Message center 70
Locks and Security 80
Keys 80
Locks 82
Anti-theft system 96
Table of Contents
1
2009 MKZ(378)
Owners Guide
USA(fus)

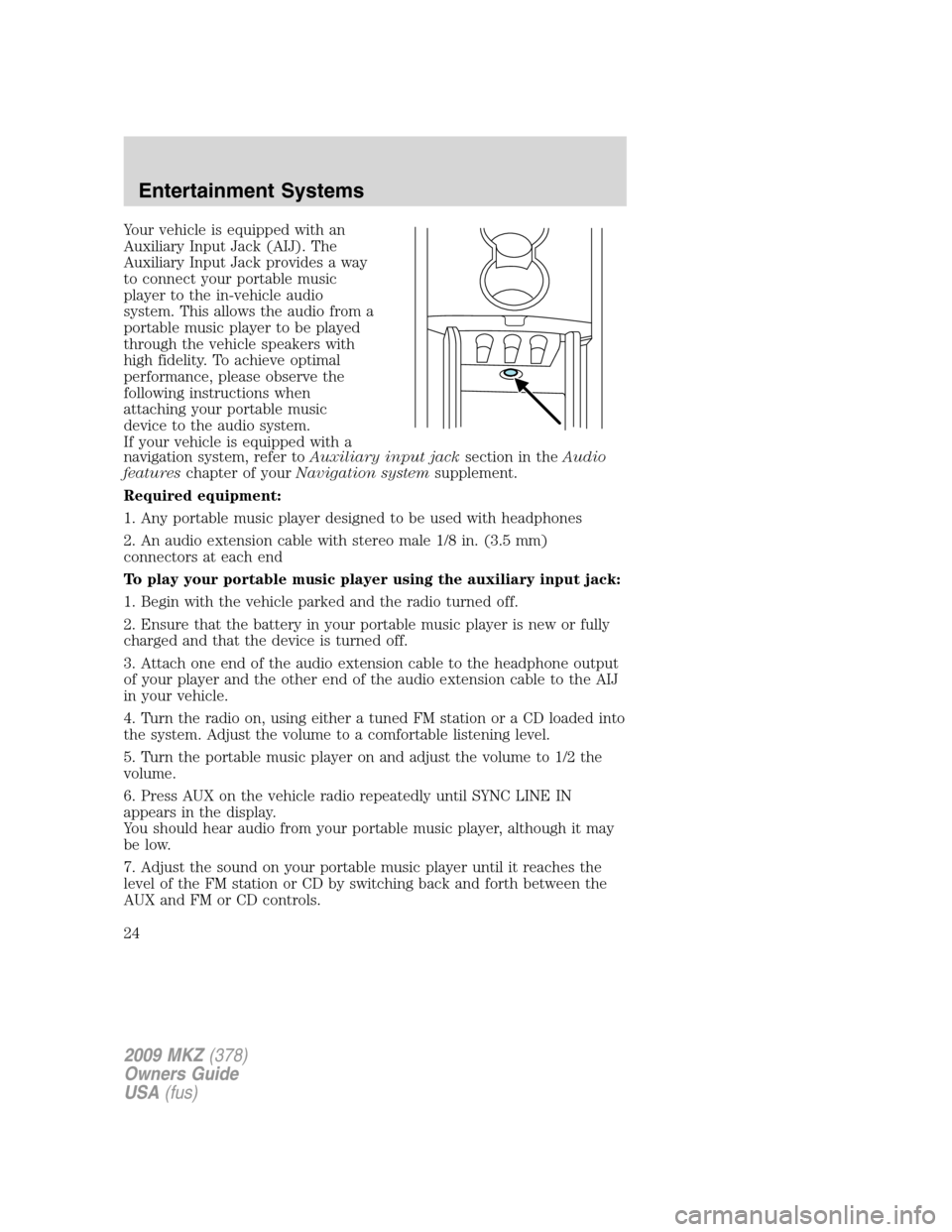

Your vehicle is equipped with an
Auxiliary Input Jack (AIJ). The
Auxiliary Input Jack provides a way
to connect your portable music
player to the in-vehicle audio
system. This allows the audio from a
portable music player to be played
through the vehicle speakers with
high fidelity. To achieve optimal
performance, please observe the
following instructions when
attaching your portable music
device to the audio system.
If your vehicle is equipped with a
navigation system, refer toAuxiliary input jacksection in theAudio
featureschapter of yourNavigation systemsupplement.
Required equipment:
1. Any portable music player designed to be used with headphones
2. An audio extension cable with stereo male 1/8 in. (3.5 mm)
connectors at each end
To play your portable music player using the auxiliary input jack:
1. Begin with the vehicle parked and the radio turned off.
2. Ensure that the battery in your portable music player is new or fully
charged and that the device is turned off.
3. Attach one end of the audio extension cable to the headphone output
of your player and the other end of the audio extension cable to the AIJ
in your vehicle.
4. Turn the radio on, using either a tuned FM station or a CD loaded into
the system. Adjust the volume to a comfortable listening level.
5. Turn the portable music player on and adjust the volume to 1/2 the
volume.
6. Press AUX on the vehicle radio repeatedly until SYNC LINE IN
appears in the display.
You should hear audio from your portable music player, although it may
be low.
7. Adjust the sound on your portable music player until it reaches the
level of the FM station or CD by switching back and forth between the
AUX and FM or CD controls.
2009 MKZ(378)
Owners Guide
USA(fus)
Entertainment Systems
24

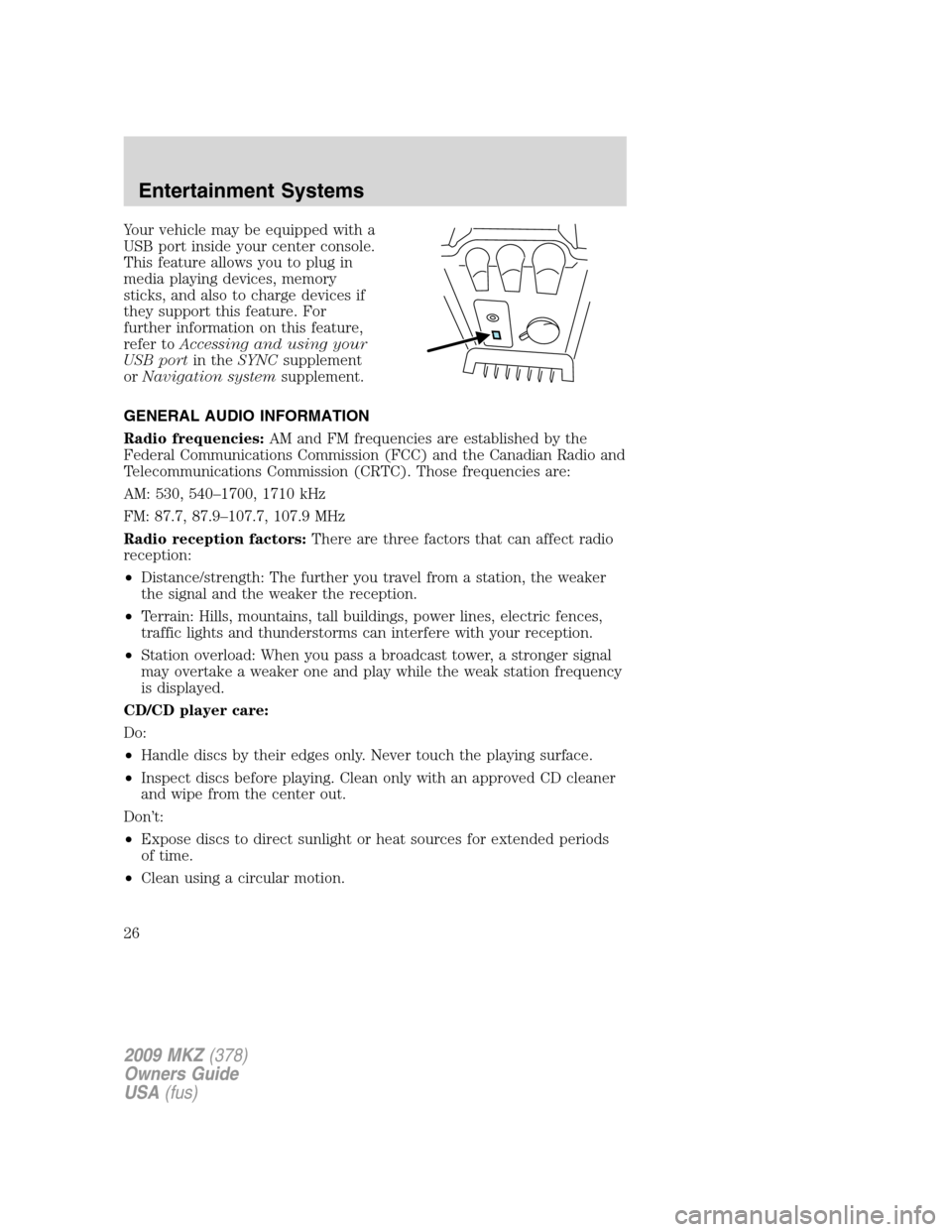

Your vehicle may be equipped with a
USB port inside your center console.
This feature allows you to plug in
media playing devices, memory
sticks, and also to charge devices if
they support this feature. For
further information on this feature,
refer toAccessing and using your
USB portin theSYNCsupplement
orNavigation systemsupplement.
GENERAL AUDIO INFORMATION
Radio frequencies:AM and FM frequencies are established by the
Federal Communications Commission (FCC) and the Canadian Radio and
Telecommunications Commission (CRTC). Those frequencies are:
AM: 530, 540–1700, 1710 kHz
FM: 87.7, 87.9–107.7, 107.9 MHz
Radio reception factors:There are three factors that can affect radio
reception:
•Distance/strength: The further you travel from a station, the weaker
the signal and the weaker the reception.
•Terrain: Hills, mountains, tall buildings, power lines, electric fences,
traffic lights and thunderstorms can interfere with your reception.
•Station overload: When you pass a broadcast tower, a stronger signal
may overtake a weaker one and play while the weak station frequency
is displayed.
CD/CD player care:
Do:
•Handle discs by their edges only. Never touch the playing surface.
•Inspect discs before playing. Clean only with an approved CD cleaner
and wipe from the center out.
Don’t:
•Expose discs to direct sunlight or heat sources for extended periods
of time.
•Clean using a circular motion.
2009 MKZ(378)
Owners Guide
USA(fus)
Entertainment Systems
26

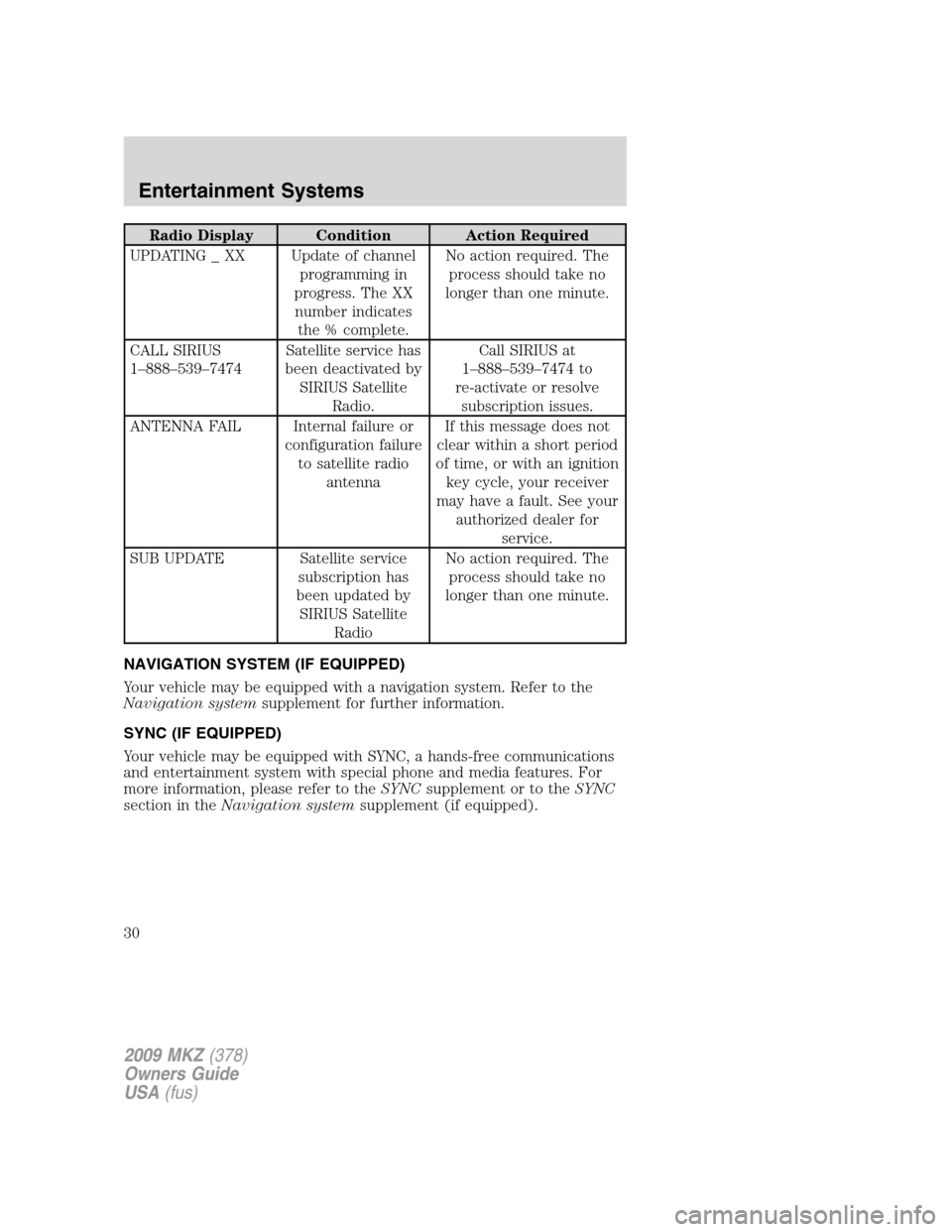

Radio Display Condition Action Required
UPDATING _ XX Update of channel
programming in
progress. The XX
number indicates
the % complete.No action required. The
process should take no
longer than one minute.
CALL SIRIUS
1–888–539–7474Satellite service has
been deactivated by
SIRIUS Satellite
Radio.Call SIRIUS at
1–888–539–7474 to
re-activate or resolve
subscription issues.
ANTENNA FAIL Internal failure or
configuration failure
to satellite radio
antennaIf this message does not
clear within a short period
of time, or with an ignition
key cycle, your receiver
may have a fault. See your
authorized dealer for
service.
SUB UPDATE Satellite service
subscription has
been updated by
SIRIUS Satellite
RadioNo action required. The
process should take no
longer than one minute.
NAVIGATION SYSTEM (IF EQUIPPED)
Your vehicle may be equipped with a navigation system. Refer to the
Navigation systemsupplement for further information.
SYNC (IF EQUIPPED)
Your vehicle may be equipped with SYNC, a hands-free communications
and entertainment system with special phone and media features. For
more information, please refer to theSYNCsupplement or to theSYNC
section in theNavigation systemsupplement (if equipped).
2009 MKZ(378)
Owners Guide
USA(fus)
Entertainment Systems
30

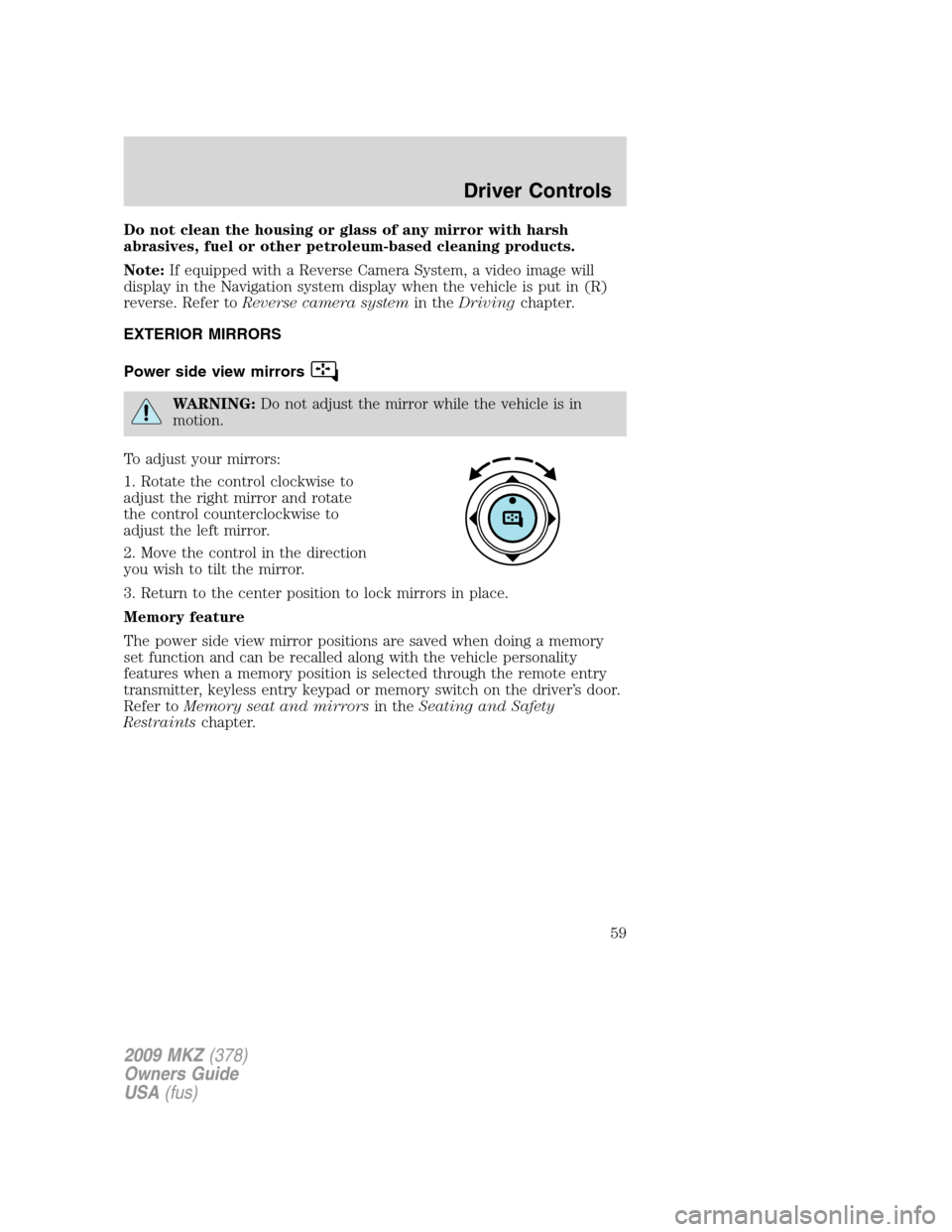

Do not clean the housing or glass of any mirror with harsh
abrasives, fuel or other petroleum-based cleaning products.
Note:If equipped with a Reverse Camera System, a video image will
display in the Navigation system display when the vehicle is put in (R)
reverse. Refer toReverse camera systemin theDrivingchapter.
EXTERIOR MIRRORS
Power side view mirrors
WARNING:Do not adjust the mirror while the vehicle is in
motion.
To adjust your mirrors:
1. Rotate the control clockwise to
adjust the right mirror and rotate
the control counterclockwise to
adjust the left mirror.
2. Move the control in the direction
you wish to tilt the mirror.
3. Return to the center position to lock mirrors in place.
Memory feature
The power side view mirror positions are saved when doing a memory
set function and can be recalled along with the vehicle personality
features when a memory position is selected through the remote entry
transmitter, keyless entry keypad or memory switch on the driver’s door.
Refer toMemory seat and mirrorsin theSeating and Safety
Restraintschapter.
2009 MKZ(378)
Owners Guide
USA(fus)
Driver Controls
59

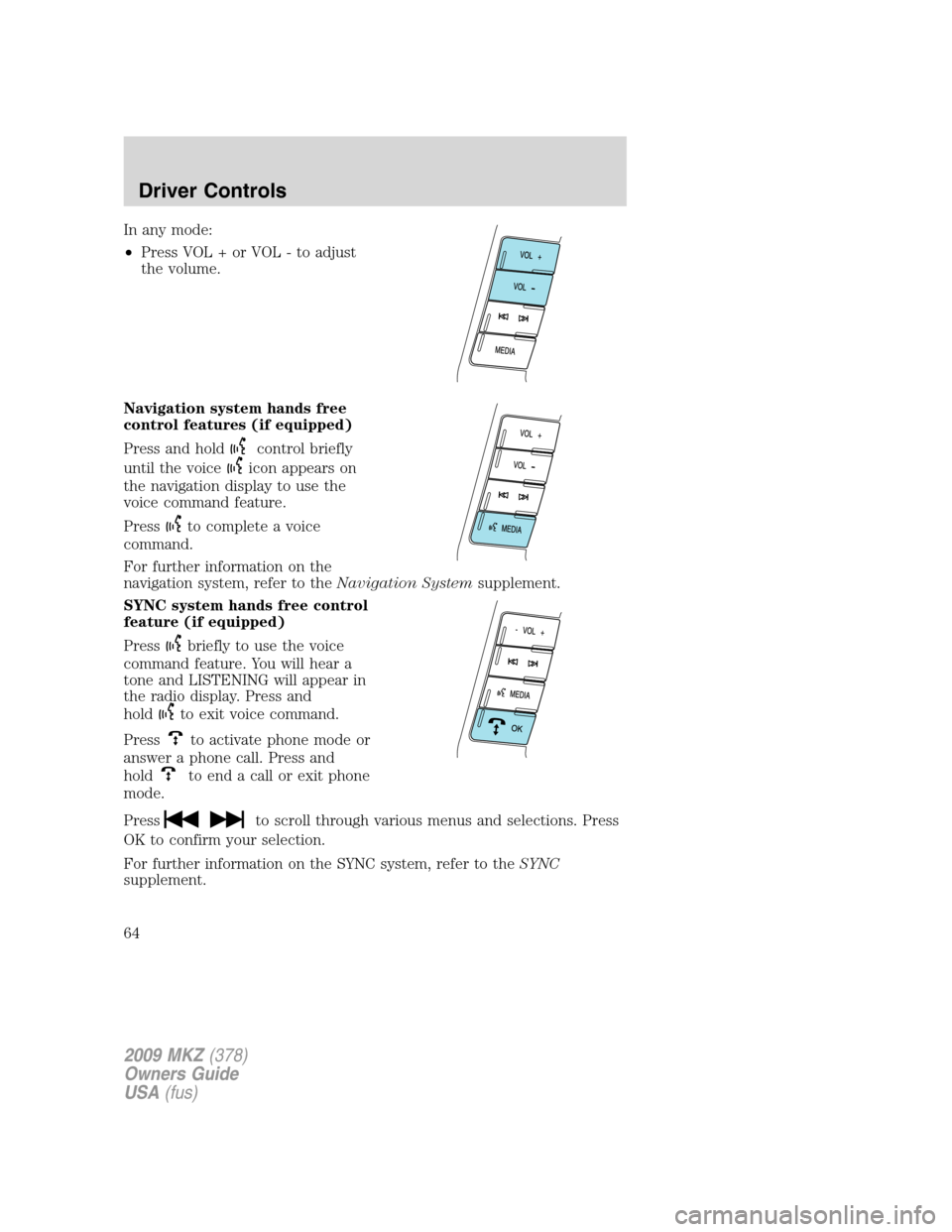

In any mode:
•Press VOL + or VOL - to adjust
the volume.
Navigation system hands free
control features (if equipped)
Press and hold
control briefly
until the voice
icon appears on
the navigation display to use the
voice command feature.
Press
to complete a voice
command.
For further information on the
navigation system, refer to theNavigation Systemsupplement.
SYNC system hands free control
feature (if equipped)
Press
briefly to use the voice
command feature. You will hear a
tone and LISTENING will appear in
the radio display. Press and
hold
to exit voice command.
Press
to activate phone mode or
answer a phone call. Press and
hold
to end a call or exit phone
mode.
Press
to scroll through various menus and selections. Press
OK to confirm your selection.
For further information on the SYNC system, refer to theSYNC
supplement.
2009 MKZ(378)
Owners Guide
USA(fus)
Driver Controls
64

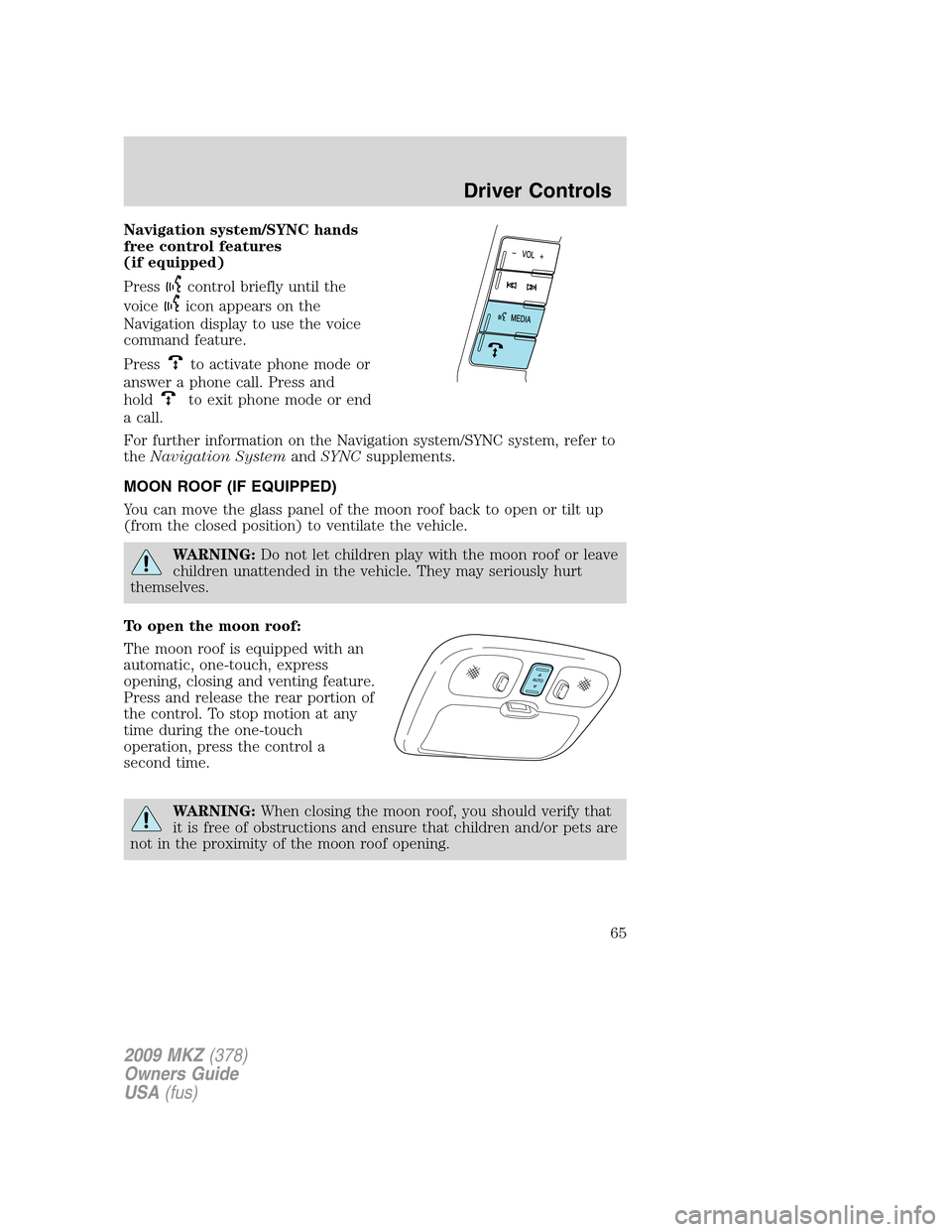

Navigation system/SYNC hands
free control features
(if equipped)
Press
control briefly until the
voice
icon appears on the
Navigation display to use the voice
command feature.
Press
to activate phone mode or
answer a phone call. Press and
hold
to exit phone mode or end
a call.
For further information on the Navigation system/SYNC system, refer to
theNavigation SystemandSYNCsupplements.
MOON ROOF (IF EQUIPPED)
You can move the glass panel of the moon roof back to open or tilt up
(from the closed position) to ventilate the vehicle.
WARNING:Do not let children play with the moon roof or leave
children unattended in the vehicle. They may seriously hurt
themselves.
To open the moon roof:
The moon roof is equipped with an
automatic, one-touch, express
opening, closing and venting feature.
Press and release the rear portion of
the control. To stop motion at any
time during the one-touch
operation, press the control a
second time.
WARNING:When closing the moon roof, you should verify that
it is free of obstructions and ensure that children and/or pets are
not in the proximity of the moon roof opening.
2009 MKZ(378)
Owners Guide
USA(fus)
Driver Controls
65

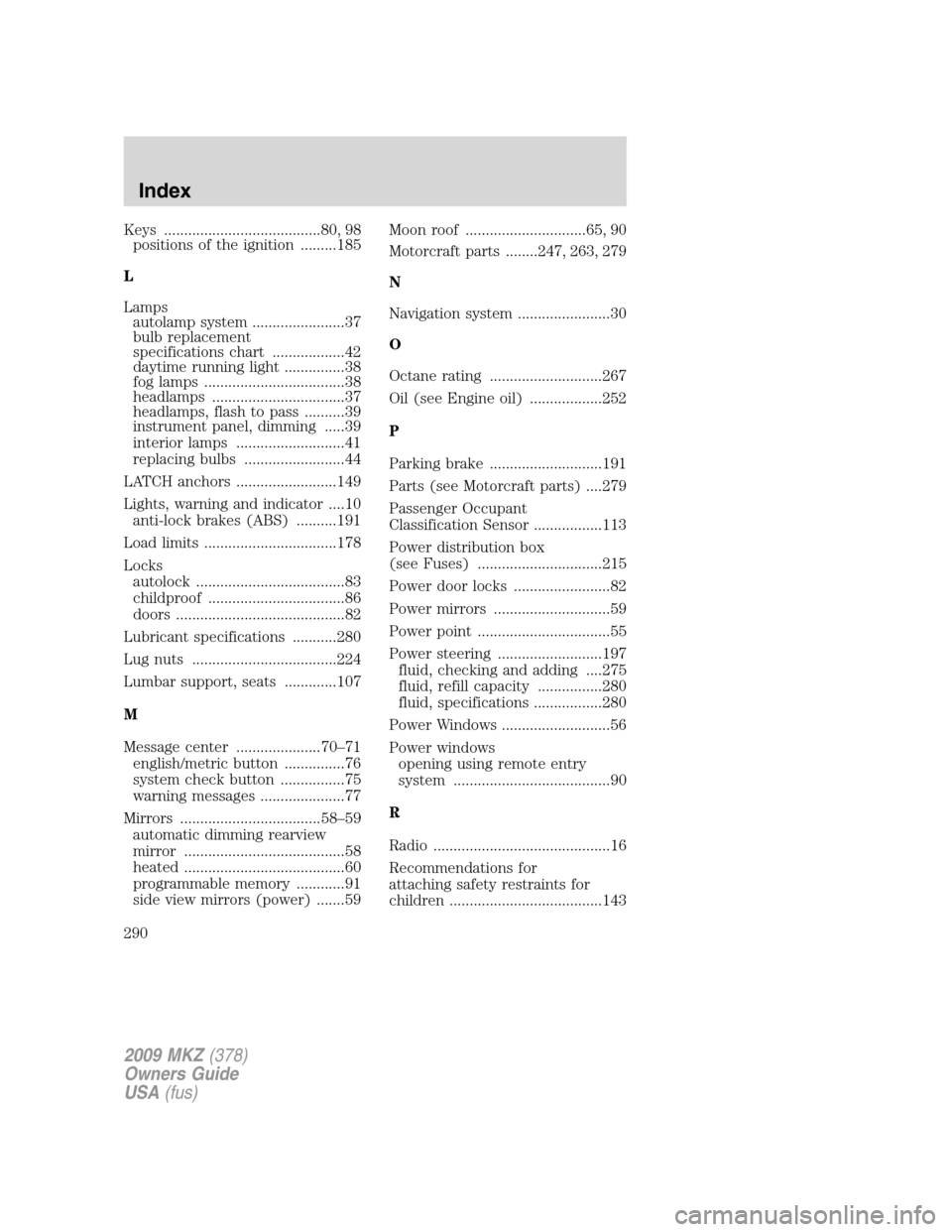

Keys .......................................80, 98
positions of the ignition .........185
L
Lamps
autolamp system .......................37
bulb replacement
specifications chart ..................42
daytime running light ...............38
fog lamps ...................................38
headlamps .................................37
headlamps, flash to pass ..........39
instrument panel, dimming .....39
interior lamps ...........................41
replacing bulbs .........................44
LATCH anchors .........................149
Lights, warning and indicator ....10
anti-lock brakes (ABS) ..........191
Load limits .................................178
Locks
autolock .....................................83
childproof ..................................86
doors ..........................................82
Lubricant specifications ...........280
Lug nuts ....................................224
Lumbar support, seats .............107
M
Message center .....................70–71
english/metric button ...............76
system check button ................75
warning messages .....................77
Mirrors ...................................58–59
automatic dimming rearview
mirror ........................................58
heated ........................................60
programmable memory ............91
side view mirrors (power) .......59Moon roof ..............................65, 90
Motorcraft parts ........247, 263, 279
N
Navigation system .......................30
O
Octane rating ............................267
Oil (see Engine oil) ..................252
P
Parking brake ............................191
Parts (see Motorcraft parts) ....279
Passenger Occupant
Classification Sensor .................113
Power distribution box
(see Fuses) ...............................215
Power door locks ........................82
Power mirrors .............................59
Power point .................................55
Power steering ..........................197
fluid, checking and adding ....275
fluid, refill capacity ................280
fluid, specifications .................280
Power Windows ...........................56
Power windows
opening using remote entry
system .......................................90
R
Radio ............................................16
Recommendations for
attaching safety restraints for
children ......................................143
2009 MKZ(378)
Owners Guide
USA(fus)
Index
290
