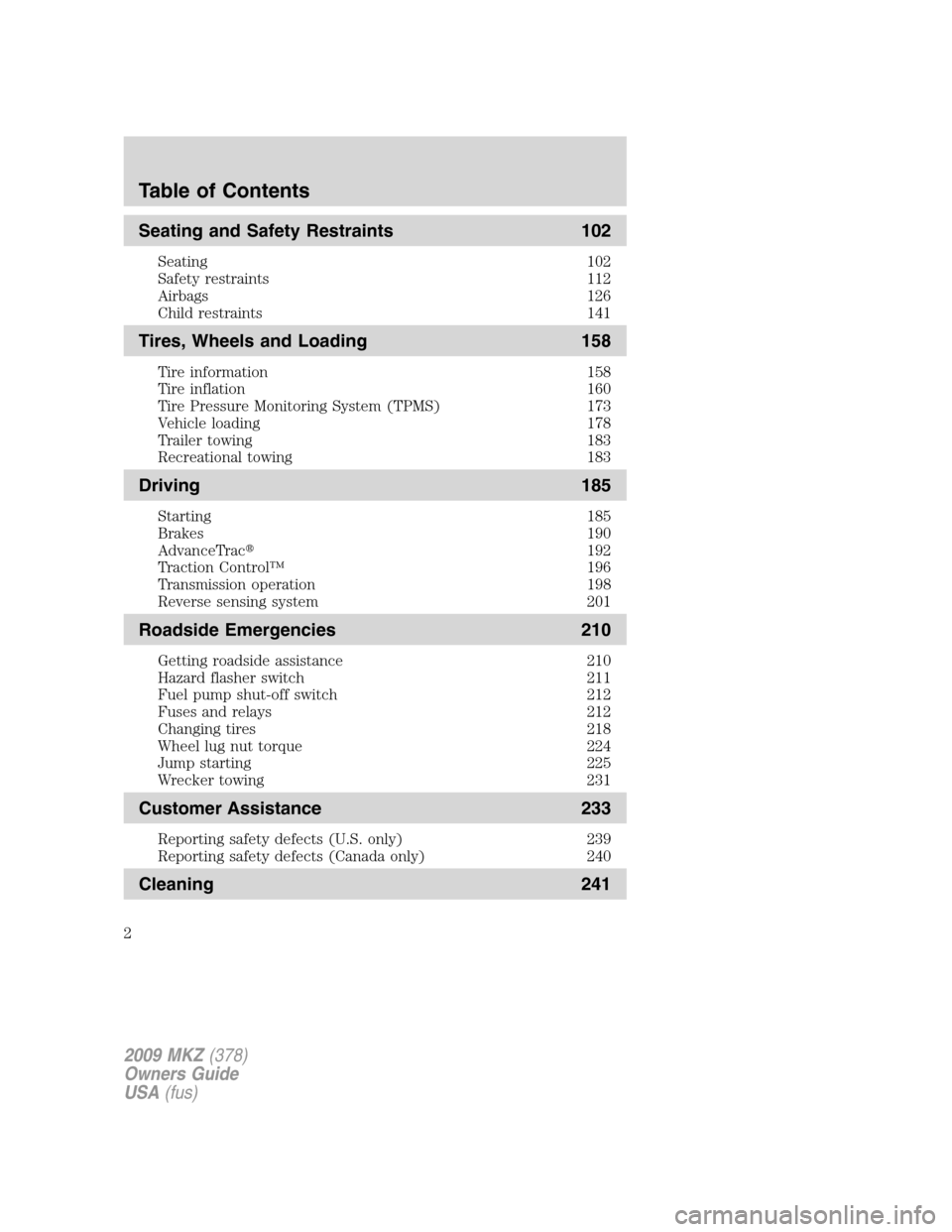

Page 2 of 292

Seating and Safety Restraints 102
Seating 102
Safety restraints 112
Airbags 126
Child restraints 141
Tires, Wheels and Loading 158
Tire information 158
Tire inflation 160
Tire Pressure Monitoring System (TPMS) 173
Vehicle loading 178
Trailer towing 183
Recreational towing 183
Driving 185
Starting 185
Brakes 190
AdvanceTrac192
Traction Control™ 196
Transmission operation 198
Reverse sensing system 201
Roadside Emergencies 210
Getting roadside assistance 210
Hazard flasher switch 211
Fuel pump shut-off switch 212
Fuses and relays 212
Changing tires 218
Wheel lug nut torque 224
Jump starting 225
Wrecker towing 231
Customer Assistance 233
Reporting safety defects (U.S. only) 239
Reporting safety defects (Canada only) 240
Cleaning 241
Table of Contents
2
2009 MKZ(378)
Owners Guide
USA(fus)
Page 55 of 292

CLOCK
Press the right (+) control to move
the time display forwards.
Press the left (-) control to move
the time display backwards.
AUXILIARY POWER POINT (12VDC)
Power outlets are designed for accessory plugs only. Do not insert
any other object in the power outlet as this will damage the
outlet and blow the fuse. Do not hang any type of accessory or
accessory bracket from the plug. Improper use of the power
outlet can cause damage not covered by your warranty.
The auxiliary power point is located in the center console utility
compartment.
Do not use the power point for operating the cigarette lighter element (if
equipped).
To prevent the fuse from being blown, do not use the power point(s)
over the vehicle capacity of 12 VDC/180W. If the power point or cigar
lighter socket is not working, a fuse may have blown. Refer toFuses and
relaysin theRoadside Emergencieschapter for information on
checking and replacing fuses.
To have full capacity usage of your power point, the engine is required to
be running to avoid unintentional discharge of the battery. To prevent
the battery from being discharged:
•do not use the power point longer than necessary when the engine is
not running,
•do not leave battery chargers, video game adapters, computers and
other devices plugged in overnight or when the vehicle is parked for
extended periods.
Always keep the power point caps closed when not being used.
2009 MKZ(378)
Owners Guide
USA(fus)
Driver Controls
55

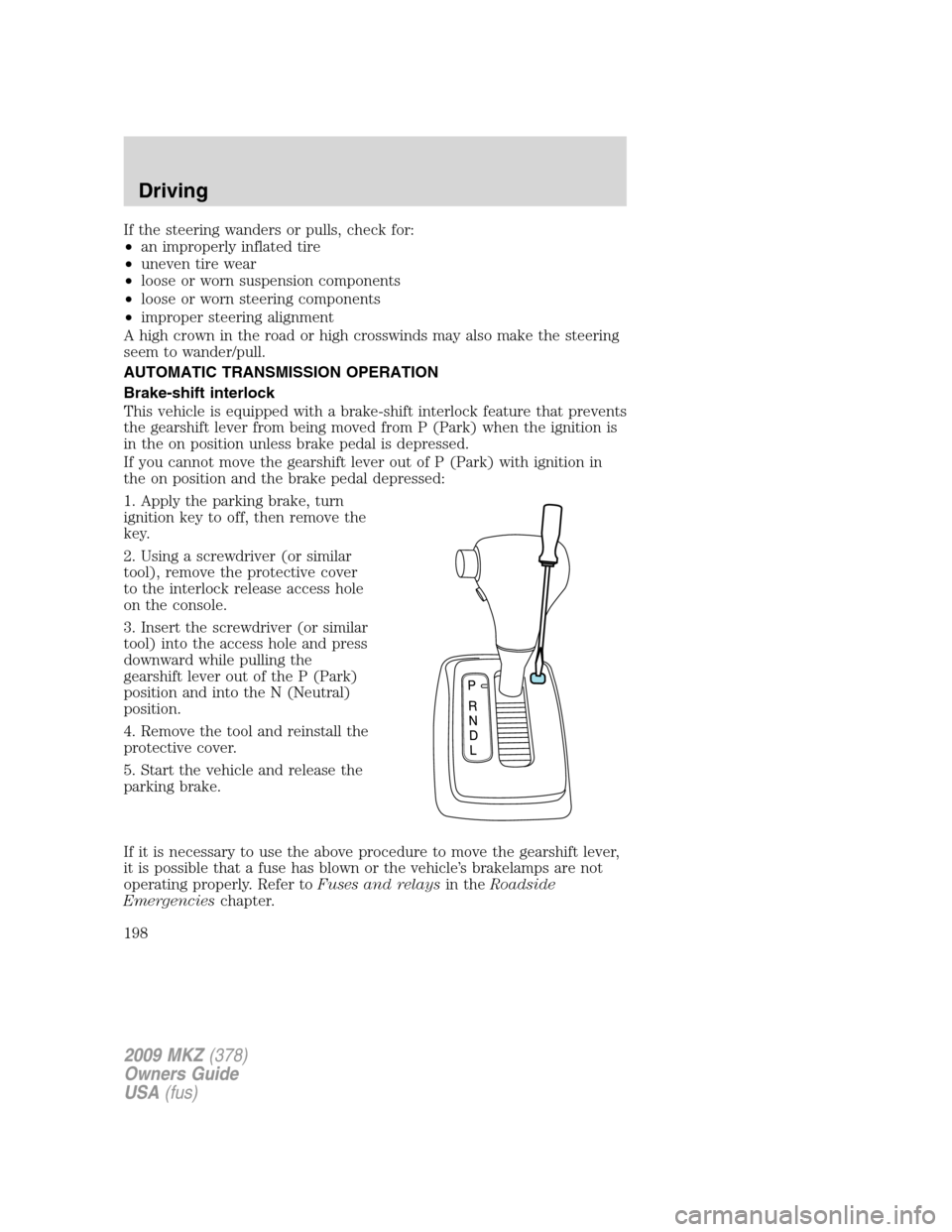

Page 198 of 292

If the steering wanders or pulls, check for:
•an improperly inflated tire
•uneven tire wear
•loose or worn suspension components
•loose or worn steering components
•improper steering alignment
A high crown in the road or high crosswinds may also make the steering
seem to wander/pull.
AUTOMATIC TRANSMISSION OPERATION
Brake-shift interlock
This vehicle is equipped with a brake-shift interlock feature that prevents
the gearshift lever from being moved from P (Park) when the ignition is
in the on position unless brake pedal is depressed.
If you cannot move the gearshift lever out of P (Park) with ignition in
the on position and the brake pedal depressed:
1. Apply the parking brake, turn
ignition key to off, then remove the
key.
2. Using a screwdriver (or similar
tool), remove the protective cover
to the interlock release access hole
on the console.
3. Insert the screwdriver (or similar
tool) into the access hole and press
downward while pulling the
gearshift lever out of the P (Park)
position and into the N (Neutral)
position.
4. Remove the tool and reinstall the
protective cover.
5. Start the vehicle and release the
parking brake.
If it is necessary to use the above procedure to move the gearshift lever,
it is possible that a fuse has blown or the vehicle’s brakelamps are not
operating properly. Refer toFuses and relaysin theRoadside
Emergencieschapter.
2009 MKZ(378)
Owners Guide
USA(fus)
Driving
198
Page 212 of 292

FUEL PUMP SHUT-OFF SWITCH
This device stops the electric fuel pump from sending fuel to the engine
when your vehicle has had a substantial jolt.
After an accident, if the engine cranks but does not start, this switch
may have been activated.
The fuel pump shut-off switch is
located in the front passenger
footwell area in the right upper
corner.
To reset the switch:
1. Turn the ignition to the off
position.
2. Check the fuel system for leaks.
3. If no leaks are apparent, reset the
switch by pushing in on the reset
button.
4. Turn the ignition to the on
position.
5. Wait a few seconds and return
the key to off position.
6. Make another check for leaks.
FUSES AND RELAYS
Fuses
If electrical components in the
vehicle are not working, a fuse may
have blown. Blown fuses are
identified by a broken wire within
the fuse. Check the appropriate
fuses before replacing any electrical
components.
Note:Always replace a fuse with one that has the specified amperage
rating. Using a fuse with a higher amperage rating can cause severe wire
damage and could start a fire.
15
2009 MKZ(378)
Owners Guide
USA(fus)
Roadside Emergencies
212
Page 214 of 292

The fuses are coded as follows.
Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
1 10A Backup lamps, Electrochromatic
mirror
2 20A Horns
3 15A Battery saver: Interior lamps,
Puddle lamps, Trunk lamp, Glove
box lamp, Rear power windows
4 15A Parklamps, License plate lamps
5 — Not used
6 — Not used
7 — Not used
8 30A Rear window defroster
9 10A Heated mirrors
10 30A Starter coil, PCM
11 15A High beams
12 7.5A Delay accessories: Radio head units,
Moon roof, Front power windows,
Electrochromatic mirrors
2009 MKZ(378)
Owners Guide
USA(fus)
Roadside Emergencies
214
Page 215 of 292

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
13 7.5A Cluster, Analog clock, Climate
control head units
14 15A Washer pump
15 20A Cigar lighter
16 15A Door lock actuator, Decklid lock
solenoid
17 20A Not used (Spare)
18 20A Radio head units, OBDII connector
19 7.5A Not used (Spare)
20 7.5A Power mirrors, Satellite radio
module, All wheel drive
21 7.5A Stop lamps, CHMSL
22 7.5A Audio
23 7.5A Wiper relay coil, Cluster logic
24 7.5A OCS (Passenger’s seat), PAD
indicator
25 7.5A RCM
26 7.5A PATS Transceiver, Brake shift
interlock solenoid, Brake pedal
switch, Automatic transmission
module
27 7.5A Cluster, Climate control head units
28 10A ABS/Traction Control, Heated seats,
Compass, Reverse sensing system
C/B 30A Circuit
BreakerMoon roof, Delayed accessory (SJB
fuse 12, rear power windows)
Power distribution box
The power distribution box is located in the engine compartment. The
power distribution box contains high-current fuses that protect your
vehicle’s main electrical systems from overloads.
WARNING:Always disconnect the battery before servicing high
current fuses.
2009 MKZ(378)
Owners Guide
USA(fus)
Roadside Emergencies
215
Page 216 of 292

WARNING:To reduce risk of electrical shock, always replace
the cover to the Power Distribution Box before reconnecting the
battery or refilling fluid reservoirs.
If the battery has been disconnected and reconnected, refer to the
Batterysection of theMaintenance and Specificationschapter.
The high-current fuses are coded as follows.
Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
1 60A*** SJB power feed (fuses 12, 13, 14,
15, 16, 17, 18, C/B)
2 60A*** SJB power feed (fuses 1, 2, 4, 10,
11)
3 40A** Powertrain power, PCM relay coil
4 40A** Blower motor
5 — Not used
6 40A** Rear window defroster, Heated
mirrors
7 — Not used
8 40A** ABS pump
45 46 47
48 4950 51
52
53
55
5654
57
58
41 42 43 44
23 24 25 26 27
28
29 30 31 32 33 34 35
13 12
89
10 11 12
18 19 20 21 22345 6 7
1415
16
17
36
37
38
39
40
2009 MKZ(378)
Owners Guide
USA(fus)
Roadside Emergencies
216
Page 217 of 292

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
9 20A** Wipers
10 30A** ABS Valves
11 30A** Passenger heated/cooled seat
12 30A** Driver heated/cooled seat
13 10A* SYNC
14 15A* Ignition switch
15 10A* Memory module logic
16 15A* Transmission
17 10A* Alternator sense
18 — Not used
19 40A** Logic feed to SJB (solid state
devices)
20 20A** THXII Amplifier #1
21 20A** THXII Amplifier #2
22 20A** Console power point
23 10A* PCM KAM and canister vent
solenoid
24 15A* Fog lamps
25 10A* A/C Compressor clutch
26 15A* LH HID Low beam
27 15A* RH HID Low beam
28 80A*** Engine cooling fan
29 — Not used
30 30A** Fuel pump/injectors relay
31 30A** Passenger power seat
32 30A** Driver power seat
33 20A** Moon roof
34 30A** Driver Smart power window
35 30A** Passenger Smart power window
36 1A* PCM diode
2009 MKZ(378)
Owners Guide
USA(fus)
Roadside Emergencies
217
Page 218 of 292

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
37 1A* One Touch Integrated Start
(OTIS) diode
38 — Not used
39 — Not used
40 — Not used
41 Relay Fog lamp relay
42 Relay Wiper park relay
43 Relay A/C clutch relay
44 — Not used
45 — Not used
46 15A* Injectors
47 15A* PCM class B
48 15A* Coil on plug
49 15A* PCM class C
50 Full ISO Relay LH HID low beam relay
51 Full ISO Relay RH HID low beam relay
52 Full ISO Relay Blower relay
53 — Not used
54 Full ISO Relay Fuel pump/injectors relay
55 Full ISO Relay Wiper RUN relay
56 — Not used
57 Full ISO Relay PCM relay
58 — Not used
*Mini fuses **A1 fuses ***A3 fuses
CHANGING THE TIRES
If you get a flat tire while driving, do not apply the brake heavily.
Instead, gradually decrease your speed. Hold the steering wheel firmly
and slowly move to a safe place on the side of the road.
Note:The tire pressure monitoring system (TPMS) indicator light will
illuminate when the spare tire is in use. To restore the full functionality
of the monitoring system, all road wheels equipped with tire pressure
monitoring sensors must be mounted on the vehicle.
2009 MKZ(378)
Owners Guide
USA(fus)
Roadside Emergencies
218

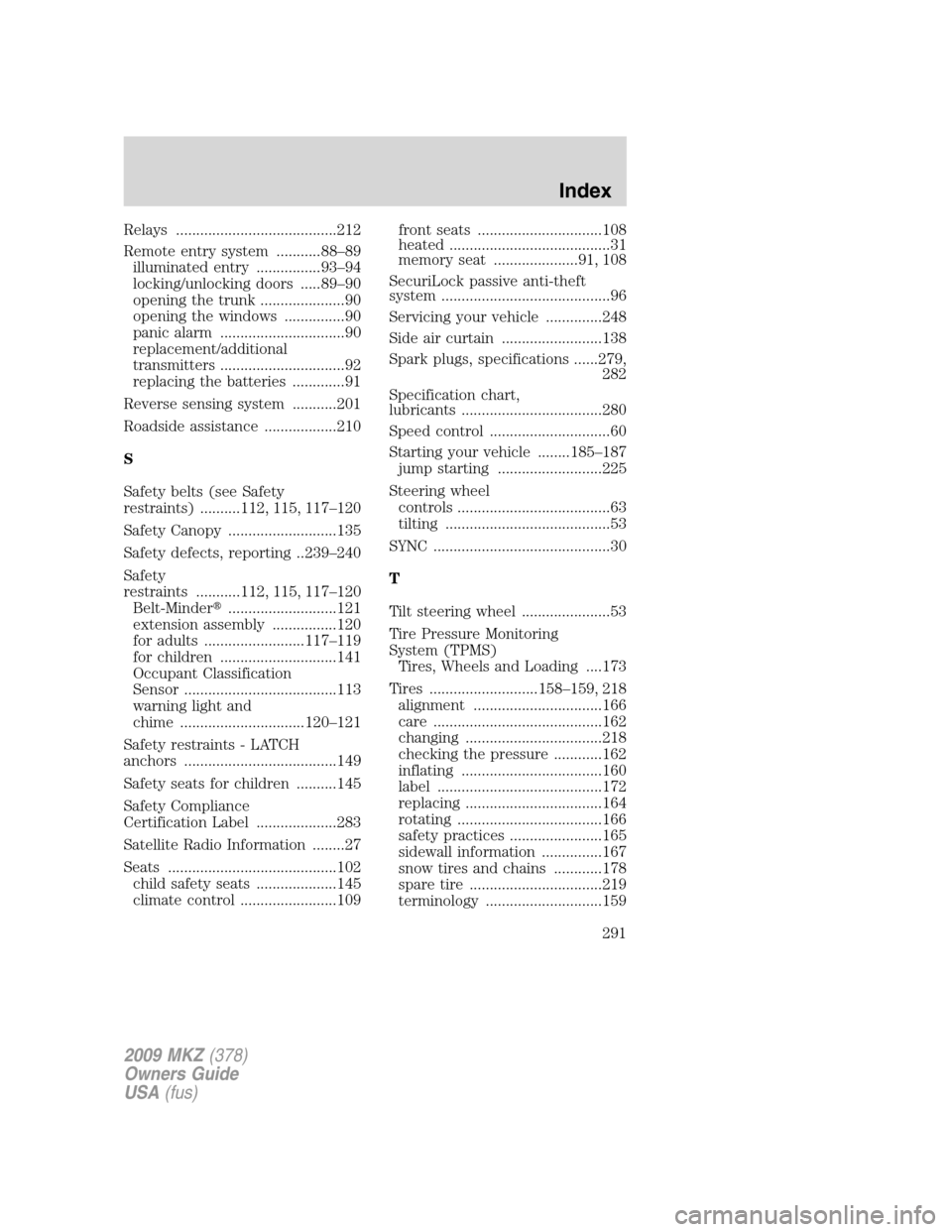

Page 291 of 292

Relays ........................................212
Remote entry system ...........88–89
illuminated entry ................93–94
locking/unlocking doors .....89–90
opening the trunk .....................90
opening the windows ...............90
panic alarm ...............................90
replacement/additional
transmitters ...............................92
replacing the batteries .............91
Reverse sensing system ...........201
Roadside assistance ..................210
S
Safety belts (see Safety
restraints) ..........112, 115, 117–120
Safety Canopy ...........................135
Safety defects, reporting ..239–240
Safety
restraints ...........112, 115, 117–120
Belt-Minder...........................121
extension assembly ................120
for adults .........................117–119
for children .............................141
Occupant Classification
Sensor ......................................113
warning light and
chime ...............................120–121
Safety restraints - LATCH
anchors ......................................149
Safety seats for children ..........145
Safety Compliance
Certification Label ....................283
Satellite Radio Information ........27
Seats ..........................................102
child safety seats ....................145
climate control ........................109front seats ...............................108
heated ........................................31
memory seat .....................91, 108
SecuriLock passive anti-theft
system ..........................................96
Servicing your vehicle ..............248
Side air curtain .........................138
Spark plugs, specifications ......279,
282
Specification chart,
lubricants ...................................280
Speed control ..............................60
Starting your vehicle ........185–187
jump starting ..........................225
Steering wheel
controls ......................................63
tilting .........................................53
SYNC ............................................30
T
Tilt steering wheel ......................53
Tire Pressure Monitoring
System (TPMS)
Tires, Wheels and Loading ....173
Tires ...........................158–159, 218
alignment ................................166
care ..........................................162
changing ..................................218
checking the pressure ............162
inflating ...................................160
label .........................................172
replacing ..................................164
rotating ....................................166
safety practices .......................165
sidewall information ...............167
snow tires and chains ............178
spare tire .................................219
terminology .............................159
2009 MKZ(378)
Owners Guide
USA(fus)
Index
291
