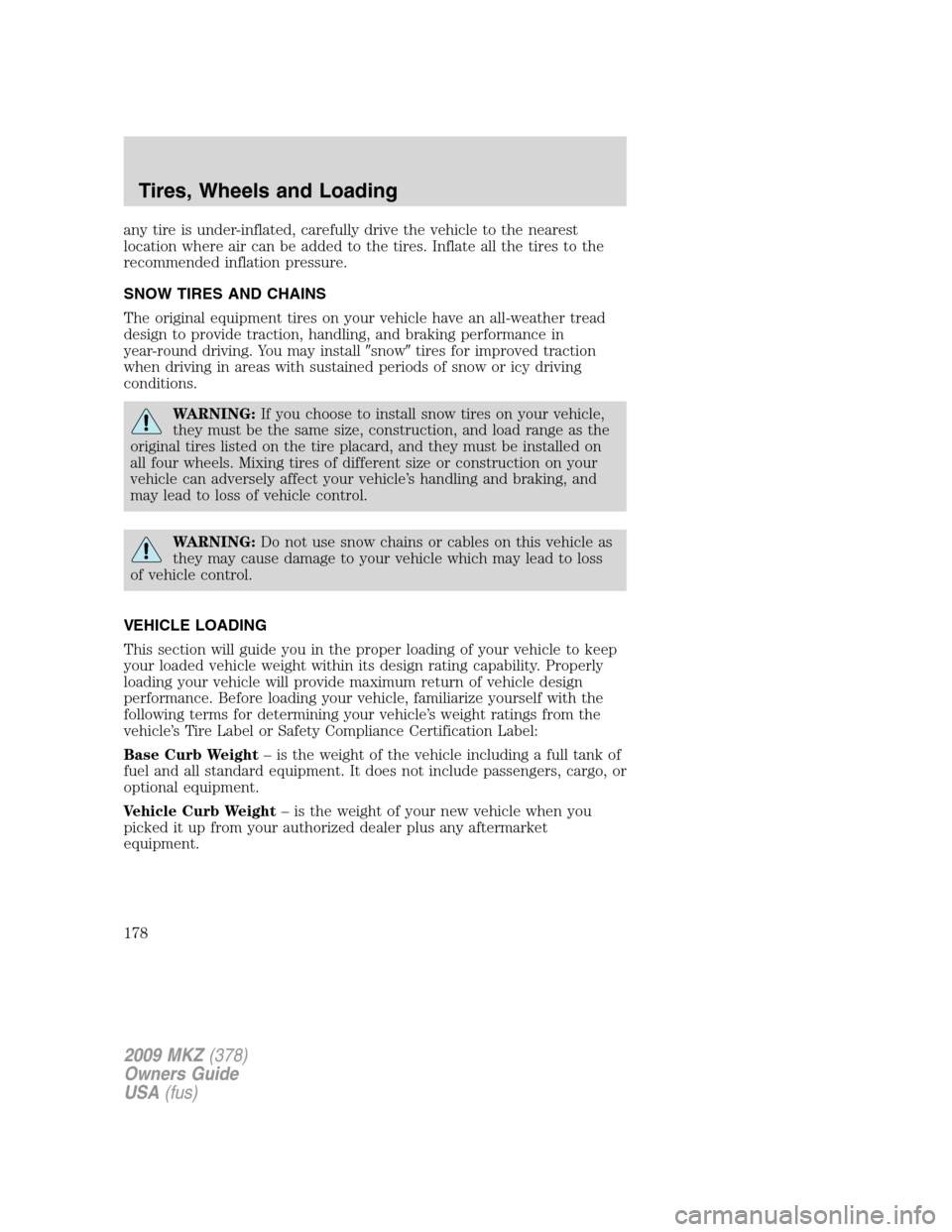

Page 178 of 292
any tire is under-inflated, carefully drive the vehicle to the nearest
location where air can be added to the tires. Inflate all the tires to the
recommended inflation pressure.
SNOW TIRES AND CHAINS
The original equipment tires on your vehicle have an all-weather tread
design to provide traction, handling, and braking performance in
year-round driving. You may installsnowtires for improved traction
when driving in areas with sustained periods of snow or icy driving
conditions.
WARNING:If you choose to install snow tires on your vehicle,
they must be the same size, construction, and load range as the
original tires listed on the tire placard, and they must be installed on
all four wheels. Mixing tires of different size or construction on your
vehicle can adversely affect your vehicle’s handling and braking, and
may lead to loss of vehicle control.
WARNING:Do not use snow chains or cables on this vehicle as
they may cause damage to your vehicle which may lead to loss
of vehicle control.
VEHICLE LOADING
This section will guide you in the proper loading of your vehicle to keep
your loaded vehicle weight within its design rating capability. Properly
loading your vehicle will provide maximum return of vehicle design
performance. Before loading your vehicle, familiarize yourself with the
following terms for determining your vehicle’s weight ratings from the
vehicle’s Tire Label or Safety Compliance Certification Label:
Base Curb Weight– is the weight of the vehicle including a full tank of
fuel and all standard equipment. It does not include passengers, cargo, or
optional equipment.
Vehicle Curb Weight– is the weight of your new vehicle when you
picked it up from your authorized dealer plus any aftermarket
equipment.
2009 MKZ(378)
Owners Guide
USA(fus)
Tires, Wheels and Loading
178

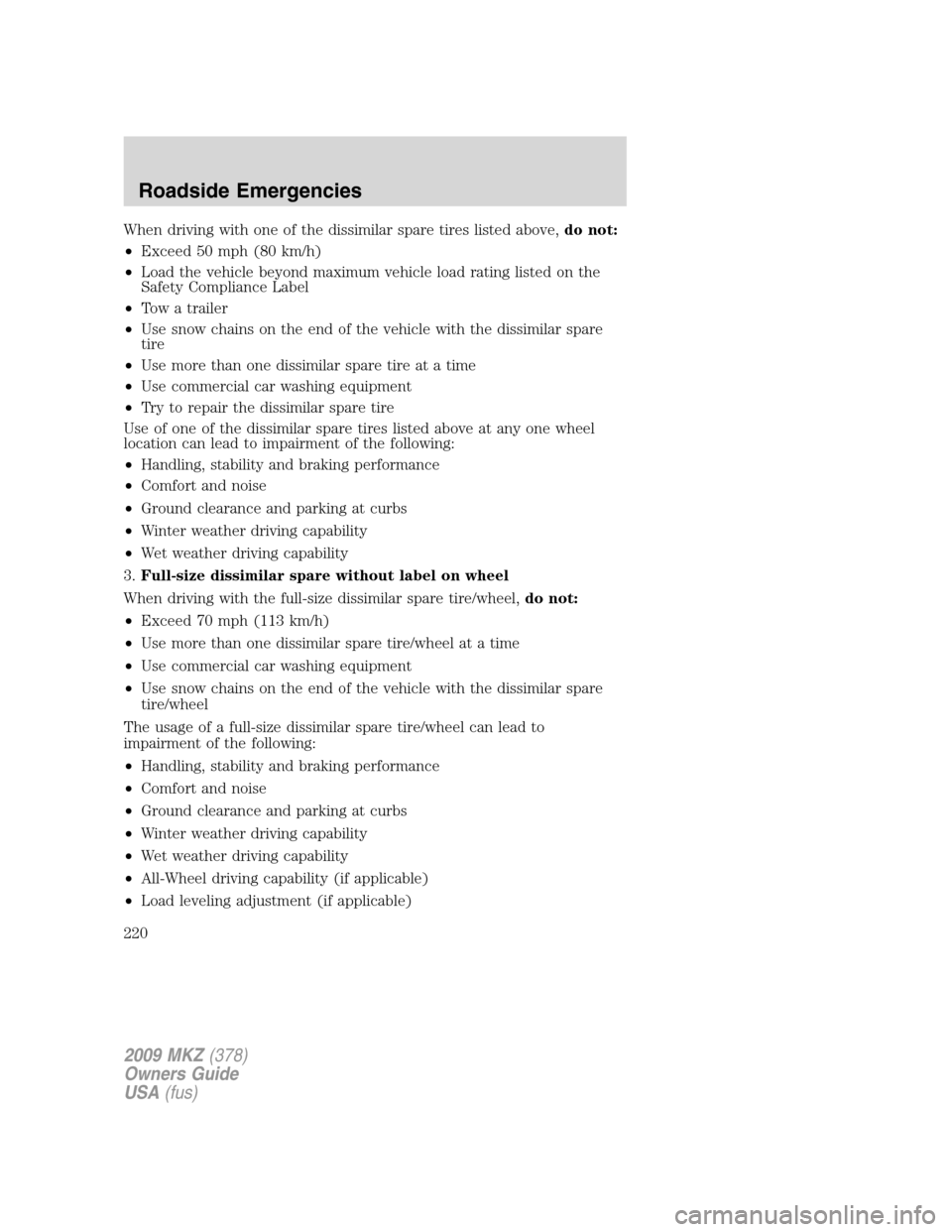

Page 220 of 292
When driving with one of the dissimilar spare tires listed above,do not:
•Exceed 50 mph (80 km/h)
•Load the vehicle beyond maximum vehicle load rating listed on the
Safety Compliance Label
•Tow a trailer
•Use snow chains on the end of the vehicle with the dissimilar spare
tire
•Use more than one dissimilar spare tire at a time
•Use commercial car washing equipment
•Try to repair the dissimilar spare tire
Use of one of the dissimilar spare tires listed above at any one wheel
location can lead to impairment of the following:
•Handling, stability and braking performance
•Comfort and noise
•Ground clearance and parking at curbs
•Winter weather driving capability
•Wet weather driving capability
3.Full-size dissimilar spare without label on wheel
When driving with the full-size dissimilar spare tire/wheel,do not:
•Exceed 70 mph (113 km/h)
•Use more than one dissimilar spare tire/wheel at a time
•Use commercial car washing equipment
•Use snow chains on the end of the vehicle with the dissimilar spare
tire/wheel
The usage of a full-size dissimilar spare tire/wheel can lead to
impairment of the following:
•Handling, stability and braking performance
•Comfort and noise
•Ground clearance and parking at curbs
•Winter weather driving capability
•Wet weather driving capability
•All-Wheel driving capability (if applicable)
•Load leveling adjustment (if applicable)
2009 MKZ(378)
Owners Guide
USA(fus)
Roadside Emergencies
220
Page 291 of 292
Relays ........................................212
Remote entry system ...........88–89
illuminated entry ................93–94
locking/unlocking doors .....89–90
opening the trunk .....................90
opening the windows ...............90
panic alarm ...............................90
replacement/additional
transmitters ...............................92
replacing the batteries .............91
Reverse sensing system ...........201
Roadside assistance ..................210
S
Safety belts (see Safety
restraints) ..........112, 115, 117–120
Safety Canopy ...........................135
Safety defects, reporting ..239–240
Safety
restraints ...........112, 115, 117–120
Belt-Minder...........................121
extension assembly ................120
for adults .........................117–119
for children .............................141
Occupant Classification
Sensor ......................................113
warning light and
chime ...............................120–121
Safety restraints - LATCH
anchors ......................................149
Safety seats for children ..........145
Safety Compliance
Certification Label ....................283
Satellite Radio Information ........27
Seats ..........................................102
child safety seats ....................145
climate control ........................109front seats ...............................108
heated ........................................31
memory seat .....................91, 108
SecuriLock passive anti-theft
system ..........................................96
Servicing your vehicle ..............248
Side air curtain .........................138
Spark plugs, specifications ......279,
282
Specification chart,
lubricants ...................................280
Speed control ..............................60
Starting your vehicle ........185–187
jump starting ..........................225
Steering wheel
controls ......................................63
tilting .........................................53
SYNC ............................................30
T
Tilt steering wheel ......................53
Tire Pressure Monitoring
System (TPMS)
Tires, Wheels and Loading ....173
Tires ...........................158–159, 218
alignment ................................166
care ..........................................162
changing ..................................218
checking the pressure ............162
inflating ...................................160
label .........................................172
replacing ..................................164
rotating ....................................166
safety practices .......................165
sidewall information ...............167
snow tires and chains ............178
spare tire .................................219
terminology .............................159
2009 MKZ(378)
Owners Guide
USA(fus)
Index
291
