Page 1 of 318
Introduction 4
Instrument Cluster 12
Warning lights and chimes 12
Gauges 17
Message center 18
Entertainment Systems 29
AM/FM stereo with CDX6/MP3 29
Auxiliary input jack (Line in) 37
USB port 38
Satellite radio information 40
Navigation system 44
SYNC44
Climate Controls 45
Dual automatic temperature control 45
Navigation system based climate control 48
Rear window defroster 52
Lights 53
Headlamps 53
Turn signal control 57
Bulb replacement 59
Driver Controls 68
Windshield wiper/washer control 68
Steering wheel adjustment 69
Power windows 73
Mirrors 76
Speed control 77
Moon roof 82
Table of Contents
1
2010 MKZ(378)
Owners Guide, 1st Printing
USA(fus)
Page 38 of 318
5. Turn the portable music player on and adjust the volume to 1/2 the
volume.
6. Press AUX on the vehicle radio repeatedly until LINE, LINE IN or
SYNC LINE IN appears in the display.
You should hear audio from your portable music player, although it may
be low.
7. Adjust the sound on your portable music player until it reaches the
level of the FM station or CD by switching back and forth between the
AUX and FM or CD controls.
Troubleshooting:
1. Do not connect the audio input jack to a line level output. Line level
outputs are intended for connection to a home stereo and are not
compatible with the AIJ. The AIJ will only work correctly with devices
that have a headphone output with a volume control.
2. Do not set the portable music player’s volume level higher than is
necessary to match the volume of the CD or FM radio in your audio
system as this will cause distortion and will reduce sound quality. Many
portable music players have different output levels, so not all players
should be set at the same levels. Some players will sound best at full
volume and others will need to be set at a lower volume.
3. If the music sounds distorted at lower listening levels, turn the
portable music player volume down. If the problems persists, replace or
recharge the batteries in the portable music player.
4. The portable music player must be controlled in the same manner
when it is used with headphones as the AIJ does not provide control
(play, pause, etc.) over the attached portable music player.
5. For safety reasons, connecting or adjusting the settings on your
portable music player should not be attempted while the vehicle is
moving. Also, the portable music player should be stored in a secure
location, such as the center console or the glove box, when the vehicle is
in motion. The audio extension cable must be long enough to allow the
portable music player to be safely stored while the vehicle is in motion.
USB port
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device that may take their
focus off the road. The driver’s primary responsibility is the safe
operation of their vehicle. Only use cell phones and other devices not
essential to the driving task when it is safe to do so.
2010 MKZ(378)
Owners Guide, 1st Printing
USA(fus)
Entertainment Systems
38
Page 39 of 318
Your vehicle is equipped with a USB
port inside your center console. This
feature allows you to plug in media
playing devices, memory sticks, and
also to charge devices if they
support this feature. For further
information on this feature, refer to
Accessing and using your USB
portin theSYNCsupplement or
Navigation systemsupplement.
GENERAL AUDIO INFORMATION
Radio frequencies:AM and FM frequencies are established by the
Federal Communications Commission (FCC) and the Canadian Radio and
Telecommunications Commission (CRTC). Those frequencies are:
AM: 530, 540–1700, 1710 kHz
FM: 87.7, 87.9–107.7, 107.9 MHz
Radio reception factors:There are three factors that can affect radio
reception:
•Distance/strength: The further you travel from a station, the weaker
the signal and the weaker the reception.
•Terrain: Hills, mountains, tall buildings, power lines, electric fences,
traffic lights and thunderstorms can interfere with your reception.
•Station overload: When you pass a broadcast tower, a stronger signal
may overtake a weaker one and play while the weak station frequency
is displayed.
2010 MKZ(378)
Owners Guide, 1st Printing
USA(fus)
Entertainment Systems
39

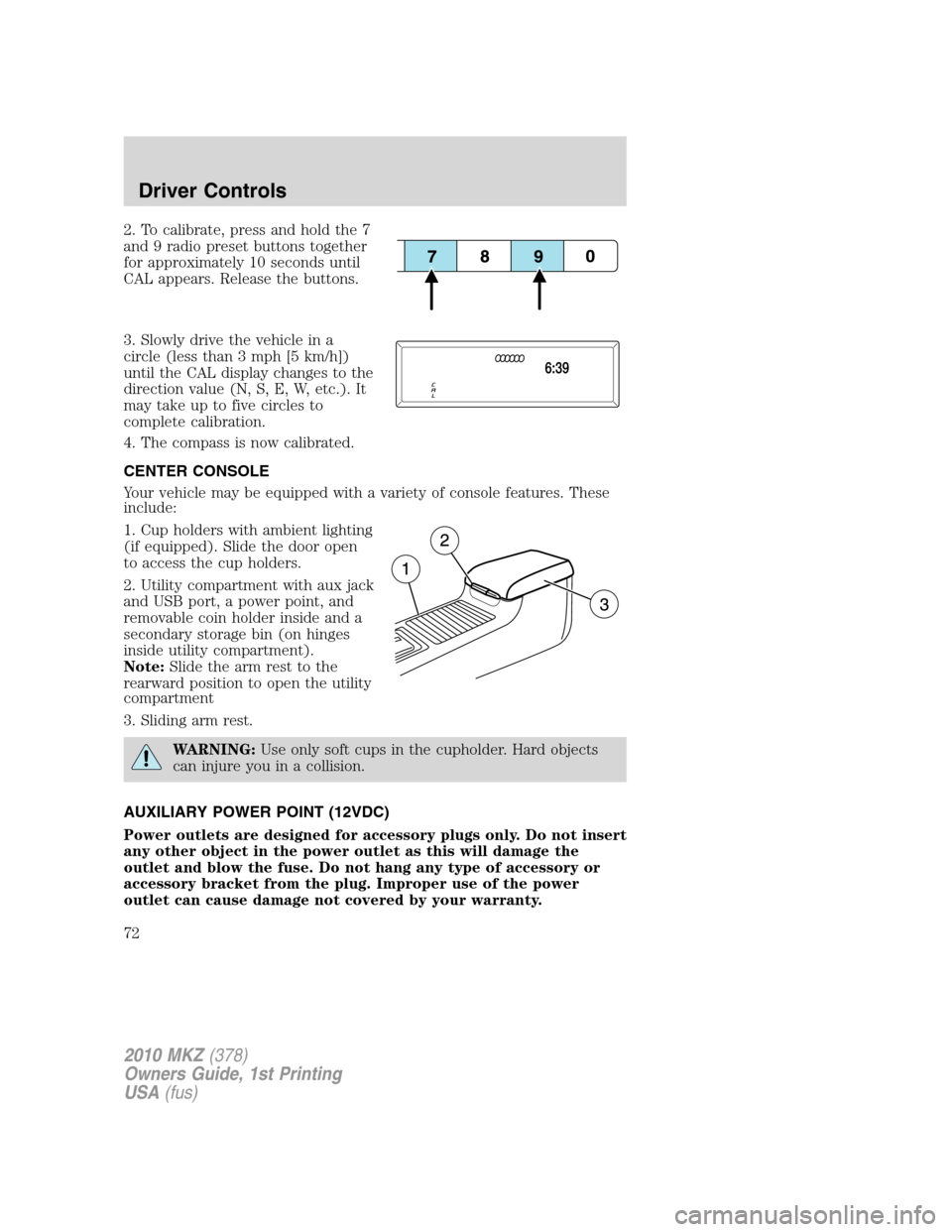

Page 72 of 318
2. To calibrate, press and hold the 7
and 9 radio preset buttons together
for approximately 10 seconds until
CAL appears. Release the buttons.
3. Slowly drive the vehicle in a
circle (less than 3 mph [5 km/h])
until the CAL display changes to the
direction value (N, S, E, W, etc.). It
may take up to five circles to
complete calibration.
4. The compass is now calibrated.
CENTER CONSOLE
Your vehicle may be equipped with a variety of console features. These
include:
1. Cup holders with ambient lighting
(if equipped). Slide the door open
to access the cup holders.
2. Utility compartment with aux jack
and USB port, a power point, and
removable coin holder inside and a
secondary storage bin (on hinges
inside utility compartment).
Note:Slide the arm rest to the
rearward position to open the utility
compartment
3. Sliding arm rest.
WARNING:Use only soft cups in the cupholder. Hard objects
can injure you in a collision.
AUXILIARY POWER POINT (12VDC)
Power outlets are designed for accessory plugs only. Do not insert
any other object in the power outlet as this will damage the
outlet and blow the fuse. Do not hang any type of accessory or
accessory bracket from the plug. Improper use of the power
outlet can cause damage not covered by your warranty.
2010 MKZ(378)
Owners Guide, 1st Printing
USA(fus)
Driver Controls
72

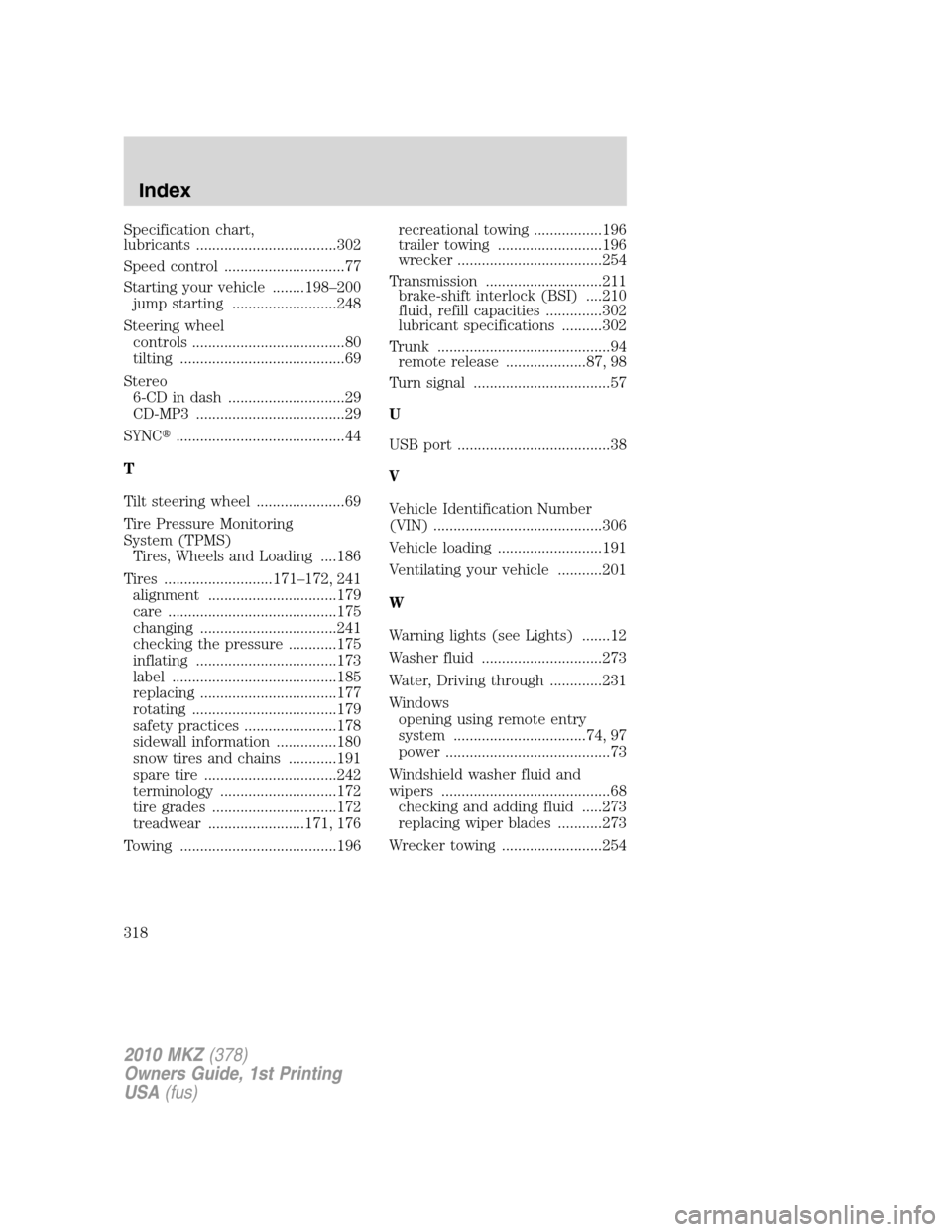

Page 318 of 318
Specification chart,
lubricants ...................................302
Speed control ..............................77
Starting your vehicle ........198–200
jump starting ..........................248
Steering wheel
controls ......................................80
tilting .........................................69
Stereo
6-CD in dash .............................29
CD-MP3 .....................................29
SYNC..........................................44
T
Tilt steering wheel ......................69
Tire Pressure Monitoring
System (TPMS)
Tires, Wheels and Loading ....186
Tires ...........................171–172, 241
alignment ................................179
care ..........................................175
changing ..................................241
checking the pressure ............175
inflating ...................................173
label .........................................185
replacing ..................................177
rotating ....................................179
safety practices .......................178
sidewall information ...............180
snow tires and chains ............191
spare tire .................................242
terminology .............................172
tire grades ...............................172
treadwear ........................171, 176
Towing .......................................196recreational towing .................196
trailer towing ..........................196
wrecker ....................................254
Transmission .............................211
brake-shift interlock (BSI) ....210
fluid, refill capacities ..............302
lubricant specifications ..........302
Trunk ...........................................94
remote release ....................87, 98
Turn signal ..................................57
U
USB port ......................................38
V
Vehicle Identification Number
(VIN) ..........................................306
Vehicle loading ..........................191
Ventilating your vehicle ...........201
W
Warning lights (see Lights) .......12
Washer fluid ..............................273
Water, Driving through .............231
Windows
opening using remote entry
system .................................74, 97
power .........................................73
Windshield washer fluid and
wipers ..........................................68
checking and adding fluid .....273
replacing wiper blades ...........273
Wrecker towing .........................254
2010 MKZ(378)
Owners Guide, 1st Printing
USA(fus)
Index
318
