Page 2 of 318

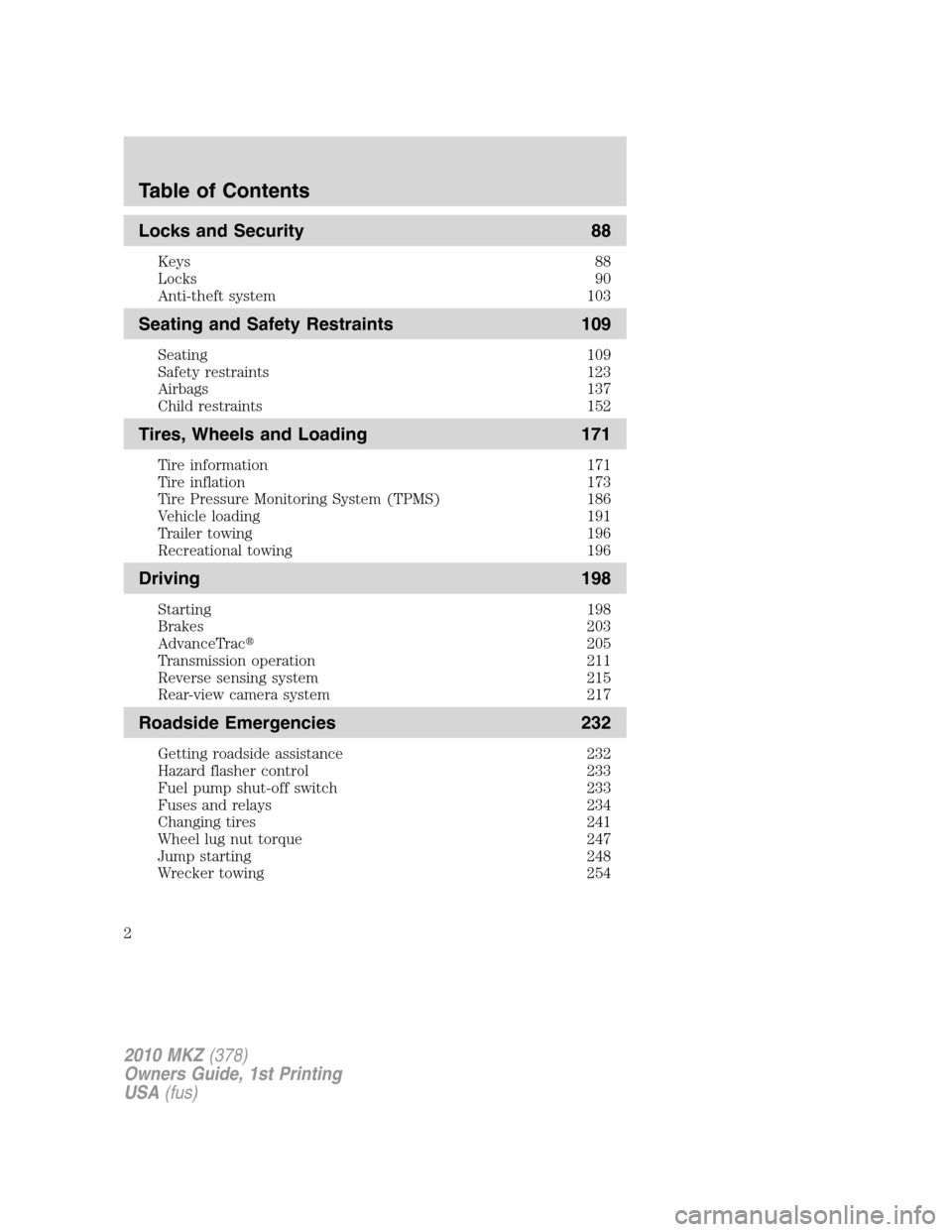

LINCOLN MKZ 2010  Owners Manual Locks and Security 88
Keys 88
Locks 90
Anti-theft system 103
Seating and Safety Restraints 109
Seating 109
Safety restraints 123
Airbags 137
Child restraints 152
Tires, Wheels and Loading 171
Tire inf

Page 73 of 318

LINCOLN MKZ 2010  Owners Manual The auxiliary power point is located in the center console utility
compartment.
Do not use the power point for operating the cigarette lighter element (if
equipped).
To prevent the fuse from being blo

Page 210 of 318

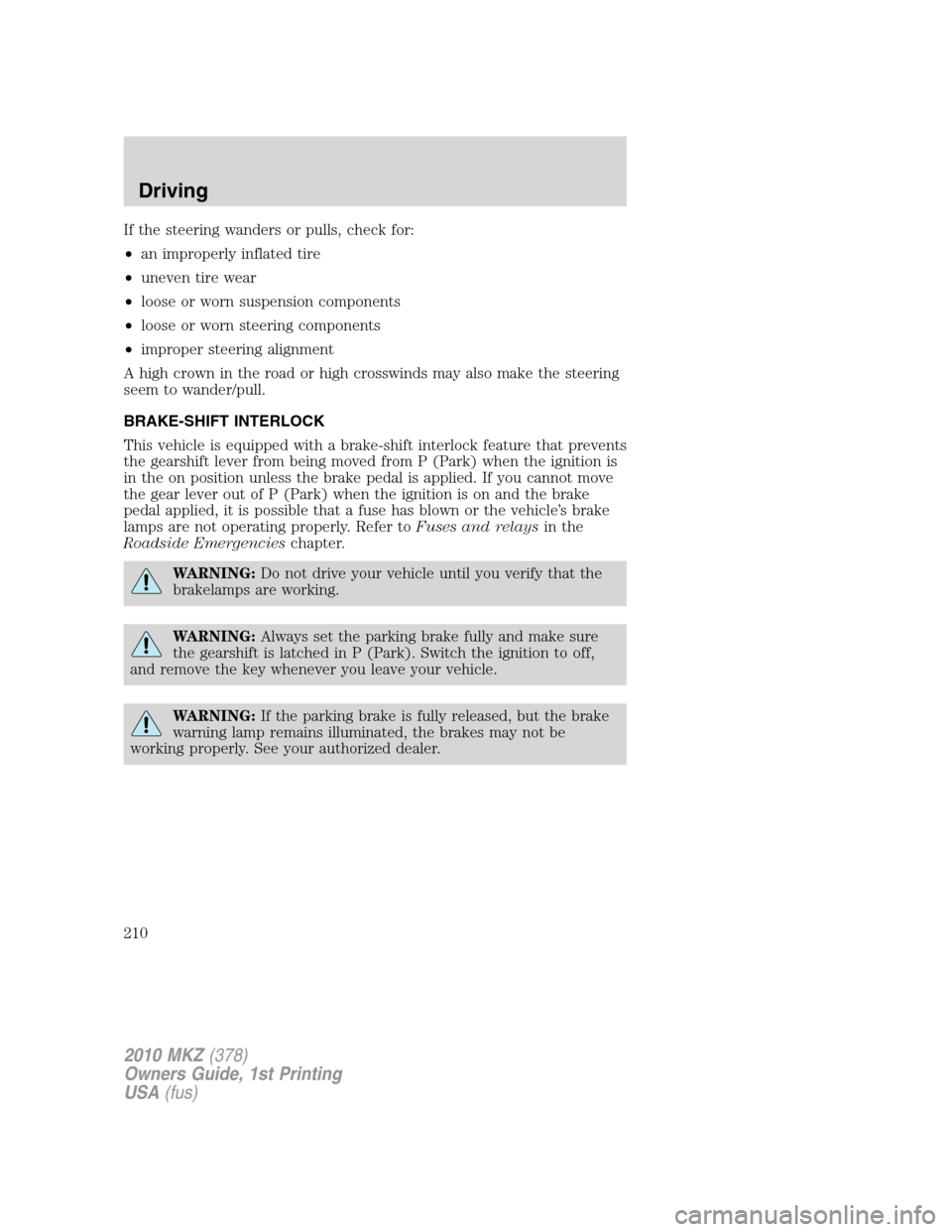

LINCOLN MKZ 2010  Owners Manual If the steering wanders or pulls, check for:
•an improperly inflated tire
•uneven tire wear
•loose or worn suspension components
•loose or worn steering components
•improper steering alignme

Page 234 of 318

LINCOLN MKZ 2010  Owners Manual After an accident, if the engine cranks but does not start, this switch
may have been activated.
The fuel pump shut-off switch is
located in the front passenger
footwell area in the right upper
corner

Page 236 of 318

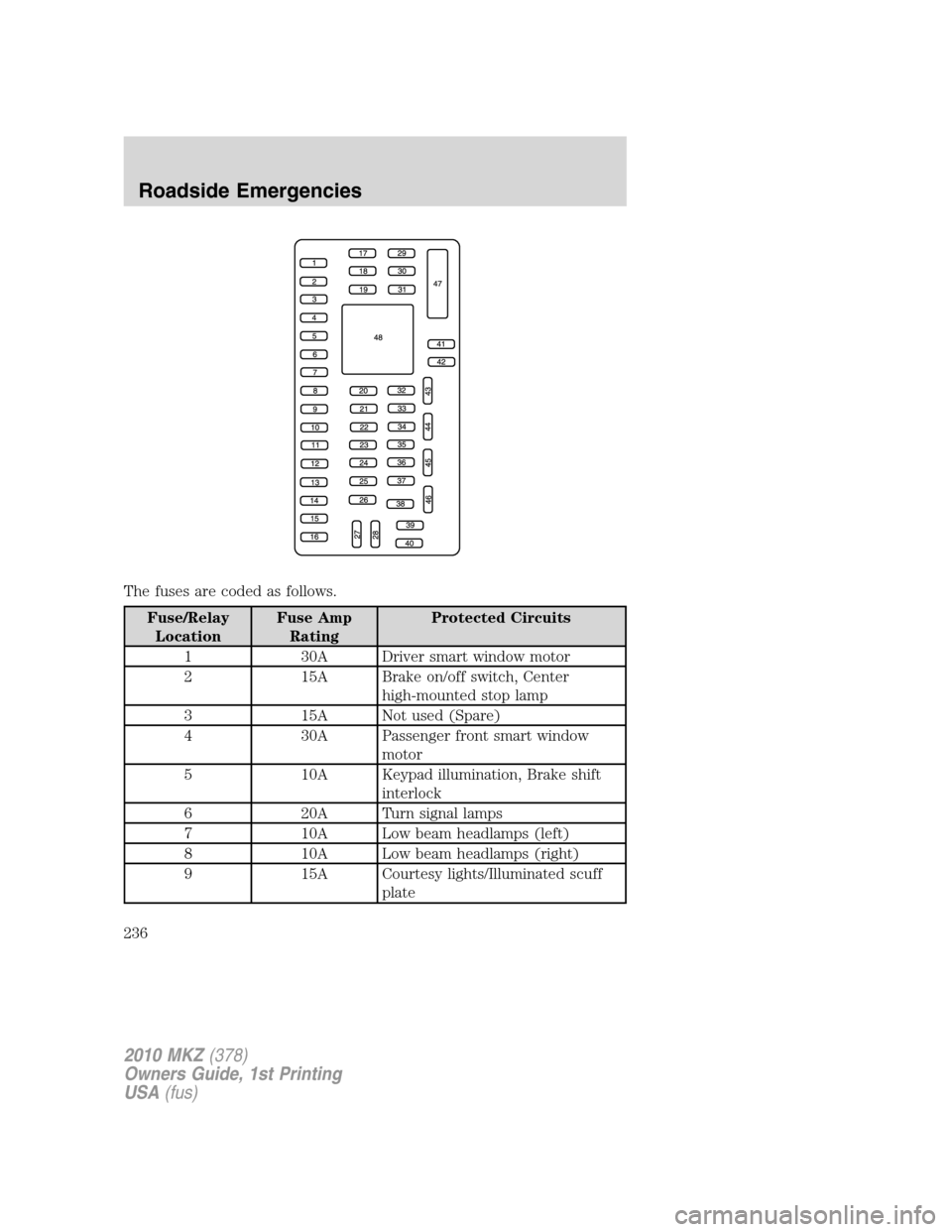

LINCOLN MKZ 2010  Owners Manual The fuses are coded as follows.
Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
1 30A Driver smart window motor
2 15A Brake on/off switch, Center
high-mounted stop lamp
3 15A Not used (Spare)
4 3

Page 237 of 318

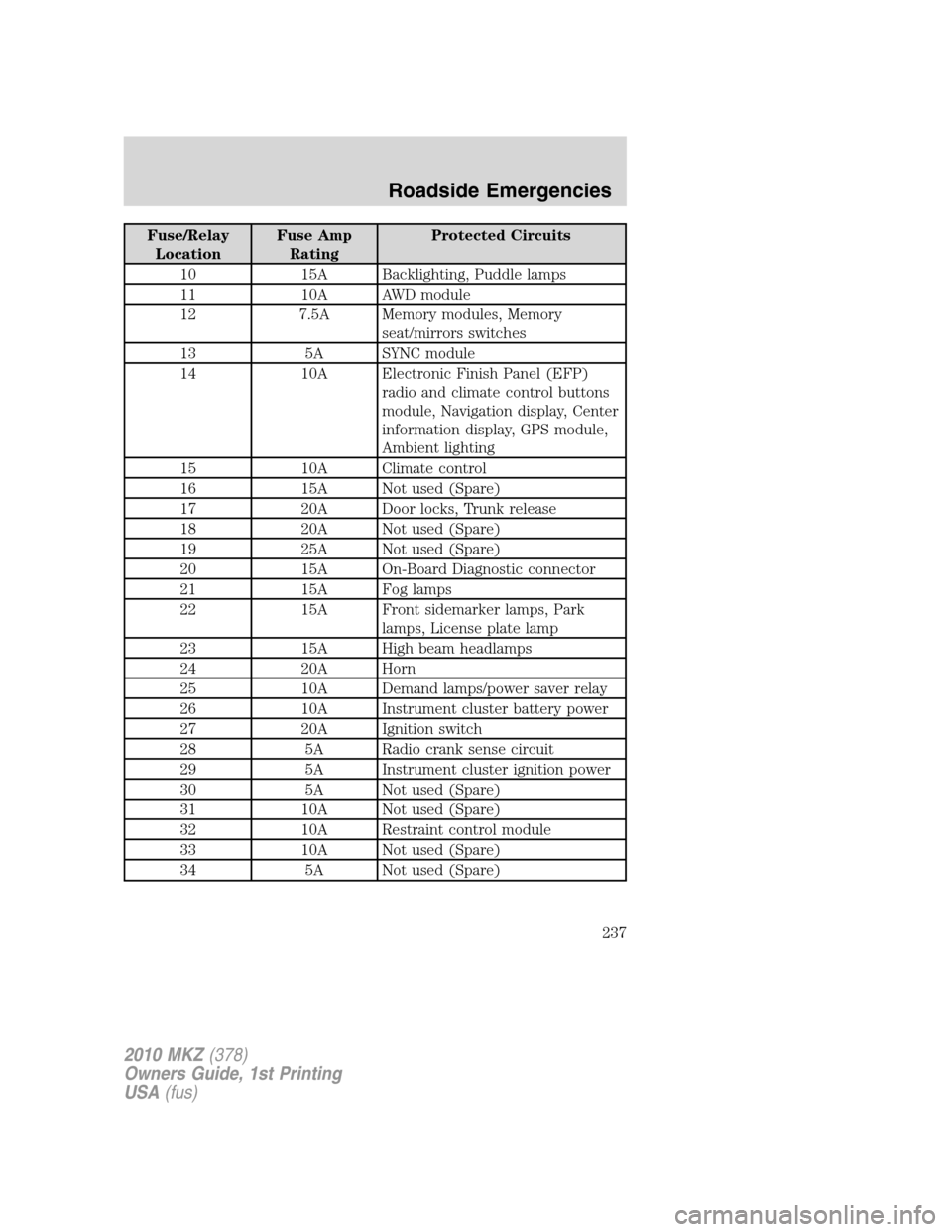

LINCOLN MKZ 2010  Owners Manual Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
10 15A Backlighting, Puddle lamps
11 10A AWD module
12 7.5A Memory modules, Memory
seat/mirrors switches
13 5A SYNC module
14 10A Electronic Finish

Page 238 of 318

LINCOLN MKZ 2010  Owners Manual Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
35 10A Rear park assist, Blind spot
monitor system, Rear video
camera, AWD
36 5A Passive Anti-Theft Sensor (PATS)
transceiver
37 10A Not used (Spar

Page 239 of 318

LINCOLN MKZ 2010  Owners Manual WARNING:To reduce risk of electrical shock, always replace
the cover to the Power Distribution Box before reconnecting the
battery or refilling fluid reservoirs.
If the battery has been disconnected a

Page 240 of 318

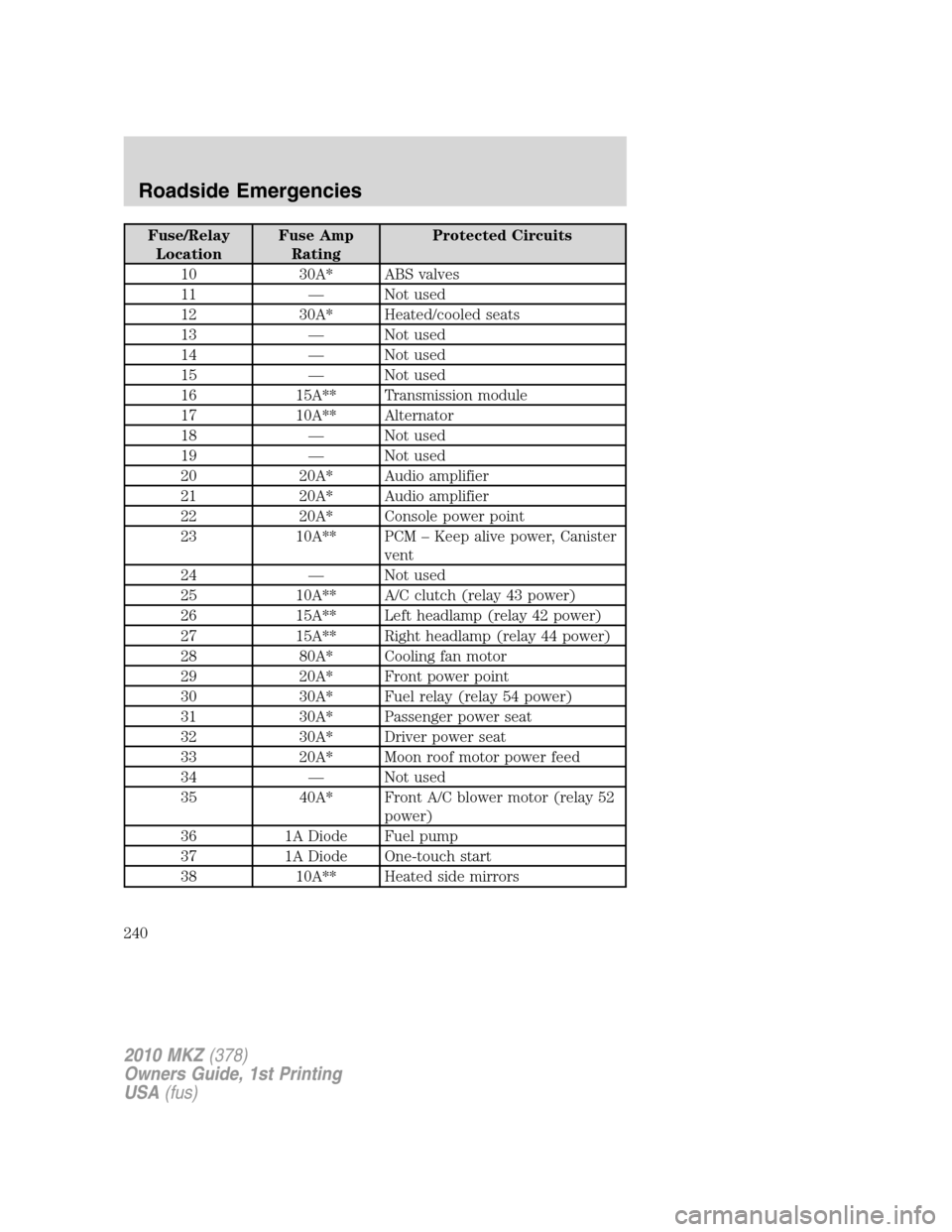

LINCOLN MKZ 2010  Owners Manual Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
10 30A* ABS valves
11 — Not used
12 30A* Heated/cooled seats
13 — Not used
14 — Not used
15 — Not used
16 15A** Transmission module
17 10A*

Page 241 of 318

LINCOLN MKZ 2010  Owners Manual Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
39 — Not used
40 — Not used
41 G8VA relay Backup lamps
42 G8VA relay Left headlamps
43 G8VA relay A/C clutch
44 G8VA relay Right headlamps
45 1
