MAP MODE
To enter map mode:
1. Ensure that the system is on.
2. Press the MAP hard button on the navigation system. The map screen
will display.
When in MAP mode, an icon appears on the upper left side of the
screen; this is a toggle button to change the view of the map displayed.
The following methods exist for orientation of the map:
•Heading up:In this mode, the
direction of forward travel is
always the upward direction on
screen. Available for map scales up to 2.5 mi /5km. For scales above
that, the setting for Heading-Up is remembered, but the map is shown
in North-Up only. If the scale returns below this level, then the
Heading-Up setting is restored.
•North up:In this mode, the
Northern Direction is always the
upward direction on screen.
MAP SCALE
The map display scale on the map
has 17 levels, ranging from
0.02 miles to 1,000 miles. Zoom
scales for ‘North up’ , ‘Heading up’
and 3D map view are synchronized. In MAP mode, you can also zoom in
or out, changing the display scale by pressing on one of the arrows on
the button appearing on the left side of the screen. When in Full Screen
Map Mode, touching this button will cause the Zoom Direct buttons to
appear. The Zoom Direct buttons represent the most common scales and
can be pressed directly to show the map at the desired scale. The scale
is approximate and based on the width of the display button (A). The
size of the scale will vary based on the screen size.
Map road colors and building representation on the map:
•Roads:Will be displayed in a variety of colors.
•Building footprints:Will display areas of major buildings in the 20
largest cities in the U.S. These areas will be displayed depending on
their size and the map zoom level.
A
Setting a destination
109
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

Quick touch buttons
When in Map mode, you have the
ability to view six quick touch
buttons. In order to view these,
press and release anywhere on the
map display. The map position will
not change and they will appear on
the map. These buttons are:
•Set as Dest:Press in order to select a scrolled location on the map as
your destination. (You may scroll the map by pressing your index
finger on the map display. When you reach the desired location,
simply let go and then press ‘Set as Dest’ to go to the Destination Map
View Screen.
•Set as Waypoint:Press to set the current location as a waypoint.
•Save to Address Book:Press to save the current location to the
address book.
•POI Icons ON/OFF:Press to
view set POI icons to be
displayed on the map. Up to
three icons can be selected for
display on the map at the same
time.
•View Traffic:Press to adjust the map display to the right scale. This
scale allows the entire route to be visible in the screen.
•View/Edit Route:Press in order to adjust the following features of
the current active route:
Cancel route:Press cancel the current active route.
View route:Select to view the current route.
Edit route preferences:Press to adjust route preferences.
Setting a destination
110
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

Average speed: FreewaysWhen this feature is enabled, the system will
display the average speed on a freeway, initially set to 65 mph
(105 km/h). You can adjust the setting for specific roads. You can adjust
the setting using + or — for your specific driving preferences. These
settings help the system better estimate your arrival time at a destination
based on your driving preferences.
Parking POI Notification:When enabled, this feature will display
available parking accommodations around a destination (when part of a
route).
Low Fuel POI Notification:When enabled, this feature will display gas
station icons on the map when the vehicle fuel level is low.
Fuel Price Display:When enabled, this feature will display fuel prices
at local gas stations. You can choose to display Unleaded or Diesel.
Note:Requires SIRIUSTravel Link™ (if activated).
Calibrate
•Position:You can adjust the direction of the vehicle by pressing the
arrow buttons on the screen.
•Distance:Press to have the system re-calibrate the distance to the
destination as the vehicle is in motion.
Restore Default Settings:Press to return to the factory default settings.
Avoid Areas:When enabled, you can select an area you would like the
system to avoid when creating a navigation route.
AVOID AREAS
You can tell the navigation system to avoid certain areas when
calculating a route.
1. Press the NAV hard button on the navigation system.
2. Select the ‘Avoid Areas’ tab to
select specific areas which you
would like the navigation system to
avoid when routing to destination.
3. Select ‘Add’ to add areas for the
system to avoid.
Navigation route preferences
119
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

In-band ringing:This is a phone dependent feature. If yourBluetooth
enabled cellular phone supports this feature, SYNCcan play your ring
tone during incoming calls.
Indexing:A process in which SYNCbuilds a voice recognition grammar
for the media content of your digital media player. While indexing,
SYNCwill play already indexed media if Autoplay is on. However, voice
recognition is not available for the media until the indexing process is
complete.
Metadata:Descriptive tags embedded in your digital media which
provide SYNCwith information such as ARTIST, ALBUM, GENRE and
TRACK.
Pairing:To use yourBluetoothenabled cellular phone with SYNC, you
must go through a pairing (bonding) process. “Pairing” is a special
process used when two devices connect for the first time. The pairing
process is used to generate a link key that is used for authentication
purposes during subsequentBluetoothconnections between the two
devices.
PIN (Personal Identification number):This six digit number
(sometimes referred to as a passkey) will be shown in the radio display
during the pairing process with yourBluetoothenabled device. You do
not need to write down this number as it will only be used for that
specific pairing procedure.
POI:Point(s) Of Interest
PROV:Province
PTY:Program Type
RDS:Radio Data System
SAT:Satellite Radio
SCV:Speed Compensated Volume
Smart Speller:Feature that provides a number of available candidates
matching partial input entered by the user.
Touchscreen:A touch-sensitive screen that lets the user make choices
by touching icons or graphical buttons on the screen.
Waypoint:An intermediate stop or destination before the final
destination.
General Information
128
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

Making a call using your navigation system
Making a phone call using SYNCis easy.
Press PHONE and select from one of the following:
•Use the keypad on the ‘Phone’
tab to manually enter a phone
number and press SEND.
OR
•Select the ‘Phonebook’ tab (if the
desired number is saved in the
downloaded phone book
information).
•Use the quick sort buttons to
browse to the desired contact.
•Select the desired contact and
press
‘Dial’.
Note:This is a phone dependent feature.
OR
•Select the ‘Call History’ tab (if the
desired number is saved in the
downloaded call history
information).
•Select the desired contact and
press
‘Dial’.
Note:This is a phone dependent feature.
SYNCphone features (if equipped)
134SeeEnd User License Agreementat the end of this book
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

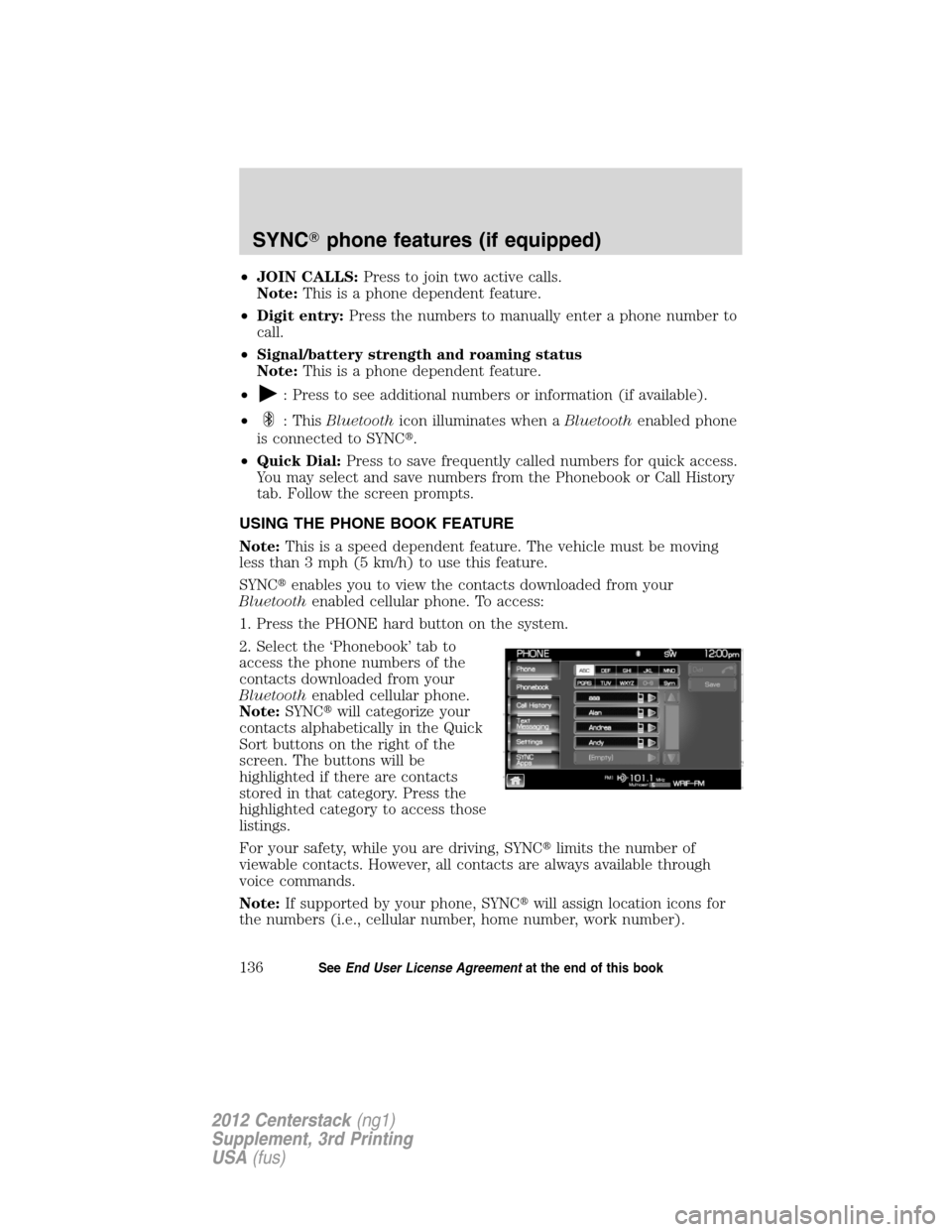

•JOIN CALLS:Press to join two active calls.
Note:This is a phone dependent feature.
•Digit entry:Press the numbers to manually enter a phone number to
call.
•Signal/battery strength and roaming status
Note:This is a phone dependent feature.
•
: Press to see additional numbers or information (if available).
•
: ThisBluetoothicon illuminates when aBluetoothenabled phone
is connected to SYNC.
•Quick Dial:Press to save frequently called numbers for quick access.
You may select and save numbers from the Phonebook or Call History
tab. Follow the screen prompts.
USING THE PHONE BOOK FEATURE
Note:This is a speed dependent feature. The vehicle must be moving
less than 3 mph (5 km/h) to use this feature.
SYNCenables you to view the contacts downloaded from your
Bluetoothenabled cellular phone. To access:
1. Press the PHONE hard button on the system.
2. Select the ‘Phonebook’ tab to
access the phone numbers of the
contacts downloaded from your
Bluetoothenabled cellular phone.
Note:SYNCwill categorize your
contacts alphabetically in the Quick
Sort buttons on the right of the
screen. The buttons will be
highlighted if there are contacts
stored in that category. Press the
highlighted category to access those
listings.
For your safety, while you are driving, SYNClimits the number of
viewable contacts. However, all contacts are always available through
voice commands.
Note:If supported by your phone, SYNCwill assign location icons for
the numbers (i.e., cellular number, home number, work number).
SYNCphone features (if equipped)
136SeeEnd User License Agreementat the end of this book
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

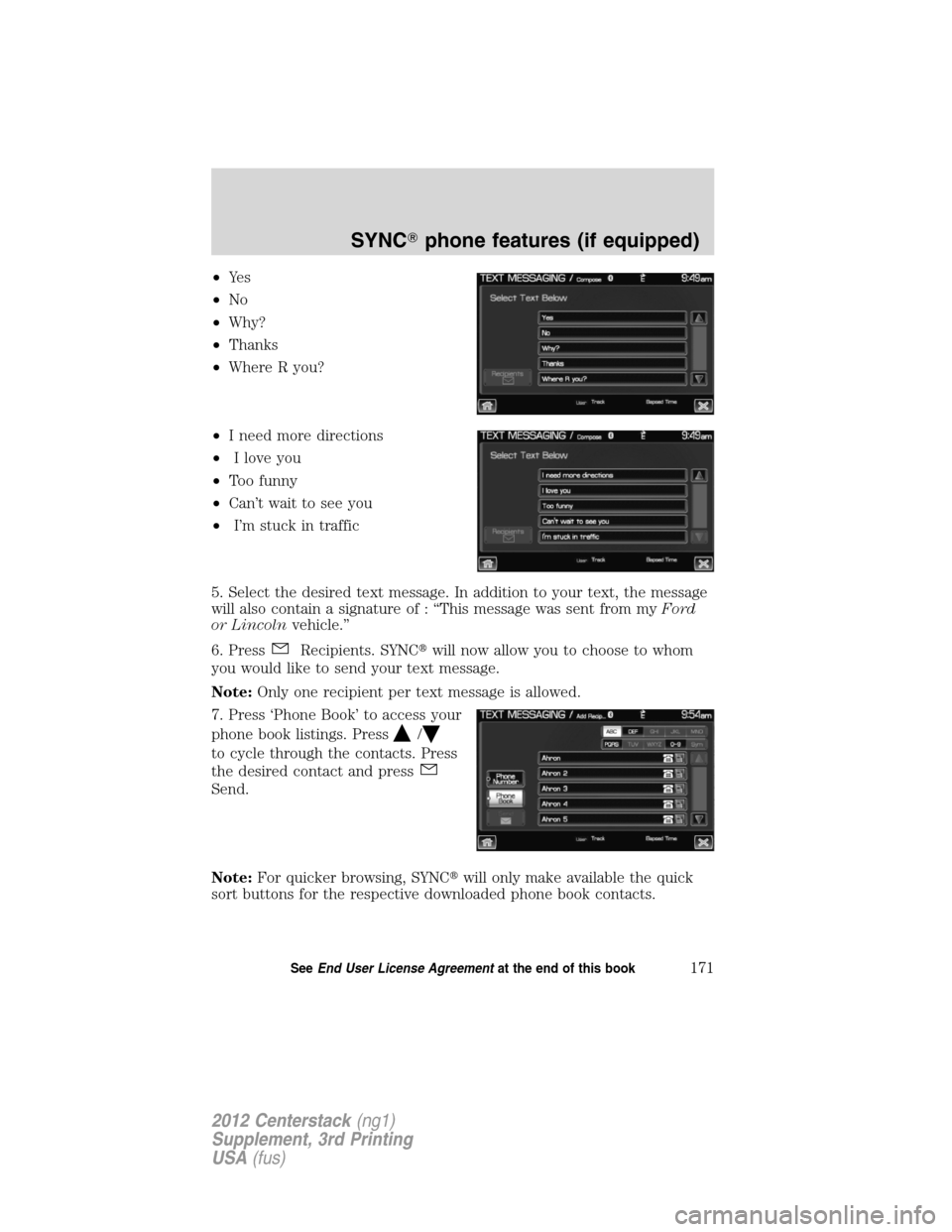

•Ye s
•No
•Why?
•Thanks
•Where R you?
•I need more directions
•I love you
•Too funny
•Can’t wait to see you
•I’m stuck in traffic
5. Select the desired text message. In addition to your text, the message
will also contain a signature of : “This message was sent from myFord
or Lincolnvehicle.”
6. Press
Recipients. SYNCwill now allow you to choose to whom
you would like to send your text message.
Note:Only one recipient per text message is allowed.
7. Press ‘Phone Book’ to access your
phone book listings. Press
/
to cycle through the contacts. Press
the desired contact and press
Send.
Note:For quicker browsing, SYNCwill only make available the quick
sort buttons for the respective downloaded phone book contacts.
SYNCphone features (if equipped)
171SeeEnd User License Agreementat the end of this book
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

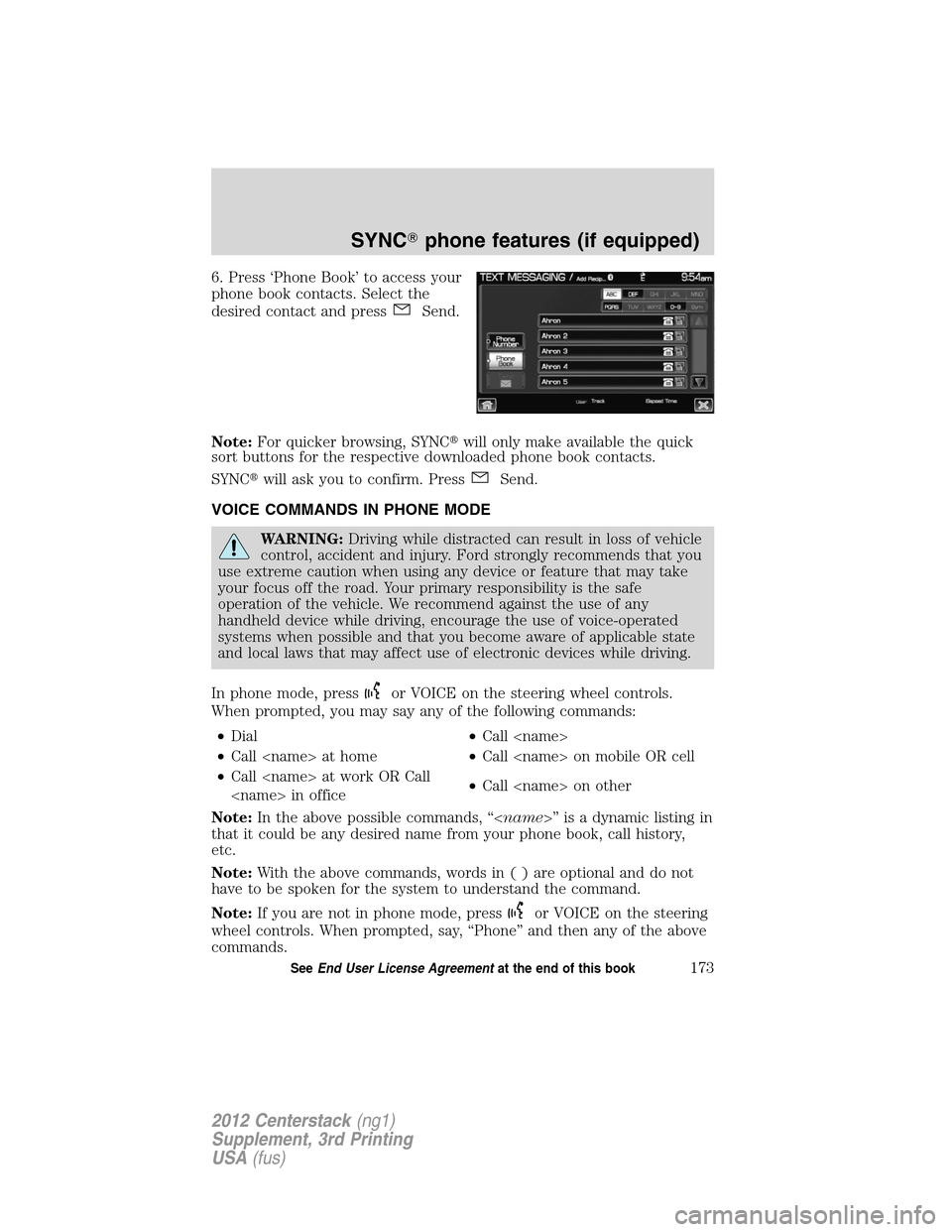

6. Press ‘Phone Book’ to access your
phone book contacts. Select the
desired contact and press
Send.
Note:For quicker browsing, SYNCwill only make available the quick
sort buttons for the respective downloaded phone book contacts.
SYNCwill ask you to confirm. Press
Send.
VOICE COMMANDS IN PHONE MODE
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that you
use extreme caution when using any device or feature that may take
your focus off the road. Your primary responsibility is the safe
operation of the vehicle. We recommend against the use of any
handheld device while driving, encourage the use of voice-operated
systems when possible and that you become aware of applicable state
and local laws that may affect use of electronic devices while driving.
In phone mode, press
or VOICE on the steering wheel controls.
When prompted, you may say any of the following commands:
•Dial•Call
•Call at home•Call on mobile OR cell
•Call at work OR Call
in office•Call on other
Note:In the above possible commands, “” is a dynamic listing in
that it could be any desired name from your phone book, call history,
etc.
Note:With the above commands, words in()areoptional and do not
have to be spoken for the system to understand the command.
Note:If you are not in phone mode, press
or VOICE on the steering
wheel controls. When prompted, say, “Phone” and then any of the above
commands.
SYNCphone features (if equipped)
173SeeEnd User License Agreementat the end of this book
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

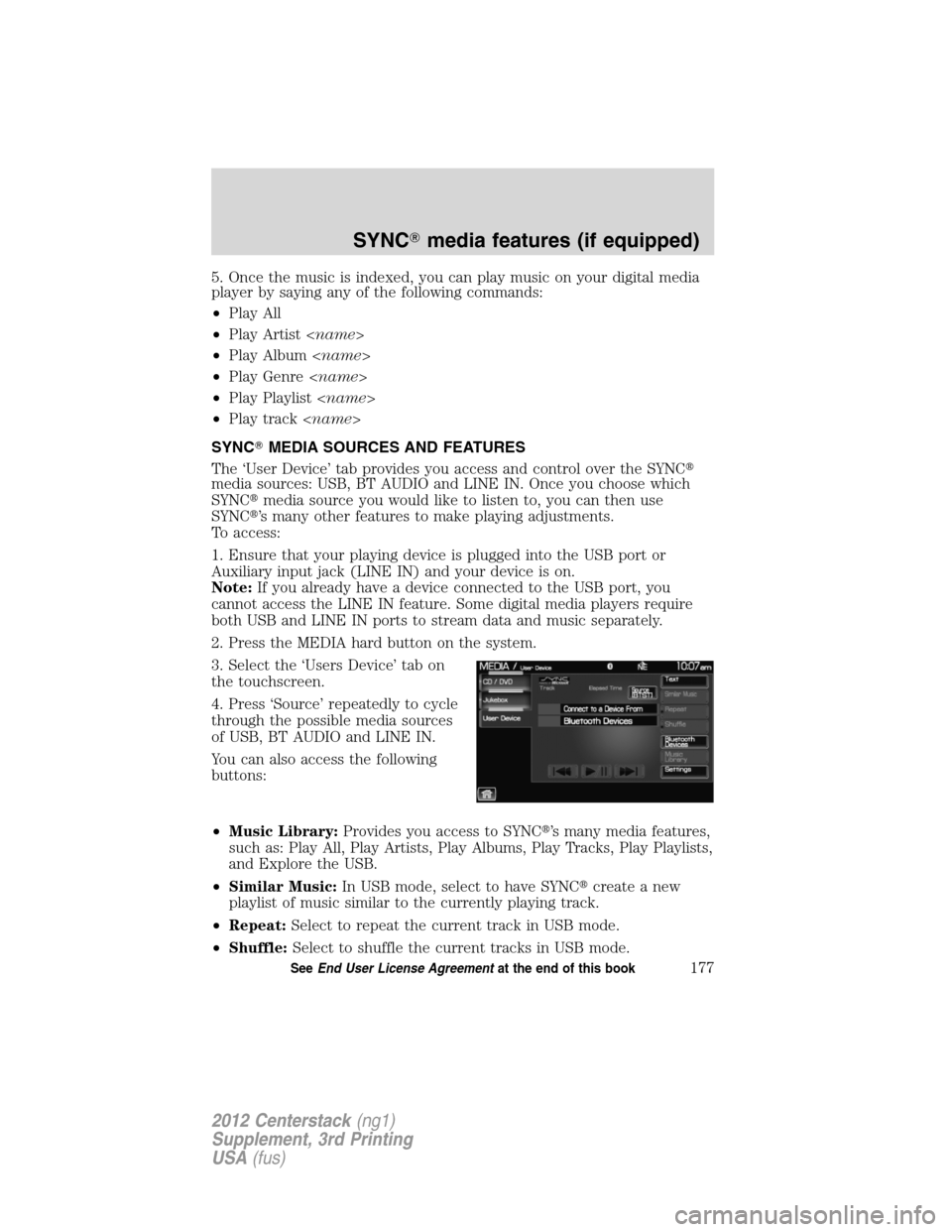

5. Once the music is indexed, you can play music on your digital media
player by saying any of the following commands:
•Play All
•Play Artist
•Play Album
•Play Genre
•Play Playlist
•Play track
SYNCMEDIA SOURCES AND FEATURES
The ‘User Device’ tab provides you access and control over the SYNC
media sources: USB, BT AUDIO and LINE IN. Once you choose which
SYNCmedia source you would like to listen to, you can then use
SYNC’s many other features to make playing adjustments.
To access:
1. Ensure that your playing device is plugged into the USB port or
Auxiliary input jack (LINE IN) and your device is on.
Note:If you already have a device connected to the USB port, you
cannot access the LINE IN feature. Some digital media players require
both USB and LINE IN ports to stream data and music separately.
2. Press the MEDIA hard button on the system.
3. Select the ‘Users Device’ tab on
the touchscreen.
4. Press ‘Source’ repeatedly to cycle
through the possible media sources
of USB, BT AUDIO and LINE IN.
You can also access the following
buttons:
•Music Library:Provides you access to SYNC’s many media features,
such as: Play All, Play Artists, Play Albums, Play Tracks, Play Playlists,
and Explore the USB.
•Similar Music:In USB mode, select to have SYNCcreate a new
playlist of music similar to the currently playing track.
•Repeat:Select to repeat the current track in USB mode.
•Shuffle:Select to shuffle the current tracks in USB mode.
SYNCmedia features (if equipped)
177SeeEnd User License Agreementat the end of this book
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

J
Jukebox features .........................62
Jukebox voice commands ..........66
L
Loading pictures .........................23
M
Making a call .............................134
Map display options ....................21
Map icons ..................................111
Map preferences .......................116
Map updates ..............................121
Message notification .................151
Modifying your phone book
and call history .........................153
N
Navigation end user license
agreement ..................................121
Navigation voice commands ....120
P
Pairing your phone through
your navigation system ............132
Performing a master reset .......156
Phone dependent features .......132
Playing a DVD in the system .....58
Playing a specific track ............185
POI categories ...........................100
Privacy information ......................8
Q
Quick destination options ..........93Quick reference chart ................26
Quick touch buttons .................110
R
Radio voice commands .........45, 50
Rear DVD voice commands .......69
Returning to factory defaults ..156
Reverse camera ...........................25
Route preferences ....................117
Route selection .........................105
S
Safety information ........................8
Satellite Radio .............................52
Selecting and playing specific
albums .......................................183
Selecting and playing specific
artists .........................................182
Selecting different genres ........183
Setting a destination by voice ...92
Setting a ring tone ....................150
Setting the clock .........................28
SIRIUS satellite radio voice
commands ...................................52
SIRIUS Travel Link .....................82
SIRIUS Travel Link voice
commands ...................................86
Standard destination options .....94
Status bars ..................................22
Streaming music from your
phone .........................................179
Index
199
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)
