audio LINCOLN MKZ 2012 Navigation Manual

Troubleshooting
Experience Cause Possible action
Echo, stutter, skip or
repeat in audio
Increase or decrease in
audio volumePoor time alignment by
the radio broadcaster.None — broadcast issue.
Sound fading, blending
in and outRadio is shifting
between analog and
digital audio.Reception issue that may
clear up as you continue
to drive.
Audio mute delay when
selecting HD2/HD3
multicast preset or
using the direct tune
voice commandThe digital multicast is
not available until HD
Radio broadcast can be
decoded and make the
audio available.This is normal behavior.
Wait until the audio is
available.
Cannot access
HD2/HD3 multicast
channel when recalling
a preset or using the
direct tune voice
commandThe previously stored
multicast preset or
direct tune is not
available in your
current reception area.None — the station is
not available in your
current location.
Text information does
not match currently
playing audioData service issue by
the radio broadcaster.Fill out the station issue
form at
www.ibiquity.com/
automotive/report_radio
_station_experiences.
No text information
shown for currently
selected frequency.Data service issue by
the radio broadcaster.Fill out the station issue
form at
www.ibiquity.com/
automotive/report_radio
_station_experiences.
HD2–HD8 stations not
found when Scan is
pressed.Pressing Scan will
disable HD2–HD8
channel search.None — this is normal
behavior.
HD Radio™ technology is manufactured under license from iBiquity
Digital Corp. U.S. and foreign patents. HD Radio™ and the HD and HD
Radio logos are proprietary trademarks of iBiquity Digital Corp. Ford
Motor Company and iBiquity Digital Corp are not responsible for the
content sent using HD Radio technology. Content may be changed,
added or deleted at any time at the station owner’s discretion.
Audio features
49
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

HD voice commands (if available)
While listening to the radio, press
or VOICE on the steering wheel
controls. When prompted, you may say any of the following commands:
•<87.7 - 107.9> HD <1–8>•FM <87.7-107.9> HD <1-8>
•Tune HD <1-8>
Note:If you are not listening to the radio, press
or VOICE on the
steering wheel controls. When prompted, say, “Radio” and then press
or VOICE on the steering wheel controls again and you can say any of
the above commands.
*If you have said, “Tune”, you can then say any the following
commands:
•<87.7 - 107.9> HD <1–8>•FM <87.7-107.9> HD <1-8>
•Tune HD <1-8>
SATELLITE RADIO (SAT) IF ACTIVATED
Once the Satellite Radio feature is activated, your navigation system will
have additional features.
1. Ensure that the navigation system is on.
2. Press the RADIO hard button on the navigation system.
3. Select the ‘SAT’ tab on the touchscreen to enter satellite radio mode
(if activated).
4. Press ‘Show Options’ to select from:
Sat 123:You will be able to access
three different Satellite Radio
modes, SAT1, SAT2 and SAT3.
Scan:Press to hear a brief sampling of satellite radio channels within
the currently selected genre. Press again to stop.
Audio features
50
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

Scan Presets:Press to hear a brief sampling of all preset channels.
Channel Guide:Press to display a list of satellite radio channels sorted
by genre and also to skip or lock out certain channels. Select the desired
genre and choose a channel by pressing the channel name button. You
can then choose to ‘Skip’ or ‘Lock’ a certain channel. A ‘skipped’ channel
will not be accessible using the tune knob, scan or seek functions. (To
access the skipped channel, select ‘Direct Tune’ and enter the channel
number.) A ‘locked’ channel can only be accessed by entering the
‘Channel Guide’ and then entering the PIN.
Note:The PIN can be reset by simultaneously pressing and holding
presets 1 and 5 while on the PIN entry screen. After approximately five
seconds, the system will transition to the Channel Guide screen
indicating that the PIN is reset. Once you have reset the PIN, the system
will then allow you to set a new PIN.
Direct Tune:Press to enter a specific channel using the keypad and go
directly to that channel.
Set Genre:Press to choose from a list of possible satellite radio genres.
Once a genre is chosen and you press SEEK, it will only seek within the
selected genre.
Memo:The MEMO feature allows you to save a song title and artist to
the system. When the saved song is playing on any satellite radio
channel, the system will alert you with a pop-up in the lower status bar.
You can then choose to tune to the station or to ignore the pop-up.
When you are in the MEMO screen, the following options are available:
•Refresh:Press to refresh the current artist and title information.
•Song Alert:Press to store the song information displayed in the Title
Field. When the stored song is played in the future, an audio and
visual notification will be initiated.
•Artist Alert:Press to store the artist information currently displayed
in the Artist Field. When that artist is played again, the system will
alert you with a pop-up.
•Alert On/Off:Press to enable/disable the audio and visual song and
artists alerts.
Show Presets:Press to display presets at the bottom of the screen.
Audio features
51
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

SIRIUSsatellite radio voice commands (if activated)
While listening to SIRIUSsatellite radio, (if activated), press
or
VOICE on the steering wheel controls. When prompted, you may say any
of the following commands:
•On•Off
••<1–223 >
•SAT1•SAT2
•SAT3•Preset <1–6>
•SAT1 preset <1–6>•SAT2 preset <1–6>
•SAT3 preset <1–6>•Seek up
•Seek down•Store preset <1–6>
•Store SAT1 preset <1–6>•Store SAT2 preset <1–6>
•Store SAT3 preset <1–6>•Tune
•Help
Note:If you are not listening to SIRIUSsatellite radio, press
or
VOICE on the steering wheel controls. When prompted, say, “SIRIUS”
and then press
or VOICE on the steering wheel controls again and
you can say any of the above commands.
*If you have said “Tune”, you can then say the following commands:
•<1–223 >•
•SAT1•SAT2
•SAT3•Preset <1–6>
•SAT1 preset <1–6>•SAT2 preset <1–6>
•SAT3 preset <1–6>
Satellite radio (if activated)
Your vehicle is equipped with satellite radio capability. The factory installed
SIRIUSsatellite radio system includes a limited subscription term which
begins on the date of sale / lease of the vehicle. Extended subscription
terms are available, please contact SIRIUSat 1–888–539–7474.
You will need to give SIRIUSyour Satellite Radio ESN Number for
activation. The ESN number is found on the System Information Screen
(SR ESN:XXXXXXXXXXXX). Press the I button (
) on the navigation
system and select the ‘System Info’ tab on the touchscreen.
Audio features
52
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

Satellite radio channels:SIRIUSbroadcasts a variety of music, news,
sports, weather, traffic and entertainment satellite radio channels. For
more information and a complete list of SIRIUSsatellite radio channels,
visit www.sirius.com in the United States, www.siriuscanada.ca in
Canada, or call SIRIUS at 1–888–539–7474.
Satellite radio reception factors:To receive the satellite signal, your
vehicle has been equipped with a satellite radio antenna located on the
roof of your vehicle. The vehicle roof provides the best location for an
unobstructed, open view of the sky, a requirement of a satellite radio
system. Like AM/FM, there are several factors that can affect satellite
radio reception performance:
•Antenna Obstructions: For optimal reception performance, keep the
antenna clear of snow and ice build-up and keep luggage and other
material as far away from the antenna as possible.
•Terrain: Hills, mountains, tall buildings, bridges, tunnels, freeway
overpasses, parking garages, dense tree foliage and thunderstorms can
interfere with your reception.
•Station overload: When you pass a ground based broadcast repeating
tower, a stronger signal may overtake a weaker one and result in an
audio mute.
Unlike AM/FM audible static, you will hear an audio mute when there is
a satellite radio signal interference. Your radio display may display
ACQUIRING...toindicatetheinterference.
SIRIUSsatellite radio service:SIRIUSSatellite Radio is a
subscription based satellite radio service that broadcasts music, sports,
news and entertainment programming. A service fee is required in order
to receive SIRIUSservice. Vehicles that are equipped with a factory
installed SIRIUSSatellite Radio system include:
•Hardware and limited subscription term, which begins on the date of
sale or lease of the vehicle.
For information on extended subscription terms, the online media player
and other SIRIUSfeatures, please contact SIRIUSat 1–888–539–7474.
Note:SIRIUSreserves the unrestricted right to change, rearrange, add
or delete programming including canceling, moving or adding particular
channels, and its prices, at any time, with or without notice to you. Ford
Motor Company shall not be responsible for any such programming
changes.
Audio features
53
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

Satellite Radio Electronic Serial Number (ESN):This12digit
satellite serial number is needed to activate, modify or track your
satellite radio account. You will need this number when communicating
with SIRIUS. While in satellite radio mode, you can view this number by
pressing the I button (
) on the navigation system and select the
‘System Info’ tab on the touchscreen.
Radio Display Condition Action Required
ACQUIRING Radio requires more
than two seconds to
produce audio for the
selected channel.No action required.
This message should
disappear shortly.
SAT FAULT Internal module or
system failure
present.If this message does
not clear within a short
period of time, or with
an ignition key cycle,
your receiver may have
a fault. See your
authorized dealer for
service.
INVALID CHANNEL Channel no longer
available.This previously
available channel is no
longer available. Tune
to another channel. If
the channel was one of
your presets, you may
choose another channel
for that preset button.
UNSUBSCRIBED
CHANNELSubscription not
available for this
channel.Contact SIRIUSat
1–888–539–7474 to
subscribe to the
channel, or tune to
another channel.
Audio features
54
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

Radio Display Condition Action Required
NO SIGNAL Loss of signal from
the SIRIUSsatellite
or SIRIUStower to
the vehicle antenna.You are in a location
that is blocking the
SIRIUSsignal (i.e.,
tunnel, under an
overpass, dense foliage,
etc). The system is
working properly. When
you move into an open
area, the signal should
return.
UPDATING Update of channel
programming in
progress.No action required. The
process may take up to
three minutes.
CALL SIRIUS
1–888–539–7474Satellite service has
been deactivated by
SIRIUSSatellite
Radio.Call SIRIUSat
1–888–539–7474 to
re-activate or resolve
subscription issues.
PLAYING A CD
Note: CD units are designed to play commercially pressed 4.75 in
(12 cm) audio compact discs in the ISO 9660 format only. (UDF
format is not supported.) Due to technical incompatibility,
certain recordable and re-recordable compact discs may not
function correctly when used in CD players. Irregular shaped
CDs, CDs with a scratch protection film attached, and CDs with
homemade paper (adhesive) labels should not be inserted into
the CD player. The label may peel and cause the CD to become
jammed. It is recommended that homemade CDs be identified
with permanent felt tip marker rather than adhesive labels.
Ballpoint pens may damage CDs. Please contact your authorized
dealer for further information.
If you press CD/DVD and there is not a disc loaded into the system, NO
DISC will appear in the status bar and you will not be able to access the
CD screen.
•Insert a disc into the slot. The disc will begin to play.
You can access any of the following options in CD mode:
Scan:Press for a brief sampling of all listenable CD tracks.
Audio features
55
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

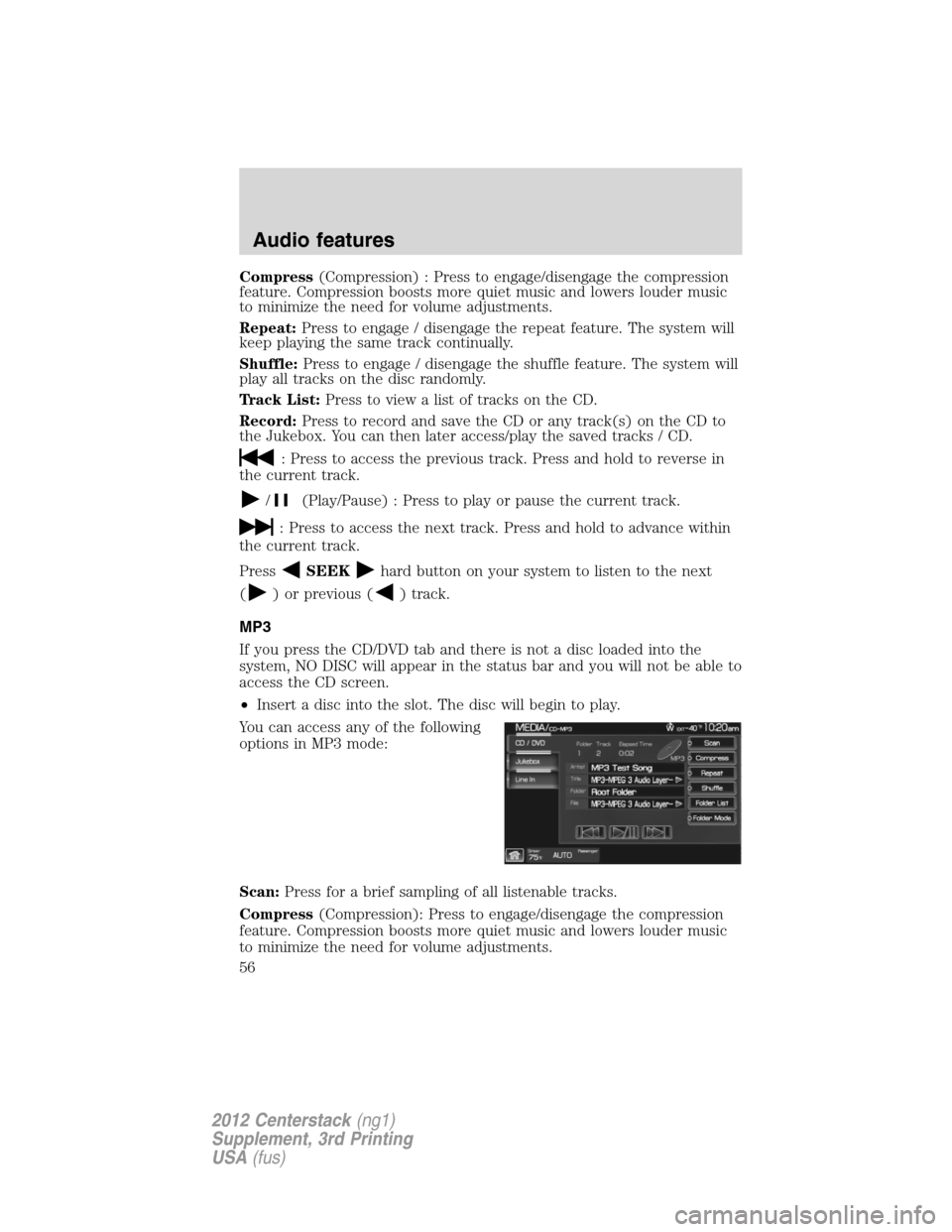

Compress(Compression) : Press to engage/disengage the compression
feature. Compression boosts more quiet music and lowers louder music
to minimize the need for volume adjustments.
Repeat:Press to engage / disengage the repeat feature. The system will
keep playing the same track continually.
Shuffle:Press to engage / disengage the shuffle feature. The system will
play all tracks on the disc randomly.
Track List:Press to view a list of tracks on the CD.
Record:Press to record and save the CD or any track(s) on the CD to
the Jukebox. You can then later access/play the saved tracks / CD.
: Press to access the previous track. Press and hold to reverse in
the current track.
/(Play/Pause) : Press to play or pause the current track.
: Press to access the next track. Press and hold to advance within
the current track.
Press
SEEKhard button on your system to listen to the next
(
) or previous () track.
MP3
If you press the CD/DVD tab and there is not a disc loaded into the
system, NO DISC will appear in the status bar and you will not be able to
access the CD screen.
•Insert a disc into the slot. The disc will begin to play.
You can access any of the following
options in MP3 mode:
Scan:Press for a brief sampling of all listenable tracks.
Compress(Compression): Press to engage/disengage the compression
feature. Compression boosts more quiet music and lowers louder music
to minimize the need for volume adjustments.
Audio features
56
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

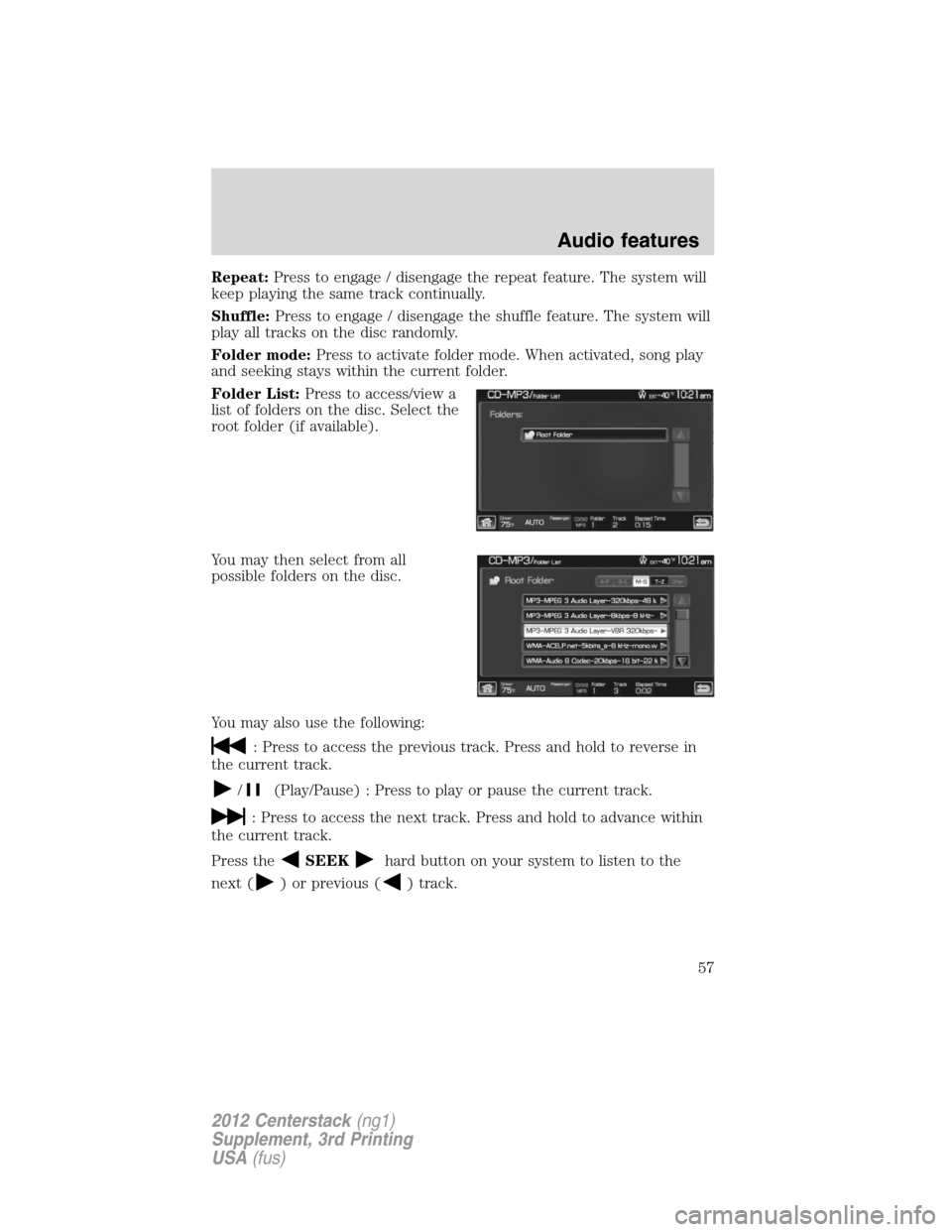

Repeat:Press to engage / disengage the repeat feature. The system will
keep playing the same track continually.
Shuffle:Press to engage / disengage the shuffle feature. The system will
play all tracks on the disc randomly.
Folder mode:Press to activate folder mode. When activated, song play
and seeking stays within the current folder.
Folder List:Press to access/view a
list of folders on the disc. Select the
root folder (if available).
You may then select from all
possible folders on the disc.
You may also use the following:
: Press to access the previous track. Press and hold to reverse in
the current track.
/(Play/Pause) : Press to play or pause the current track.
: Press to access the next track. Press and hold to advance within
the current track.
Press the
SEEKhard button on your system to listen to the
next (
) or previous () track.
Audio features
57
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

CD voice commands
While listening to a CD, press
or VOICE on the steering wheel
controls. When prompted, you may say any of the following commands:
•Play•Pause
•Repeat•Repeat off
•Shuffle•Shuffle off
•Play next track•Play previous track
•Play track <1–512>•Play folder <1–255>
•Play folder <1–255>
track <1–512>•Play next folder
•Play previous folder•Folder mode
•Folder mode off•Help
Note:If you are not listening to a CD, press
or VOICE on the
steering wheel controls. When prompted, say, “CD” and then any of the
above commands.
PLAYING A DVD IN THE SYSTEM
Note:Your system only plays NTSC formatted discs. PAL format is not
supported. For more information on DVD region coding, please refer to
DVD informationin theGeneral Informationchapter.
Your navigation system allows you to play DVD audio and video discs.
Ensure that the vehicle is in Park (P) for automatic transmission
vehicles, or that the parking brake is engaged for manual transmission
vehicles. This will allow you to be able to view and hear the DVD. If the
vehicle is moving, you will only be able to hear the audio.
To play a DVD:
1. Ensure that the vehicle and the system are on.
2. Insert a DVD into the system, label side up. The system will
automatically go into DVD mode.
Audio features
58
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)
