Search commands
Your jukebox has advanced search commands which allow you to have
the system search the stored music in your jukebox for a specific artist,
album or track. You can search for and play a specific type (genre) of
music, a specific album, a specific artist or a specific track.
To use the search commands
When listening to the jukebox, press
or VOICE on the steering wheel
controls. When prompted, you may say any of the following commands:
•Search genre •Search artist
•Search album •Search track
Once the system is done searching for the type of music, artist, album,
or track, you can say any of the following commands:
•Play•Play album
•Play track •Play artist
‘Refining’ your search
You can choose to ’refine’ your search even farther. For example, if you
told the system to search and play all music by a certain artist, you can
then tell the system to “Refine album” and choose a specific album when
prompted. If you then say “Play”, the system will only play music from
that specific album.
To refine your search, say any of the following commands after system
has finished searching for the type of music, artist, album, or track:
•Refine album •Refine artist
You can then select to:
•Play•Play track
USER DEVICE
If your vehicle is equipped with
SYNC, there will be a ‘User Device’
tab in your media options. For more
information, please refer to the
SYNCmedia featureschapter
later in this supplement.
Audio features
67
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

2. Select the ‘Rear DVD A’ tab on
the touchscreen to access the
Monitor A headrest system:
: Press to access the previous track. Press and hold to reverse in
the current track.
: Press to access the next track. Press and hold to advance within
the current track.
/(Play/Pause): Press to play or pause the current track.
3. Select the ‘Rear DVD B’ tab on
the touchscreen to view the status
of the Monitor B headrest system.
Rear DVD voice commands (if equipped)
If the rear DVDAis the only audio source playing, pressor VOICE
on the steering wheel controls. When prompted, you may say any of the
following commands.
Note:These commands will not function with the audio source in DVDB.
•Play•Pause
•Play previous chapter•Play next chapter
•Play previous track•Play next track
•Play previous folder•Play next folder
•Folder mode (if equipped)•Folder mode off (if equipped)
•Shuffle•Shuffle off
•Headphones•Headphones off
•Help
Audio features
69
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

Note:If the Rear DVD is not the only audio source (i.e., the radio is on
also), then press
or VOICE on the steering wheel controls. When
prompted, say, “Rear DVD” and then any of the above commands. Each
command will be applied based on the type of media in the player. For
example, if a DVD movie is playing as DVDA, then the commandPlay
previous folderwill not be functional, because a DVD video disc does
not have folders. Similarly, if a DVD movie is playing as DVDA, saying
the commandPlay Previous Chapterwill command the DVD player to
jump to the previous chapter.
REAR ZONE (IF EQUIPPED)
This screen allows front seat passengers to select/listen to a different
audio/video source than the back seat passengers. The only restriction is
that the front and back seat passengers cannot both listen to a different
frequency band (AM/FM1/FM2). The frequency band selected by the
driver is the band accessible by the rear passenger. To access:
1. Ensure that the system is ON.
2. Press the MEDIA or RADIO hard button on the system.
3. Select the ‘Rear Zone’ tab on the touchscreen.
The screen will show you the selected
playing media of both DVD headrest
systems and headsets (A and B). To
make adjustments, ensure that the
correct system (A or B) is highlighted.
The appropriate controls will appear
to allow you to make adjustments to
your current playing media.
•(Reverse): Press for
reverse play.
•
/(Play/Pause): Press to play or pause the DVD.
•
(Fast forward): Press for advance play.
SEEK:You may press the SEEK hard button on the system to access
the next or previous chapter.
•Media:Press to select the desired media in the selected headset (A
or B).
•Rear Controls Enabled/Disabled:Press to turn the Rear Controls
(if equipped) on/off.
•Headphones On/Off:Press to turn the headphones on/off.
Audio features
70
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

Climate voice commands (if equipped)
When using climate commands, press
or VOICE on the steering
wheel controls. When prompted, say, “Climate”. Wait for the system to
sound two tones and you may say any of the following commands:
•On•Off
•Automatic•Dual off
•AC on•AC off
•Max AC on•Max AC off
•Defrost•Defrost off
•Rear Defrost•Rear Defrost off
•Recirc•Recirc off
•Fan speed increase•Fan speed decrease
•Temperature increase•Temperature decrease
•Temperature <16.0–32.0>•Temperature <60–90>
•Help
Note:If the system is not displaying the climate touchscreen, press
or VOICE on the steering wheel controls. When prompted, say, “Climate”
and then any of the above commands.
Climate features (if equipped)
73
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

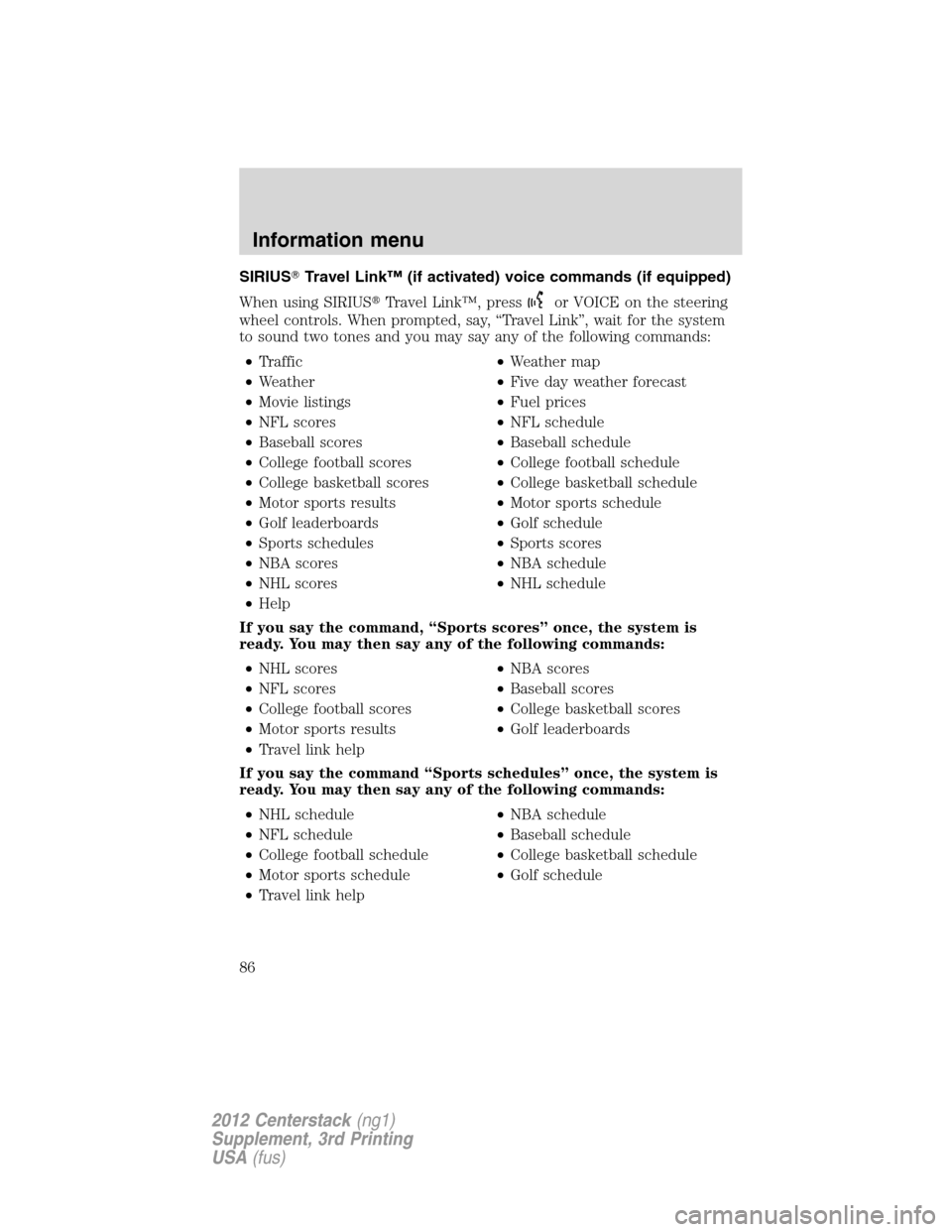

SIRIUSTravel Link™ (if activated) voice commands (if equipped)
When using SIRIUSTravel Link™, press
or VOICE on the steering
wheel controls. When prompted, say, “Travel Link”, wait for the system
to sound two tones and you may say any of the following commands:
•Traffic•Weather map
•Weather•Five day weather forecast
•Movie listings•Fuel prices
•NFL scores•NFL schedule
•Baseball scores•Baseball schedule
•College football scores•College football schedule
•College basketball scores•College basketball schedule
•Motor sports results•Motor sports schedule
•Golf leaderboards•Golf schedule
•Sports schedules•Sports scores
•NBA scores•NBA schedule
•NHL scores•NHL schedule
•Help
If you say the command, “Sports scores” once, the system is
ready. You may then say any of the following commands:
•NHL scores•NBA scores
•NFL scores•Baseball scores
•College football scores•College basketball scores
•Motor sports results•Golf leaderboards
•Travel link help
If you say the command “Sports schedules” once, the system is
ready. You may then say any of the following commands:
•NHL schedule•NBA schedule
•NFL schedule•Baseball schedule
•College football schedule•College basketball schedule
•Motor sports schedule•Golf schedule
•Travel link help
Information menu
86
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

Edit Route:The ‘Edit Route’
screen allows you to make any
adjustments to the currently
selected navigation route such as:
Cancel route, Detour, View Route,
Edit Route Preferences, Edit Traffic
Preferences, Edit Destination / Way
Points and Edit Turn List.
Setting a destination by voice
Press
or VOICE on the steering wheel. A tone will sound followed by
“Please say a command.”
VOICE/Main Menu and
will appear in the status bar first. Then, a
tone will sound and the icon will change toListening.
•To enter an address, say “Destination street address”.
•To enter an intersection, say “Destination Intersection”.
•To find a POI by its category, say “Destination ”. (For
example, “Destination restaurants”). You may also say “Destination
POI category” and “Destination nearest POI”.
•To find a POI by its name, say “Destination POI”. Follow the prompts
to say a POI by name. (For example, “Starbucks”.) You will need to
specify the POI category when prompted.
•If you want to route to a previous destination, say, “Destination
previous destination”.
•If you have programmed a home entry, you may set this as your
destination by saying,Destination home”.
•If you have created nametags for any of your address book entries,
you may set any of them as your destination by saying, “Destination
”.
•For Help, say, “Destination Help”.
Note:If the system’s language is set to French or Spanish, the city and
street names will need to be spelled. When in ‘Spelling mode’, you may
speak letters or say, “line # ”. The system is designed to work even if you
have made a spelling error.
Setting a destination
92
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

Destination voice commands
When setting a destination by voice, press
or VOICE on the steering
wheel controls. When prompted, say “Destination” and then wait or the
system to sound two tones, and say any of the following commands:
•Home•
•Nearest POI•
•POI•POI category
•Street address•Previous destination
•Destination help•Intersection
EDITING A NAVIGATION ROUTE
To edit your navigation route:
1. Press the DEST hard button on the navigation system.
2. Select the ‘Edit Route’ tab on the
touchscreen to select from the
following:
Cancel Route:Select to cancel an active route.
Detour:Select to set an avoid area on the current route.
View Route:Select to view the
entire current route. You can then
select from the following options:
•View Destination:The system will display a close up view of the
destination and surrounding area.
Setting a destination
107
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

The system will show you your
current avoid area on a map screen.
You can then choose to ’reduce’ the
avoid area, ‘expand’ the avoid area
or to ‘save’ the shown area. When
you are satisfied with your choice,
select ‘Save Area’. You can also
choose to edit the name of the
location. The system will add the
area to your ’avoid list’ and will
avoid that chosen area when calculating a route.
The system will do its best to avoid the items and areas that have been
set by the user. There will be some situations where it may be impossible
to completely honor avoid settings, for example, if a destination or
waypoint is located in an area that is set to avoid, the system will not be
able to avoid it.
Navigation voice commands
Press
or VOICE on the steering wheel controls. When prompted, say,
“Navigation” and then wait for the system to sound two tones and you
may say any of the following commands:
•Play nametags•Repeat instruction
•Detour•Cancel route
•Cancel next waypoint•Show destination
•Show next waypoint•Show route
•Show turn list•Show north up
•Show heading up•Show map
•Select map POI icons•Voice on
•Voice off•Voice volume increase
•Voice volume decrease•Zoom in
•Zoom out•Destination home
•Navigation destination
•Destination nearest POI
•Destination street address•Destination previous destination
•Destination Intersection•Destination POI
•Destination POI Category•Destination
•Help
Navigation route preferences
120
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

911 ASSIST™ PRIVACY NOTICE: Once 911 Assist™ is enabled
(set to ON) by you, 911 Assist™ may, through any paired and
connected cell phone, disclose to emergency services that the
vehicle has been in a crash involving the deployment of an airbag
or, in certain vehicles, the activation of the fuel pump shut-off.
Certain versions or updates to 911 Assist™ may also be capable
of electronically or verbally disclosing to 911 operators the
vehicle location, and/or other details about the vehicle or crash to
assist 911 operators to provide the most appropriate emergency
services. If you do not want to disclose this information, do not
enable (set to ON) the feature.
Note:If 911 Assist™ is enabled/disabled by any user, the current setting
will apply for all paired phones. If the 911 Assist™ setting is disabled
(set to OFF), a voice message and/or display item will inform the vehicle
occupants when a previously paired phone connects to SYNCat vehicle
start up.
In the event of a crash involving the deployment of an airbag or the
activation of the fuel pump shut-off, SYNCis designed to assist
occupants in attempting to contact emergency services by dialing 911
through the occupant’s paired and connectedBluetoothenabled cellular
phone. In the event that a connected cellular phone is damaged or loses
connection to SYNC, SYNCwill search for and connect to any
available, previously paired cell phone and attempt to place the call to
911. Before initiating the call, SYNC provides a short window of time
(approximately 10 seconds) that allows the driver or passenger to decide
whether to cancel the call by pressing and holding
on the steering
wheel controls. Before initiating the 911 call for the occupants, SYNC
will say the following or a similar message:
“SYNCwill attempt to call 911. If you wish to cancel the call, press and
hold the phone button.”
If the call is not cancelled and a successful call is made, a pre-recorded
message will be played for the 911 operator and then the occupant(s) in
the vehicle will be able to communicate with the 911 operator.
Note:Failure to cancel the call by pressing
will result in SYNC
dialing 911.
Note:When you are connected to the 911 operator, be prepared to
provide your name, phone number and location immediately, because not
all 911 systems are capable of receiving this information electronically.
SYNCphone features (if equipped)
143SeeEnd User License Agreementat the end of this book
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

In the event of a crash involving the deployment of an airbag or the
activation of the fuel pump shut-off, SYNCis designed to assist
occupants in attempting to contact emergency services by dialing 911
through the occupant’s paired and connectedBluetoothenabled cellular
phone. In the event that a connected cellular phone is damaged or loses
connection to SYNC, SYNCwill search for and connect to any
available, previously paired cell phone and attempt to place the call to
911. Before initiating the call, SYNC provides a short window of time
(approximately 10 seconds) that allows the driver or passenger to decide
whether to cancel the call by pressing and holding
on the steering
wheel controls. Before initiating the 911 call for the occupants, SYNC
will say the following or a similar message:
“SYNCwill attempt to call 911. If you wish to cancel the call, press and
hold the phone button.”
If the call is not cancelled and a successful call is made, a pre-recorded
message will be played for the 911 operator and then the occupant(s) in
the vehicle will be able to communicate with the 911 operator.
Note:Failure to cancel the call by pressing
will result in SYNC
dialing 911.
Note:When you are connected to the 911 operator, be prepared to
provide your name, phone number and location immediately, because not
all 911 systems are capable of receiving this information electronically.
The following steps are required for the 911 Assist™ feature to perform
properly:
•SYNCis on and functioning properly at the time of the incident and
throughout feature activation and use.
•SYNC911 Assist™ feature is set to ON prior to the incident.
•ABluetoothenabled and compatible cellular phone is paired and
connected to SYNC.
•A connectedBluetoothenabled cellular phone that has the ability to
make and maintain an outgoing call at the time of the incident.
•A connectedBluetoothenabled cellular phone that has adequate
network coverage, battery power and signal strength.
•The vehicle is located in the U.S. or Canada or in a territory in which
911 is the emergency number.
SYNCphone features (if equipped)
161SeeEnd User License Agreementat the end of this book
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)
