If your vehicle sustains damage to the rear bumper/fascia, leaving
it misaligned or bent, the sensing zone may be altered causing
inaccurate measurement of obstacles or false alarms.

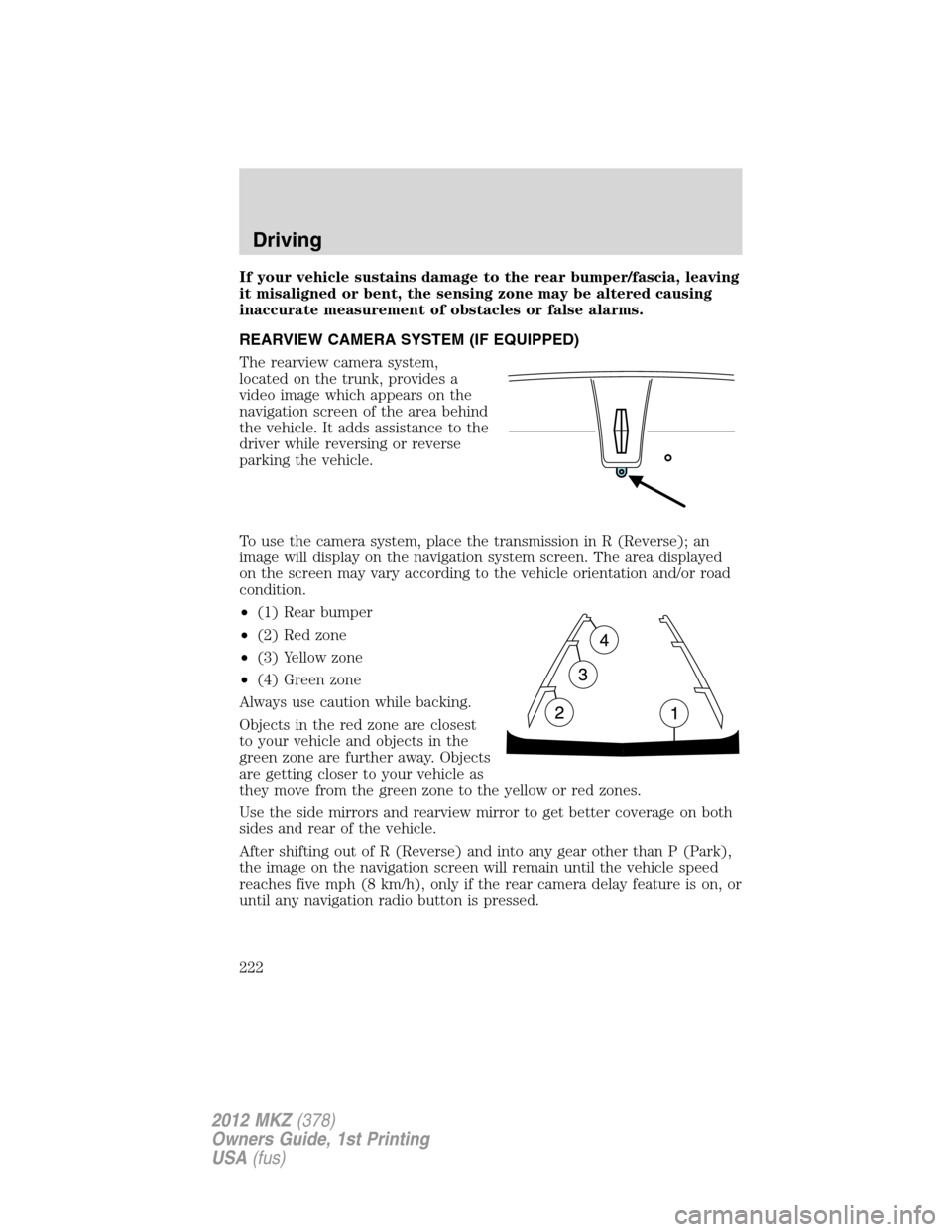

REARVIEW CAMERA SYSTEM (IF EQUIPPED)
The rearview camera system,
located on the trunk, provides a
video image which appears on the
navigation screen of the area behind
the vehicle. It adds assistance to the
driver while reversing or reverse
parking the vehicle.
To use the camera system, place the transmission in R (Reverse); an
image will display on the navigation system screen. The area displayed
on the screen may vary according to the vehicle orientation and/or road
condition.
•(1) Rear bumper
•(2) Red zone
•(3) Yellow zone
•(4) Green zone
Always use caution while backing.
Objects in the red zone are closest
to your vehicle and objects in the
green zone are further away. Objects
are getting closer to your vehicle as
they move from the green zone to the yellow or red zones.
Use the side mirrors and rearview mirror to get better coverage on both
sides and rear of the vehicle.
After shifting out of R (Reverse) and into any gear other than P (Park),
the image on the navigation screen will remain until the vehicle speed
reaches five mph (8 km/h), only if the rear camera delay feature is on, or
until any navigation radio button is pressed.
Driving
222
2012 MKZ(378)
Owners Guide, 1st Printing
USA(fus)

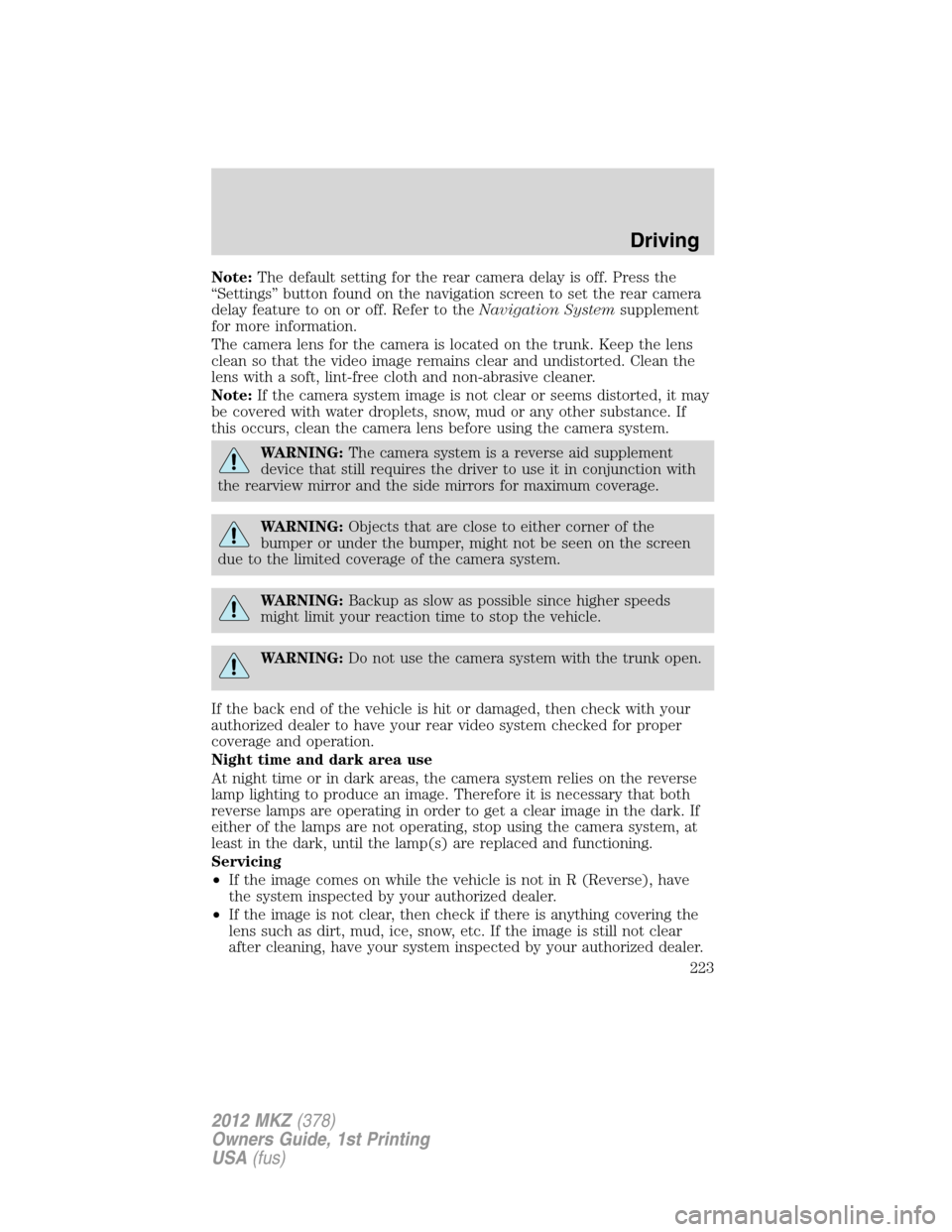

Note:The default setting for the rear camera delay is off. Press the
“Settings” button found on the navigation screen to set the rear camera
delay feature to on or off. Refer to theNavigation Systemsupplement
for more information.
The camera lens for the camera is located on the trunk. Keep the lens
clean so that the video image remains clear and undistorted. Clean the
lens with a soft, lint-free cloth and non-abrasive cleaner.
Note:If the camera system image is not clear or seems distorted, it may
be covered with water droplets, snow, mud or any other substance. If
this occurs, clean the camera lens before using the camera system.
WARNING:The camera system is a reverse aid supplement
device that still requires the driver to use it in conjunction with
the rearview mirror and the side mirrors for maximum coverage.
WARNING:Objects that are close to either corner of the
bumper or under the bumper, might not be seen on the screen
due to the limited coverage of the camera system.
WARNING:Backup as slow as possible since higher speeds
might limit your reaction time to stop the vehicle.
WARNING:Do not use the camera system with the trunk open.
If the back end of the vehicle is hit or damaged, then check with your
authorized dealer to have your rear video system checked for proper
coverage and operation.
Night time and dark area use
At night time or in dark areas, the camera system relies on the reverse
lamp lighting to produce an image. Therefore it is necessary that both
reverse lamps are operating in order to get a clear image in the dark. If
either of the lamps are not operating, stop using the camera system, at
least in the dark, until the lamp(s) are replaced and functioning.
Servicing
•If the image comes on while the vehicle is not in R (Reverse), have
the system inspected by your authorized dealer.
•If the image is not clear, then check if there is anything covering the
lens such as dirt, mud, ice, snow, etc. If the image is still not clear
after cleaning, have your system inspected by your authorized dealer.
Driving
223
2012 MKZ(378)
Owners Guide, 1st Printing
USA(fus)

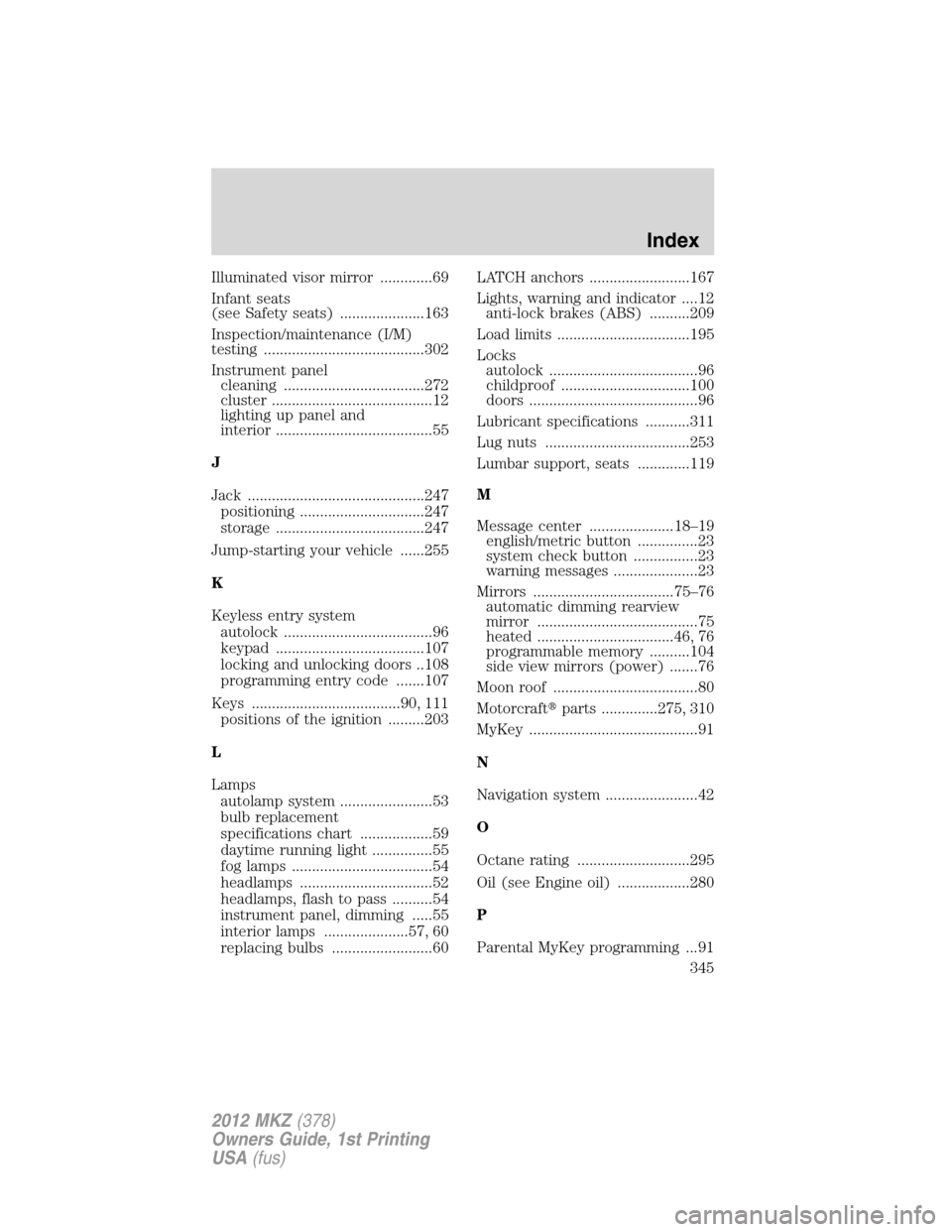

Illuminated visor mirror .............69
Infant seats
(see Safety seats) .....................163
Inspection/maintenance (I/M)
testing ........................................302
Instrument panel
cleaning ...................................272
cluster ........................................12
lighting up panel and
interior .......................................55
J
Jack ............................................247
positioning ...............................247
storage .....................................247
Jump-starting your vehicle ......255
K
Keyless entry system
autolock .....................................96
keypad .....................................107
locking and unlocking doors ..108
programming entry code .......107
Keys .....................................90, 111
positions of the ignition .........203
L
Lamps
autolamp system .......................53
bulb replacement
specifications chart ..................59
daytime running light ...............55
fog lamps ...................................54
headlamps .................................52
headlamps, flash to pass ..........54
instrument panel, dimming .....55
interior lamps .....................57, 60
replacing bulbs .........................60LATCH anchors .........................167
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........209
Load limits .................................195
Locks
autolock .....................................96
childproof ................................100
doors ..........................................96
Lubricant specifications ...........311
Lug nuts ....................................253
Lumbar support, seats .............119
M
Message center .....................18–19
english/metric button ...............23
system check button ................23
warning messages .....................23
Mirrors ...................................75–76
automatic dimming rearview
mirror ........................................75
heated ..................................46, 76
programmable memory ..........104
side view mirrors (power) .......76
Moon roof ....................................80
Motorcraftparts ..............275, 310
MyKey ..........................................91
N
Navigation system .......................42
O
Octane rating ............................295
Oil (see Engine oil) ..................280
P
Parental MyKey programming ...91
Index
345
2012 MKZ(378)
Owners Guide, 1st Printing
USA(fus)
