Page 2 of 347
Locks and Security 90
Keys 90
Locks 96
Anti-theft system 109
Seating and Safety Restraints 115
Seating 115
Personal Safety System™ 128
Safety belt system 132
Airbags 142
Child restraints 158
Tires, Wheels and Loading 176
Tire information 176
Tire inflation 178
Tire Pressure Monitoring System (TPMS) 191
Vehicle loading 195
Trailer towing 201
Recreational towing 201
Driving 203
Starting 203
Brakes 208
AdvanceTrac210
Transmission operation 217
Reverse sensing system 220
Rear-view camera system 222
Roadside Emergencies 238
Getting roadside assistance 238
Hazard flasher switch 239
Fuel pump shut-off switch 240
Fuses and relays 240
Changing tires 247
Wheel lug nut torque 253
Jump starting 255
Wrecker towing 258
Table of Contents
2
2012 MKZ(378)
Owners Guide, 1st Printing
USA(fus)

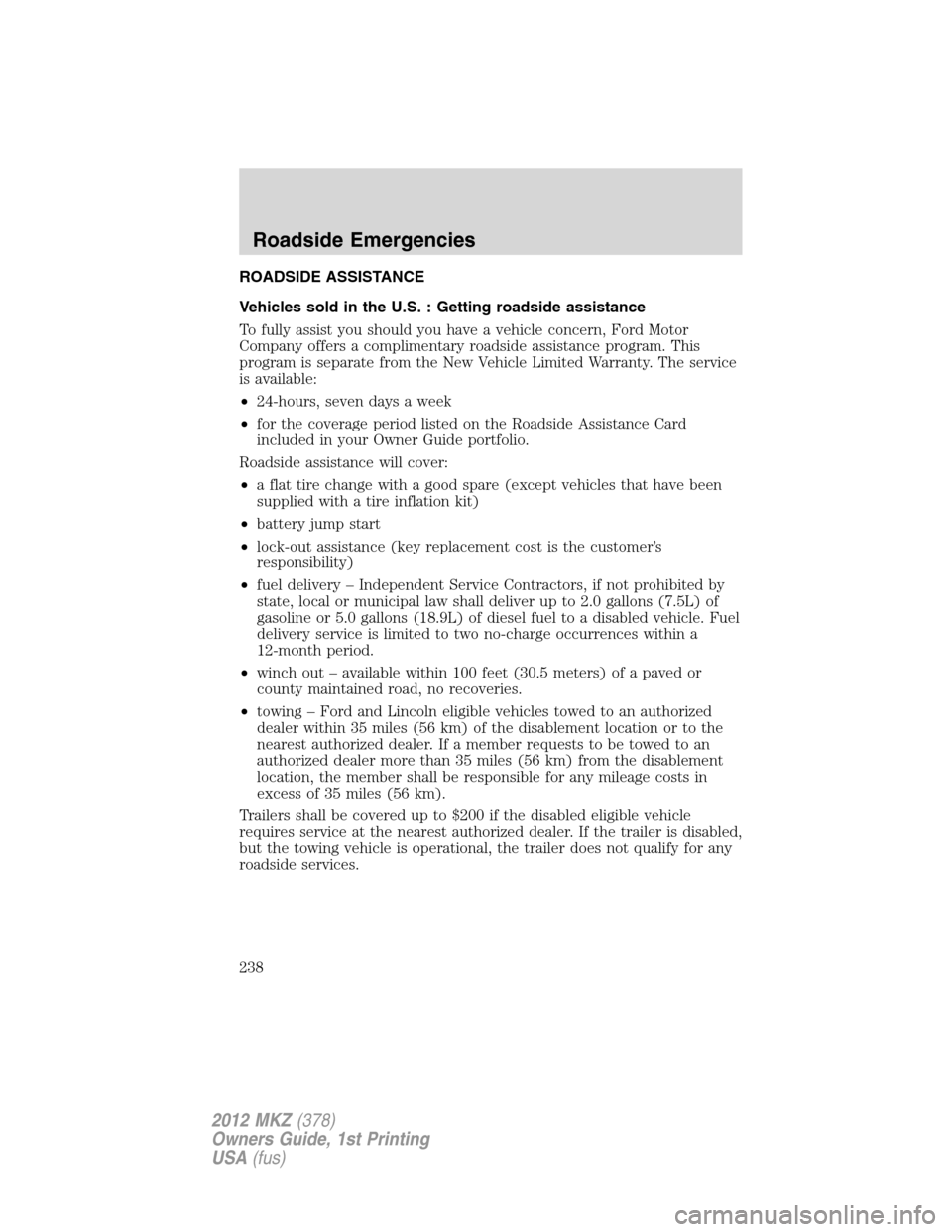

Page 238 of 347
ROADSIDE ASSISTANCE
Vehicles sold in the U.S. : Getting roadside assistance
To fully assist you should you have a vehicle concern, Ford Motor
Company offers a complimentary roadside assistance program. This
program is separate from the New Vehicle Limited Warranty. The service
is available:
•24-hours, seven days a week
•for the coverage period listed on the Roadside Assistance Card
included in your Owner Guide portfolio.
Roadside assistance will cover:
•a flat tire change with a good spare (except vehicles that have been
supplied with a tire inflation kit)
•battery jump start
•lock-out assistance (key replacement cost is the customer’s
responsibility)
•fuel delivery – Independent Service Contractors, if not prohibited by
state, local or municipal law shall deliver up to 2.0 gallons (7.5L) of
gasoline or 5.0 gallons (18.9L) of diesel fuel to a disabled vehicle. Fuel
delivery service is limited to two no-charge occurrences within a
12-month period.
•winch out – available within 100 feet (30.5 meters) of a paved or
county maintained road, no recoveries.
•towing – Ford and Lincoln eligible vehicles towed to an authorized
dealer within 35 miles (56 km) of the disablement location or to the
nearest authorized dealer. If a member requests to be towed to an
authorized dealer more than 35 miles (56 km) from the disablement
location, the member shall be responsible for any mileage costs in
excess of 35 miles (56 km).
Trailers shall be covered up to $200 if the disabled eligible vehicle
requires service at the nearest authorized dealer. If the trailer is disabled,
but the towing vehicle is operational, the trailer does not qualify for any
roadside services.
Roadside Emergencies
238
2012 MKZ(378)
Owners Guide, 1st Printing
USA(fus)
Page 255 of 347
JUMP STARTING
WARNING:The gases around the battery can explode if
exposed to flames, sparks, or lit cigarettes. An explosion could
result in injury or vehicle damage.
WARNING:Batteries contain sulfuric acid which can burn skin,
eyes and clothing, if contacted.
Do not attempt to push-start your automatic transmission
vehicle. Automatic transmissions do not have push-start
capability. Attempting to push-start a vehicle with an automatic
transmission may cause transmission damage.
Preparing your vehicle
When the battery is disconnected or a new battery is installed, the
automatic transmission must relearn its shift strategy. As a result, the
transmission may have firm and/or soft shifts. This operation is
considered normal and will not affect function or durability of the
transmission. Over time, the adaptive learning process will fully update
transmission operation.
1.Use only a 12–volt supply to start your vehicle.
2. Do not disconnect the battery of the disabled vehicle as this could
damage the vehicle’s electrical system.
3. Park the booster vehicle close to the hood of the disabled vehicle
making sure the two vehiclesdo nottouch. Set the parking brake on
both vehicles and stay clear of the engine cooling fan and other moving
parts.
4. Check all battery terminals and remove any excessive corrosion before
you attach the battery cables. Ensure that vent caps are tight and level.
5. Turn the heater fan on in both vehicles to protect from any electrical
surges. Turn all other accessories off.
Roadside Emergencies
255
2012 MKZ(378)
Owners Guide, 1st Printing
USA(fus)

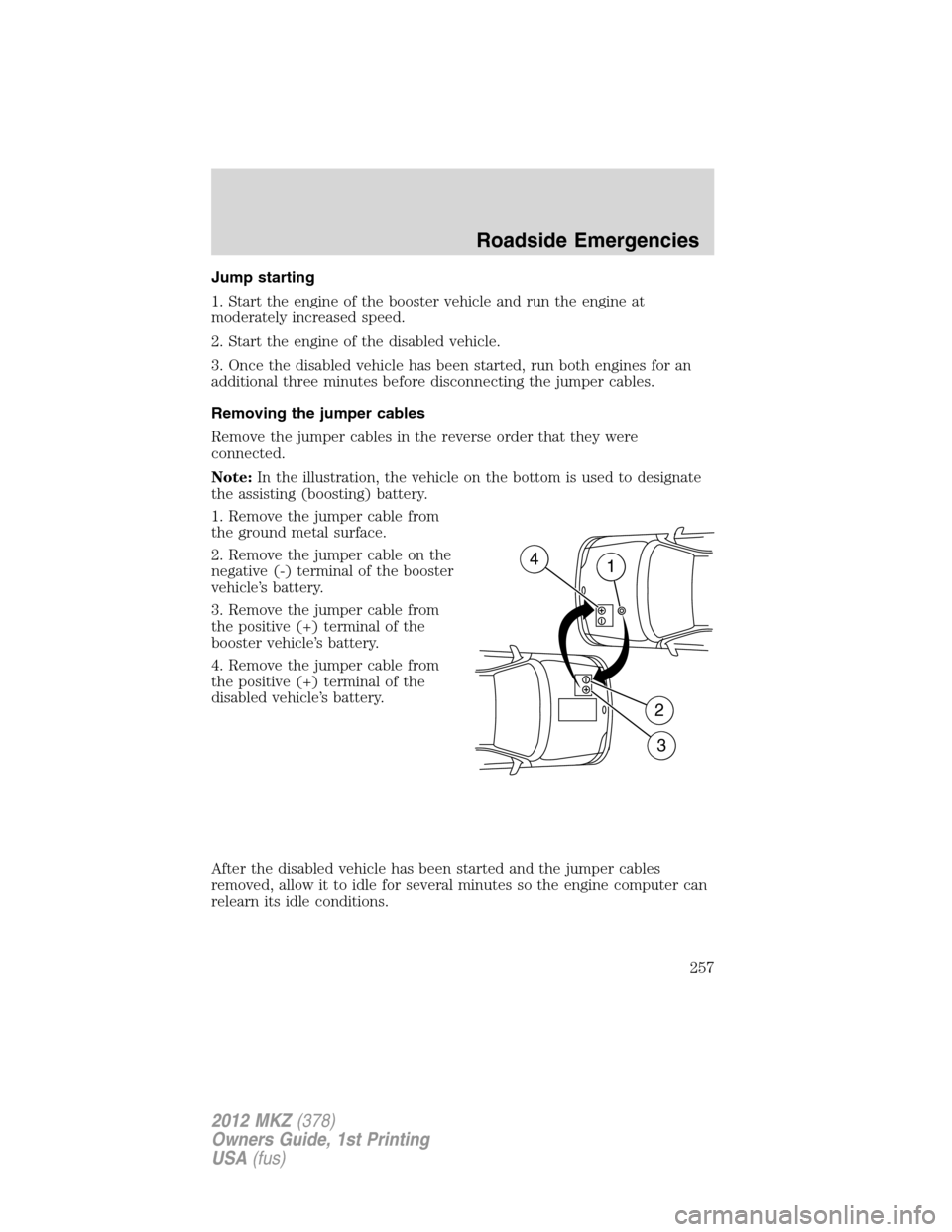

Page 257 of 347
Jump starting
1. Start the engine of the booster vehicle and run the engine at
moderately increased speed.
2. Start the engine of the disabled vehicle.
3. Once the disabled vehicle has been started, run both engines for an
additional three minutes before disconnecting the jumper cables.
Removing the jumper cables
Remove the jumper cables in the reverse order that they were
connected.
Note:In the illustration, the vehicle on the bottom is used to designate
the assisting (boosting) battery.
1. Remove the jumper cable from
the ground metal surface.
2. Remove the jumper cable on the
negative (-) terminal of the booster
vehicle’s battery.
3. Remove the jumper cable from
the positive (+) terminal of the
booster vehicle’s battery.
4. Remove the jumper cable from
the positive (+) terminal of the
disabled vehicle’s battery.
After the disabled vehicle has been started and the jumper cables
removed, allow it to idle for several minutes so the engine computer can
relearn its idle conditions.
+–
+–
DA
B
C
4D1
2
3
Roadside Emergencies
257
2012 MKZ(378)
Owners Guide, 1st Printing
USA(fus)

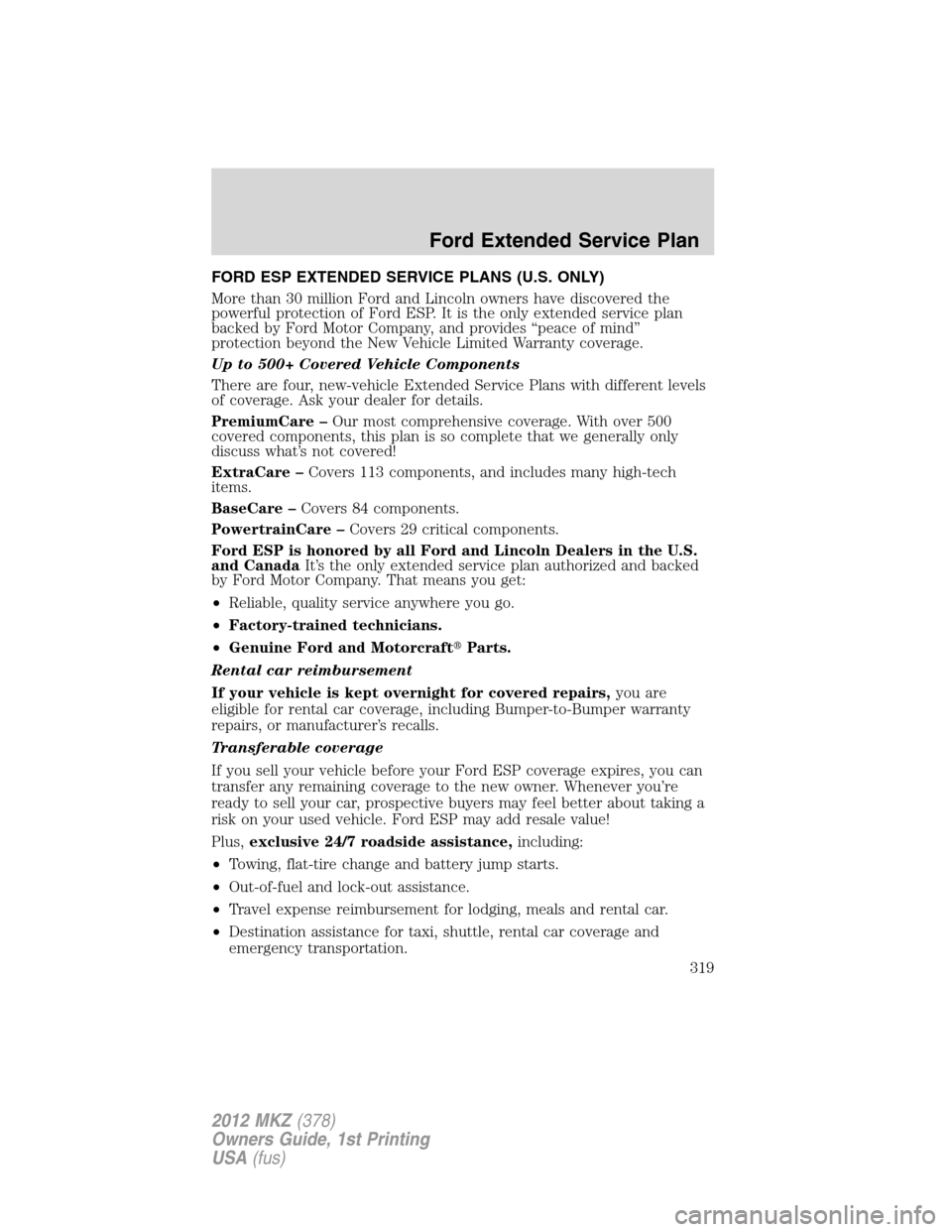

Page 319 of 347
FORD ESP EXTENDED SERVICE PLANS (U.S. ONLY)
More than 30 million Ford and Lincoln owners have discovered the
powerful protection of Ford ESP. It is the only extended service plan
backed by Ford Motor Company, and provides “peace of mind”
protection beyond the New Vehicle Limited Warranty coverage.
Up to 500+ Covered Vehicle Components
There are four, new-vehicle Extended Service Plans with different levels
of coverage. Ask your dealer for details.
PremiumCare –Our most comprehensive coverage. With over 500
covered components, this plan is so complete that we generally only
discuss what’s not covered!
ExtraCare –Covers 113 components, and includes many high-tech
items.
BaseCare –Covers 84 components.
PowertrainCare –Covers 29 critical components.
Ford ESP is honored by all Ford and Lincoln Dealers in the U.S.
and CanadaIt’s the only extended service plan authorized and backed
by Ford Motor Company. That means you get:
•Reliable, quality service anywhere you go.
•Factory-trained technicians.
•Genuine Ford and MotorcraftParts.
Rental car reimbursement
If your vehicle is kept overnight for covered repairs,you are
eligible for rental car coverage, including Bumper-to-Bumper warranty
repairs, or manufacturer’s recalls.
Transferable coverage
If you sell your vehicle before your Ford ESP coverage expires, you can
transfer any remaining coverage to the new owner. Whenever you’re
ready to sell your car, prospective buyers may feel better about taking a
risk on your used vehicle. Ford ESP may add resale value!
Plus,exclusive 24/7 roadside assistance,including:
•Towing, flat-tire change and battery jump starts.
•Out-of-fuel and lock-out assistance.
•Travel expense reimbursement for lodging, meals and rental car.
•Destination assistance for taxi, shuttle, rental car coverage and
emergency transportation.
Ford Extended Service Plan
319
2012 MKZ(378)
Owners Guide, 1st Printing
USA(fus)
Page 343 of 347
Child safety seats ......................163
attaching with tether straps ..169
in front seat ............................164
in rear seat ..............................164
LATCH .....................................167
recommendations ...................160
Child safety seats - booster
seats ...........................................172
Cleaning your vehicle
engine compartment ..............270
instrument panel ....................272
interior .....................................273
plastic parts ............................271
washing ....................................269
waxing .....................................270
wheels ......................................270
wiper blades ............................272
Climate control (see Air
conditioning or Heating) ......43, 46
Clock ............................................28
Clock adjust
AM/FM .......................................28
AM/FM/CD/MP3 ........................28
Clutch
recommended shift speeds ....220
Compass, electronic ....................70
calibration .................................71
set zone adjustment .................70
Console
overhead ....................................69
Controls
power seat ...............................117
steering column ........................79
Coolant
checking and adding ..............285
refill capacities ................288, 311
specifications ..........................311
Cross Traffic Alert ....................225Cruise control
(see Speed control) ....................77
Cupholder(s) .............................128
Customer Assistance ................238
Ford Extended Service
Plan ..................................319, 322
Getting assistance outside
the U.S. and Canada ..............265
Getting roadside assistance ...238
Getting the service you
need .........................................260
Ordering additional owner’s
literature .................................267
Utilizing the
Mediation/Arbitration
Program ...................................265
D
Daytime running lamps
(see Lamps) ................................55
Defrost
rear window and rearview
mirrors .......................................46
windshield .................................46
Dipstick
automatic transmission
fluid ..........................................304
engine oil .................................280
Driving under special
conditions ..................220, 232, 235
sand .........................................233
snow and ice ...........................235
through water .................234, 237
E
Electronic message center .........18
Emergencies, roadside
jump-starting ..........................255
Index
343
2012 MKZ(378)
Owners Guide, 1st Printing
USA(fus)
Page 345 of 347
Illuminated visor mirror .............69
Infant seats
(see Safety seats) .....................163
Inspection/maintenance (I/M)
testing ........................................302
Instrument panel
cleaning ...................................272
cluster ........................................12
lighting up panel and
interior .......................................55
J
Jack ............................................247
positioning ...............................247
storage .....................................247
Jump-starting your vehicle ......255
K
Keyless entry system
autolock .....................................96
keypad .....................................107
locking and unlocking doors ..108
programming entry code .......107
Keys .....................................90, 111
positions of the ignition .........203
L
Lamps
autolamp system .......................53
bulb replacement
specifications chart ..................59
daytime running light ...............55
fog lamps ...................................54
headlamps .................................52
headlamps, flash to pass ..........54
instrument panel, dimming .....55
interior lamps .....................57, 60
replacing bulbs .........................60LATCH anchors .........................167
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........209
Load limits .................................195
Locks
autolock .....................................96
childproof ................................100
doors ..........................................96
Lubricant specifications ...........311
Lug nuts ....................................253
Lumbar support, seats .............119
M
Message center .....................18–19
english/metric button ...............23
system check button ................23
warning messages .....................23
Mirrors ...................................75–76
automatic dimming rearview
mirror ........................................75
heated ..................................46, 76
programmable memory ..........104
side view mirrors (power) .......76
Moon roof ....................................80
Motorcraftparts ..............275, 310
MyKey ..........................................91
N
Navigation system .......................42
O
Octane rating ............................295
Oil (see Engine oil) ..................280
P
Parental MyKey programming ...91
Index
345
2012 MKZ(378)
Owners Guide, 1st Printing
USA(fus)
Page 347 of 347

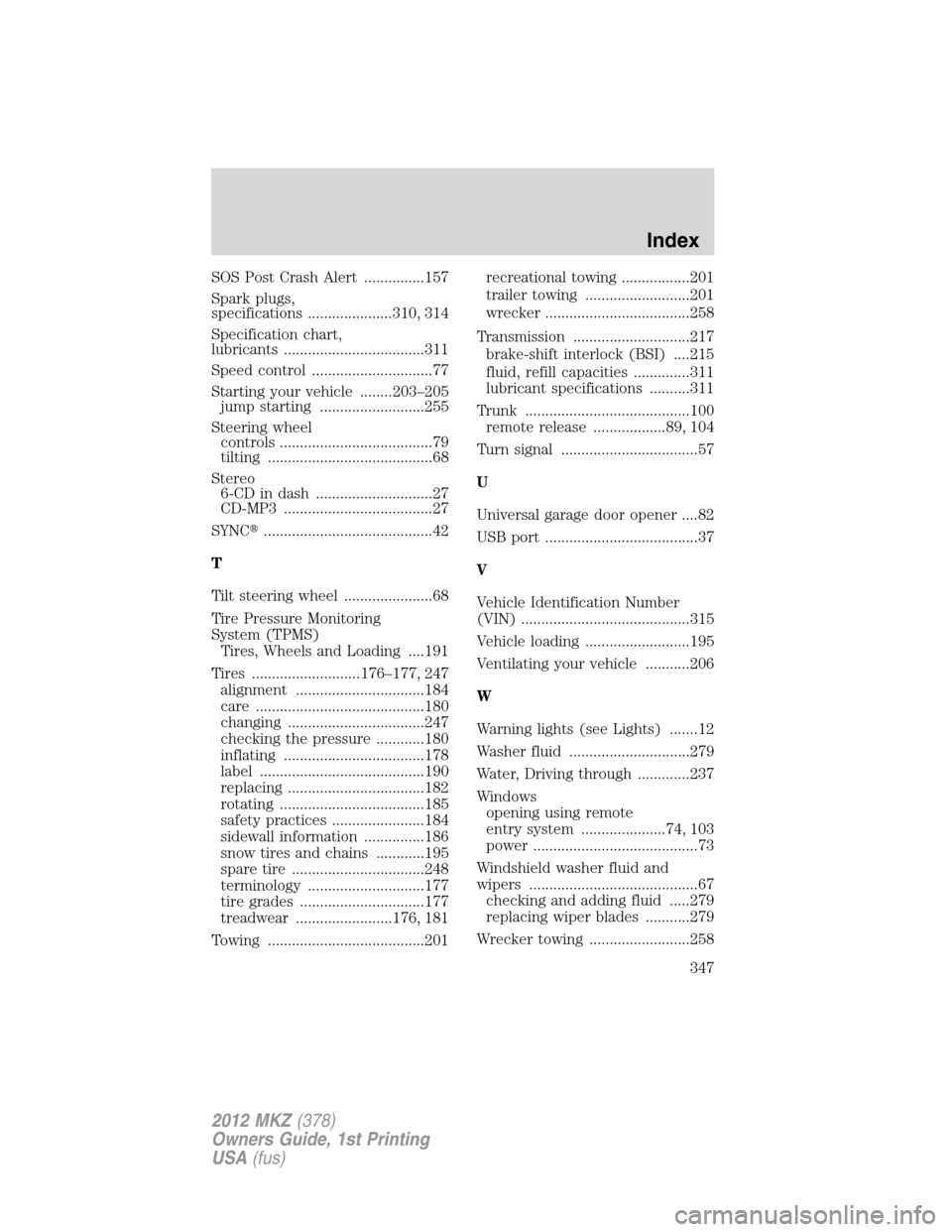

SOS Post Crash Alert ...............157
Spark plugs,
specifications .....................310, 314
Specification chart,
lubricants ...................................311
Speed control ..............................77
Starting your vehicle ........203–205
jump starting ..........................255
Steering wheel
controls ......................................79
tilting .........................................68
Stereo
6-CD in dash .............................27
CD-MP3 .....................................27
SYNC..........................................42
T
Tilt steering wheel ......................68
Tire Pressure Monitoring
System (TPMS)
Tires, Wheels and Loading ....191
Tires ...........................176–177, 247
alignment ................................184
care ..........................................180
changing ..................................247
checking the pressure ............180
inflating ...................................178
label .........................................190
replacing ..................................182
rotating ....................................185
safety practices .......................184
sidewall information ...............186
snow tires and chains ............195
spare tire .................................248
terminology .............................177
tire grades ...............................177
treadwear ........................176, 181
Towing .......................................201recreational towing .................201
trailer towing ..........................201
wrecker ....................................258
Transmission .............................217
brake-shift interlock (BSI) ....215
fluid, refill capacities ..............311
lubricant specifications ..........311
Trunk .........................................100
remote release ..................89, 104
Turn signal ..................................57
U
Universal garage door opener ....82
USB port ......................................37
V
Vehicle Identification Number
(VIN) ..........................................315
Vehicle loading ..........................195
Ventilating your vehicle ...........206
W
Warning lights (see Lights) .......12
Washer fluid ..............................279
Water, Driving through .............237
Windows
opening using remote
entry system .....................74, 103
power .........................................73
Windshield washer fluid and
wipers ..........................................67
checking and adding fluid .....279
replacing wiper blades ...........279
Wrecker towing .........................258
Index
347
2012 MKZ(378)
Owners Guide, 1st Printing
USA(fus)
