THX:Your vehicle may be equipped
with the THXII certified premium
audio system. This system creates
optimal acoustic quality for all
seating positions and road
conditions. The system offers an
advanced speaker system,
amplifiers, subwoofer and
equalization.
Setting the clock
CLOCK:Press to set the clock. The display will read SET TIME. Use the
memory preset numbers (0–9) to enter in the desired time– hours and
minutes and press OK. The clock will then begin from that time.
Note:If your vehicle is equipped with a navigation system, refer to
Setting the clockin yourNavigation supplement.
AM/FM Radio
/ VOL (Power/Volume):Press to turn the radio on/off. Turn the
knob to increase/decrease volume.
If the volume is set above a certain level and the ignition is turned off,
the volume will come back on at a nominal listening level when the
ignition is turned back on.
AM/FM:Press repeatedly to select AM/FM1/FM2 frequency band.
TUNE:Turn the knob to go up/down the frequency band in individual
increments.
DIRECT:Press DIRECT and then select the desired radio frequency
(i.e. 93.9) using the memory preset numbers (0–9).
SEEK:PressSEEKto access the previous/next strong radio station.
SCAN:Press for a brief sampling of all strong radio stations.
MEMORY PRESETS (0–9):When tuned to any station, press and hold a
preset button until sound returns and PRESET # SAVED appears in the
display. You can save up to 30 stations, 10 in AM, 10 in FM1 and FM2.
Saving presets automatically:Autoset allows you to set the strongest
local radio stations without losing your original manually set preset
stations for AM/FM1/FM2.
Entertainment Systems
28
2012 MKZ(378)
Owners Guide, 1st Printing
USA(fus)

EXTERIOR MIRRORS
Power side view mirrors
WARNING:Do not adjust the mirror while the vehicle is in
motion.
To adjust your mirrors:
1. Rotate the control clockwise to
adjust the right mirror and rotate
the control counterclockwise to
adjust the left mirror.
2. Move the control in the direction
you wish to tilt the mirror.
3. Return to the center position to lock mirrors in place.
Memory feature
The power side view mirror positions are saved when doing a memory
set and can be recalled using the memory feature. Refer toFront seats
in theSeating and Safety Restraintschapter.
Automatic dimming feature
The driver’s side view mirror has an auto-dimming function. For more
information, refer toAutomatic dimming interior rear view mirrorin
this chapter.
Heated outside mirrors
Both mirrors are heated automatically to remove ice, mist and fog when
the rear window defrost is activated.
Do not remove ice from the mirrors with a scraper or attempt to
readjust the mirror glass if it is frozen in place. These actions
could cause damage to the glass and mirrors.
Do not clean the housing or glass of any mirror with harsh
abrasives, fuel or other petroleum-based cleaning products.
Blind spot mirrors (if equipped)
Your vehicle may be equipped with blind spot mirrors or a blind spot
information system. Refer toBlind spot mirrorsorBlind spot
information system (BLIS) with cross traffic alert (CTA)in the
Drivingchapter.
Driver Controls
76
2012 MKZ(378)
Owners Guide, 1st Printing
USA(fus)

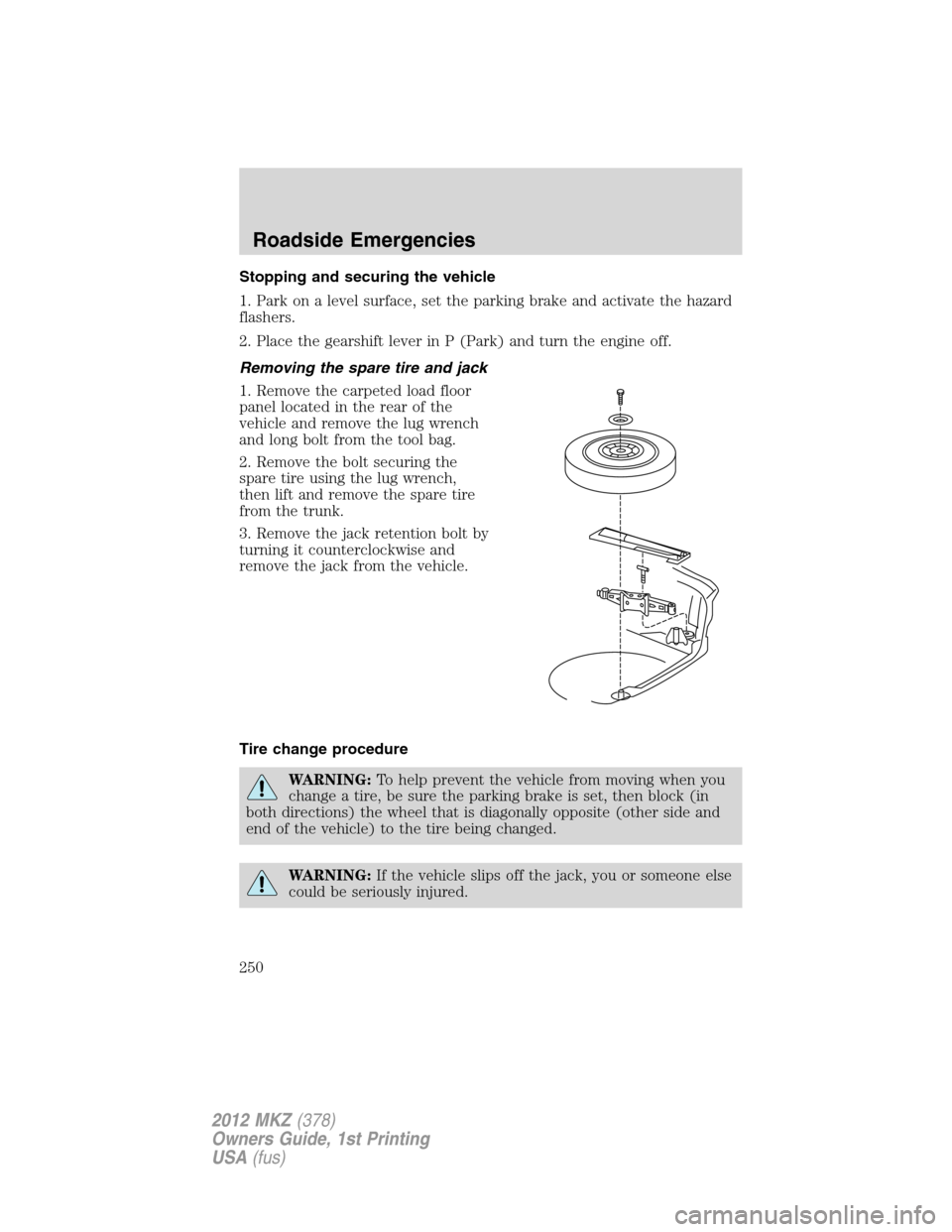

Stopping and securing the vehicle
1. Park on a level surface, set the parking brake and activate the hazard
flashers.
2. Place the gearshift lever in P (Park) and turn the engine off.
Removing the spare tire and jack
1. Remove the carpeted load floor
panel located in the rear of the
vehicle and remove the lug wrench
and long bolt from the tool bag.
2. Remove the bolt securing the
spare tire using the lug wrench,
then lift and remove the spare tire
from the trunk.
3. Remove the jack retention bolt by
turning it counterclockwise and
remove the jack from the vehicle.
Tire change procedure
WARNING:To help prevent the vehicle from moving when you
change a tire, be sure the parking brake is set, then block (in
both directions) the wheel that is diagonally opposite (other side and
end of the vehicle) to the tire being changed.
WARNING:If the vehicle slips off the jack, you or someone else
could be seriously injured.
Roadside Emergencies
250
2012 MKZ(378)
Owners Guide, 1st Printing
USA(fus)

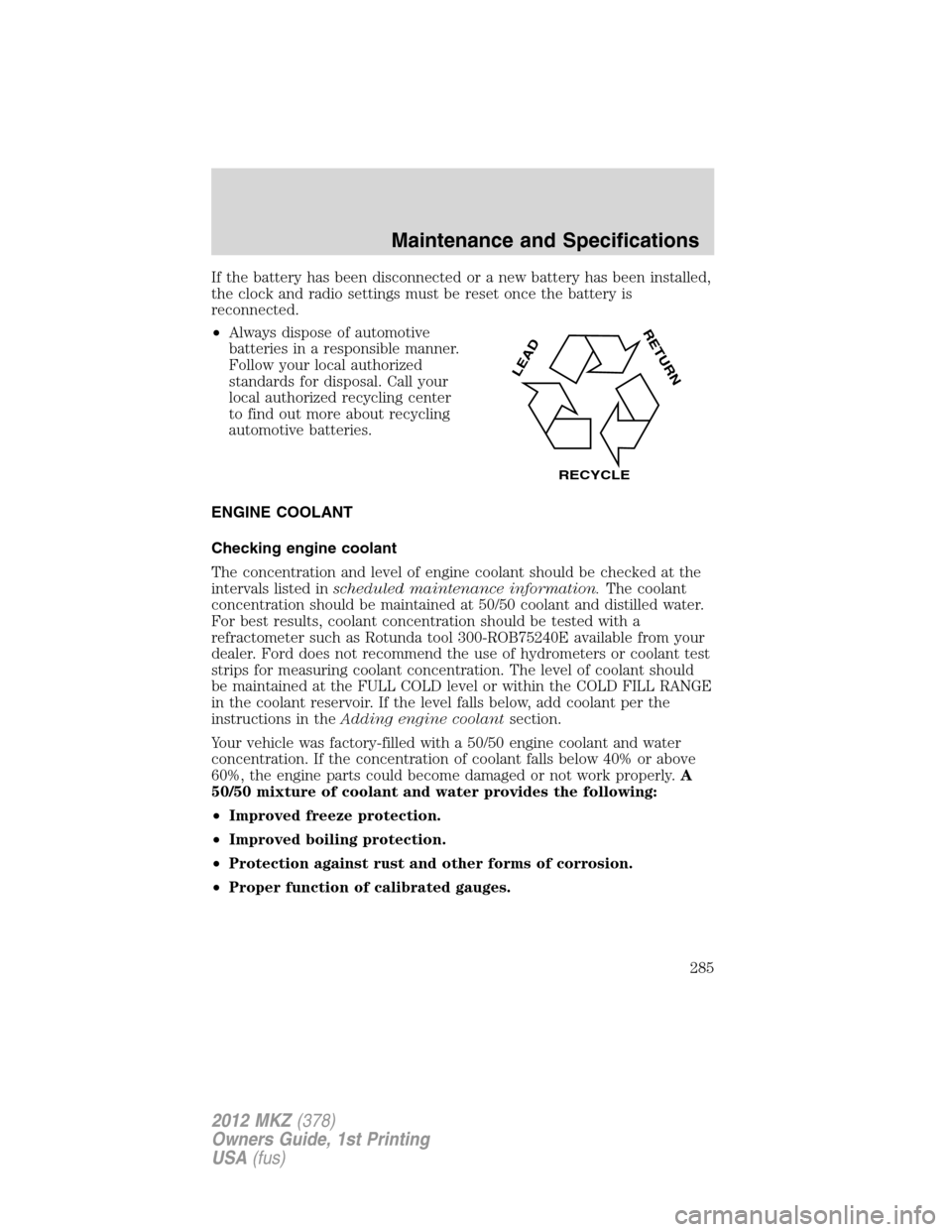

If the battery has been disconnected or a new battery has been installed,
the clock and radio settings must be reset once the battery is
reconnected.
•Always dispose of automotive
batteries in a responsible manner.
Follow your local authorized
standards for disposal. Call your
local authorized recycling center
to find out more about recycling
automotive batteries.
ENGINE COOLANT
Checking engine coolant
The concentration and level of engine coolant should be checked at the
intervals listed inscheduled maintenance information.The coolant
concentration should be maintained at 50/50 coolant and distilled water.
For best results, coolant concentration should be tested with a
refractometer such as Rotunda tool 300-ROB75240E available from your
dealer. Ford does not recommend the use of hydrometers or coolant test
strips for measuring coolant concentration. The level of coolant should
be maintained at the FULL COLD level or within the COLD FILL RANGE
in the coolant reservoir. If the level falls below, add coolant per the
instructions in theAdding engine coolantsection.
Your vehicle was factory-filled with a 50/50 engine coolant and water
concentration. If the concentration of coolant falls below 40% or above
60%, the engine parts could become damaged or not work properly.A
50/50 mixture of coolant and water provides the following:
•Improved freeze protection.
•Improved boiling protection.
•Protection against rust and other forms of corrosion.
•Proper function of calibrated gauges.
L
E
A
D
RETURN
RECYCLE
Maintenance and Specifications
285
2012 MKZ(378)
Owners Guide, 1st Printing
USA(fus)

Child safety seats ......................163
attaching with tether straps ..169
in front seat ............................164
in rear seat ..............................164
LATCH .....................................167
recommendations ...................160
Child safety seats - booster
seats ...........................................172
Cleaning your vehicle
engine compartment ..............270
instrument panel ....................272
interior .....................................273
plastic parts ............................271
washing ....................................269
waxing .....................................270
wheels ......................................270
wiper blades ............................272
Climate control (see Air
conditioning or Heating) ......43, 46
Clock ............................................28
Clock adjust
AM/FM .......................................28
AM/FM/CD/MP3 ........................28
Clutch
recommended shift speeds ....220
Compass, electronic ....................70
calibration .................................71
set zone adjustment .................70
Console
overhead ....................................69
Controls
power seat ...............................117
steering column ........................79
Coolant
checking and adding ..............285
refill capacities ................288, 311
specifications ..........................311
Cross Traffic Alert ....................225Cruise control
(see Speed control) ....................77
Cupholder(s) .............................128
Customer Assistance ................238
Ford Extended Service
Plan ..................................319, 322
Getting assistance outside
the U.S. and Canada ..............265
Getting roadside assistance ...238
Getting the service you
need .........................................260
Ordering additional owner’s
literature .................................267
Utilizing the
Mediation/Arbitration
Program ...................................265
D
Daytime running lamps
(see Lamps) ................................55
Defrost
rear window and rearview
mirrors .......................................46
windshield .................................46
Dipstick
automatic transmission
fluid ..........................................304
engine oil .................................280
Driving under special
conditions ..................220, 232, 235
sand .........................................233
snow and ice ...........................235
through water .................234, 237
E
Electronic message center .........18
Emergencies, roadside
jump-starting ..........................255
Index
343
2012 MKZ(378)
Owners Guide, 1st Printing
USA(fus)

Parking brake ............................210
Parts
(see Motorcraftparts) ...........310
Passenger Occupant
Classification Sensor .................130
Power distribution box
(see Fuses) ...............................244
Power door locks ........................96
Power mirrors .............................76
Power point .................................72
Power steering ..........................215
fluid, checking and adding ....303
fluid, refill capacity ................311
fluid, specifications .................311
Power Windows ...........................73
Power windows
opening using remote entry
system ...............................74, 103
R
Radio ............................................27
6-CD in dash .............................27
Rear-view camera system .........222
Recommendations for
attaching safety restraints for
children ......................................160
Relays ........................................240
Remote entry system .......102–103
illuminated entry ....................106
locking/unlocking doors .........103
opening the trunk ...................104
opening the windows .......74, 103
panic alarm .............................103
replacement/additional
transmitters .............................105
replacing the batteries ...........105
Reverse sensing system ...........220Roadside assistance ..................238
S
Safety belts (see Safety
restraints) ..................132–134, 136
Safety defects, reporting ..........268
Safety restraints ........132–134, 136
Belt-Minder...........................138
extension assembly ................137
for adults .........................133–134
for children .............................158
Occupant Classification
Sensor ......................................130
warning light and chime ........137
Safety restraints - LATCH
anchors ......................................167
Safety seats for children ..........163
Safety Compliance
Certification Label ....................315
Satellite Radio .............................27
Satellite Radio Information ........39
Scheduled Maintenance Guide
Normal Scheduled
Maintenance and Log .............329
Seats ..........................................115
child safety seats ....................163
climate control ..................46, 122
easy access/easyout feature ..123
front seats ...............................120
memory seat ...................104, 119
SecuriCode keyless entry
system ........................................107
SecuriLock passive anti-theft
system ........................................109
Servicing your vehicle ..............276
Setting the clock .........................28
Side air curtain .........................154
Index
346
2012 MKZ(378)
Owners Guide, 1st Printing
USA(fus)
