Page 266 of 544

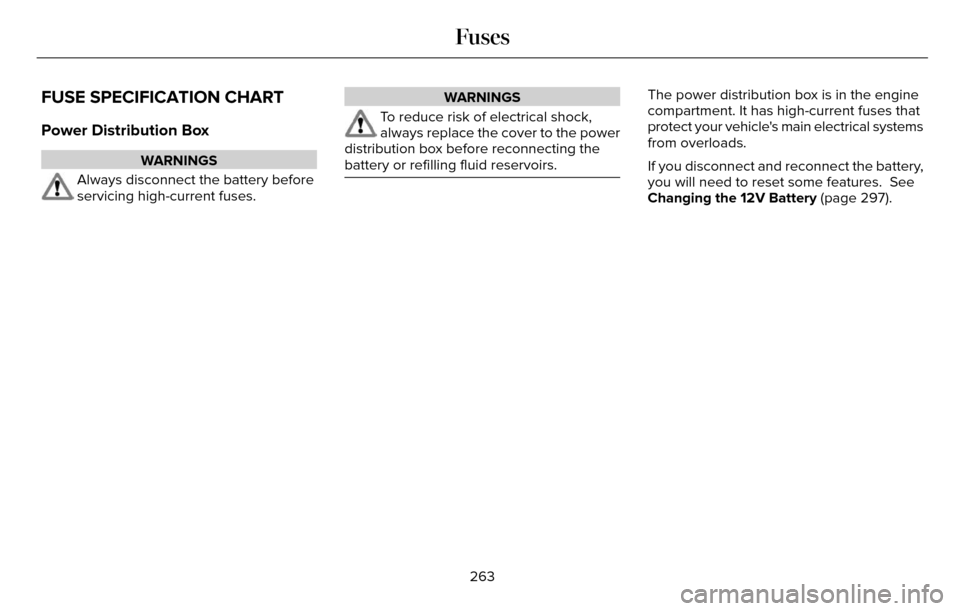

LINCOLN MKZ 2016  Owners Manual FUSE SPECIFICATION CHART
Power Distribution Box
WARNINGS
Always disconnect the battery before
servicing high-current fuses.
WARNINGS
To reduce risk of electrical shock,
always replace the cover to the

Page 272 of 544

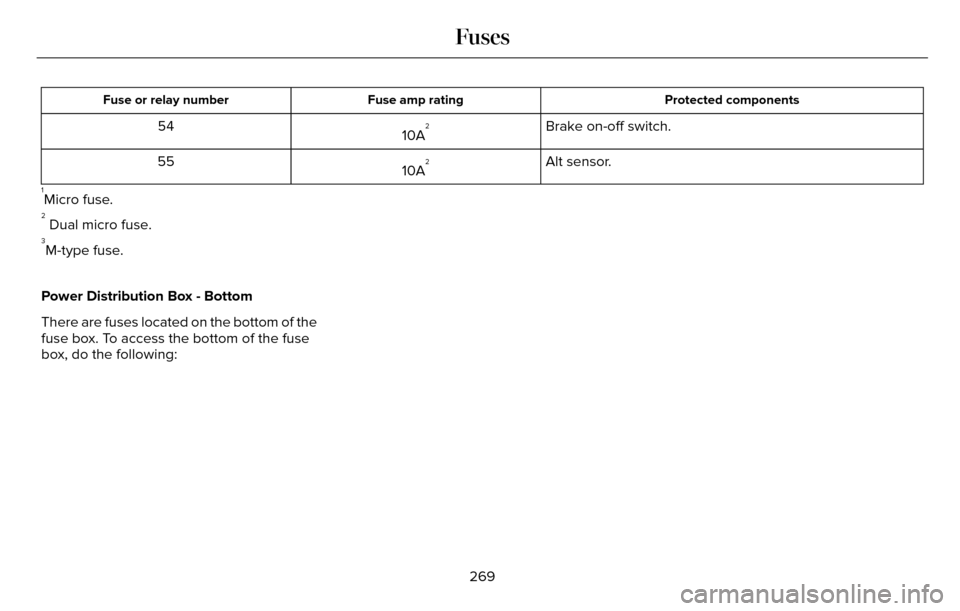

LINCOLN MKZ 2016  Owners Manual Protected components
Fuse amp rating
Fuse or relay number
Brake on-off switch.
10A254
Alt sensor.
10A
255
1Micro fuse.2 Dual micro fuse.3M-type fuse.
Power Distribution Box - Bottom
There are fuses lo

Page 273 of 544

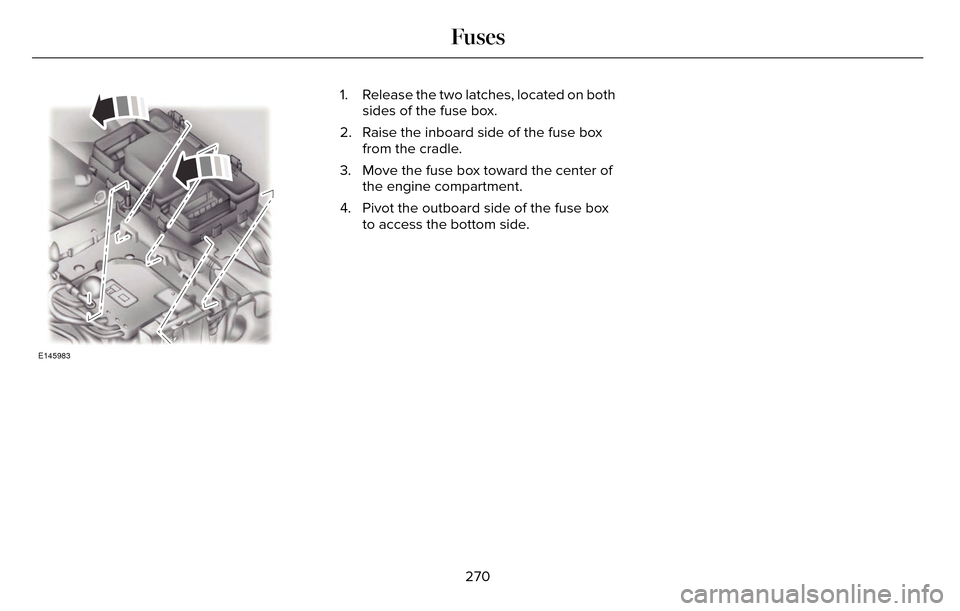

LINCOLN MKZ 2016  Owners Manual E145983
1. Release the two latches, located on bothsides of the fuse box.
2. Raise the inboard side of the fuse box from the cradle.
3. Move the fuse box toward the center of the engine compartment.
4

Page 279 of 544

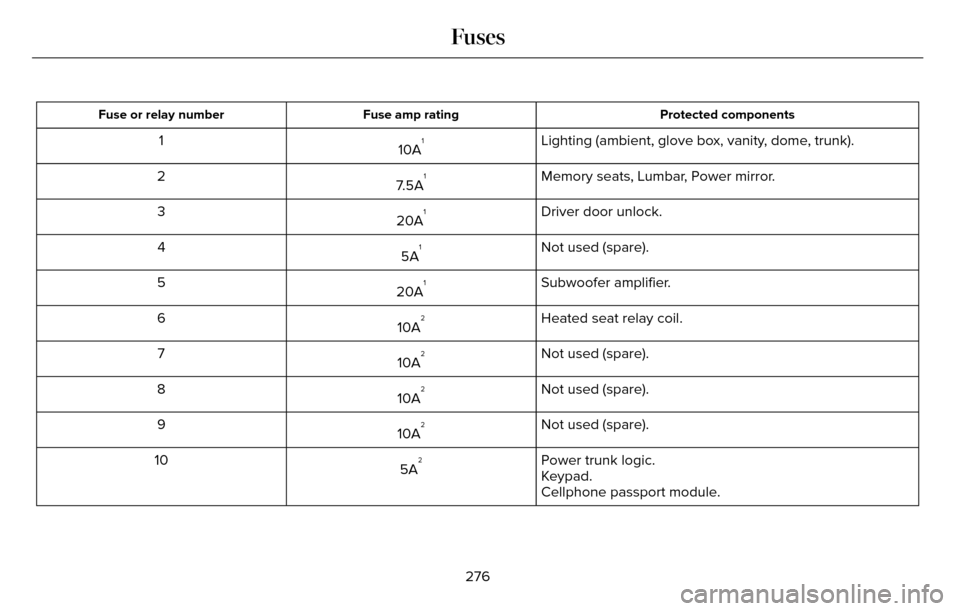

LINCOLN MKZ 2016  Owners Manual Protected components
Fuse amp rating
Fuse or relay number
Lighting (ambient, glove box, vanity, dome, trunk).
10A11
Memory seats, Lumbar, Power mirror.
7.5A
12
Driver door unlock.
20A
13
Not used (spa

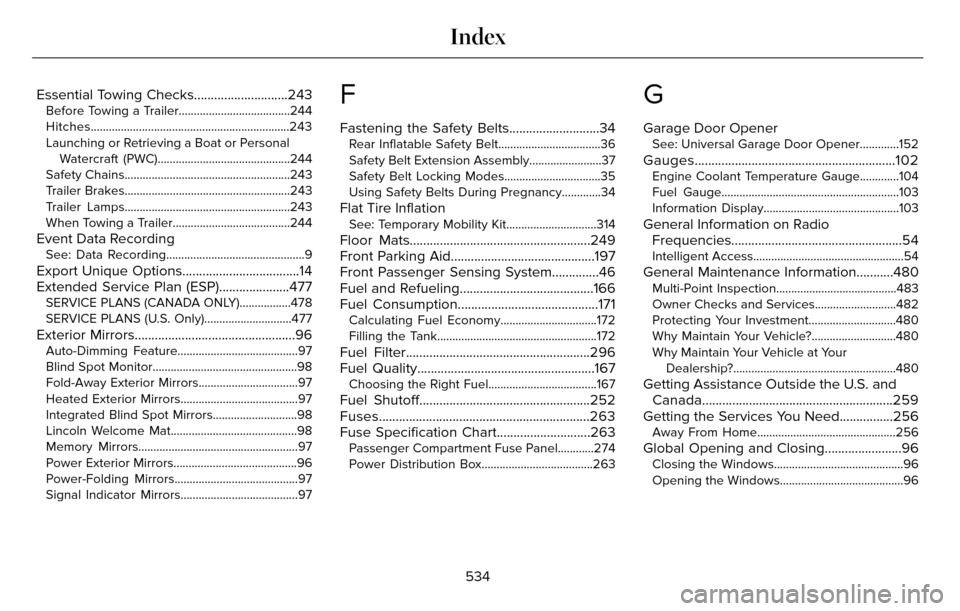

Page 537 of 544

LINCOLN MKZ 2016  Owners Manual Essential Towing Checks............................243Before Towing a Trailer.....................................244
Hitches..................................................................243
Launc
