Introduction
About This Manual............................................7
Symbols Glossary..............................................7
Data Recording..................................................9
California Proposition 65................................11
Perchlorate........................................................12
Lincoln Automotive Financial Services.........................................................12
Replacement Parts Recommendation........12
Special Notices.................................................13
Mobile Communications Equipment...........14
Export Unique Options...................................14
Environment
Protecting the Environment..........................15
Child Safety
General Information........................................16
Installing Child Seats......................................18
Booster Seats...................................................27
Child Seat Positioning...................................29
Child Safety Locks...........................................31
Safety Belts
Principle of Operation....................................33
Fastening the Safety Belts...........................34
Safety Belt Height Adjustment....................38
Safety Belt Warning Lamp and Indicator Chime............................................................38
Safety Belt Minder..........................................39
Child Restraint and Safety Belt Maintenance.................................................41
Personal Safety System™
Personal Safety System™..............................43
Supplementary RestraintsSystem
Principle of Operation....................................44
Driver and Passenger Airbags....................45
Front Passenger Sensing System..............46
Side Airbags.....................................................49
Driver and Passenger Knee Airbags.........50
Side Curtain Airbags......................................50
Crash Sensors and Airbag Indicator..........52
Airbag Disposal...............................................53
Keys and Remote Controls
General Information on RadioFrequencies.................................................54
Remote Control...............................................55
Replacing a Lost Key or Remote Control..........................................................59
MyKey™
Principle of Operation...................................60
Creating a MyKey............................................61
Clearing All MyKeys.......................................62
Checking MyKey System Status.................64
Using MyKey With Remote StartSystems........................................................65
MyKey Troubleshooting................................65
Locks
Locking and Unlocking..................................67
Keyless Entry....................................................72
Interior Luggage Compartment Release..........................................................75
Security
Passive Anti-Theft System............................77
1
Table of Contents

Anti-Theft Alarm..............................................78
Steering Wheel
Adjusting the Steering Wheel.....................80
Audio Control....................................................81
Voice Control...................................................82
Cruise Control.................................................82
Information Display Control.........................82
Heated Steering Wheel.................................83
Wipers and Washers
Windshield Wipers..........................................84
Autowipers.......................................................85
Windshield Washers......................................86
Lighting
Lighting Control...............................................87
Autolamps.........................................................87
Instrument Lighting Dimmer........................88
Headlamp Exit Delay.....................................89
Daytime Running Lamps...............................89
Automatic High Beam Control....................90
Adaptive Headlamps......................................91Direction Indicators........................................92
Welcome Lighting...........................................93
Interior Lamps..................................................93
Ambient Lighting.............................................94
Windows and Mirrors
Power Windows..............................................95
Global Opening and Closing.......................96
Exterior Mirrors................................................96
Interior Mirror...................................................98
Sun Visors.........................................................99
Sun Shades......................................................99
Moonroof.........................................................100
Instrument Cluster
Gauges............................................................102
Warning Lamps and Indicators..................104
Audible Warnings and Indicators..............107
Information Displays
General Information.....................................109
Information Messages..................................115
Climate Control
Automatic Climate Control..........................135
Hints on Controlling the Interior
Climate.........................................................137
Heated Windows and Mirrors....................138
Cabin Air Filter...............................................138
Remote Start...................................................138
Seats
Sitting in the Correct Position....................140
Head Restraints.............................................140
Power Seats....................................................142
Memory Function..........................................145
Rear Seats.......................................................147
Heated Seats..................................................148
Climate Controlled Seats............................149
Rear Seat Armrest.........................................150
Universal Garage Door Opener
Universal Garage Door Opener................152
Auxiliary Power Points
Auxiliary Power Points..................................157
2
Table of Contents

GENERAL INFORMATION ON
RADIO FREQUENCIES
This device complies with Part 15 of the FCC
Rules and with Industry Canada
license-exempt RSS standard(s). Operation
is subject to the following two conditions: (1)
This device may not cause harmful
interference, and (2) This device must accept
any interference received, including
interference that may cause undesired
operation.
Note:Changes or modifications not
expressively approved by the party
responsible for compliance could void the
user's authority to operate the equipment.
The term IC before the radio certification
number only signifies that Industry Canada
technical specifications were met. The typical operating range for your
transmitter is approximately 33 feet (10
meters). Vehicles with the remote start
feature will have a greater range. One of the
following could cause a decrease in
operating range:
• weather conditions
• nearby radio towers
• structures around the vehicle
• other vehicles parked next to your
vehicle
Other short-distance radio transmitters, such
as amateur radios, medical equipment,
wireless headphones, remote controls and
alarm systems may operate on the same
frequency as your remote control. If other
transmitters are operating on those
frequencies, you may not be able to use your
remote control. Using your remote control
near some types of electronic equipment,
such as USB devices, computers or cell
phones can interfere with remote operation.
Operating your remote control near metal or
metallic-finished purses, bags or clothing can
interfere with remote operation. You can lock
and unlock the doors with the key. Note:
Make sure to lock your vehicle before
leaving it unattended.
Note: If you are in range, the remote control
will operate if you press any button
unintentionally.
Intelligent Access
The system uses a radio frequency signal to
communicate with your vehicle and authorize
your vehicle to unlock when one of the
following conditions are met:
• You touch the inside of any exterior door handle within 3 ft (1 m) proximity of an
intelligent access key.
• You press the luggage compartment button.
• You press a button on the transmitter.
If excessive radio frequency interference is
present in the area or if the transmitter
battery is low, you may need to mechanically
unlock your door. You can use the
mechanical key blade in your intelligent
access key to open the driver door in this
situation. See Remote Control (page 55).
54
Keys and Remote Controls

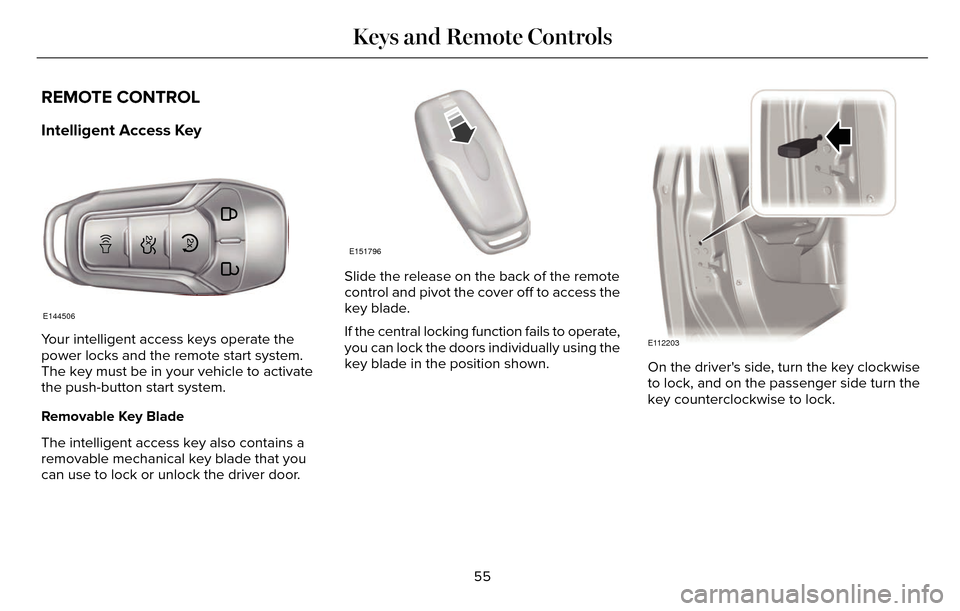

REMOTE CONTROL
Intelligent Access Key
E144506
Your intelligent access keys operate the
power locks and the remote start system.
The key must be in your vehicle to activate
the push-button start system.
Removable Key Blade
The intelligent access key also contains a
removable mechanical key blade that you
can use to lock or unlock the driver door.
E151796
Slide the release on the back of the remote
control and pivot the cover off to access the
key blade.
If the central locking function fails to operate,
you can lock the doors individually using the
key blade in the position shown.
E112203
On the driver's side, turn the key clockwise
to lock, and on the passenger side turn the
key counterclockwise to lock.
55
Keys and Remote Controls

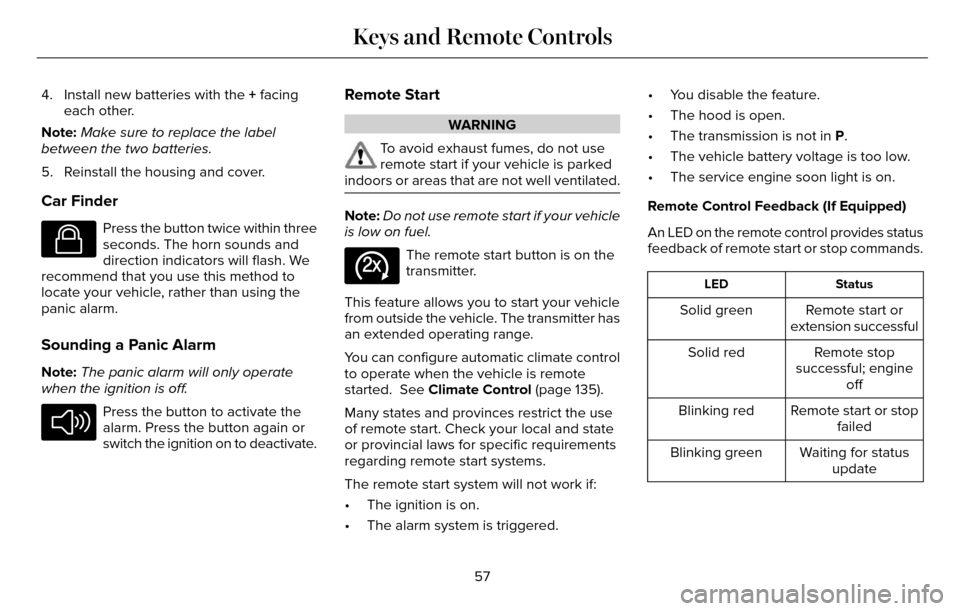

4. Install new batteries with the + facingeach other.
Note: Make sure to replace the label
between the two batteries.
5. Reinstall the housing and cover.
Car Finder
E138623
Press the button twice within three
seconds. The horn sounds and
direction indicators will flash. We
recommend that you use this method to
locate your vehicle, rather than using the
panic alarm.
Sounding a Panic Alarm
Note: The panic alarm will only operate
when the ignition is off.
E138624
Press the button to activate the
alarm. Press the button again or
switch the ignition on to deactivate.
Remote Start
WARNING
To avoid exhaust fumes, do not use
remote start if your vehicle is parked
indoors or areas that are not well ventilated.
Note: Do not use remote start if your vehicle
is low on fuel.
E138625
The remote start button is on the
transmitter.
This feature allows you to start your vehicle
from outside the vehicle. The transmitter has
an extended operating range.
You can configure automatic climate control
to operate when the vehicle is remote
started. See Climate Control (page 135).
Many states and provinces restrict the use
of remote start. Check your local and state
or provincial laws for specific requirements
regarding remote start systems.
The remote start system will not work if:
• The ignition is on.
• The alarm system is triggered. • You disable the feature.
• The hood is open.
• The transmission is not in P.
• The vehicle battery voltage is too low.
• The service engine soon light is on.
Remote Control Feedback (If Equipped)
An LED on the remote control provides status
feedback of remote start or stop commands.
Status
LED
Remote start or
extension successful
Solid green
Remote stop
successful; engine off
Solid red
Remote start or stopfailed
Blinking red
Waiting for statusupdate
Blinking green
57
Keys and Remote Controls

Remote Starting the Vehicle
Note:You must press each button within
three seconds of each other. Your vehicle
will not remote start if you do not follow this
sequence.
E138626
The tag with your transmitter details the
starting procedure.
To remote start your vehicle:
1. Press the lock button to lock all the doors.
2. Press the remote start button twice. The exterior lamps will flash twice. The horn will sound if the system fails to start,
unless quiet start is on. Quiet start will run
the blower fan at a slower speed to reduce
noise. It can be switched on or off in the
information display. See (page 109).
Note:
You must press the START/STOP
button on the instrument panel once while
applying the brake pedal before driving your
vehicle.
The power windows will not work during the
remote start and the radio will not turn on
automatically.
The parking lamps will remain on and the
vehicle will run for 5, 10, or 15 minutes,
depending on the setting. Extending the Vehicle Run Time
Repeat Steps 1 and 2 with the vehicle still
running to extend the run time for another
remote start duration. If you programmed the
duration to last 10 minutes, the second 10
minutes will begin after what is left of the first
activation time. For example, if the vehicle
had been running from the first remote start
for five minutes, the vehicle will continue to
run now for a total of 15 minutes. You can
extend the remote start up to a maximum of
35 minutes.
Wait at least five seconds before remote
starting after a vehicle shutdown.
Turning the Vehicle Off After Remote
Starting
E138625
Press the button once. The parking
lamps will turn off.
You may have to be closer to the
vehicle than when starting due to ground
reflection and the added noise of the running
vehicle.
You can disable or enable the remote start
system through the information display. See
(page 109).
58
Keys and Remote Controls

PRINCIPLE OF OPERATION
MyKey allows you to program keys with
restricted driving modes to promote good
driving habits. All but one of the keys can be
activated with these restricted modes.
Any keys that remain unprogrammed are
referred to as administrator keys or admin
keys. They can be used to:
• Create a MyKey.
• Program configurable MyKey settings.
• Clear all MyKey features.
When you have created a MyKey, you can
access the following information by using
the information display to determine:
• How many admin keys and MyKeys areprogrammed to your vehicle.
• The total distance your vehicle traveled with a MyKey.
Note: Switch the vehicle on to use the
system.
Note: All MyKeys are programmed to the
same settings. You cannot program them
individually. Note:
For vehicles equipped with
push-button start, when both a MyKey and
an admin remote transmitter are present,
the admin remote transmitter will be
recognized by the vehicle while switching
the vehicle on to start the vehicle.
Non-configurable Settings
The following settings cannot be changed
by an admin key user:
• Safety belt reminder. You cannot disable this feature. The audio system will mute
when the front seat passengers’ safety
belts are not fastened.
• Early low fuel or charge. The low-fuel or low charge warning activates earlier,
giving the MyKey user more time to refuel
or recharge.
• Driver assist features, if equipped on your vehicle, are forced on: parking aid and
Blind Spot Information System (BLIS) with
cross traffic alert.
• Satellite radio adult content restrictions, if equipped on your vehicle.
Configurable Settings
With an admin key, you can configure certain
MyKey settings when you first create a
MyKey and before you recycle the key or
restart the vehicle. You can also change the
settings afterward with an admin key.
• A vehicle speed limit can be set.Warnings will be shown in the display
followed by an audible tone when your
vehicle reaches the set speed. You
cannot override the set speed by fully
depressing the accelerator pedal or by
setting cruise control.
WARNING
Do not set MyKey maximum speed limit
to a limit that will prevent the driver
from maintaining a safe speed considering
posted speed limits and prevailing road
conditions. The driver is always responsible
to drive in accordance with local laws and
prevailing conditions. Failure to do so could
result in accident or injury.
60
MyKey™

USING MYKEY WITH REMOTE
START SYSTEMS
MyKey is not compatible with nonFord-approved, aftermarket remote start
systems. If you choose to install a remote
start system, see an authorized dealer for a
Ford-approved remote start system.
MYKEY TROUBLESHOOTING
Potential Causes
Condition
I cannot create a MyKey. • The key or transmitter used to start the vehicle does not have admin pri\
vileges.
• The key or transmitter used to start the vehicle is the only admin key (\
there always has to be at least one admin key).
• Vehicles with keyless start: The keyless start transmitter is not placed \
in the backup position. See Starting a Gasoline Engine (page 162).
• SecuriLock passive anti-theft system is disabled or in unlimited mode.
• The key or transmitter used to start your vehicle does not have admin pr\
ivileges.
• No MyKeys are created. See Creating a MyKey (page 61).
I cannot program the configurable
settings.
• The key or transmitter used to start your vehicle does not have admin pr\
ivileges.
• No MyKeys are created. See Creating a MyKey (page 61).
I cannot clear the MyKeys.
Purchase a new key from an authorized dealer.
I lost the only admin key.
65
MyKey™

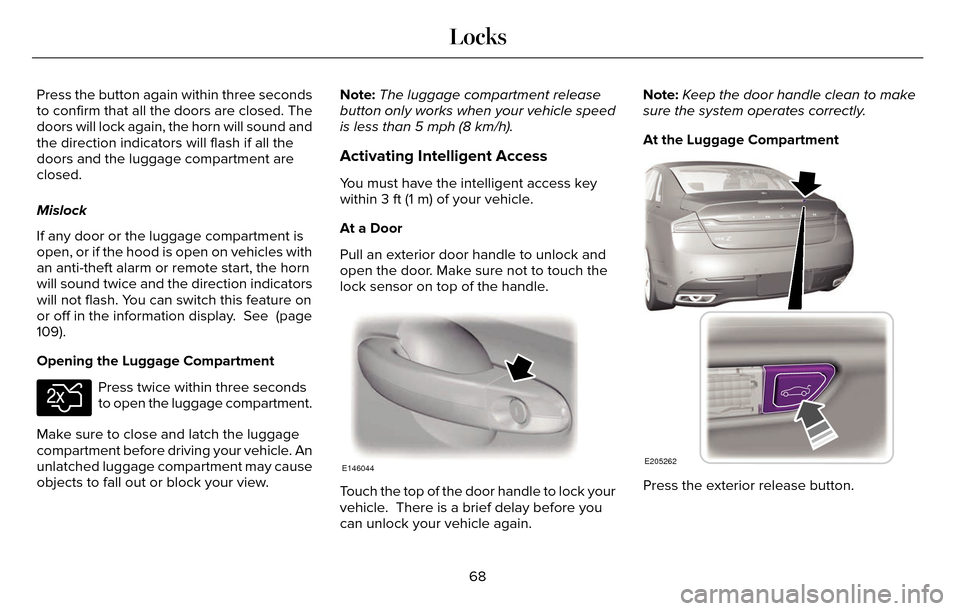

Press the button again within three seconds
to confirm that all the doors are closed. The
doors will lock again, the horn will sound and
the direction indicators will flash if all the
doors and the luggage compartment are
closed.
Mislock
If any door or the luggage compartment is
open, or if the hood is open on vehicles with
an anti-theft alarm or remote start, the horn
will sound twice and the direction indicators
will not flash. You can switch this feature on
or off in the information display. See (page
109).
Opening the Luggage Compartment
E138630
Press twice within three seconds
to open the luggage compartment.
Make sure to close and latch the luggage
compartment before driving your vehicle. An
unlatched luggage compartment may cause
objects to fall out or block your view. Note:
The luggage compartment release
button only works when your vehicle speed
is less than 5 mph (8 km/h).
Activating Intelligent Access
You must have the intelligent access key
within 3 ft (1 m) of your vehicle.
At a Door
Pull an exterior door handle to unlock and
open the door. Make sure not to touch the
lock sensor on top of the handle.
E146044
Touch the top of the door handle to lock your
vehicle. There is a brief delay before you
can unlock your vehicle again. Note:
Keep the door handle clean to make
sure the system operates correctly.
At the Luggage Compartment
E205262
Press the exterior release button.
68
Locks

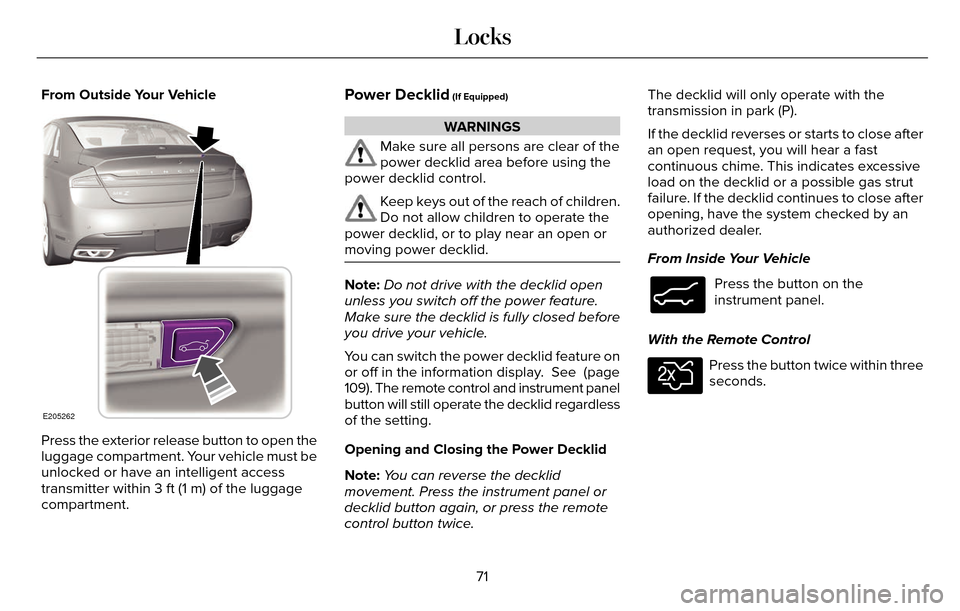

From Outside Your Vehicle
E205262
Press the exterior release button to open the
luggage compartment. Your vehicle must be
unlocked or have an intelligent access
transmitter within 3 ft (1 m) of the luggage
compartment.
Power Decklid (If Equipped)
WARNINGS
Make sure all persons are clear of the
power decklid area before using the
power decklid control.
Keep keys out of the reach of children.
Do not allow children to operate the
power decklid, or to play near an open or
moving power decklid.
Note: Do not drive with the decklid open
unless you switch off the power feature.
Make sure the decklid is fully closed before
you drive your vehicle.
You can switch the power decklid feature on
or off in the information display. See (page
109). The remote control and instrument panel
button will still operate the decklid regardless
of the setting.
Opening and Closing the Power Decklid
Note: You can reverse the decklid
movement. Press the instrument panel or
decklid button again, or press the remote
control button twice. The decklid will only operate with the
transmission in park (P).
If the decklid reverses or starts to close after
an open request, you will hear a fast
continuous chime. This indicates excessive
load on the decklid or a possible gas strut
failure. If the decklid continues to close after
opening, have the system checked by an
authorized dealer.
From Inside Your Vehicle
E138633
Press the button on the
instrument panel.
With the Remote Control
E138630
Press the button twice within three
seconds.
71
Locks
