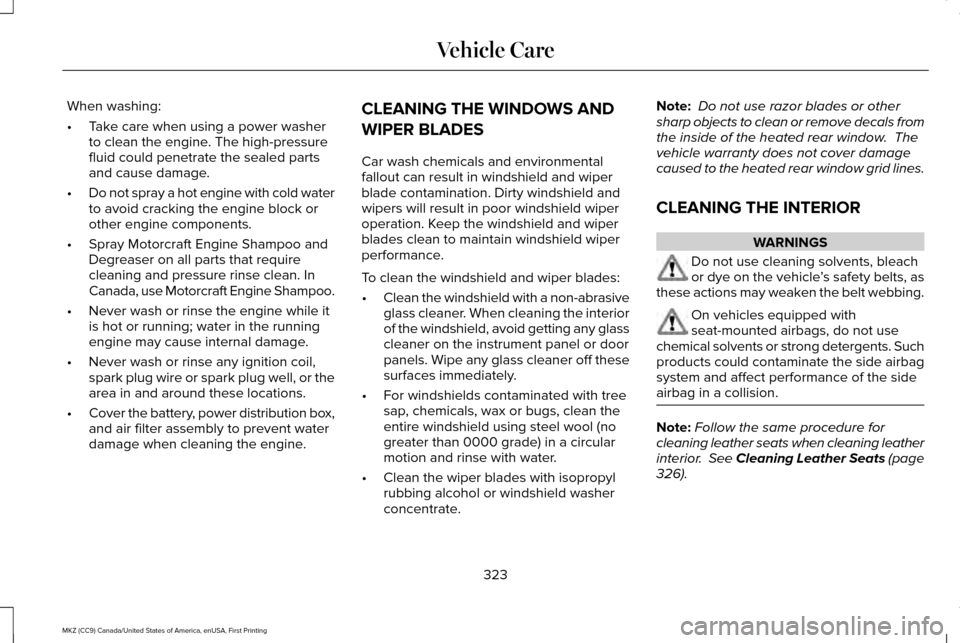

When washing:
•
Take care when using a power washer
to clean the engine. The high-pressure
fluid could penetrate the sealed parts
and cause damage.
• Do not spray a hot engine with cold water
to avoid cracking the engine block or
other engine components.
• Spray Motorcraft Engine Shampoo and
Degreaser on all parts that require
cleaning and pressure rinse clean. In
Canada, use Motorcraft Engine Shampoo.
• Never wash or rinse the engine while it
is hot or running; water in the running
engine may cause internal damage.
• Never wash or rinse any ignition coil,
spark plug wire or spark plug well, or the
area in and around these locations.
• Cover the battery, power distribution box,
and air filter assembly to prevent water
damage when cleaning the engine. CLEANING THE WINDOWS AND
WIPER BLADES
Car wash chemicals and environmental
fallout can result in windshield and wiper
blade contamination. Dirty windshield and
wipers will result in poor windshield wiper
operation. Keep the windshield and wiper
blades clean to maintain windshield wiper
performance.
To clean the windshield and wiper blades:
•
Clean the windshield with a non-abrasive
glass cleaner. When cleaning the interior
of the windshield, avoid getting any glass
cleaner on the instrument panel or door
panels. Wipe any glass cleaner off these
surfaces immediately.
• For windshields contaminated with tree
sap, chemicals, wax or bugs, clean the
entire windshield using steel wool (no
greater than 0000 grade) in a circular
motion and rinse with water.
• Clean the wiper blades with isopropyl
rubbing alcohol or windshield washer
concentrate. Note:
Do not use razor blades or other
sharp objects to clean or remove decals from
the inside of the heated rear window. The
vehicle warranty does not cover damage
caused to the heated rear window grid lines.
CLEANING THE INTERIOR WARNINGS
Do not use cleaning solvents, bleach
or dye on the vehicle
’s safety belts, as
these actions may weaken the belt webbing. On vehicles equipped with
seat-mounted airbags, do not use
chemical solvents or strong detergents. Such
products could contaminate the side airbag
system and affect performance of the side
airbag in a collision. Note:
Follow the same procedure for
cleaning leather seats when cleaning leather
interior. See Cleaning Leather Seats (page
326).
323
MKZ (CC9) Canada/United States of America, enUSA, First Printing Vehicle Care

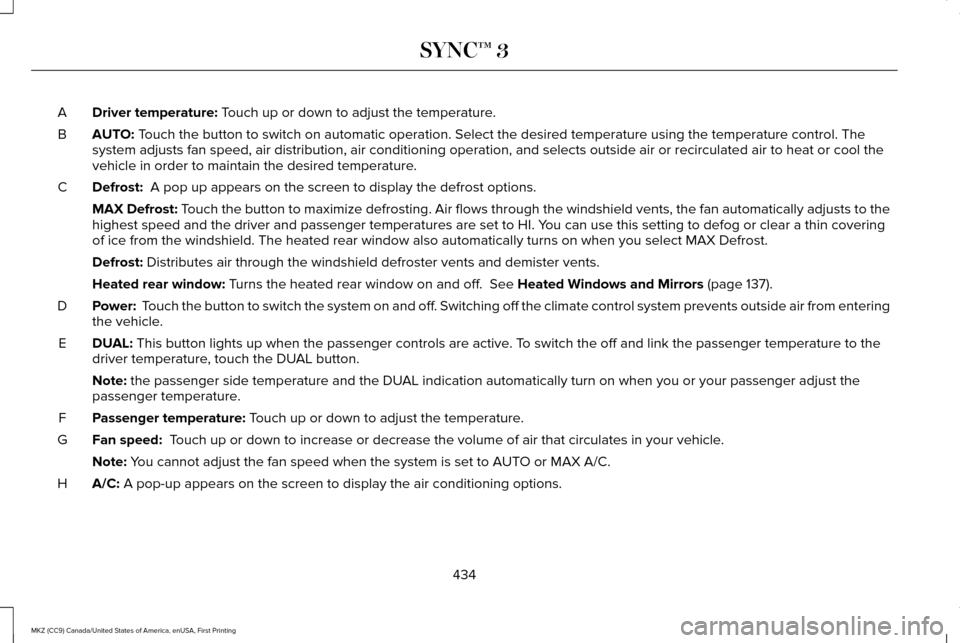

Driver temperature: Touch up or down to adjust the temperature.
A
AUTO:
Touch the button to switch on automatic operation. Select the desired tem\
perature using the temperature control. The
system adjusts fan speed, air distribution, air conditioning operation, \
and selects outside air or recirculated air to heat or cool the
vehicle in order to maintain the desired temperature.
B
Defrost:
A pop up appears on the screen to display the defrost options.
C
MAX Defrost: Touch the button to maximize defrosting. Air flows through the windshield\
vents, the fan automatically adjusts to the
highest speed and the driver and passenger temperatures are set to HI. Y\
ou can use this setting to defog or clear a thin covering
of ice from the windshield. The heated rear window also automatically tu\
rns on when you select MAX Defrost.
Defrost:
Distributes air through the windshield defroster vents and demister vent\
s.
Heated rear window:
Turns the heated rear window on and off. See Heated Windows and Mirrors (page 137).
Power:
Touch the button to switch the system on and off. Switching off the climate control system prevents outside air from enteri\
ng
the vehicle.
D
DUAL:
This button lights up when the passenger controls are active. To switch the off and link the passenger temperature to the
driver temperature, touch the DUAL button.
E
Note:
the passenger side temperature and the DUAL indication automatically turn on when you or your passenger adjust th\
e
passenger temperature.
Passenger temperature:
Touch up or down to adjust the temperature.
F
Fan speed:
Touch up or down to increase or decrease the volume of air that circulate\
s in your vehicle.
G
Note:
You cannot adjust the fan speed when the system is set to AUTO or MAX A/C.
A/C:
A pop-up appears on the screen to display the air conditioning options.\
H
434
MKZ (CC9) Canada/United States of America, enUSA, First Printing SYNC™ 3

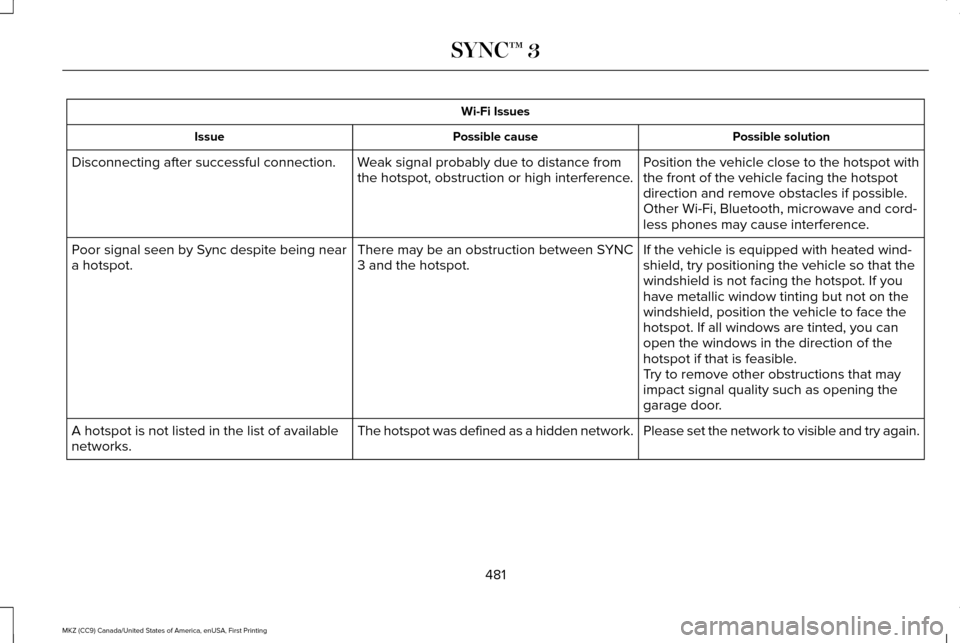

Wi-Fi Issues
Possible solution
Possible cause
Issue
Position the vehicle close to the hotspot with
the front of the vehicle facing the hotspot
direction and remove obstacles if possible.
Other Wi-Fi, Bluetooth, microwave and cord-
less phones may cause interference.
Weak signal probably due to distance from
the hotspot, obstruction or high interference.
Disconnecting after successful connection.
If the vehicle is equipped with heated wind-
shield, try positioning the vehicle so that the
windshield is not facing the hotspot. If you
have metallic window tinting but not on the
windshield, position the vehicle to face the
hotspot. If all windows are tinted, you can
open the windows in the direction of the
hotspot if that is feasible.
There may be an obstruction between SYNC
3 and the hotspot.
Poor signal seen by Sync despite being near
a hotspot.
Try to remove other obstructions that may
impact signal quality such as opening the
garage door.
Please set the network to visible and try again.
The hotspot was defined as a hidden network.
A hotspot is not listed in the list of available
networks.
481
MKZ (CC9) Canada/United States of America, enUSA, First Printing SYNC™ 3

Auxiliary Power Points.................................156
110 Volt AC Power Point....................................156
12 Volt DC Power Point......................................156
Locations...............................................................156
AWD See: All-Wheel Drive...........................................179
B
Battery See: Changing the 12V Battery........................312
Blind Spot Information System..................231 Switching the System Off and On..................233
System Errors......................................................233
Using the System................................................231
Bonnet Lock See: Opening and Closing the Hood............295
Booster Seats..................................................28
Types of Booster Seats.......................................29
Brake Fluid Check..........................................311
Brakes..............................................................188 General Information............................................188
Breaking-In....................................................256
Bulb Specification Chart..............................316
C
Cabin Air Filter
...............................................138 California Proposition 65
...............................12
Capacities and Specifications - 2.0L.......374 Specifications......................................................375
Capacities and Specifications - 3.0L.......379 Specifications.......................................................381
Capacities and Specifications...................367
Car Wash See: Cleaning the Exterior................................
321
Center Console..............................................158 Rear Seat Armrest...............................................158
Changing a Bulb
............................................316
Lamp Assembly Condensation........................316
Replacing Bulbs...................................................316
Changing a Fuse..........................................292 Fuses.....................................................................292
Changing a Road Wheel.............................357 Changing a Road Wheel Procedure..............
359
Dissimilar Spare Wheel and Tire Assembly Information......................................................358
Stowing the Flat Tire..........................................363
Stowing the Flat Tire Using the Retainer Strap..................................................................363
Changing the 12V Battery...........................312
Changing the Engine Air Filter..................319
Changing the Wiper Blades........................314
Checking MyKey System Status.................62 MyKey Distance....................................................62
Number of Admin Keys.......................................63 Number of MyKeys...............................................62
Checking the Wiper Blades........................314
Child Restraint and Seatbelt Maintenance...................................................41
Child Restraint Positioning
............................31
Child Safety.......................................................17
General Information...............................................17
Child Safety Locks..........................................32 Left-Hand Side.......................................................33
Right-Hand Side....................................................33
Cleaning Leather Seats..............................326
Cleaning Products
.......................................320
Cleaning the Alloy Wheels.........................327
Cleaning the Engine....................................322
Cleaning the Exterior
....................................321
Exterior Chrome Parts........................................321
Exterior Plastic Parts..........................................322
Stripes or Graphics............................................322
Underbody...........................................................322
Under Hood.........................................................322
Cleaning the Instrument Panel and Instrument Cluster Lens
...........................325
Cleaning the Interior....................................323
Cleaning Alcantara Microfiber Cloth
Fabric................................................................324
Cleaning the Windows and Wiper Blades
...........................................................323
Clearing All MyKeys.......................................62
552
MKZ (CC9) Canada/United States of America, enUSA, First Printing Index

General Maintenance Information...........495
Multi-Point Inspection........................................498
Owner Checks and Services...........................497
Protecting Your Investment.............................495
Why Maintain Your Vehicle?............................495
Why Maintain Your Vehicle at Your Dealership?......................................................495
Getting Assistance Outside the U.S. and Canada..........................................................271
Getting the Services You Need
................267
Away From Home...............................................267
Global Opening and Closing.......................94 Closing the Windows...........................................94
Opening the Windows.........................................94
H
Hazard Warning Flashers...........................260
Headlamp Adjusting See: Adjusting the Headlamps........................315
Headlamp Exit Delay
......................................87
Head Restraints.............................................139
Adjusting the Head Restraint...........................140
Tilting Head Restraints .......................................141
Heated Seats
..................................................147
Front Seats............................................................147
Rear Seats.............................................................148
Heated Steering Wheel..................................81 Heated Windows and Mirrors....................137
Heated Exterior Mirrors......................................
137
Heated Rear Window ..........................................137
Heated Wiper Park..............................................138
Heating See: Climate Control...........................................134
Hints on Controlling the Interior Climate..........................................................136
Cooling the Interior Quickly..............................137
General Hints........................................................136
Heating the Interior Quickly..............................137
Recommended Settings for Cooling .............137
Recommended Settings for Heating..............137
Side Window Defogging in Cold Weather.............................................................137
Hints on Driving With Anti-Lock Brakes...........................................................188
Home Screen
................................................407
Hood Lock See: Opening and Closing the Hood............295
I
In California (U.S. Only)...............................268
Information Display Control
.........................80
Information Displays.....................................108 General Information............................................108 Information Messages
...................................114
Active Park.............................................................114
Adaptive Cruise Control.....................................115
Adaptive Headlamps...........................................116
AdvanceTrac ™........................................................116
Airbag......................................................................116
Alarm........................................................................\
117
Automatic Engine Shutdown.............................117
AWD........................................................................\
.118
Battery and Charging System...........................119
Blind Spot Information and Cross Traffic Alert System...............................................................120
Doors and Locks.................................................120
Driver Alert.............................................................121
Fuel........................................................................\
..121
Hill Start Assist.....................................................122
Keys and Intelligent Access.............................
122
Lane Keeping System........................................123
Maintenance.........................................................124
MyKey.....................................................................125
Park Aid..................................................................126
Park Brake.............................................................126
Power Steering.....................................................127
Pre-Collision Assist.............................................128
Remote Start.........................................................128
Seats.......................................................................129
Starting System ...................................................129
Tire Pressure Monitoring System....................130
555
MKZ (CC9) Canada/United States of America, enUSA, First Printing Index

Linking a PreSet Position to your Remote
Control or Intelligent Access Key Fob.......146
Saving a PreSet Position...................................145
Message Center See: Information Displays.................................108
Mirrors See: Heated Windows and Mirrors.................
137
See: Windows and Mirrors.................................93
Mobile Communications Equipment
...........14
Moonroof..........................................................98 Bounce-Back..........................................................99
Opening and Closing the Moonroof................99
Motorcraft Parts - 2.0L................................369
Motorcraft Parts - 3.0L
..................................371
MyKey Troubleshooting................................63
MyKey™..............................................................60 Principle of Operation.........................................60
N
Navigation......................................................444 cityseeker.............................................................453
Destination Mode...............................................445
Map Mode............................................................444
Navigation Map Updates..................................453
Navigation Menu................................................450
SiriusXM Traffic and Travel Link......................
453
Waypoints.............................................................452 Normal Scheduled Maintenance
.............499
Intelligent Oil-Life Monitor™.............................499
Maintenance Intervals........................................501
O
Oil Change Indicator Reset.......................302
Oil Check See: Engine Oil Check.......................................301
Opening and Closing the Hood...............295
Ordering Additional Owner's Literature......................................................272
Obtaining a French Owner’ s Manual............272
Overhead Console.......................................158
P
Parking Aids
....................................................199
Principle of Operation........................................199
Passive Anti-Theft System............................75 SecuriLock..............................................................75
PATS See: Passive Anti-Theft System........................75
Perchlorate........................................................12
Personal Safety System ™
..............................43
How Does the Personal Safety System
Work?...................................................................43 Phone..............................................................436
During a Phone Call............................................441
Making Calls........................................................440
Pairing Your Cell Phone for the First
Time...................................................................436
Phone Menu.........................................................437
Receiving Calls.....................................................441
Smartphone Connectivity.................................443
Text Messaging...................................................442
Post-Crash Alert System.............................264 Spinout Detection..............................................264
Power Door Locks See: Locking and Unlocking..............................65
Power Seats.....................................................141 Four-Way Power Lumbar...................................143
Multi-Contour Front Seats With Active Motion
........................................................................\
.....143
Power Lumbar......................................................143
Power Windows
..............................................93
Accessory Delay...................................................94
Bounce-Back..........................................................93
One-Touch Down..................................................93
One-Touch Up.......................................................93
Window Lock..........................................................94
Pre-Collision Assist......................................238 Using the Pre-Collision Assist System..........239
Protecting the Environment..........................16
557
MKZ (CC9) Canada/United States of America, enUSA, First Printing Index

Cooling system...................................................328
Engine...................................................................328
Fuel system..........................................................328
General..................................................................327
Miscellaneous.....................................................328
Removing Vehicle From Storage...................328
Tires.......................................................................328
Ventilation See: Climate Control...........................................134
VIN See: Vehicle Identification Number...............372
Voice Control...................................................80
W
Warning Lamps and Indicators..................103 Adaptive Cruise Control....................................103
Anti-Lock Braking System.................................
103
Autohold Active...................................................103
Autohold Unavailable.........................................103
Battery....................................................................104
Blind Spot Monitor..............................................104
Brake System.......................................................104
Cruise Control......................................................104
Direction Indicator...............................................104
Door Ajar...............................................................104
Electric Park Brake..............................................104
Engine Coolant Temperature...........................104 Engine Oil..............................................................105
Fasten Seatbelt....................................................105
Front Airbag..........................................................105
Heads Up Display...............................................105
High Beam............................................................105
Hood Ajar..............................................................105
Low Fuel Level.....................................................105
Low Tire Pressure Warning..............................105
Low Washer Fluid................................................105
Parking Lamps.....................................................105
Powertrain Fault..................................................106
Service Engine Soon..........................................106
Stability Control...................................................106
Stability Control Off............................................106
Trunk Ajar..............................................................106
Washer Fluid Check......................................312
Washers See: Cleaning the Exterior................................321
See: Wipers and Washers..................................82
Waxing............................................................322
Welcome Lighting
............................................91
Wheel Nuts See: Changing a Road Wheel.........................357
Wheels and Tires.........................................330 Technical Specifications...................................365
Windows and Mirrors
.....................................93
Windshield Washers.......................................84 Windshield Wipers
.........................................82
Intermittent Wipe..................................................82
Wiper Blades See: Checking the Wiper Blades....................314
Wipers and Washers......................................82
561
MKZ (CC9) Canada/United States of America, enUSA, First Printing Index
