compression ratio LINCOLN MKZ 2017 Owners Manual

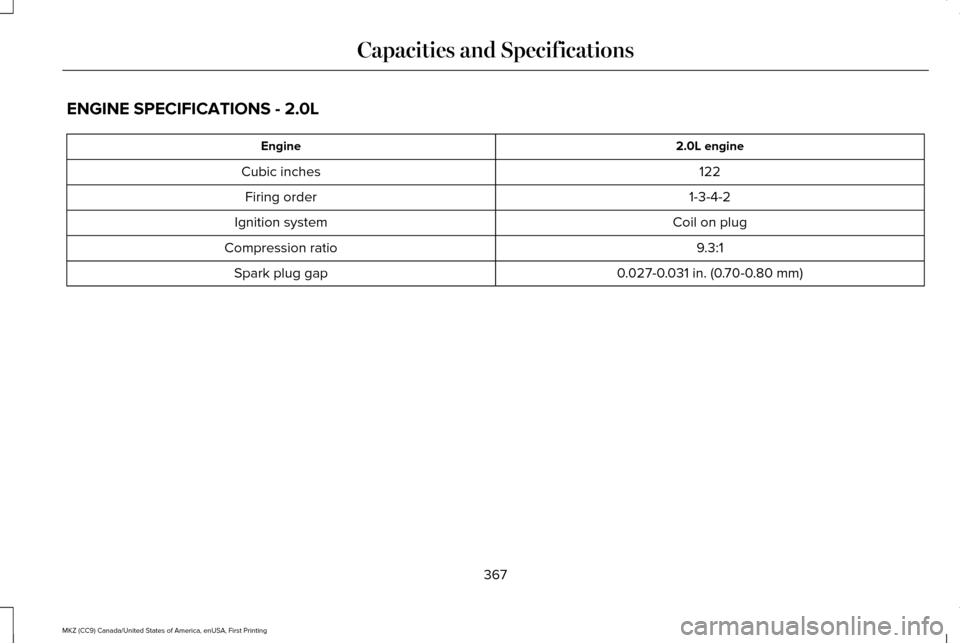

ENGINE SPECIFICATIONS - 2.0L
2.0L engine
Engine
122
Cubic inches
1-3-4-2
Firing order
Coil on plug
Ignition system
9.3:1
Compression ratio
0.027-0.031 in. (0.70-0.80 mm)
Spark plug gap
367
MKZ (CC9) Canada/United States of America, enUSA, First Printing Capacities and Specifications

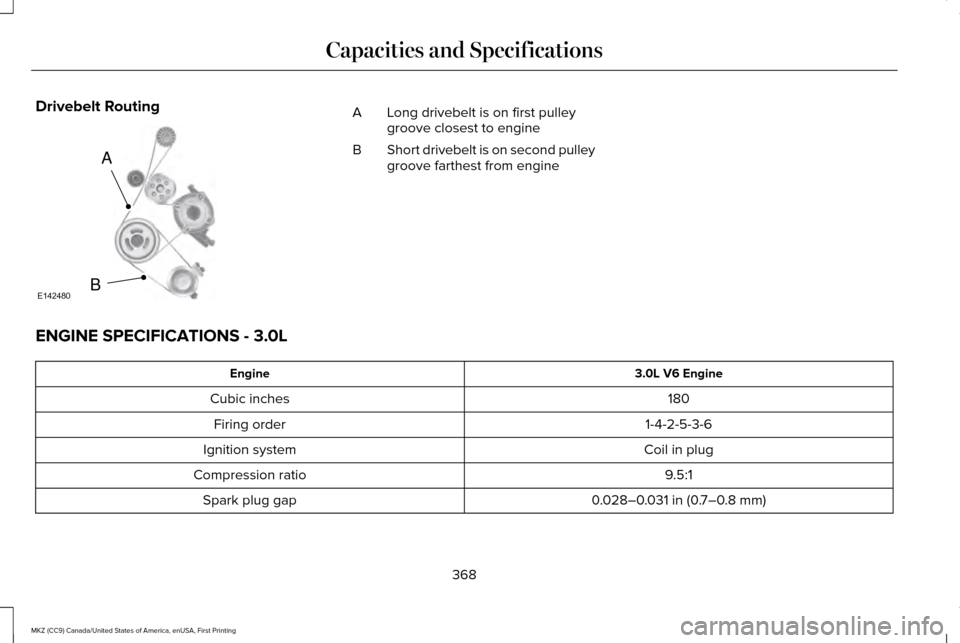

Drivebelt Routing
Long drivebelt is on first pulley
groove closest to engine
A
Short drivebelt is on second pulley
groove farthest from engine
B
ENGINE SPECIFICATIONS - 3.0L 3.0L V6 Engine
Engine
180
Cubic inches
1-4-2-5-3-6
Firing order
Coil in plug
Ignition system
9.5:1
Compression ratio
0.028–0.031 in (0.7–0.8 mm)
Spark plug gap
368
MKZ (CC9) Canada/United States of America, enUSA, First Printing Capacities and SpecificationsA
BE142480
