oil dipstick LINCOLN MKZ 2019 Owners Manual

Using Cruise Control...................................217
Using Adaptive Cruise Control.................218
Driving Aids
Driver Alert....................................................227
Lane Keeping System................................229
Blind Spot Information System................234
Cross Traffic Alert........................................236
Steering.........................................................240
Pre-Collision Assist......................................241
Drive Control................................................246
Load Carrying
Load Limit......................................................248
Towing
Towing a Trailer............................................253
Recommended Towing Weights.............254
Essential Towing Checks..........................255
Towing the Vehicle on Four Wheels......257
Driving Hints
Breaking-In...................................................259
Economical Driving.....................................259
Driving Through Water..............................259
Floor Mats.....................................................260
Roadside Emergencies
Roadside Assistance..................................262
Hazard Flashers..........................................263
Fuel Shutoff..................................................263
Jump Starting the Vehicle.........................264
Post-Crash Alert System...........................266
Transporting the Vehicle...........................267
Towing Points...............................................268
Customer Assistance
Getting the Services You Need...............269
In California (U.S. Only)..............................270
The Better Business Bureau (BBB) AutoLine Program (U.S. Only)........................271
Utilizing the Mediation/Arbitration Program(Canada Only)..........................................272
Getting Assistance Outside the U.S. andCanada.......................................................273
Ordering Additional Owner's Literature......................................................................275
Reporting Safety Defects (U.S. Only)......275
Reporting Safety Defects (Canada Only)......................................................................276
Fuses
Fuse Specification Chart............................277
Changing a Fuse.........................................294
Maintenance
General Information....................................297
Opening and Closing the Hood..............297
Under Hood Overview - 2.0L...................298
Under Hood Overview - 3.0L...................300
Engine Oil Dipstick - 2.0L.........................302
Engine Oil Dipstick - 3.0L..........................302
Engine Oil Check........................................302
Oil Change Indicator Reset......................303
Engine Coolant Check...............................304
Automatic Transmission Fluid Check......308
Brake Fluid Check........................................313
Washer Fluid Check.....................................313
Fuel Filter........................................................313
Changing the 12V Battery..........................314
4
MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201805, First-Printing
Table of Contents

Engine coolant reservoir. SeeEngine Coolant Check (page 304).A
Engine oil dipstick. See Engine OilDipstick (page 302).B
Engine oil filler cap. See EngineOil Check (page 302).C
Brake fluid reservoir. See BrakeFluid Check (page 313).D
Battery. See Changing the 12VBattery (page 314).E
Engine compartment fuse box.See Fuses (page 277).F
Air filter. See Changing theEngine Air Filter (page 317).G
Washer system fluid reservoir. SeeWasher Fluid Check (page 313).H
UNDER HOOD OVERVIEW - 3.0L
300
MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201805, First-Printing
Maintenance

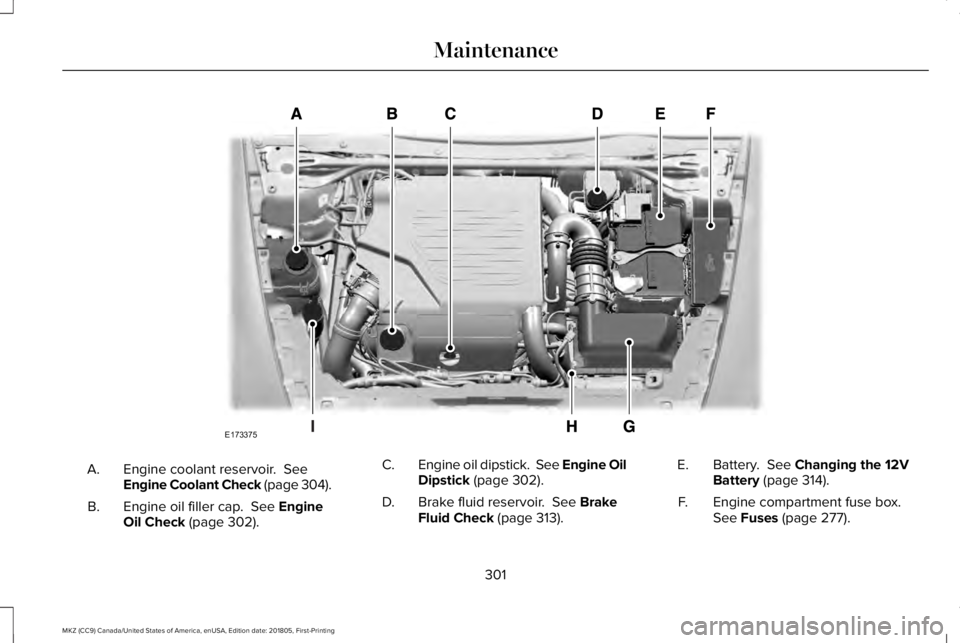

Engine coolant reservoir. SeeEngine Coolant Check (page 304).A.
Engine oil filler cap. See EngineOil Check (page 302).B.
Engine oil dipstick. See Engine OilDipstick (page 302).C.
Brake fluid reservoir. See BrakeFluid Check (page 313).D.
Battery. See Changing the 12VBattery (page 314).E.
Engine compartment fuse box.See Fuses (page 277).F.
301
MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201805, First-Printing
MaintenanceE173375

Air filter assembly. See Changingthe Engine Air Filter (page 317).G.
Automatic transmission dipstick.See Automatic Transmission FluidCheck (page 308).
H.
Washer fluid reservoir. SeeWasher Fluid Check (page 313).I.
ENGINE OIL DIPSTICK - 2.0L
MINA
MAXB
ENGINE OIL DIPSTICK - 3.0L
MINA
MAXB
ENGINE OIL CHECK
To check the engine oil level consistentlyand accurately, do the following:
1.Make sure the parking brake is on. Makesure the transmission is in park (P) orneutral (N).
2. Run the engine until it reaches normaloperating temperature.
3. Make sure that your vehicle is on levelground.
4.Switch the engine off and wait 15 minutesfor the oil to drain into the oil pan. Checking the engine oil level too soonafter you switch the engine off may resultin an inaccurate reading.
5. Open the hood. See Opening andClosing the Hood (page 297).
6. Remove the dipstick and wipe it with aclean, lint-free cloth. See Under HoodOverview (page 298).
7.Replace the dipstick and remove it againto check the oil level. See Under HoodOverview (page 298).
8. Make sure that the oil level is betweenthe maximum and minimum marks. If theoil level is at the minimum mark, add oilimmediately. See Capacities andSpecifications (page 373).
9. If the oil level is correct, replace thedipstick and make sure it is fully seated.
302
MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201805, First-Printing
MaintenanceE142462 E170468
AB

Note:Do not remove the dipstick when theengine is running.
Note: If the oil level is between themaximum and minimum marks, the oil levelis acceptable. Do not add oil.
Note:The oil consumption of new enginesreaches its normal level after approximately3,000 mi (5,000 km).
Adding Engine Oil
WARNING: Do not remove the fillercap when the engine is running.
Do not use supplemental engine oil additivesbecause they are unnecessary and couldlead to engine damage that may not becovered by the vehicle Warranty.
Only use oils certified for gasoline enginesby the American Petroleum Institute (API). An oil with this trademark symbol conformsto the current engine and emission systemprotection standards and fuel economyrequirements of the International LubricantsSpecification Advisory Committee (ILSAC).
To top up the engine oil level do thefollowing:
1. Clean the area surrounding the engineoil filler cap before you remove it.
2. Remove the engine oil filler cap. SeeUnder Hood Overview (page 298). Turnit counterclockwise and remove it.
3. Add engine oil that meets Fordspecifications. See Capacities andSpecifications (page 373). You may haveto use a funnel to pour the engine oil intothe opening.
4. Recheck the oil level.
5. If the oil level is correct, replace thedipstick and make sure it is fully seated.
6. Replace the engine oil filler cap. Turn itclockwise until you feel a strongresistance.
Note: Do not add oil further than themaximum mark. Oil levels above themaximum mark may cause engine damage.
Note:Make sure you install the oil filler capcorrectly.
Note:Soak up any spillage with anabsorbent cloth immediately.
OIL CHANGE INDICATOR RESET
Use the information display controls on thesteering wheel to reset the oil changeindicator.
303
MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201805, First-Printing
MaintenanceE142732

Daytime Running Lamps...............................89Type One - Conventional(Non-Configurable)..........................................90Type Two - Configurable....................................90
Direction Indicators........................................92Indicating a Lane Change..................................92
Doors and Locks.............................................67Drive Control.................................................246Lincoln Drive Control.........................................246
Driver Alert.....................................................227PRINCIPLE OF OPERATION............................227USING DRIVER ALERT......................................228
Driver and Passenger Airbags....................48Children and Airbags...........................................49Proper Driver and Front Passenger SeatingAdjustment.........................................................49
Driver and Passenger Knee Airbags.........53Driving Aids....................................................227Driving Hints..................................................259Driving Through Water...............................259DRLSee: Daytime Running Lamps...........................89
E
Economical Driving......................................259Electric Parking Brake..................................193Applying the Electric Parking Brake...............193
Automatically Releasing the Electric ParkingBrake..................................................................194Manually Releasing the Electric ParkingBrake..................................................................194Releasing the Electric Parking Brake if theVehicle Battery is Running Out ofCharge...............................................................194
Electromagnetic Compatibility..................536Emission Law..................................................173Noise Emissions Warranty, ProhibitedTampering Acts and Maintenance..............174Tampering With a Noise Control System......173
End User License Agreement....................541VEHICLE SOFTWARE END USER LICENSEAGREEMENT (EULA) .....................................541
Engine Block Heater....................................164Using the Engine Block Heater.......................165
Engine Coolant Check................................304Adding Coolant...................................................305Engine Coolant TemperatureManagement...................................................308Fail-Safe Cooling................................................306Recycled Coolant...............................................306Severe Climates.................................................306
Engine Emission Control.............................173Engine ImmobilizerSee: Passive Anti-Theft System.........................77
Engine Oil Check.........................................302Adding Engine Oil..............................................303
Engine Oil Dipstick - 2.0L...........................302Engine Oil Dipstick - 3.0L...........................302Engine Specifications - 2.0L......................366Drivebelt Routing................................................367
Engine Specifications - 3.0L......................367Drivebelt Routing................................................368
Entertainment.................................................421AM/FM Radio.......................................................424Apps.......................................................................435Bluetooth Stereo or USB..................................433CD (If equipped)..................................................432HD Radio™ Information (If Available)..............428SiriusXM® Satellite Radio (If Activated).........424Sources.................................................................423Supported Media Players, Formats andMetadata Information....................................435USB Ports.............................................................435
Environment......................................................16EPBSee: Electric Parking Brake..............................193
Essential Towing Checks...........................255Before Towing a Trailer.....................................256Hitches..................................................................255Launching or Retrieving a Boat or PersonalWatercraft (PWC)............................................256Safety Chains......................................................255
