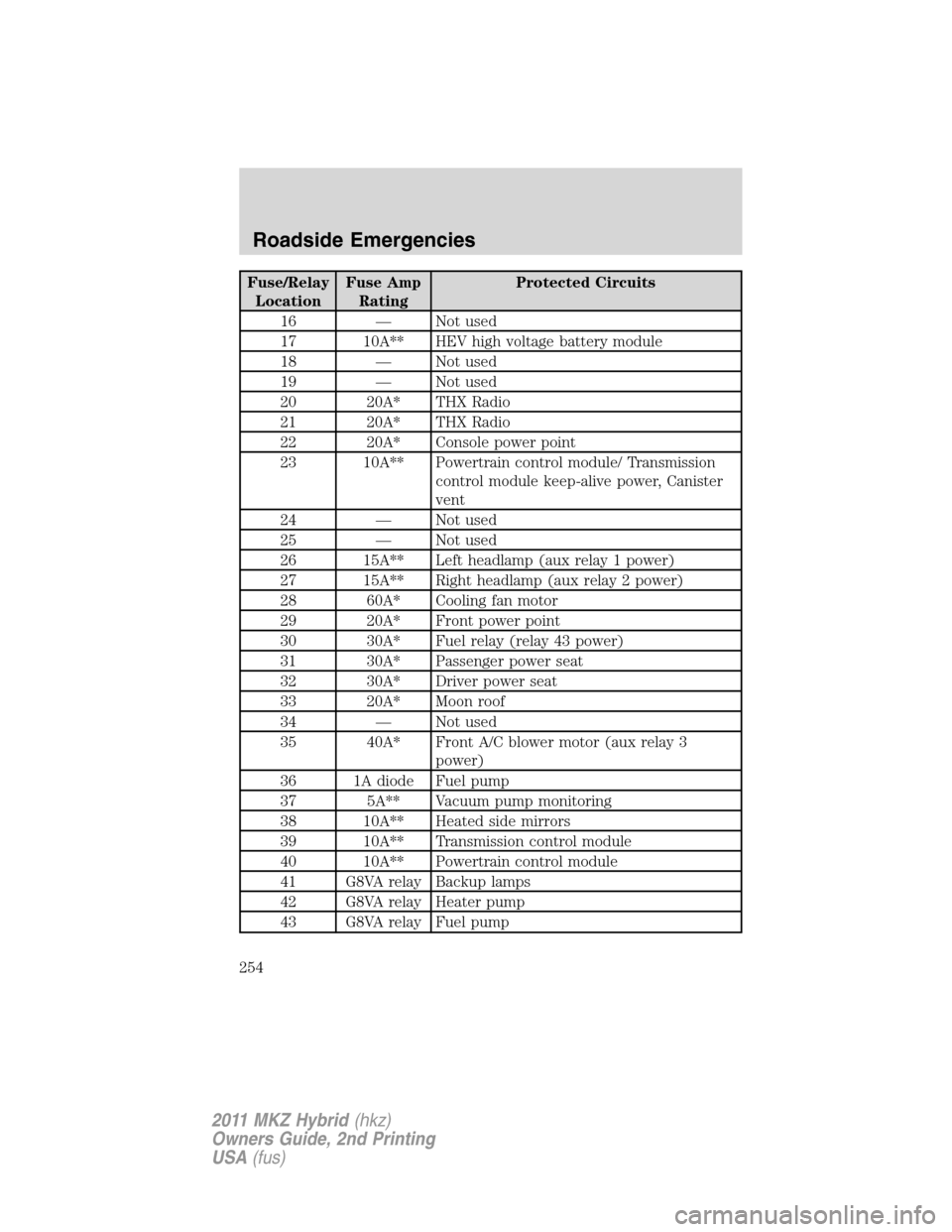

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
16 — Not used
17 10A** HEV high voltage battery module
18 — Not used
19 — Not used
20 20A* THX Radio
21 20A* THX Radio
22 20A* Console power point
23 10A** Powertrain control module/ Transmission
control module keep-alive power, Canister
vent
24 — Not used
25 — Not used
26 15A** Left headlamp (aux relay 1 power)
27 15A** Right headlamp (aux relay 2 power)
28 60A* Cooling fan motor
29 20A* Front power point
30 30A* Fuel relay (relay 43 power)
31 30A* Passenger power seat
32 30A* Driver power seat
33 20A* Moon roof
34 — Not used
35 40A* Front A/C blower motor (aux relay 3
power)
36 1A diode Fuel pump
37 5A** Vacuum pump monitoring
38 10A** Heated side mirrors
39 10A** Transmission control module
40 10A** Powertrain control module
41 G8VA relay Backup lamps
42 G8VA relay Heater pump
43 G8VA relay Fuel pump
Roadside Emergencies
254
2011 MKZ Hybrid(hkz)
Owners Guide, 2nd Printing
USA(fus)

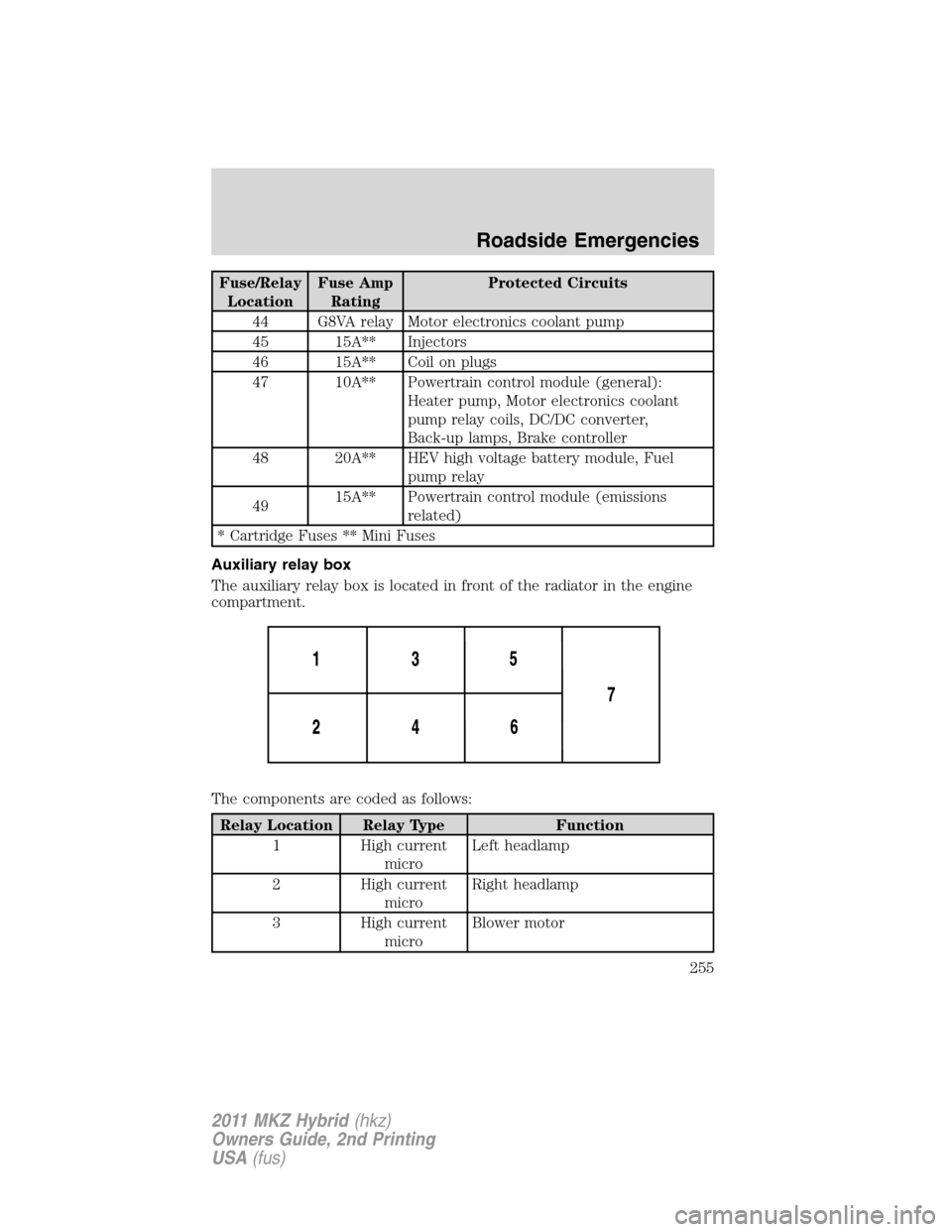

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
44 G8VA relay Motor electronics coolant pump
45 15A** Injectors
46 15A** Coil on plugs
47 10A** Powertrain control module (general):
Heater pump, Motor electronics coolant
pump relay coils, DC/DC converter,
Back-up lamps, Brake controller
48 20A** HEV high voltage battery module, Fuel
pump relay
4915A** Powertrain control module (emissions
related)
* Cartridge Fuses ** Mini Fuses
Auxiliary relay box
The auxiliary relay box is located in front of the radiator in the engine
compartment.
The components are coded as follows:
Relay Location Relay Type Function
1 High current
microLeft headlamp
2 High current
microRight headlamp
3 High current
microBlower motor
Roadside Emergencies
255
2011 MKZ Hybrid(hkz)
Owners Guide, 2nd Printing
USA(fus)

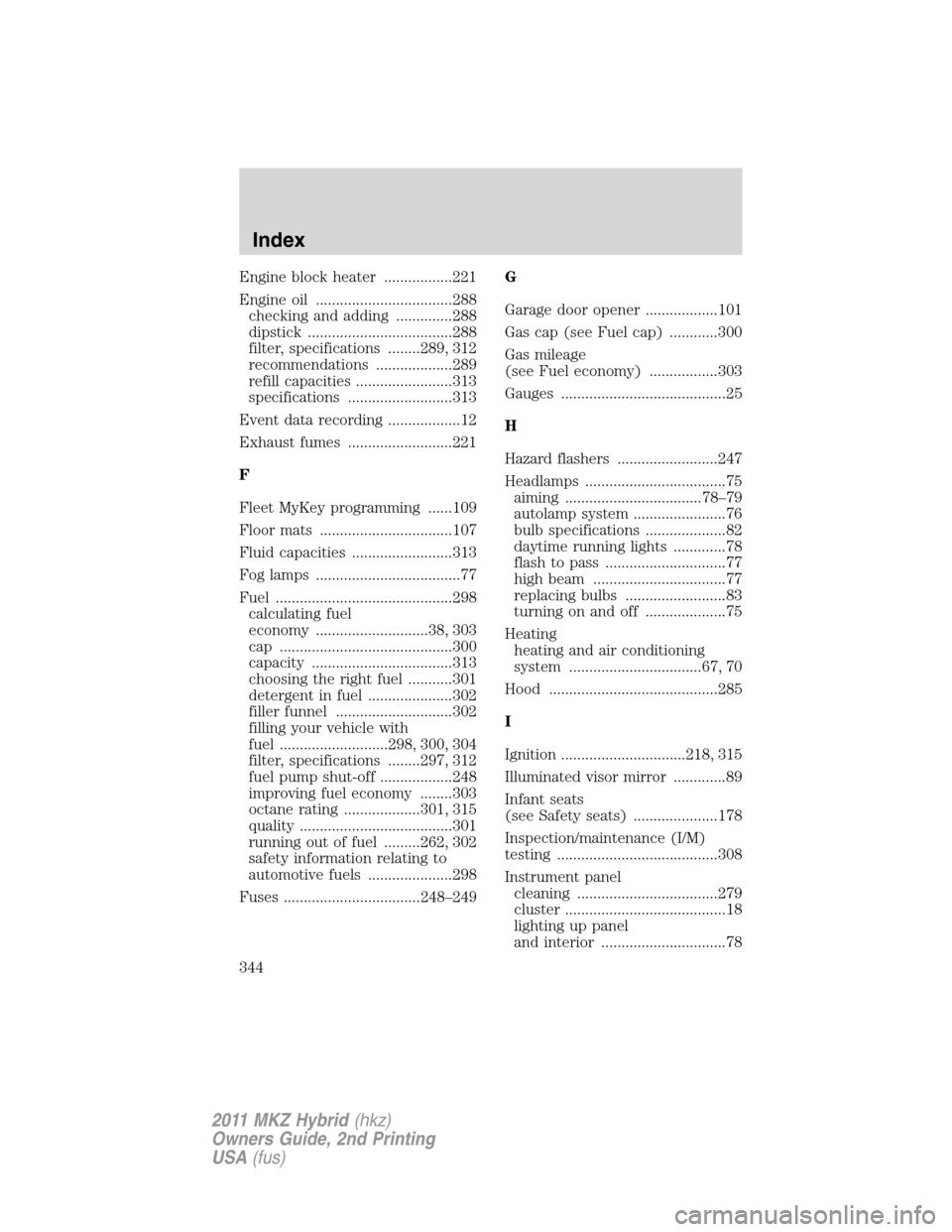

Engine block heater .................221
Engine oil ..................................288
checking and adding ..............288
dipstick ....................................288
filter, specifications ........289, 312
recommendations ...................289
refill capacities ........................313
specifications ..........................313
Event data recording ..................12
Exhaust fumes ..........................221
F
Fleet MyKey programming ......109
Floor mats .................................107
Fluid capacities .........................313
Fog lamps ....................................77
Fuel ............................................298
calculating fuel
economy ............................38, 303
cap ...........................................300
capacity ...................................313
choosing the right fuel ...........301
detergent in fuel .....................302
filler funnel .............................302
filling your vehicle with
fuel ...........................298, 300, 304
filter, specifications ........297, 312
fuel pump shut-off ..................248
improving fuel economy ........303
octane rating ...................301, 315
quality ......................................301
running out of fuel .........262, 302
safety information relating to
automotive fuels .....................298
Fuses ..................................248–249G
Garage door opener ..................101
Gas cap (see Fuel cap) ............300
Gas mileage
(see Fuel economy) .................303
Gauges .........................................25
H
Hazard flashers .........................247
Headlamps ...................................75
aiming ..................................78–79
autolamp system .......................76
bulb specifications ....................82
daytime running lights .............78
flash to pass ..............................77
high beam .................................77
replacing bulbs .........................83
turning on and off ....................75
Heating
heating and air conditioning
system .................................67, 70
Hood ..........................................285
I
Ignition ...............................218, 315
Illuminated visor mirror .............89
Infant seats
(see Safety seats) .....................178
Inspection/maintenance (I/M)
testing ........................................308
Instrument panel
cleaning ...................................279
cluster ........................................18
lighting up panel
and interior ...............................78
Index
344
2011 MKZ Hybrid(hkz)
Owners Guide, 2nd Printing
USA(fus)

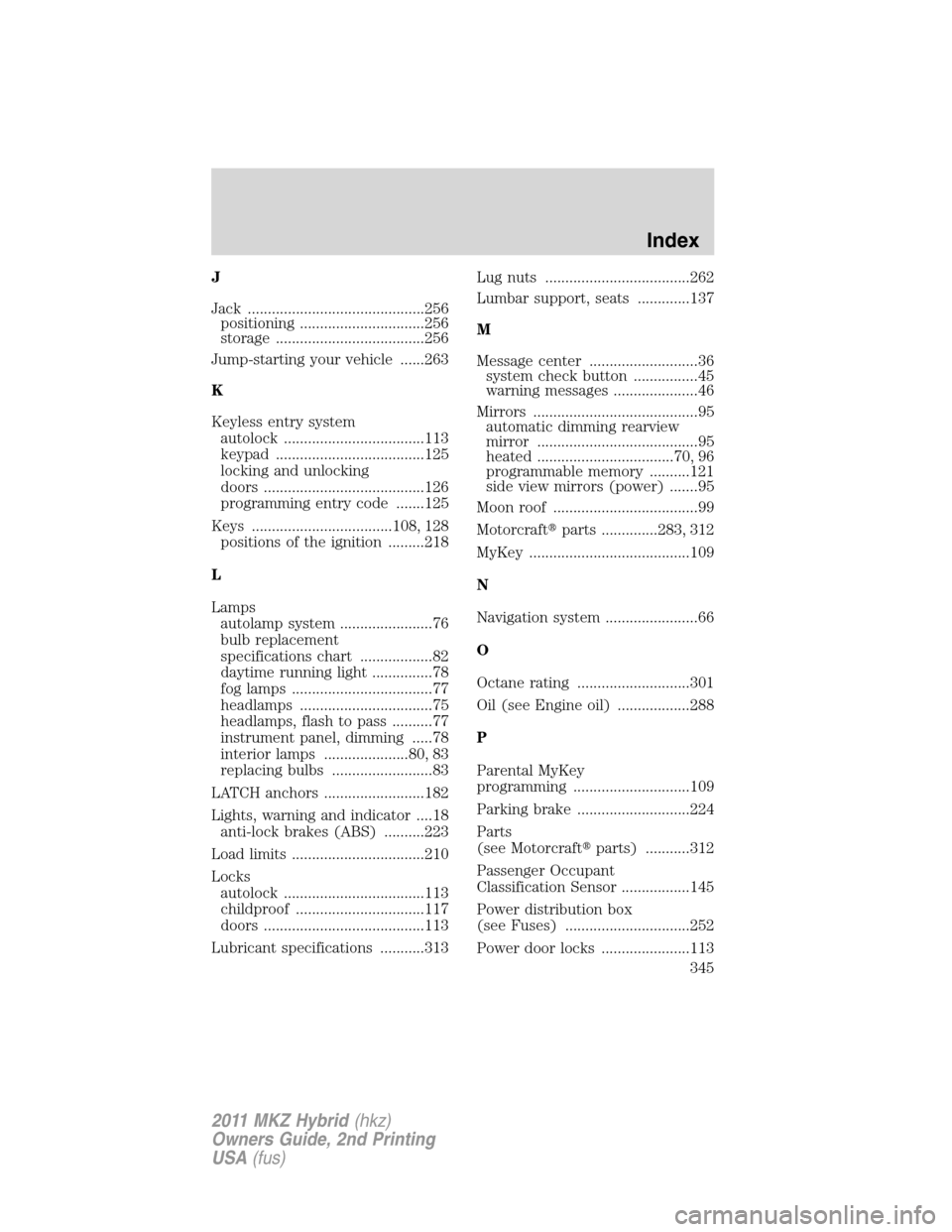

J
