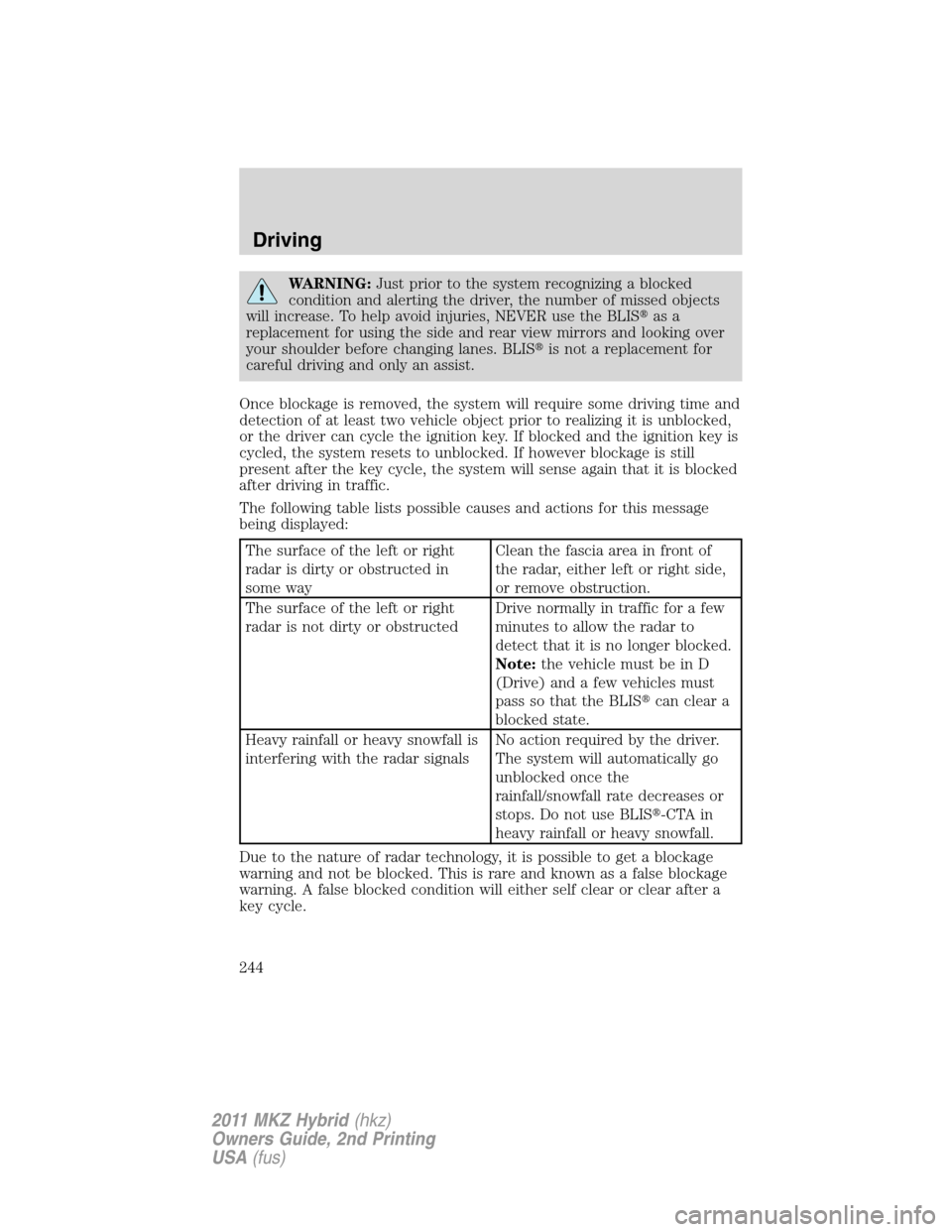

WARNING:Just prior to the system recognizing a blocked
condition and alerting the driver, the number of missed objects
will increase. To help avoid injuries, NEVER use the BLISas a
replacement for using the side and rear view mirrors and looking over
your shoulder before changing lanes. BLISis not a replacement for
careful driving and only an assist.
Once blockage is removed, the system will require some driving time and
detection of at least two vehicle object prior to realizing it is unblocked,
or the driver can cycle the ignition key. If blocked and the ignition key is
cycled, the system resets to unblocked. If however blockage is still
present after the key cycle, the system will sense again that it is blocked
after driving in traffic.
The following table lists possible causes and actions for this message
being displayed:
The surface of the left or right
radar is dirty or obstructed in
some wayClean the fascia area in front of
the radar, either left or right side,
or remove obstruction.
The surface of the left or right
radar is not dirty or obstructedDrive normally in traffic for a few
minutes to allow the radar to
detect that it is no longer blocked.
Note:the vehicle must be in D
(Drive) and a few vehicles must
pass so that the BLIScan clear a
blocked state.
Heavy rainfall or heavy snowfall is
interfering with the radar signalsNo action required by the driver.
The system will automatically go
unblocked once the
rainfall/snowfall rate decreases or
stops. Do not use BLIS-CTA in
heavy rainfall or heavy snowfall.
Due to the nature of radar technology, it is possible to get a blockage
warning and not be blocked. This is rare and known as a false blockage
warning. A false blocked condition will either self clear or clear after a
key cycle.
Driving
244
2011 MKZ Hybrid(hkz)
Owners Guide, 2nd Printing
USA(fus)
Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
12 7.5A Memory modules, Memory seat/mirrors
switches
13 5A SYNCmodule
14 10A Electronic finish panel (EFP) radio and
climate control buttons module,
Navigation display, Center information
display, GPS module, Ambient lighting
15 10A Climate control
16 15A Not used (spare)
17 20A Door locks, Trunk release
18 20A Heated seat module
19 25A Not used (spare)
20 15A On-Board Diagnostic connector
21 15A Fog lamps
22 15A Front sidemarker lamps, Park lamps,
License plate lamp
23 15A High beam headlamps
24 20A Horn
25 10A Demand lamps/power saver relay
26 10A Instrument cluster battery power
27 20A Ignition switch
28 5A Radio crank sense circuit
29 5A Instrument cluster ignition power
30 5A Not used (spare)
31 10A Not used (spare)
32 10A Restraint control module
33 10A Not used (spare)
34 5A Not used (spare)
35 10A Rear park assist, Blind spot information
system, Rearview camera
36 5A Passive anti-theft sensor (PATS)
transceiver
