Throttle Control/Powertrain
malfunction (RTT):Illuminates
when a powertrain fault has been
detected. If the indicator stays on or
continues to come on, contact your
authorized dealer as soon as possible.
Door ajar (RTT):Displays when
the ignition is in the on position and
any door is not completely closed. A
message may also display in the
message center.
Turn signal:Illuminates when the
left or right turn signal or the
hazard lights are turned on. If the
indicators flash faster, check for a burned out bulb.
High beams:Illuminates when the
high beam headlamps are turned on.
Key-in-ignition warning chime:Sounds when the key is left in the
ignition in the off, lock or accessory position and the driver’s door is
opened.
Headlamps on warning chime:Sounds when the headlamps or parking
lamps are on, the ignition is off (the key is not in the ignition) and the
driver’s door is opened.
Parking brake on warning chime:Sounds when the parking brake is
left on and the vehicle is driven. If the warning stays on after the park
brake is off, contact your authorized dealer as soon as possible.
Turn signal on warning chime:Sounds when the turn signal has been
left on for an extended period of time.
HEV Engine off reminder chime:Sounds for 10 seconds when the
PRNDL is in the P (Park) position and the Driver’s door is ajar (open)
while ignition is on. Always turn your ignition key to off and remove key
before leaving your vehicle. (The engine may be off when the vehicle is
stopped, yet the key is on, and the engine can turn on at any time)
Message center activation chime:Sounds when some messages
appear in the message center display for the first time.
Memory seat feedback chime:Sounds during memory seat
programming to confirm that a memory position has been set.
Perimeter alarm warning chime:Sounds when using a key to unlock
the driver’s doors and the perimeter alarm is armed.
Instrument Cluster
24
2011 MKZ Hybrid(hkz)
Owners Guide, 2nd Printing
USA(fus)

THX:Your vehicle may be equipped
with the THXII certified premium
audio system. This system creates
optimal acoustic quality for all
seating positions and road
conditions. The system offers an
advanced speaker system,
amplifiers, subwoofer and
equalization.
Setting the clock
CLOCK:Press to set the clock. The display will read SET TIME. Use the
memory preset numbers (0–9) to enter in the desired time– hours and
minutes and press OK. The clock will then begin from that time.
AM/FM Radio
/ VOL (Power/Volume):Press to turn the radio on/off. Turn the
knob to increase/decrease volume.
If the volume is set above a certain level and the ignition is turned off,
the volume will come back on at a nominal listening level when the
ignition is turned back on.
AM/FM:Press repeatedly to select AM/FM1/FM2 frequency band.
TUNE:Turn the knob to go up/down the frequency band in individual
increments.
DIRECT:Press DIRECT and then select the desired radio frequency
(i.e. 93.9) using the memory preset numbers (0–9).
SEEK:Press
SEEKto access the previous/next strong radio
station.
SCAN:Press for a brief sampling of all strong radio stations.
MEMORY PRESETS (0–9):When tuned to any station, press and hold
a preset button until sound returns and PRESET # SAVED appears in
the display. You can save up to 30 stations, 10 in AM, 10 in FM1 and
FM2.
Saving presets automatically:Autoset allows you to set the strongest
local radio stations without losing your original manually set preset
stations for AM/FM1/FM2.
To activate the autoset feature:Press MENU repeatedly until AUTO
PRESET ON/OFF appears in the display. Use
SEEKto switch
AUTO PRESET to ON, and either wait five seconds for the search to
Entertainment Systems
53
2011 MKZ Hybrid(hkz)
Owners Guide, 2nd Printing
USA(fus)

To adjust your mirrors:
1. Rotate the control clockwise to
adjust the right mirror and rotate
the control counterclockwise to
adjust the left mirror.
2. Move the control in the direction
you wish to tilt the mirror.
3. Return to the center position to lock mirrors in place.
Memory feature
The power side view mirror positions are saved when doing a memory
set and can be recalled using the memory feature. Refer toFront
seatingin theSeating and Safety Restraintschapter.
Automatic dimming feature
The driver’s side view mirror has an auto-dimming function. For more
information, refer toAutomatic dimming interior rear view mirrorin
this chapter.
Heated outside mirrors
Both mirrors are heated automatically to remove ice, mist and fog when
the rear window defrost is activated.
Do not remove ice from the mirrors with a scraper or attempt to
readjust the mirror glass if it is frozen in place. These actions
could cause damage to the glass and mirrors.
Do not clean the housing or glass of any mirror with harsh
abrasives, fuel or other petroleum-based cleaning products.
Blind spot mirrors (if equipped)
Your vehicle may be equipped with blind spot mirrors or a blind spot
information system. Refer toBlind spot mirrorsorBlind spot
information system (BLIS) with cross traffic alert (CTA)in the
Drivingchapter.
SPEED CONTROL
With speed control set, you can maintain a set speed without keeping
your foot on the accelerator pedal.
WARNING:Do not use the speed control in heavy traffic or on
roads that are winding, slippery or unpaved.
Driver Controls
96
2011 MKZ Hybrid(hkz)
Owners Guide, 2nd Printing
USA(fus)

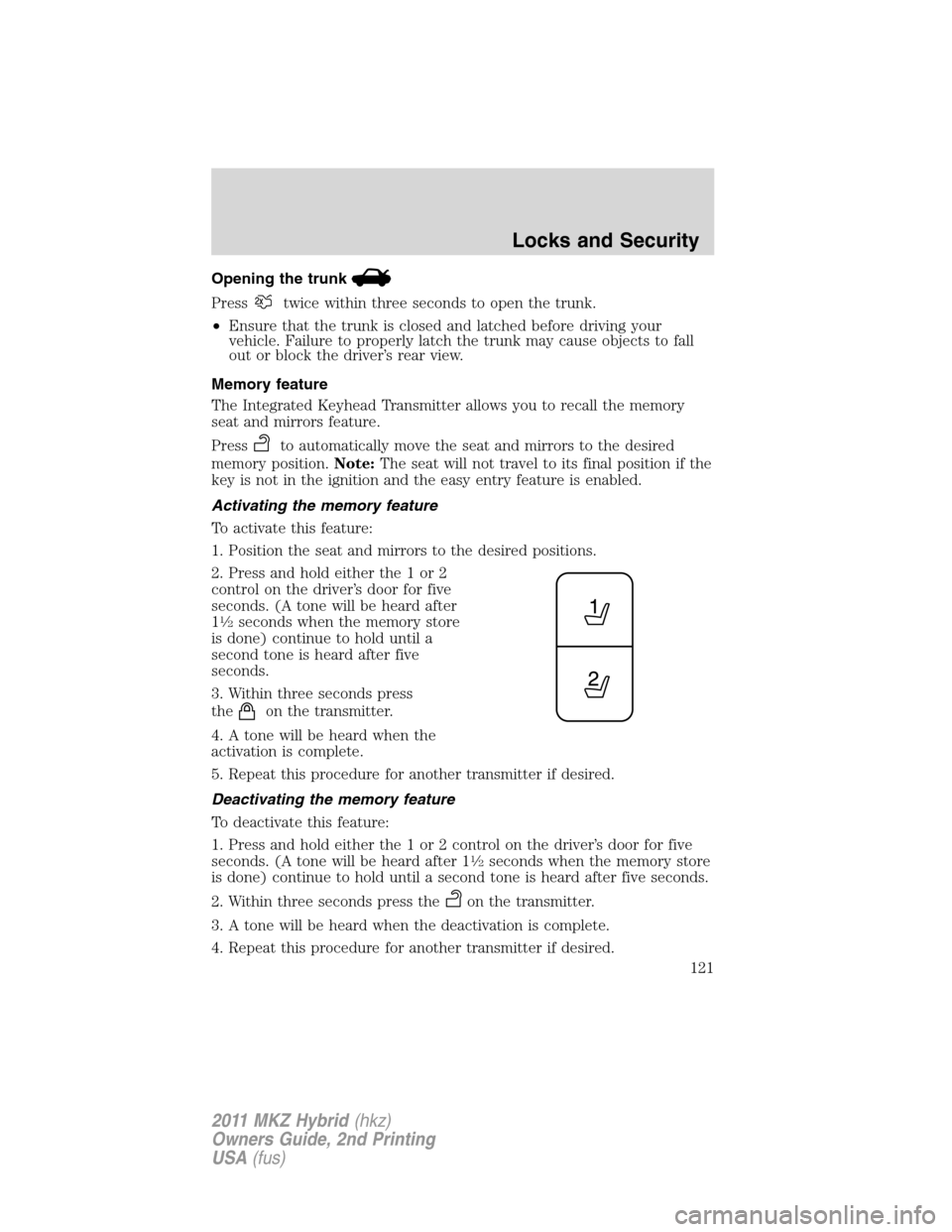

Opening the trunk
Presstwice within three seconds to open the trunk.
•Ensure that the trunk is closed and latched before driving your
vehicle. Failure to properly latch the trunk may cause objects to fall
out or block the driver’s rear view.
Memory feature
The Integrated Keyhead Transmitter allows you to recall the memory
seat and mirrors feature.
Press
to automatically move the seat and mirrors to the desired
memory position.Note:The seat will not travel to its final position if the
key is not in the ignition and the easy entry feature is enabled.
Activating the memory feature
To activate this feature:
1. Position the seat and mirrors to the desired positions.
2. Press and hold either the 1 or 2
control on the driver’s door for five
seconds. (A tone will be heard after
1
12seconds when the memory store
is done) continue to hold until a
second tone is heard after five
seconds.
3. Within three seconds press
the
on the transmitter.
4. A tone will be heard when the
activation is complete.
5. Repeat this procedure for another transmitter if desired.
Deactivating the memory feature
To deactivate this feature:
1. Press and hold either the 1 or 2 control on the driver’s door for five
seconds. (A tone will be heard after 1
12seconds when the memory store
is done) continue to hold until a second tone is heard after five seconds.
2. Within three seconds press the
on the transmitter.
3. A tone will be heard when the deactivation is complete.
4. Repeat this procedure for another transmitter if desired.
Locks and Security
121
2011 MKZ Hybrid(hkz)
Owners Guide, 2nd Printing
USA(fus)

•The battery saver will shut off the headlamps 10 minutes after the
ignition has been turned to the off position.
SECURICODE™ KEYLESS ENTRY SYSTEM
You can use the keyless entry
keypad to:
•lock or unlock the doors without
using a key.
•open the trunk.
•recall memory seat/power mirrors positions (if equipped).
The keypad can be operated with the factory set 5–digit entry code; this
code is located on the owner’s wallet card in the glove box and is
available from your authorized dealer. You can also create up to three of
your own 5–digit personal entry codes.
When pressing the controls on the keypad, press the middle of the
controls to ensure a good activation.
Programming a personal entry code and keypad association to
memory feature
To create your own personal entry code:
1. Enter the factory set code.
2. Within five seconds press the 1•2 on the keypad.
3. Enter your personal 5-digit code. Each number must be entered
within five seconds of each other.
4. For memory recall feature, enter the sixth digit 1•2 to store driver 1
settings or 3•4 to store driver 2 settings.
Note:Pressing 5•6, 7•8, or 9•0 keypad numbers as a sixth digit
will not recall a driver memory setting.
Note:The factory-set code cannot be associated with a memory setting.
5. The doors will lock then unlock to confirm that your personal entry
code has been programmed to the module.
Tips:
•Do not set a code that uses five of the same number.
•Do not use five numbers in sequential order.
•The factory set code will work even if you have set your own personal
code.
Locks and Security
125
2011 MKZ Hybrid(hkz)
Owners Guide, 2nd Printing
USA(fus)

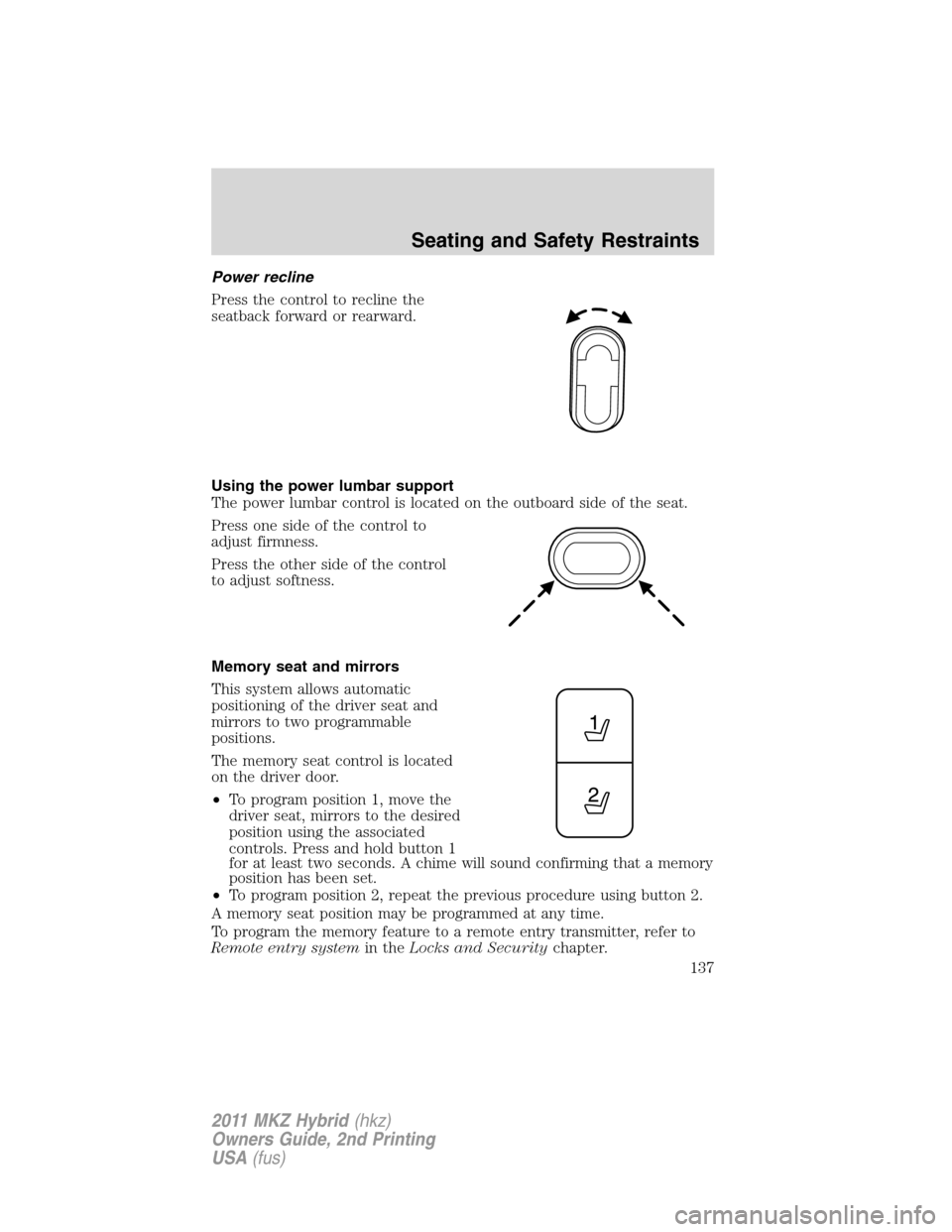

Power recline
Press the control to recline the
seatback forward or rearward.
Using the power lumbar support
The power lumbar control is located on the outboard side of the seat.
Press one side of the control to
adjust firmness.
Press the other side of the control
to adjust softness.
Memory seat and mirrors
This system allows automatic
positioning of the driver seat and
mirrors to two programmable
positions.
The memory seat control is located
on the driver door.
•To program position 1, move the
driver seat, mirrors to the desired
position using the associated
controls. Press and hold button 1
for at least two seconds. A chime will sound confirming that a memory
position has been set.
•To program position 2, repeat the previous procedure using button 2.
A memory seat position may be programmed at any time.
To program the memory feature to a remote entry transmitter, refer to
Remote entry systemin theLocks and Securitychapter.
Seating and Safety Restraints
137
2011 MKZ Hybrid(hkz)
Owners Guide, 2nd Printing
USA(fus)

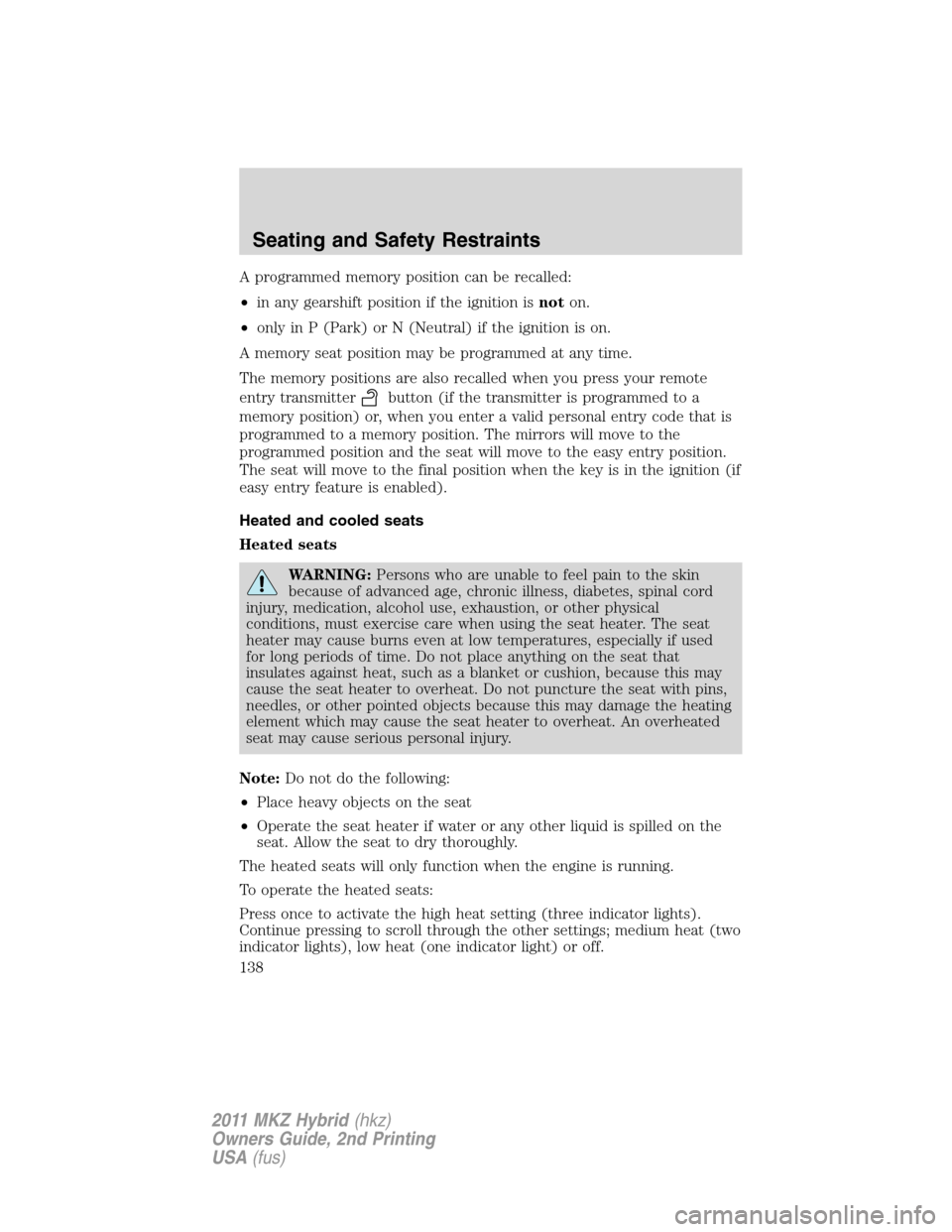

A programmed memory position can be recalled:
•in any gearshift position if the ignition isnoton.
•only in P (Park) or N (Neutral) if the ignition is on.
A memory seat position may be programmed at any time.
The memory positions are also recalled when you press your remote
entry transmitter
button (if the transmitter is programmed to a
memory position) or, when you enter a valid personal entry code that is
programmed to a memory position. The mirrors will move to the
programmed position and the seat will move to the easy entry position.
The seat will move to the final position when the key is in the ignition (if
easy entry feature is enabled).
Heated and cooled seats
Heated seats
WARNING:Persons who are unable to feel pain to the skin
because of advanced age, chronic illness, diabetes, spinal cord
injury, medication, alcohol use, exhaustion, or other physical
conditions, must exercise care when using the seat heater. The seat
heater may cause burns even at low temperatures, especially if used
for long periods of time. Do not place anything on the seat that
insulates against heat, such as a blanket or cushion, because this may
cause the seat heater to overheat. Do not puncture the seat with pins,
needles, or other pointed objects because this may damage the heating
element which may cause the seat heater to overheat. An overheated
seat may cause serious personal injury.
Note:Do not do the following:
•Place heavy objects on the seat
•Operate the seat heater if water or any other liquid is spilled on the
seat. Allow the seat to dry thoroughly.
The heated seats will only function when the engine is running.
To operate the heated seats:
Press once to activate the high heat setting (three indicator lights).
Continue pressing to scroll through the other settings; medium heat (two
indicator lights), low heat (one indicator light) or off.
Seating and Safety Restraints
138
2011 MKZ Hybrid(hkz)
Owners Guide, 2nd Printing
USA(fus)

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
12 7.5A Memory modules, Memory seat/mirrors
switches
13 5A SYNCmodule
14 10A Electronic finish panel (EFP) radio and
climate control buttons module,
Navigation display, Center information
display, GPS module, Ambient lighting
15 10A Climate control
16 15A Not used (spare)
17 20A Door locks, Trunk release
18 20A Heated seat module
19 25A Not used (spare)
20 15A On-Board Diagnostic connector
21 15A Fog lamps
22 15A Front sidemarker lamps, Park lamps,
License plate lamp
23 15A High beam headlamps
24 20A Horn
25 10A Demand lamps/power saver relay
26 10A Instrument cluster battery power
27 20A Ignition switch
28 5A Radio crank sense circuit
29 5A Instrument cluster ignition power
30 5A Not used (spare)
31 10A Not used (spare)
32 10A Restraint control module
33 10A Not used (spare)
34 5A Not used (spare)
35 10A Rear park assist, Blind spot information
system, Rearview camera
36 5A Passive anti-theft sensor (PATS)
transceiver
Roadside Emergencies
251
2011 MKZ Hybrid(hkz)
Owners Guide, 2nd Printing
USA(fus)

J
Jack ............................................256
positioning ...............................256
storage .....................................256
Jump-starting your vehicle ......263
K
Keyless entry system
autolock ...................................113
keypad .....................................125
locking and unlocking
doors ........................................126
programming entry code .......125
Keys ...................................108, 128
positions of the ignition .........218
L
Lamps
autolamp system .......................76
bulb replacement
specifications chart ..................82
daytime running light ...............78
fog lamps ...................................77
headlamps .................................75
headlamps, flash to pass ..........77
instrument panel, dimming .....78
interior lamps .....................80, 83
replacing bulbs .........................83
LATCH anchors .........................182
Lights, warning and indicator ....18
anti-lock brakes (ABS) ..........223
Load limits .................................210
Locks
autolock ...................................113
childproof ................................117
doors ........................................113
Lubricant specifications ...........313Lug nuts ....................................262
Lumbar support, seats .............137
M
Message center ...........................36
system check button ................45
warning messages .....................46
Mirrors .........................................95
automatic dimming rearview
mirror ........................................95
heated ..................................70, 96
programmable memory ..........121
side view mirrors (power) .......95
Moon roof ....................................99
Motorcraftparts ..............283, 312
MyKey ........................................109
N
Navigation system .......................66
O
Octane rating ............................301
Oil (see Engine oil) ..................288
P
Parental MyKey
programming .............................109
Parking brake ............................224
Parts
(see Motorcraftparts) ...........312
Passenger Occupant
Classification Sensor .................145
Power distribution box
(see Fuses) ...............................252
Power door locks ......................113
Index
345
2011 MKZ Hybrid(hkz)
Owners Guide, 2nd Printing
USA(fus)

Power mirrors .............................95
Power point .................................92
Power steering ..................229–230
Power Windows ...........................93
Power windows
opening using remote entry
system ...............................94, 120
R
Radio ............................................52
6-CD in dash .............................52
Rear-view camera system .........235
Recommendations for
attaching safety restraints for
children ......................................176
Relays ................................248, 255
Remote entry system ...............119
illuminated entry ............122, 124
locking/unlocking
doors ................................119–120
opening the trunk ...................121
opening the windows .......94, 120
panic alarm .............................120
replacement/additional
transmitters .............................122
replacing the batteries ...........122
Reverse sensing system ...........233
Roadside assistance ..................246
S
Safety belts (see Safety
restraints) ..........144, 147–150, 152
Safety Canopy ...........................167
Safety defects, reporting ..........275
Safety restraints .......................144,
147–150, 152Belt-Minder...........................153
extension assembly ................152
for adults .........................148–150
for children .............................173
Occupant Classification
Sensor ......................................145
warning light and chime ........153
Safety restraints - LATCH
anchors ......................................182
Safety seats for children ..........178
Safety Compliance
Certification Label ....................316
Satellite Radio .............................52
Satellite Radio Information ........64
Scheduled Maintenance Guide
Normal Scheduled
Maintenance and Log .............330
Seats ..........................................133
child safety seats ....................178
cleaning ...................................281
climate control ..................70, 139
easy access/easyout
feature .....................................140
front seats ...............................138
memory seat ...................121, 137
SecuriCode keyless entry
system ........................................125
SecuriLock passive anti-theft
system ........................................126
Servicing your vehicle ..............284
Setting the clock .........................53
Side air curtain .........................170
SOS Post Crash Alert ...............173
Spark plugs,
specifications .....................312, 315
Specification chart,
lubricants ...................................313
Index
346
2011 MKZ Hybrid(hkz)
Owners Guide, 2nd Printing
USA(fus)
