set clock LINCOLN MKZ HYBRID 2011 Owners Manual

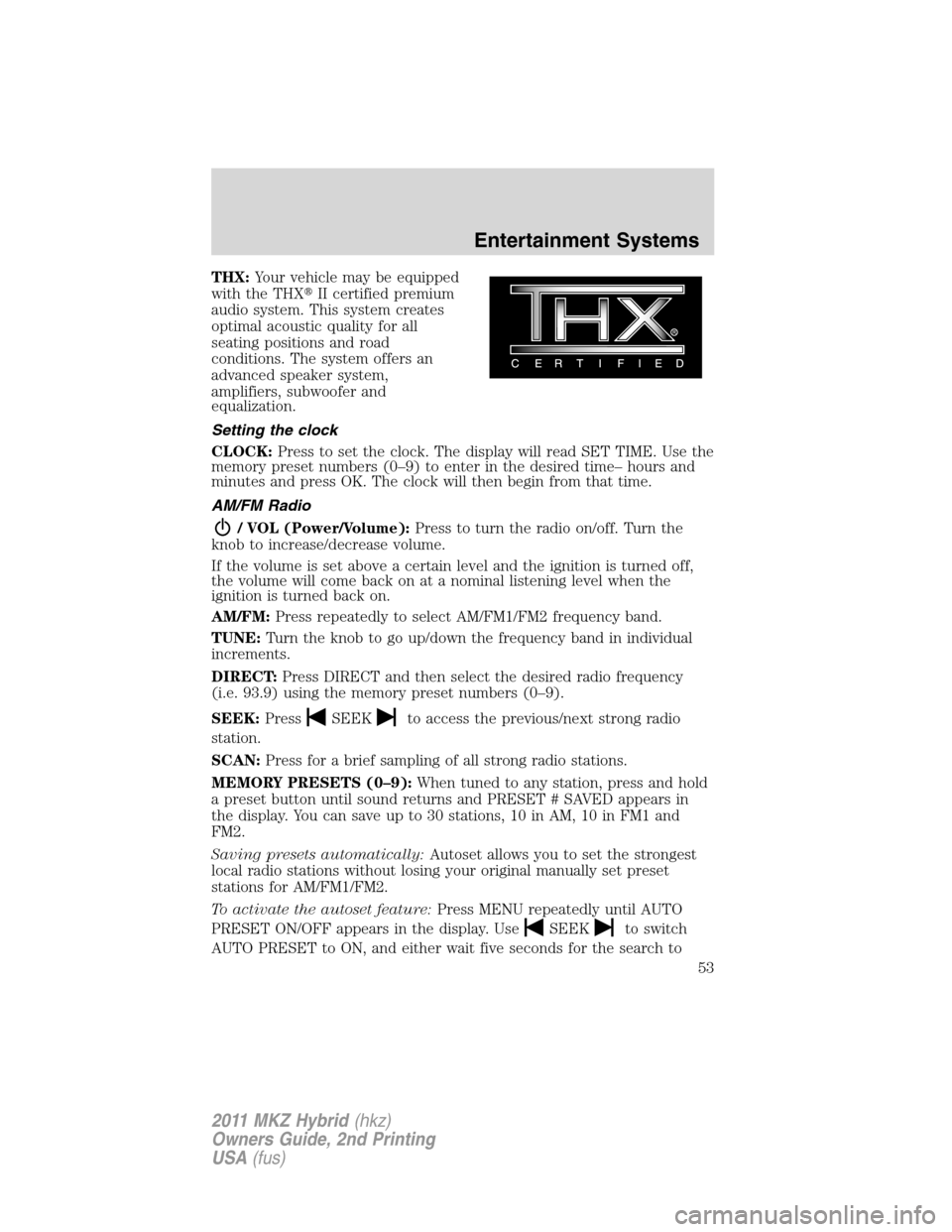

THX:Your vehicle may be equipped
with the THXII certified premium
audio system. This system creates
optimal acoustic quality for all
seating positions and road
conditions. The system offers an
advanced speaker system,
amplifiers, subwoofer and
equalization.
Setting the clock
CLOCK:Press to set the clock. The display will read SET TIME. Use the
memory preset numbers (0–9) to enter in the desired time– hours and
minutes and press OK. The clock will then begin from that time.
AM/FM Radio
/ VOL (Power/Volume):Press to turn the radio on/off. Turn the
knob to increase/decrease volume.
If the volume is set above a certain level and the ignition is turned off,
the volume will come back on at a nominal listening level when the
ignition is turned back on.
AM/FM:Press repeatedly to select AM/FM1/FM2 frequency band.
TUNE:Turn the knob to go up/down the frequency band in individual
increments.
DIRECT:Press DIRECT and then select the desired radio frequency
(i.e. 93.9) using the memory preset numbers (0–9).
SEEK:Press
SEEKto access the previous/next strong radio
station.
SCAN:Press for a brief sampling of all strong radio stations.
MEMORY PRESETS (0–9):When tuned to any station, press and hold
a preset button until sound returns and PRESET # SAVED appears in
the display. You can save up to 30 stations, 10 in AM, 10 in FM1 and
FM2.
Saving presets automatically:Autoset allows you to set the strongest
local radio stations without losing your original manually set preset
stations for AM/FM1/FM2.
To activate the autoset feature:Press MENU repeatedly until AUTO
PRESET ON/OFF appears in the display. Use
SEEKto switch
AUTO PRESET to ON, and either wait five seconds for the search to
Entertainment Systems
53
2011 MKZ Hybrid(hkz)
Owners Guide, 2nd Printing
USA(fus)

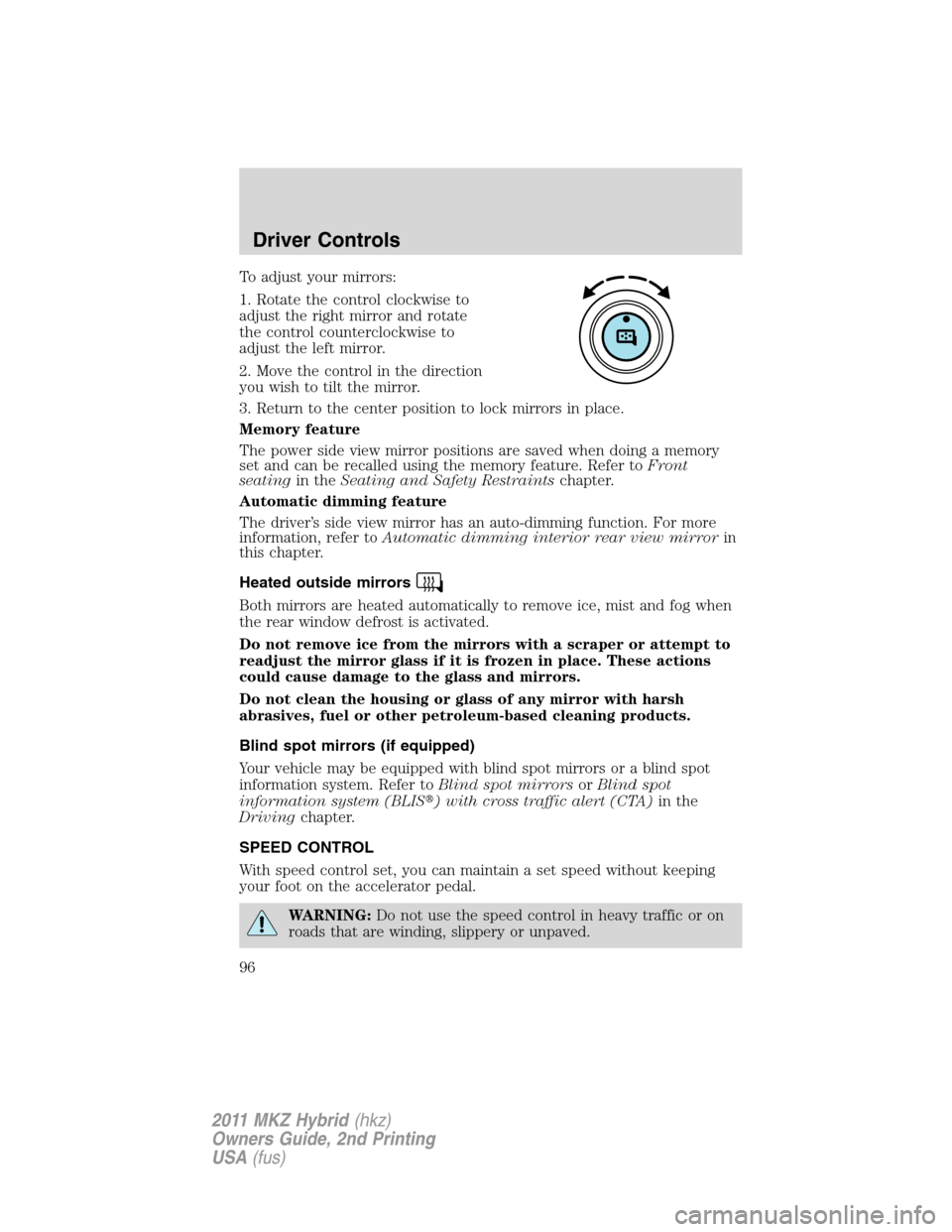

To adjust your mirrors:
1. Rotate the control clockwise to
adjust the right mirror and rotate
the control counterclockwise to
adjust the left mirror.
2. Move the control in the direction
you wish to tilt the mirror.
3. Return to the center position to lock mirrors in place.
Memory feature
The power side view mirror positions are saved when doing a memory
set and can be recalled using the memory feature. Refer toFront
seatingin theSeating and Safety Restraintschapter.
Automatic dimming feature
The driver’s side view mirror has an auto-dimming function. For more
information, refer toAutomatic dimming interior rear view mirrorin
this chapter.
Heated outside mirrors
Both mirrors are heated automatically to remove ice, mist and fog when
the rear window defrost is activated.
Do not remove ice from the mirrors with a scraper or attempt to
readjust the mirror glass if it is frozen in place. These actions
could cause damage to the glass and mirrors.
Do not clean the housing or glass of any mirror with harsh
abrasives, fuel or other petroleum-based cleaning products.
Blind spot mirrors (if equipped)
Your vehicle may be equipped with blind spot mirrors or a blind spot
information system. Refer toBlind spot mirrorsorBlind spot
information system (BLIS) with cross traffic alert (CTA)in the
Drivingchapter.
SPEED CONTROL
With speed control set, you can maintain a set speed without keeping
your foot on the accelerator pedal.
WARNING:Do not use the speed control in heavy traffic or on
roads that are winding, slippery or unpaved.
Driver Controls
96
2011 MKZ Hybrid(hkz)
Owners Guide, 2nd Printing
USA(fus)

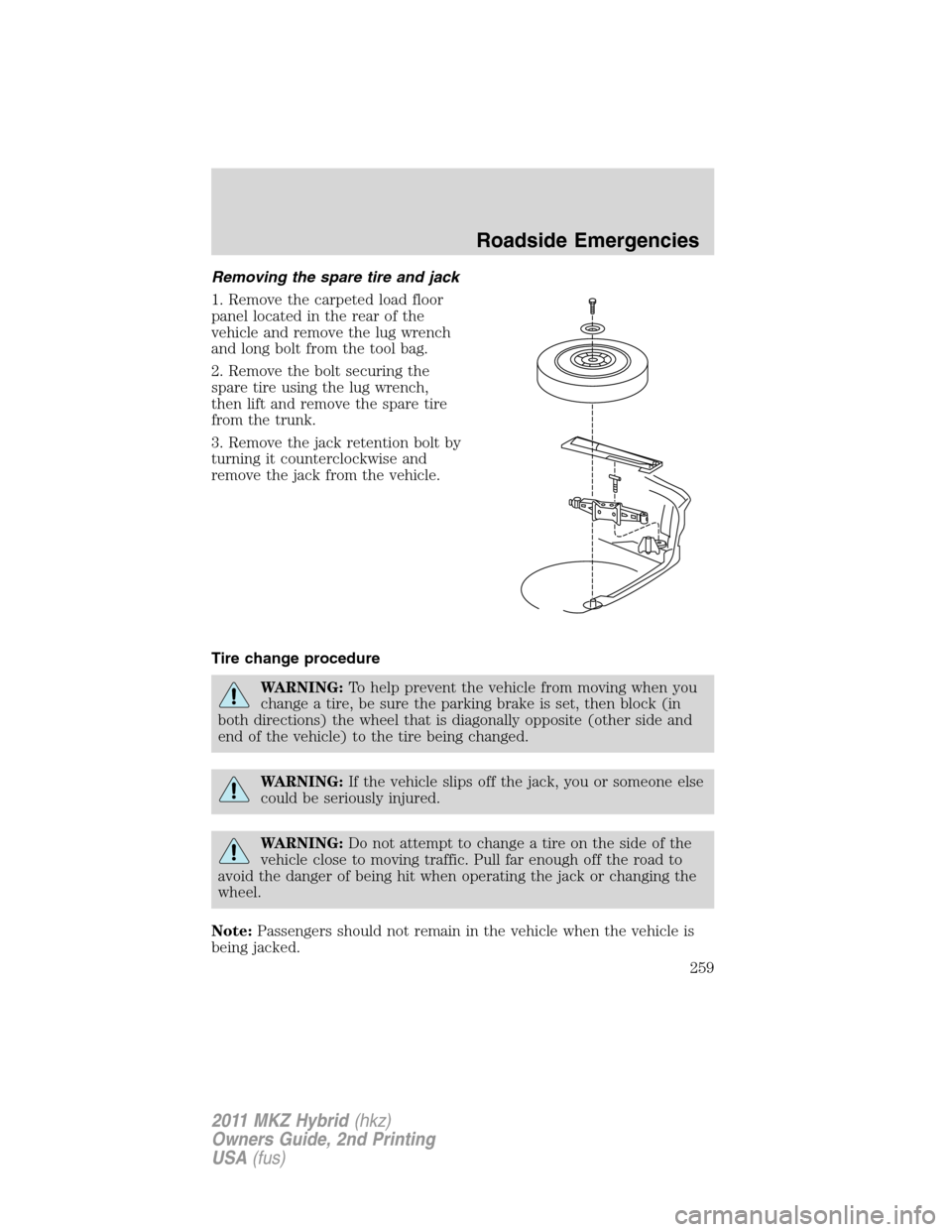

Removing the spare tire and jack
1. Remove the carpeted load floor
panel located in the rear of the
vehicle and remove the lug wrench
and long bolt from the tool bag.
2. Remove the bolt securing the
spare tire using the lug wrench,
then lift and remove the spare tire
from the trunk.
3. Remove the jack retention bolt by
turning it counterclockwise and
remove the jack from the vehicle.
Tire change procedure
WARNING:To help prevent the vehicle from moving when you
change a tire, be sure the parking brake is set, then block (in
both directions) the wheel that is diagonally opposite (other side and
end of the vehicle) to the tire being changed.
WARNING:If the vehicle slips off the jack, you or someone else
could be seriously injured.
WARNING:Do not attempt to change a tire on the side of the
vehicle close to moving traffic. Pull far enough off the road to
avoid the danger of being hit when operating the jack or changing the
wheel.
Note:Passengers should not remain in the vehicle when the vehicle is
being jacked.
Roadside Emergencies
259
2011 MKZ Hybrid(hkz)
Owners Guide, 2nd Printing
USA(fus)

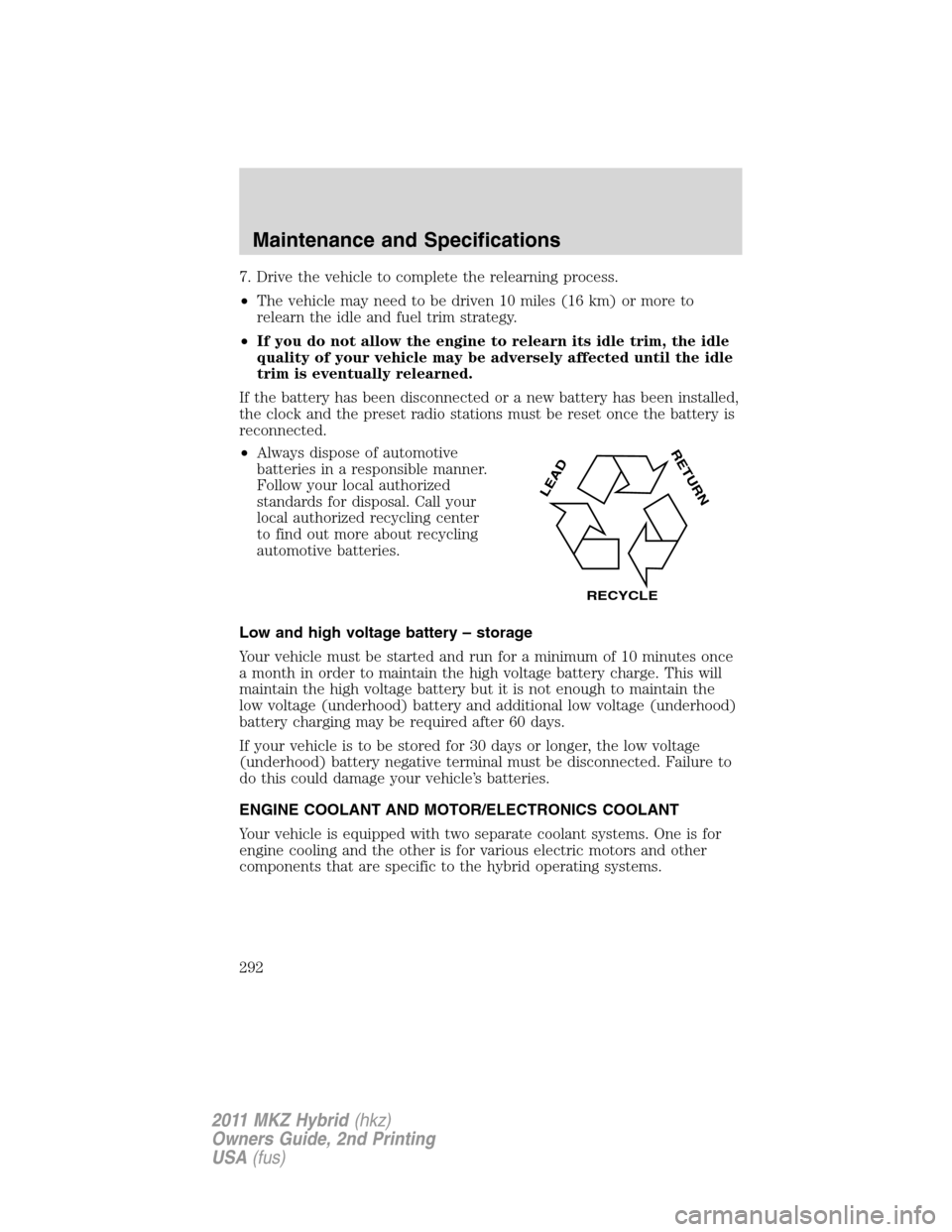

7. Drive the vehicle to complete the relearning process.
•The vehicle may need to be driven 10 miles (16 km) or more to
relearn the idle and fuel trim strategy.
•If you do not allow the engine to relearn its idle trim, the idle
quality of your vehicle may be adversely affected until the idle
trim is eventually relearned.
If the battery has been disconnected or a new battery has been installed,
the clock and the preset radio stations must be reset once the battery is
reconnected.
•Always dispose of automotive
batteries in a responsible manner.
Follow your local authorized
standards for disposal. Call your
local authorized recycling center
to find out more about recycling
automotive batteries.
Low and high voltage battery – storage
Your vehicle must be started and run for a minimum of 10 minutes once
a month in order to maintain the high voltage battery charge. This will
maintain the high voltage battery but it is not enough to maintain the
low voltage (underhood) battery and additional low voltage (underhood)
battery charging may be required after 60 days.
If your vehicle is to be stored for 30 days or longer, the low voltage
(underhood) battery negative terminal must be disconnected. Failure to
do this could damage your vehicle’s batteries.
ENGINE COOLANT AND MOTOR/ELECTRONICS COOLANT
Your vehicle is equipped with two separate coolant systems. One is for
engine cooling and the other is for various electric motors and other
components that are specific to the hybrid operating systems.
L
E
A
D
RETURN
RECYCLE
Maintenance and Specifications
292
2011 MKZ Hybrid(hkz)
Owners Guide, 2nd Printing
USA(fus)

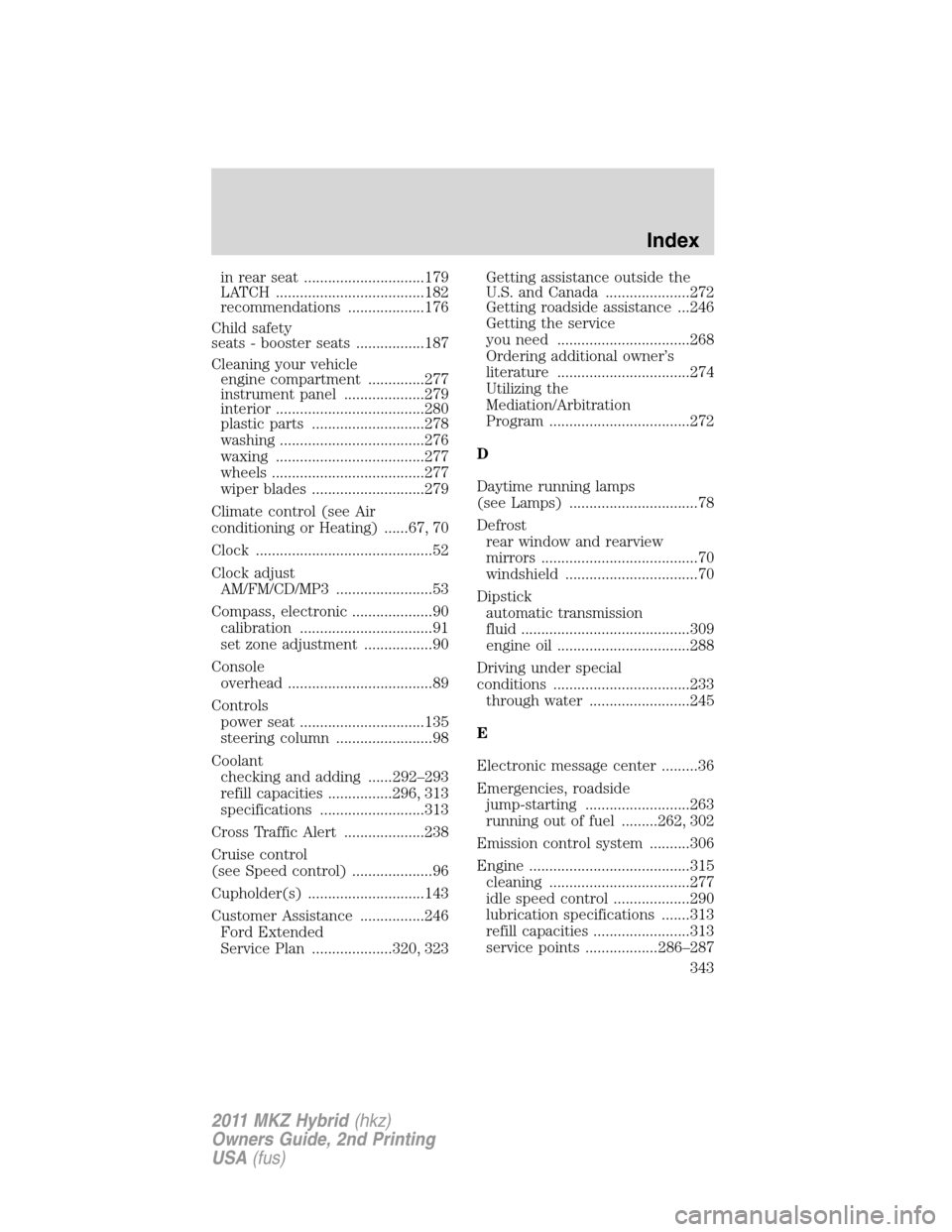

in rear seat ..............................179
LATCH .....................................182
recommendations ...................176
Child safety
seats - booster seats .................187
Cleaning your vehicle
engine compartment ..............277
instrument panel ....................279
interior .....................................280
plastic parts ............................278
washing ....................................276
waxing .....................................277
wheels ......................................277
wiper blades ............................279
Climate control (see Air
conditioning or Heating) ......67, 70
Clock ............................................52
Clock adjust
AM/FM/CD/MP3 ........................53
Compass, electronic ....................90
calibration .................................91
set zone adjustment .................90
Console
overhead ....................................89
Controls
power seat ...............................135
steering column ........................98
Coolant
checking and adding ......292–293
refill capacities ................296, 313
specifications ..........................313
Cross Traffic Alert ....................238
Cruise control
(see Speed control) ....................96
Cupholder(s) .............................143
Customer Assistance ................246
Ford Extended
Service Plan ....................320, 323Getting assistance outside the
U.S. and Canada .....................272
Getting roadside assistance ...246
Getting the service
you need .................................268
Ordering additional owner’s
literature .................................274
Utilizing the
Mediation/Arbitration
Program ...................................272
D
Daytime running lamps
(see Lamps) ................................78
Defrost
rear window and rearview
mirrors .......................................70
windshield .................................70
Dipstick
automatic transmission
fluid ..........................................309
engine oil .................................288
Driving under special
conditions ..................................233
through water .........................245
E
Electronic message center .........36
Emergencies, roadside
jump-starting ..........................263
running out of fuel .........262, 302
Emission control system ..........306
Engine ........................................315
cleaning ...................................277
idle speed control ...................290
lubrication specifications .......313
refill capacities ........................313
service points ..................286–287
Index
343
2011 MKZ Hybrid(hkz)
Owners Guide, 2nd Printing
USA(fus)

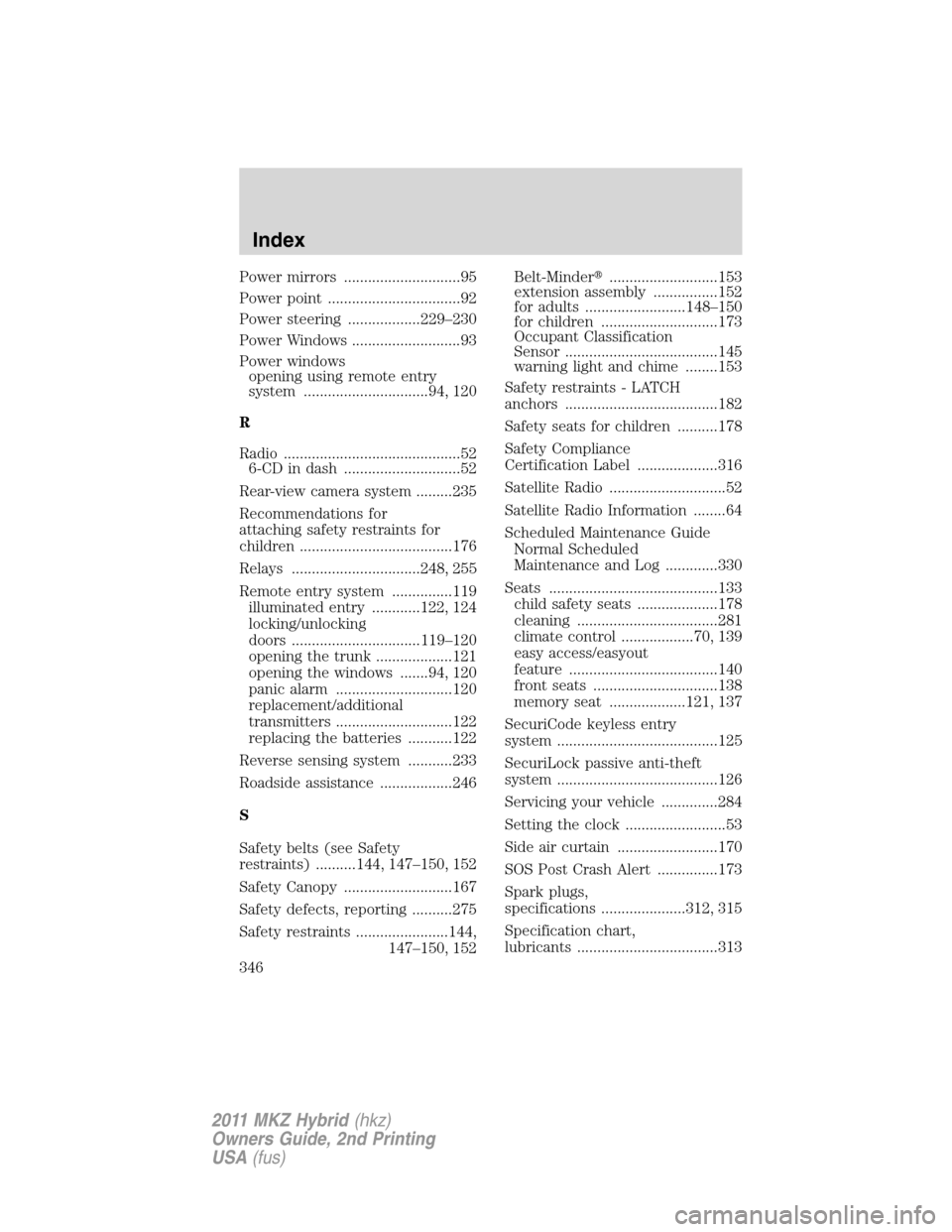

Power mirrors .............................95
Power point .................................92
Power steering ..................229–230
Power Windows ...........................93
Power windows
opening using remote entry
system ...............................94, 120
R
Radio ............................................52
6-CD in dash .............................52
Rear-view camera system .........235
Recommendations for
attaching safety restraints for
children ......................................176
Relays ................................248, 255
Remote entry system ...............119
illuminated entry ............122, 124
locking/unlocking
doors ................................119–120
opening the trunk ...................121
opening the windows .......94, 120
panic alarm .............................120
replacement/additional
transmitters .............................122
replacing the batteries ...........122
Reverse sensing system ...........233
Roadside assistance ..................246
S
Safety belts (see Safety
restraints) ..........144, 147–150, 152
Safety Canopy ...........................167
Safety defects, reporting ..........275
Safety restraints .......................144,
147–150, 152Belt-Minder...........................153
extension assembly ................152
for adults .........................148–150
for children .............................173
Occupant Classification
Sensor ......................................145
warning light and chime ........153
Safety restraints - LATCH
anchors ......................................182
Safety seats for children ..........178
Safety Compliance
Certification Label ....................316
Satellite Radio .............................52
Satellite Radio Information ........64
Scheduled Maintenance Guide
Normal Scheduled
Maintenance and Log .............330
Seats ..........................................133
child safety seats ....................178
cleaning ...................................281
climate control ..................70, 139
easy access/easyout
feature .....................................140
front seats ...............................138
memory seat ...................121, 137
SecuriCode keyless entry
system ........................................125
SecuriLock passive anti-theft
system ........................................126
Servicing your vehicle ..............284
Setting the clock .........................53
Side air curtain .........................170
SOS Post Crash Alert ...............173
Spark plugs,
specifications .....................312, 315
Specification chart,
lubricants ...................................313
Index
346
2011 MKZ Hybrid(hkz)
Owners Guide, 2nd Printing
USA(fus)
