Page 251 of 349

LINCOLN MKZ HYBRID 2012  Owners Manual FUEL PUMP SHUT-OFF
In the event of a moderate to severe collision, this vehicle is equipped
with a fuel pump shut-off feature that stops the flow of fuel to the
engine. Not every impact will cause a s

Page 252 of 349

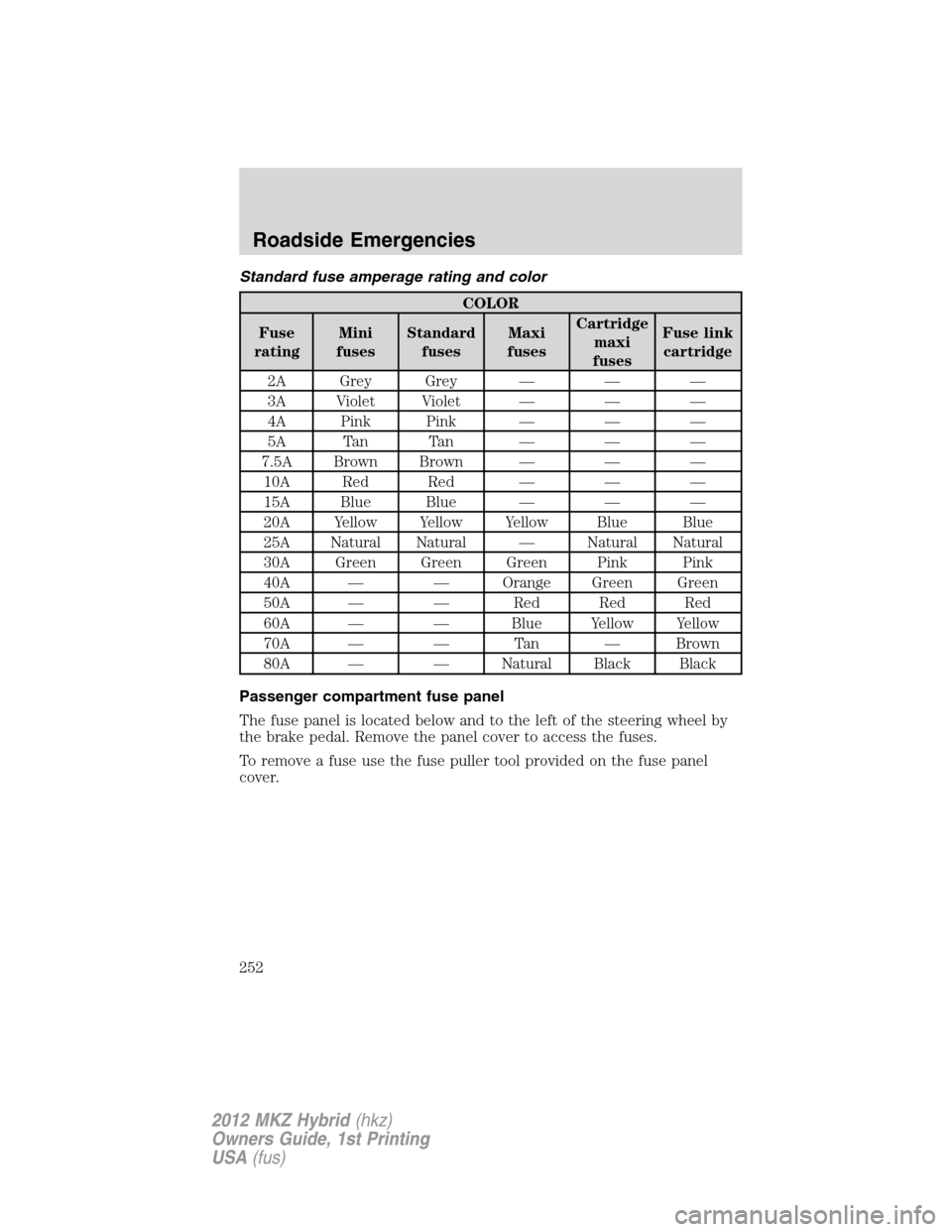

LINCOLN MKZ HYBRID 2012  Owners Manual Standard fuse amperage rating and color
COLOR
Fuse
ratingMini
fusesStandard
fusesMaxi
fusesCartridge
maxi
fusesFuse link
cartridge
2A Grey Grey — — —
3A Violet Violet — — —
4A Pink Pink

Page 253 of 349

LINCOLN MKZ HYBRID 2012  Owners Manual The fuses are coded as follows.
Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
1 30A Driver smart window motor
2 15A Brake on/off switch, Center
high-mounted stop lamp
3 15A HEV battery fan
4 30

Page 254 of 349

LINCOLN MKZ HYBRID 2012  Owners Manual Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
12 7.5A Memory modules, Memory seat/mirrors
switches
13 5A SYNCmodule
14 10A Electronic finish panel (EFP) radio
and climate control buttons modul

Page 255 of 349

LINCOLN MKZ HYBRID 2012  Owners Manual Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
37 10A Humidity sensor fan
38 20A Subwoofer amplifier
39 20A Radio
40 20A Not used (spare)
41 15A Automatic dimming mirror, Moon roof,
Compass, Fro

Page 256 of 349

LINCOLN MKZ HYBRID 2012  Owners Manual The high-current fuses are coded as follows.
Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
1 50A* Electronic power assist steering B+
2 50A* Electronic power assist steering B+
3 40A* Powertrai

Page 257 of 349

LINCOLN MKZ HYBRID 2012  Owners Manual Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
16 — Not used
17 10A** HEV high voltage battery module
18 — Not used
19 — Not used
20 20A* THX Radio
21 20A* THX Radio
22 20A* Console power

Page 258 of 349

LINCOLN MKZ HYBRID 2012  Owners Manual Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
44 G8VA relay Motor electronics coolant pump
45 15A** Injectors
46 15A** Coil on plugs
47 10A** Powertrain control module (general):
Heater pump, M

Page 259 of 349

LINCOLN MKZ HYBRID 2012  Owners Manual Relay Location Relay Type Function
3 High current
microBlower motor
4 High current
microRear window defogger
5 High current
microPowertrain control module
6 High current
microVacuum pump cut-off
7 Sol

Page 260 of 349

LINCOLN MKZ HYBRID 2012  Owners Manual Dissimilar spare tire/wheel information
WARNING:Failure to follow these guidelines could result in an
increased risk of loss of vehicle control, injury or death.
If you have a dissimilar spare tire/wh
